Breezesta CL-1200 User manual

REV00-1/19

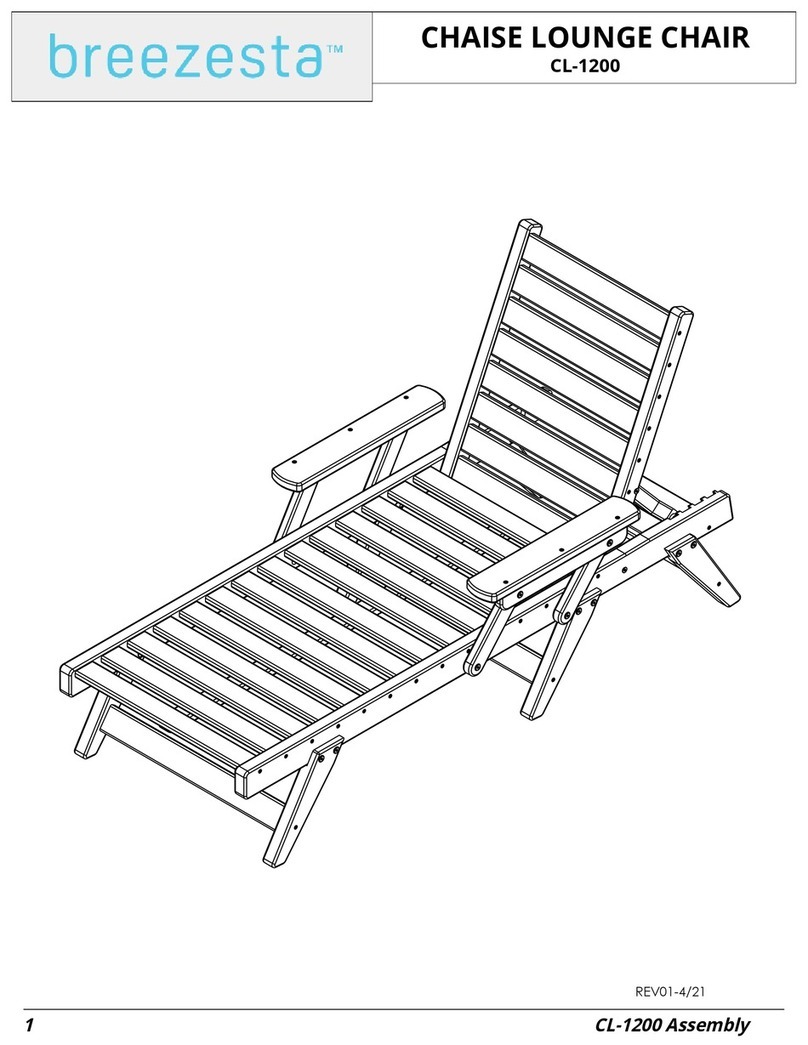

CHAISE LOUNGE CHAIR
CL-1200
1 CL-1200 Assembly
1-877-904-1234
www.Poly-Lumber-Furniture.com

A
B
C
D
E
a
b
c d e
Suggested Tools:
Drill, Plastic Mallet
PARTS
PART DESCRIPTION PART NO. QTY
A LEFT ARM ASSEMBLY SA-00133 1
B RIGHT ARM ASSEMBLY SA-00134 1
C SEAT BACK ASSEMBLY SA-00132 1
D SEAT ASSEMBLY SA-00131 1
E LEG ASSEMBLY SA-00130 3
HARDWARE
PART DESCRIPTION PART NO. QTY
a 1/4"-10 X 3" LAG SCREW H-0000-S103 2
b 5/16" X 2-1/8" CHAIR BOLT H-0000-CB516218 16
c LARGE WHITE NYLON WASHER H-0000-LWNW 6
d 5/16" STAINLESS LOCK NUT H-0000-LN516 4
e T20 & T25 TORX BIT H-0000-CTD 1
CL-1200 Assembly 2
1-877-904-1234
www.Poly-Lumber-Furniture.com

T25
b
x12
D
E
x3
1.
Place Parts E onto D as shown
3.
Attach Parts E to Part D using the
hardware shown
Please read entire instructions
before beginning
3 CL-1200 Assembly
1-877-904-1234
www.Poly-Lumber-Furniture.com

C
T25
a
x2
c
x2
A
B
T25
d
x4
c
x4
3.
Drop Part C into place and
secure it using Hardware a & c using
the pre-drilled holes
4.
Place Parts A & B onto the
assembly and attach it using the
hardware as shown
b
x4
Bottom View
Side View
