MAIN COMPONENTS
Hour hand Button

Minute hand Button

Small second hand Crown

Chronograph minute hand
Chronograph 1/5 second hand

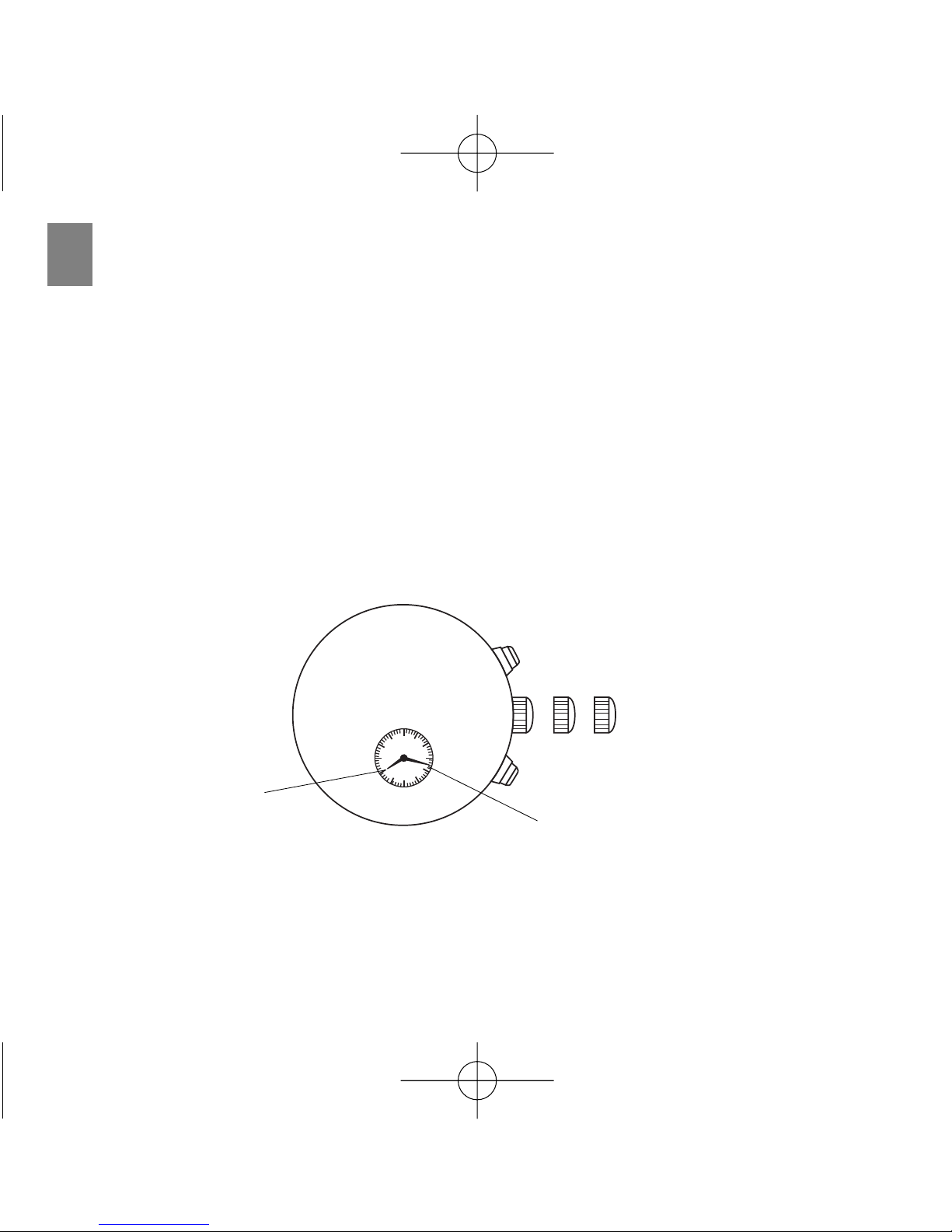

Alarm hour hand
Alarm minute hand
Date
2
A








CAL-YM62_GB_corretto 10-09-2003 10:08 Pagina 2

FEATURES
[TIME]
• indicated by hour, minute and small second hands.
[DATE]
• displayed in numerals
[CHRONOGRAPH]
• measures up to 60 minutes in 1/5 second increments.
• split time measurement
[ALARM]
• the alarm can be set to ring only once at the designated time within the coming 12 hours
3
B
Crown :
(1) normal position : free
(2) first click : date setting
(3) second click : time setting, adjusting the chronograph hand position and the
alarm hand.
CAL-YM62_GB_corretto 10-09-2003 10:08 Pagina 3

4
CSETTING THE TIME AND ADJUSTING
CHRONOGRAPH HAND POSITION
This watch is so designed that the time setting, the alarm hand adjustment and the
chronograph hand position adjustment are all made with the crown at the second click
position (2).
Once the crown is pulled out to the second click, be sure to make all the adjustments at the
same time.
[Time setting]

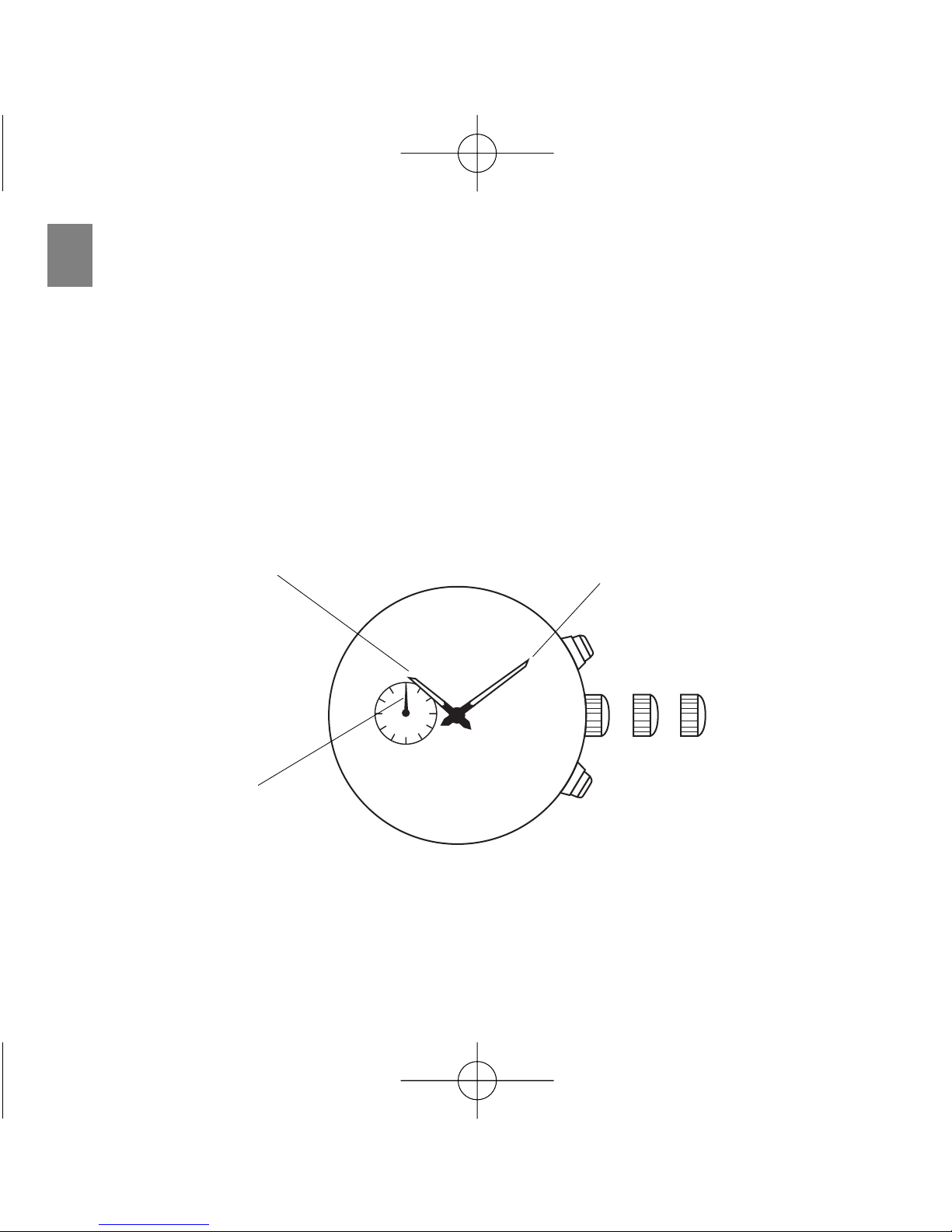

1. Unscrew the crown and pu it out to the second click when the small second hand is at
the 12 o’clock position. The cronograph is automatically reset to 0.
Small
second
hand
Hour hand Minute hand
CAL-YM62_GB_corretto 10-09-2003 10:08 Pagina 4

5
2. Turn the crown to set the hour and minute hands. It is recommended that the hands be
set to the time a few minutes ahead of the current time, taking into consideration the
time required to adjust the chronograph hand position if necessary.
3. If the alarm has been set and the crown is pulled out to the second click, the alarm
hands will turn to indicate the current time.
Note: • When setting the hour hand, be sure to check that AM/PM is correctly set. The
watch is so designed that the date changes once in 24 hour.
• When setting the minute hand, first advance it 4 to 5 minutes ahead of the desired
time and than turn it back to the exact minute.
[Alarm hands setting]
1. Press button to set the alarm hands to the time the main time hands indicate.
* The alarm hands move quickly if button is kept pressed

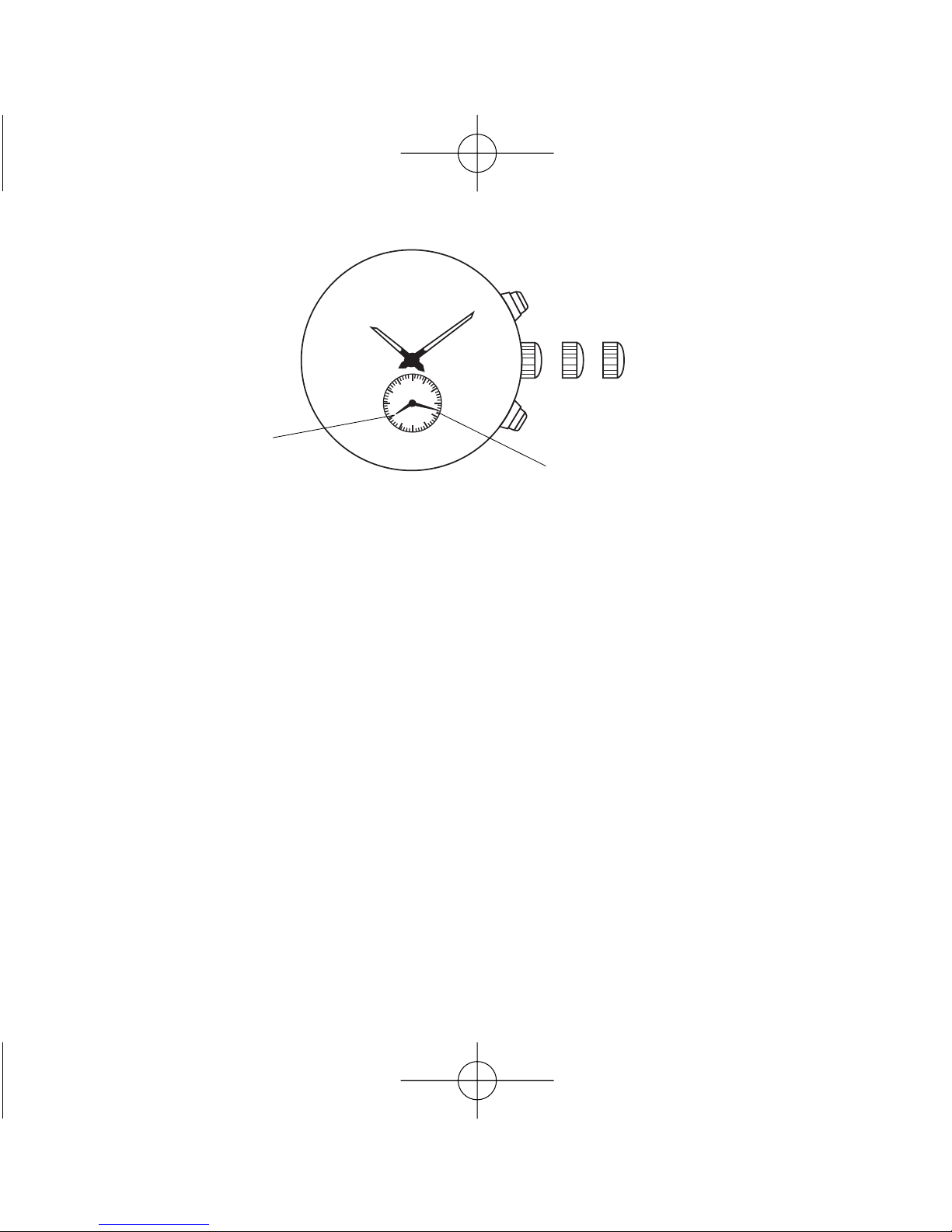

Alarm hour hand
Hour hand
Minute hand
Alarm minute hand


CAL-YM62_GB_corretto 10-09-2003 10:08 Pagina 5

[Chronograph hands setting]
If the chronograph hands are not in the “0” position, follow the procedure below to set
them to the “0” position:
1. Press button
 for 2 seconds.
*The selected minute hand turns a full circle.
2. Press button
 repeatedly to reset the chronograph hands to “0”.
The hands move quickly if button
 is kept pressed.
3. Press button
 for 2 seconds.
*The chronograph 1/5 second hand turns a full circle.
4. Press button
 repeatedly to reset the chronograph 1/5-second hands to “0”.
The hands move quickly if button
 is kept pressed.

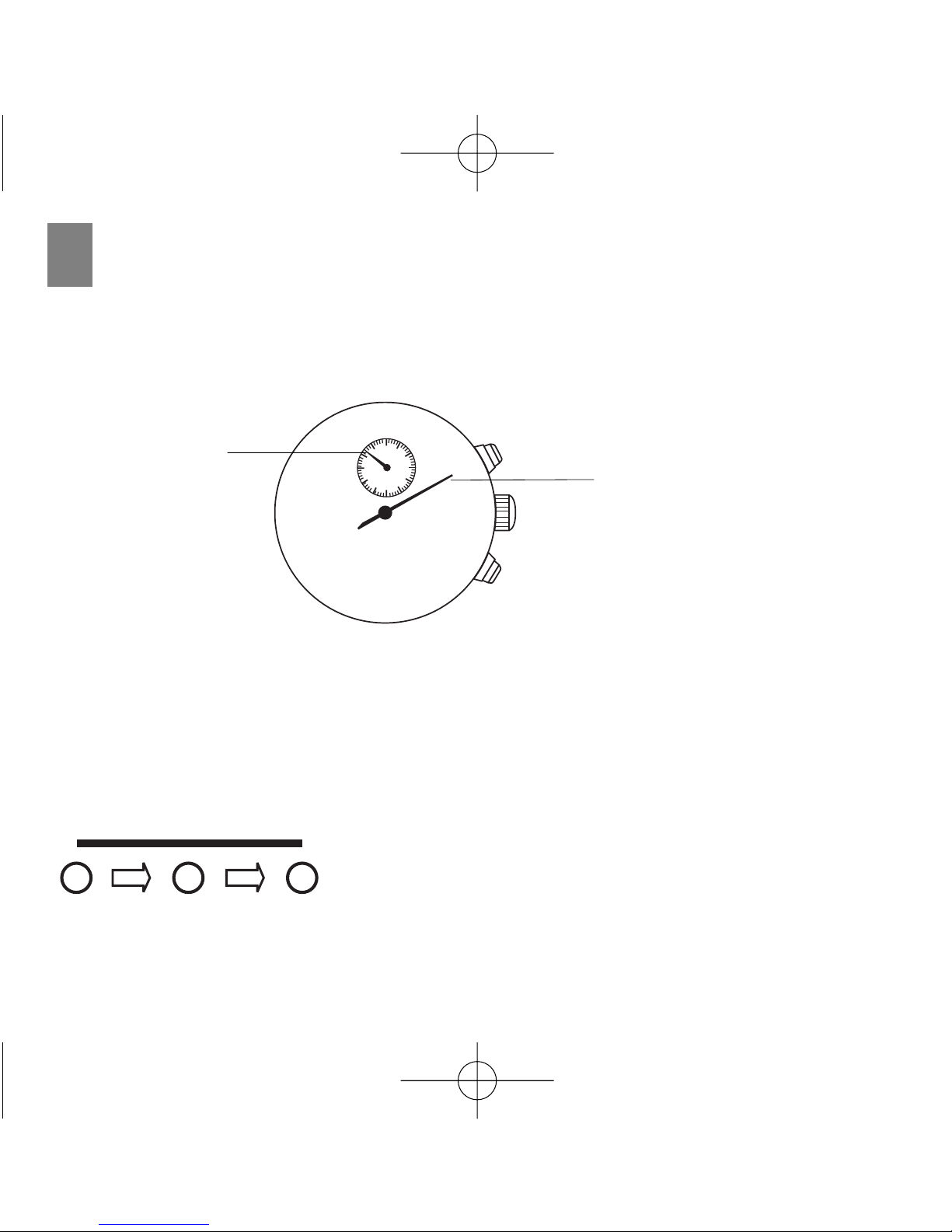

Chronograph 1/5
second hand
Chronograph minute hand


6
CAL-YM62_GB_corretto 10-09-2003 10:08 Pagina 6

7
The alarm and chronograph hands can be readjusted in the following order by pressing
button
 for 2 seconds:
* After all adjustments are completed, push the crown back in to the normal position in
accordance with a time signal, checking that the main time and the alarm hands
indicate the same time.
* Push the crown back in to the normal position in accordance with a time signal.
Alarm hands Chronograph
minute hand
Chronograph
1/5-second hand
*The alarm hands
advance 12 hours
*The chronograph minute
hand turns a full circle
*The chronograph
1/5-second hand turns
a full circle
CAL-YM62_GB_corretto 10-09-2003 10:08 Pagina 7

SETTING THE DATE
• Before setting the date, be sure to set the time.
1. Pull out the crown to the first click.
2. Turn the crown clockwise until the desired date appears.
3. Push the crown back in to the normal position.
Note: Do not set the date between 9:00 p.m.and 01.00 a.m. Otherwise the date may
not change properly
1. It is necessary to adjust the date at the end of February and 30-days months.
2. Do not set the date between 9:00 p.m.and 01.00 a.m. Otherwise the date may not
change properly.
3. Do not press button
 when the crown is at the first click position as this will move
the alarm hands.

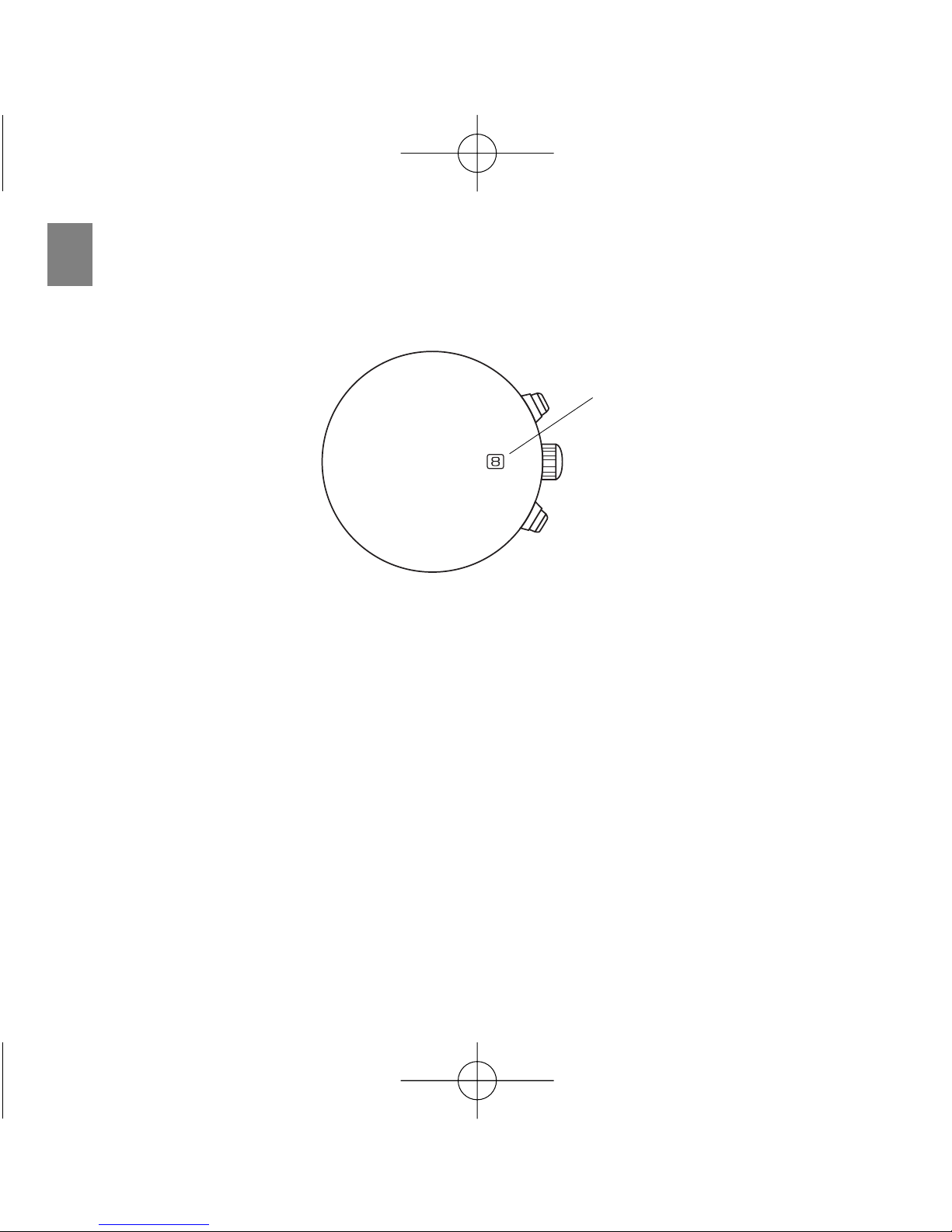

Date
D
8
CAL-YM62_GB_corretto 10-09-2003 10:08 Pagina 8

CHRONOGRAPH
• The chronograph can measures up to 12 hours in 1/5-second increments.
• When the measurement reaches 12 hours, the chronograph automatically stops counting.
• Before using the chronograph, be sure to check that the crown is set at the normal
position and that the chronograph hands are reset to the “0” position.
• To reset the chronograph hands to the “0” position, follow the procedure in
Chronograph hands setting.
CHRONOGRAPH OPERATION
[Standard measurement]
E
Chronograph
minute hand Chronograph 1/5-second hand


AAB
Start Stop Reset
9
CAL-YM62_GB_corretto 10-09-2003 10:08 Pagina 9

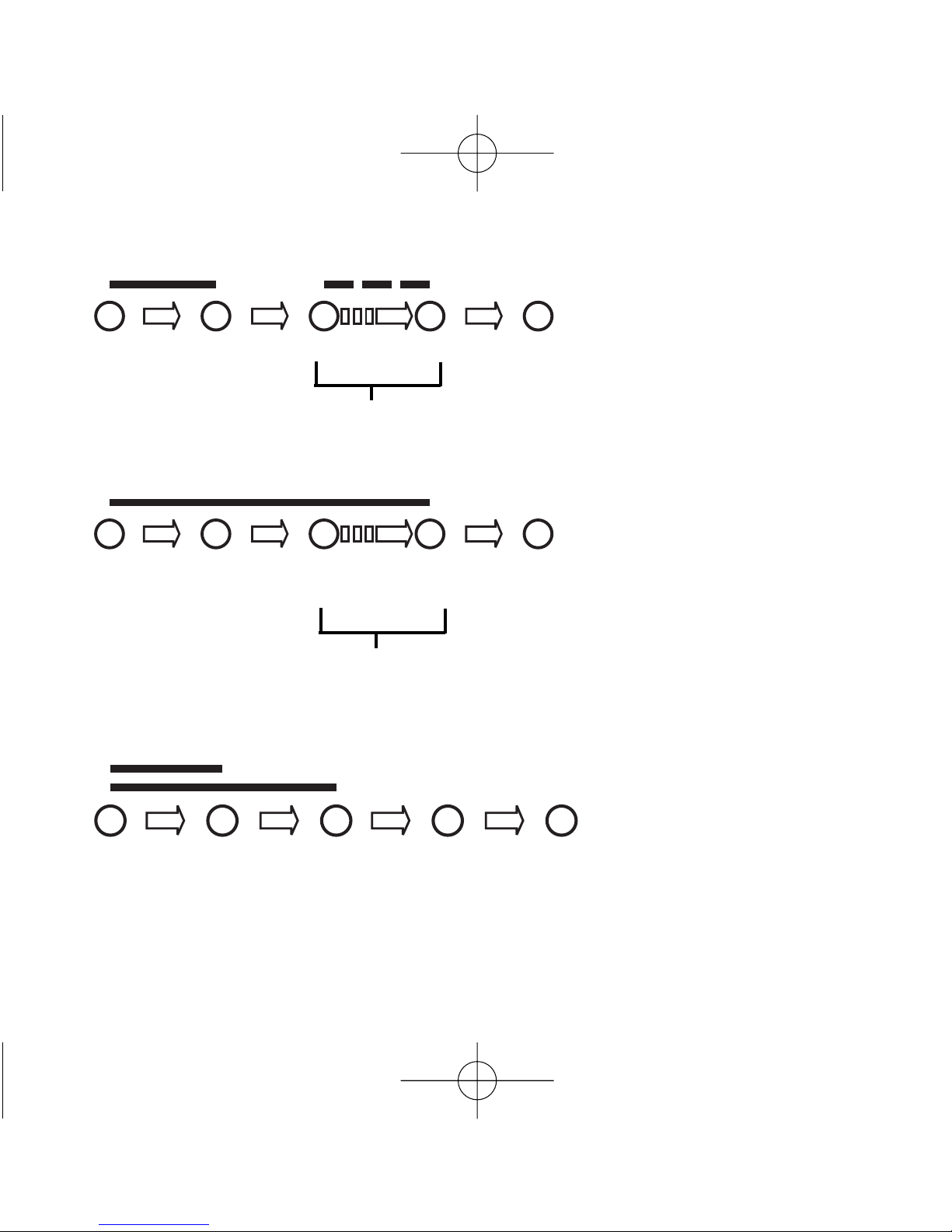

AAAAB
Start Stop Restart Stop Reset
Restart and stop of chronograph can be repeated by
pressing button .
ABBAB
Start Release Stop Reset
Split
time
Measurement and release of split time can be repetead by pressig button .
ABABB
Start 2nd
competitor
finishes
Finish
time of 2nd
competitor
Reset
Finish time
of 1st
competitor
[Accumulated elapsed time measurement]
[Split time measurement]
[Measurement of two competitors]
10
CAL-YM62_GB_corretto 10-09-2003 10:08 Pagina 10

11
ALARM
The alarm can be set to ring only once at a designated time within the coming 12 hours.
The alarm time can be set in one minute increments.
[Alarm time setting]
Before using the alarm, check that the alarm hands are adjusted to the current time.
For further information, see [Setting the time and adjusting chronograph hand
position].
F
Alarm hour hand
Alarm minute hand


CAL-YM62_GB_corretto 10-09-2003 10:08 Pagina 11

12
1. Pull out the crown to the first click.
2. Press and hold button to set the desired alarm time.
* * The alarm hands move quickly if button is kept pressed
3. Push the crown back in to normal position.
Note: The single time alarm cannot be set to a time more than 12 hours ahead of the
current time. While you keep button pressed to advance the alarm hands
quickly, they stop when they indicate the current time and the alarm is
disengaged. In this case, release button and then press and hold the button
again to set the alarm hands to the desired time.
When the crown is at the normal position, the alarm hands indicate the current
time when the alarm is disengaged and the designated alarm time when it is
engaged.
CAL-YM62_GB_corretto 10-09-2003 10:08 Pagina 12

13
[How to stop the alarm]
At the designated time the alarm rings for 20 seconds and it is automatically
disengaged as it stops. To stop it manually, press button or .
While the chronograph is measuring, the alarm rings differently than usual. While the
alarm is ringing, pressing button or will only stop the alarm and no chronograph
operation can be made.
[How to cancel the alarm time you have set]
1. Pull out the crown to the first click.
2. Press and hold button until the alarm hands stop and indicate the current time.
3. Push the crown back in to normal position.
To change the alarm time, follow the procedure in [Alarm time setting].
Alarm hour hand
Alarm minute hand


CAL-YM62_GB_corretto 10-09-2003 10:08 Pagina 13

14
TACHYMETER*
The Tachymeter is used to measure the speed of a vehicle. By knowing how many
seconds the vehicle to travel one kilometre, the tachymeter can measure the
approximate average speed in km/h during a journey (over a maxinum measurable time
of 60 seconds).
If the chronograph is started at the same time as the start of the distance measurement,
and stopped after 1km, the average speed can be calculated from the position of the
second hand. If the vehicle covers the distance one km in 45 seconds, the approximate
average speed is 80 km/h.
* Not available on all models
G
CAL-YM62_GB_corretto 10-09-2003 10:08 Pagina 14

TELEMETER*
The Telemeter is a distance indicator which allows distance to be calculated on the
basis of the speed of sound. It is useful, therefore, for aviation, navy, army and artillery
purposes. It can also measure how far away a thunderstorm is.
The hand is started the second a flash, smoke or lightning is seen and stopped when
the actual sound is heard. The distance, from 1 to 20 kilometres, between the observer
and the explosion or storm is read from the telemetry scale.
* Not available on all models.
15
H
CAL-YM62_GB_corretto 10-09-2003 10:08 Pagina 15

16
PRECAUTIONS AND USEFUL INFORMATION
I
- In order to prevent water coming into contact with the internal mechanism, never
pull the crown out when the watch is wet.
- If any watches designed for sportswear or use in water come into contact with salt
water or heavy sweating, they should be rinsed in fresh water and dried
thoroughly.
Indication Use
“WATER RESISTANT”may sometimes be abbreviated to “WATER RESIST”
A
B
C
D
E
Dial
-
WATER RESISTANT
30M (3ATM)
WATER RESISTANT
50M (5ATM)
WATER RESISTANT
100M (10ATM)
WATER RESISTANT
200M (20ATM) or more
Case
-
WATER RESISTANT
WATER RESISTANT
WATER RESISTANT
WATER RESISTANT
Spray, sweat, light
rain, washing, etc.
NO
YES
YES
YES
YES
Swimming,
etc.
NO
NO
YES
YES
YES
Degree of water resistance
CAL-YM62_GB_corretto 10-09-2003 10:08 Pagina 16
