Manual Brel special bi-directional roller shutter motor
Type BRE45
Read the manual before you begin the installation. f these instructions are not followed,
this may lead to defects and injury in which warranty can’t be claimed.
warning:
Children cannot recognize the dangers of electrical equipment and may therefore not work with it.
t is important to follow this instruction for your own safety.
1. Do not operate the motor in humid surroundings.
2. The motor must be installed correctly.
3. eep the antenna in a good condition and do not shorten.
The antenna should not come into contact with other metal
parts otherwise it will reduce the effect.
4. The motor must be protected from direct moisture influences.
5. BREL-Motors declares that this motor has been manufactured according to the guidelines of the CE standard 1999/5/EC.
_______________________________________________________________________________
Wiring
_______________________________________________________________________________
Functions remote control Changing batteries
DD-2702H
Works with all BREL transmitters:
Visit our website www.BREL-HOME.com
for more manuals and information
_________________________________________________________________________________
Technical data of the motor BRE45-10 BRE45-20 BRE45-40
 Voltage: 230V 230V 230V
 Power: 112W 198W 198W
 Torque: 10Nm 20Nm 40Nm
 Maximum motor runtime: 4 min. 4 min. 4 min.
 Speed: 15rpm 15rpm 15rpm
 Amperage: 0.49A 0.69A 0.86A
 Safety class:: H H H
 Moisture and dust protection: IP44 IP44 IP44
 Temperature reach : Normal use: -10℃ tot +40℃
Scan the QR code here for
the manual to download
and view instructional videos
BRE45-10 BRE45-20 BRE45-40
NOTE: f the motor has
been running continuously
for 4 minutes, it may
become too hot and then
stop. After approximately
one hour half an hour, this
one will continue to run.

Page 2
_______________________________________________________________________________

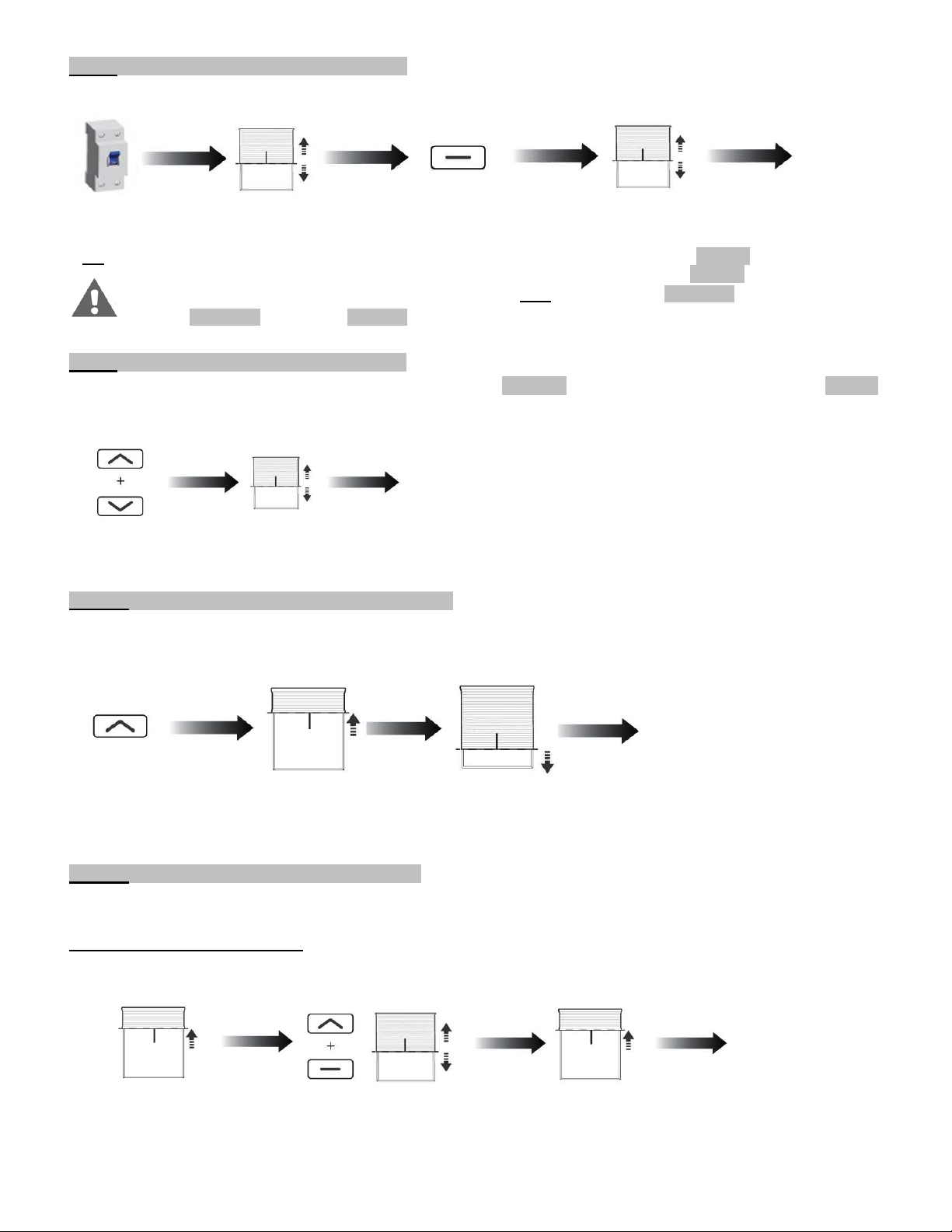

Step 1 Setting up the first remote/channel
Tension motor 



 STOP until 2x 




OK
Put tension on the motor, the product Press and hold the STOP button until the Transmitter/channel
moves up and down. The motor beeps. product moves 2x up and down and beeps 3x. has been set.
f NO end positions are set, the product will move in the pulse / step operation. Go then to STEP 2.
I end positions are set, the product will continue to its end position. Go then to STEP 4.
NOTE: It is possible that the correct end positions have NOT been set. Go to OPTION A manual adjustment
or go to OPTION B and then to STEP 3A to automatically set the end positions.
______________________________________________________________________________
Step 2 Adjusting the direction of rotation(Only if the direction of rotation is not correct)
Only possible i no end positions are set, otherwise irst option B (Delete end positions), a ter that, Step 2.
▲+▼ until 1x 




OK
Press UP and DOWN button The direction of rotation of
simultaneously, until the product moves. the motor is OK.
_______________________________________________________________________________
Step 3A Automatically setting the end position
I no end positions have been set, the motor only moves in pulse mode.
▲ 

 


OK
Press the UP button, until the product moves to The product automatically goes The top- and down-
the desired top position and stops at resistance. down and stops in case of resistance. position is set.
When the roller shutter has been up and down 50 times, the motor checks the end positions and adjusts them if necessary.
_______________________________________________________________________________
Step 3B Manually setting the end position.
I no end positions have been set, the motor only moves in pulse mode.
1. Set the desired top position.
▲+ STOP Press and hold until 2x 




OK
Go with the OPERAT NG- Press and hold the STOP and UP button until The desired top position is set.
buttons to the desired top position. the motor moves up and down 2x and beeps 3x.

Page 3
2. Set the desired down position.
STOP+▼ 2x 




OK
Go with the OPERAT NG- Press and hold the STOP and DOWN button until The desired down position is set.
buttons to the desired the motor moves up and down 2x and beeps 3x.
down position.
_______________________________________________________________________________
Step 4 Setting the desired third limit position ( f desired)


 1x P2 1x 



 1x STOP 1x 



 1x STOP 2x 




OK
Set the desired Press 1x P2. Press 1x STOP button. Press 1x STOP button.
Third limit The product moves 1x The product moves 1x The product moves 2x up
position. up and down and beeps. up and down and beeps. and down and beeps 3x for confirmation.
Press and hold STOP or 3 seconds to move to the set limit position.
______________________________________________________________________________
Additional settings
____________________________________________________________________________
Option A Adjusting the top position
f adjustment is not possible, go to Option B, then to Step 3.


 STOP +▲ until 



 

 STOP +▲ until 2x 




Go to the already Press at the same time Go to the new Press at the same time
set top position. STOP and UP until top position. STOP and UP button, until
the motor moves and beeps 1x. the motor 2x moves and 3x beeps.
___________________________________________________________________________
Adjusting the down position
f adjustment is not possible, go to Option B, then to Step 3.


 STOP +▼ until 



 

 STOP +▼ until 2x 




Go to the already Press at the same time Go to the new Press at the same time
set bottom position, STOP and DOWN until bottom position. STOP and DOWN button, until
the motor moves and beeps 1x. the motor 2x moves and 3x beeps.
______________________________________________________________________________
Option B Deleting the end limits
1x P2 1x 



 1x ▼ 1x 



 1x P2 2x 




OK
Press 1x P2. The product Press the DOWN button. Press P2. The product The end positions
moves up down and beeps 1x. The product moves 1x moves 2x up and down are now deleted
up and down and beeps 1x. and beeps 1x. from the memory.

Page 4
_______________________________________________________________________________

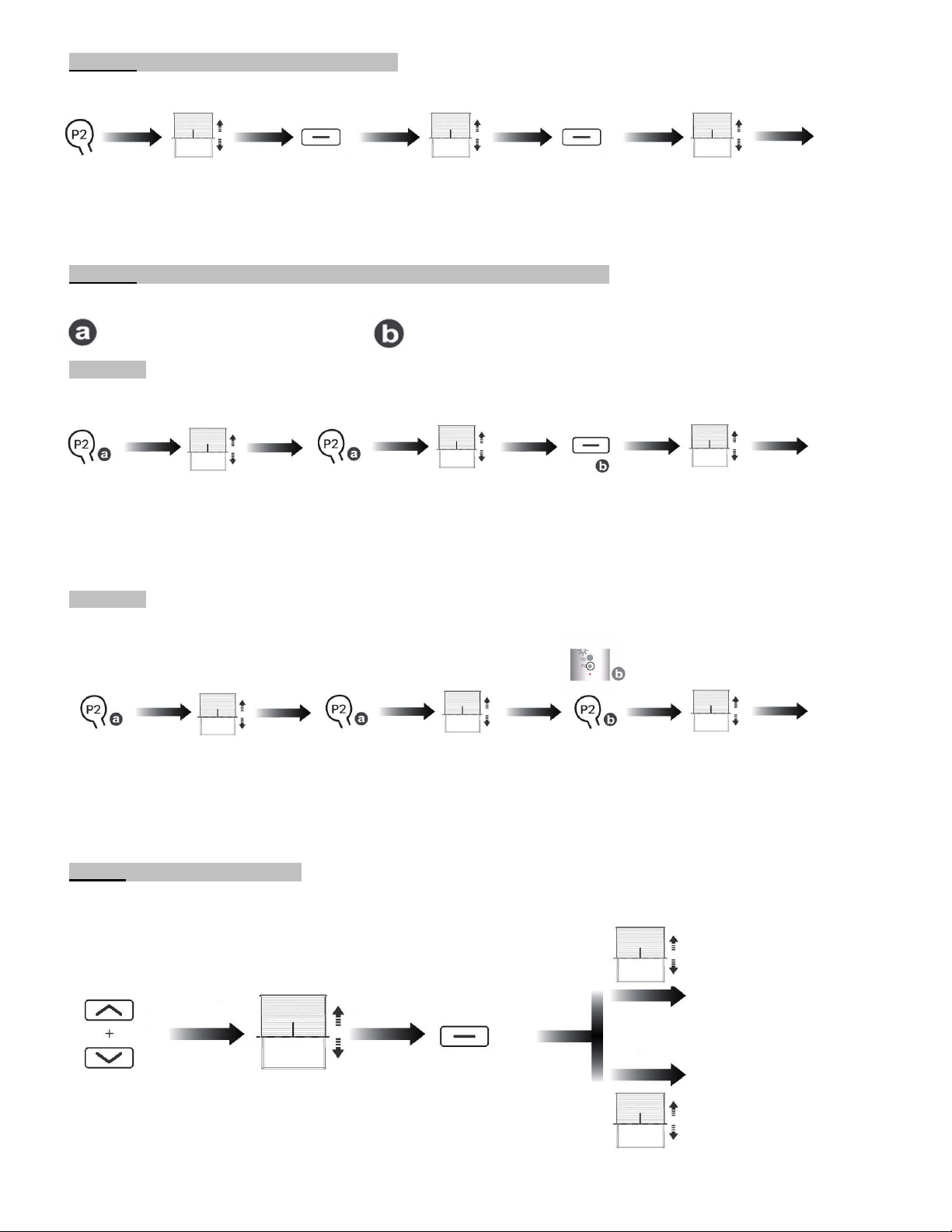

Option C Deleting the third limit position
1x P2 1x 



 1x STOP 1x 



 1x STOP 1x 




OK
Press 1x P2. Press 1x STOP button. Press 1x STOP button.
The product moves 1x up The product moves 1x up The product moves 1x up and
and down and beeps 1x. and down and beeps 1x. down and beeps 1x for confirmation.
_______________________________________________________________________________
Option D Learn new transmitter/channel while maintaining end limits.
Only possible when end limits are set.
= Already existing transmitter = New transmitter
Method 1
P2 a until 



 P2 a until 



 STOP b until 2x 




OK
Press P2 of a. The product Press P2 of a. The product Press STOP of b. The product The transmitter b
moves 1x up and down moves 1x up and down moves 2x up and down has been added.
and beeps 1x. and beeps 1x. and beeps 3x.
Repeating the above will remove the new transmitter/channel.
Method 2(also sun- and windmeter)
P2 a until 



 P2 a until 



 P2 b until 2x 




OK
Press P2 of a. The product Press P2 of a. The product Press P2 of b. The product The transmitter b
moves 1x up and down moves 1x up and down moves 2x up and down has been added.
and beeps 1x. and beeps 1x. and beeps 3x.
Repeating the above will remove the new transmitter/channel.
_______________________________________________________________________________
Optie E Pulse / jog control
1x 



, beeps 1x
▲+▼ until 1x 



 1x STOP
Pulse / jog on
Pulse / jog off
Press and hold UP and DOWN button, Press 1x STOP button.
until the product moves up and down.
2x 



 , beeps 3x

Page 5
______________________________________________________________________________
Option F Sun- and windmeter ( DD-116H )
_______________________________________________________________________________
Add / remove
1x P2a 1x 



 1x P2a 1x 



 1x P2b 2x 




The sun and wind meter has been added.
Press P2 of a. The product Press P2 of a. The Press P2 of b. The
moves 1x up and down and product moves 1x up product moves 2x up
beeps 1x. and down and beeps 1x. and down and beeps 3x.
By repeating the above, you can remove the sun and wind meter again.
_______________________________________________________________________________
On / off sun function ( Factory setting = on)
1x P2 1x 



 1x P2 1x 



 1x ▲ 




ON: The product moves up and down once and beeps once long.
OFF: The product moves up and down 2x and beeps 3x long.
Press 1x P2. The product Press 1x P2. The Press 1x UP.
moves 1x up and down and product moves 1x up
beeps 1x. and down and beeps 1x.
By repeating the above, you can switch the sun unction on or o again.
