brel-motors BJE24TD User manual

MOT O R S
www.brel-home.com
Visit our website for more manuals and information
INSTALLATION
MANUAL
Manual Brel Bi-Directional TDBU motor
Scan the QR code here for the manual to
download & view instructional videos
Read the manual before you begin the
installation. If these instructions are
not followed, this may lead to defects
and injury in which warranty can’t be
claimed.
BJE24TD
BJE24TD
EN NL DE FR

Page 2
Table of Content
2Warning
Settings
3
Technical data of the motor/Reach/Charging the motor 4
Functions remote control 5
5
The motor must be
protected from direct
moisture influences.
The motor must be
installed correctly.
BREL-Motors declares that this
motor has been manufactured
according to the guidelines of the
CE standard 1999/5/EC
Do not operate the motor
in humid surroundings.
Keep the antenna in a good
condition and do not shorten.
The antenna should not come into
contact with other metal parts
otherwise it will reduce the function.
Warning
Do not allow children to play with the
roller blind control unit. Keep remote
controls out of reach of children.
Children cannot recognize the dangers of
electrical equipment and are therefore
not allowed to work with it
Wiring/Installing the motor/Works with BREL HOME
Keep these instructions for future reference

Page 3
Works with BREL HOME
Wiring
Installing the Motor
These assemblies are usually already done in the factory
Attach the crown and wheel to the motor and place the clip on the shaft of the motor so that the wheel is
fixed to the motor.
Install the motor with the motorbracket on the product and take care that it is secured.
Place the motor in the tube of the roller/shutter.
With the Brel-Home-USB you can control your motor with your
Phone. You can make a time schedule and make scenario's. The
Brel-Home-USB can be connected to Siri, Google Home and Alexa.
Brel-Home-USB
Antenna
Programm button (P1)
Power line
P1 button

Page 4
Technical data of the motor
BJE24TD
Normal Use:
- 20°C tot +70°C
Heavy Use:
- 10°C tot +40°C
Working temperature of the motor
Storage capacity is up to 20 channels
L2 = 20 meter
L1 = 100 meter
Reach
Charging the motor
The motor needs to be charged with a DC-212(EU), DC-213(UK) or DC-200 (US).
When the battery is empty the motor will beep 5 times.
When charging the motor the LED will blinck red. When it is full the LED will be green continuously.
433MHZ
INDOOROUTDOOR
Motor Voltage DC 12V
Radio frequency 433.9 Mhz
Maximum Ampere Charger 2 A
Power 8.4 W
Torque 0.6 Nm
Speed 34 rpm
Amperage 0.7 A
Moisture and Dust IP 20

Page 5
Functions Remote Control
STOP until 2xuntil
Hold down the P1 button until the
product moves up and down.
Press and hold the STOP button until
the product moves 2x up and down.
Transmitter/Channel
has been set.
If NO end positions are set, the product will move in the pulse / step operation. Go then to STEP 3.
If end positions are set, the product will continue to its end position. Go then to STEP 5.
WARNING: It is possible that the correct end positions have not been set. Go then to OPTION A.
Establishing connection
Step 2
Step 1
The remote control can transmit 15 channels and therefore control multiple blinds.
First, select a channel for operating the relevant roller blind.
Make sure that you select a free channel (we recommend only 1 product per channel ).
Select the desired channel.
This remote has also channel 0. All blinds programmed in channel 1~15 are
automatically programmed in this channel 0 and can be operated all at once.
3
1
2
45
There are 2x P2 buttons, no matter which one you press.
In case you have selected the wrong channel, go to Resetting factory settings.

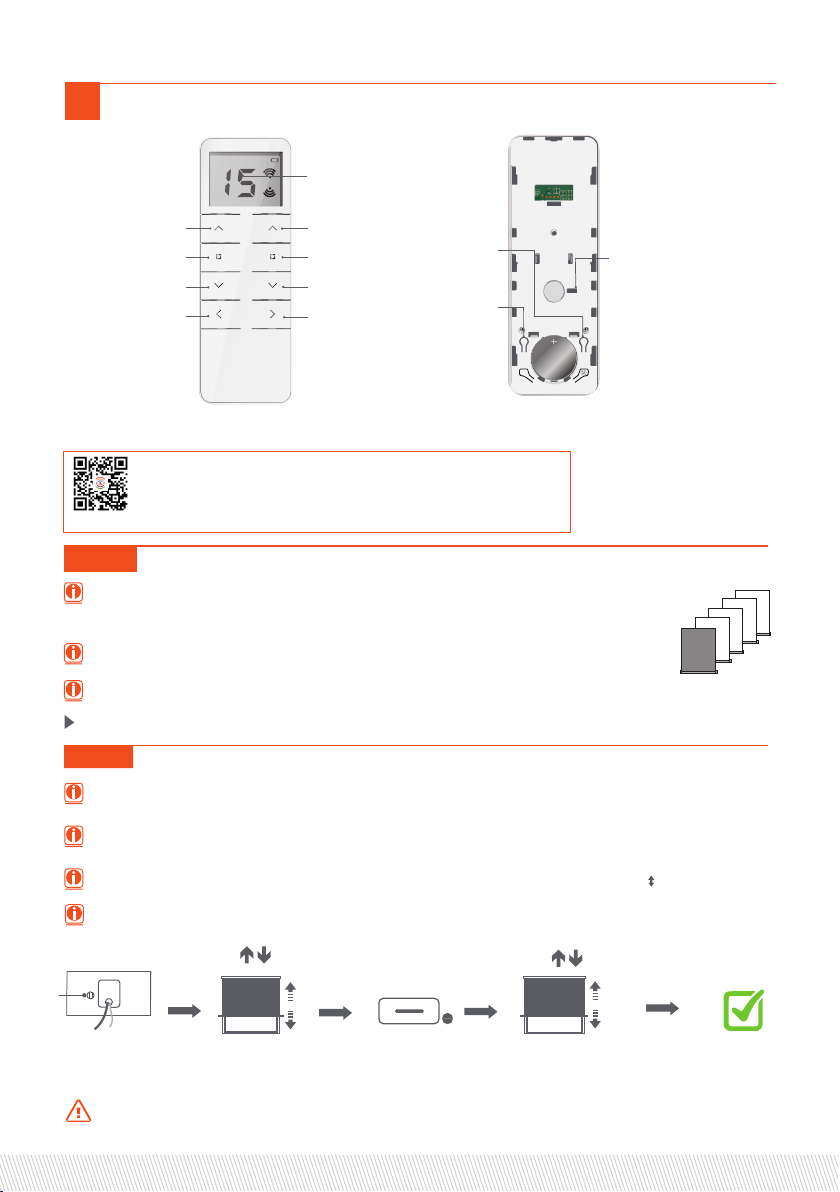

Setting up the first remote/channel
Scan the QR code here for the manual to download & view
instructional videos
BJE24TD
In the procedures described here is a maximum interval of 10 seconds to complete each
subsequent action: if you wait any longer, the system will leave the edit mode.
Normally a button only needs to be pressed shortly. If you need to press and hold a button for
several seconds this will be state clearly.
The system will confirm each completed step with moving the blind up and down ( ).
If a procedure does not play out as described, wait for 20 seconds and start again
from the beginning of that step/procedure.
P1
a
A B
A: Up
A: Stop
A: Down
Channel - C- Channel +
C+
B: Up
A: Stop
B: Down
LCD screen
P2 P2
M
B
Programm
Button
P2
CR2450
LITHIUM BATTERY
CR2450
LITHIUM BATTERY
3V
3V
A
Programm
Button
P2
LED

Page 6
Adjusting the direction of rotation (Only if the direction of rotation is not correct)
Step 3
Press UP and DOWN button
simultaneously, until the product moves.
The direction of rotation of
the motor is OK.
Only possible if no end positions are set.
until 1x
2. Set the desired bottom position
Use the operating buttons to move the
product to the desired BOTTOM position.
Press DOWN and STOP simultaneously,
until the product moves 2x.
The desired bottom
position is set.
STOP 2x
until
Setting the favorite position (If desired)
Step 5
P2
1x P2 1x 1x STOP 1x 1x STOP 2x
Go to the
desired
favorite
position
Press 1x P2 The
product moves 1x up
and down.
Press 1x STOP button.
The product moves 1x
up and down.
Press 1x STOP button. The
product moves 2x up and down
for confirmation.
Press and hold STOP for 3 seconds to move to the favorite position.
Repeat the steps above for the favorite bottom position (B).
The roller blind is now ready for use.
If you are not satisfied with the result of setting the end positions, go to Option A - adjusting positions
or Resetting factory settings.
Since the procedure is identical, to remove it repeat the steps.
Setting the End Limits
Step 4
Press UP and STOP simultaneously, until
the product moves 2x.
The desired top
position is set.
1. Set the desired top position STOP 2x
until
Use the operating buttons to move the
product to the desired TOP position
To move the motor one step: briefly press the UP or DOWN button
To move the motor continuously: press the UP or DOWN button for 3 seconds (ATTENTION! Press STOP in time)
a
a
a
a
a
a
a
a
aa a

Page 7
Adjusting the down position
If adjustment is not possible, go to Resetting factory settings.
Press at the same time
STOP and DOWN until
the motor moves.
Go to the new
bottom position.
Press at the same time
STOP and DOWN button,
until the motor 2x moves.
Option B Learn Extra transmitter/channel
Only possible when end limits are set.
= Already existing transmitter/channel = New transmitter/channel
ab
b
P2
a
P2 aP2 b
Press P2 of a. The product
moves 1x up and down.
Press P2 of a. The product
moves 1x up and down.
Press P2 of b. The product
moves 2x up and down beeps
3x.
The transmitter bhas
been added.
P2 a P2 a P2 b 2x
Make sure the new transmitter is in the desired channel.
Option A
If adjustment is not possible, go to Resetting factory settings.
Additional settings
Press at the same time STOP
and UP until the motor moves.
Go to the
new
top position.
Press at the same time
STOP and UP button,
until the motor 2x moves.
Adjusting the top position
STOP until STOP until
STOP until
STOP until
Method 1
NOTE
It is not possible to connect the DD116 or DD118 to a BJE24D motor
To delete the transmitter / channel repeat the procedure.
a
a
a
a
a
a
a
a

Press P1 of a. The product
moves 1x up and down.
Press 1xSTOP of b. The product moves
2x up and down.
The new
transmitter b has
been added.
2x
(In case the old transmitter is lost or broken)
b
STOP b
until
until 1x STOP
1x
until
Pulse / jog on
Pulse / jog o
Press and hold UP and DOWN
button, until the product
moves up and down.
Press 1x STOP
button.
Option C Pulse / jog control
Method 2
Press P2. The product
moves 1x up and down Press 1x down. Press 1x down. The motor speed
has been reduced.
1x P2
Speed Control
P2
1x 1x
1x 1x
The motor speed
has been increased
Press 1x up. Press 1x up.
If the motor does NOT react after this action, it is already at the highest or lowest speed.
Option D
There are 3 different speeds; Namely : 26rpm - 30rpm - 34rpm.
Page 8
If the speed has been changed the slow stop is activated. To deactive the slow
stop you have to reset the motor.
P1
To delete the transmitter / channel repeat the procedure.
a
a
a
a
a
a
a
a

Page 9
Changing the direction of rotation
Press and hold P1 until the product moves up and down for the
3rd time.
The direction of
rotation has changed.
until 3rd
Changing Batteries
P2 P2
M
P2 P2
M
P2 P2
M
BREL
poweredby
Model:DD2702H
Fifteen-ChannelEmitter
433MHz
CR24503.0V
0.7276243084
Resetting to factory settings
Press and hold P1 until the product moves up and
down for the 4th time.
Resets to factory
settings.
until 4th
To apply new settings: go to step 1
CR2450
LITHIUM BATTERY
CR2450
LITHIUM BATTERY
3V
3V
Brel Netherlands B.V. is registered according to the transposition of Directive 2012/19EU (the WEEE
Directive) and to the transposition of Directive 2006/66EC (the Battery Directive) at the Irish registry
The Producer Register with the registration number 3408WB.
Switching o the receiver
Press and hold P1 until the product moves up and down for the
2nd time.
The Receiver
switched o.
To reactivate the receiver, briey press P1 once.
until 2nd
Additional settings P1 button
The product moves up, stops or goes down when pressed P1
Press 1x P1 on the motor.
Can be used without a transmitter as an operating button.
1x
P1
