INSTALLATION
MANUAL
Manual Brel Bi-Directional Rollerblind motor
Scan the QR code here for the manual to
download & view instructional videos
Read the manual before you begin the
installation. If these instructions are not
followed, this may lead to defects and
injury in which warranty can’t be claimed.
EN NL DE FR
BTE 50
BTE 50

Page 2
Table of Content
2gninraW
3
Technical data of the motor/Reach/Charging the motor 4
Functions remote control 5
5
sgnitteS
The motor must be
protected from direct
moisture influences.
The motor must be
installed correctly.
BREL-Motors declares that this
motor has been manufactured
according to the guidelines of the
CE standard 1999/5/EC
Do not operate the motor
in humid surroundings.
Keep the antenna in a good
condition and do not shorten. The
antenna should not come into
contact with other metal parts
otherwise it will reduce the function..
Warning
Do not allow children to play with the
roller blind control unit. Keep remote
controls out of reach of children.
Children cannot recognize the dangers
of electrical equipment and are
therefore not allowed to work with it
Wiring/Installing the motor/Compatible with hub
Keep these instructions for future reference

Page 3
Wiring
Installing the Motor
These assemblies are usually already done in the factory
Attach the crown and wheel to the motor and place the clip on the shaft of the motor so that the
wheel is fixed to the motor.
Install the motor with the motorbracket on the product and take care that it is secured.
Place the motor in the tube of the roller/shutter.
Works with BREL HOME USB
With the Brel-Home-USB you can control your motor
with your Phone. You can make a time schedule and
make scenario's. The Brel-Home-USB can be connect-
ed to Siri, Google Home and Alexa.
Brel-Home-USB
Charging point
Li-ion battery
P1
Antenne

Page 4
Technical data of the motor
TYPE BTE 50
Motor Voltage DC 8.4V
Maximum Ampere Charger 2 A
Power 5 W
Torque 0.6 Nm
Speed 10 rpm
Amperage 0.54 A
Moisture and Dust IP20
Normal Use:
-10°C tot +40°C
Heavy Use:
-20°C tot +70°C
Working temperature of the motor
Storage capacity is up to 20 channels
L2 = 20 meter
L1 = 100 meter
Reach
Charging the motor
If charging the BTE 50 only use a charger with Micro-USB plug (5V)
The battery is empty when the motor light flashes red. The light flashes green while charging.
The battery is fully charged when the light stops blinking and lights-up continuously.
433MHZ

Page 5

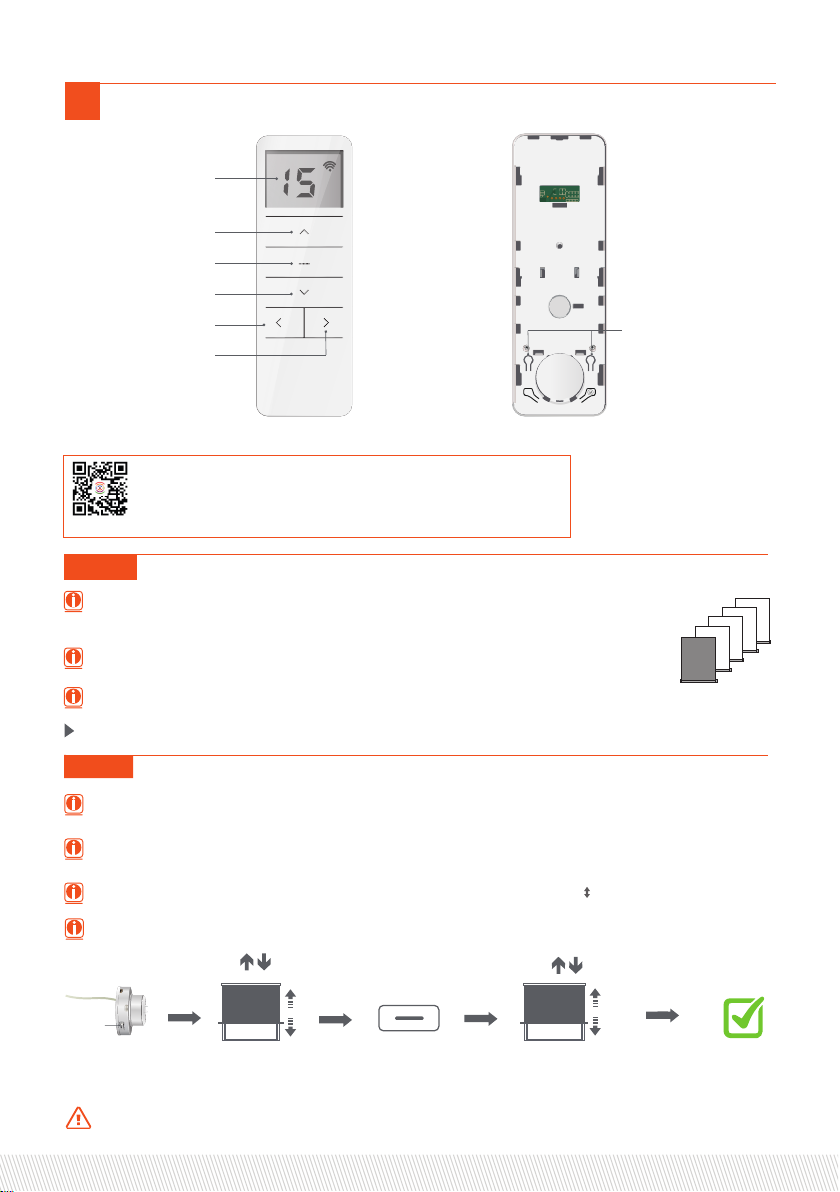

Functions Remote Control
P2 P2
M
Programm
Button P2
Current
Channel
Channel+ C+
Up
Stop
Down
Channel- C-
STOP until 2xP1 until
Hold down the P1 button until the
product moves up and down.
Press and hold the STOP button until
the product moves 2x up and down.
Transmitter/Channel
has been set.
If NO end positions are set, the product will move in the pulse / step operation. Go then to STEP 3.
If end positions are set, the product will continue to its end position. Go then to STEP 5.
WARNING: It is possible that the correct end positions have not been set. Go then to OPTION A.
In the procedures described here is a maximum interval of 10 seconds to complete each subsequent action: if
you wait any longer, the system will leave the edit mode.
Normally a button only needs to be pressed shortly. If you need to press and hold a button for several seconds
this will be state clearly.
The system will confirm each completed step with moving the blind up and down ( ).
If a procedure does not play out as described, wait for 20 seconds and start again from the beginning of that
step/procedure.
Establishing connection
Step 2
Step 1
The remote control can transmit 15 channels and therefore control multiple blinds.
First, select a channel for operating the relevant roller blind.
Make sure that you select a free channel (we recommend only 1 product per channel ).
Select the desired channel.
This remote has also channel 0. All blinds programmed in channel 1~15 are automatically
programmed in this channel 0 and can be operated all at once.
3
1
2
45
There are 2x P2 buttons, no matter which one you press.
In case you have selected the wrong channel, go to Resetting factory settings.
Setting up the first remote/channel
Scan the QR code here for the manual to download & view instructional videos
P1
BTE 50

Page 6
Adjusting the direction of rotation (Only if the direction of rotation is not correct)
Step 3
Press UP and DOWN button
simultaneously, until the product moves.
The direction of rotation of
the motor is OK.
Only possible if no end positions are set.
until 1x
2. Set the desired bottom position
Use the operating buttons to move the
product to the desired BOTTOM position.
Press DOWN and STOP simultaneously,
until the product moves 2x.
The desired bottom
position is set.
STOP 2x
until
Setting the favorite position (If desired)
Step 5
P2
1x P2 1x 1x STOP 1x 1x STOP 2x
Go to the
desired
favorite
position
Press 1x P2 The product
moves 1x up and down.
Press 1x STOP button. The
product moves 1x up and
down.
Press 1x STOP button. The product
moves 2x up and down for
confirmation.
Press and hold STOP for 3 seconds to move to the favorite position.
The roller blind is now ready for use.
If you are not satisfied with the result of setting the end positions, go to Option A - adjusting
positions or Resetting factory settings.
Since the procedure is identical, to remove it repeat the steps.
Setting the End Limits
Step 4
Press UP and STOP simultaneously, until
the product moves 2x.
The desired top
position is set.
1. Set the desired top position STOP 2x
until
Use the operating buttons to move the
product to the desired TOP position
To move the motor one step: briefly press the UP or DOWN button
To move the motor continuously: press the UP or DOWN button for 3 seconds (ATTENTION!
Press STOP in time)

To remove the transmitter/channel repeat the same procedure.
Page 7
Press P1 of a. The product
moves 1x up and down.
Press 1xSTOP of b. The product moves
2x up and down.
The new
transmitter b has
been added.
P1 a 2x
(In case the old transmitter is lost or broken)
b
STOP b
until until
Adjusting the down position
If adjustment is not possible, go to Resetting factory settings.
Press at the same time
STOP and DOWN until
the motor moves.
Go to the new
bottom position.
Press at the same time
STOP and DOWN button, until
the motor 2x moves.
STOP STOP
until until2x
Option B Learn Extra transmitter/channel
Only possible when end limits are set.
= Already existing transmitter/channel = New transmitter/channel
ab
b
P2
a
P2 aP2 b
Press P2 of a. The product
moves 1x up and down.
Press P2 of a. The product
moves 1x up and down.
Press P2 of b. The product moves
2x up and down beeps 3x.
The transmitter b
has been added.
P2 a P2 a P2 b 2x
It is not possible to connect the DD116 or DD118 to a BCE 33 motor
NOTE
Pulse / jog on
Pulse / jog off
Press and hold UP and DOWN button,
until the product moves up and down.
Press 1x STOP button.
Option C Pulse / jog control
Option A
If adjustment is not possible, go to Resetting factory settings.
Additional settings
Press at the same time STOP
and UP until the motor moves.
Go to the new
top position. Press at the same time
STOP and UP button,
until the motor 2x moves.
Adjusting the top position
STOP STOP
until until 2x
Method 1
Method 2
Make sure the new transmitter is in the desired channel.
To remove the transmitter/channel repeat the same procedure.

Changing Batteries
P2 P2
M
P2 P2
M
P2 P2
M
BREL
poweredby
Model:DD2702H
Fifteen-ChannelEmitter
433MHz
CR24503.0V
0.7276243084
Additional settings P1 button
The product moves up, stops or goes down when pressed P1
Press 1x P1 on the motor.
1x P1
Can be used without a transmitter as an operating button.
Switching off the receiver
Press and hold P1 until the product moves up and down for
the 2nd time.
The Receiver
switched off.
To reactivate the receiver, briefly press P1 once.
Changing the direction of rotation
Press and hold P1 until the product moves up and down for
the 3rd time.
The direction of
rotation has changed.
Resetting to factory settings
Press and hold P1 until the product moves up and
down for the 4th time.
Resets to factory settings.
To apply new settings: go to step 1
CR2450
LITHIUM BATTERY
CR2450
LITHIUM BATTERY
3V
3V
Page 8
