Bristan Artisan AR2 SHXMTFF2 C Mounting instructions

Please keep this booklet for future
reference.
Installer, when you have read these
instructions please ensure you leave them
with the user.
Installation Instructions
and User Guide
Artisan Thermostatic
Surface Mounted Bar
Shower Valves
Models covered: AR2 SHXMTFF2 C,
AR2 SHXSMFF2 C, ARECO SHXSMFF2 C,
AR2 SHXVOFF2 C & AR2 SHXLSMFF2 C

2
Contents
Thank you for choosing Bristan, the UK’s leading showers and taps expert.
Your Bristan shower valve is a thermostatic mixer incorporating a wax capsule
thermostat to ensure constant shower temperatures. These instructions are for your
guidance to a safe and successful installation and should be left with the user.
All products manufactured and supplied by Bristan are safe providing they are installed
correctly and receive regular maintenance in accordance with these instructions.
Important Safety Information................................................... 3
General Information ................................................................. 4
Product Features...................................................................... 5
Specifications ........................................................................... 6
Dimensions............................................................................... 7
Pack Contents ......................................................................... 8-11
Installation Requirements ....................................................... 12-16
Suitable Systems ................................................................. 12-13
WRAS.................................................................................... 14
Flow Regulators................................................................... 15
Installation................................................................................ 16-22
First Fix ................................................................................ 16-17
Second Fix............................................................................ 18
Retro-Fit............................................................................... 19
Riser Rail ............................................................................. 20-22
Operating the Shower .............................................................. 23
Commissioning......................................................................... 24
Maintenance ............................................................................. 25
Adjusting the Temperature ...................................................... 26
Troubleshooting........................................................................ 27-28
Notes......................................................................................... 29
Guarantee ................................................................................. 30-31

3
Important Safety Information
•Please read these instructions thoroughly and retain for future use.
•All products manufactured and supplied by Bristan are safe provided they are installed,
used correctly and receive regular maintenance in accordance with these instructions.
• If you are in any doubt about your ability to install this shower valve safely you must
employ the services of an experienced qualified plumber.
•These fittings need to be installed in accordance with, and meet the requirements of
the Water Supply (Water Fittings) Regulations 1999 and Scottish Byelaws 2004.
•Warning: Do not operate the shower valve if you suspect it is frozen. Do not site
the shower valve where it might be subjected to freezing conditions.
•Do not crush or kink the shower hose, this could damage the hose and cause leaks.
•Remove all packaging and check the contents for damage before starting installation.
•Before starting any installation please consider the following: before drilling into walls,
check that there are no hidden electrical wires, cables or water supply pipes. This can
be checked with the aid of an electronic detector.
•If power tools are used do not forget to: - Wear eye protection
- Unplug equipment after use
•Fitting isolating valves to the inlet feeds is required for ease of maintenance.
•Warning: Before installing the new shower valve it is essential that you thoroughly
flush through the pipework in order to remove any remaining swarf, solder, etc.
Failure to carry out this procedure could cause problems or damage to the workings of
the shower valve.
•This shower valve must not be modified in any way as this will invalidate the
guarantee.

4
General Information
Operating pressure range: Minimum 0.1 bar, Maximum 5.0 bar.
Maximum static pressure: 10.0 bar.
This product has been tested to the TMV2 scheme which complies with the BS EN
1287:1999 (LP) and BS 1111:1999 (HP) thermostatic mixing valve standards and satisfies
the requirements of the water supply (water fittings) regulations 1999 and current
bylaws.
BS 6700 recommends the temperature of stored water should never exceed 65°C.
A stored water temperature of 60°C is considered sufficient to meet all normal
requirements and will minimise the build up of lime scale in hard water areas (see
Map of Hard Water Regions in the UK on page 26).
If the fitting is installed at low pressure (tank fed), then the minimum distance from the
highest installed position of the showerhead to the underside of the cold tank should be
at least 2 metres to ensure adequate performance.
Note: Nominally equal (balanced) inlet supply pressures are recommended for optimum
performance with mixer showers.
These shower valves should be installed in compliance with the Water Regulations.
If in doubt, contact a registered plumber or your Local Water Authority or the Secretary
of The Institute of Plumbing, address as follows;-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex, RM12 6NB
Tel:[phone]
Recommended Usage
Domestic Heavy
Commercial
Light
Commercial Health Care

5
Product features

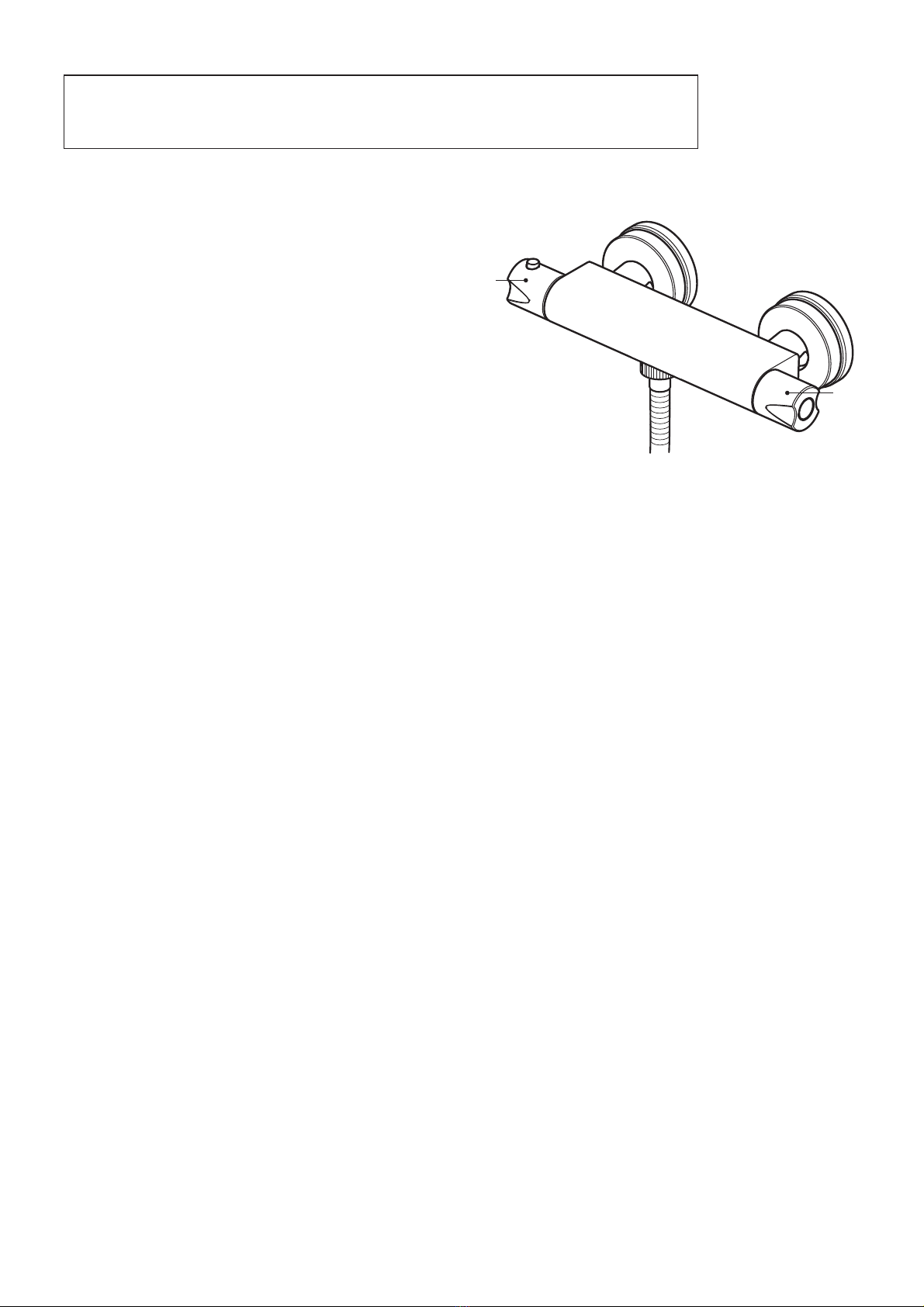

1. Temperature Control
Adjustable temperature control.
Turn the control clockwise to increase the
temperature.
Turn the control anti-clockwise to
decrease the temperature.
2. Flow Control
Controls the amount or flow of water from
the showerhead.
Turn the control clockwise to turn on and
increase the flow.
Turn anti-clockwise to reduce the flow
and turn off.
1
2

6
Specifications
Specifications
Inlet connections: 15mm compression with 150mm between centres.
Outlet connection: G1/2”
Operating pressure range: Min. 0.1 bar - Max. 5.0 bar - Maximum recommended
imbalance between hot and cold supply should not exceed a ratio of 5:1.
Note: ARECO SHXSMFF C Min. 1.0 bar - Max. 5.0 bar
Maximum static pressure: 10 Bar

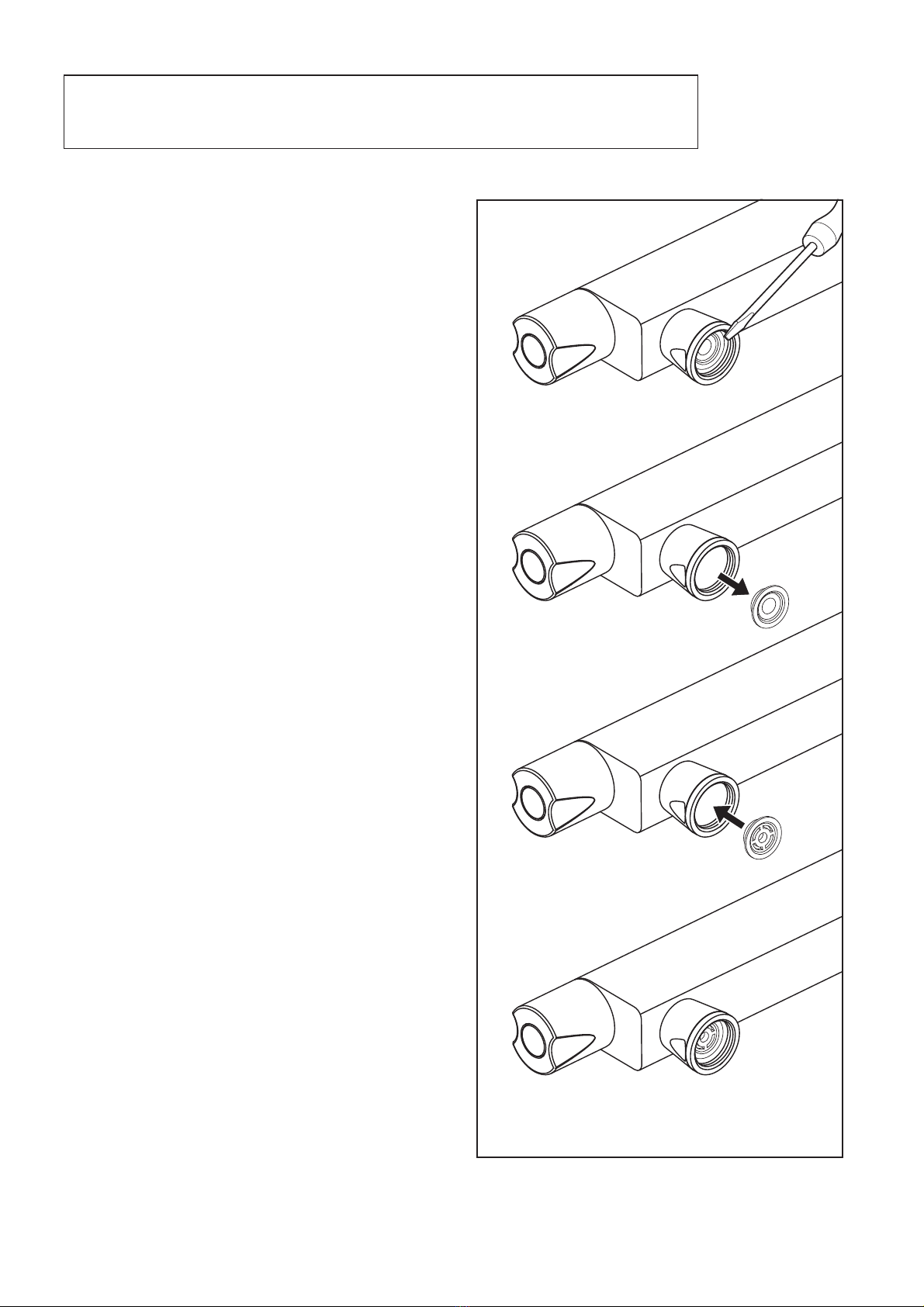

Maximum outlet temp: Factory pre-set to 38°C
(can be re-set to suit site conditions). If the temperature is re-set to suit different site
conditions the valve will work adequately however the TMV2 scheme will not apply.
Supply requirements:
Minimum cold water supply temperature: 5°C.
Maximum cold water supply temperature: 25°C.
Maximum hot water supply temperature: 80°C.
(a maximum hot water supply temperature of 60 - 65°C is recommended for
ablutionary purposes)

7
Dimensions (mm’s)
660
660
150
276
78
73
150
73
276
36

8

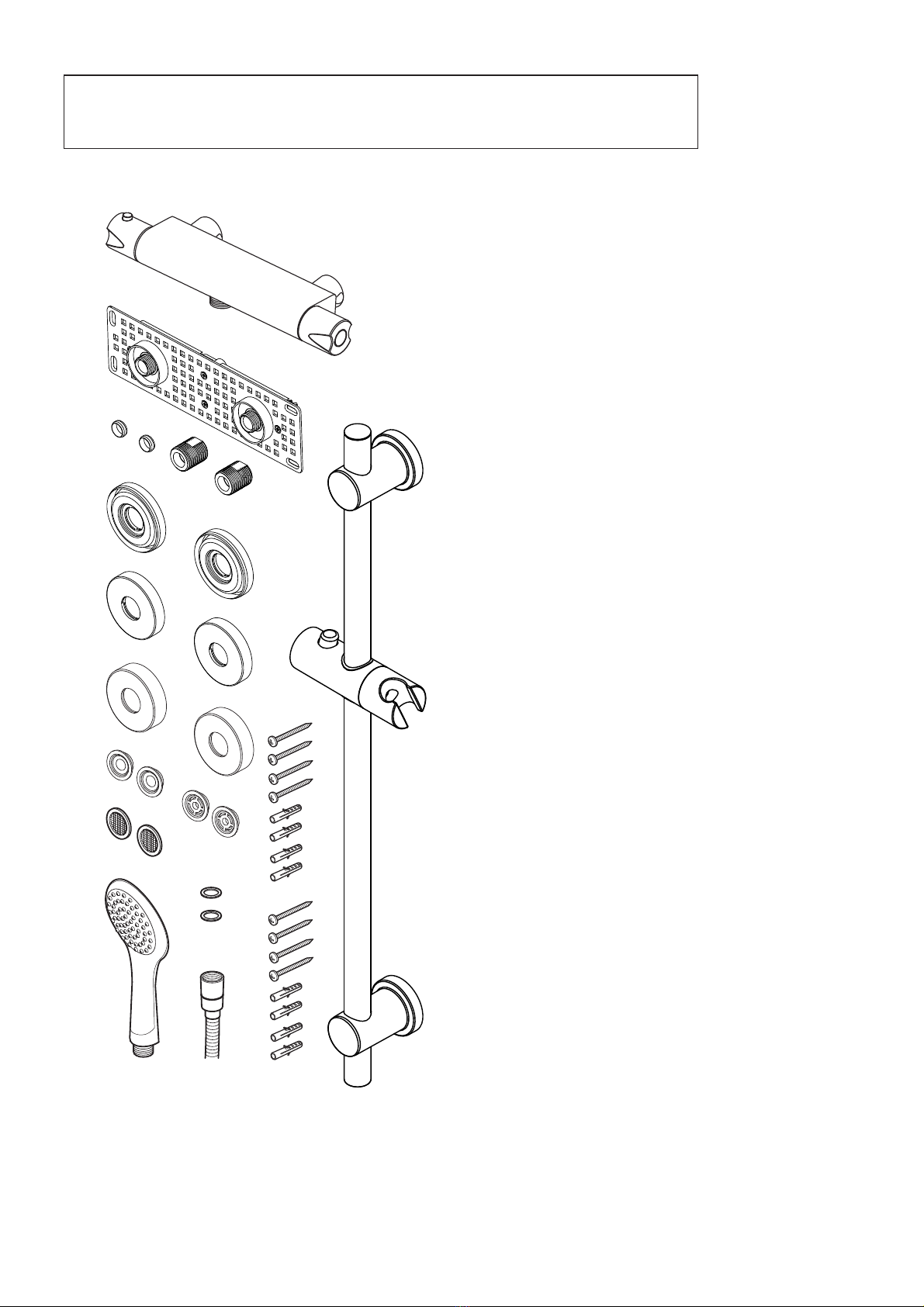

Pack Contents - AR2 SHXMTFF2 C
1Shower valve x1
2Wall mount fixing plate x1
3Olives x2
4Fixing bridges x2
5Rear covers x2
6Front covers x2
7Retro-fit covers x2
8Plastic Inserts x2 (Pre-fitted)
9Flow Regulators x2 (Loose in box)
10 Filter washers x2
11 Multi function handset x1
12 Sealing washers x2
13 Shower hose x1
14 Wall plate fixings x4/4
15 Riser rail fixings x4/4
16 Wall brackets x2
17 Riser rail x1
18 Slider x1
1
2
4
5
6
14
15
16
3
7
8
9
10
11 12
17
18
13

9
Pack Contents - AR2 / ARECO SHXSMFF2 C
1Shower valve x1
2Wall mount fixing plate x1
3Olives x2
4Fixing bridges x2
5Rear covers x2
6Front covers x2
7Retro-fit covers x2
8Plastic Inserts x2 (Pre-fitted AR2)
9Flow Regulators x2 (Loose in box ECO)
10 Filter washers x2
11 Single function handset x1
12 Sealing washers x2
13 Shower hose x1
14 Wall plate fixings x4/4
15 Riser rail fixings x4/4
16 Wall brackets x2
17 Riser rail x1
18 Slider x1
1
2
4
5
6
14
15
16
3
7
8
9
10
11 12
17
18
13

10
Pack Contents - AR2 SHXVOFF2 C
1Shower valve x1
2Wall mount fixing plate x1
3Olives x2
4Fixing bridges x2
5Rear covers x2
6Front covers x2
7Retro-fit covers x2
8Plastic Inserts x2 (Pre-fitted)
9Flow regulators x2 (Loose in box)
10 Filter washers x2
11 Wall plate fixings x4/4
1
2
4
5
6
11
3
7
8
9
10

11

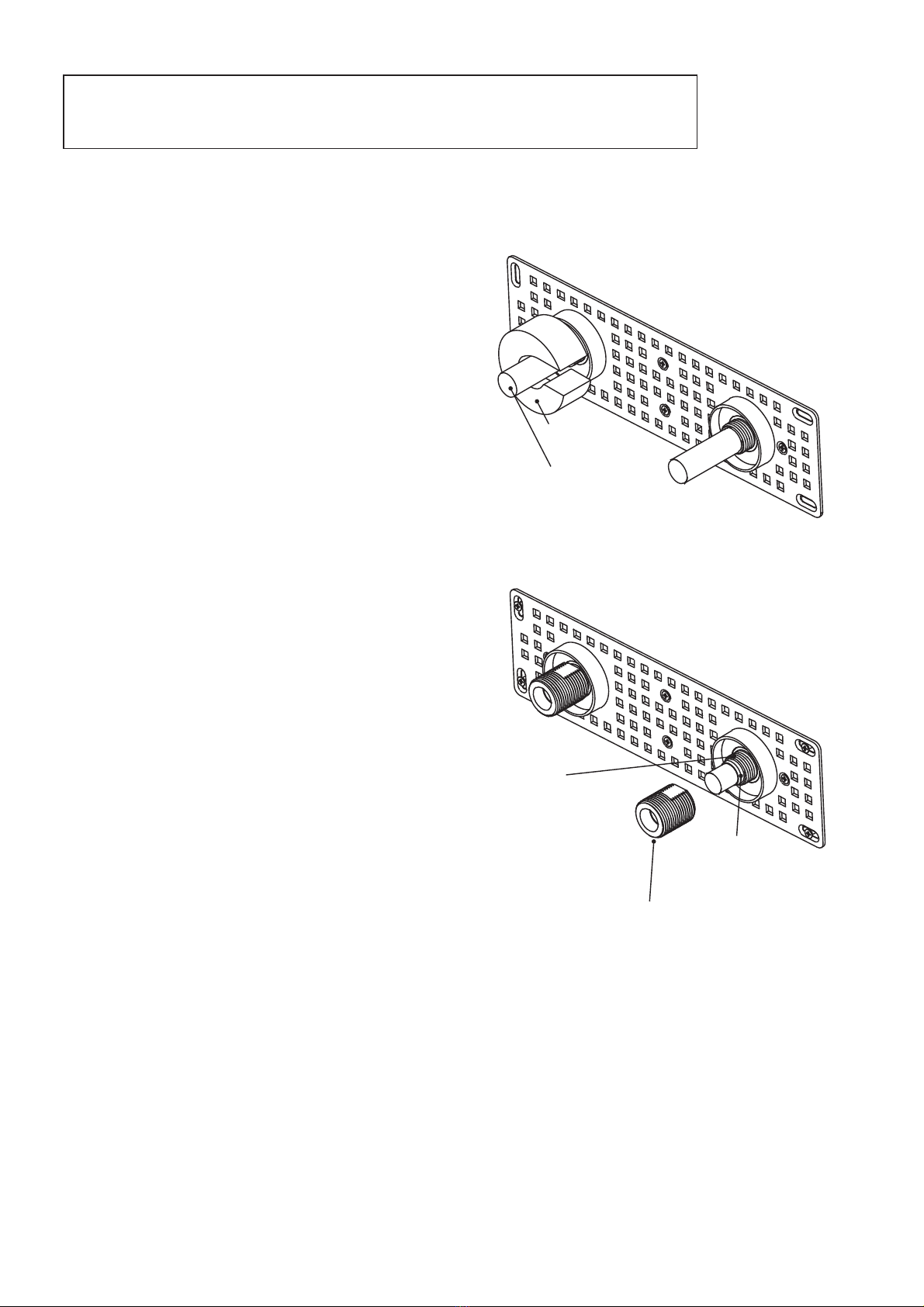

Pack Contents - AR2 SHXLSMFF2 C
1Shower valve x1
2Wall mount fixing plate x1
3Olives x2
4Fixing bridges x2
5Rear covers x2
6Front covers x2
7Retro-fit covers x2
8Plastic Inserts x2 (Pre-fitted)
9Flow Regulators x2 (Loose in box)
10 Filter washers x2
11 Single function handset x1
12 Sealing washers x2
13 Shower hose x1
14 Wall plate fixings x4/4
15 Riser rail fixings x4/4
16 Wall brackets x2
17 Riser rail x1
18 Slider x1
1
2
4
5
6
14
15
16
3
7
8
9
10
11 12
17
18
13

12
Installation Requirements
This shower valve must be installed
in compliance with current water
regulations. If you have any doubts about
the water regulation requirements contact
your local water services provider or use
the services of a professional plumber.
This shower valve is suitable for use with
the following water supply systems:
• Gravity Fed Hot and Cold
(pressure balanced)
• Gravity Fed Hot and Mains Cold
(differential pressure - see Specification
section on page 6)
• Instantaneous water heater
(combination boiler)
• Unvented System
• Pumped System
Gravity Fed Hot and Cold Gravity Fed Hot and Mains Cold
cold mains supply cold mains supply
Important: If you install this shower
valve with a gravity fed system, there must
be a minimum head (vertical distance)
from the underside of the cold water
storage tank to the showerhead position
of at least 1 metres.
Note: Pumped system (with Essex
flange) If you install this shower valve to
a pumped gravity fed system where the
minimum head (vertical distance) from
the underside of the cold water storage
tank to the top of the hot water cylinder
is less than 1 metre we recommend an
Essex flange is used as shown.
Flushing Pipe-work
Important: Before connecting the
shower valve (see ‘Installation’ on pages
16-19), supply pipe-work must be flushed
to clear debris before connecting the
shower valve. Debris will reduce the
performance and life of the shower.
1m min.
1m
min.

13
Installation Requirements
Unvented SystemInstantaneous Water Heater
Pumped System
cold mains supply
cold mains supply
cold mains supply
Pumped System (with Essex flange)
cold mains supply
1m min.
Key:
1m min.
50mm
If less
than 1m
see note.
Isolating
Valve
Reducing
Valve
Shower
Valve
Pump Essex
Flange

14
Installation Requirements
This fitting needs to be installed in
accordance with the following Installation
Requirements and Notes (IRN) to ensure
they meet the requirements of the Water
Supply (Water Fittings) Regulations 1999
and the Scottish Byelaws 2004.
IRN R001: See text of entry for Installation
Requirements or Notes.
IRN R040 - Schedule 2-15 (1): The
fitting shall be installed so that its outlet
discharges above the spill-over level of
any fixed appliance as indicated below:-
For backflow protection in domestic or
installations up to, and including, Fluid
Category 3.
If the fitting cannot be installed as
indicated in the table opposite it shall be
installed as either aor bbelow:
a: with an approved double check valve
assembly or some other no less effective
backflow prevention device immediately
upstream of the inlet.
b: so that it draws water by gravity only
from a cistern, or cylinder having a
permanently open vent pipe, and the
distributing pipe supplies no other fittings
(other than a draining tap) at a lower level.
For backflow protection in premises or
installations up to, and including Fluid
Category 5.
The vertical distance of the outlet above
the spill-over level shall be not less
than 20mm or twice the diameter of the
inlet pipe to the fitting, which ever is the
greater. If the fitting cannot be installed
as indicated it shall be installed with a
backflow prevention arrangement suitable
for the Fluid Category.
Size of tap or
combination fitting
Vertical distance
of outlet above
spill-over level
1. Not exceeding ½” 20mm
2. Exceeding ½”
but not
exceeding ¾”
25mm
3. Exceeding ¾” 70mm

15
Installation Requirements
Flow Regulators
This shower valve is supplied with 2 x 7
litre per minute flow regulators loose in
the box (pre-fitted to ARECO SHXSMFF2
C) which must be fitted in each water
inlet when installed in conjunction with an
instantaneous water heater/combination
boiler.
Fitting both flow regulators and turning
the water heater/combination boiler to its
hottest setting, will ensure a sufficiently
hot water supply to the shower valve
during winter months (in the UK), when
the mains cold water supply is at its
coldest.
In the event that this shower valve is not
installed with an instantaneous water
heater/combination boiler, the flow
regulators may be removed. Please follow
the steps detailed to remove the flow
regulators.
Using a thin flat bladed screwdriver or
similar tool, carefully prise the inserts out
of both inlets (1& 2).
With the inserts removed from the inlets,
the flow regulators must be fitted as
shown, with the small diameter first (3&
4).
Note: The ARECO SHXSMFF2 C is
supplied with the 2 x 7 litre per minute
flow regulators pre-fitted. If required they
can be removed and the inserts supplied
loose in the box fitted.
1
2
3
4

16
b) Screw fixing plate to the wall
Using suitable screws for the wall type
secure the wall mount fixing plate to the
wall. There is a hole in each corner of the
fixing plate for the fixings.
Installation - New First Fix
If this is a new installation follow First &
Second fix installation.
If replacing an existing shower valve
proceed to Retro-fit installation on page
19.
Before Installation
Flush through the pipework to ensure
removal of debris. Turn off the mains
water supply and close any isolating
valves.
1. Position fixing backplate
Identify the required position of the
shower valve, where the wall mount fixing
plate will be installed.
Mark a 230mm x 50mm rectangle on the
wall surface.
Warning: Please check for any hidden
electrical wires, cables or water supply
pipes before drilling / cutting into the wall.
2. Prepare water supply pipes
The centres of the hot and cold water
supply pipes should be 150mm apart, with
a sufficent amount of pipework protruding
through the wall.
3. Fit wall mount fixing plate
The wall mount fixing plate has two
methods of fixing.
a) Tighten fixing lugs
Tighten the two screws in the middle of
the fixing plate and the two either side of
the inlets, Tightening these screws will
secure the lugs against the inside of the
wall surface.
Important: Water supplies to the mixer
must be with hot on the left and cold on
the right when viewed from the front.
230mm
230mm
50mm
50mm
Lug
Screw

17
Installation - New First Fix
4. Cut supply pipework
Once the wall mount fixing plate has
been secured to the wall the water supply
pipework will need to be trimmed back
with the use of a pipe cutter.
Note: The supply pipework must protrude
10mm +/-2mm past the brass insert.
5. Attach olives and fixing bridges
Place olives (3) onto the protruding supply
pipework.
Important: The pipework must protrude
10mm +/- 2mm past the brass inserts.
Screw the fixing bridges (4) onto the
threaded brass inserts using a suitable
spanner.
Note: If required, any decorating should
be complete now before starting the
second fix.
Olive (3)
Brass
insert
Fixing
bridge (4)
Supply
Pipework
Pipe Cutter

18
Installation - New Second Fix
1. Fit covers
Screw the covers (5 & 6) onto the fixing
bridges (4).
Note: The rear covers (5) screw onto the
fixing bridges (4) flush upto the finished
wall surface.
The front covers (6) are adjustable up and
down the fixing bridges (4) to allow for
different wall / tile thicknesses.
2. Attach shower valve
Place the filter washers (10) into the
shower valve fixing nuts.
Position the shower valve (1) against the
fixing bridges and carefully tighten the
shower valve fixing nuts onto the fixing
bridges. Do not overtighten.
Note: Take care not to damage the
finish of the shower valve
fixing nuts. Protect the
chromium plated
surfaces with a cloth.
If you have enjoyed this method of installation,
the first fix wall fixings are available to purchase
seperately, please see www.bristan.com for more
details. Bristan product code: WMNT11 C
6
10
4
5
Shower valve
fixing nuts
1

19
Installation - Retro-fit
If replacing an exsisting shower valve the
wall mount fixing plate is not required.
1. Fit Retro-fit covers
Screw the Retro-fit covers (7) over the
existing wall plates/fixing bridges, so they
are flush against the wall.
2. Attach shower valve
Place the filter washers (10) into the
shower valve fixing nuts.
Position the shower valve (1) against the
existing wall plates/fixing bridges and
carefully tighten the shower valve fixing
nuts. Do not overtighten.
Note: Take care not to damage
the finish of the shower valve
fixing nuts. Protect the chromium
plated surfaces with a cloth.
7
Wall plates / fixing
bridges
10
7
1
If you have enjoyed this method of retro fit installation,
the retro fit wall fixings are available to purchase
seperately, please see www.bristan.com for more
details. Bristan product code: WMNT10 C
Shower valve
fixing nuts

20
Installation - Riser Rail
1. Mark the position
Position the assembled riser rail on the
wall, bearing in mind the different heights
of people likely to use the shower and the
length of the hose when connected to the
shower.
With the riser rail vertical, mark the wall
bracket positions onto the wall.
Release the slider handle and remove the
slider and wall brackets from the rail.
2. Attach wall brackets
Position the bottom wall bracket onto
the marked position on the wall surface,
ensure it is vertical and mark the centres
of the fixing holes onto the wall. Existing
fixing holes maybe used as the bottom
wall bracket is fully adjustable.
Warning: Please check for any hidden
pipes and cables before drilling holes in
the wall.
Drill suitable holes and insert the wall
plugs. Securely attach the bottom wall
bracket to the wall using the screws
provided.
Tips: A piece of insulation or masking
tape positioned where holes are to
be drilled and before marking out the
exact position for the fixing holes will
help stop the drill bit from wandering,
particularly on a tiled surface.
When working near a basin, bath or
shower insert plug or cover waste to
prevent losing small parts.
Take care not to drop tools/equipment
into basin, bath or shower during
shower installation.
Slider
handle
Wall bracket
Wall bracket
Wall bracket
Note: If replacing an existing riser rail,
check to see if the existing holes can
be reused or covered by the new wall
brackets. Try to avoid drilling close to the
edge of tiles, drill in the middle of the tiles
or in the tile joints.
