Bristan CAP2 SHUAR C Mounting instructions

Please keep this booklet for future
reference.
Installer, when you have read these
instructions please ensure you leave them
with the user.
Installation Instructions
and User Guide
Capri & Sonique
Thermostatic Surface
Mounted/Recessed Mini
Shower Valves
Models covered: CAP2 SHUAR C
& SOQ2 SHUAR C
Please note: The Capri Shower Valve is
shown as a typical example.
CH
CH

2
Contents
Thank you for choosing Bristan, the UK’s leading showers and taps expert.
Your Bristan shower valve is a thermostatic mixer incorporating a wax capsule
thermostat to ensure constant shower temperatures. These instructions are for your
guidance to a safe and successful installation and should be left with the user.
All products manufactured and supplied by Bristan are safe providing they are installed
correctly and receive regular maintenance in accordance with these instructions.
Important Safety Information............................................... 3
General Information ................................................................. 4
Product Features...................................................................... 5
Installation Requirements.................................................... 6-11
Flow Regulators................................................................... 9-10
Dimensions............................................................................... 12
Specifications ........................................................................... 13
Pack Contents ...................................................................... 14-15
CAP2 SHUAR C .................................................................... 14
SOQ2 SHUAR C .................................................................... 15
Installation ........................................................................... 16-23
Surface Mounted Shower Valve - First Fix....................... 16
Surface Mounted Shower Valve - Second Fix ..................... 17
Recessed Shower Valve - First Fix................................... 18-19
Recessed Shower Valve - Second Fix.................................. 20
Riser Rail.............................................................................. 21-23
Operation.............................................................................. 24
Commissioning......................................................................... 25
Maintenance ............................................................................. 26-28
Map of Hard Water Regions in the UK ................................ 28
Troubleshooting........................................................................ 29-30
Guarantee ................................................................................. 31-32
Service Policy............................................................................ 32

3
Important Safety Information
•Please read these instructions thoroughly and retain for future use.
•All products manufactured and supplied by Bristan are safe provided they are installed,
used correctly and receive regular maintenance in accordance with these instructions.
• If you are in any doubt about your ability to install this shower valve safely you must
employ the services of an experienced qualified plumber.
•These fittings need to be installed in accordance with, and meet the requirements of
the Water Supply (Water Fittings) Regulations 1999 and Scottish Byelaws 2004.
•Warning: Do not operate the shower valve if you suspect it is frozen. Do not site
the shower valve where it might be subjected to freezing conditions.
•Do not crush or kink the shower hose, this could damage the hose and cause leaks.
•Remove all packaging and check the contents for damage before starting installation.
•Before starting any installation please consider the following: before drilling into walls,
check that there are no hidden electrical wires, cables or water supply pipes. This can
be checked with the aid of an electronic detector.
•If power tools are used do not forget to: - Wear eye protection
- Unplug equipment after use
•Fitting isolating valves to the inlet feeds is required for ease of maintenance.
•Warning: Before installing the new shower valve it is essential that you thoroughly
flush through the pipework in order to remove any remaining swarf, solder, etc.
Failure to carry out this procedure could cause problems or damage to the workings of
the shower valve.
• It is recommended that when installing the valve in a recessed situation, full access
is provided for servicing purposes.
•This shower valve must not be modified in any way as this will invalidate the
guarantee.

4
General Information
Operating pressure range: Minimum 0.1 bar, Maximum 5.0 bar.
Maximum static pressure: 10.0 bar.
This product has been tested to the TMV2 scheme which complies with the BS EN
1287:1999 (LP) and BS 1111:1999 (HP) thermostatic mixing valve standards and satisfies
the requirements of the water supply (water fittings) regulations 1999 and current
bylaws.
BS 6700 recommends the temperature of stored water should never exceed 65°C.
A stored water temperature of 60°C is considered sufficient to meet all normal
requirements and will minimise the build up of lime scale in hard water areas (see
Map of Hard Water Regions in the UK on page 28).
If the fitting is installed at low pressure (tank fed), then the minimum distance from the
highest installed position of the showerhead to the underside of the cold tank should be
at least 1 metre to ensure adequate performance.
Note: Nominally equal (balanced) inlet supply pressures are recommended for optimum
performance with mixer showers.
These shower valves should be installed in compliance with the Water Regulations.
If in doubt, contact a registered plumber or your Local Water Authority or the Secretary
of The Institute of Plumbing, address as follows;-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex, RM12 6NB
Tel: [phone]

5
Product features
Recommended Usage
Domestic Heavy
Commercial
Light
Commercial Health Care
1. On/Off and Temperature Control
Turn lever anti-clockwise to turn on and
increase temperature.
Turn lever clockwise to turn off and
decrease temperature.
2. Shower Hose (Surface mounted option)
Connects the showerhead to the shower
valve (recessed option attaches to wall
outlet).
CH
CH
CH
CH
Capri Shower Valve (Surface Mounted)
Sonique Shower Valve (Surface Mounted)
1
1
2
2

6
Installation Requirements
This shower valve must be installed
in compliance with current water
regulations. If you have any doubts about
the water regulation requirements contact
your local water services provider or use
the services of a professional plumber.
This shower valve is suitable for use with
the following water supply systems:
• Gravity Fed Hot and Cold
(pressure balanced)
• Gravity Fed Hot and Mains Cold
(differential pressure - see Specification
section on page 13)
• Instantaneous water heater
(combination boiler)
• Unvented System
• Pumped System

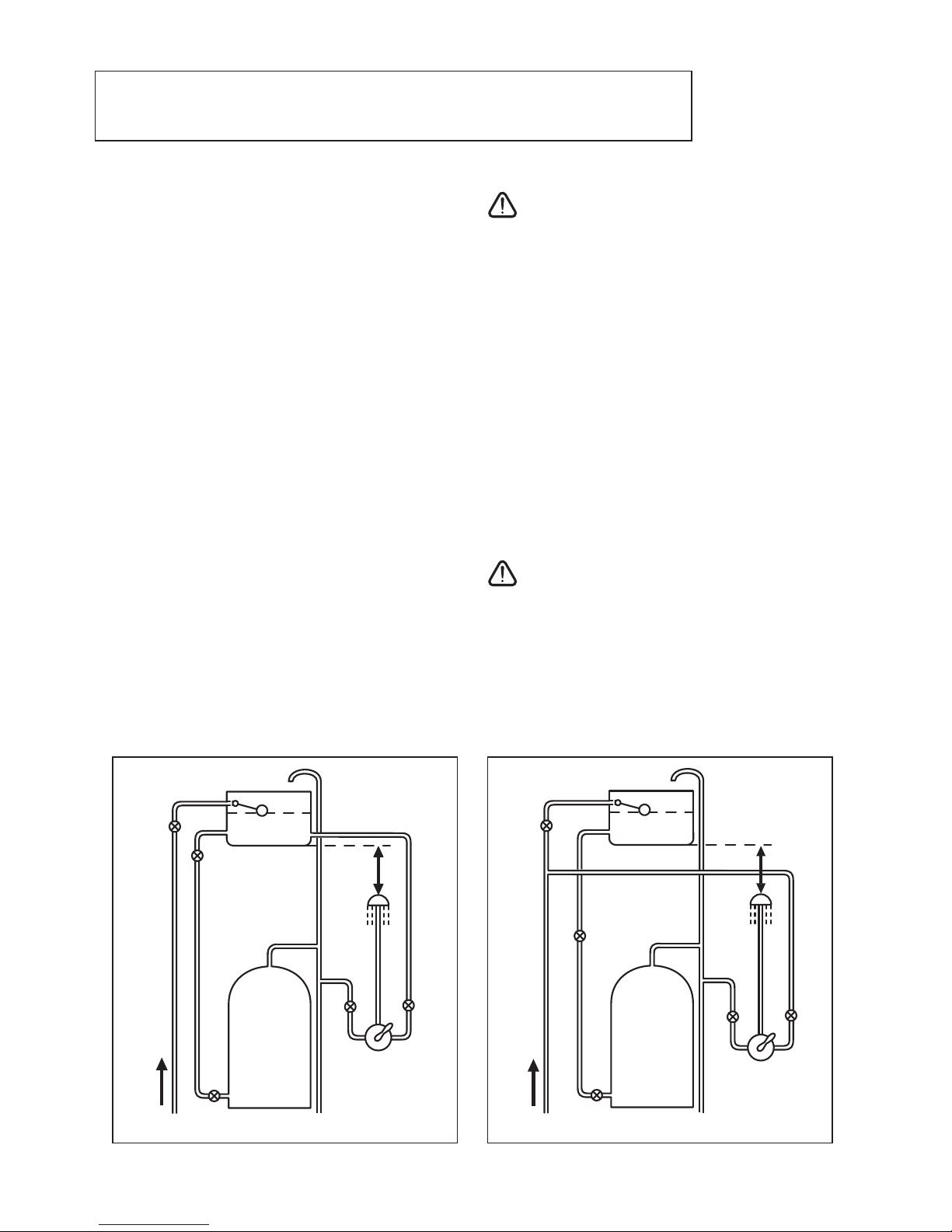

Gravity Fed Hot and Cold Gravity Fed Hot and Mains Cold
cold mains supply cold mains supply
Important: If you install this shower
valve with a gravity fed system, there must
be a minimum head (vertical distance)
from the underside of the cold water
storage tank to the showerhead position
of at least 1 metre.
Note: Pumped system (with Essex
flange) If you install this shower valve to
a pumped gravity fed system where the
minimum head (vertical distance) from
the underside of the cold water storage
tank to the top of the hot water cylinder
is less than 1 metre we recommend an
Essex flange is used as shown.
Flushing Pipe-work
Important: Before connecting the
shower valve (see ‘Installation’ on pages
16-23), supply pipe-work must be flushed
to clear debris before connecting the
shower valve. Debris will reduce the
performance and life of the shower.
1m min.
1m
min.

7
Installation Requirements
Unvented SystemInstantaneous Water Heater
Pumped System
cold mains supply
cold mains supply
cold mains supply
Pumped System (with Essex flange)
cold mains supply
1m min.
Key:
1m min.
50mm
If less
than 1m
see note.
Isolating
Valve
Reducing
Valve
Shower
Valve
Pump Essex
Flange

8
Installation Requirements
Conditions of use for Type 2 (Thermostatic mixer) valves
High Pressure Low Pressure
Maximum Static Pressure (Bar) 10 10
Flow Pressure, Hot & Cold (Bar) 0.5 to 5 0.1 to 1
Hot Supply Temperature (˚C) 55 to 65 55 to 65
Cold Supply Temperature (˚C) Equal to or Less than 25 Equal to or Less than 25
Note: Valves operating outside these
conditions cannot be guaranteed by the
Scheme to operate as Type 2 valves.
If a water supply is fed by gravity then
the supply pressure should be verified
to ensure the conditions of use are
appropriate for the valve.
Recommended outlet
temperatures
The BuildCert TMV scheme recommends
the following set maximum mixed
water outlet temperatures for use in all
premises:
44˚C for bath fill but see notes below;
41˚C for showers;
41˚C for washbasins;
38˚C for bidets.
The mixed water temperatures must
never exceed 46˚C.
The maximum mixed water temperature
can be 2˚C above the recommended
maximum set outlet temperatures.
Note: 46˚C is the maximum mixed water
temperature from the bath tap. The
maximum temperature takes account of
the allowable temperature tolerances
inherent in thermostatic mixing valves and
temperature losses in metal baths.
Warning: It is not a safe bathing
temperature for adults or children.
The British Burns Association
recommends 37 to 37.5˚C as a
comfortable bathing temperature for
children. In premises covered by the Care
Standards Act 2000, the maximum mixed
water outlet temperature is 43˚C.
The thermostatic mixing valve (TMV)
will be installed in such a position that
maintenance of the TMV and its valves and
the commissioning and testing of the TMV
can be undertaken.
The fitting of isolation valves is required
as close as is practical to the water supply
inlets of the thermostatic mixing valve.

9
Installation Requirements
Supply System Flow Regulator
Cold Supply Hot Supply Cold Hot Comments
0.1 to 1.0 bar 0.1 to 1.0 bar No No Maximum pressure
loss ratio 5:1
1 to 5 bar
or pumped 1 to 5 bar or pumped Green (7 litre)
Yellow
(5 litre)
◊ Use arrangement
for pumped system
Mains
1.5 to 10 bar
Gravity
0.1 to 0.2 bar White Disc No
Gravity
0.2 to 0.5 bar
Green
(7 litre) No
Gravity
above 0.5 bar Green
(7 litre)
Yellow
(5 litre)
Unvented Mains /
Mains Pressurised
Instantaneous Water
Gas Heater
Green
(7 litre)
* Yellow
(5 litre)
** Instantaneous Water
Electric Heater
Yellow
(5 litre) No
Any Vented (open outlet)
Heater Gas / Electric.
Eg electric shower
Do not use with a mixer valve -
this would be extremely dangerous
Selecting Flow Regulators
Regulators can be fitted if water economy is required.
Yellow (5 litre) regulator may not be necessary on some gas water heaters.
Important: It is a requirement of Instantaneous Electric Heaters that a stable
flow of water passes through the heater. This requirement can be satisfied by
using a ‘flow stabiliser’ fitted prior to the heater and should be adjusted to give a
temperature of between 45 - 50˚C from the heater.
◊
*
**

10

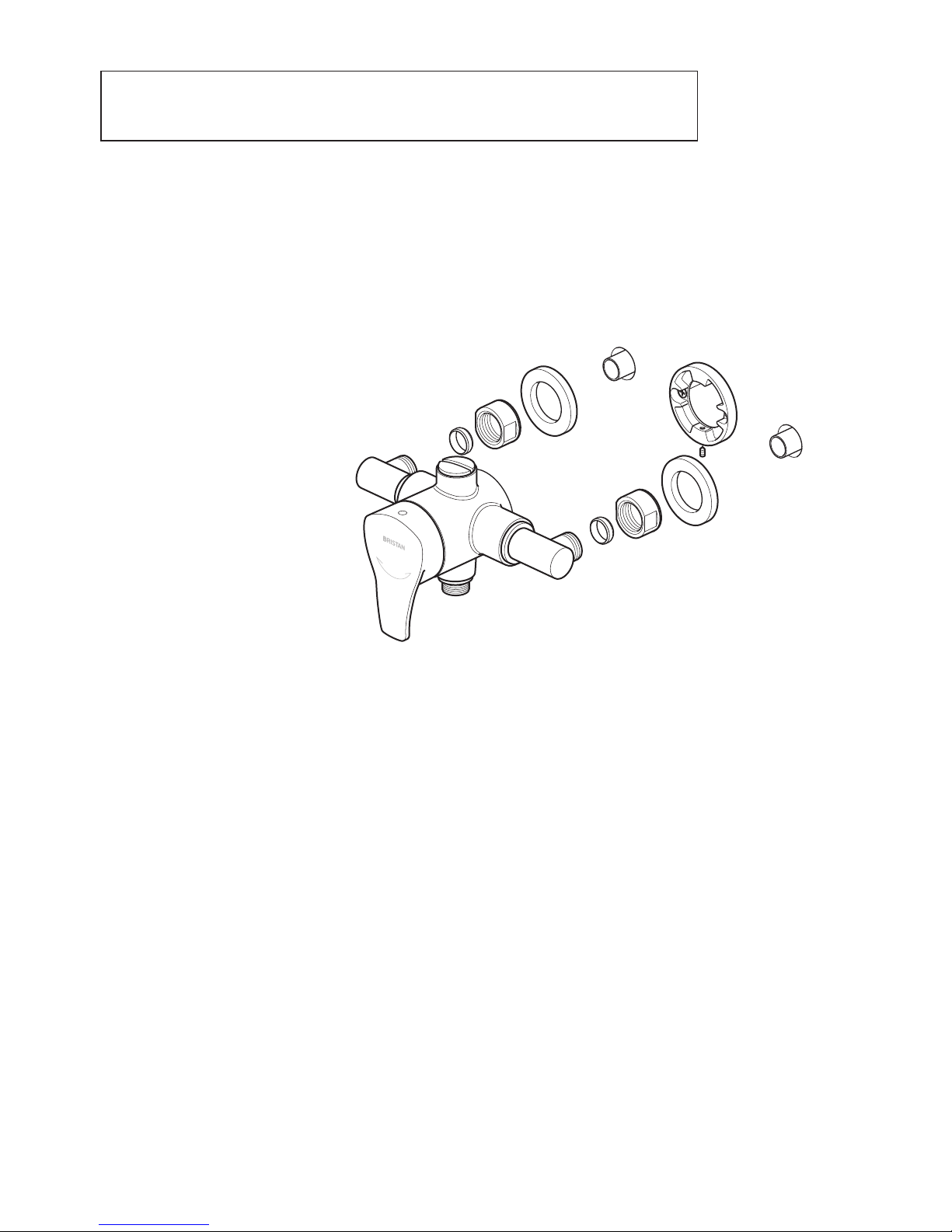

Flow Regulators etc.
Flow regulators are factory fitted.
Study the table on the previous page and
decide which flow regulators etc. are
required for your particular situation.
Unscrew both inlet elbows from the valve
body and both compression nuts from the
elbows.
Insert filters (4), washers (5), required
flow regulators / white disc (7, 8 or 9) and
retaining rings (6).
Reattach the compression nuts (ensuring
the olives are in place) and screw the inlet
elbows back into the valve body.
Installation Requirements
6
7, 8or 9
5
Inlet
elbow
4
Compression
nut

11
Installation Requirements
This fitting needs to be installed in
accordance with the following Installation
Requirements and Notes (IRN) to ensure
they meet the requirements of the Water
Supply (Water Fittings) Regulations 1999
and the Scottish Byelaws 2004.
IRN R001: See text of entry for Installation
Requirements or Notes.
IRN R040 - Schedule 2-15 (1): The
fitting shall be installed so that its outlet
discharges above the spill-over level of
any fixed appliance as indicated below:-
For backflow protection in domestic or
installations up to, and including, Fluid
Category 3.
If the fitting cannot be installed as
indicated in the table opposite it shall be
installed as either aor bbelow:
a: with an approved double check valve
assembly or some other no less effective
backflow prevention device immediately
upstream of the inlet.
b: so that it draws water by gravity only
from a cistern, or cylinder having a
permanently open vent pipe, and the
distributing pipe supplies no other fittings
(other than a draining tap) at a lower level.
For backflow protection in premises or
installations up to, and including Fluid
Category 5.
The vertical distance of the outlet above
the spill-over level shall be not less
than 20mm or twice the diameter of the
inlet pipe to the fitting, which ever is the
greater. If the fitting cannot be installed
as indicated it shall be installed with a
backflow prevention arrangement suitable
for the Fluid Category.
Size of tap or
combination fitting
Vertical distance
of outlet above
spill-over level
1. Not exceeding ½” 20mm
2. Exceeding ½”
but not
exceeding ¾”
25mm
3. Exceeding ¾” 70mm

12
Dimensions (mm’s)
*Note: The Riser rail wall brackets can be
positioned up or down the riser rail (max.
600mm apart) as required. This allows any
existing holes to be reused or covered by
the wall brackets. The brackets can also
be adjusted to sit in the middle of the tiles
or in the tile joints.
HC HC
660
74
117
HC HC
660
74
117
HC HC
660
74
117
HC HC
660
74
117
Surface Mounted Shower Valve
Recessed Shower Valve
117 74
660 *
148 - 152
92
148 - 152
210
165
68 - 77

13
Specifications
Specifications
Inlet connections: 15mm compression, with approximately 150mm between centres.
Operating pressure range: Min. 0.1 bar - Max. 5.0 bar - Maximum recommended
imbalance between hot and cold supply should not exceed a ratio of 5:1.
Maximum outlet temp: Factory pre-set to 41°C (can be re-set to suit site conditions).
Supply requirements:
Minimum cold water supply temperature: 5°C.
Maximum cold water supply temperature: 25°C.
Maximum hot water supply temperature: 80°C.
(a maximum hot water supply temperature of 60 - 65°C is recommended for
ablutionary purposes)
Note: The inlet hot water temperature must be at least 10°C above the required blend
temperature (eg. shower temperature 43°C: minimum hot supply 53°C).
Minimum dynamic pressure: 0.1 bar.
Maximum dynamic pressure: 5.0 bar.
Maximum static pressure: 10.0 bar.

14
Pack Contents - CAP2 SHUAR C
1Shower valve
2Concealing plate
3Covers x2
4Filters x2
5Washers x2
6Retaining rings x2
7White disc
8Green flow regulator
9Yellow flow regulator
10 Hexagonal key
11 Showerhead (single function)
12 Wall outlet / Backnut
13 Rubber washers x2
14 Shower hose
15 Riser rail
16 Riser rail fixings x4/4
17 Backplate fixings x2/2
CH
1
7
12
9
13
2
3
6
15
10
4
5
16
11
14
8
17

15
Pack Contents - SOQ2 SHUAR C
1Shower valve
2Concealing plate
3Covers x2
4Filters x2
5Washers x2
6Retaining rings x2
7White disc
8Green flow regulator
9Yellow flow regulator
10 Hexagonal key
11 Showerhead (single function)
12 Wall outlet / Backnut
13 Rubber washers x2
14 Shower hose
15 Riser rail
16 Riser rail fixings x4/4
17 Backplate fixings x2/2
In the Bag
Yellow
Green
1
7
12
9
13
2
3
6
15
10
4
5
16
11
14
8
17

16
Surface Installation - First Fix
Surface Mounted Shower Valve
Before Installation
Flush through the pipework to ensure
removal of debris. Turn off the mains
water supply and close any isolating
valves.
1. Inlet positions
The shower valve has three inlet positions
- top, bottom and rear. Rotate the inlet
elbows as required.
With the elbows screwed fully against
the valve body it can be unscrewed a
maximum of 1.5 turns to allow for lateral
tolerance.
Sufficient 15mm diameter supply pipes
should protrude through the finished
wall surface to fit fully into shower valve
elbows.

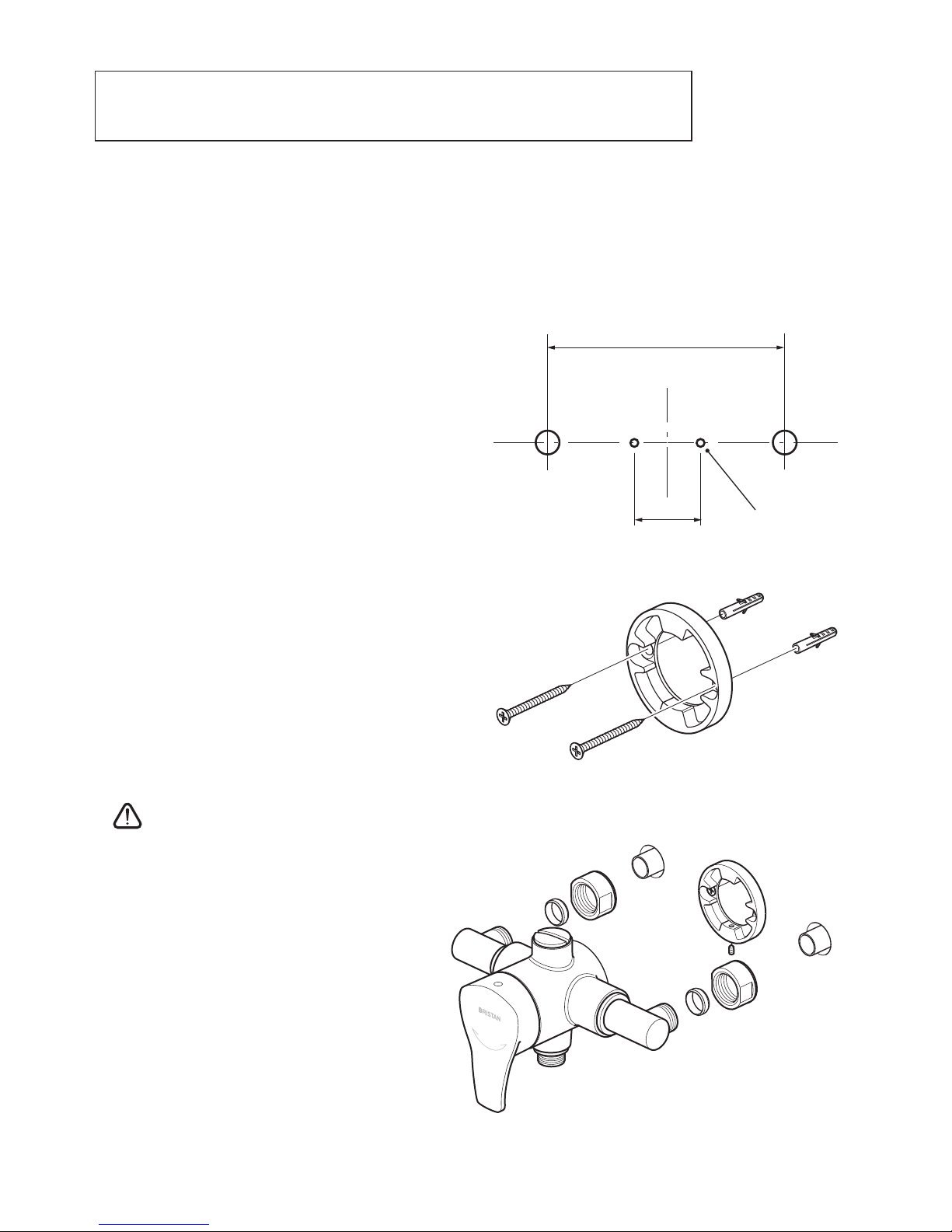

2. Attach backplate to wall
Loosen the ‘backplate’ grub screw on the
back of the valve using the hexagonal key.
Use the backplate as a template and mark
the centres of the fixing holes onto the
wall.
Warning: Please check for any hidden
pipes and cables before drilling holes in
the wall.
Drill suitable holes and insert the wall
plugs. Securely attach the backplate to
the wall using countersunk screws (17).
Note: If required, any decorating should
be complete now before starting the
Second Fix (page 17).
Important: Water supplies to the mixer
must be with hot on the left and cold on
the right when viewed from the front.
148 - 152mm
43.5mm Backplate
fixing holes
Backplate
Hot Cold
17

17
1. Attach shower valve
Place the covers (3) over the water supply
pipes. Insert the 15mm hot and cold water
supply pipes into the inlet connections and
tighten the nuts. Ensure the olives and
filters are in place.
Surface Installation - Second Fix
CH
Re-attach the shower valve to the
backplate by tightening the grub screw.
Note: The shower valve inlet positions are
shown at the rear as an example.
See pages 21-23 for installation of riser
rail and shower hose.
3
3
Hot
supply
Cold
supply

18
Recessed Installation - First Fix
Recessed Shower Valve
Before Installation
Flush through the pipework to ensure
removal of debris. Turn off the mains water
supply and close any isolating valves.
1. Inlet positions
The shower valve has three inlet positions
- top, bottom and rear. Rotate the inlet
elbows as required.
With the elbows screwed fully against
the valve body it can be unscrewed a
maximum of 1.5 turns to allow for lateral
tolerance.
Sufficient 15mm diameter supply pipes
should protrude through the finished
wall surface to fit fully into shower valve
elbows.
2. Attach backplate to wall
Loosen the ‘backplate’ grub screw on the
back of the valve using the hexagonal key.
Use the backplate as a template and mark
the centres of the fixing holes onto the
wall.
Warning: Please check for any hidden
pipes and cables before drilling holes in
the wall.
Drill suitable holes and insert the wall
plugs. Securely attach the backplate to
the wall using countersunk screws (17).
3. Attach shower valve
Insert the 15mm hot and cold water
supply pipes into the inlet connections
and tighten the nuts. Ensure the olives
and filters are in place.
Re-attach the shower valve to the
backplate by tightening the grub screw.
Important: Water supplies to the mixer
must be with hot on the left and cold on
the right when viewed from the front.
148 - 152mm
43.5mm Backplate
fixing holes
Backplate
Hot Cold
CH
CH
Note: The shower valve
inlet positions are shown at
the rear as an example.
17
Hot
supply
Cold
supply

19
Recessed Installation - First Fix
3. Fit wall outlet
There are two methods of fixing the wall
outlet depending on the type of wall:
a: With rear access once wall finished
Remove the backnut from the wall outlet
(12). Insert the wall outlet through a 21-
24mm hole in the wall and secure with the
backnut.
Plumb in the wall outlet assembly to the
shower valve outlet.
b: Without rear access once wall finished
Fit a ‘wall plate elbow’ (not supplied)
within the wall cavity and plumb in from
the shower valve.
Once the wall has been finished, remove
the backnut from the wall outlet (12).
Note: The backnut is not required.
Screw the wall outlet into the ‘wall-plate
elbow’ using a suitable thread sealant.
Note: If required, any decorating should
be complete now before starting the
Second Fix (page 20).
Important note: Please note the depth of
the cavity required to mount the recessed
shower valve. From the back face of the
valve to the front face of the tiling should
be between 68-77mm to ensure correct
fixing of the concealing plate.
Take care to protect the shower valve
whilst finishing the surround.
Backnut
12

20

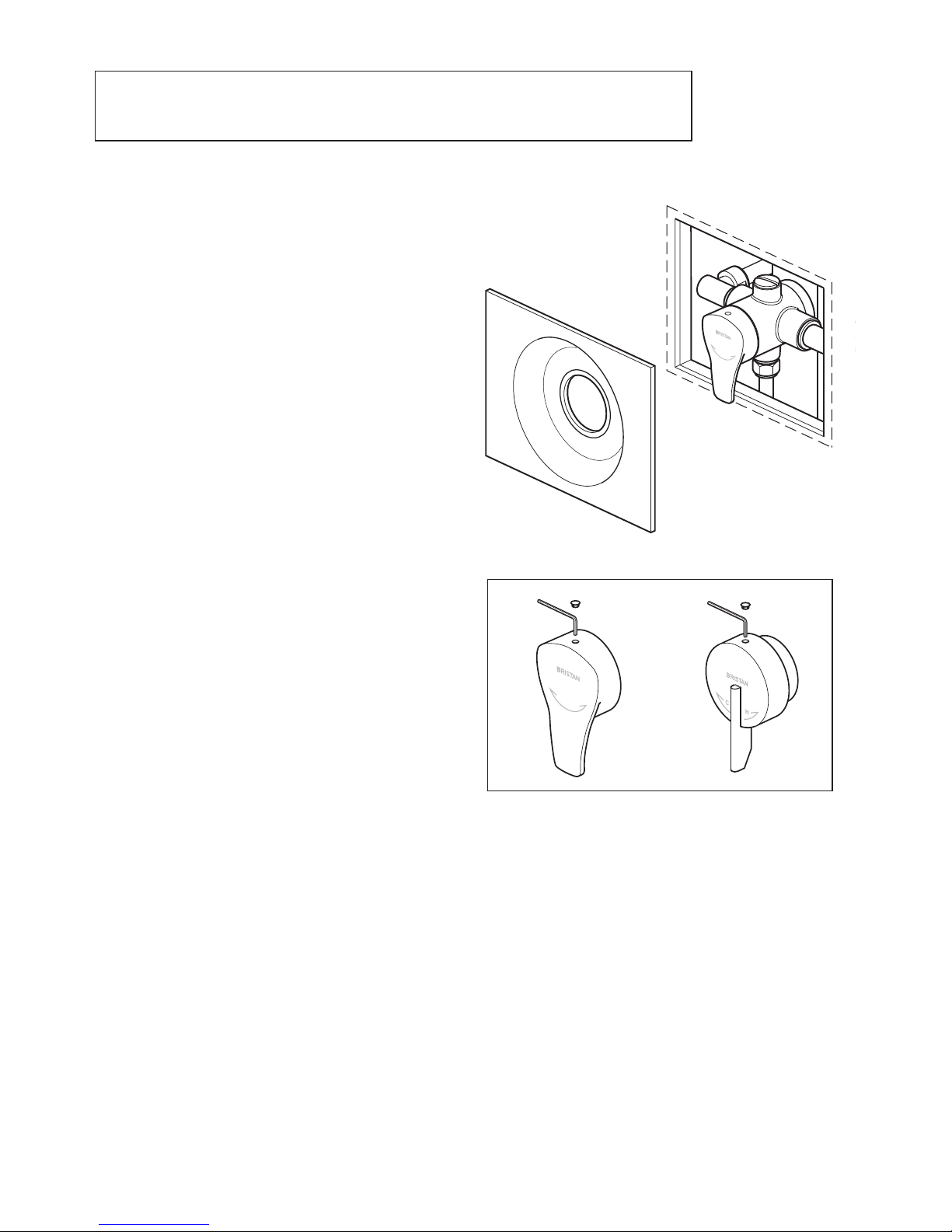

1. Fit concealing plate
Note: The concealing plate (2) can be
used as a template by drawing around the
plate and measuring in by 15mm to give
sufficient clearance.
Run a bead of silicon sealant around
the groove on the rear outer seal. Use a
smear of washing up liquid around the
inner seal (this will help when fitting over
the valve lever).
Slide the concealing plate over the valve
lever and press firmly against the tiling
around the edges.
Note: If required the valve lever can be
removed from the valve before fitting
the concealing plate. Remove the plastic
cap, loosen the grub screw using the
hexagonal key (10) and carefully pull the
lever off. Once the concealing plate is
fitted, re-fit the valve lever.
Recessed Installation - Second Fix
CH
2
CH
CH
