Broseley Inset Ignite 6 Remote Manual

Installation & Operating Instructions
PLEASE NOTE THAT THIS APPLIANCE USES A MOTOR TO OPERATE THE
FLAME EFFECT AND THAT IT MAY BE POSSIBLE TO HEAR IT WHERE THE
BACKGROUND NOISE IS VERY LOW. THIS IS NORMAL AND SHOULD NOT
BE A CAUSE OF CONCERN.
These instructions should be read carefully and retained for future reference

2
Models Covered Page 2
Important Safety Advice Page 3
Technical Speciation Page 6
Assembly – York Midi and Serrano Free-Standing Page 6
Flame Effect Unit – Position within stove body Page 8
Assembly – Desire, Ignite & Hereford Free-Standing Page 8
Assembly – Inset Desire, Ignite & Hereford Page 9
Assembly – Desire, Ignite and Hereford Inset Page 11
Operating Your Stove Page 14
Maintenance Page 22
Guarantee Page 23
Contents
Models Covered
This instruction manual covers the following models:
Please see the relevant pages in the Assembly section for specic information on
how to assemble your electric stove:
Inset Ignite 6/Desire6 Remote Inset Ignite 6/Desire6 Manual
Inset Hereford 5 Remote Inset Hereford 5 Manual
Ignite 5/Desire5 Freestanding Remote Ignite 5/Desire 5 Freestanding Manual
Ignite 6/Desire 6 Freestanding Remote Ignite 6/Desire6 Freestanding Manual
Ignite 7/Desire7 Freestanding Remote Ignite 7/Desire7 Freestanding Manual
Hereford 5 Freestanding Remote Hereford 5 Freestanding Manual
Hereford 7 Freestanding Remote Hereford 7 Freestanding Manual
York Midi Freestanding Remote York Midi Freestanding Manual
Serrano Freestanding Remote Serrano Freestanding Manual

3
Important Safety Advice
Warning: this appliance must be earthed.
The wires in the main lead to this appliance
are coloured in accordance with the following
code:
GREEN and YELLOW Earth
BLUE Neutral
BROWN Live
As the colours of the wires in the mains lead
of this appliance may not correspond with the
coloured markings identifying the terminals in
your plug, proceed as follows:
The wire, which is coloured green and yellow, must be connected to the terminal
in the plug with the letter E or by the earth symbol or coloured green or green
and yellow.
The wire, which is coloured blue, must be connected to the terminal, which is
marked with the letter N or coloured black.
The wire, which is coloured brown, must be connected to the terminal,
which is marked with the letter L or coloured red.

4
Important Safety Advice
WARNING:
In order to avoid overheating do not cover the heater.
In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device, such as a
timer, or connected to circuit that is regularly switched on and off by utility.
If the supply cord is damaged, it must be replaced by the manufacturer, its ser-
vice agent or a similarly qualied person in order to avoid a hazard.
Use the heater in a well-ventilated area. Do not insert or allow objects to enter any
ventilation or exhaust opening. To prevent a possible re, do not block air intakes
or exhaust openings in any manner. Do not use on soft surfaces, like a bed,
where openings may become blocked.
Do not place this heater near ammable materials, surfaces or substances, as
there may be a risk of re. Keep the above ammable materials, surfaces or
substances at least 1m from the front of the product and keep them away from the
sides and rear.
• Thisheatermustnotbelocatedimmediatelybelowaxedsocketoutlet
orconnectionbox.
• DO NOT COVER this heater, or obstruct the air inlet or
outlet, otherwise there is a risk of overheating.
• During normal operation this appliance will emit
noise from the internal fan unit.
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
• Children shall not play with the appliance.

5
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children of less than 3 years should be kept away unless continuously
supervised. Children aged from 3 years and less than 8 years shall only switch
on/off the appliance provided that it has been placed or installed in its intended
normal operating position and they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8 years shall not plug in,
regulate and clean the appliance or perform user maintenance.
• Some parts of this product can become very hot and cause burns. Particular
attention has to be given where children and vulnerable people are present.
• Do not use the heater in the immediate surrounds of a bath, a shower, or a
swimming pool.
• The heater must be cooled down completely before any maintenance work is
carried out.
• After unpacking, please make sure that the appliance is intact, with no signs of
damage caused by transport. If in doubt, do not use the appliance and contact
the Service Centre.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualied persons in order to avoid a hazard.
• If this re is supplied through an extension cable, please ensure that it is the
only appliance plugged into the extension and that the instructions for the
extension cable / reel are followed.
• Do not stand the re on the carpet – stand on a rm surface, which is free of
dust and lint.
• In the event of a fault please disconnect the re from the mains supply.

6
TECHNICAL SPECIFICATION
Supply Voltage: AC220V-240V 50Hz
Maximum power consumption: 2KW
Heat output:
Nominal heat output (Pnom): 2KW
Minimum heat output (indicative) (Pmin): 1KW
Maximum continuous heat output (Pmax): 2KW
Auxiliary Electricity Consumption:
At nominal heat output (elmax): 12.5W
At minimum heat output (elmin): 12W
In standby mode (elSB): 0.36W
Two or more manual stages, no room temperature control no
With mechanic thermostat room temperature control no
With electronic room temperature control yes
Electronic room temperature control plus day timer yes
Electronic room temperature control plus week timer yes
Type of heat output / room temperature control
Room temperature control, with presence detection no

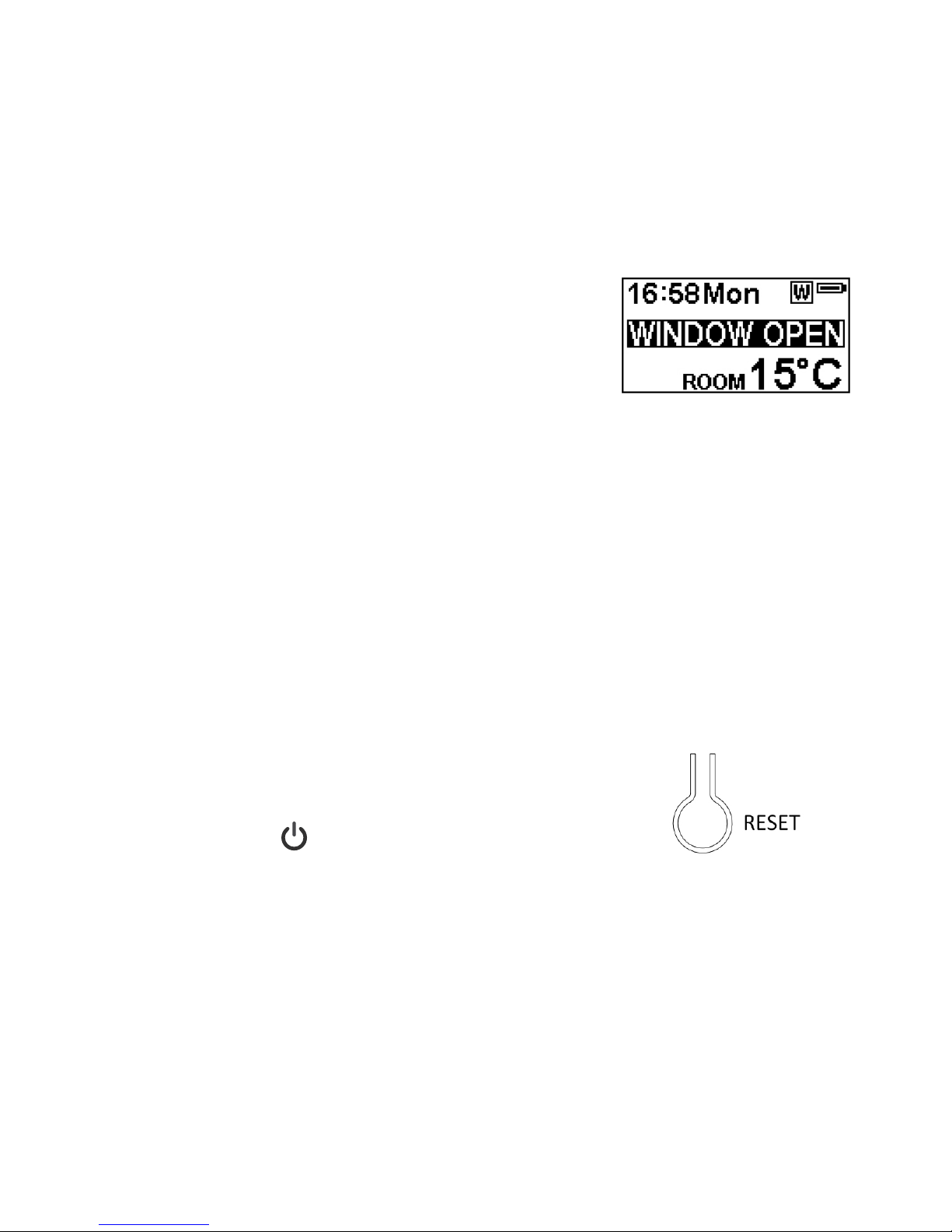

Room temperature control, with open window detection yes
With distance control option no
With adaptive start control yes
With working time limitation no
With black bulb sensor no
Other control options
Part List
The stove will be supplied in two separate boxes. The rst contains the cast
iron stove body and the second the ame effect unit. Check that the specied
components are included before you start setting up your Stove.
Box1
1×Cast iron stove body
(with transit bar tted)
1×Set of four legs
Box2
1×Flame effect unit
1×Decorative log set
1×Decorative coal set
1×Instruction booklet

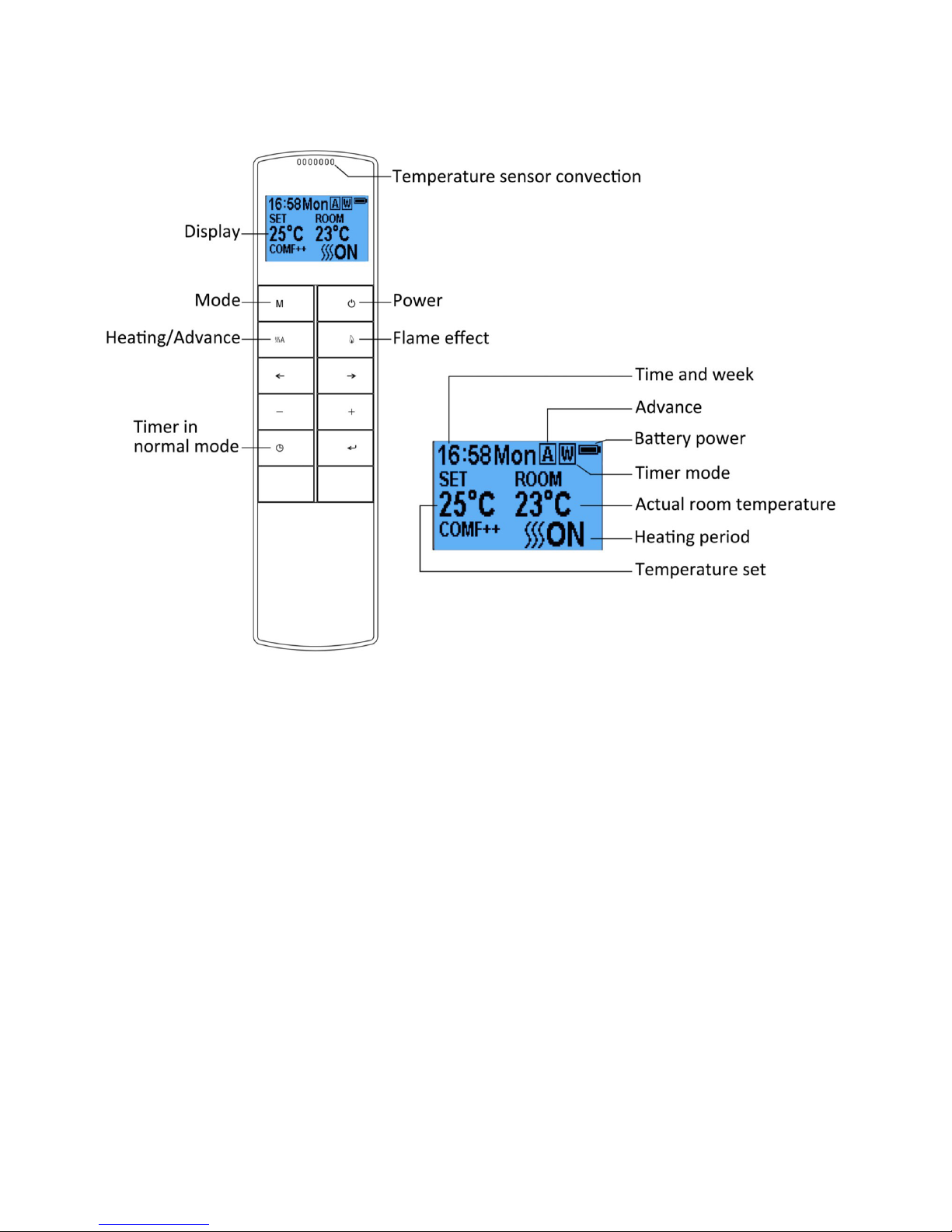

1×Remote control
2×AAA batteries
Assembly – York Midi and Serrano Free-Standing
York Midi Freestanding Remote York Midi Freestanding Manual
Serrano Freestanding Remote Serrano Freestanding Manual

7
Assembly Sequence:
Assembly Sequence:
1. Carefully remove all packaging and protective materials from the stove body.
Remove and discard the „transit bar‟ from stove body. This item stops the
sides of the stove body from moving in transit. It has been positioned into the
vertical channels where the Flame Effect Unit is to be slotted into place.
2. Remove the cast iron lid from the stove body and lay the stove body on its
back.
3. Attach the four legs using the bolts/nuts provided. Please note these bolts/
nuts will normally be pre-tted into the base of the stove. Stand the main stove
body upright on its feet.
4. Carefully remove all packaging and protective materials from the ame effect
unit.
5. Remove the thermostat control knob from the front of the ame effect unit
(this will prevent it from being scratched whilst the ame effect unit is inserted
into the cast stove body).
6. Insert the ame effect unit into the stove body. The unit is lowered down
carefully from the top of the body with the sides located into the grooves on
each side of the stove body. If the ame effect will not slide down easily, you
may need to slacken the bolts connecting the sides of the stove body to the
front and base. Take care not to trap the cable whilst lowering the ame effect
unit into the stove body.
7. Open the main door (and ash door on York Midi). On the Serrano, the door
simply pulls open using the handle. For the York Midi you will need to turn the
handle anti-clockwise until it comes free from the locking thread.
8. Re-attach the thermostat control knob.
9. Remove the Perspex from the stove. The Perspex is held in place by four
screws which will need to be removed.
10.Remove both sides of the protective covering from the Perspex.

8

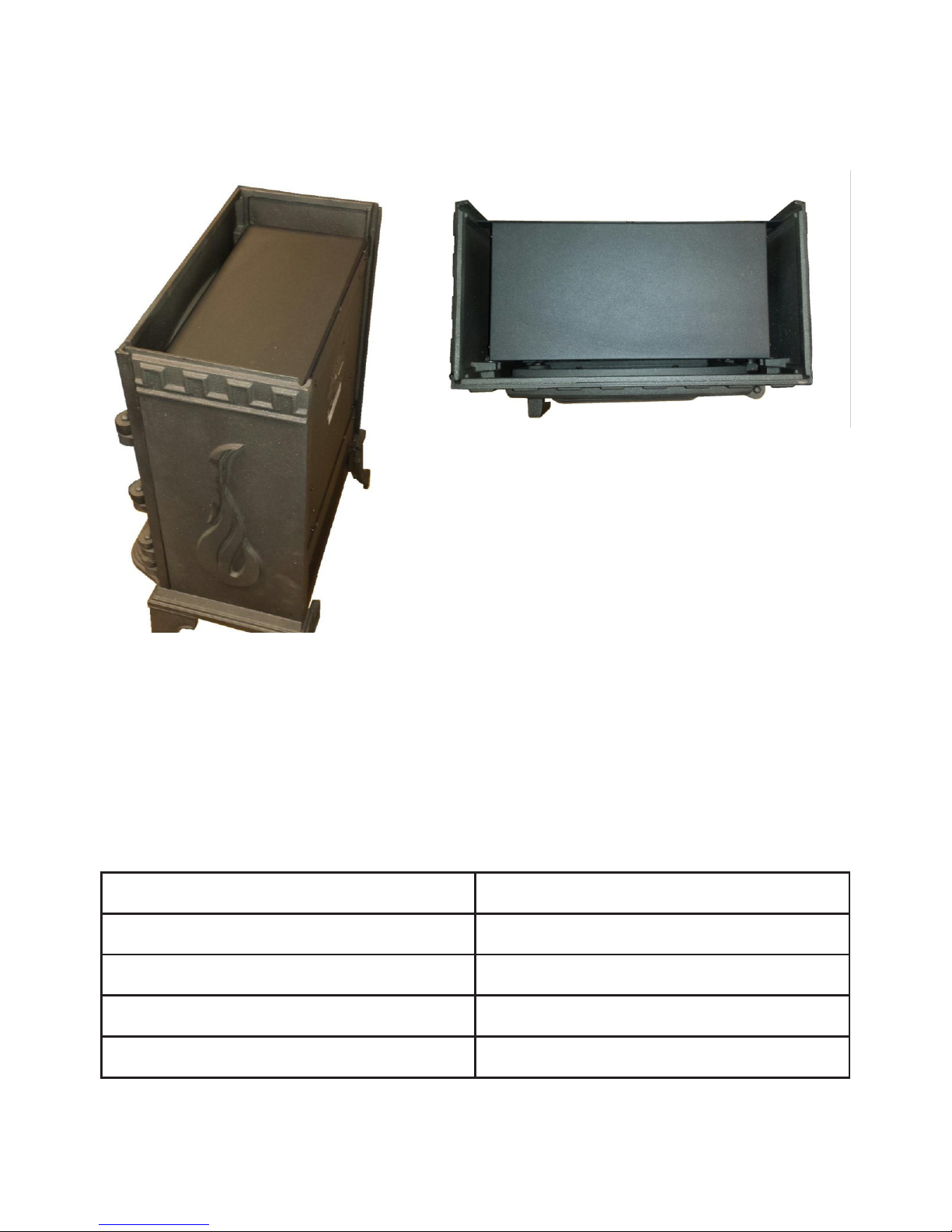

Flame Effect Unit – Position within stove body
Side View Top View
11. Finally place the cast iron lid back on the stove.
Assembly – York Midi and Serrano Free-Standing

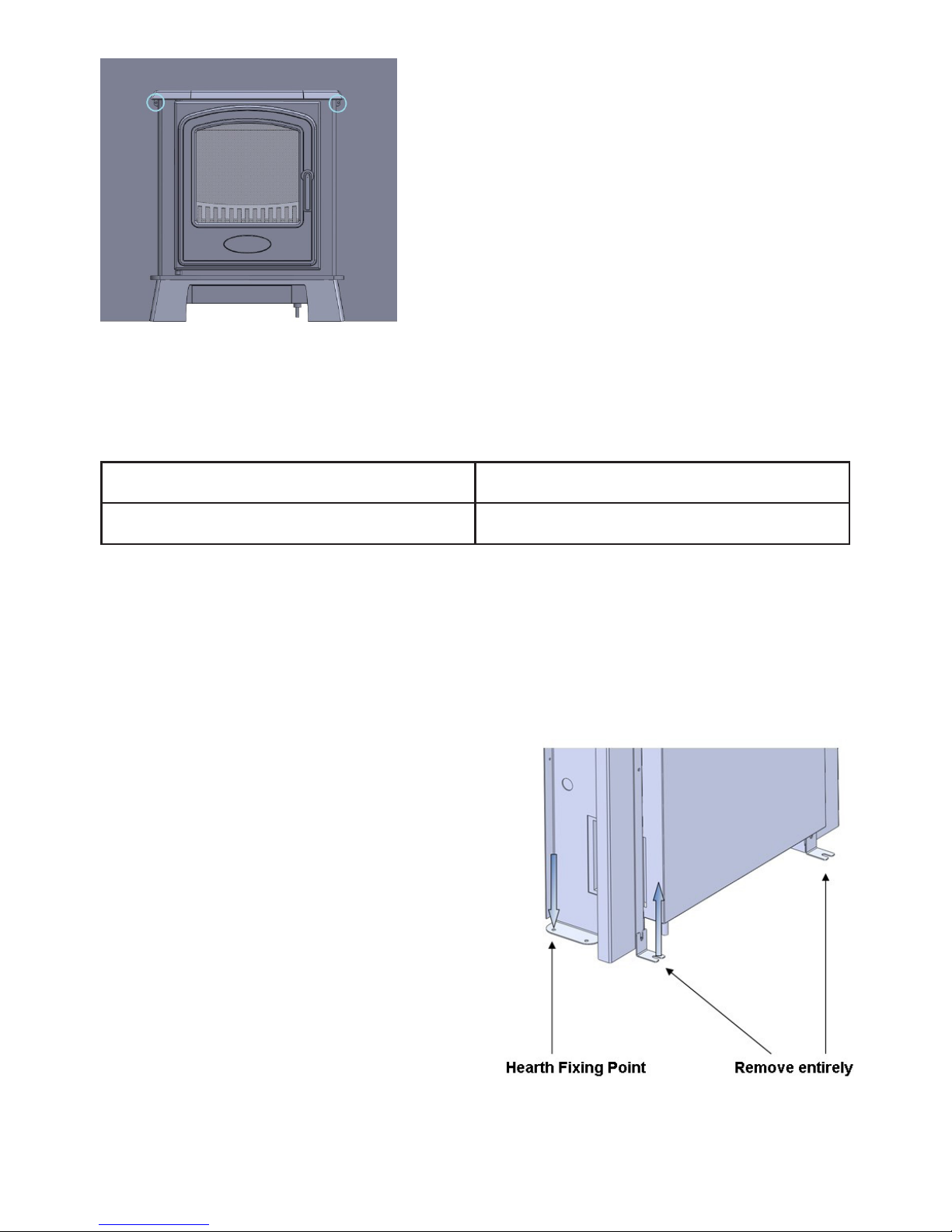

The Desire, Ignite and Hereford free-standing stoves will be fully assembled,
howevertheseappliancesMUSTbesecuredtotherearwallandoorusing
thexingpointsshownbelow.
Ignite 5/Desire5 Freestanding Remote Ignite 5/Desire 5 Freestanding Manual
Ignite 6/Desire 6 Freestanding Remote Ignite 6/Desire6 Freestanding Manual
Ignite 7/Desire7 Freestanding Remote Ignite 7/Desire7 Freestanding Manual
Hereford 5 Freestanding Remote Hereford 5 Freestanding Manual
Hereford 7 Freestanding Remote Hereford 7 Freestanding Manual

9

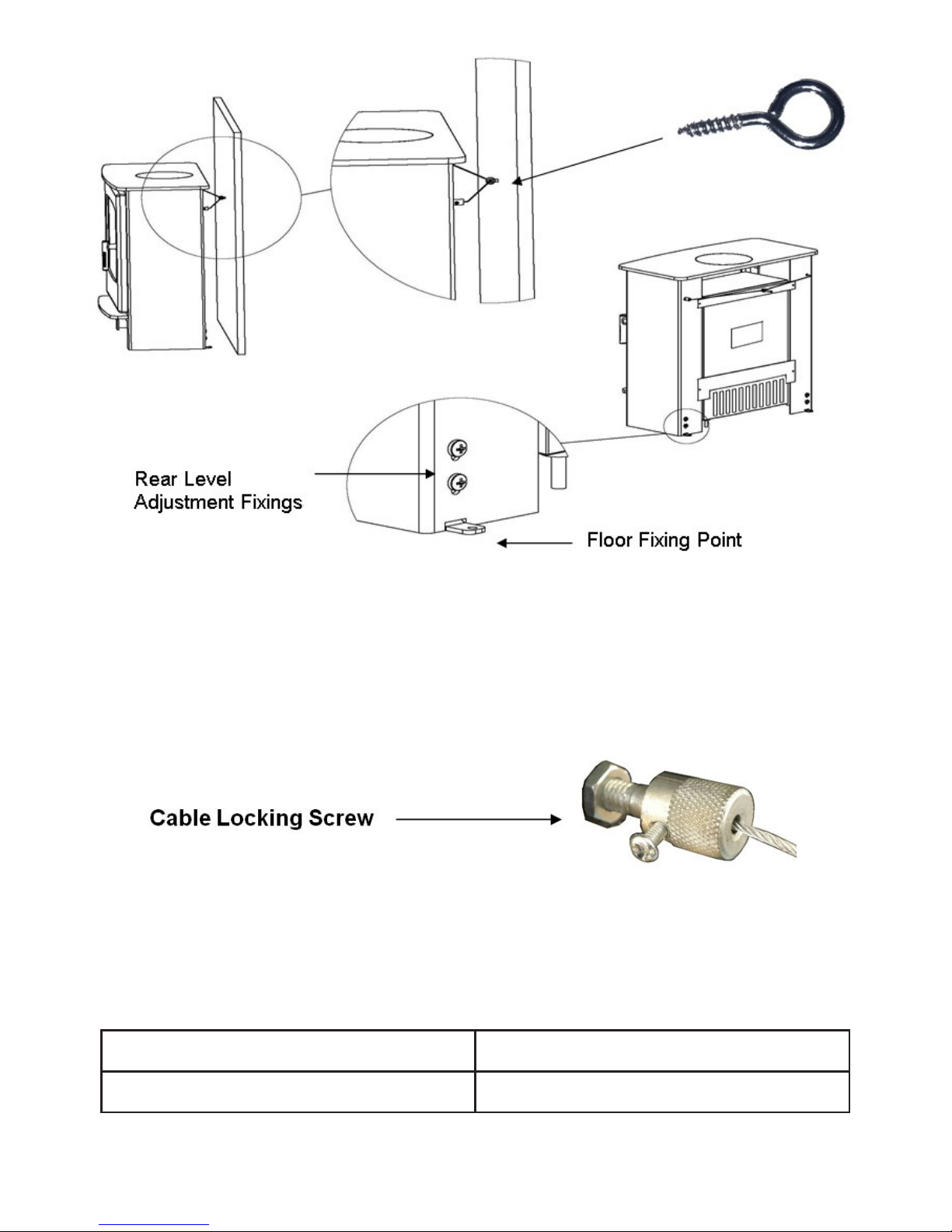

The oor xing points also provide adjustment to level up the product when
placed on an un-even surface. Front Adjustment is provided by two concealed
bolts (under the base).
The wall cable will need to be passed through the hook xing on the wall. It can
then be adjusted to length and locked using the xing on the left hand side (rear
of stove body).
PleaseNotexingsarenotprovidedtosecurethestovetotheoor.
Thesexingswillvarydependingonthematerialyouarexinginto.
Assembly – Inset Desire, Ignite & Hereford
Inset Ignite 6/Desire 6 Remote Inset Ignite 6/Desire6 Manual
Inset Hereford 5 Remote Inset Hereford 5 Manual

10
Please unpack carefully ensuring that any loose parts and all packing items are
removed. Read any warning labels carefully (see Maintenance Section).
Place waste packaging back into box and dispose of RESPONSIBLY.
The appliance must be positioned so that plug (fused spur) is accessible.
Only when you are certain that you have completed the following
installation instructions should you plug in and switch on at the wall socket.
Contents:1xStoveBodyTrim,1offFireengine(attachedtostovebody),
Instructionleaet,4offNo.6x1¾”screws,1xDoor(Packedinbox),
2xAngleBrackets(forbackpanel),6xAngleBracketFixings,2xWall
Fixings
Check that the supply voltage details on your ame effect re are in accordance
with your electrical supply. Your re is tted with a plug incorporating a 13 Amp
fuse. In the event of replacing the fuse in the plug supplied, a 13 Amp fuse
approved by ASTA to BS 1362 must be used. Before switching on, please read
the following operation instructions.

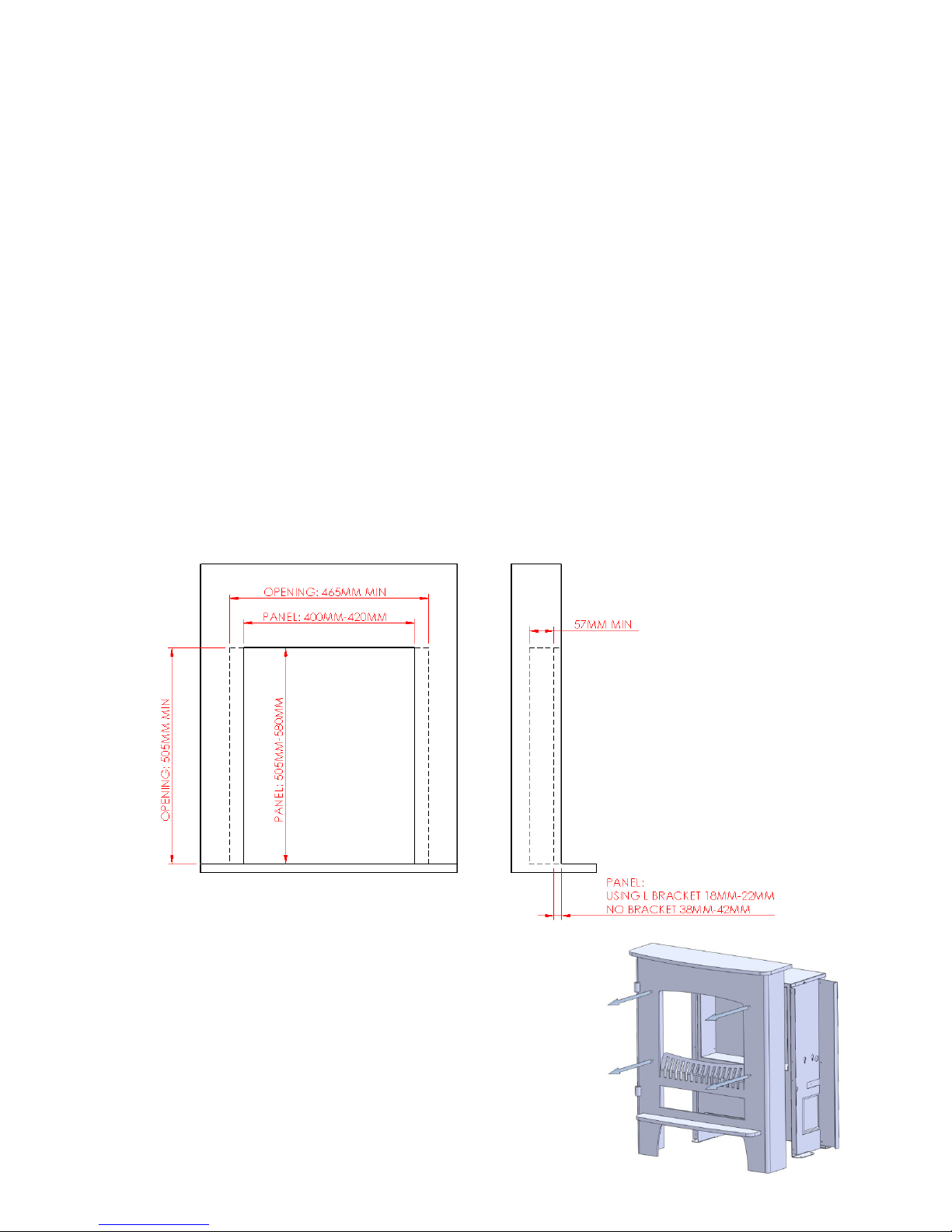

First ensure that the opening dimensions match the drawing below
Unpack the re by removing all the boxes from
the pallet and then removing the stove main body
by loosening and removing the 4 screws. With the
body removed next unscrew the re engine from
the pallet and remove the L shaped bracket from
the bottom rear of the stove “wings”

11
Assembly – Desire, Ignite and Hereford Inset
Inset Ignite 6/Desire6 Remote Inset Ignite 6/Desire6 Manual
Inset Hereford 5 Remote Inset Hereford 5 Manual
Fitting to a Fire Surround Back Panel
Measure the thickness of your back panel that the re is to be xed to, for panels
18mm – 22mm attach the two L shaped angle brackets with the return facing
forward. For panels 38mm - 42mm the L shaped angle bracket returns will need
to face backward.
When tting to a back panel the unit is secured in place by sandwiching the back
panel between the engine unit and the main body (as shown above).
The engine unit needs to be positioned through the back panel. Ensure an
electrical supply connection is made at this stage. Slide the engine through the
back panel opening on a diagonal then pull towards you so that it is straight and
the engine wings are snug behind the back panel. Offer the Stove body trim up
to the engine unit in the opening, using the 4 off 1 ¾ No.6 screws pro-vided.
Loosely x the trim to the holes provided on the xing wings. Once all four screws
are loosely attached, then fully screw the re into position. Take care not to
overtighten and strip the threads of the hole.
Once the stove is in position only then turn on the mains supply and proceed to
the door tting section.
Fittingtoanexisting16”x22”opening
For installations directly into an existing replace opening, you will need to secure
the main body to the opening using the two provided wall xings.

12
Re-attach the main body to the engine unit
using the four xings and slide the assembled
unit into the replace opening. Mark the two
wall xing points and remove the re from
the opening to enable drilling/wall xing.
Re-position the re and make any necessary
electrical connections.
Ensure the site is clear of debris before nally
securing the re to the wall.
Please note wall plugs are not provided as
this will depend on the material the re is to be
secured to.
Assembly – Desire, Ignite and Hereford Inset
Desire / Ignite 6 Inset Remote Desire / Ignite 6 Inset Manual
Hereford 5 Inset Remote Hereford 5 Inset Manual
OptionalHearthFixing
In both cases (with our without back panel) the engine unit MUST be secure
before proceeding to attach the door. It is also possible to x the engine unit to
the hearth should either of the above methods not provide an adequately secure
xing in your individual installation.
With the main body attached to the engine
unit, slide the assembly into the opening (in
its nal position).
Remove the main body by un-doing the
four xings and carefully remove from the
engine, mark the two hearth xing points
and remove the engine unit from the
opening.
Drill and plug the two xing points (xings
not supplied). Ensure the opening is
clear of debris and re-position the engine
unit (making any necessary electrical
connections in the process). Secure the
engine unit to the hearth.
Re-attach the main body using the four
xings.

13
Door Fitting.
Desire & Ignite Inset:
The Door assembly supplied should be ready to t, once the re is installed then
hang the Door onto the hinges xed on the main body by locating the hinges on
the door over the top of the hinges on the main body, move the door open and
closed a few times so that the hinge mates correctly.
Hereford Inset:
The door should be supplied assembled with the upper hinge pin in position and
the lower hinge pin ready to t to the assembly. Locate the upper hinge pin in
position in the upper hinge on the main body. Manoeuvre the door so that the
lower pin (supplied) can drop through into the lower hinge pin. Lock the lower pin
in position by xing the slider component in position using the M5 Allen bolt. The
slider should rest on top of the pin so as to prevent the pin rising up out of the
lower hinge.

14
Operating Your Stove
The appliance can be operated by both remote control and the manual controls
on the appliance.
NOTE: To use both remote and manual functions the manual on/off switch must
be in ‘-’ position. In order to prevent the product becoming too hot, there is 10s
delay when turning on the heater and a 10s delay when turning off the heater.
PREPARATION BEFORE USE
• Check that the supply voltage details on your ame effect re are in
accordance with your electrical supply. Your re is tted with a plug
incorporating a 13 Amp fuse. In the event of replacing the fuse in the plug
supplied, a 13 Amp fuse approved by ASTA to BS 1362 must be used. Before
switching on, please read the following re installation instructions.
• Ensure that the handset batteries are new and inserted correctly.
• In the event of any problems please contact:
BeModernHelplineon0191430-0901.
NOTE: The manual button controls basic functions, not a full range of
controls. use the remote hand set to carry out all functions.
Press “FLAME” button to cycle through the 3 kinds of ame effect.
Press “LIGHTS ON/OFF” to turn on or turn off the ame.
NOTE: The controls on appliance will lose the memory for all function set-
tings when the switch is set to the OFF position. When the remote runs out
ofpowerorwhenyouchangethebatteries,onlytheamefunctionwilllose
memory and will not affect the timer settings, however, the clock may need
adjusting
Manual Controls

15
Remote Controls
NOTE: This is thermostatic remote control. The remote should be in the
sameroomasreplaceandplacedonaatsurface.Itmustbeplaced
awayfromtheresothehotairwillnotblowonitandaffectthermostatic
reading.
The communication frequency between the re and remote has already been set
up. If you cannot use the remote with the re, please follow instructions Step R31
to initiate this connection in point.

16

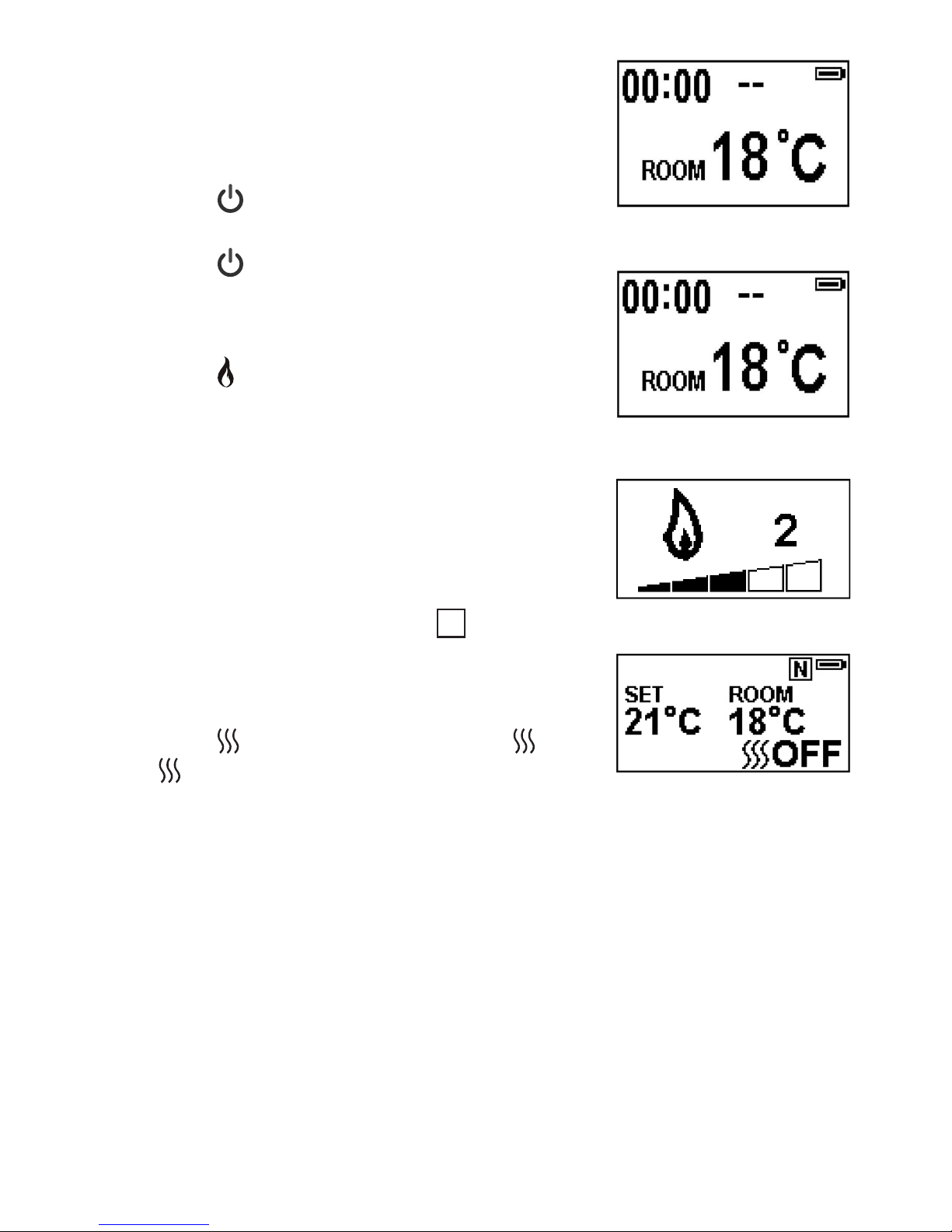

Standby for Remote Handset
R1 The screen shown to the right is when the
remote handset is in standby mode.
Turn on/off
R2 Press to turn on the ame effect, turn off
ame effect and heater when in normal mode
R3 Press to turn on/off the ame effect under
daily and weekly timer mode.
Flame Effect
R4 Press to enter the ame effect adjustment
screen.
R5 Press the ‘←’ and ‘→’ button to select the 3
kinds of ame effect.
R6 Press the ‘+’ and ‘-’ button to select the 5
brightness of ame effect and OFF settings.
Normal Mode
R7 Normal control mode is factory set. If it is not,
then press Mbutton until the Nlogo shows
up at the upper right corner of the screen.
R8 Press the ‘+’ and ‘-’ button to adjust the setting
temperature from 17oC to 25oC by 2 intervals.
R9 Press Abutton to turn on/off heat, ON,
OFF will show at the lower of the screen.
Before Day/Time set
After Day/Time set
NOTE: It is normal for the fan heater to stop running for periods of time. This
happens because the room temperature is at or above the temperature set on
the remote control.
Theheaterindicatorwillbeturnedoffafter10sifyouhavetheameON.The
heater indicator will stay ON if you use the heating function only.

17

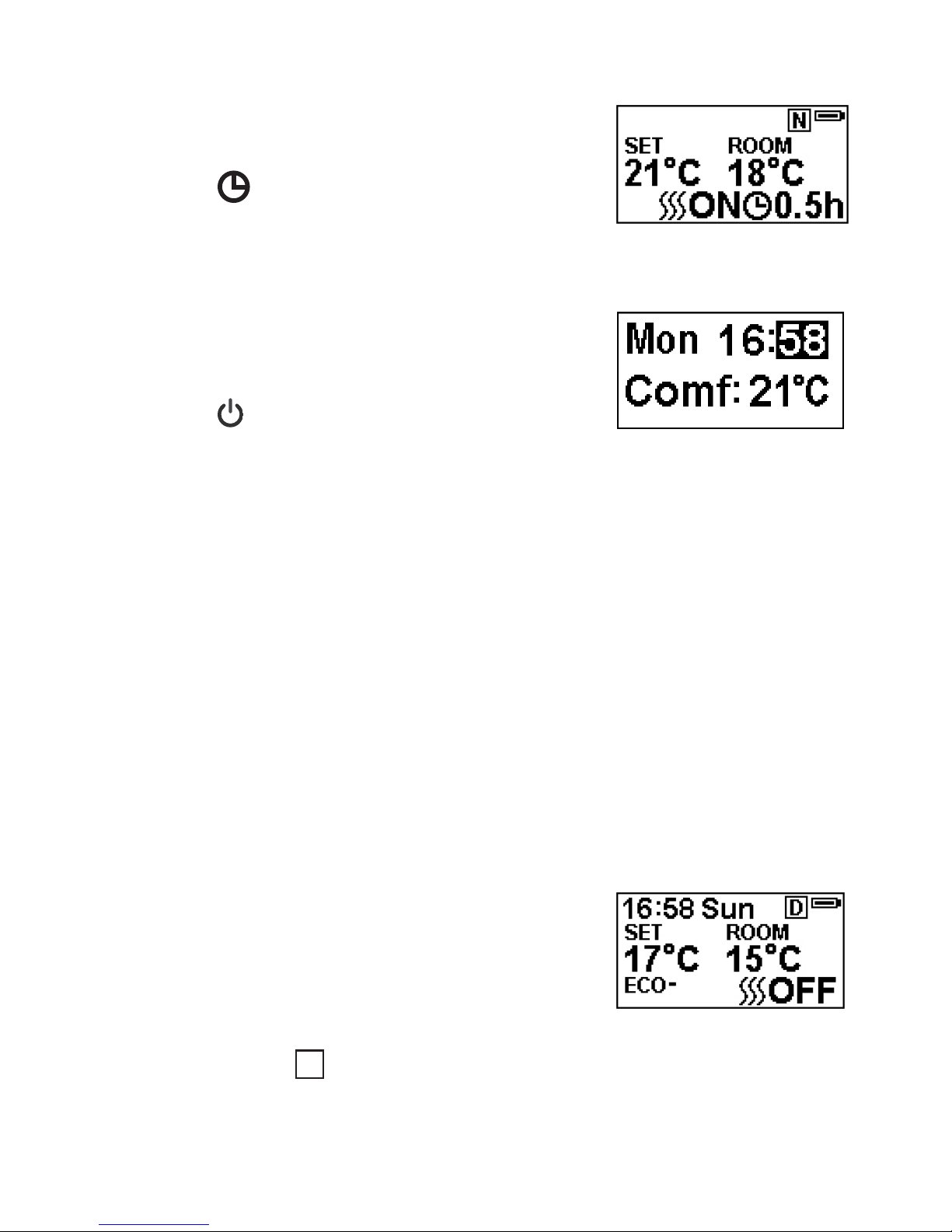

Count Down Timer
NOTE: This setting is only for normal mode.
It allows the appliance to go into standby after a
set period of time.
R10 Press to cycle through the settings from
Off and 0.5 hours to 9 hours. The timer logo
and time will show on the screen. The heater
must be on ON position.
The heater can be automatically run by using
daily timer and weekly timer on the remote.
Set up Day, Time, Comfortable temperature and
temperature unit
R11 Press to turn on the remote handset. Hold
the button Mfor 3 seconds to enter the setting
screen.
R12 Press the ‘←’ and ‘→’ button to choose Day,
Time or your comfortable temperature. The
selected character will be highlighted.
R13 Press the ‘+’ and ‘-’ button to adjust the
number.
• Time: 24-hour system
• Select your comfortable temperature from
15-25oC.
• Temperature unit: oC, oF
Daily Timer Heating
R14 It has following preset heating periods, which
can be altered if desired
06:00 until 8:30
17:00 until 22:00
R15 Press Muntil Dshows at the upper right
corner of the screen, then enter the daily timer
heating mode.

18
R16 Hold the button for 6 seconds to enter the
daily timer setting. Max 3 timed heating periods
for a day.
• Press ‘←’ or ‘→’ to choose hour or minute,
press ‘+’ or ‘-’ to set the number.
• Minute will increase/decrease by 15
minutes per press.
• Hold for 3 seconds or wait for 10
seconds to save and exit the heating time
period setting.

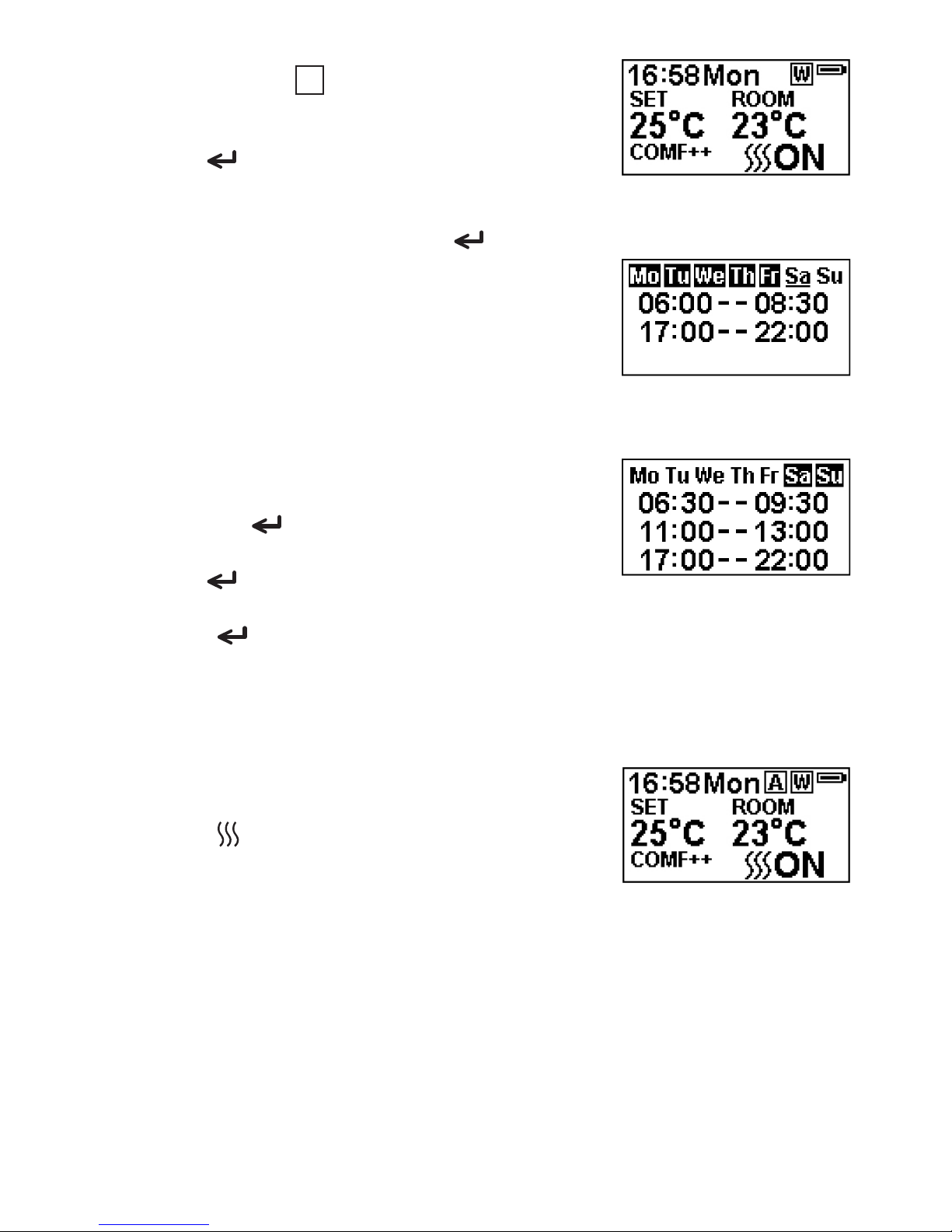

R17 Adjust the set temperature
Press the ‘+’ or ‘-’ button to increase or
decrease the set temperature on the basis of
your comfortable temperature setting.
ECO means 2oC lower than your comfortable
temperature setting,
ECO- means 4oC lower,
COMF+ means 2oC higher,
COMF++ means 4oC higher.
R18 To check your daily timer settings,
press .
R19 If heating needs to be turned off, it will be
necessary to go back to the Normal Mode to
turn off.
Week Timer Heating
R20 It has the following preset heating periods,
which can be altered if desired.
From Monday to Friday
06:00 until 08:30
17:00 until 22:00
From Saturday to Sunday
06:30 until 9:30
11:00 until 13:00
17:00 until 22:00

19
R21 Press Muntil Wshows at the upper right
corner of the screen, then enter the week timer
heating mode.
R22 Hold button for 6 seconds to enter the
week timer setting.
Press ‘←’ or ‘→’ to move the cursor
(a ashing underline), press the button
in the corresponding week position to select
(the character is highlighted) or cancel (the
character is displayed normally) the current
setting. Several days can be selected together.
Press the ‘→’ button to move the cursor to the
time period setting area. Press ‘←’ or ‘→’ to
choose hour or minute, press ‘+’ or ‘-’ to set
the number. Max 3 heating periods for a day.
Minute will increase/decrease by 15 minutes
per press.
Press the to set the heating time for the
selected day(s) and return to the week line.
Hold 3s or wait for 10s to save and exit the
heating time period setting.
R23 Press , ‘←’ and ‘→’ to check your week
timer settings.
R24 If heating needs to be turned off, it will be
necessary to go back to the Normal Control
Mode to turn off.
Advance Mode
R25 Under the daily and week timer mode,
Press A
R26 To turn the heater off when the heater is on
during a preset heating period.
R27 To turn the heater on when the heater is off in
between preset heating periods.

20
Adaptive Start Control
R28 According to room temperature and set
temperature, the heater will automatically come
on in time to heat the room to the set temperature
at the set time. For example, if your timer is set to
start at 18:00 and temperature is set to 23°C, the
re will come on at 17:30 to ensure the room is
23°C at 18:00.
Window Open Detection
R29 When the transmitter detects a rapid drop in room
temperature, it will be judged as a window open,
then the warning icon will be displayed and the
heat-ing will be turned off automatically.
R30 After the indoor temperature has risen or a
manual override of warning (by operating remote
control) has been done, the re will return to
normal working state.
Set up the communication between the remote and
appliance
R31 The below operations should be carried out before
programming, when changing to a new remote or
in the event the appliance cannot be controlled by
the remote:
• Hold the reset button for 3 seconds (pen point
may needed) until you hear 3 short beeps from
the unit, release the button.
• Press the button on the remote, the
programming is nished when you hear 1 long
beep from the appliance.
R32 Resetting the code for remote control is necessary
if the appliance operates wrongly under the
external interference signal or the remote control
does not operate correctly.
• Open the back cover of the remote control.
• Press the Reset button on the remote control.
• Follow the steps R31
