Brother TN-210 Series Installation and maintenance instructions

REMANUFACTURING INSTRUCTIONS
V 5.6: 09-14
SSS™1127
CONTENTS
Tools & Supplies ..................................... 2
Wirelines .............................................. 3
Toner and Drum Unit Differences ............... 4
Check the Alignment of the Boss ............... 5
Separating the Drum Unit & Toner Hopper .. 5
Disassembling the Cartridge..................... 6
Assembling the Cartridge....................... 10

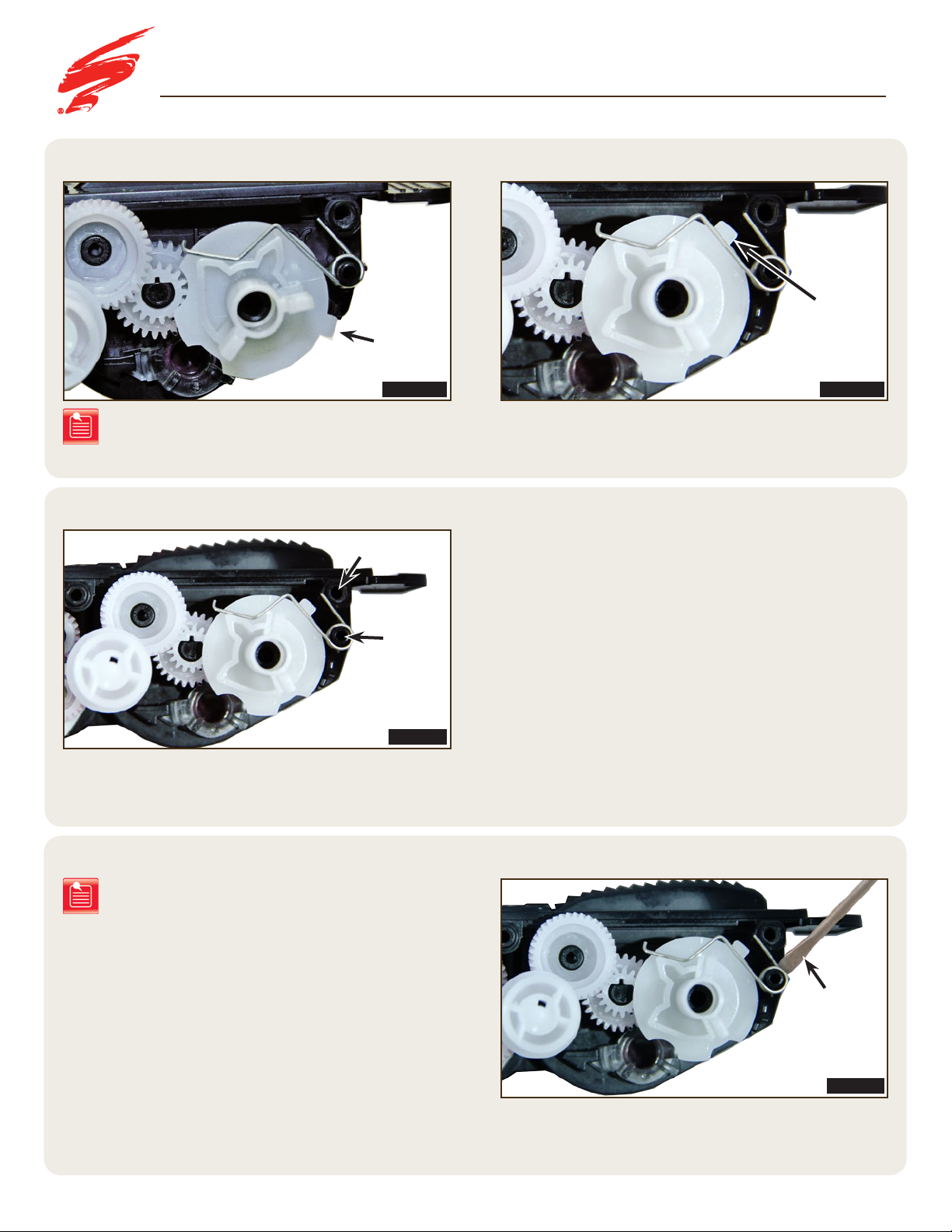

Resetting the Flag Gear ......................... 13
Disassembling the Drum Unit .................. 14
Assembling the Drum Unit ...................... 16
Drum Reset Instructions .......................... 19
Color Calibration Process ...................... 20
About Static Control.............................. 21
Brother®HL-3040CN Cartridge
HL-3070/MFC-9010CN/9120CN/9320CN
TN-210 & DR-210
www.scc-inc.com

SSS™1127 |2
SSS™1127
Visit Static Control®on the web @ www.scc-inc.com

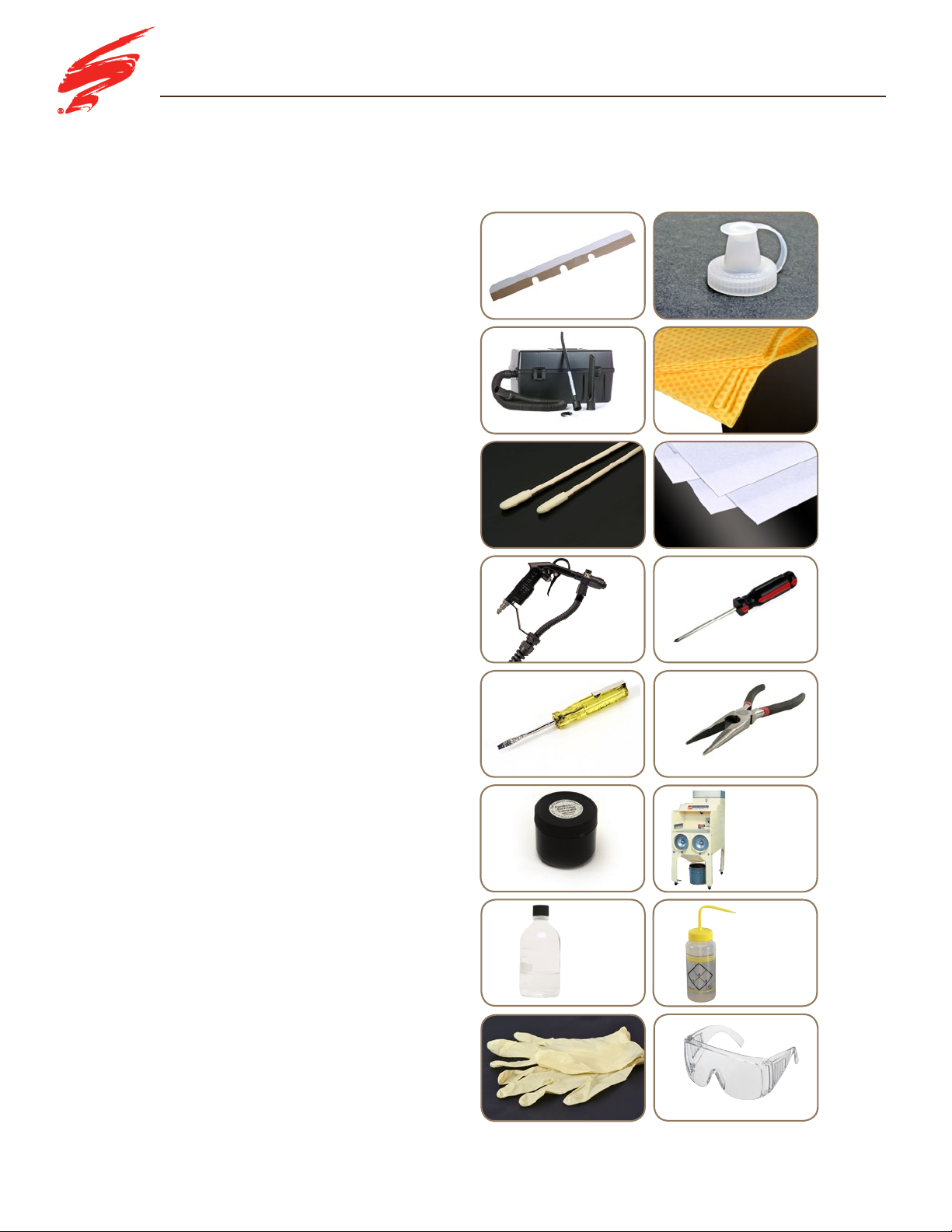

• Doctor Blade Cover (B3040DBCOVER)
• Toner Pour Spout (TPS)
• Toner Vacuum (3M) (TONERVAC115
or TONERVAC220)
• Toner Cloth (TCCLOTH)
• Lint-Free Foam Swab (LFSWAB)
• Lint-Free Cleaning Cloth (LFCCLOTH)
• Dry, Filtered, Ionized Compressed Air for
Cleaning
• Phillips Screwdriver
• Small Slotted Screwdriver
• Needle Nose Pliers
• Conductive Lubricant (CONCLUBE)
• Cartridge Cleaning Workstation
• De-Ionized Water
• 91-99% Isopropyl Alcohol
• Rubber Gloves
• Safety Glasses
Toner Pour SpoutDoctor Blade Cover
Toner ClothToner Vacuum
Lint-Free Cleaning ClothLint-Free Foam Swab
Phillips Screwdriver
Dry, Filtered,
Compressed Air
Needle Nose PliersSmall Slotted Screwdriver
Safety Glasses
Rubber Gloves
De-Ionized
Water
Conductive Lubricant
91-99%
Isopropyl
Alcohol
Cartridge
Cleaning
Workstation
TOOLS & SUPPLIES

SSS™1127 |3
SSS™1127
Visit Static Control®on the web @ www.scc-inc.com
WIRELINES
Developer Roller
Developer Roller Stabilizer
Locking Tab
Doctor Blade
Doctor Blade
End Felt
Doctor Blade
End Felt
Toner Adder Roller
Doctor Blade Cover
Developer Roller
Support Bearing Spring
Developer Roller
Support Bearing
Hopper Cap
Cartridge Core
Flag Gear
Spring
Cartridge
Drive Gear
Agitator
Drive Gear
Idler
Drive Gear
Toner Adder Roller
Drive Gear
Idler Gear
Developer
Roller End Felt
Developer
Roller End Felt
Toner Adder
Roller End Insert
Toner Adder Roller End
Foam
Toner Adder
Roller End
Foam
Flag Gear
Contact Side
End Plate
Drive Side
End Plate
Drive Side Support Bearing
Brother®hL-3040 Cartridge assemBLy

SSS™1127 |4
SSS™1127
Visit Static Control®on the web @ www.scc-inc.com
CYAN, MAGENTA and YELLOW (COLOR) TONER CARTRIDGES
BLACK TONER CARTRIDGE
Keying Feature
Keying Feature
Corona Assembly (Narrow)
Corona Assembly (Wide)
e-clip (Metal)
(Axle Locking Mechanism)
c-clip (Plastic)
(Axle Locking Mechanism)
BROTHER®HL-3040 TONER AND DRUM UNIT DIFFERENCES

SSS™1127 |5
SSS™1127
Visit Static Control®on the web @ www.scc-inc.com
STEP 1.2STEP 1.1
STEP 1.3 (CHECK THE ALIGNMENT OF THE BOSS)
Pull the toner hopper away from the drum unit using the
handle (Figures 1.2).
To release the toner hopper from the drum unit, press the
release button located on the drum unit (Figure 1.1).
While remanufacturing the Brother®HL-3040 toner cartridge, you will need to check the cartridge drive gear boss for
proper alignment or warping (Figure 1.3). IF THE BOSS IS WARPED OR MISSHAPEN, THE CARTRIDGE CANNOT
BE REMANUFACTURED. If you proceed with a cartridge that has a warped boss, the drive side gears will not connect
securely, they will not engage properly and a loud clicking noise will be heard.
FIGURE 1.1 FIGURE 1.2
FIGURE 1.3
Note: For instructional purposes, a TN-210MA cartridge
is shown.
Warning:
Straight Boss
Note: Straight
and Uniform
Straight Boss
Note: Straight
and Uniform
Gear End of
Cartridge
Release Button
Warped Boss
Note: Noticeably
Deformed and
NOT Uniform
Warped Boss
Note: Noticeably
Deformed and
NOT Uniform
SEPARATING THE DRUM UNIT AND TONER HOPPER

SSS™1127 |6
Visit Static Control®on the web @ www.scc-inc.com
SSS™1127
STEP 2.4
STEP 2.2
STEP 2.3
STEP 2.1
STEP 2.5 STEP 2.6
Remove the gears from the drive side of the cartridge in the order
shown. Idler drive gear (1), agitator drive gear (2), idler gear (3), and
the toner adder roller drive gear (4) (Figure 2.6).
Remove the cartridge drive gear (Figure 2.4) and check the
boss for alignment.
Use a small slotted screwdriver to release the locking tab on
the underside of the drive side end plate (Figure 2.2).
Remove the flag gear spring and the flag gear (Figure 2.5).
Remove the drive side end plate (Figure 2.3).
On the drive side end plate, remove the two screws as shown
in Figure 2.1.
FIGURE 2.4
FIGURE 2.3
FIGURE 2.2FIGURE 2.1
FIGURE 2.6FIGURE 2.5
DISASSEMBLING THE CARTRIDGE
Note: See warning on page 5.
Note: See warning on page 5.
3
4
2
1
Screws
Phillips
Screwdriver
Small Slotted
Screwdriver
Remove Gear
Flag Gear
Spring
Flag Gear
Drive Side
End Plate
Locking Tab

SSS™1127 |7
Visit Static Control®on the web @ www.scc-inc.com
SSS™1127
2.10
STEP 2.8 STEP 2.9
STEP 2.7
STEP 2.11

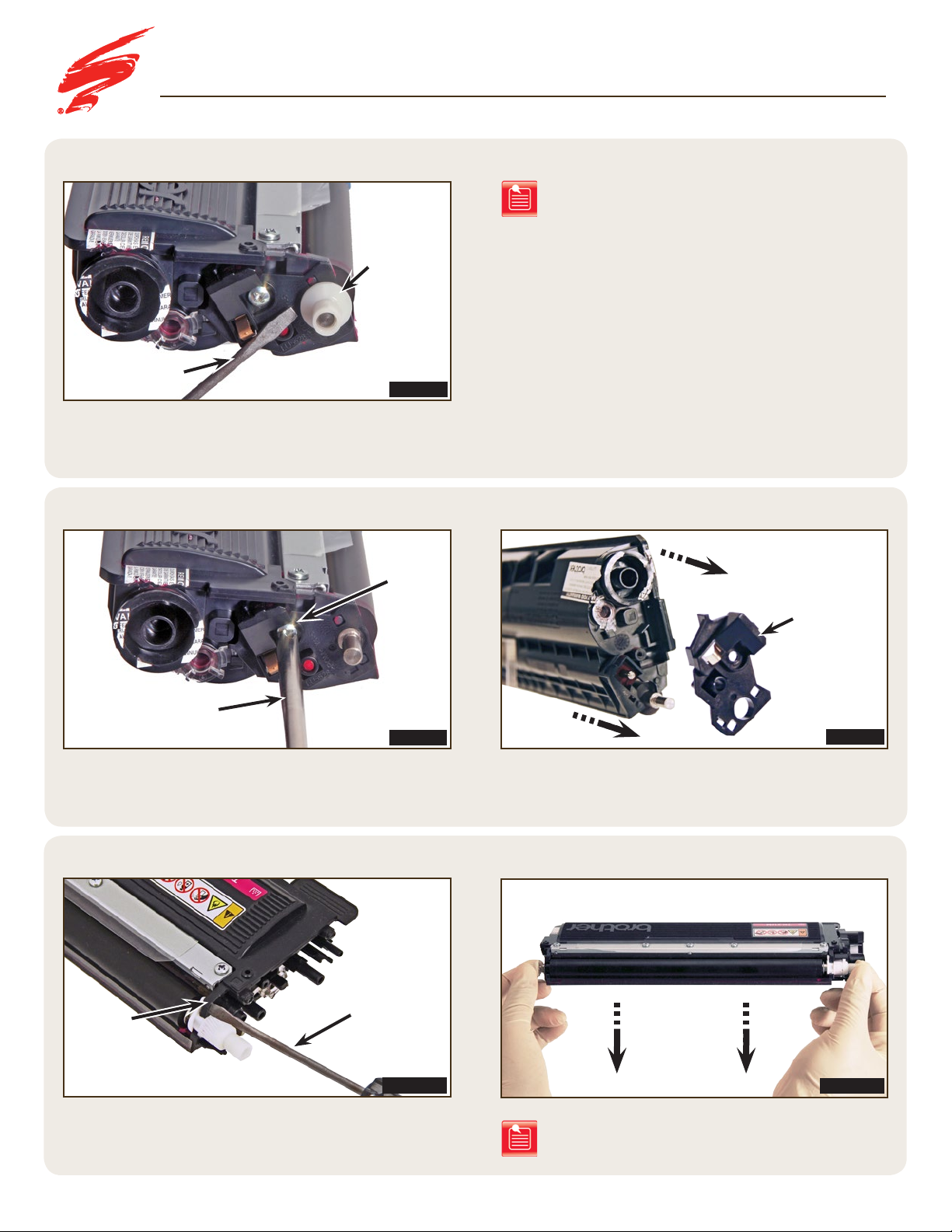

To remove the developer roller, insert a small slotted screwdriver
into the small opening as shown in Figure 2.10 and gently pry
the white developer roller stabilizer’s locking tab loose.
On the contact side end plate, remove the screw (Figure 2.8).
Remove the developer roller from the cartridge (Figure 2.11)
Remove the contact side end plate (Figure 2.9).
Using a small slotted screwdriver, remove the contact side
developer roller support bearing and spring (Figure 2.7).
FIGURE 2.10
FIGURE 2.9
FIGURE 2.8
FIGURE 2.7
FIGURE 2.10 FIGURE 2.11
DISASSEMBLING THE CARTRIDGE
Note: Insert a small slotted screwdriver under the contact
side support bearing, then lift up and out to
free the developer roller support bearing from
the cartridge. Remove the spring.
Note: Clean the developer roller with a lint-free cleaning cloth
saturated in 91-99% isopropyl alcohol. Then
use another lint-free cloth with de-ionized water
and blow dry with dry, filtered, ionized compressed air.
Locking
Tab
Contact Side
Developer Roller
Support Bearing
& Spring
Contact Side
End Plate
Screw
Phillips
Screwdriver
Small Slotted
Screwdriver
Small Slotted
Screwdriver

SSS™1127 |8
Visit Static Control®on the web @ www.scc-inc.com
SSS™1127
STEP 2.13
STEP 2.12
STEP 2.14
STEP 2.15

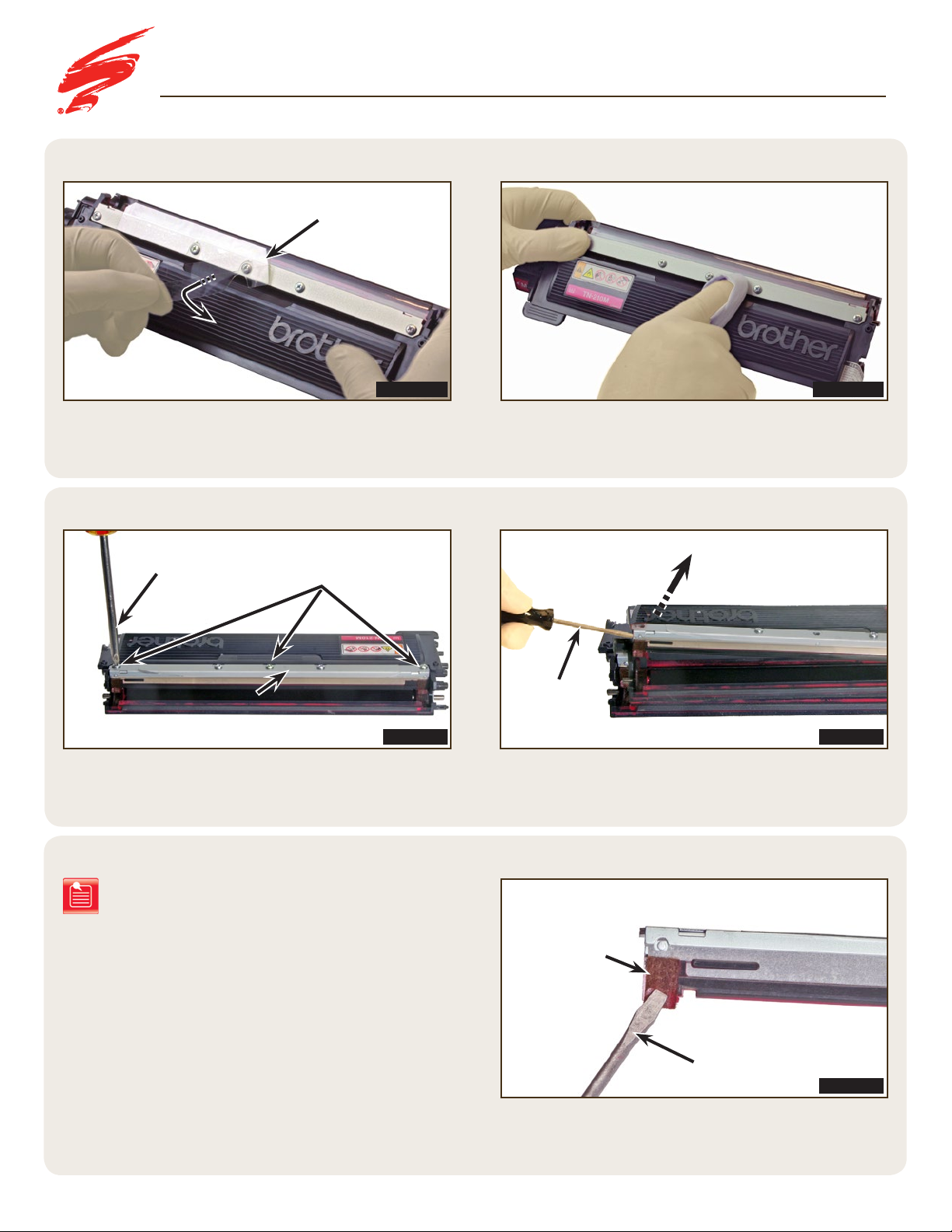

Using a small slotted screwdriver, gently fluff the doctor blade
sealing felts so the fibers are standing (Figure 2.15).
Use a lint-free cleaning cloth dampened with 91-99% isopropyl
alcohol to clean any adhesive residue from the doctor blade’s
metal stamping (Figure 2.12B).
Using a small slotted screwdriver, gently pry the doctor blade up
from the cartridge and remove the doctor blade (Figure 2.14).
Remove the three screws on top of the doctor blade (Figure 2.13).
Inspect the doctor blade cover. If wrinkled or damaged, remove
the blade cover from the doctor blade (Figure 2.12A).
FIGURE 2.13
FIGURE 2.12BFIGURE 2.12A
FIGURE 2.15
FIGURE 2.14
DISASSEMBLING THE CARTRIDGE
Note: To clean the doctor blade, saturate a lint-free
cleaning cloth with 91-99% isopropyl alcohol,
gently clean the black material portion of the
doctor blade. Then clean with a lint-free cleaning
cloth saturated with de-ionized water, then blow
with dry, filtered, ionized compressed air.
Doctor Blade Cover
Doctor Blade
Doctor Blade
Sealing Felts
Screws
Phillips
Screwdriver
Small Slotted
Screwdriver
Small Slotted
Screwdriver

SSS™1127 |9
Visit Static Control®on the web @ www.scc-inc.com
SSS™1127

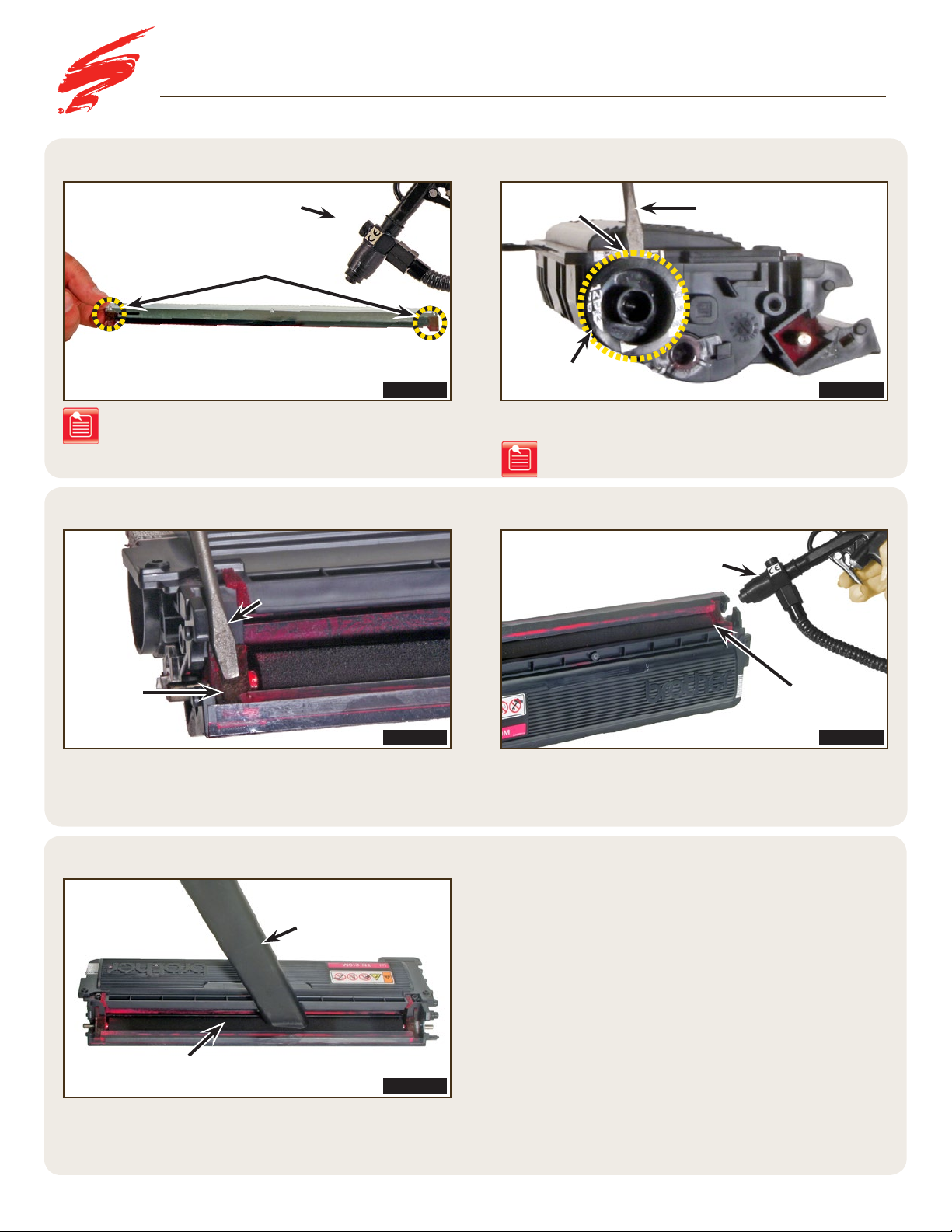

STEP 2.19
STEP 2.17
STEP 2.18
STEP 2.16
STEP 2.20
Clean the hopper with dry, filtered, ionized compressed air
(Figure 2.19).
Using a small slotted screwdriver, pry the hopper cap from the
top as shown in Figure 2.17.
With a toner vacuum, gently vacuum the adder roller. Rotate
the roller while vacuuming (Figure 2.20).
Using a small slotted screwdriver, gently fluff the developer
roller end felts so the fibers are standing (Figure 2.18).
DISASSEMBLING THE CARTRIDGE
FIGURE 2.16
FIGURE 2.18
FIGURE 2.20
FIGURE 2.19
FIGURE 2.17
Note: Pry on the top portion of the hopper cap to ensure
the cartridge core is not damaged.
Note: Blow the doctor blade felts with dry, filtered, ionized
compressed air to remove any debris (Figure 2.16).
Developer
Roller End
Felts
Hopper Cap
Hopper
Adder Roller
Toner Vacuum
Small Slotted
Screwdriver
Small Slotted
Screwdriver
Pry At Top
Compressed Air
Compressed Air
Doctor Blade
Sealing Felts

SSS™1127 |10
Visit Static Control®on the web @ www.scc-inc.com
SSS™1127
STEP 3.4
STEP 3.2
STEP 3.3
STEP 3.1
STEP 3.5 STEP 3.6
Rotate the developer roller stabilizer as noted in Figure 3.6A
so the locking tab engages. The completed step will look like
Figure 3.6B.
Install the gears on the drive side of the cartridge in the order
shown. Toner adder roller drive gear (1), idler gear (2), agitator
drive gear (3), idler drive gear (4), and the cartridge driver gear
(5) (Figure 3.4).
Secure the doctor blade into the cartridge with three screws
shown in Figure 3.2.
Install the developer roller into the cartridge (Figure 3.5).
If removed during disassembly, replace the doctor blade cover.
Remove the adhesive backing from the blade cover and align the
blade cover with the back edge of the doctor blade. Ensure the three
screws are centered in the grooves. Apply pressure along the length
of the doctor blade cover to activate the adhesive (Figure 3.3).
Place the doctor blade onto the cartridge (Figure 3.1).
FIGURE 3.4
FIGURE 3.3
FIGURE 3.2FIGURE 3.1
FIGURE 3.6AFIGURE 3.5
ASSEMBLING THE CARTRIDGE
Locking Tab
Blade Cover
FIGURE 3.6B
Screws
Phillips
Screwdriver
3
4
5
2
1
Locking Tab

SSS™1127 |11
Visit Static Control®on the web @ www.scc-inc.com
SSS™1127
STEP 3.8
STEP 3.7
STEP 3.9

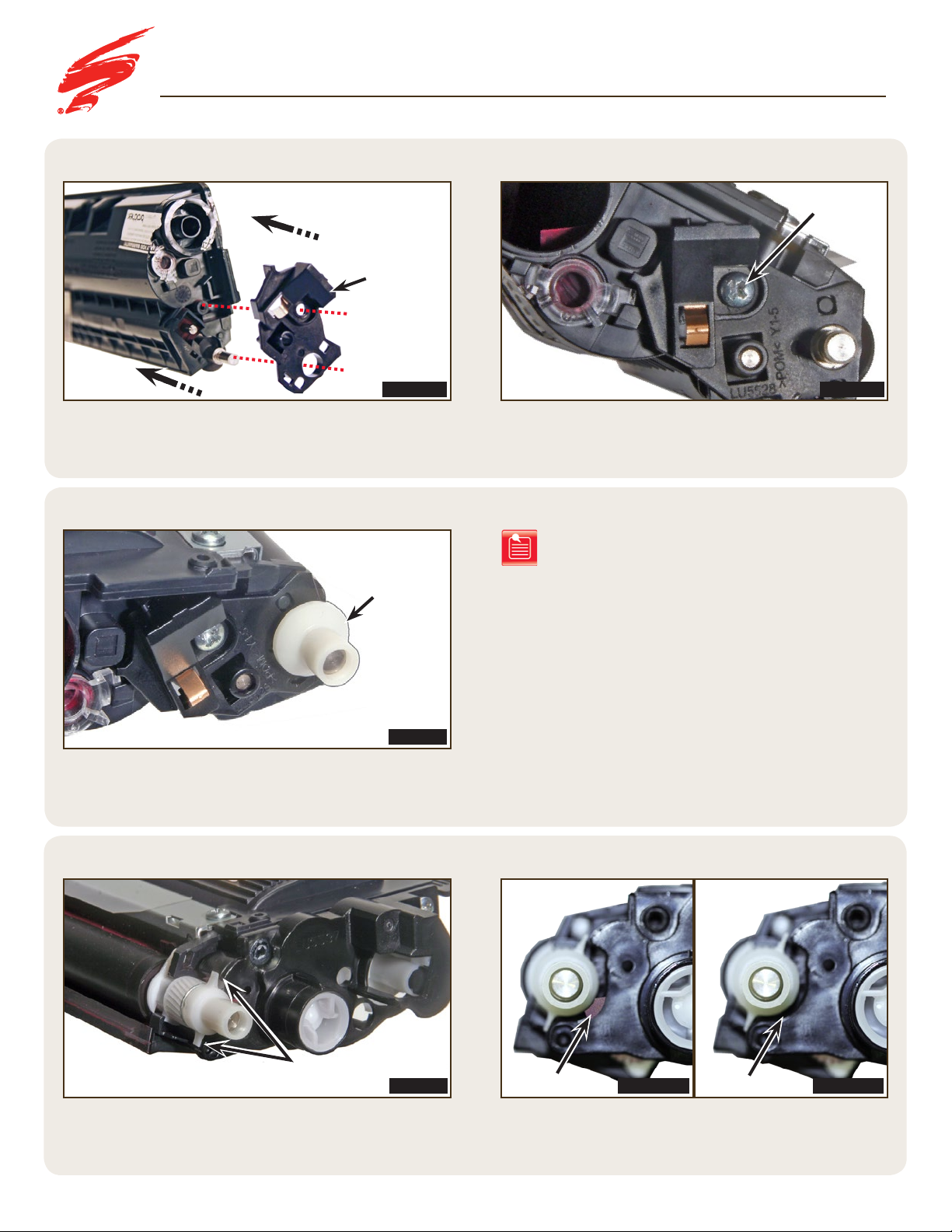

Place the drive side end cap onto the cartridge and ensure that
the drive side support bearing tabs are on the outer part of the
drive side end plate (Figure 3.9).
Place the contact side developer roller support spring and
bearing onto the developer roller axle (Figure 3.8).
Place the contact side end cap and secure with a screw
(Figures 3.7A and 3.7B).
FIGURE 3.8
FIGURE 3.7BFIGURE 3.7A
FIGURE 3.9
ASSEMBLING THE CARTRIDGE
Note: Reference Figures 4.1A and 4.1B on page 13
under the “Resetting the Flag Gear” section, to
ensure the flag gear tab is in the reset location
prior to placing the drive side end cap onto the
cartridge. Print error failures could result if the
gear is not set properly.
Screw
Drive Side Support Bearing Tabs
Contact Side
Developer Roller
Support Bearing
STEP 3.10
Use a small slotted screwdriver to gently set the foam under
the drive side developer roller support bearing back into place
(Figures 3.10A and 3.10B).
FIGURE 3.10A FIGURE 3.10B
Before after
Foam No Foam
Contact
Side End
Cap

SSS™1127 |12
Visit Static Control®on the web @ www.scc-inc.com
SSS™1127
STEP 3.12
STEP 3.13
STEP 3.11
Fill the cartridge using the approved toner (Figure 3.12).
Insert the hopper cap (Figure 3.13).
Secure the drive side end plate with two screws as shown in
Figure 3.11.
FIGURE 3.13
FIGURE 3.12FIGURE 3.11
ASSEMBLING THE CARTRIDGE
Hopper Cap
Toner
Screws
Phillips
Screwdriver

SSS™1127 |13
Visit Static Control®on the web @ www.scc-inc.com
SSS™1127
STEP 4.2
STEP 4.1
STEP 4.3
The spring should rest on the flag gear. Using a small slotted
screwdriver, press spring down onto the post (Figure 4.3).
Install the flag gear spring as shown in Figure 4.2.
FIGURE 4.2
FIGURE 4.1BFIGURE 4.1A
FIGURE 4.3
RESETTING THE FLAG GEAR
Note: Reference Figures 4.1A and 4.1B to ensure the
flag gear tab is in the reset location. Print error
failures could result if the gear is not set properly.
Note: The short arm of the spring needs to be on the left
side of the cartridge post as shown in Figure 4.3
Flag Gear
Tab Spent
Position
Flag Gear
Tab Reset
Position
Cartridge Post
Small Slotted
Screwdriver
Flag Gear
Spring Arm
Behind
Cartridge
Post

SSS™1127 |14
Visit Static Control®on the web @ www.scc-inc.com
SSS™1127

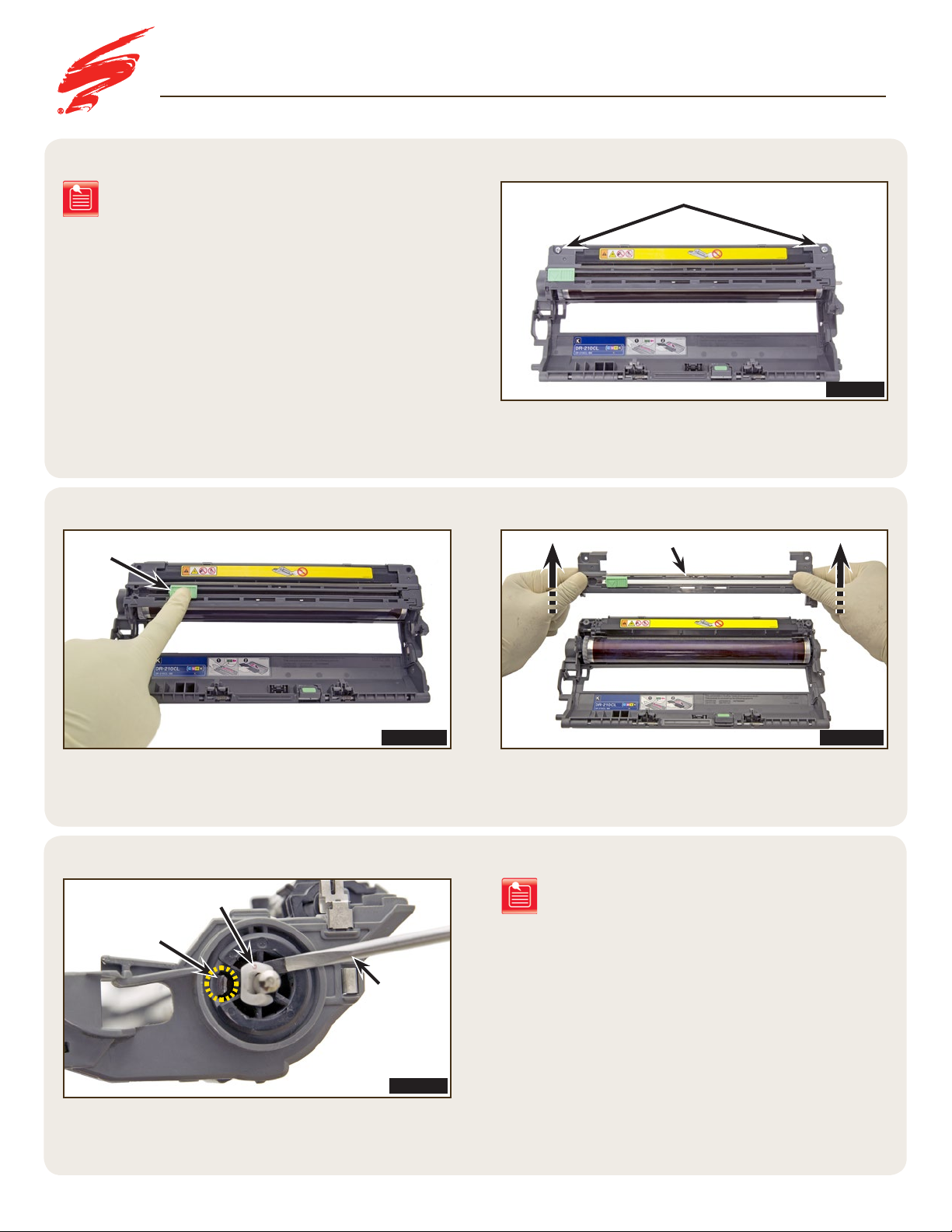

STEP 5.1
STEP 5.2
STEP 5.3
Remove the two screws securing the corona assembly on the
drum unit (Figure 5.1).
On the contact side of the drum unit, locate the white drum axle
locking c-clip. Using a small slotted screwdriver, remove the
c-clip as shown in Figure 5.3.
Slide the green corona cleaning tab to the unlock position to
release the corona as shown in Figure 5.2A. Lift the corona
assembly and remove it from the drum unit (Figure 5.2B).
FIGURE 5.2BFIGURE 5.2A
FIGURE 5.1
FIGURE 5.3
DISASSEMBLING THE DRUM UNIT
Note: A metal e-clip can be used to secure the drum
axle and is removed similarly (see page 4).
Note: For instruction purposes, the DR-210CL-K unit
is shown.
Corona Assembly
C-clip
Tab
Screws
Small Slotted
Screwdriver
Tab

SSS™1127 |15
Visit Static Control®on the web @ www.scc-inc.com
SSS™1127
STEP 5.7
STEP 5.6
STEP 5.4
STEP 5.8
Remove the spent drum by rotating and pulling upwards
(Figure 5.7).
Clean the drum unit, transfer roller and corona assembly with
dry, filtered, ionized, compressed air (Figure 5.8).
Remove the drum axle from the drum unit (Figure 5.6).
Remove the white locking retainer and black stabilizer ring
from the drum axle and set them aside.
Use a small, slotted screwdriver to press the tab on the locking
bearing (Figure 5.4A) and remove the bearing using needle
nose pliers (Figure 5.4B).
FIGURE 5.7
FIGURE 5.6
FIGURE 5.4BFIGURE 5.4A
FIGURE 5.8
DISASSEMBLING THE DRUM UNIT
Note: Be careful not to lose any of the smaller parts
while cleaning the drum unit.
Small
Slotted
Screwdriver
Tab on
Locking
Bearing
Locking
Bearing
Needle
Nose
Pliers
Locking
Retainer
Stabilizer
Ring
Drum Axle
CONTACT SIDE CONTACT SIDE
DRIVE SIDE
Drum Unit
Compressed
Air
STEP 5.5
Push the drum axle on the contact side of the drum unit toward
the drive side until the small white locking retainer and black
stabilizer ring are visible (Figure 5.5).
FIGURE 5.5
Locking
Retainer
CONTACT SIDE DRIVE SIDE

SSS™1127 |16
Visit Static Control®on the web @ www.scc-inc.com
SSS™1127
STEP 6.2
STEP 6.1
STEP 6.4
After applying fresh conductive lubricant in the area shown in
Figure 6.4, place the drum axle locking clip onto the drum and
slide the axle into the contact side of the drum.
Place the drum into the drive side of the drum unit first
(Figure 6.2).
Before installing the drum, ensure the stabilizer ring
is positioned correctly on the drive side (Figure 6.1A).
FIGURE 6.2
FIGURE 6.1BFIGURE 6.1A
FIGURE 6.4FIGURE 6.3B
ASSEMBLING THE DRUM UNIT
Note: Incorrect position of the drum stabilizer will
prevent the corona assembly from installing
properly (Figure 6.1B).
Conductive
Lubriacant
Stabilizer Ring
Stabilizer
Ring
correct
Position
incorrect
Position
DRIVE SIDE
DRIVE SIDE
DRIVE SIDE
CONTACT SIDE
Tab Locking
Bearing
Locking
Bearing
C-Clip
STEP 6.3
Slide the locking bearing into the drum hub (Figure 6.3A).
Secure the locking bearing by aligning the tab on the locking
bearing with the opening in the drum hub (Figure 6.3B).
FIGURE 6.3A
Needle
Nose
Pliers
Tab
Locking
Bearing

SSS™1127 |17
Visit Static Control®on the web @ www.scc-inc.com
SSS™1127
STEP 6.7
STEP 6.5
STEP 6.6
Using a Phillips screwdriver, secure the corona assembly onto
the drum unit with two screws (Figure 6.7).
Place the drum stabilizer ring onto the drum axle (Figure 6.5A) and
then snap the locking retainer onto the drum axle (Figure 6.5B).
Place the corona assembly onto the drum section (Figure 6.6A)
ensuring the tabs are aligned. When done correctly, the corona
assembly will seat flush to the rest of the drum unit (Figure 6.6B).
FIGURE 6.7
FIGURE 6.5A FIGURE 6.5B
FIGURE 6.6BFIGURE 6.6A
ASSEMBLING THE DRUM UNIT
FIGURE 6.6C
Note: If the tabs are not properly aligned, an error
message “print unable...” will appear during use
(Figure 6.6C).
Screws Phillips
Screwdriver
Drum
Stabilzer
Ring
Drum
Axle
Drum
Axle
Drum
Stabilzer
Ring
C-Clip
Corona Assembly
taBs
aligned
correctly
taBs
aligned
incorrectly

SSS™1127 |18
Visit Static Control®on the web @ www.scc-inc.com
SSS™1127
STEP 6.10 (OPTIONAL)
Place the shipping protector onto the drum unit to protect the
drum during storage (Figure 6.10B).
Place the cartridge into the drum unit (Figure 6.10A).
FIGURE 6.10B
FIGURE 6.10A
ASSEMBLING THE DRUM UNIT
Drum
Unit
Shipping
Protector

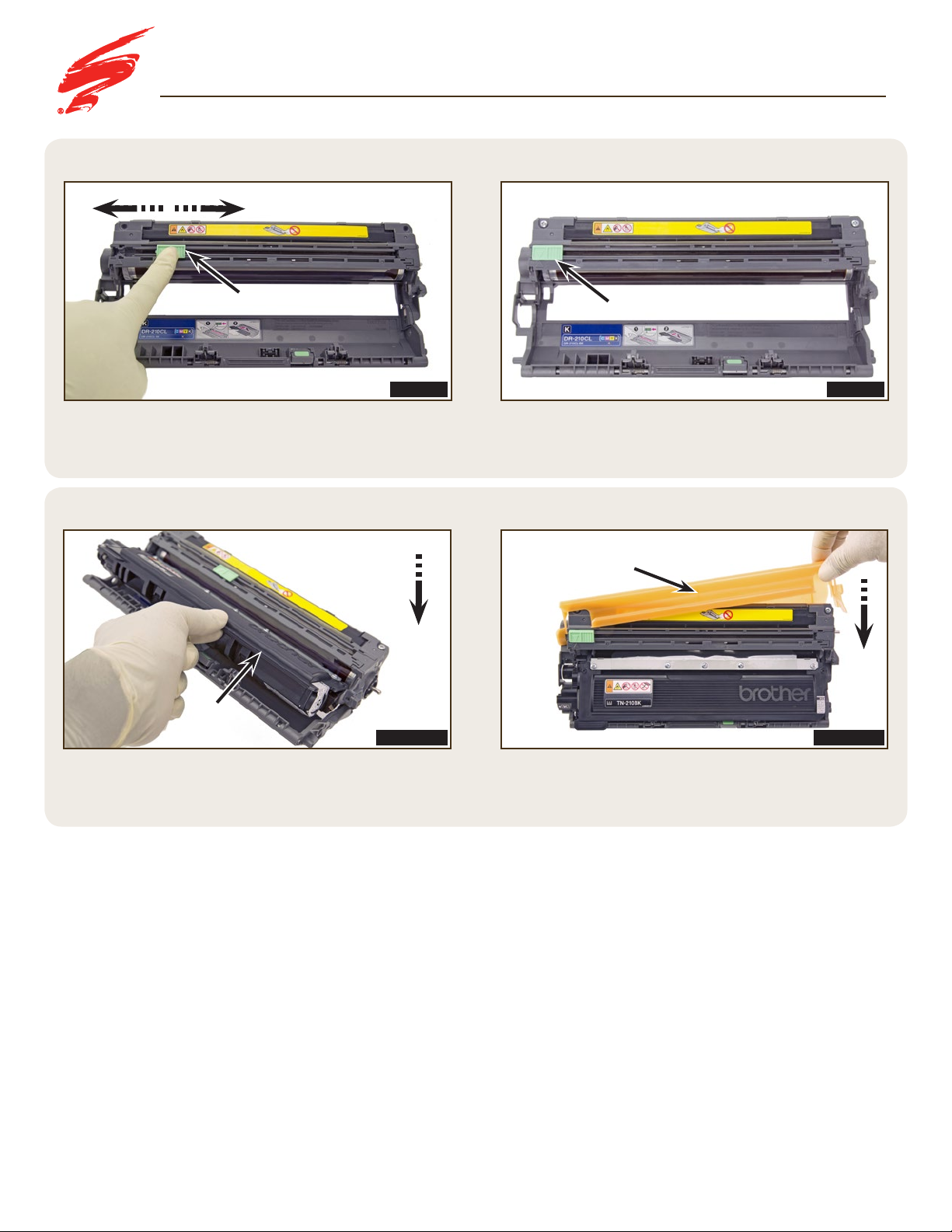

STEP 6.8 STEP 6.9
Return the corona wire cleaning tab to the locked position by
aligning the arrows as shown in Figure 6.9.
Slide the green corona cleaning tab back and forth twice to
ensure the corona wire is clean (Figure 6.8).
FIGURE 6.9FIGURE 6.8
Green Tab Green Tab

SSS™1127 |19
SSS™1127
Visit Static Control®on the web @ www.scc-inc.com
DRUM RESET INSTRUCTIONS
OPTIONAL
1. Press + or - to choose Machine Info. Press
OK.
2. Press + or - to choose Reset Parts Life.
Press OK.
3. Press + to choose Drum Unit. Press OK.
4. Press + or - to choose the drum color that
was replaced. Press OK twice.
For Multi-Function Copiers (MFC) and
Digital Copier Printers (DCP)
1. Power the printer on.
2. Press MENU, 6, 4
3. Press OK and then press + or - to choose
the color cartridge that is installed.
Press OK
4. Press 1to reset the drum unit counter.
5. Press STOP / EXIT
For MFC 9120CN and 9125CN:
1. Power the printer on.
2. Press MENU, 5, 6
3. Press OK and then press + or - to choose
the color cartridge that is installed.
Press OK
4. Press 1to reset the drum unit counter.
5. Press STOP / EXIT
For MFC 9010CN and DCP 9010CN:
1. Power the printer on.
2. Press MENU, 8, 4
3. Press OK and then press + or - to choose
the color cartridge that is installed.
Press OK
4. Press 1to reset the drum unit counter.
5. Press STOP / EXIT
For 9320CW and 9325CW:
Drum Reset Instructions:
1. Power the printer on.
2. Press + or - to choose Machine Info.
Press OK.
3. Press + or - to choose Parts Life.
Press OK.
4. Press + to choose Drum Life.
Press OK.
5. Press + or - to choose the
drum color that was replaced.
Press OK twice.
Drum Reset Instruction (OPTION # 2):
Note: Always reset the drum counter on a
Brother HL-3040/3075CN printer after
replacement. However, this reset may
be performed at any time. There are four
drum cartridges in a printer: black, cyan,
magenta and yellow. Each drum has its
own drum counter.
1. Power the printer on.
2. Press + or - to select MACHINE INFO ...
3. Press OK to proceed to the next menu.
4. Press + or - to choose RESET PARTS LIFE.
5. Press OK and then press + or - to choose
DRUM UNIT.
6. Press OK and then press + or - to choose the
color cartridge that is installed.
7. Press OK twice.
Drum Reset Instructions

SSS™1127 |20
SSS™1127
Visit Static Control®on the web @ www.scc-inc.com
COLOR CALIBRATION PROCESS
OPTIONAL
Perform the calibration from the control panel of the printer:
The Color Calibration Process is recommended when
replacing toner cartridges:
1. Press + or - to choose COLOR CORRECTION. Press OK.
2. Press + or - to choose COLOR CALIBRATION. Press OK.
3. Press + or - to choose CALIBRATE. Press OK.
4. When the message OK appears on LCD, press OK.
Note: The printer automatically adjusts the color density
after calibrating from the control panel of the
printer. Do not calibrate using the printer driver
or from the status monitor.
