REMANUFACTURING INSTRUCTIONS
V.2.4 : 09-14
Brother®HL-4140CN/4150CDN/4570CDW/4570CDW/
DCP-9050/9055/9270CDN
MFC-9460/9465CDN/9560/9970/9970CDW
Brother® HL-L8250/8350CDW/8350CDWT/9200, DCP-L8400
MFC-L8600/8650/8850/9550
Brother®TN-310BK/ TN-310C/ TN-310M/ TN-310Y/
TN-315BK/ TN-315C/ TN-315M/ TN-315Y and DR-310CL
TN-331BK/ TN-331C/ TN-331M/ TN-331Y/ TN-336BK/
TN-336C/ TN-336M/ TN-336Y
SSS™1143
Tools & supplies ................................ 2
Wirelines ......................................... 3
Disassembling The CarTriDge................. 5
assembling The CarTriDge .................... 9
reseTTing The Flag gear .................... 12
Disassembling The Drum uniT ............. 13
insTalling The Drums......................... 15
assembling The Drum uniT ................. 17
reseTTing The Drum CounTer .............. 18

Tools & supplies
sss™1143 page 2
• Phillips Screwdriver
• Small Slotted Screwdriver
• Dry, Filtered, Ionized, Compressed Air for Cleaning
• Lint-Free Swab (LFSWAB)
• Lint-Free Cleaning Cloth (LFCCLOTH)
• Conductive Lubricant (CONCLUBE)
• 91-99% Isopropyl Alcohol
• Toner Vacuum 115V (TONERVAC115) or
220v (TONERVAC220)
• Cartridge Lubricant (LUBE 44)
• Toner Pour Spout for Toner Bottle (TPS)
• Toner Cloth (TCLOTH)
• Safety Glasses
• De-Ionized Water
• Angle Blade Knife Tool (ABKTOOL)
Conductive Lubricant (CONCLUBE)
Lint-Free Swab (LFSWAB)
Dry, Filtered,
Ionized,
Compressed Air
Small Slotted ScrewdriverPhillips Screwdriver
Safety Glasses
Toner Vacuum
(TONERVAC115 or TONERVAC220)
Toner Cloth
(TCLOTH)
91-99%
Isopropyl
Alcohol
De-Ionized
Water
Cartridge Lubricant (Lube 44)
Lint-Free Cleaning
Cloth (LFCCLOTH)
Angle Blade Knife Tool (ABKTOOL)
Toner Pour Spout (TPS)

Wirelines
sss™1143 page 3
broTher®hl-4570 CarTriDge assembly
Drive Side
End Plate
Contact Side
End Plate
Developer
Roller
Toner Hopper
Hopper Cap
Doctor Blade
Developer Roller
End Felts
Drive Side
Support Bearing
Toner Adder Roller
Cartridge
Drive Gear
Developer
Roller
Gear
Developer
Roller
Stabilizer
E-Clip
Doctor Blade
Sealing Felt
Flag Gear
Flag Gear Spring
Agitator Gear
Idler Gear
Contact
Side Support
Bearing
Contact Side
Support
Bearing Spring
Adder Roller
Drive Gear
Drive Side Contact Side
© Static Control Components, Inc. All rights reserved worldwide. The stylized S, Static Control and Odyssey are registered trademarks of Static Control Components, Inc. All other brand or product
names are trademarks or registered trademarks of their respective companies.

Wirelines
sss™1143 page 4

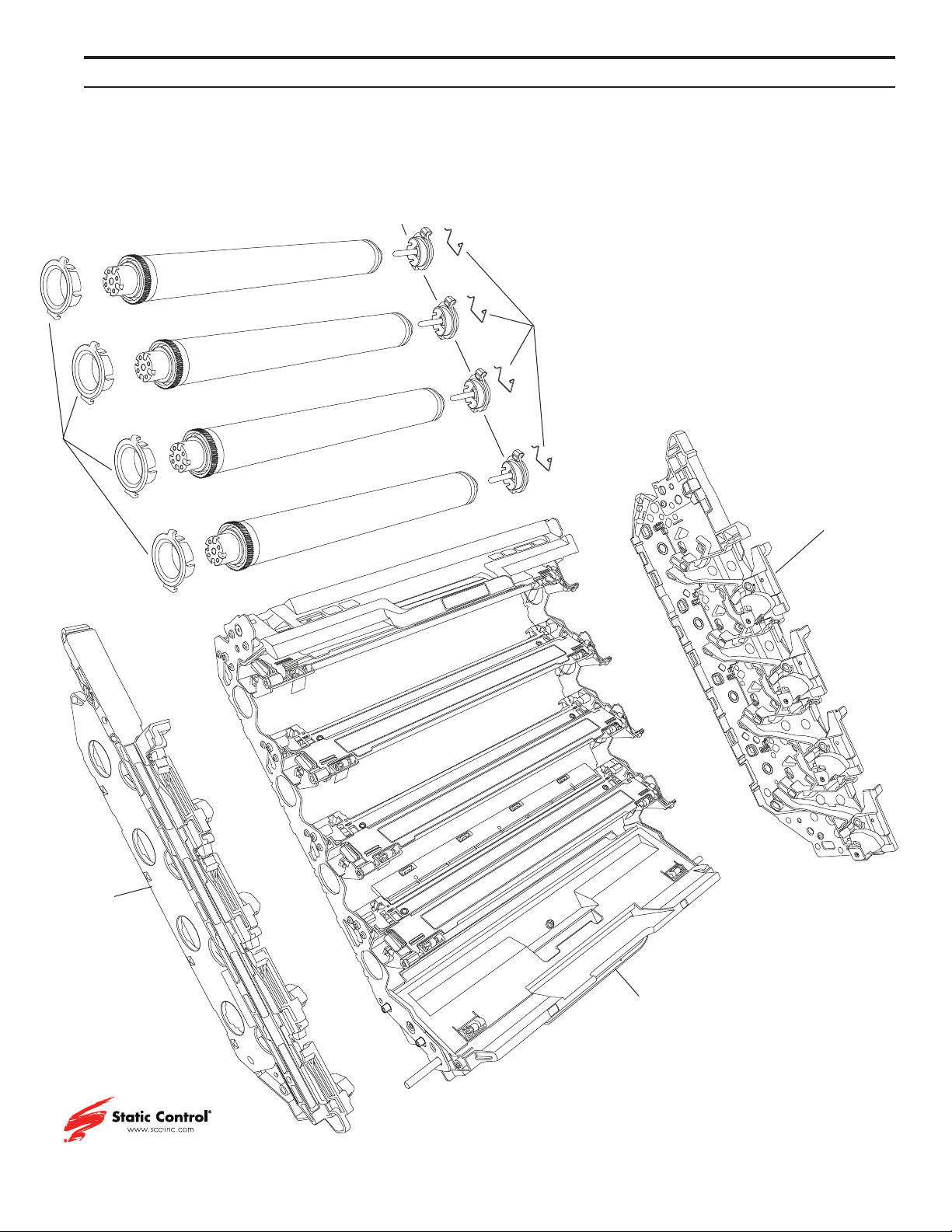

broTher®hl-4570 Drum uniT assembly
Drum
Drum
Drum
Drum
Contact Side
Drum Bearings
Drive
Side
Drum
Bearings Contact Side
End Plate
Drive Side
End Plate
Drum Unit
Retaining Springs
© Static Control Components, Inc. All rights reserved worldwide. The stylized S, Static Control and Odyssey are registered trademarks of Static Control Components, Inc. All other brand or product
names are trademarks or registered trademarks of their respective companies.

sss™1143 page 5
Disassembling The CarTriDge

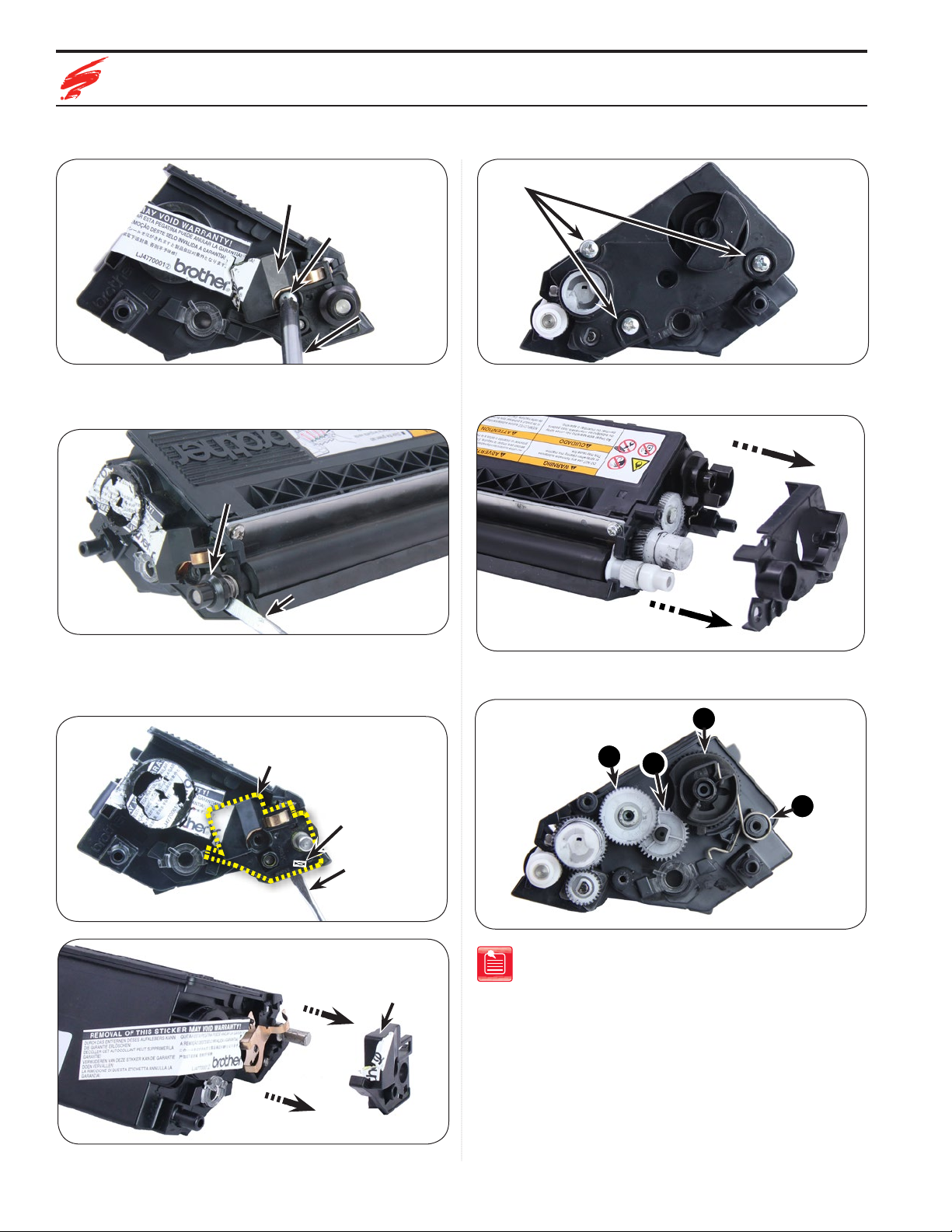

4. On the drive side end plate, remove the three screws as shown in
Figure 4.
Figure 4
Screws
5. Remove the drive side end plate as shown in Figure 5.
Figure 5
6. Remove the gears and spring in the order shown in Figure 6.
Figure 6
Idler Gear
Agitator Gear Flag Gear
Flag Gear
Spring
3
14
2
Note: Keep the gears. They will be used again.
1. Using a Phillips screwdriver, remove the screw on the contact side
end plate as shown in Figure 1.
Figure 1
Screw
End Plate
Contact
Side
Phillips
Screwdriver
2. Using a slotted screwdriver pry under the contact side support
bearing as shown, to remove support bearing and spring (Figure 2).
Figure 2
Support
Bearing
Slotted Screw
driver
3. Locate the locking tab under the contact side end plate and release
the tab using a small slotted screwdriver as shown in Figure 3a.
Remove the contact side end plate (Figure 3b).
Figure 3a
Contact Side
End Plate
Slotted
Screwdriver
Locking Tab
Figure 3b
Contact Side
End Plate

sss™1143 page 6
Disassembling The CarTriDge
7. Place a slotted screwdriver into the opening directly in front of the
developer roller stabilizer. Gently press on the stabilizer to release
(Figure 7a). Rotate the developer roller stabilizer out and down as
shown in Figure 7b.
Developer Roller
Stabilizer
Figure 7a Slotted
Screwdriver
Figure 7b
Developer Roller Stabilizer
Slotted Screwdriver

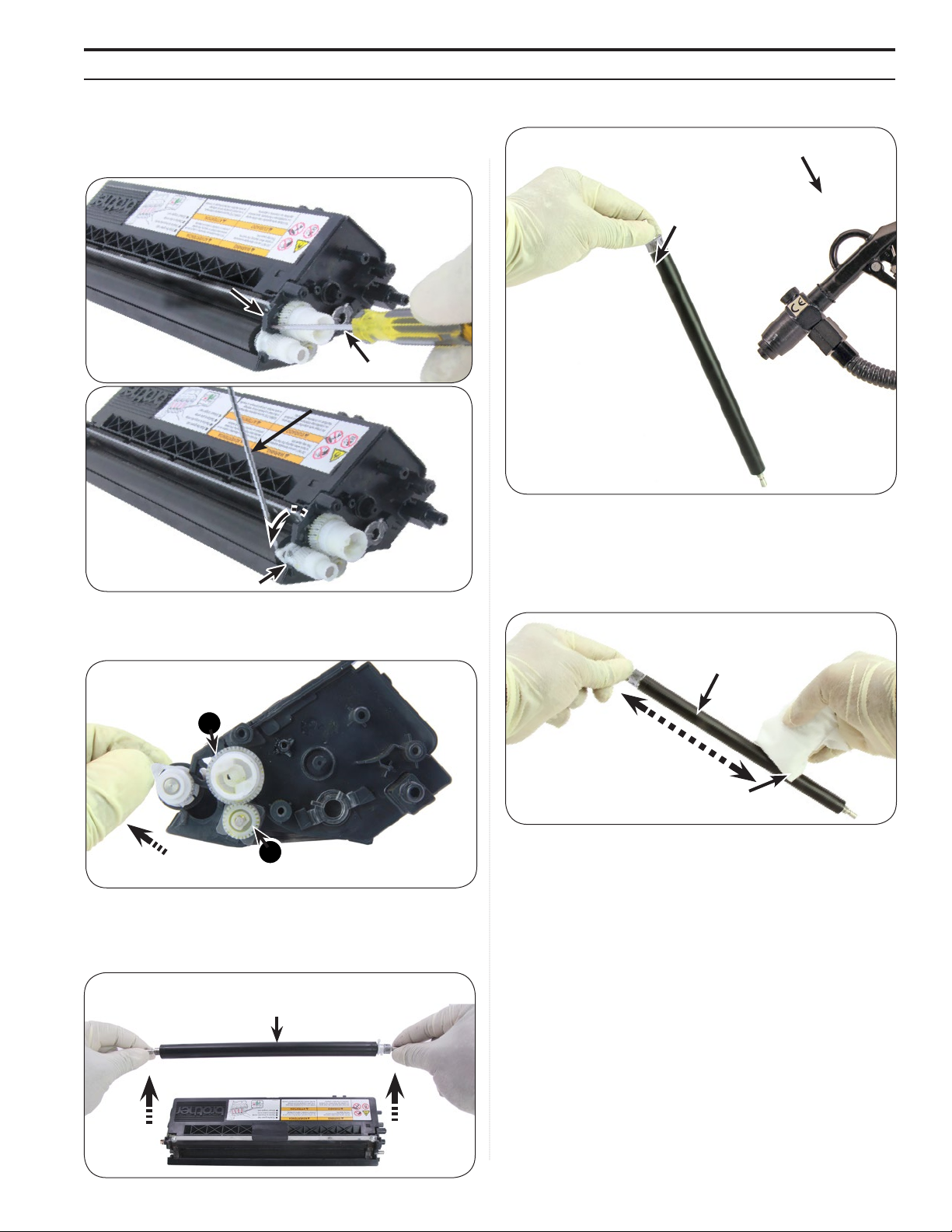

8. Lift the developer roller slightly to remove the drive gear. Remove the
drive gear and toner adder roller gear in the order shown in Figure 8.
Figure 8
Toner Adder Roller Gear
Drive Gear
2
1
9. Remove the developer roller by grasping the ends of the roller and
pulling out and away from the cartridge as shown in
Figure 9.
Figure 9
Developer Roller
10. Blow with dry, filtered, ionized, compressed air (Figure 10).
Figure 10
Air Gun
Developer Roller
11. Using a lint-free cloth dampened with 91-99% isopropyl alcohol,
gently clean the developer roller using end-to-end strokes. Using
another lint-free cloth, dampened with de-ionized water, gently wipe
the developer roller as shown in Figure 11. Blow with dry, filtered,
ionized, compressed air.
Figure 11 Lint-Free Cloth
Developer Roller

sss™1143 page 7
12. Remove the two screws securing the doctor blade as shown in
Figure 12a.
Figure 12a
Doctor Blade
Figure 12b
Cartridge Screw
Doctor Blade Screw
Note: The doctor blade screws are different than the
cartridge screws as shown in Figure 12b. Ensure each
type of screw is returned to the correct location.
13. Using a slotted screwdriver, pry the doctor blade from the cartridge
as shown in Figures 13a and 13b.
Figure 13b
Doctor
Blade
Tape
Slotted
Screwdriver
Figure 13a
Doctor
Blade Slotted
Screwdriver
Note: Use and angle blade knife to cut the tape.
14. Lift to remove the doctor blade from the cartridge (Figure 14).
Figure 14
Doctor Blade
Note: Use dry, filtered, ionized, compressed air to loosen any
excess toner or additive.
15. Using a lint-free cloth dampened with 91- 99% isopropyl alcohol,
gently clean the black material on the doctor blade using back and
forth strokes from end-to-end as shown in Figure 15. Using another
lint-free cloth dampened with de-ionized water, gently wipe the black
material on the doctor blade to remove any excess isopropyl alcohol.
Figure 15
Lint-Free
Cloth
Doctor
Blade
Black Material
Caution: Be careful when cleaning the doctor blade. The
blade is thin and is easily bent or damaged.
16. Use dry, filtered, ionized, compressed air to dry the doctor blade
(Figure 16).
Figure 16
Doctor
Blade
Air Gun
Disassembling The CarTriDge

sss™1143 page 8

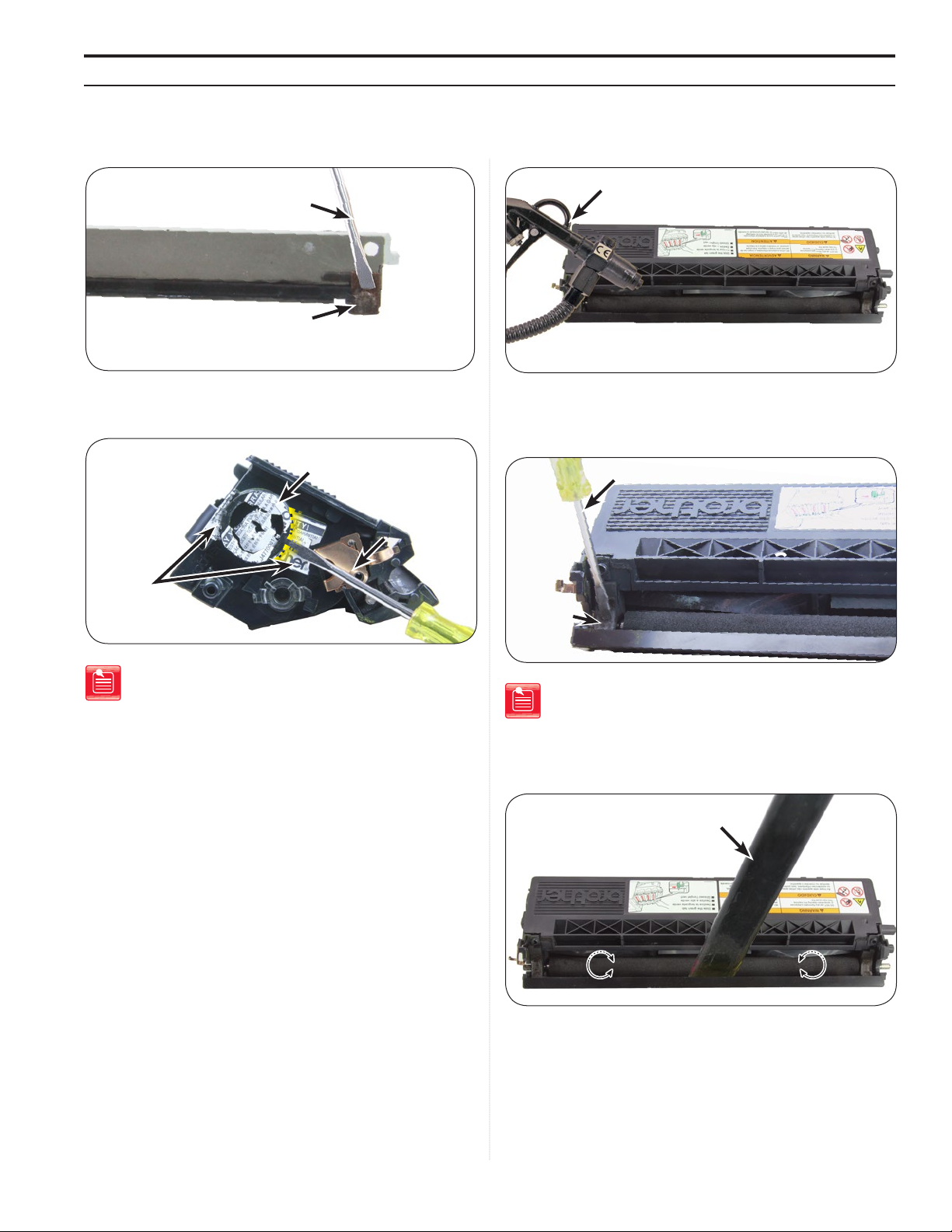

17. Using a small slotted screwdriver, gently fluff both of the doctor blade
felts to loosen any toner build up Figure 17.
Figure 17
Doctor
Blade Felt
Slotted
Screwdriver
18. Using a small slotted screwdriver, pry the hopper cap from the
cartridge as shown in Figure 18.
Figure 18
Hopper Cap
Molded
Plastic
Slotted
Screwdriver
Note: Pry using the molded plastic closest to the hopper
cap for added leverage. Using the molded plastic will
prevent damage to the hopper cap.
19. Clean the hopper with dry, filtered, ionized, compressed air
(Figure 19).
Figure 19
Toner Hopper
Air Gun
20. Use a slotted screwdriver to gently clean any remaining toner
additive from the developer roller end felts (Figure 20). Fluff felts,
then blow with dry, filtered, ionized, compressed air.
Figure 20
Toner Hopper
Felt
Slotted Screwdriver
Note: If toner is not removed from the developer roller end
felts, leakage can occur.
21. Using a toner vacuum, clean the toner adder roller while rotating as
shown in Figure 21.
Figure 21
Toner Hopper
Vacuum
Disassembling The CarTriDge

sss™1143 page 9

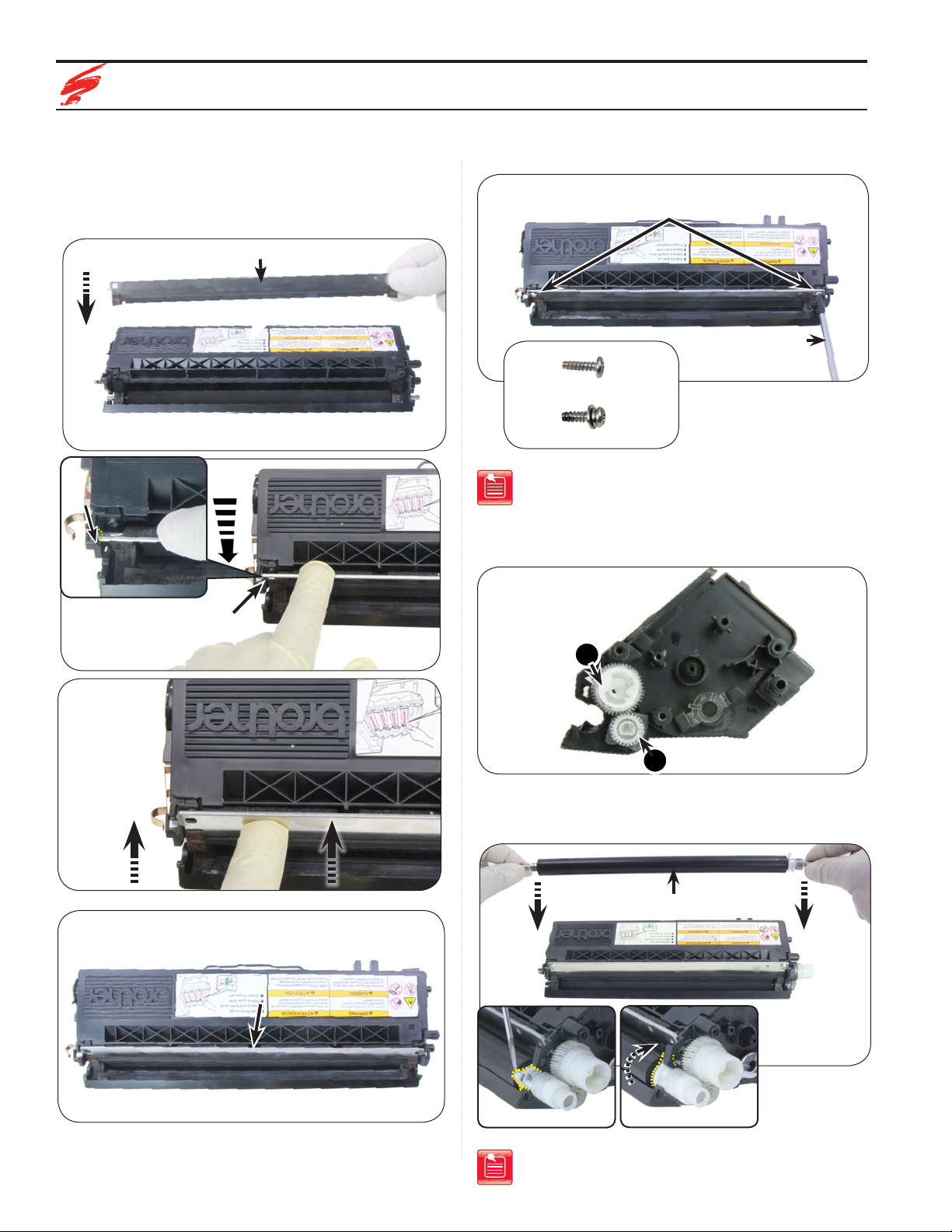

1. Reinstall doctor blade. Place the doctor blade into the cartridge
(Figure 22a) and ensure blade is seated by gently pressing
downward (Figures 22b and 22c). Press blade back against cartridge
to lock blade tabs securely into cartridge as shown in Figure 22d.
Securely locked doctor blade should appear as seen in Figure 22e.
Figure 22c
Doctor Blade
Figure 22d
Doctor Blade
Figure 22a
Doctor Blade
Figure 22b
Tab
Figure 22e
Doctor Blade
2. Install the two screws to secure the doctor blade into the cartridge
(Figures 23a and 23b.
Figure 23a
Doctor Blade
Phillips Screwdriver
Figure 23b
Cartridge Screw
Doctor Blade Screw
Note: Doctor blade screws are different than the cartridge
screws (Figure 23b).
3. Install the toner adder roller gear and then the drive gear as shown in
Figure 24.
Figure 24
Drive Gear
Toner Adder Roller Gear
1
2
4. Holding the ends of the developer roller place the developer roller
into the cartridge. Rotate the developer roller stabilizer to the locked
position as shown in Figures 25a, 25b and 25c.
Figure 25a
Developer Roller
Figure 25b Figure 25c
Note: Align the developer roller end felts with the doctor blade
end felts before installing the developer roller.
assembling The CarTriDge

sss™1143 page 10
5. Install the contact side end plate onto the cartridge (Figure 26a).
Install the developer roller spring and support bearing onto developer
roller (Figure 26b). Using a Phillips screwdriver, secure end plate with
a screw (Figure 26c).
Figure 26a
Contact Side End
Plate
Figure 26b
Spring
Support
Bearing
Figure 26c
Screw
Phillips
Screwdriver
6. On the drive side install the gears and spring in the order shown in
Figure 27a. Install the flag gear spring as shown in Figure 27b.
Figure 27a
Idler Gear
Agitator Gear Flag Gear
Flag Gear
Spring
3
21
4
Figure 27b
Flag Gear
Spring
Note: See page 14 for instructions about resetting the flag
gear.
7. Place the drive side end plate onto the cartridge and secure with
three screws (Figures 28a and 28b).
Figure 28a
Figure 28b
Screws
Phillips
Screwdriver
8. Fill the cartridge with qualified toner as shown (Figure 29).
Figure 29
Toner
assembling The CarTriDge

sss™1143 page 11
assembling The CarTriDge
9. Reinstall hopper cap (Figure 30).
Figure 31
Hopper Cap
Note: Replace the OEM hopper cap with a replacement if the
OEM hopper cap is damaged.

sss™1143 page 12
Note: Reference the flag gear photos in Figure 32 to
determine if you have a low yield, high yield or extra
high yield cartridge. While the flag gears are different,
the toner cartridges are all physically identical.
Figure 32
High YieldLow Yield Extra High Yield
1. Reinstall the flag gear as shown in Figure 33. Notice the location of
the flag gear tab.
Figure 33
Flag Gear
Flag Gear Tab
Cartridge Tab
2. Put the long arm of the spring over the flag gear and the short arm
of the spring under the cartridge tab as shown in Figure 34a. Final
assembly is shown in Figures 34a and 34b. Note the gear tab and
cartridge tab. Tabs are now slightly separated due to spring tension.
This is normal. Spent position Figure 34c.
Figure 34a
Flag Gear
Spring
Gear Tab
Cartridge Tab
Figure 34b
Figure 34c
Gear Tab
Cartridge Tab

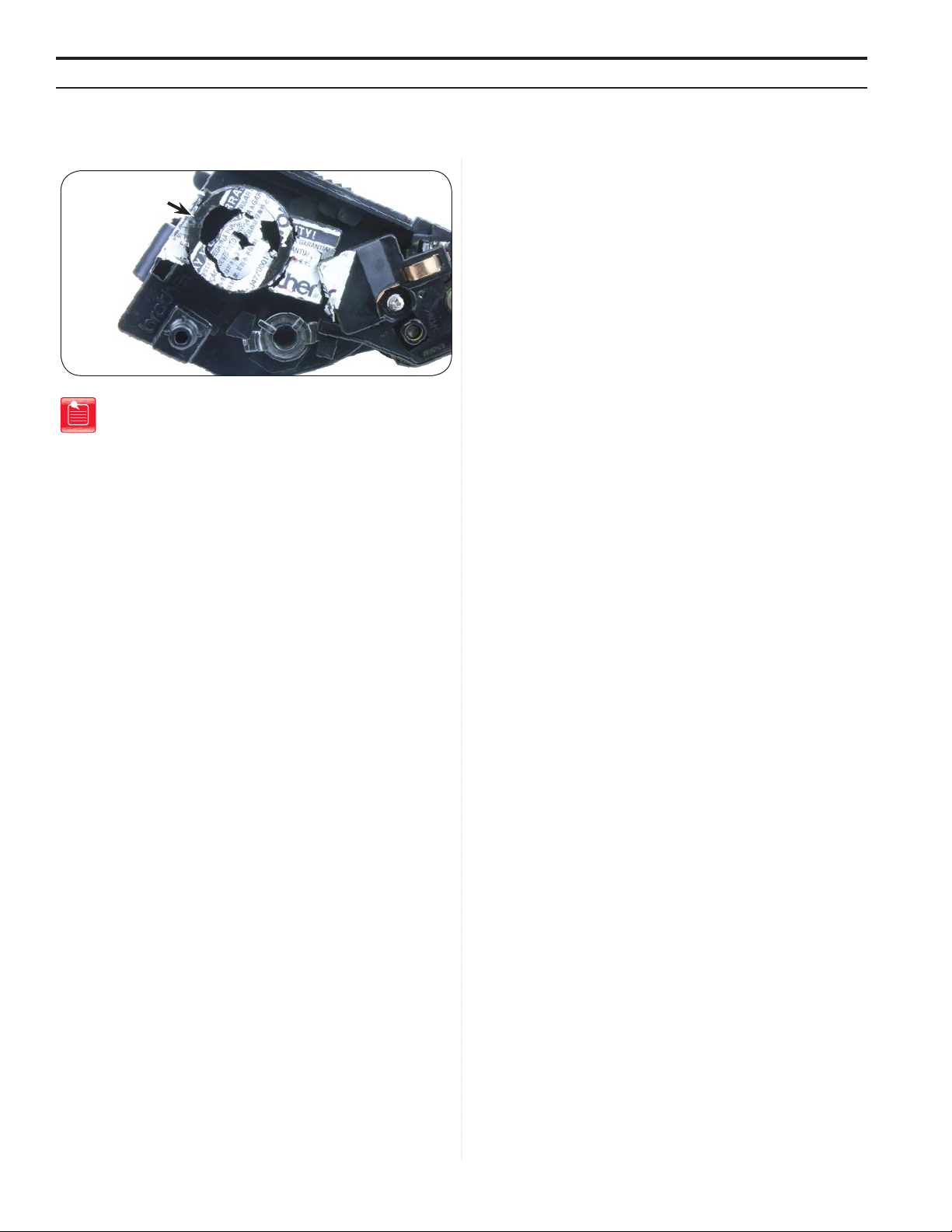

reseTTing The Flag gear
Flag Gear
Spring

sss™1143 page 13

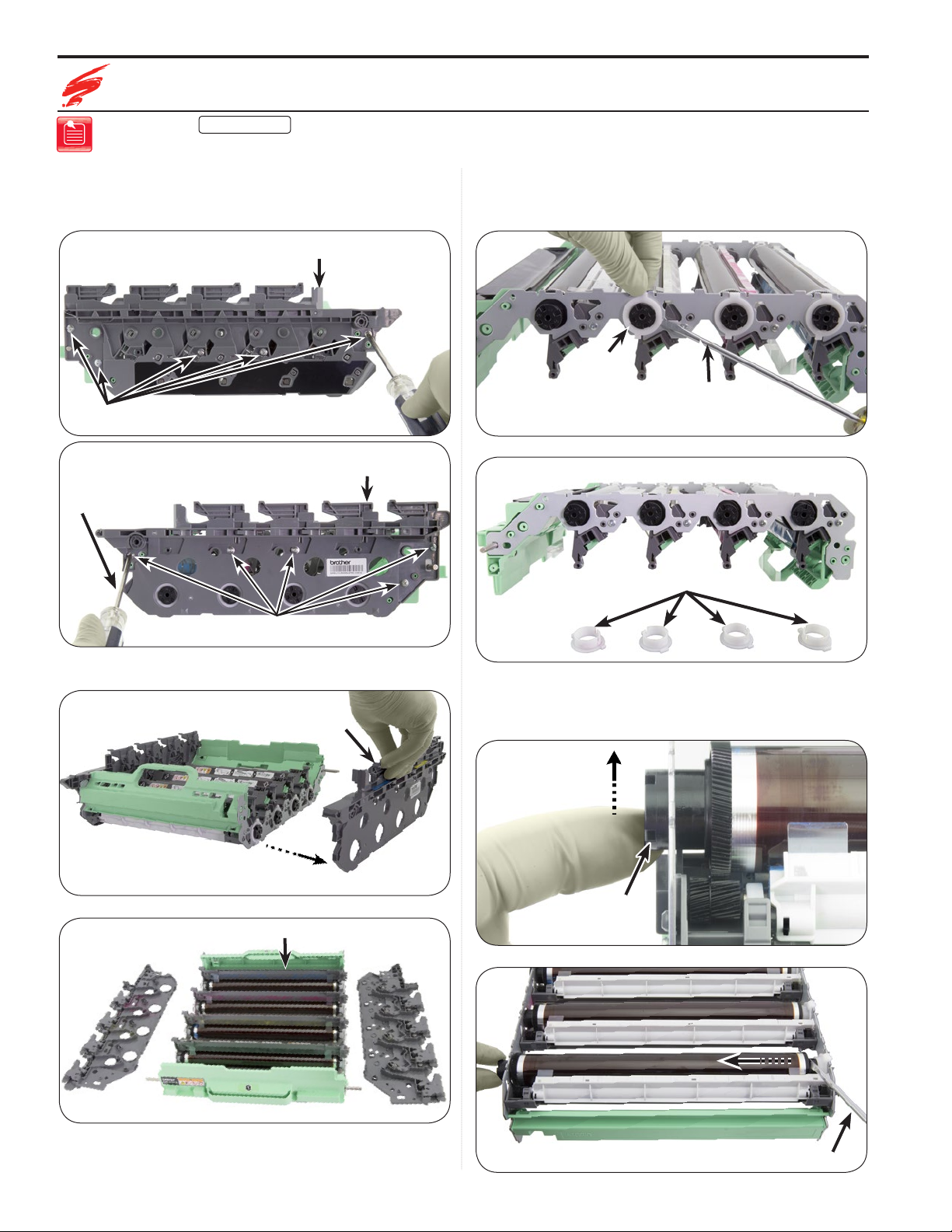

Disassembling The Drum uniT
1. Using a Phillips screwdriver remove the five screws from contact and
drive sides end plates of the drum unit (Figures 35a and 35b).
Figure 35a
Contact Side End Plate
Phillips
Screwdriver
Figure 35b
Drive Side End Plate
Phillips
Screwdriver
Screws
2. Remove both end plates as shown in Figures 36a and 36b.
Figure 36a
Drive Side
End Plate
Figure 36b
Drum Unit
3. Using a small slotted screwdriver remove the white drum bearings on
the drive side of the drum unit and set aside (Figures 37a and 37b).
Figure 37a
Slotted
Screwdriver
Drive Side
Drum Bearing
Drive
Side
Figure 37b
Drive Side Drum Bearings
Drive
Side
4. Lift the drum drive gear up to disengage from the cleaning roller
drive gear (Figure 38a). Use a slotted screwdriver to push the contact
side of the drum towards the drive side (Figure 38b).
Figure 38a
Drum Drive Gear
Drive
Side
Figure 38b Slotted Screwdriver
Note: Notice the Replace Drum message on the printers display screen.
Screws
Contact Side
End Plate
Drive
Side
Contact
Side
Drive Side
End Plate

sss™1143 page 14
Disassembling The Drum uniT
5. Using a small slotted screwdriver, pry the two locking tabs holding the
contact bearing and push the drum towards the drive side of the drum
unit (Figures 39a and 39b).
Figure 39a
Slotted
Screwdriver
Figure 39b
6. Remove the retaining springs (Figures 40a and 40b).
Figure 40a
Figure 40b
Spring
Note: Do not lose the retaining springs that were removed
from the contact side of the drum unit.
7. Lift the drum out of the drum unit, contact side first (Figure 41).
Figure 41
Drum
8. Remove the white contact side drum bearing from the end of the
drum (Figure 42a) and remove any residual lubricant from the contact
bearing with a lint-free cloth (Figure 42b).
Figure 42a
Drum
Figure 42b
Contact Side
Drum Bearing
9. After all four drums have been removed, clean the drum unit with dry,
filtered, ionized, compressed air (Figure 43).
Figure 43
Drum
Unit
Locking Tab
Locking Tab
Slotted
Screwdriver
Spring
Lint-Free Cloth
Contact Side
Drum Bearing
Air Gun
Drum Unit

sss™1143 page 15

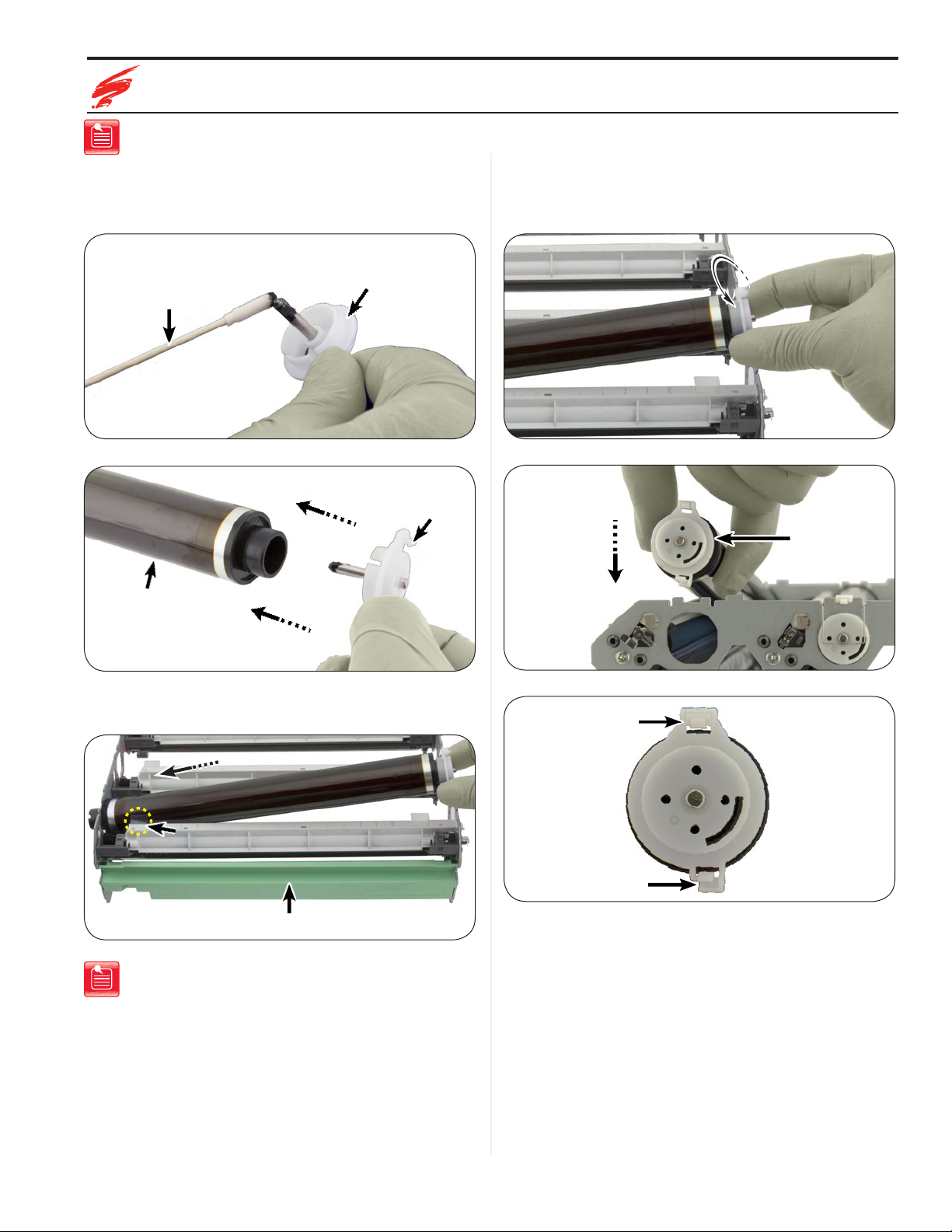

10. Using a lint-free swab, apply conductive lubricant to the end of
the contact side drum bearings and install each bearing onto the
replacement drums (Figures 43a and 43b).
Figure 43a
Lint-Free Swab
Figure 43b
Drum
11. Install the drum onto the drum unit by sliding the drum drive side end
into the drum unit first (Figure 44).
Figure 44
Drum
Note: Ensure the small, transparent, plastic, wiper tabs are
positioned on top of all the drums.
12. Rotate the drum contact bearing until the larger locking tab is
positioned at the top and set the contact side of the drum into the
drum unit Figures 45a, 45b and 45c.
Figure 45a
Drum
Figure 45b
Drum
Figure 45c
Large Locking Tab
insTalling The Drums
Note: The following steps should be completed for each drum before the drum unit is assembled.
Contact Side
Drum Bearing
Contact Side
Drum Bearing
Drum Unit
Wiper Tab
insTalling The Drums
Small Locking Tab

sss™1143 page 16
13. Push the drum from the drive side until the contact bearing locks into
place (Figure 46).
Figure 46
Push The Drum
Note: Contact side bearing locks will lock into place with a
click sound when installed properly.
14. Install the retaining spring (Figure 47).
Figure 47
Spring
15. Apply cartridge lubricant using a lint-free swab, then install the white
drive side drum bearings (Figures 48a and 48b).
Figure 48a
Drive Side
Drum Bearing
Figure 48b Drive Side
Drum Bearing
insTalling The Drum
Lint-Free Swab

sss™1143 page 17
1. Rotate the drum unit so the replacement drums are facing down as
shown in Figures 49a and 49b.
Figure 49a
Drum Unit
Figure 49b
Drum Unit
2. Align the tabs on the bottom of the drum unit with the corresponding
holes in the end plates (Figures 50a and 50b).
Figure 50a
Figure 50b
3. Rotate the end plates up and secure each end plate with 5 screws
(Figures 51a, 51b and 51c).
Figure 51a
Drive Side
End Plate
Figure 51b
Drive Side End Plate
Phillips
Screwdriver
Screws
Figure 51c
Contact Side End Plate
Phillips
Screwdriver
Screws
assembling The Drum uniT
Holes
Tabs
Holes
Tabs

sss™1143 page 18
reseTTing The Drum CounTer
OPTION 1
1. Press +or -to navigate to Machine Info. Press OK.
2. Press +or -to navigate to Reset Parts Life. Press OK.
3. Press +or -to navigate Drum Unit. Press OK.
4. Press +or -to reset the drum unit counter.
OPTION 2
1. Press the Go button and +button simultaneously.
2. The Reset Menu will appear.
3. Press OK. Press to reset the drum counter.
Note: When replacing the drum unit with a new drum unit, reset the drum counter by completing one of the following options:

Static Control Components (Europe) Limited
Unit 30, Worton Grange
Reading, Berkshire RG2 0TG, United Kingdom
Tel: [phone] Fax: [phone]
Email: [email protected]
Static Control Components (USA - World Headquarters)
3010 Lee Avenue PO Box 152 Sanford, NC 27331
US/Canada Tel: [phone] • Fax: [phone]
Int’l Tel: [phone] • Fax: [phone]
Email: [email protected]
Static Control (Hong Kong) Limited
Unit 2602-03, 26F Tower II, Metroplaza
223 Hing Fong Road, Kwai Fong, Hong Kong
Tel: [phone] Fax: [phone]
Email: [email protected]
Static Control (Johannesburg) Limited
The Warehouse, Unit 1&2 - Corner of Deodar Road &
Constantia Avenue, Pomona 1619 PO Box 7288
Bonaero Park 1622, South Africa
Tel: [phone] Fax: [phone]
Email: [email protected]
© Static Control Components, Inc. All rights reserved worldwide. The stylized S, Static Control and Odyssey are registered trademarks of Static Control Components,
Inc. All other brand or product names are trademarks or registered trademarks of their respective companies.
DEDICATION TO TRAINING
In order to produce consistent high quality prints that are virtually indistinguishable from the OEM, it
is essential to follow Static Control’s remanufacturing instructions exactly as directed. Static Control
is dedicated to informing customers of the latest innovations in training and knowledge. Access
to these instructions, our technical support staff and View on Demand Webinars is available to all
customers in good standing.
ELECTROPHOTOGRAPHICALLY MATCHED COMPONENTS
We provide these critical components that have been electrophotographically matched for use in
remanufactured toner cartridges. It is vital that the critical components be replaced as a system
to ensure consistent high quality performance. We provide additional components such as felts,
foams and recovery blades, should you decide they are necessary. Using Static Control’s system
of components allows you to use less expensive non-virgin cartridges and create remanufactured
cartridges that provide high quality prints virtually indistinguishable from the OEM.
INDUSTRY LEADER
Static Control is the global leader in aftermarket imaging and remanufacturing technology. Offices
are located worldwide and all research, development, manufacturing and engineering takes place
at their Sanford, North Carolina, USA world headquarters. Currently, Static Control manufactures
in-house over 10,000 imaging products and supplies over 14,000 imaging products to the
aftermarket industry.
