BRUEL & KJAER VIBROCONTROL 1800 Series User manual

Retain for subsequent use
Instruction
VIBROCONTROL 1800 Series
Four-channel vibration monitors
• VC-1850 Accelerometers
• VC-1860 Velocity sensors
• VC-1870 Vibration Displacement sensors
Extension modules
• VC-1801 Additional relays
• VC-1803/04 Communication and data storage

Copyright © 2021 Brüel & Kjær Vibro GmbH
All rights to this technical documentation remain reserved.
Any corporeal or incorporeal reproduction or dissemination of this technical documentation or making this
document available to the public without prior written approval from Brüel & Kjaer Vibro GmbH shall be
prohibited. This also applies to parts of this technical documentation.
Instruction VC-1800 Series, C106834.002 / V06, en, date of issue: 10/28/2021
Technical alterations reserved!
Brüel & Kjær Vibro GmbH
Leydheckerstrasse 10
64293 Darmstadt
Germany
Tel.: [phone]
Fax: [phone]
Brüel & Kjær Vibro A/S
Lyngby Hovedgade 94
2800 Lyngby
Denmark
Tel.: [phone]
Fax: [phone]
BK Vibro America Inc
1100 Mark Circle
Gardnerville NV 89410
USA
Tel.: [phone]
Hotline
Tel.: [phone]
E-mail: [email protected]
Homepage
www.bkvibro.com
General e-mail
[email protected]

© Brüel & Kjær Vibro ● C106834.002 / V06 ●Page 3 of 110
Technical alterations reserved!
Brüel & Kjær Vibro │Instruction VC-1800 Series
Table of Contents
EN
UNRESTRICTED DOCUMENT
Table of Contents
1Applications 6
2VIBROCONTROL 18xx Types 7
2.1 VIBROCONTROL 18xx Structure 8
2.2 Terminal Configuration 9
2.3 VIBROCONTROL 1850 (Accelerometers CCS) 9
2.4 VIBROCONTROL 1860 (Vibration Speed Sensors) 10
2.5 VIBROCONTROL 1870 (Vibration Displacement Sensors) 10
3Tips for Safe Operation of VIBROCONTROL 18xx 11
4Setup and Configuration 14
4.1 Configuration of VIBROCONTROL 18xx with PC (Compact Setup Software) 14
4.2 Cable Connections 16
4.3 Powering and Starting up the Device 17
5Functionality 18
5.1 General for VIBROCONTROL 1850 18
5.2 Functions of VIBROCONTROL 1850 18
6Installation and Operation of VIBROCONTROL 18xx 21
6.1 General 21
6.2 "Monitor" View 22
6.3 Self-Test 22
6.4 Setting of the Outputs (Analog Output or Relay) 23
6.5 Sensors 25
6.6 VIBROCONTROL 18xx: Setting of Band-Pass Filter 1 27
6.7 VIBROCONTROL 1850: Setting of Band-Pass Filter 2 28
6.8 VIBROCONTROL 1850: Setting of the First and Second Envelope Detector 29
6.9 Bearing Damage Frequency Calculator 30
6.10 Crest Factor 33
6.11 Kurtosis 35
6.12 Process Input (with VC-1870 Input for Axial Position) 36
6.13 Rotational Speed Sensor (Tacho) Input 37
6.13.1 Rotational Speed Sensor Selection 40
6.14 Alert and Danger Alarms 40
6.15 System Error (OK) 42
6.16 Alarm Hang Time 43
6.17 Overload, Cable Short and Cable Break 43
6.18 Over Range 44

Page 4 of 110 © Brüel & Kjær Vibro ● C106834.002 / V06
Technical alterations reserved!
EN
UNRESTRICTED DOCUMENT
6.19 Configuration of Analog Outputs 44
6.19.1 Relays 44
6.19.2 Analog Output 46
6.20 LEDs 47
6.21 Alarm Reset 48
6.22 Alarm Inhibit 48
7VIBROCONTROL 1870 - Vibration Measurement and Axial Position 49
7.1 VIBROCONTROL 1870 –4 Channels - Relative Shaft Vibration 50
7.2 VIBROCONTROL 1870 –Axial Shaft Position 53
8Extension Modules for VIBROCONTROL 1850/1860/70 55
8.1 VIBROCONTROL 1801 Relay Module - 12 Relays 55
8.1.1 General 55
8.1.2 VIBROCONTROL-1801 Relay Module 55
8.1.3 Make/Break Relays 56
8.1.4 Mounting 56
8.1.5 External Connections 57
8.1.6 Front Panel Status LEDs (OK) 58
8.1.7 Configuration of VC-1801 with the Compact Setup Software 58
8.1.8 Connecting a VIBROCONTROL 18xx and a VC-1801 59
8.1.9 Specifications of the VC-1801 Relay Module 60
8.2 VIBROCONTROL 1803/1804 Communication Module Ethernet Bridge 61
8.2.1 Network 61
8.2.2 Applications 62
8.2.3 Properties/Functions 62
8.2.4 Functionality 63
8.2.5 Configuration of VIBROCONTROL 1803/1804 65
8.2.6 VIBROCONTROL 1803/04 with Compact Setup Software 73
9Connecting the VIBROCONTROL 18xx to a PLC/PC 76
9.1 USB 2.0 Interface 76
9.1.1 Making Settings with the Software "Compact Setup" Software 77
9.2 RS-485 interface 79
9.3 VIBROCONTROL 1803/04 LAN interface 80
9.3.1 Example of Compact Setup Communication 83
9.4 Modbus Connection for VIBROCONTROL 18xx via VIBROCONTROL 1803/04 84
9.4.1 Example of Modbus TCP Communication 86
9.4.2 Modbus Addresses and Registers 87
9.5 OPC UA Interface 92

© Brüel & Kjær Vibro ● C106834.002 / V06 ●Page 5 of 110
Technical alterations reserved!
Brüel & Kjær Vibro │Instruction VC-1800 Series
Table of Contents
EN
UNRESTRICTED DOCUMENT
10 Mounting/installation of VC-18xx 93
10.1 Assembly / Disassembly of the Device 93
10.2 Terminal Connections 94
10.3 Connection of Sensors, Outputs and Power Supply 96
10.3.1 VIBROCONTROL 1850 Terminals 96
10.3.2 VIBROCONTROL 1860 Terminals 97
10.3.3 Process Input (for VC-1850 & VC-1860) 97
10.3.4 VIBROCONTROL 1870 Terminals 98
10.3.5 Power Supply 100
10.4 Powering and Starting up the Device 100
10.5 Connection to Ethernet Bridge and / or Additional VC-18xx 101
10.6 AC -2114 Protective Housing with Viewing Window 102
11 Technical Data 103
12 Maintenance 105
12.1 Cleaning 105
13 Disposal 106
14 Appendix A: Backup Battery Data Sheet 107
15 CE Declaration 109

Page 6 of 110 © Brüel & Kjær Vibro ● C106834.002 / V06
Technical alterations reserved!
EN
1 Applications
The VIBROCONTROL 18xx vibration monitor is a maintenance-free device mounted in a DIN-rail
enclosure. It is used to monitor vibration parameters and protect machines like pumps, blowers,
ventilators, decanters, separators, centrifuges, cement mills and similar machines.
The VIBROCONTROL 18xx vibration monitor continuously monitors a maximum of four measuring
points in each of which an external sensor is positioned. A tachometer input is also available for
recording and synchronizing the machine speed. There is also a process input for measuring
pressure, temperature or other characteristic values.

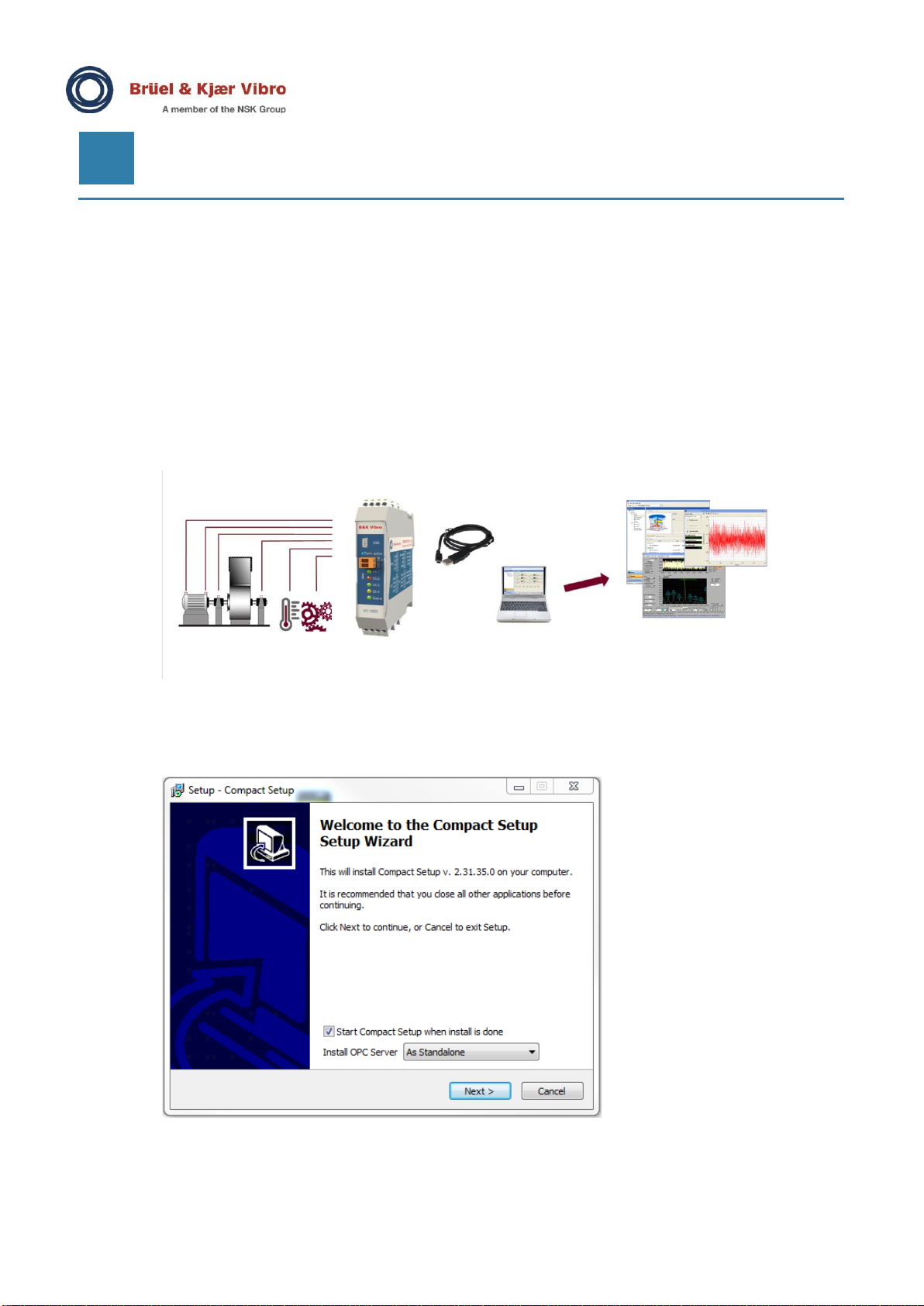

Using a PC on which the Compact Setup software is installed, it is possible to read the different
vibration parameter levels and status information. In addition, this software can be used to carry out
a remote parameter setup of a device.
The VIBROCONTROL 18xx has direct access via a USB interface. The USB interface is used if the
device is not connected to a fieldbus, LAN or if the data transmission speed (= baud rate) with RS-
485 is too slow.
WARNING!
This symbol warns of dangerous situations, which can result from misuse of the product.
NOTE!
This symbol provides general and useful information for using the product.
WARNING!
Electromagnetic compatibility (EMC)
The VIBROCONTROL 18xx complies with the
relevant requirements of the Electromagnetic
Compatibility Directive 2014/30/EU for
electromagnetic compatibility. EMC was
tested in accordance with EN 61326-1, with
the reduction of requirement for static
electricity (ESD).
When handling the VC-18xx, pay close
attention to protective measures against
electrostatic discharge. This applies in
particular to the area of the ventilation slots.
Electrostatic discharges in this area can lead to destruction of the device.

© Brüel & Kjær Vibro ● C106834.002 / V06 ●Page 7 of 110
Technical alterations reserved!
Brüel & Kjær Vibro │Instruction VC-1800 Series
VIBROCONTROL 18xx Types
EN
UNRESTRICTED DOCUMENT
2 VIBROCONTROL 18xx Types
VIBROCONTROL 1800xx monitoring devices enable cost effective protection for all critical rotating
equipment with rolling element bearings as well as sleeve bearings.
The following versions are available:
•VIBROCONTROL 1850
Accelerometers (CCS)
and
•VIBROCONTROL 1860
Velocity sensors
each with
○4 vibration measurement channels for case vibrations
○1 measurement channel for process variables
○1 measurement channel for rotational speed
•VIBROCONTROL 1870
Vibration Displacement sensors
○4 vibration measurement channels for relative shaft vibration (RSV)
○1 measurement channel for axial position (trust position)
○1 measurement channel for rotational speed
Extension modules:
•VIBROCONTROL 1801
Relay module (12 relays)
•VIBROCONTROL 1803 / 1804
Communication module / Ethernet Bridge / data storage

Page 8 of 110 © Brüel & Kjær Vibro ● C106834.002 / V06
Technical alterations reserved!
EN

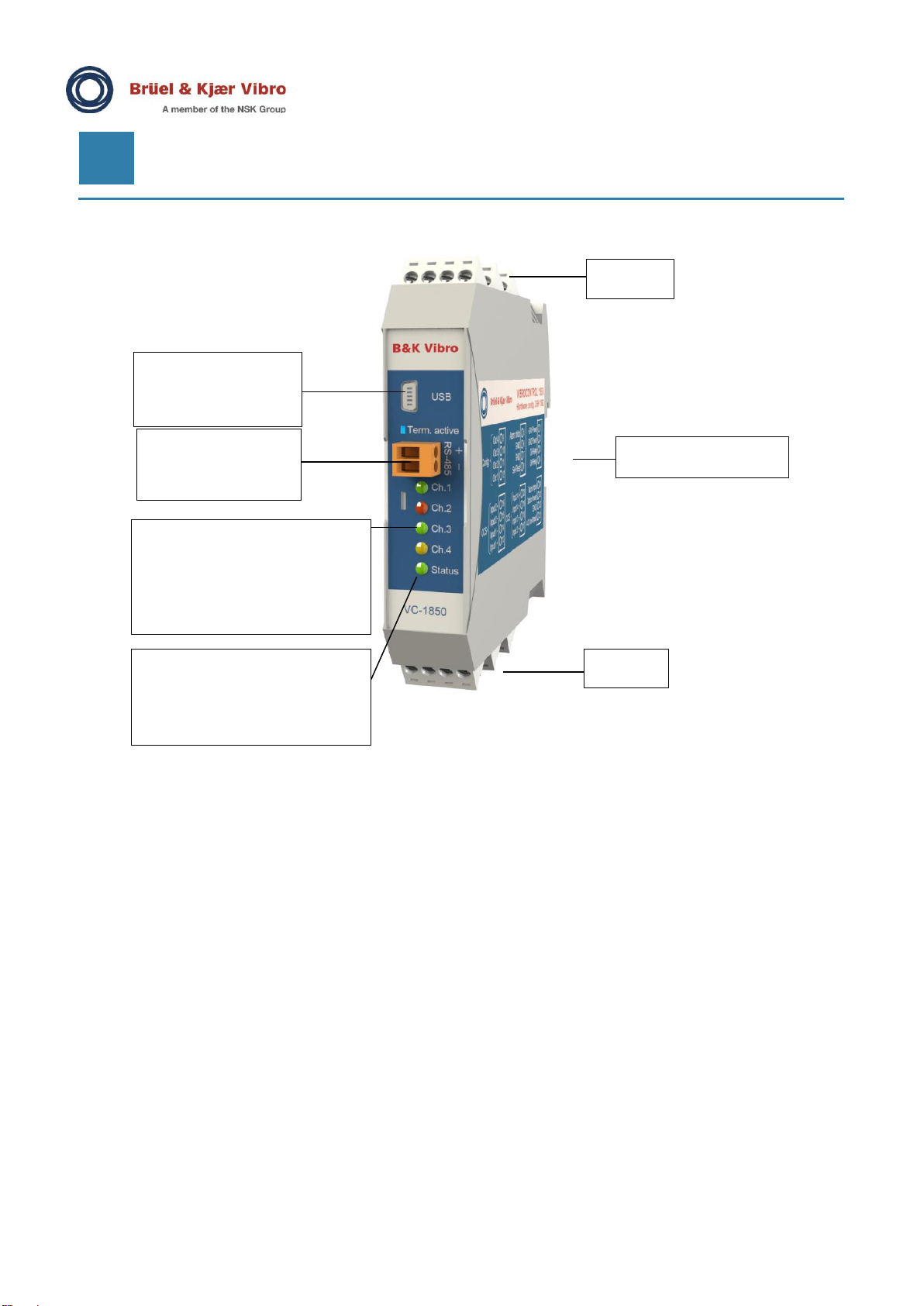

2.1 VIBROCONTROL 18xx Structure
USB for data transfer
and configuration
RS-485 for Modbus
connection and data
transfer
Channel status:
•Green (below Alarm level)
•Yellow (Alert)
•Red (Danger)
System status:
•Green (OK)
•Red (NOK)
Terminal configuration
Terminals
Terminals

© Brüel & Kjær Vibro ● C106834.002 / V06 ●Page 9 of 110
Technical alterations reserved!
Brüel & Kjær Vibro │Instruction VC-1800 Series
VIBROCONTROL 18xx Types
EN
UNRESTRICTED DOCUMENT

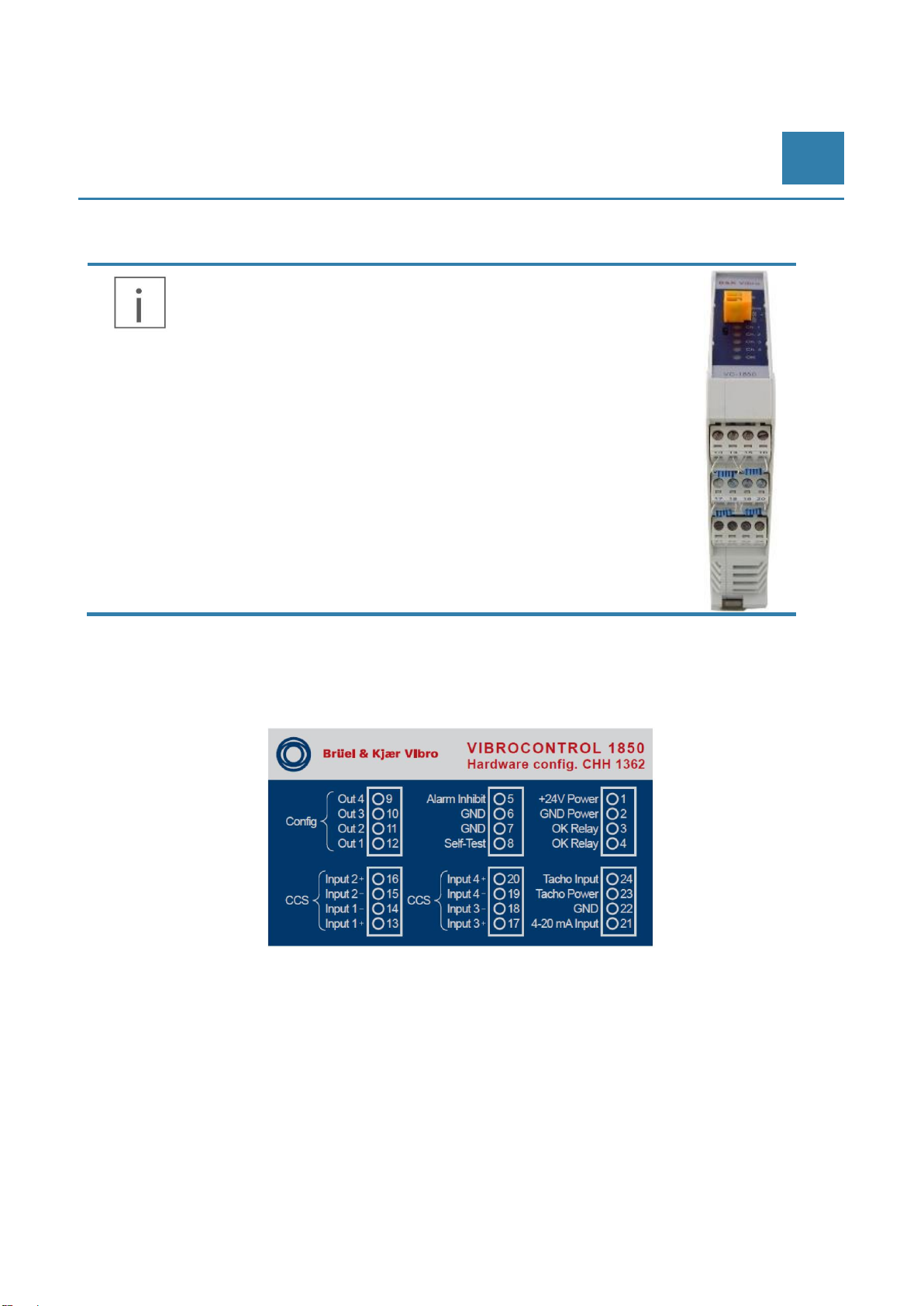

2.2 Terminal Configuration
NOTE
The VC 18xx devices are equipped with resistors or diodes at the
connection input for sensors. If the inputs remain unused, the resistors
must remain in place. Before using the connections, remove the
resistors or diodes. In addition, disable any sensor channels not being
used with the setup software.
2.3 VIBROCONTROL 1850 (Accelerometers CCS)
Terminal configuration

Page 10 of 110 © Brüel & Kjær Vibro ● C106834.002 / V06
Technical alterations reserved!
EN

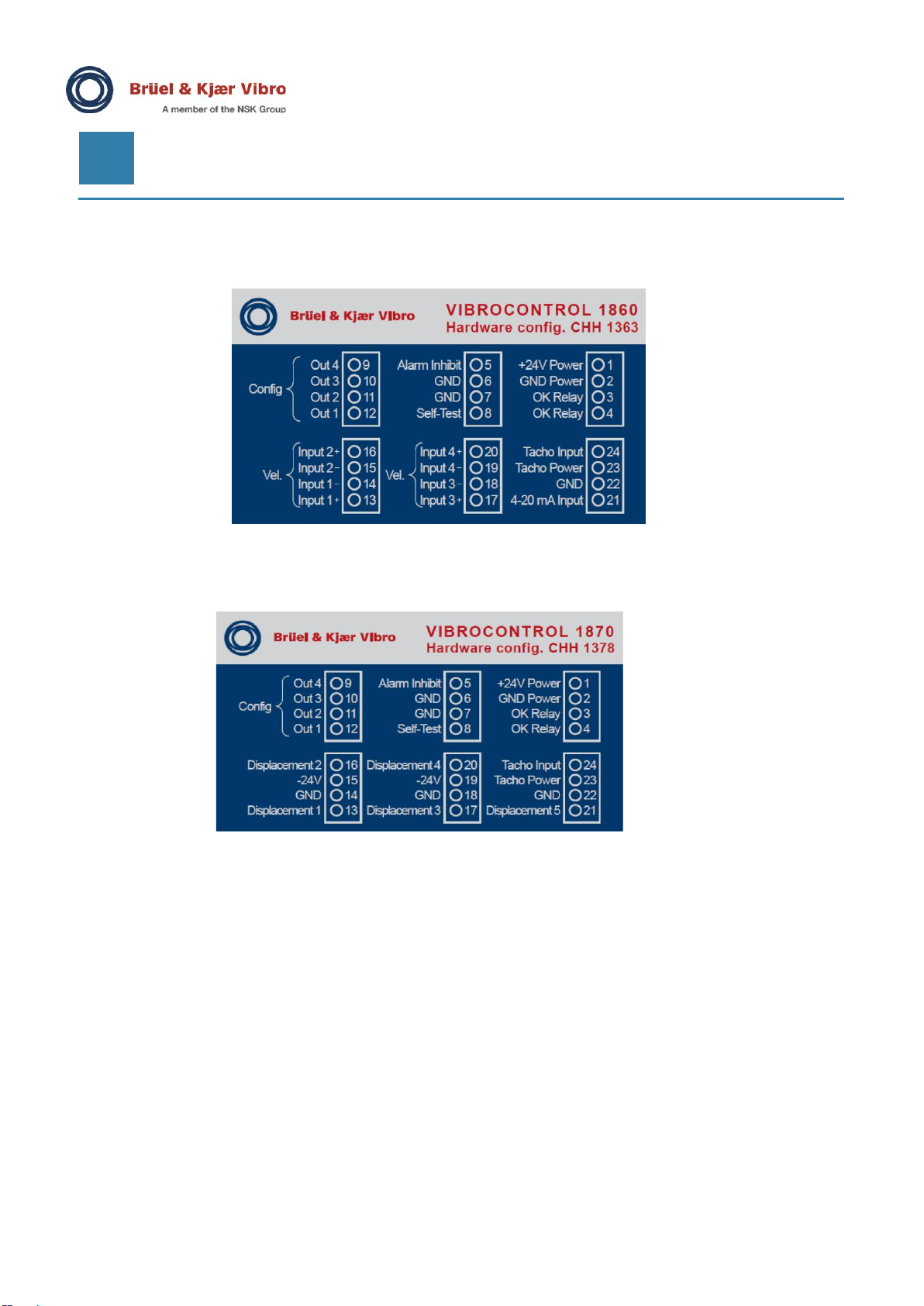

2.4 VIBROCONTROL 1860 (Vibration Velocity Sensors)
Terminal configuration
2.5 VIBROCONTROL 1870 (Vibration Displacement Sensors)
Terminal configuration
Please note: Sensor inputs "Displacement 1-4" are used to measure relative shaft vibration.
"Displacement 5" is used for axial position only.

© Brüel & Kjær Vibro ● C106834.002 / V06 ●Page 11 of 110
Technical alterations reserved!
Brüel & Kjær Vibro │Instruction VC-1800 Series
Tips for Safe Operation of
VIBROCONTROL 18xx
EN
UNRESTRICTED DOCUMENT
3 Tips for Safe Operation of
VIBROCONTROL 18xx
Safety:
This user manual contains information which must be followed by the user in order to ensure safe
operation.
General:
WARNING!
VIBROCONTROL 18xx and VC-1801 devices can be damaged by a "HOT-Swap."
The VIBROCONTROL 18xx must be disconnected from the main power supply first.
Please carefully read the operating instructions prior to setting up the device. Make sure that your
VIBROCONTROL 18xx device is suitable for your application without any restrictions.
Improper use:
Any improper or non-intended use may lead to malfunctions of the VIBROCONTROL 18xx or to
unwanted effects in your application. If the VIBROCONTROL 18xx is used in a way not described
in the relevant user manual, function and protection may be impaired and serious personal injury,
death or serious, irreversible injuries may result.
Installation and operation:
Installation, electrical connection, set-up, operation and maintenance of your VIBROCONTROL
18xx must only be carried out by qualified/trained personnel (electrician) authorized by the machine
operator in accordance with local and national regulations for the installation of electrical
equipment.
Changing the setup parameters:
Before applying a new set of setup parameters to the VIBROCONTROL 18xx, please make sure
that doing so cannot cause any damage to persons and/or machinery.
Connecting sensors:
Please make sure to meet the safe extra-low voltage (SELV) criteria when any sensors are
connected to the VIBROCONTROL 18xx so that no dangerous contact voltages are applied to the
sensor and/or transferred to the device. The sensor and the power supply of the VIBROCONTROL
18xx are not electrically isolated.
If the VIBROCONTROL 1800 monitor indicates a device error (system status LED is red),
machine protection is no longer ensured. Please carry out a self-test, correct errors, switch off
the device if necessary and protect it against unintentional reuse.

Page 12 of 110 © Brüel & Kjær Vibro ● C106834.002 / V06
Technical alterations reserved!
EN
Sensor cable mounting:
To prevent negative effects on the functioning of the VIBROCONTROL 18xx caused by noise
voltages, please lay shielded sensor cables and power supply separately.
Cable break, cable short-circuit and sensor overload:
For a detailed description of how a VIBROCONTROL 18xx device reacts to a breakage of the
sensor cable or an overload of the sensor signal, please read section 6.17 of this manual.
Ingress protection (IP):
The VIBROCONTROL 18xx has an ingress protection of IP20. The VIBROCONTROL 18xx must
be mounted in a control cabinet with an ingress protection of at least IP54. The control cabinet
should be installed in accordance with local and national rules and regulations.
Mounting:
Mount the VIBROCONTROL 18xx on a 35-mm DIN-rail inside the control cabinet. Mount the device
vertically. Make certain to leave enough space between the device and the top and/or bottom of the
control cabinet. Only in this way will the air circulation be sufficient to avoid excessive heating of
the device.
Electromagnetic compatibility (EMC)
The VC-18xx complies with the relevant requirements of the
Electromagnetic Compatibility Directive 2014/30/EU. The EMC has been
tested according to EN 61326-1, with the reduction of the requirement for

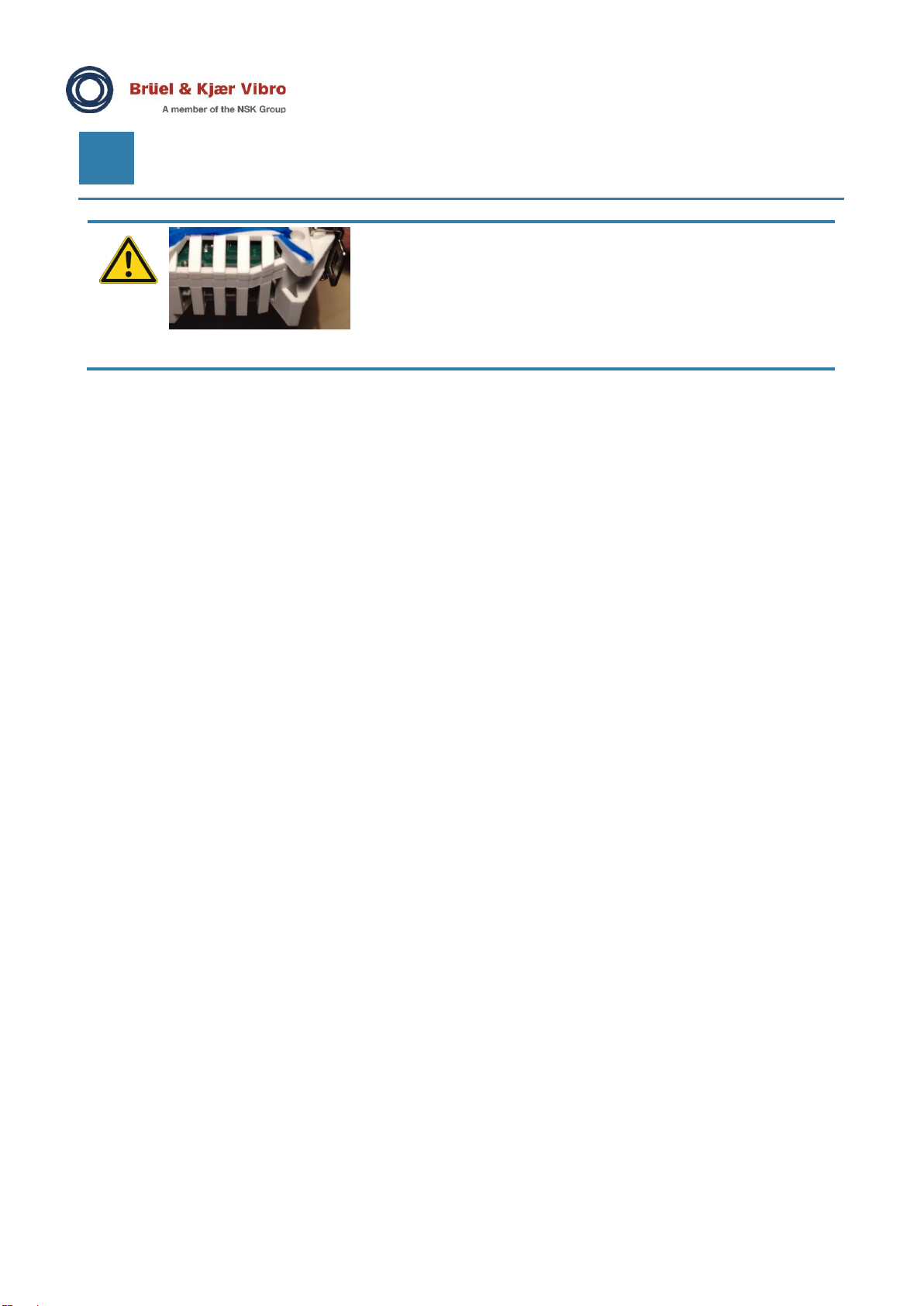

static electricity (ESD). When handling the VC-18xx, pay close attention to
protective measures against electrostatic discharge. This applies in
particular to the area of the ventilation slots. Electrostatic discharges in this area can destroy the device.

© Brüel & Kjær Vibro ● C106834.002 / V06 ●Page 13 of 110
Technical alterations reserved!
Brüel & Kjær Vibro │Instruction VC-1800 Series
Tips for Safe Operation of
VIBROCONTROL 18xx
EN
UNRESTRICTED DOCUMENT
Connecting to a power supply:
The VIBROCONTROL 18xx has a voltage tolerance of +24 V DC ±5 %.
Before connecting the VIBROCONTROL 18xx to a +24 V DC supply voltage, please make sure
that all terminal blocks are completely inserted. The external +24 V DC supply voltage must be
generated and supplied according to the SELV requirements with power limiting.
Protect the +24 V DC supply voltage externally with max. 2A. The ground (GND) of the DC supply
is directly connected with the ground (GND) of the sensor supply, if any. The SELV criteria must
therefore be met for the DC supply (safety extra-low voltage, circuit electrically isolated from other
circuits, not grounded). If the DC circuit is to be grounded (e.g. due to national regulations), the
protective-extra-low-voltage (PELV) criteria must be adhered to (SELV with circuit electrically
isolated from other circuits).
Maintenance:
If used correctly, no maintenance and repair measures are necessary.
Only the manufacturer is allowed to repair the unit.
ATTENTION!
The power supply unit may only be supplied with power via a disconnecting device (switch or circuit
breaker)!
The disconnecting device must meet the requirements of IEC 6094-7 and
IEC 60947-3 and be suitable for the application.

Page 14 of 110 © Brüel & Kjær Vibro ● C106834.002 / V06
Technical alterations reserved!
EN
4 Setup and Configuration
Connect the VIBROCONTROL 18xx to a (Notebook) PC that has the Compact Setup software
installed. Use one of the interfaces (USB, RS-485 or LAN via VIBROCONTROL 1803 Ethernet
Bridge).
4.1 Configuration of VIBROCONTROL 18xx with PC
(Compact Setup Software)
Figure 1) Connection diagram
Install the Compact Setup software from the CD.
Follow the installation wizard.

© Brüel & Kjær Vibro ● C106834.002 / V06 ●Page 15 of 110
Technical alterations reserved!
Brüel & Kjær Vibro │Instruction VC-1800 Series
Setup and Configuration
EN
UNRESTRICTED DOCUMENT
In the "Add device" window, choose
"Search for measuring device" (=
automatic search) and continue with
"Next."
A successful search will result in a
VIBROCONTROL 18xx with a serial
number (S/N).
Click on "Next."
Click on "Finish" to end the search.

Page 16 of 110 © Brüel & Kjær Vibro ● C106834.002 / V06
Technical alterations reserved!
EN

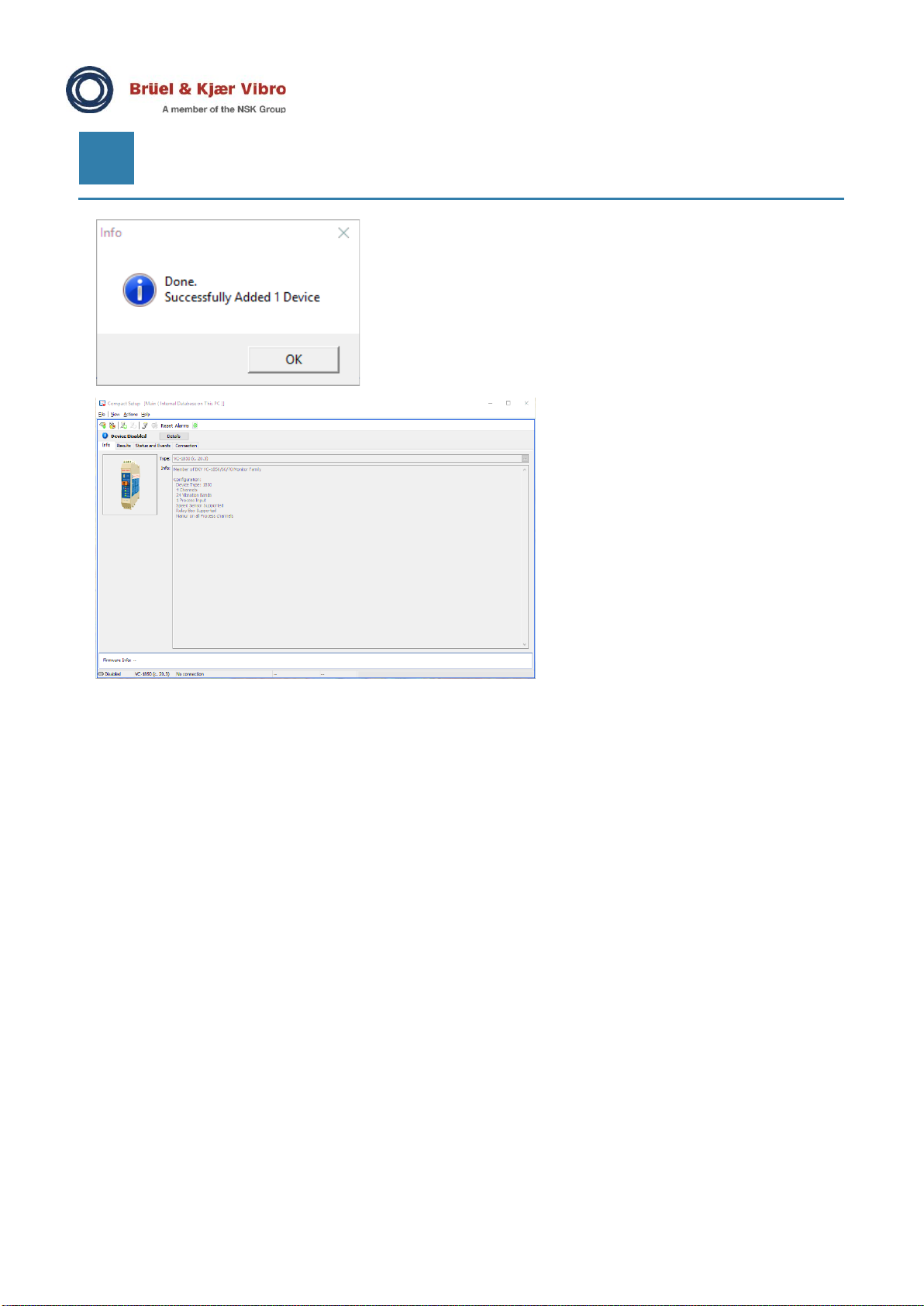

The information at the
right indicates that your
VIBROCONTROL 18xx is successfully
connected to the PC and the software.
Confirm the notice with OK.
The software view of the
VIBROCONTROL 18xx device shows
the most important setting options.
4.2 Cable Connections
Install the different terminals on the VIBROCONTROL18xx in the following sequence:
•Sensor input on terminals #13 to #20. Observe polarity.
•Relay, current and/or voltage outputs on terminals #9 to #12.
•Tacho power and Tacho input signal terminals #23 and #24.
•Process input (relative to GND) on terminals #21 and #22.
(VIBROCONTROL 1870: This input is used for the axial position)
•System errors on terminals #3 and #4 via redundant, electrically
isolated OK relay.
•Power supply (+24 VDC) and ground (GND) on terminals #1 and #2.
•Optional: External connection to terminals #5 and #8 to initiate respectively "Alarm Inhibit" or self-
test.
•Connect the VIBROCONTROL18xx to a PC so that communication can be established between
these two devices. The VIBROCONTROL 18xx has RS-485 and USB interfaces for
communications. Communication is optionally possible via a LAN connection using a
VIBROCONTROL 1803 Ethernet Bridge module.

© Brüel & Kjær Vibro ● C106834.002 / V06 ●Page 17 of 110
Technical alterations reserved!
Brüel & Kjær Vibro │Instruction VC-1800 Series
Setup and Configuration
EN
UNRESTRICTED DOCUMENT
4.3 Powering and Starting up the Device
After the +24 V DC supply voltage is connected or a device setting is changed, the monitoring
system runs through a start program. The measurement channel LEDs and/or the OK LEDs flash
or are lit red for about 30 seconds.
Provided there is no violation of Alert and Danger levels and the system status is OK, all LEDs
should turn to green.

Page 18 of 110 © Brüel & Kjær Vibro ● C106834.002 / V06
Technical alterations reserved!
EN
5 Functionality
5.1 General for VIBROCONTROL 1850

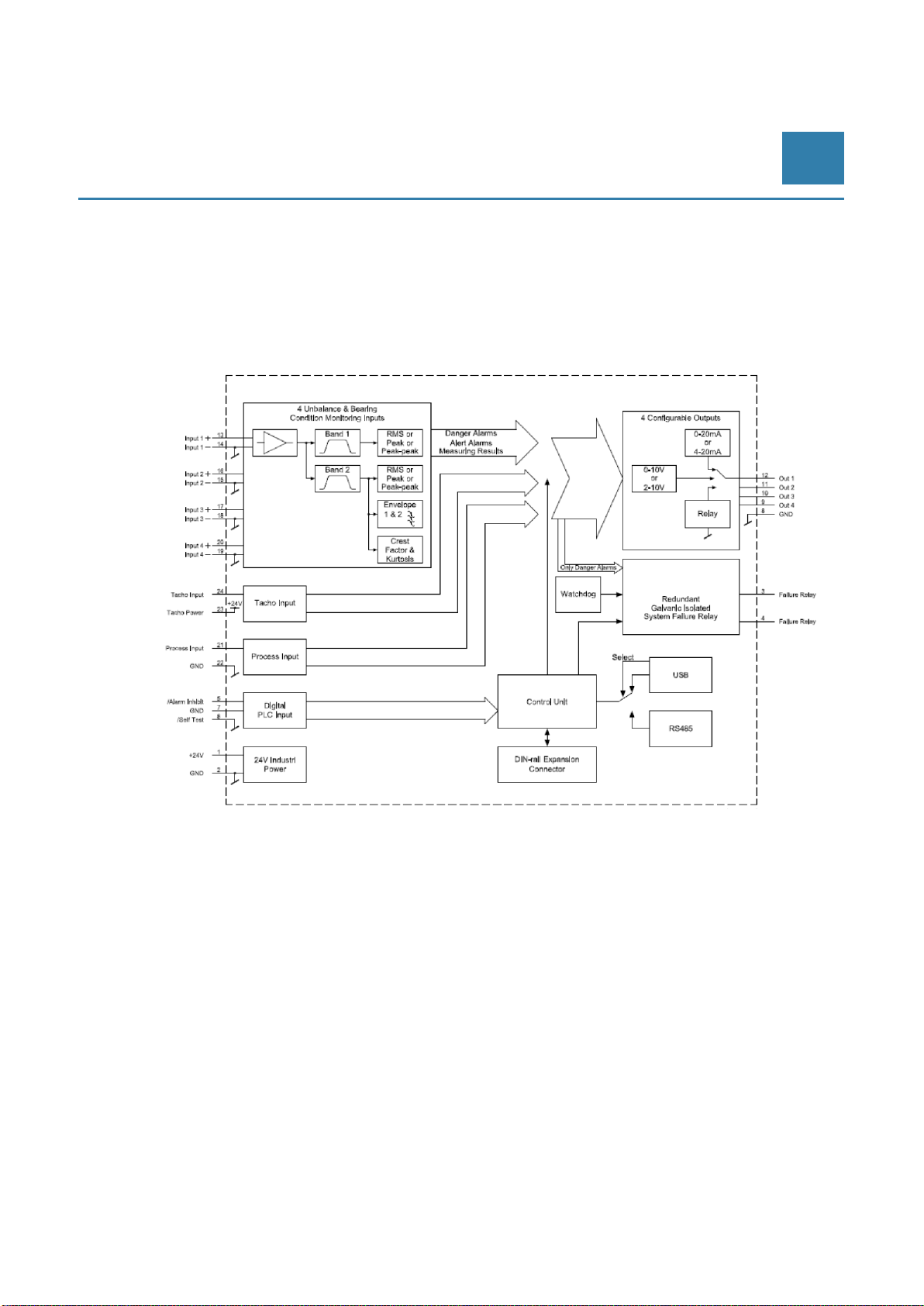

The VIBROCONTROL 1850 vibration monitor has four inputs for accelerometers.
5.2 Functions of VIBROCONTROL 1850
The VIBROCONTROL 1850 vibration monitor provides two independent frequency bands (band 1
and band 2) for each vibration measurement channel:
Band 1 and band 2:
•Full scale in True RMS, Peak or Peak-to-Peak values of the momentary vibration parameters
acceleration (m/s2), speed (mm/s) or displacement (µm);
- Band-pass filters for selection within the ranges:
Band 1:
0.1 to 1500.0 Hz or 5.0 to 11500.0 Hz; 10 Hz –1000 Hz,
Band 2:
2 kHz - 10 kHz
- Alert alarm and Danger alarm limits can be configured.
Default setting:
Alert alarm is 7.1 mm/s; Danger alarm is 11.0 mm/s.
Band 2 only:
•Two separate envelope detectors. Each envelope detector has its own band-pass filter. Each
envelop analyzer has its own Alert and Danger alarms.
•Crest factor detector with Alert and Danger alarms
•Kurtosis detector with Alert and Danger alarms
General for ALL VIBROCONTROL VC-18xx:
•An individual Alert or Danger alarm can be assigned to each vibration parameter. If an Alert or
Danger alarm occurs, the corresponding LED is lit:
Green = No alarm, Yellow = Alert alarm and Red = Danger alarm
•The Alert and/or Danger alarms can be configured as "Low Level" or "High Level" alarms.
•The Alert and/or Danger alarms can be set to latching or non-latching. This setting of an alarm
can only be changed by the software
(Compact Setup or Compact Analyzer).
•Four independent configurable outputs (terminals # 9, # 10, # 11 and # 12), can be defined as
relay outputs (for Alert or Danger alarm) or as analog outputs. Each of the outputs can have any
(or just any one) of the following functions:
~ Solid-state relay. When the relay is enabled, a message (warning light, signal tone) can be sent
or the machine can be shut down.
~ Analog DC current output: 0-20 mA or 4-20 mA;
The default value is 4-20 mA
~ Analog DC voltage output: 0-10 V or 2-10 V
The default value is 2-10 V

© Brüel & Kjær Vibro ● C106834.002 / V06 ●Page 19 of 110
Technical alterations reserved!
Brüel & Kjær Vibro │Instruction VC-1800 Series
Functionality
EN
UNRESTRICTED DOCUMENT
•System status/OK status
An internal watchdog monitors the functional capability of the complete monitor continuously.
If a non-critical system error occurs, the LED on the front is lit Red.
If a critical system error occurs, the Red LED flashes.
Using two mechanical relays in series for the same event adds redundancy to the system error
output and thus considerably increases the reliability that a system failure alarm will be detected.
○A complete self-test of the vibration monitor can be started by connecting the "Self-
Test" terminal #8 to ground.
A flashing Yellow "Status" LED on the front of the enclosure indicates an ongoing
self-test.
○"Alarm Inhibit": Terminal #5 (against GND) suppresses all alarms.
○A process input (terminal #21) can be used to connect an analog current (0-20 mA)
input signal or voltage (0-10 VDC) input signal.
○A tachometer connection (terminal #24)
The VIBROCONTROL 18xx vibration monitor has an RS-485 and a USB interface.
The USB interface can be used on a PC for configuration and data acquisition.
Using the VIBROCONTROL 1803/04 Ethernet Bridge, the VIBROCONTROL 18xx can be
coconnected to a LAN network via the RS-485 interface.

Page 20 of 110 © Brüel & Kjær Vibro ● C106834.002 / V06
Technical alterations reserved!
EN
