Take&Talk Universal

2Introductory information
1. General
Dear customer,
Congratulations on purchasing a BURY telephone holder for cellular phones. You have chosen a high
quality product that is extremely easy to use. Please read the installation manual carefully so that you
can fully enjoy your BURY product.
If you have any further questions concerning installation or operation of this device, please contact your
dealer. He will be happy to give you reliable advice. You can also contact our hotline. Our phone and fax
numbers are listed in the chapter Service.
Have a good trip!
2. Security guidelines
Power supply
The power usage of the cradle has been designed for the use in vehicles
with an on-board supply system of 12 volts (passenger car). If you intend
to install the device in a vehicle with an on-board supply system
of 24 volts (lorry), please use a voltage converter. If you have queries
regarding this subject, please contact our hotline.
Position
Install the cradle in the vehicle so that your field of vision is not impaired
and the components are not mounted in the impact zone of the passen-
ger compartment or in the airbag inflation zones. Very important: please
observe the car manufacturer’s information (operating manual) as re-
gards “accessories”. If in doubt, please contact a specialist workshop to
get information on the correct position for installation in the vehicle.
Intended use
We shall not be liable for damages or malfunctions due to improper use
of the hands-free system. Therefore, do not expose the device to mois-
ture, extreme temperatures or shocks and follow the procedure de-
scribed in the installation manual carefully.

3
Use while driving
Operate the smartphone in the holder only when the situation allows it
and when you do not endanger, harm, constrain, or annoy other road
users. The volume of the smartphone has to be set in a way that exte-
rior noise is still audible.
Important:
The driver is ultimately responsible for the safe operationX
and control of their vehicle at all times.
Research indicates that there is a risk to safety when theX
driver of a motor vehicle is distracted and using a mobile
phone while driving can be a distraction.
The manufacturer strongly recommends that you useX
a hands-free solution for a phone call when driving.
Faults
Do not use the telephone holder if you detect or assume a defect. In this
case, contact a Bury specialised dealer or our hotline. Improper repairs
can be dangerous for you. Therefore, only skilled personnel may perform
inspections.

4Installation of the system
3. Scope of supply

5
The Take&Talk Universal is supplied with different combinations of components, depending on the
sales regions (countries). The operating manual refers to all versions.
Description of the components:
1) Cradle
2) Set of tips for specific mobile phone models
3) Charging cable (Micro USB)
4) Installation and Operating manual on CD
Accessories - available separately / including, if applicable:
5) Five (different) charging cables (Micro-USB, Mini-USB, Nokia Pin 2 mm, iPhone, Sony Ericsson)
Note:
If certain components are added or omitted you will receive the correspondingX
information on a separate enclosure.
Connection options:
1. Power supply
Connection of the mobile phone‘s charging cable. The conduction of the power supply occurs
via the BURY BasePlate.
1

6Installation of the system
4. Installation of the system
Important:
When positioning the cradle please take care that the device does not impair the viewX
onto the road, that it will not be installed in the impact zone of the passenger compart-
ment (amongst others in the airbag inflation zones) and that the cable may be laid without
any problems.
Please avoid direct sunlight on the device or high internal temperatures, which can beX
rapidly reached in parked vehicles. In such cases, remove the cradle and put it in the car
glove pocket or glove box for instance.
Step 1:
Adjusting corner fasteners to wide ranging models of mobile phone
To be able to select the suitable type of corner fastener for a certain
model of mobile phone / smartphone, please familiarize yourself with
the corresponding compatibility list. This list is available on our internet
site in the download area for the product at www.bury.com.
Important:
Every corner fastener set is equipped with a letter nota-X
tion which is positioned on the interior side of the corner
fastener.
1. Turn the corner fastener with the rotary knob (1) in a clockwise
direction.
2. Detach the corner fastener in the direction of the arrow (2).
3. Fit the correct ending for the corner fastener and tighten it by
turning it anticlockwise.
4. Repeat the above steps with the remaining three corner fasteners.
1
2

7
Step 2:
Adapting the Take&Talk Universal to the size of the mobile phone
Important:
Before you begin to adjust the cradle to fit your particular mobile phone, it is importantX
that you set the cradle to the closed position. This can be done by pushing the top of
the cradle down until the locking button on the right side of the cradle, pops out with an
audible “click”.
To be able to adapt the cradle to the size of the mobile phone lift all of the adjustment locks by press-
ing the release buttons 1, 2, 3.
Micro USB
Option
Nokia Pin 2 mm

8Installation of the system

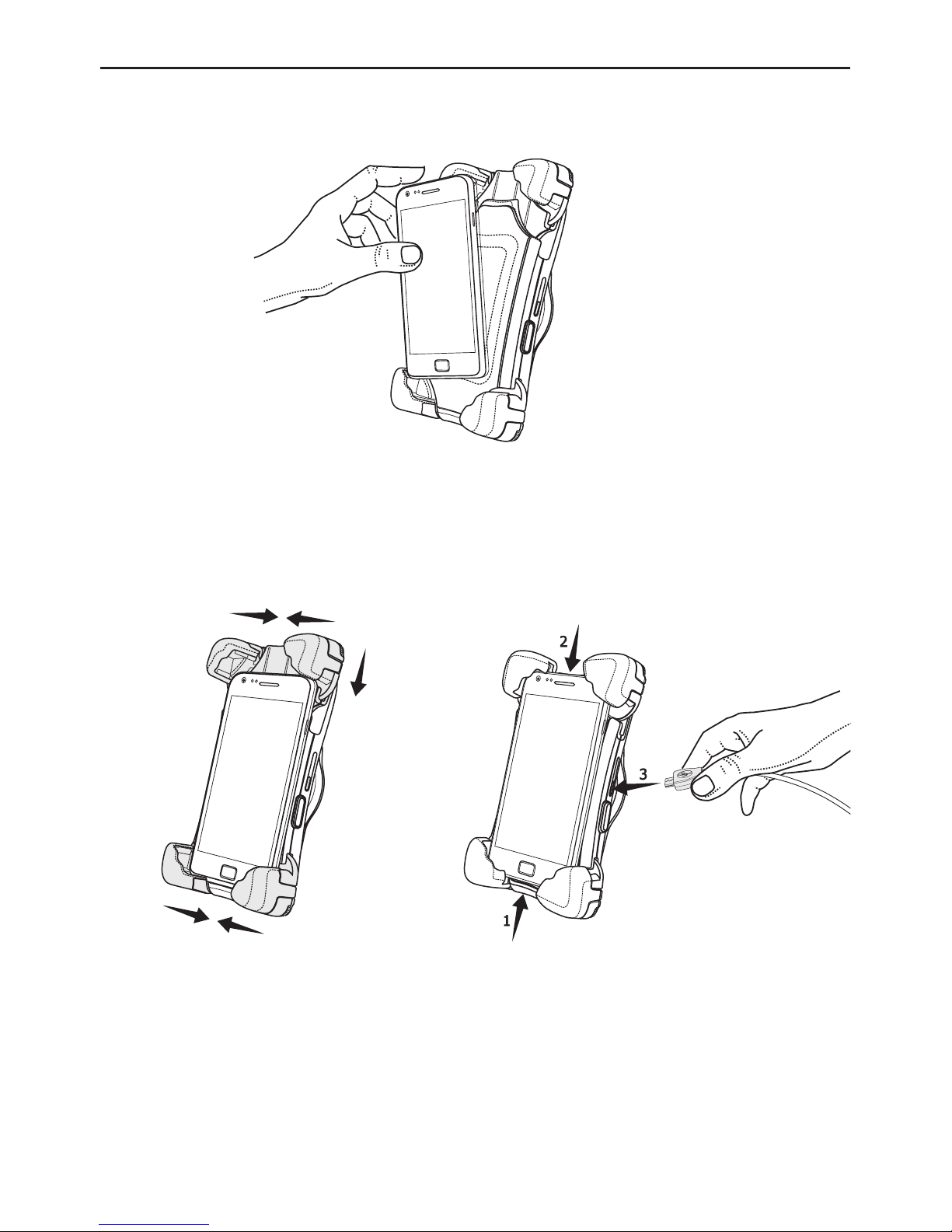

Insert the mobile phone into the cradle.
Firstly, adjust the lower width of the cradle to the width of the mobile phone and press button 1in
order to block the set position. Next adjust the height and the upper width of the cradle to the height
and width of the phone and press in keys 2and 3in order to block the set positions.
Please note:
It is possible to set all positons of the cradle at the same time by lightly pressing but-X
ton 1, 2or 3.

9
Step 3:
Adjusting the corner fastener
Adjust the corner fastener to the thickness of the phone – increase the depth by turning it in a clock-
wise direction, tighten it by turning it anticlockwise.
5. Installing the Take&Talk Universal in the vehicle

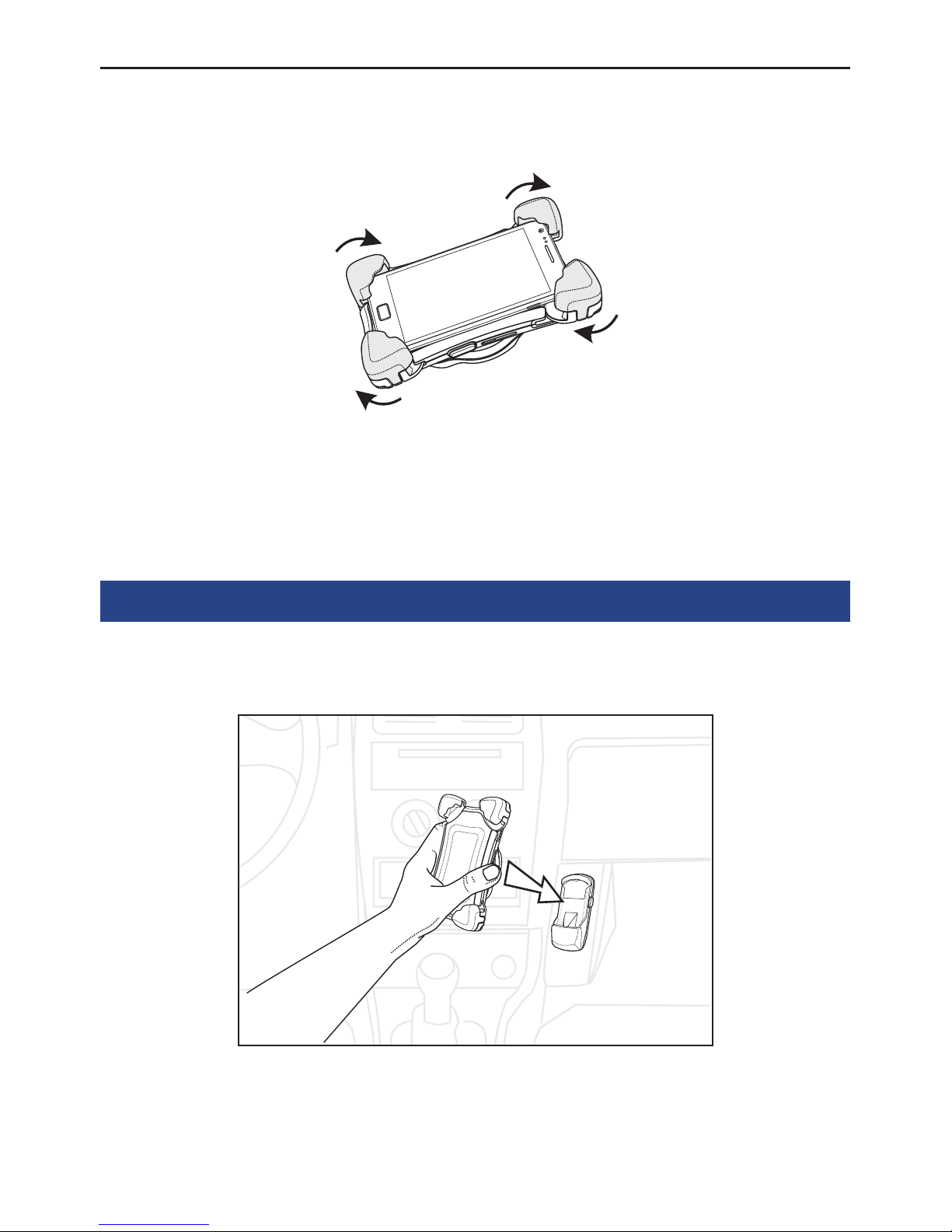

Place the Take&Talk Universal cradle in the BURY BasePlate.
1
2
3
4

10 Installation of the system
Important:
The correct mounting of the Take&Talk Universal in the BURY BasePlate is signalled byX
a perceptible ‘clicking’ sound.
Removing the Take&Talk Universal cradle from the BURY BasePlate.
Important:
Before you remove the cradle from the BURY BasePlate you will have to removeX
the blocking mechanism by pressing the locking button on the right hand side of
the BURY BasePlate.

11
6. Inserting and removing the mobile phone

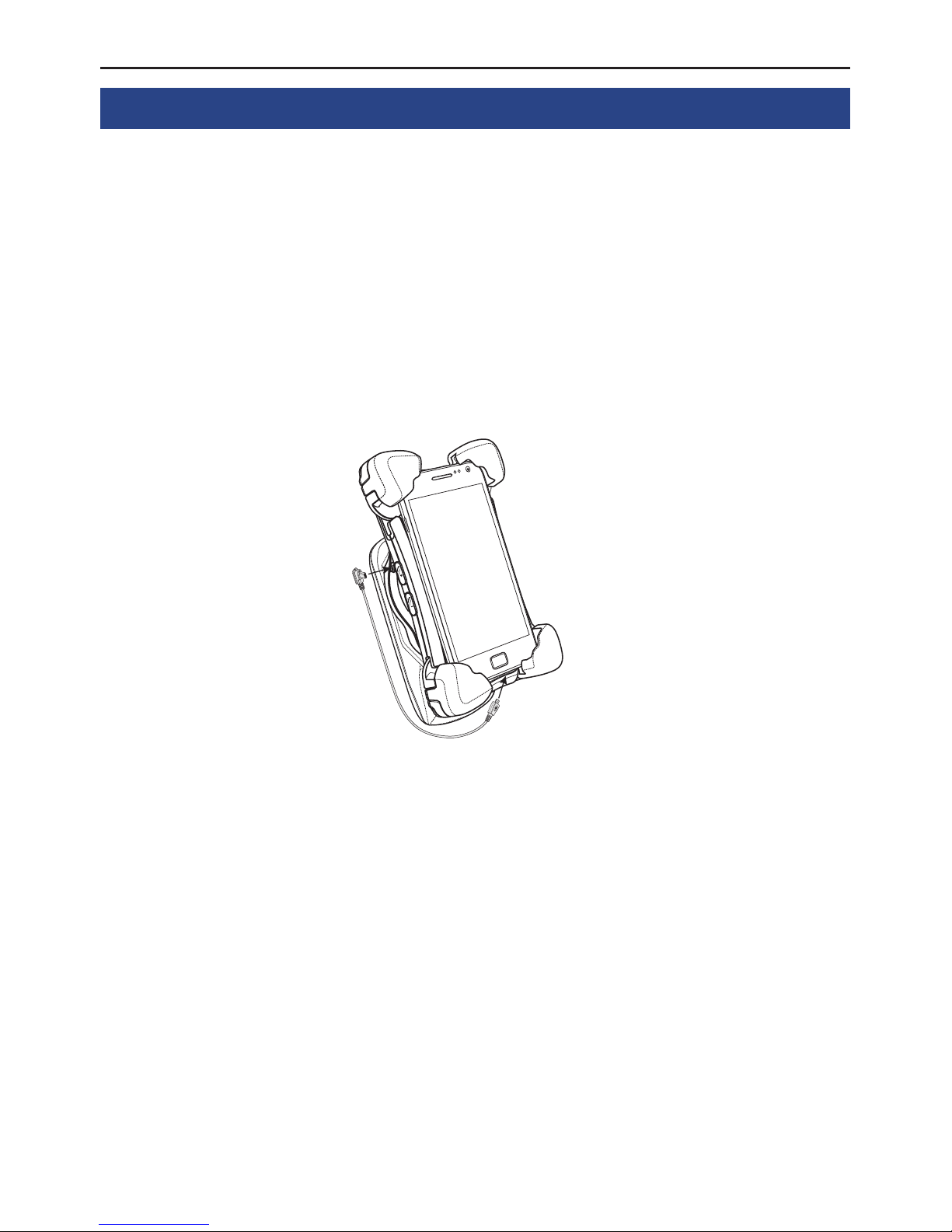

Insert the smartphone in the Take&Talk Universal cradle.

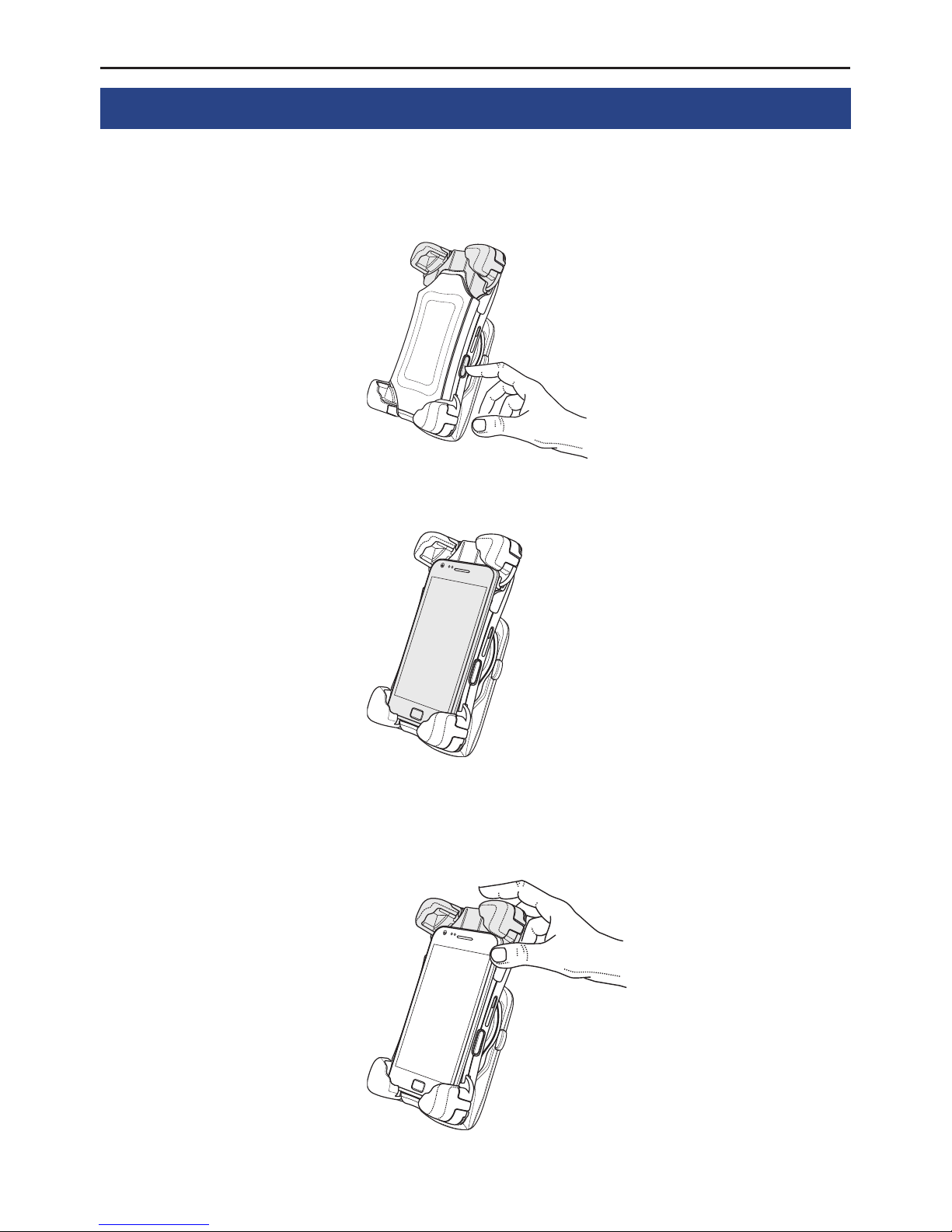

Before you insert the smartphone in the cradle, release the holding mechanism by pressing the locking
button in. The locking button is situated on the right hand side of the cradle.
If necessary, remove the protective cover from your smartphone. Place the smartphone in the cradle from
above.
Press the top part of the cradle downwards and you will hear the smartphone click into the cradle.
The correct positioning of the smartphone in the cradle is signalled by a perceptible ‘clicking’ sound.

12 Installation of the system
Removing the smartphone from the Take&Talk Universal cradle.

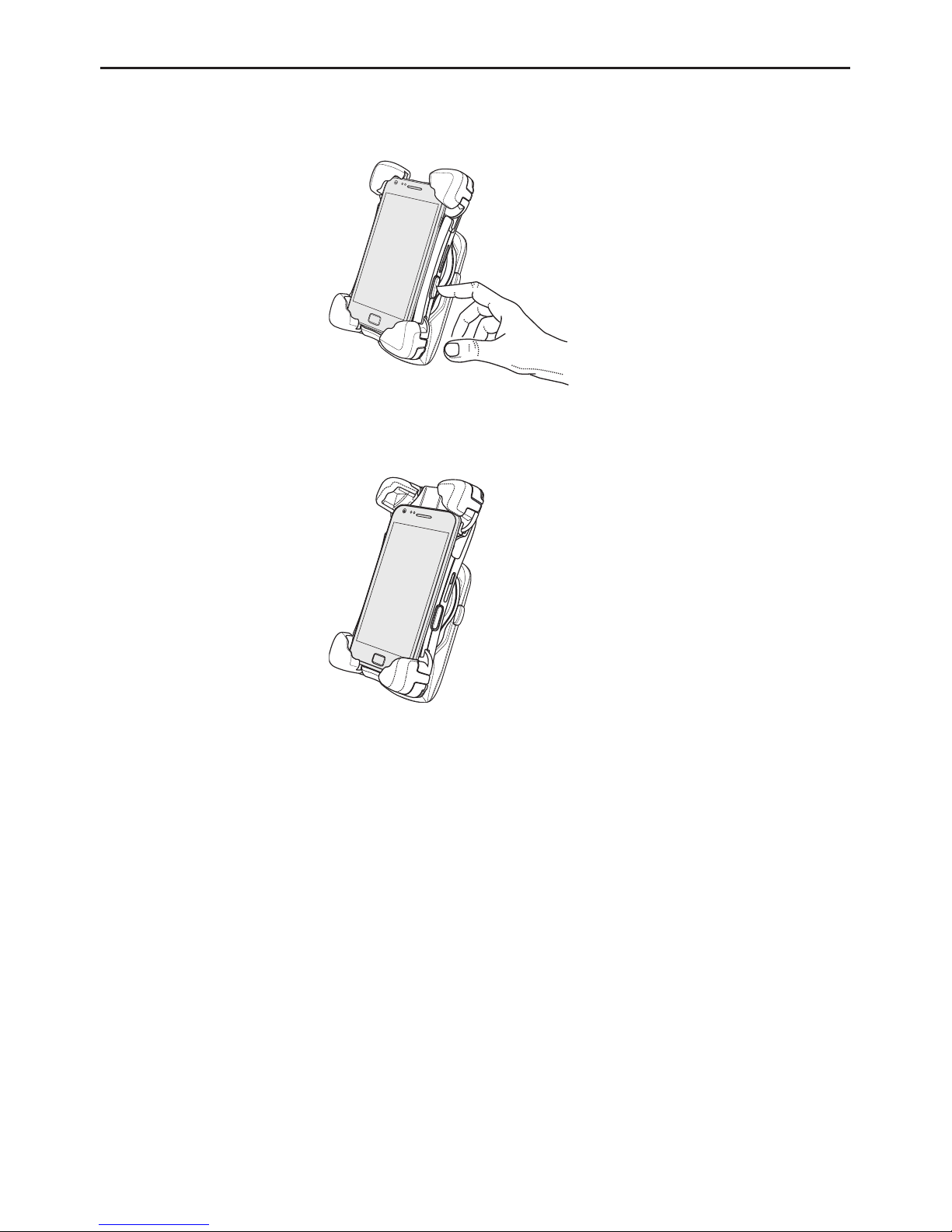

To release the locking mechanism press the button on the right hand side of the cradle.
Now remove the smartphone by lifting it out of the cradle.

13
7. Rotating the cradle
You can turn the smartphone by 180 degrees (90 degrees to the left or right accordingly) together with
the cradle. Rotate your device to best suite the application you are using. Used in the landscape
(horizontal) format, most smartphones will adjust the text size and websites images automatically
making them easier to read. Using the cradle to the landscape format also gives more space for the
onscreen keyboard making it easier to enter text data.
Important Safety Notice:
Entering text or viewing websites on your smartphone whilst driving is extremely dan-X
gerous and illegal in most countries. Always ensure your vehicle is stationary and safely
parked before using your smartphone for these activities. Setting your cradle or phone
screen format should be done before commencing your journey.
Navigation applications especially benefit from the landscape format view because all the operational
elements of the software are positioned clearly. Due to the reduced horizon in the landscape format,
the 3D map presentation will probably contain significantly more detailed information.
8. Initialising the Take&Talk Universal
After the power supply of the BURY BasePlate is successfully connected, the Take&Talk Universal is
activated when you have started the vehicle.
The Take&Talk Universal has an inductive antenna coupling. This means that the functioning of the
integrated antenna in the corresponding smartphone is transferred to an external antenna. This also
means that a GSM antenna must be connected to the BasePlate of the hands-free car kit which is being
used, otherwise the send-receive performance will be restricted.

14 Operating guidelines
9. Establishing a Bluetooth connection
If you wish to establish a Bluetooth connection for the first time, you have to activate the Bluetooth
function of your mobile phone and search for
Bluetooth devices. In this case search for a device labelled
„T&T Universal ...”. If several devices were identified, please select the Take&Talk Universal and enter the
PIN number 1234. The
Bluetooth connection (pairing) will then be established between your smart-
phone and the Take&Talk Universal.
Please note:
Searching forX
Bluetooth devices and establishing a Bluetooth connection may take 2-3
minutes.
In the event of a successful connection with the cradle, a corresponding message will appear in the
display of the smartphone. If it is not possible to establish a connection, please check and update the
software release of your smartphone. An overview dealing with this subject can be found on the Inter-
net at www.bury.com. If you have questions with regard to the menu navigation, functions and opera-
tion of your smartphone, please refer to the operating guidelines of your smartphone. Depending on
the manufacturer and type, this considerably differs from each other.
Note:
If the rechargeable battery of the smartphone is low, it is sometimes not possible toX
establish a
Bluetooth connection.
If you wish to cancel a
Bluetooth connection, you can either disconnect it conveniently at the Take&Talk
Universal or at your smartphone. In addition, the connection is disconnected, if you move too far away
from the vehicle while taking your smartphone with you and thus leave the reception radius of the
Take&Talk Universal.
Note:
If the vehicle’s power supply system is switched off then the currentX
Bluetooth connec-
tion is automatically interrupted. If a telephone call is made in the interim time then the
connection will continue until the telephone call is concluded.
The
Bluetooth connection is automatically re-established only if you re-enter the reception area of
the Take&Talk Universal (approx. 10 metres) and if you want to perform or receive a phone call. Excep-
tions here to are some smartphones which only re-establish the
Bluetooth connection after the
confirmation of a message.
Thanks to the Multipoint Function you are able to connect two mobile phones at the same time with
the Take&Talk Universal via
Bluetooth . You operate this function with the plus button on the cradle.
The mobile phone connected most recently is given priority which means all of the functions described
in the table (on page 15 of this guide) refer to this telephone.

15
After switching the Take&Talk Universal on the system will connected with the smartphone that was
most recently connected. The condition for this is that this phone is in the vehicle, the
Bluetooth func-
tion is activated and the interfacing identification to the cradle has not been deleted.
If another phone rings suring the current phone call then the incoming call can be declined by pressing
the end button on the phone.
In the case of there being incoming calls on each phone at the same time, then the incoming call on
the second phone can only be received after the first call has been declined. It is also possible to end
the first call and to then decline the second call (both steps are completed by pressing in the minus
button), or to end the first call and to then immediately answer the second call (by pressing in the plus
button). Putting the first phone call on hold is not possible, however, because the same phone number
is not being called.
Note:
Please comply with the country-specific laws concerning in-car telephone calls.X

16 Operating guidelines
10. Overview of the key functions
Take&Talk Universal
Status Status
description Press Plus
key short
Hold Plus
key for
3 seconds
Press Minus
key short
Hold Minus
key for
3 seconds
Hold Plus and
Minus key for
3 seconds
Press Minus
key twice
Hold Plus and
Minus key for
6 seconds
Press Plus
key twice
Stand-by
When Take&Talk
Universal is
not connected
with phone
-
Connecting with
last connected
phone, if not
available try
to connect to
a phone from
phone list
- - - - Reset to default -
Connected
When Take&Talk
Universal is
connected with
phone, no call
-
Multipoint
on/off
(4 same beeps
is on)
-Disconnect
Bluetooth
Turn on / off
DSP* in the hone
(Tones up is on,
Tones down is
off)
Redial Reset to default Calling the last
saved number
Ring
When Take&Talk
Universal is
connected with
phone and
incoming call
is present
-Accept call -Rejects call
Turn on / off
DSP* in the
device (Tones up
is on, Tones down
is off)
- - -
Active call
When Take&Talk
Universal is
connected with
phone and call
is active
Volume up
Save the phone
number
of current
connection
Volume down Quit call
Turn on / off
DSP* in the
device (Tones up
is on, Tones down
is off)
- - -
Outgoing
call
When Take&Talk
Universal is
connected with
phone and call
is active
-
Save the phone
number
of current
connection
-Quit call
Turn on / off
DSP* in the
device (Tones up
is on, Tones down
is off)
- - -
*DSP = to lter out echoes and background noise

17
11. Charging the phone in the cradle
If a corresponding cable is connected to the telephone, the smartphone that is positioned in the
Take&Talk cradle will be supplied with electrical power (please refer to the picture). The conduc-
tion of the electricity supply occurs from the BURY BasePlate. In this context it is of no importance
as to whether or not there is active
Bluetooth connection between the mobile phone
and the Take&Talk Universal.
Please note:
Please note that the capacity of your mobile phone‘s storage battery can quickly decreaseX
when the
Bluetooth function is active. If you do not want to use the Bluetooth function any-
more, e.g. if you leave the vehicle for a longer period, it is recommended to deactivate this
function.

18 Further information
12. Service
In case of general or technical queries, suggestions and comments, please do not hesitate to contact
our team at any time. Suggestions and feedback are always welcomed:
Administration: Producer:
BURY GmbH & Co. KG BURY Spółka z o.o.
Robert-Koch-Straße 1-7 ul. Wojska Polskiego 4
D-32584 Löhne 39-300 Mielec
Germany Poland
Hotline: [phone] - 842 468*
Faxline: +49(0)180 5 - 842 329*
* 0.14 €/min. Deutsche Telekom AG landline,
the costs of international telephone calls which are made from abroad can vary.
E-Mail: [e-mail]
Warranty / Service desk:
The duration of the warranty for the components of this product totals two years subsequent to the
date of sale to the end customer. Any warranty claims you may have as an end customer are to be
asserted towards your contractual partner. If the corresponding contractual partner is not able to
rectify a corresponding fault, please exercise your rights of purchase. If subsequent to agreement with
your contractual partner the product is to be sent directly to the manufacturer, then please send it,
along with a detailed description of the fault in the German or English language and a copy of the proof
of purchase, directly to our service team:
BURY GmbH & Co. KG
Im Hause DPD Depot 103
Robinienweg
D-03222 Lübbenau
Germany
Specific explanations regarding the assertion of claims based on defects of the product (warranty /
guarantee / service) for certain countries can be found at the end of these instructions.
Information on the disposal of electrical goods in the EU
The crossed out wheelie bin symbol means that electrical and electronic products, batteries and ac-
cumulators must be disposed of separately in the European Union. Please do not dispose of any such
products in your normal household waste. As the owner of a product of this sort you are legally obliged
to dispose of it at your local dumping site or recycling centre, where you are able to leave your waste
electrical goods free of charge.
