BURY CV 9040 Plus User manual

Index
Introductory information 2
1. General 2
2. Security guidelines 2
Installation of the hands-free car kit 4
3. Scope of supply 4
4. Instructions on battery 5
5. Positioning and mounting 6
Operating guidelines 9
7. Using the hands-free car kit for the first time 9
8. Handling possibilities 9
9. Voice control 10
10. Handling via Touch screen 11
11. Establishing a
Bluetooth connection 12
12. Menu navigation 13
13. Accepting, making, ending calls 30
14. Transferring Calls 31
15. Conference Mode 32
Further Information 33
16. Service 33
17. Appropriate use of this system 34
18. Approvals and declaration of conformity 34
CV 9040 Plus

2
Installation - who and where
The installation of this system can be carried out by yourself but please
observe any installation requirements issued by the automotive
manufacturer. During the installation, park the car at a place where the
road traffic is not impaired.
Power supply
This hands-free car kit is designed for use in vehicles independent of
the available power supply, whether 12 or 24 volts. The system‘s
battery can, however, be charged from both power networks via the
cigarette lighter plug (car and HGV). The supply voltage is
appropriately adjusted.
Exclusion of Liability:
Please comply with the laws and regulations concerning the
e-certification and the use and installation of electronic systems in
vehicles which are particular to your country. If you do not know these,
please inform yourself of them appropriately. In case of doubt, only
charge the battery of the hands-free car kit using the car cigarette
lighter plug when the vehicle is stationary. Please do not hesitate to call
our hotline if you have any questions concerning these matters.
1. General
Dear customer,
Congratulations on purchasing a BURY hands-free car kit. You have chosen a high quality product that
is extremely easy to use.
Please read the operating manual carefully so that you can fully enjoy your BURY hands-free car kit. If
you have any further questions concerning installation or operation of your car kit, please contact your
dealer. He will be happy to give you reliable advice.
You can also contact our hotline. Our phone and fax numbers are listed in the chapter Service at the
end of the operating instructions.
Have a good trip!
2. Security guidelines
Introductory information

3
Position, volume
Install the components of the device in the vehicle so that your field of
vision is not impaired and the components are not mounted in the
impact zone of the passenger compartment or in the airbag inflation
zones.
Intended use
We shall not be liable for damages or malfunctions due to improper use
of the hands-free system. Therefore, do not expose the device to
moisture, extreme temperatures or shocks and carefully follow the
procedure described in the installation and operating guidelines.
Use while driving
Operate the system only when the situation allows it and when you do
not endanger, harm, constrain, or annoy other road users. The volume
of the device has to be set in a way that exterior noise is still audible.
Faults
Do not commission the device if you detect or assume a defect. In this
case, contact a Bury specialised dealer or our hotline. Improper repair
efforts can be dangerous for you. Therefore, only skilled personnel may
perform inspections.
Important:
The driver is ultimately responsible for the safe operationX
and control of their vehicle at all times. You should never
use a hand held phone, including sending or reading text or
picture messages, while driving.
Research indicates that there is a risk to safety when theX
driver of a motor vehicle is distracted and using a mobile
phone while driving can be a distraction.
The manufacturer strongly recommends that you useX
a hands-free solution for making telephone calls whilst
driving.

4
3. Scope of supply
Installation of the hands-free car kit

5
Description of the components:
1 CV 9040 Plus
2 Hang-up cup
3 Sun visor clip
4 12V/24V Cigarette lighter plug with power supply cable
5 Storage bag
6 Installation and Operating manual on CD, printed quick user guide
7 Mounting accessories: adhesive pads
Note:
If certain components are added or omitted you will receive the correspondingX
information on a separate enclosure.
4. Instructions on battery
The hands-free car kit (HFCK) has an integrated rechargeable battery which remains activated for
approx. 50 hours when fully loaded. The battery guarantees up to 3 hours of hands-free talking
without the need for recharging. These values may differ depending on the settings and the use of the
hands-free car kit.
Please avoid charging the battery inside the vehicle in direct sunlight and the high interior tempera-
tures which can rapidly be reached in parked vehicles. In such cases, please remove the HFCK kit from
the cradle and place it either in the door glove pocket or the glove box.
Please comply with the following temperature levels:
- Storage between -20 and +45 degrees Celsius
- Charging between -10 and +45 degrees Celsius
- Use between -10 and +60 degrees Celsius
If you do not comply with these temperature levels then the battery can get damaged and the it is
possible that the HFCK will fail to work.
The charging status of the battery is displayed to you in the upper right hand section of the display.
When it is fully charged, the battery symbol is full, otherwise it is empty. If the battery capacity is
getting low, the symbol flashes more and more quickly and you receive a corresponding reminder on
the display.

6Installation of the hands-free car kit
You have two options for mounting the HFCK in your car.
1. Mounting on the sun visor 2. Mounting on the dash board
5. Positioning and mounting
A B
A From your point of view, you slide the hang-up cup
from above and away from you on the sun visor.
B From your point of view, you slide the hang-up cup
from below and towards you on the sun visor.
1. Mounting on the sun visor
You must slide the sun visor clip on the reverse slide of the hang-up cup from one side or the other
depending on how you want to mount the HFCK on the vehicle‘s sun visor. The clip snaps into place
with a click sound, as long as it has been correctly slid into place.
This ensures that the device with an integrated display can be flipped open towards you at any time.

7
2. Mounting on the dash board
There are two areas on the back of the hang-up cup where you can attach the two enclosed double-
sided adhesive pads. These adhesive pads allow you to mount the HFCK onto the dash board.
Note:
Flipping down the sun visor does not effect the function of the HFCK.X
The sun visor can sometimes not be fully opened.X
You should try out both methods of mounting the hang-up cup depending on the type and thickness
of the sun visor. Check whether the system can be used comfortably and that it does not restrict your
view of the road.
To unclip the clip from the hang-up cup, press the catch downwards with your thumb and then remove
the clip from the hang-up cup.
123
4
Use a cloth to remove any grease from the surface where you
want to mount the hang-up cup. Attach the adhesive pads on
the hang-up cup now and then fix it on the dashboard.

8Installation of the hands-free car kit

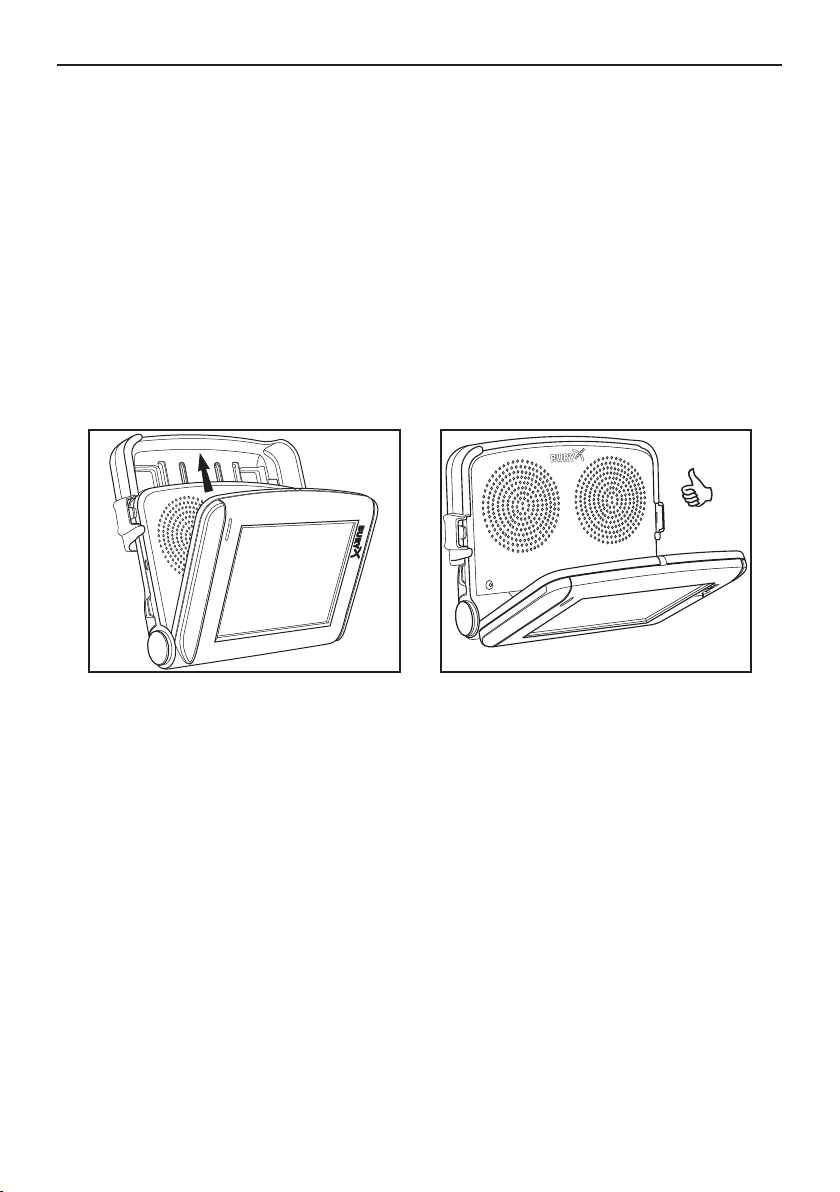

You can fix the CV 9040 Plus into the hang-up cup through the underside of the former. There are two
small catches on the sides of the hang-up cup which snap into place when the HFCK is in the correct
position. This catch mechanism means that the HFCK is safe from vibrations in the hang-up cup when
driving.
It is easy to remove the HFCK. Just pull the HFCK and press against the hang-up cup or sun visor clip.
Important:
The hang-up cup can only be mounted once using the enclosed mounting materials.X
Careless removal of the hang-up cup can lead to damage to the adhesive pads or to the
dash board.
Depending on the type, properties and maintenance of the dash board surface, thisX
surface can become discoloured over time. The adhesive areas are usually not affected
by this and this would be visible later on.

9
8. Handling possibilities
The system can be operated in two ways:
1. Operation using voice control
2. Handling via the touch screen
7. Using the hands-free car kit for the first time
Opening up the top side with the display activates the hands-free car kit (HFCK). When you start up
the HFCK for the first time, you must select the menu language. Afterwards, you will reach the main
menu. All available functions are shown on the display in writing (some are also shown with gra-
phics).
The status bar can be found on the right-hand side of the display in the graphics section of the main
menu. Certain symbols may appear there before and after you connect a telephone. These are defined
as follows:
Symbols in the headmenu with paired telephone
Operating guidelines
Touch screen
Voice dial
commands
Charging status of the hands-free car kit battery
Bluetooth active
Volume level during active call
Missed call / new SMS
Active
Bluetooth connection (Hands-free profile)
Charging status of the mobile phone battery
Signal strength of the mobile telephone network
The „VOICE COMMANDS“ are highlighted in this way in the
further explanatory notes.

10 Operating guidelines
9. Voice control
The menu items of the HFCK can be selected using voice commands once this function has been acti-
vated. There are exceptions, however, when you still have to use the touchscreen. During an active
telephone call, for instance, you can’t use voice commands. You have to select any additional functions
using the touchscreen.
To start the voice control feature, briefly press the head symbol down on the main menu. If the Magic
Word function is activated, you can also start the voice control by stating the „ACTIVATE VOICE
DIAL“ command. In certain situations, however, with an incoming call and activated voice recognition
for instance, the HFCK will start the voice control system automatically. The HFCK signals that it is
ready to receive a command by emitting an acoustic signal.
If you aren’t sure of the right command to use, then simply state „HELP / WHAT CAN I SAY“. The
HFCK will then read out the commands available for the particular menu in which you currently find
yourself. If the HFCK fails to understand one of your commands, or the particular option isn’t available,
the help function will start automatically and list the possible commands.
Please remember that certain commands are only available if a telephone is connected with the HFCK.
When entering voice commands, please ensure you speak naturally, clearly and at a regular speed.
Note:
With the use of the voice control it is recommended to turn down the volume of compo-X
nents which are independent of the audio system (e.g. a navigation system) or to switch
off the broadcast of traffic jam warnings in order to avoid unintended voice entries.
In addition to these commands, the HFCK recognises the numbers from zero to nine. Numbers which
are larger than nine must be spoken individually (e.g. 10 = one, zero). To search in the phone book,
the HFCK recognises the letters „ A“ to „Z“ as well as the NATO alphabet. For the entry of telephone
numbers abroad, the command „PLUS“ is also available.
