VueNet EasyLink
ver. 1.2
User`s manual
External wireless video and audio transmission
system for IP cameras HD and UHD in the band 5.1 -
5. GHz

Thank you for choosing the VueNet EasyLink. We trust that its unique features will
come in very handy.
Please, read this instruction manual to ensure safe o eration and maximise efficiency
of the device.
Safety and maintenance tips
In order to safely use our device, you should read and observe the ti s contained
in this instruction manual.
The VueNet EasyLink module is maintenance-free. We recommend
installing it on a stable structure and connecting its ower cables in a manner
which would revent them from being accidentally damaged by the o erator
or any bystanders.
Safety tips
This device has been designed and manufactured with the utmost care for the safety of
its installers and users. For safety reasons, observe all the guidelines in this manual
and eri heral devices' manuals, such as the PC or IP camera. Before installing the
device, carefully read the entire instruction manual. Ensure safe working conditions.
The user's own modifications of the device will revent its legal use and render the
warranty null and void. The device has assed through the mandatory com liance
assessment and it meets basic requirements in the Euro ean New A roach
Directives. The roduct is CE-marked.
Note: This device can o erate within the frequency and ower ranges which
might be contradictory to laws a licable in selected countries.
Do not a roach the device when it is on at the distance below 30 cm.
R&TTE declarati n f c nf rmity
This device meets requirements of the Euro ean directive on radio equi ment, tele-
communications terminals as well as on their mutual identification and com atibility
(Directive 1999/5/CE of the Euro ean Parliament and the Council of Euro e, March
1999).
The contents of this manual com rise ro rietary information of CAMSAT and are in-
tended only for use by urchasers of the equi ment described herein. In order to co y
or use any art of this manual for ur oses other than the a lication or maintenance
of the described equi ment, it is required that the customer should first obtain a written
consent from CAMSAT.

The VueNet EasyLink module is com liant with rovisions related to the safety in using
electrical devices. Observe the following guidelines:
•the ower outlet must be earthed in com liance with a licable rovisions,
•before transferring the device or erforming any other technical o erations, discon-
nect the ower su ly,
•do not use any damaged or worn ower su ly cables, as they ose a threat to the
user's safety,
•installation works must be erformed by sufficiently qualified technicians, do not use
the device in locations where flammable substances are ke t,
•secure the device so that children or unauthorised ersons should not gain access
to it,
•make certain that the device has been reliably fixed,
•the device is off only after disconnecting its ower su ly cables and the cables be-
tween it and other devices,
•if the device is transferred to a room where the tem erature is higher than where it
has reviously been ke t, water va our may condensate inside its casing, which will
revent its ro er use (Wait until the condensed water eva orates).
Distances and interferences
•The transmission distance may vary, de ending on the frequency, environment, ra-
dio waves, buildings, weather conditions, etc.
•When the transmitter is near such equi ment as the TV set, R-LAN wireless ne-
twork, another transmitter, or when it is laced between other radio devices, then
the video stream may be interru ted or the devices might even lose the connection.
If this occurs, increase the distance between the interru ted devices and the trans-
mitter.
•The signal rece tion may vary, de ending on the transmitter's working height and
angle. If the signal rece tion is not stable, o timise the antenna settings.
•Meteorological radars o erating within the frequency ranges of 5,250-5,350 MHz
and 5,650-5,850 MHz have the highest riority. These radars can interru t the
device o eration or even revent it entirely
WARNING
The antennas used for the transmission from this transmitter must be installed
according to the instruction manual and they must be laced at least 30 cm from
all ersons. The transmitter is not com atible with another antenna nor
transmitter.

VueNet EasyLink
System for transmission of video and audio from IP cameras.
Key features of the module VueNet EasyLink:
•Easy configuration on switches without the need of a PC
•VueNet EasyLink can work both as a receiver and a transmitter
•Ensures continuous and stable transmission
•Works in bridge mode - Trans arently sends all data irres ective of
•IP addresses of cameras and recorders.
•Works in both Point-to-Point and Point-to-Multi oint configurations and receives si-
gnals from 4 transmitters.
•27dBm out ut ower in 5GHz band
•Built-in dual-antenna MIMO 5 Ghz 2 x 14 dBi (LoS range 2.5 km)
•IP65 external housing
•O erating tem erature from -20 ° C to +55 ° C
Contents of the package
•VueNet EasyLink x 1
•PoE ower su ly 48V 0.5A with Euro ean cable 230V x1 cs.
•Clam s x 2 cs

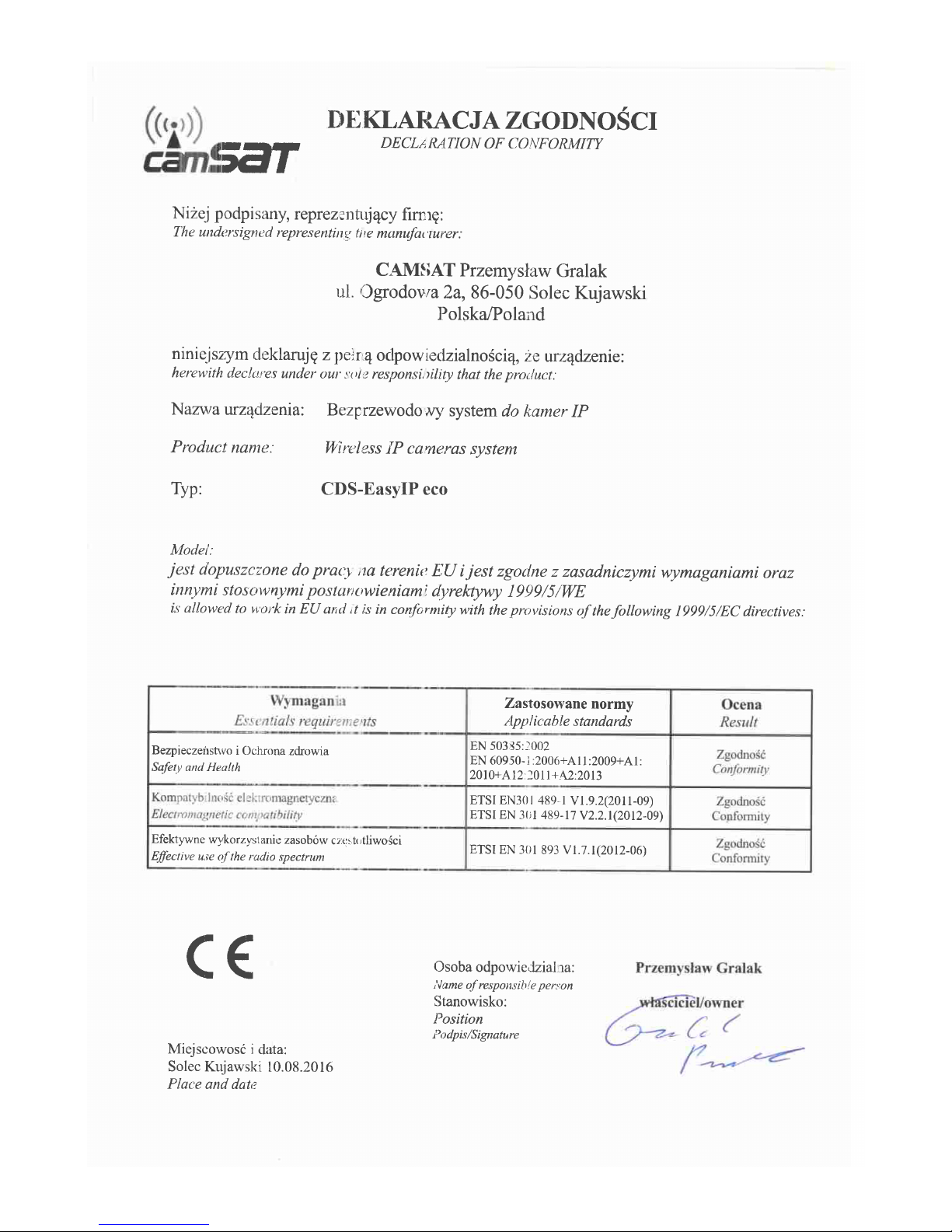

•User manual and CE Declaration of Conformity
Description of connectors and LEDs
RESET - A button for resetting the radio module to the default settings
PORT & PORT 2 - LAN ports
DIPswitch - switches used to configure the device
POWER - red LE indicating power status
WLAN - LE indicating wireless transmission
LAN & LAN 2 - LE for wired transmission
- LE s indicating signal strength
Preparati n f r perati n
It is recommended that the first start-u and configuration of
the system is done on the desk at small distances.

This can save a lot of valuable time with the configuration of many different cameras.
MASTER receiver and all SLAVE transmitters must be set to the same o erating channel
to establish a connection. Each next set working nearby must be set to a different o erat-
ing channel.

Multipoint Configuration
VueNet EasyLink can be connected in Point-to-Multi oint configuration with u to 4
transmitters to one receiver. These settings are configured by switches 7 and 8 in each
transmitter according to the following formula:
After 90 seconds since power start equipment will make a transparent interconnection sending all IP
addresses connected to the ports of the device.
In the case of connection problems check:
•direction of antennas and if there are no obstacles between them,
•Change the channel number to another one,
•Check the power supply capacity or replace to another.

Montage
Assembly bands designed to be mounted on a mast should be inserted into the corresponding holes
in the rear of the body of the device and firmly tighten. Attach the device to the mast with the an-
tenna pointed directly at the point of receiving. Be sure to use two bands. Bands contained in the
kits are designed for outdoor installation and resistant to UV radiation, which guarantees safety.
WARNING
The antenna of the transmitter must "see" optically with an antenna of receiving part.
o not install the devices at distances of less than 0.5 m from each other.
It is recommended to use a minimum distance of 1 m.
Install receiver and antenna directed exactly to the transmitting point.
Set the desired operating channel according to the table. Channel numbers and polarity of antennas
should be the same in both cooperating transceivers.
Connect the power cables with power.
The device must be powered from the supplied AC adapter 48V PoE which is also used to power IP
camera with a power consumption up to 15.4W.
WARNING
MASTER receiver and all SLAVE transmitters must be set to the same operating channel
to each connection established. Each next set working nearby must be set to a different
operating channel.
For advanced (not required): MASTER receiver and all SLAVE transmitters must be set to
the same operating channel to each connection established. Each next set working nearby
must be set to a different operating channel.
For advanced (not required): VueNet EasyLink enables logging in to the Web panel and
checking multiple link parameters, eg. the strength of the radio signal. To log in to your
dashboard, connect the VueNet EasyLink to a computer with network card set compatible
with addresses according to the table on page 3. Start the web browser and enter the IP ad-
dress of the wireless device (see table p. 3).
Login Information:
User: camsat
assword: camsat
N te: The device manufacturer is not res onsible for the devices that are not ro erly
, rotected and for related damage of the equi ment and other network infrastructure.

C nnecti n and start-up
It is recommended that the first start-up and configuration of the system is done at the desk at small
distances. This can save a lot of valuable time with the configuration of many different cameras.

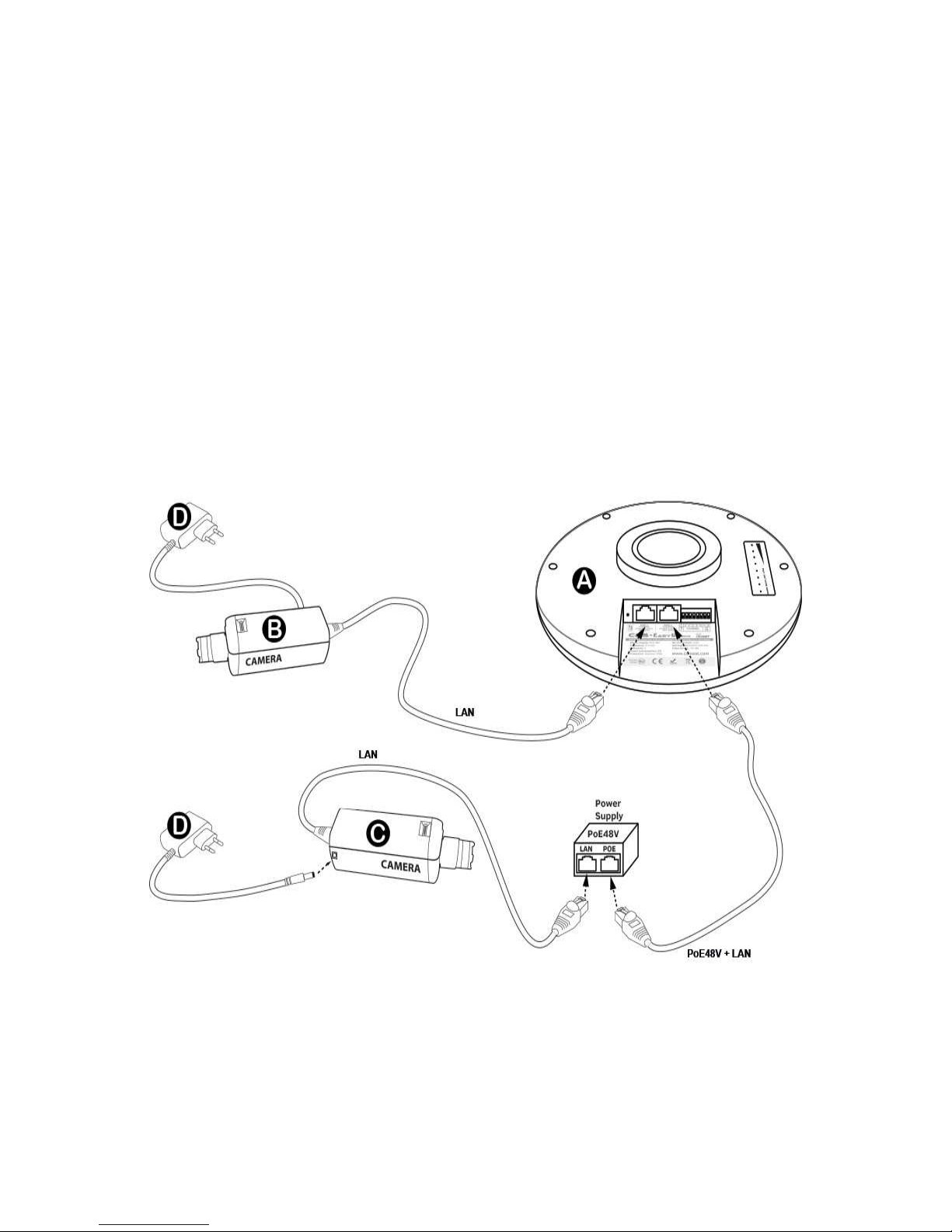

Transmitter (IP camera):
•Set DIPswitch No. 1 to OFF (transmitter mode), set the channel according to the
table, set the transmitter number (if there are more transmitters than one).
•Connect the IP camera using the RJ45 cable to the PORT-2
•Connect the su lied 48VPoE ower ada ter to PORT-1
•Connect the second camera with a network cable RJ45 to the LAN ort of the trans-
mitter ower su ly.
•N te: IP cameras will n t be p wered fr m the transmitter and
require their wn p wer supply.

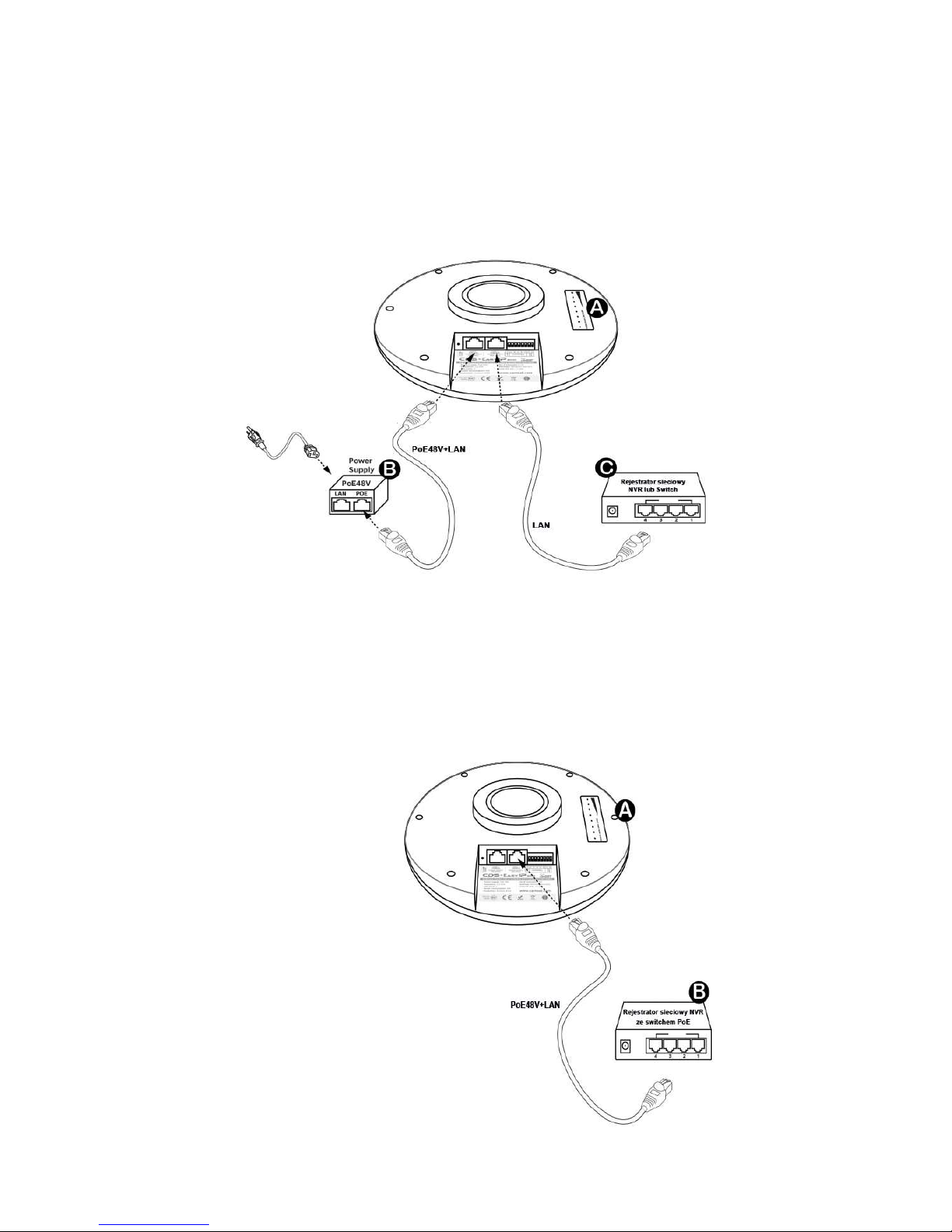

Receiver powered by PoE (NVR).
•Set the dipswitch No. 1 to ON (receiver mode), set the operating channel by a table identical to
the transmitter, set IP7 and IP8 to ON (up)
•Connect NVR with the network cable to the PORT 1 or LAN port in PoE power supply.
•Connect included power supply 48VPoE to PORT 2
Note: Due to the existing PoE voltage of 48V in port 2 connection other than specified in
the instructions can cause damage to the recorder, switch or other IT equipment.
Receiver
powered
with PoE switch (NVR).
•Set the di switch No. 1 to ON (receiver mode), set the o erating channel by a table
identical to the transmitter, set DIP7 and DIP8 to ON (u )
•Connect NVR equi ed with PoE switch by the network cable to PORT 1. The receiver
will be owered directly from your PoE switch.

Examples f applicati n
Transmitter
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
192.168.120.2
Channel: 165
1 2 3 4 5 6 7 8
Transmitter
1 2 3 4 5 6 7 8
192.168. 116.2
Channel: 149
1 2 3 4 5 6 7 8

Transmitter
192.168.118.5
Channel: 157
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8

Table f available perating frequencies Table f frequencies utside the EU and
the US and paid
Use of s ecific channels according to their
ur ose:
•CE - Euro e
•FCC - US
Using other frequencies depends on the legal regu-
lations of the country where you are. If you are not
sure about regulations in your country, consult your
supplier.
WARNING
The device can o erate at frequencies and ower, which can be aid or
com letely rohibited in your area or your country.

1. General warranty terms
The device is su lied with a standard warranty card. The manufacturer declines all other
warranties. In no case the roducer is liable for any damages (including, without limitation,
consequential, s ecial, or incidental damages, or damages for loss of rofits, business in-
terru tion, loss of business information or other ecuniary loss) arising out of the use or in-
ability to use this roduct, even if the manufacturer has been advised of the ossibility of
such damages.
Com any grants a 24 month warranty for the VueNet EasyLink transmission kit
1. If the device is not be o erating ro erly, make sure, before returning the device for
servicing, that everything was done according to the o erating manual
2. If the faulty device is returned or send in for re airs, a thorough written descri tion
of the signs of the device’s faulty o eration, including the o erating environment and
the manner in which they a ear, should be enclosed
3. The rerequisite for exercising the warranty rights is enclosing the roof of urchase,
including the urchase date and descri tion of damage, with the faulty device
4. Warranty re airs cover only faults occurring due to reasons inherent to the sold
device
5. Warranty re airs will be carried out in the shortest ossible amount of time not
exceeding 14 days, counting from the moment of acce ting the device for servicing If arts
need to be im orted, the re air deadline may be extended After the re airs have been car-
ried out, the warranty eriod will be extended by the re air time
7. The warrantor may refuse to carry out warranty re airs or terminate the warranty if
it is determined that the seals laced on devices or com onents com rising it are dama-
ged
8. All re air services resulting from
The warranty d es n t c ver
1. Mechanical damage of devices and failures occurring due to fortuitous events, such as:
fire, ower grid overvoltage, electrical discharges, ower su ly, effects of chemical
substances.
2. Damage occurring due to: im ro er handling of the device, using the device against its
intended use or the o erating manual, customer’s negligence, im ro er use
(tem erature, humidity, flooding, dust, sanding u , im ro er ower su ly voltage)
3. Claims on account of the technical arameters, if they are consistent with those
indicated by the manufacturer
4. Marks created during usage, such as scratches, soiling and localised wear are not
covered by warranty.
In cases not regulated by the terms of this warranty sheet, the a ro riate rovisions of
the Civil Code are a licable.

Device disp sal
The mark resented to the left informs that this electrical or electronic device, after its
use has ended, cannot be thrown together with household refuse The device should
be delivered to a s ecialised collection oint Detailed information about the closest
collection oint is available from local authorities.
The ro er dis osal of this device allows for reserving recious resources
and avoiding the negative im act on health and environment, which may be
endangered if the waste is handled im ro erly Im ro er waste dis osal is sub-
ject to enalties rovided for in the a ro riate regulations
