Caple WI3126 User manual

Undercounter Wine Cabinet
Instruction Manual
Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk
WI3125 &
WI3126

2Instruction manual Wi3125 & Wi3126 Please keep this instruction manual for future reference
CONTENTS
Introduction 3
Safety Instructions 4
Environmental Protection 8
Installation 9
Operating Your Wine Cabinet 11
Control Panel 12
Using The Shelves 14
How To Change The Door Opening 15
Installing The Handle 17
Installing The Full Height Grille 18
Installing a Slot-on Plinth Grille 19
Wine Bottle Stacking 20
Installation Dimensions 21
Installing The Top Fixing Bracket 22
Using The Foot Sliders 23
Care and Maintenance 24
Troubleshooting 26
Recommended Temperatures 28
Caple Contact Details 32

3Instruction manual Wi3125 & Wi3126Please keep this instruction manual for future reference
INTRODUCTION
Thank you for choosing this Caple Wine Cabinet.
To ensure that you get the best results from your new wine cabinet, we strongly suggest that
you read this instruction manual thoroughly before use. If treated with care, your Caple product
should give you years of trouble-free use.
To register ownership, please ensure you complete and return the guarantee card supplied with
the appliance or visit www.caple.co.uk and register here.
This instruction manual is designed to provide you with all the required information related to
the installation, use and maintenance of the appliance.
Please read this manual carefully before using your appliance. It contains important safety
advice; it explains how to use and look after your appliance so that it will provide you with
many years of reliable service.
Should a fault arise, please first consult the “Troubleshooting” section. You can often rectify
minor problems yourself, thus saving unnecessary service costs.
Please keep this manual in a safe place and pass it on to new owners for their information
and safety.

4Instruction manual Wi3125 & Wi3126 Please keep this instruction manual for future reference
WARNINGS
-To prevent damaging the door gasket, make sure the
door is fully open when pulling shelves out of the
rail compartment.
-The appliance must be positioned so that the plug is
accessible. Release the electric cord and move your
cabinet to its final location. Do not move your cabinet
while loaded with wine as you may distort the body.
-The wine cabinet should be installed in a suitable place
in order to avoid touching the compressor.
-After unpacking, make sure that the appliance is in
perfect order. If you have any doubt, do not use it and
contact your retailer.
-If the supply cord is damaged, it must be replaced by
a Caple service agent or a similarly qualified person in
order to avoid a hazard.
-This product is not designed for commercial use, it is a
household appliance only.
-This appliance is intended to be used in household and
similar applications such as:
› Staff kitchen areas in shops, offices and other
working environments.
› Farm Houses.
› By clients in hotels, motels and other residential
type environments.
› Bed and breakfast type environments.

5Instruction manual Wi3125 & Wi3126Please keep this instruction manual for future reference
IMPORTANT
Caple cannot be held liable for any non compliance with
these instructions.
ELECTRICAL SHOCK HAZARD
-Read all instructions before using the wine cabinet.
-DANGER or WARNING: Risk of child entrapment.
-Before you throw away your old wine cabinet: Take off
the door, leaving the shelves in place so that children
cannot easily climb inside.
-Never allow children to operate, play with, or crawl
inside the appliance.
-Never clean appliance parts with flammable fluids. The
fumes can create a fire hazard or explosion.
-Do not store or use gasoline or any other flammable
vapours and liquids in the vicinity of this or any other
appliance. The fumes can create a fire hazard
or explosion.
-The refrigerant of this appliance is R600a, flammable
and explosive articles should not be put in or near the
cabinet, to avoid the risk of fire or explosion.
-Cleaning and user maintenance shall not be made by
children without supervision.
-This appliance is intended to be used exclusively for the
storage of wine.

6Instruction manual Wi3125 & Wi3126 Please keep this instruction manual for future reference
-When positioning the appliance, ensure the supply cord
is not trapped or damaged.
-This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance.
-Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
-Do not use plug adapter.
-Store wine in sealed bottles.
-Do not overload the cabinet.
-Do not open the door unless necessary.
-Do not cover shelves with aluminium foil or any other
shelf material which may prevent air circulation.
-Should the wine cabinet be stored without use for long
periods it is suggested, after careful cleaning, to leave
the door ajar to allow air to circulate inside the cabinet
in order to avoid possible formations of condensation,
mould or odours.
-Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
-Do not damage the refrigerant circuit.

7Instruction manual Wi3125 & Wi3126Please keep this instruction manual for future reference
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
-Do not use electrical appliances inside the storage
compartments of the appliance,unless they are the type
recommended by the manufacturer.

8Instruction manual Wi3125 & Wi3126 Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice. This
appliance is marked according to the European directive on Waste Electrical and Electronic
Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. The symbol on the product indicates that
this product may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. Disposal
must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date
of purchase, model and serial number. Registration can also be completed online by visiting
www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together
with proof of purchase. If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the
Technical Fiche that supports the energy labelling data, please visit the product page on our
website www.caple.co.uk

9Instruction manual Wi3125 & Wi3126Please keep this instruction manual for future reference
INSTALLATION
BEFORE USING YOUR WINE CABINET
› Remove the exterior and interior packing.
IMPORTANT:
Before connecting the wine cabinet to the power source, let it stand upright for at least 12
hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
› Clean the interior surface with lukewarm water using a soft cloth.
Make sure to turn the unit off and unplug it from the outlet.
NOTE:
To protect the appliance in transit and delivery the door is packed tightly against the cabinet.
When first installed this can mean the door seal appears thinner on one side of the door due to
compression, this is normal and once out of the box it will relax over a short period of time and
the door will return to the normal position. If you wish to speed up the process you can gently
warm the seal with a hair dryer on a low temperature setting. This can help relax the seal
helping it return to normal thickness a little faster.
INSTALLATION OF YOUR WINE CABINET
› Place your wine cabinet on a floor that is strong enough to support it when it is
fully loaded.
› To level your wine cabinet, adjust the front levelling leg at the bottom of the cabinet.
› Ensure it is perfectly level, as this will minimise any vibrations.
› This appliance uses flammable refrigerant. Never damage the cooling pipework
during transportation.
› Locate the wine cooler away from direct sunlight and sources of heat (ovens, hobs, heaters,
radiators, etc.). Never clean appliance parts with flammable fluids. The fumes can create
a fire hazard or explosion. When disposing your appliance, please choose an authorised
disposal site.
› Avoid locating the unit in moist areas.

10 Instruction manual Wi3125 & Wi3126 Please keep this instruction manual for future reference
› It is fitted with a power cord having an earth wire terminating in a 13amp plug.
› Ensure the product is correctly ventilated (see page; 15 & 16).
› Consult a qualified electrician or service engineer if the earthing instructions are not
completely understood.
› Plug the wine cabinet into an exclusive, properly installed-grounded wall outlet. Do not
under any circumstances cut or remove the third (ground) pin from the plug. Any questions
concerning power and/or grounding should be directed toward a certified electrician or
Caple service.
WARNING:
Incorrect earthing can result in the risk of electric shock.

11Instruction manual Wi3125 & Wi3126Please keep this instruction manual for future reference
OPERATING YOUR WINE CABINET
Please use the cabinet within ambient temperatures between 16-32ºC, if the ambient
temperature is higher or lower than this, it will cause the temperature to fluctuate in the
cabinet, possibly preventing it from reaching 5-18ºC.
SETTING THE TEMPERATURE
Set the desired cooling temperature by pressing the / keys. Each press of the keys will
scroll through the available temperature settings in increments of 1°C.
The temperature setting can be adjusted from 5°C to 18°C
To view the actual temperature at anytime press and hold either / for approximately 5
seconds, the actual temperature will temporarily flash in the LED display for 5 Seconds. After
this it will revert back to the set temperature.
Flashing LED = Cabinet temperature
Steady LED = Set temperature
NOTE:
If the unit is unplugged, power lost or turned off, you must wait 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time delay, the wine cabinet will
not start.
When you use the wine cabinet for the first time or you restart the cabinet after having been
shut off for a long time, there could be a few degrees variance between the temperature you
select and the one indicated on the LED readout. This is normal and it is due to the length of
the activation time. Once the wine cabinet has been running for a few hours everything will be
back to normal.

12 Instruction manual Wi3125 & Wi3126 Please keep this instruction manual for future reference

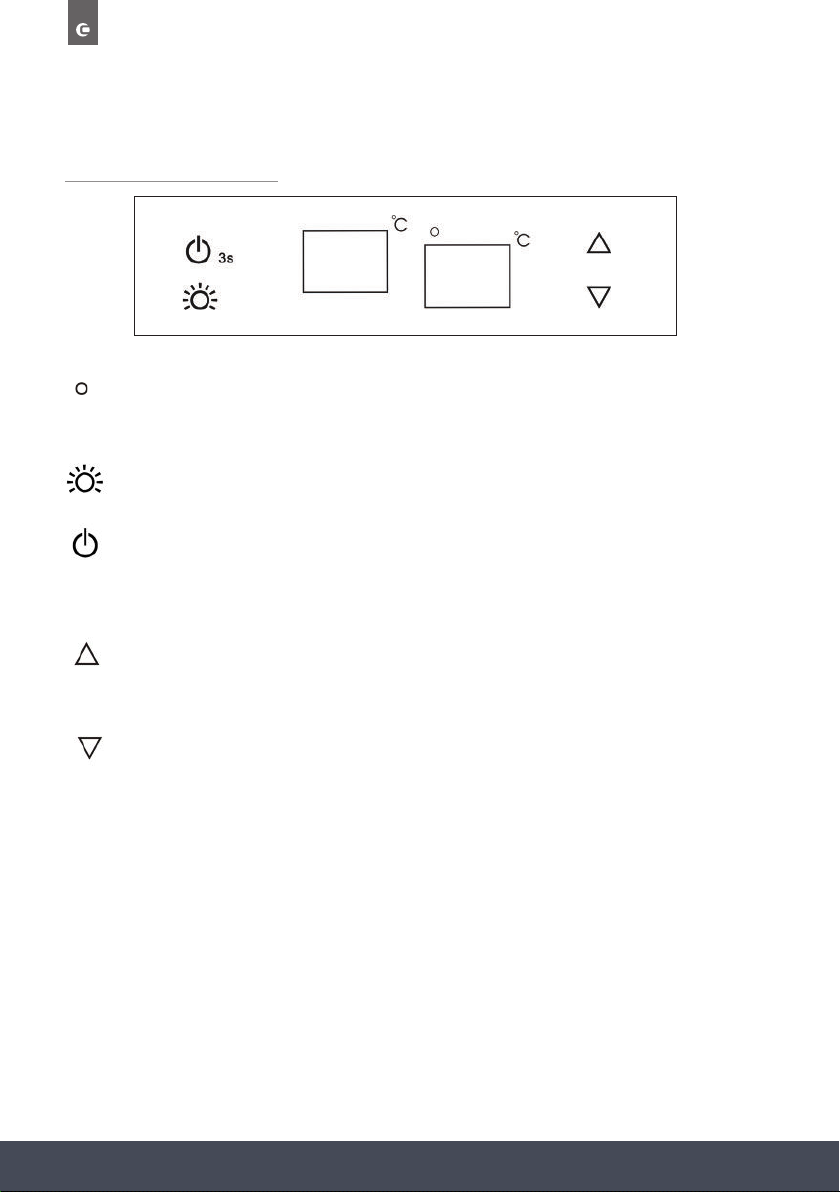

CONTROL PANEL
Indicator light illuminates to signify the cooling mode is currently in operation
TOUCH CONTROL KEYS
Switches the interior light ON/OFF
To switch the appliance ON/OFF
(press and hold this buttons for approximately 3 seconds)
Used to raise the temperature in 1ºC increments
Used to lower the temperature in 1ºC increments
TEMPERATURE ALARM
If inner temperature is higher than 23ºC, “HI” is shown in the display panel, and the alarm
sounds after one hour continuously. It warns you that the inner temperature is too high.
If inner temperature is lower than 0ºC, “LO” is shown in the display panel, the alarm sounds
and the malfunction indicator lights at the same time.
To set the temperature, connect the power cord to a properly grounded outlet. In the event of
a power interruption, the previous temperature setting is automatically erased and it will default
to a preset temperature setting of 12°C
Set the desired cooling temperature by pressing the buttons adjacent to the “ / "
indicators. Each press of the buttons will scroll through the available temperature settings in
increments of 1°C.
The temperature setting can be adjusted from 5°C to 18°C
To view the actual temperature at anytime press and hold the temperature adjustment button
(up or down) for approximately 5 seconds, the actual temperature will temporarily flash in the
LED display for 5 Seconds. After this it will revert back to the set temperature.
Flashing LED = Cabinet temperature
Steady LED = Set temperature
To set the temperature, connect the power cord to a properly grounded outlet. In the event of
a power interruption, the previous temperature setting is automatically erased and it will default
to a preset temperature setting of 12°C
Set the desired cooling temperature by pressing the buttons adjacent to the “ / "
indicators. Each press of the buttons will scroll through the available temperature settings in
increments of 1°C.
The temperature setting can be adjusted from 5°C to 18°C
To view the actual temperature at anytime press and hold the temperature adjustment button
(up or down) for approximately 5 seconds, the actual temperature will temporarily flash in the
LED display for 5 Seconds. After this it will revert back to the set temperature.
Flashing LED = Cabinet temperature
Steady LED = Set temperature
To set the temperature, connect the power cord to a properly grounded outlet. In the event of
a power interruption, the previous temperature setting is automatically erased and it will default
to a preset temperature setting of 12°C
Set the desired cooling temperature by pressing the buttons adjacent to the “ / "
indicators. Each press of the buttons will scroll through the available temperature settings in
increments of 1°C.
The temperature setting can be adjusted from 5°C to 18°C
To view the actual temperature at anytime press and hold the temperature adjustment button
(up or down) for approximately 5 seconds, the actual temperature will temporarily flash in the
LED display for 5 Seconds. After this it will revert back to the set temperature.
Flashing LED = Cabinet temperature
Steady LED = Set temperature
To set the temperature, connect the power cord to a properly grounded outlet. In the event of
a power interruption, the previous temperature setting is automatically erased and it will default
to a preset temperature setting of 12°C
Set the desired cooling temperature by pressing the buttons adjacent to the “ / "
indicators. Each press of the buttons will scroll through the available temperature settings in
increments of 1°C.
The temperature setting can be adjusted from 5°C to 18°C
To view the actual temperature at anytime press and hold the temperature adjustment button
(up or down) for approximately 5 seconds, the actual temperature will temporarily flash in the
LED display for 5 Seconds. After this it will revert back to the set temperature.
Flashing LED = Cabinet temperature
Steady LED = Set temperature
“ ”
To set the temperature, connect the power cord to a properly grounded outlet. In the event of
a power interruption, the previous temperature setting is automatically erased and it will default
to a preset temperature setting of 12°C
Set the desired cooling temperature by pressing the buttons adjacent to the “ / "
indicators. Each press of the buttons will scroll through the available temperature settings in
increments of 1°C.
The temperature setting can be adjusted from 5°C to 18°C
To view the actual temperature at anytime press and hold the temperature adjustment button
(up or down) for approximately 5 seconds, the actual temperature will temporarily flash in the
LED display for 5 Seconds. After this it will revert back to the set temperature.
Flashing LED = Cabinet temperature
Steady LED = Set temperature

13Instruction manual Wi3125 & Wi3126Please keep this instruction manual for future reference
INTERNAL LIGHT
In order to reduce energy consumption, the LED light within this wine cabinet will automatically
switch off after 10 minutes. If you would prefer the LED light to remain on continuously, this is
possible. Please press and hold the key for 5 seconds, the display will show “LP”. After
4 seconds the display will revert back to normal and the light will remain on until manually
switched off.
If you would like to revert back and conserve energy (recommended), press and hold the
key for 5 seconds, the display will show “LF”. After 4 seconds the display will revert back to
normal, and the light will automatically switch off after 10 minutes.
LIGHT SOURCE ENERGY CLASS
This product contains a light source of energy efficiency class G.
NOTE:
The light must be replaced by qualified personnel. For instructions on how to replace the light,
please contact Caple Service or visit our website.

14 Instruction manual Wi3125 & Wi3126 Please keep this instruction manual for future reference
USING THE SHELVES
To prevent damaging the door gasket, make sure to have the door opened fully when pulling
shelves out of the rail compartment.
For easy access to the storage content, you must pull the shelves approximately 1/3 out of
the rail compartment, however this unit was designed with a notch on each sides of the shelf
tracks to prevent bottles from falling.
REMOVING OR INSTALLING SHELVES
To install or remove a shelf, tilt the shelf as per the diagram and simply pull out, or push in the
shelf until it sits on the support brackets securely.
Visit our Caple website to view a ‘How to video’ on this. www.caple.co.uk
To install or remove a shelf, tilt the shelf as per the diagram and simply pull out, or push in
the shelf until it sits on the support brackets securely.
Visit our Caple website to view a 'How to video' on this. www.caple.co.uk
Scan the QR code below to
access the ‘How to video’
1. Open the door to 90 degrees, take out 2 screws (2) from lower door axis (3), remove the door (4),
then pull out the door and door axis (Fig. A).
2. Put the door down safely and take out the plug (12) from top of door frame, unscrew 1 screw
(11) at bottom and remove the door limit device (10), then install the door limit device (10) at top
of door frame, please use spare plug (12) to block the hole at top of door frame. (Fig. A/B)
3. Take out 3 hinge screws (6) from top hinge (right) (5) and remove it. (Fig. C)
4. Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (7) at left top
of cabinet with 3 screws. (Fig. D)
5. According above procedure, install spare lower hinge (left) (9). (Fig. E)
6. The door revolves 180 degrees, install the door with same way it was removed and fix it with door
aligned.
7. Block the hole at right top of cabinet with spare decorative plugs (8).
1. Open the door to 90 degrees, take out 2 screws (2) from lower door axis (3), remove the door (4),
then pull out the door and door axis (Fig. A).
2. Put the door down safely and take out the plug (12) from top of door frame, unscrew 1 screw
(11) at bottom and remove the door limit device (10), then install the door limit device (10) at top
of door frame, please use spare plug (12) to block the hole at top of door frame. (Fig. A/B)
3. Take out 3 hinge screws (6) from top hinge (right) (5) and remove it. (Fig. C)
4. Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (7) at left top
of cabinet with 3 screws. (Fig. D)
5. According above procedure, install spare lower hinge (left) (9). (Fig. E)
6. The door revolves 180 degrees, install the door with same way it was removed and fix it with door
aligned.
7. Block the hole at right top of cabinet with spare decorative plugs (8).

15Instruction manual Wi3125 & Wi3126Please keep this instruction manual for future reference
HOW TO CHANGE THE DOOR OPENING
This appliance has reversible doors but is delivered with a right hinged door. The left hand
hinge kit comes with the unit (in the box), should you wish to reverse the hinge on your unit
follow the directions below:
1. Open the door to 90 degrees, take out 2 screws (2) from lower door axis (3), remove the door (4),
then pull out the door and door axis (Fig. A).
2. Put the door down safely and take out the plug (12) from top of door frame, unscrew 1 screw
(11) at bottom and remove the door limit device (10), then install the door limit device (10) at top
of door frame, please use spare plug (12) to block the hole at top of door frame. (Fig. A/B)
3. Take out 3 hinge screws (6) from top hinge (right) (5) and remove it. (Fig. C)
4. Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (7) at left top
of cabinet with 3 screws. (Fig. D)
5. According above procedure, install spare lower hinge (left) (9). (Fig. E)
6. The door revolves 180 degrees, install the door with same way it was removed and fix it with door
aligned.
7. Block the hole at right top of cabinet with spare decorative plugs (8).
1. Lower hinge (Right)
4. Door
7. Top hinge (Left)
10. Door limit device
2 . Screws
5. Top hinge (Right)
8. Decorative plugs
11. Screw
3 .Door axis
6. Hinge Screws
9. Lower hinge (Left)
12. Plug
1. Open the door to 90 degrees, take out 2 screws (2) from lower door axis (3), remove the door (4),
then pull out the door and door axis (Fig. A).
2. Put the door down safely and take out the plug (12) from top of door frame, unscrew 1 screw
(11) at bottom and remove the door limit device (10), then install the door limit device (10) at top
of door frame, please use spare plug (12) to block the hole at top of door frame. (Fig. A/B)
3. Take out 3 hinge screws (6) from top hinge (right) (5) and remove it. (Fig. C)
4. Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (7) at left top
of cabinet with 3 screws. (Fig. D)
5. According above procedure, install spare lower hinge (left) (9). (Fig. E)
6. The door revolves 180 degrees, install the door with same way it was removed and fix it with door
aligned.
7. Block the hole at right top of cabinet with spare decorative plugs (8).
1. Open the door to 90 degrees, take out 2 screws (2) from lower door axis (3), remove the door (4),
then pull out the door and door axis (Fig. A).
2. Put the door down safely and take out the plug (12) from top of door frame, unscrew 1 screw
(11) at bottom and remove the door limit device (10), then install the door limit device (10) at top
of door frame, please use spare plug (12) to block the hole at top of door frame. (Fig. A/B)
3. Take out 3 hinge screws (6) from top hinge (right) (5) and remove it. (Fig. C)
4. Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (7) at left top
of cabinet with 3 screws. (Fig. D)
5. According above procedure, install spare lower hinge (left) (9). (Fig. E)
6. The door revolves 180 degrees, install the door with same way it was removed and fix it with door
aligned.
7. Block the hole at right top of cabinet with spare decorative plugs (8).
1. Open the door to 90 degrees, take out 2 screws (2) from lower door axis (3), remove the door (4),
then pull out the door and door axis (Fig. A).
2. Put the door down safely and take out the plug (12) from top of door frame, unscrew 1 screw
(11) at bottom and remove the door limit device (10), then install the door limit device (10) at top
of door frame, please use spare plug (12) to block the hole at top of door frame. (Fig. A/B)
3. Take out 3 hinge screws (6) from top hinge (right) (5) and remove it. (Fig. C)
4. Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (7) at left top
of cabinet with 3 screws. (Fig. D)
5. According above procedure, install spare lower hinge (left) (9). (Fig. E)
6. The door revolves 180 degrees, install the door with same way it was removed and fix it with door
aligned.
7. Block the hole at right top of cabinet with spare decorative plugs (8).

16 Instruction manual Wi3125 & Wi3126 Please keep this instruction manual for future reference
1. Open the door to 90 degrees, take out 2 screws (2) from lower door axis (3), remove the
door (4), then pull out the door and door axis (Fig. A).
2. Put the door down safely and take out the plug (12) from top of door frame, unscrew 1
screw (11) at bottom and remove the door limit device (10), then install the door limit
device (10) at top of door frame, please use spare plug (12) to block the hole at top of
door frame. (Fig. A/B)
3. Take out 3 hinge screws (6) from top hinge (right) (5) and remove it. (Fig. C)
4. Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (7) at
left top of cabinet with 3 screws. (Fig. D)
5. According above procedure, install spare lower hinge (left) (9). (Fig. E)
6. The door revolves 180 degrees, install the door with same way it was removed and fix it
with door aligned.
7. Block the hole at right top of cabinet with spare decorative plugs (8).

17Instruction manual Wi3125 & Wi3126Please keep this instruction manual for future reference
INSTALLING THE HANDLE
Remove the door gasket on the drilled holes side to install the handle (see below drawing).
Fix the handle to the screws and push the gasket back into place.
Visit our caple website to view a ‘How to video’ at WWW.CAPLE.CO.UK
Scan the QR code below to
access the ‘How to video’

18 Instruction manual Wi3125 & Wi3126 Please keep this instruction manual for future reference
INSTALLING THE FULL HEIGHT GRILLE
Take out the full height plinth grille and the brackets from the accessories box. Fix the brackets
to the cabinet with screws provided and fix both sides of the grille to the brackets with the 2
supplied screws as shown in below diagram.
NOTE: To be installed
with a 150mm plinth
height.
If you wish to reduce
your plinth height, the
smaller, slot-on plinth
grille (see installing a
slot-on Plinth Grille)
should be used.
NOTE: Full height plinth grille only included with WI3125 models.

19Instruction manual Wi3125 & Wi3126Please keep this instruction manual for future reference
RU
NDISPL
AY
DO
WN
is model is recessed to fit
195mm
R8
75mm
75mm 195mm
R8
INSTALLING A SLOT-ON PLINTH GRILLE
This model is recessed to fit a kitchen plinth. A H75mm vent slot is required in the plinth to
ensure air can ventilate correctly. See the diagram below for the cut-out dimensions. This
appliance comes with a decorative plinth grille which slots onto the kitchen plinth.
NOTE: Failure to include the vent slot will invalidate the guarantee.

20 Instruction manual Wi3125 & Wi3126 Please keep this instruction manual for future reference
WINE BOTTLE STACKING
NOTE:
If you wish to store other style bottles i.e champagne, the maximum storage capacity will be
less than as shown above.
Shelves may also need to be removed to allow more bottles to be stored.
Stores max. 19 Bordeaux style bottles 750ml.
