Cashino PDM-02 User manual

PDM-02 user manual
1
USER MANUAL
MOBILE IMPACT DOT MATRIX PRINTER
Model：PDM-02

PDM-02 user manual
2
Precautions...................................................................................................................................... 3
1. Overview...................................................................................................................................... 7
1.1 Feature........................................................................................................................... 7
2. Accessories.................................................................................................................................7
2.1 Standard accessories................................................................................................. 7
2.2 Optional accessories...................................................................................................7
3. Printer spare parts details........................................................................................................8
4. Technical parameter..................................................................................................................8
5.Before using................................................................................................................................. 9
5.1 Battery installation.......................................................................................................... 9
5.2 Paper installation.......................................................................................................... 10
6.Basic use.................................................................................................................................... 10
6.1Power on..........................................................................................................................10
6.2 Power off.........................................................................................................................10
6.3 Feed paper.....................................................................................................................10
6.4LED Indicator and beep signal................................................................................... 10
6.5Printer self-inspection....................................................................................................11
6.6 tear-off..............................................................................................................................11
6.7 The use of the battery and charging........................................................................ 11

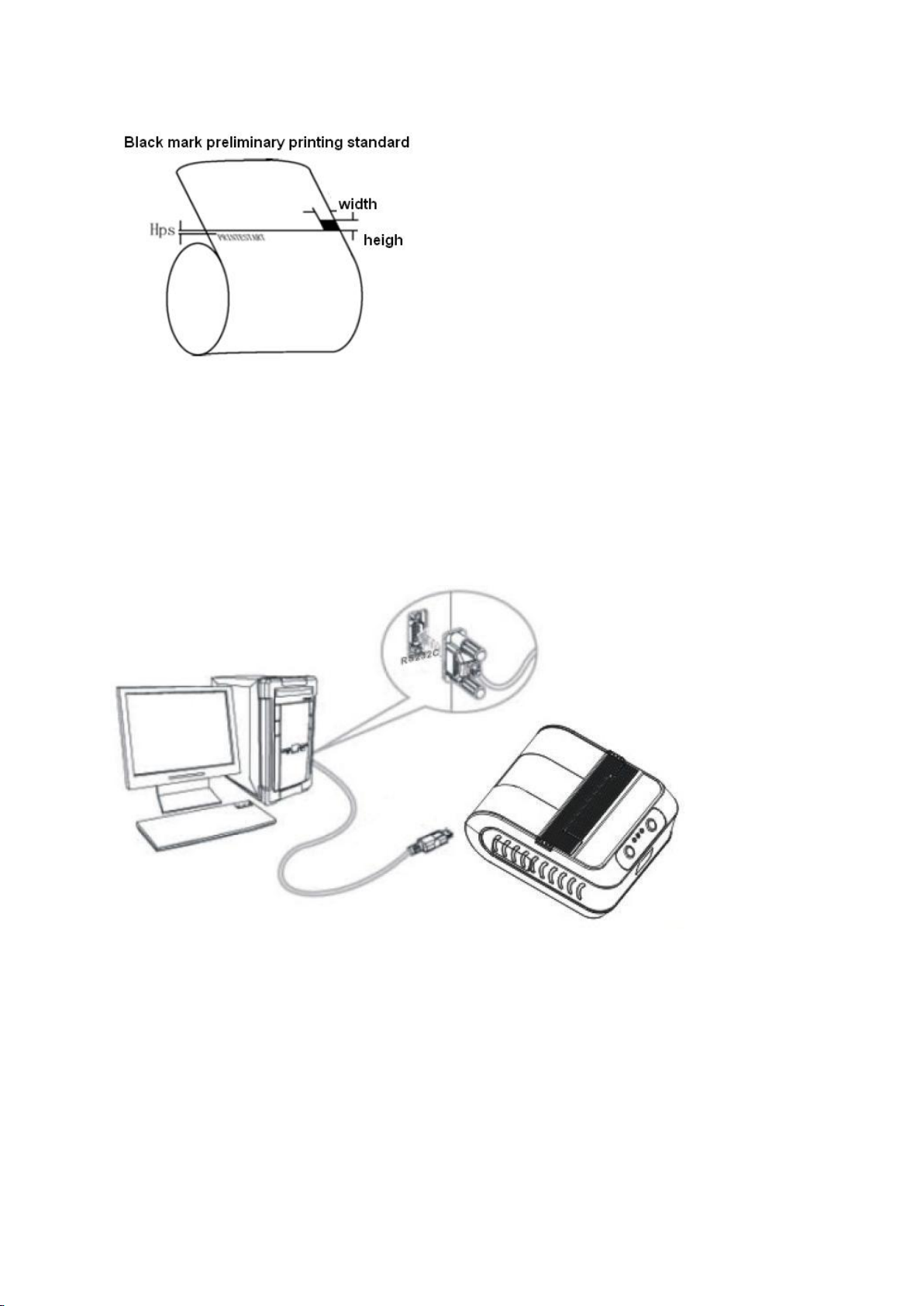

6.8Preprinted black mark specification...........................................................................11
7. Communication........................................................................................................................12

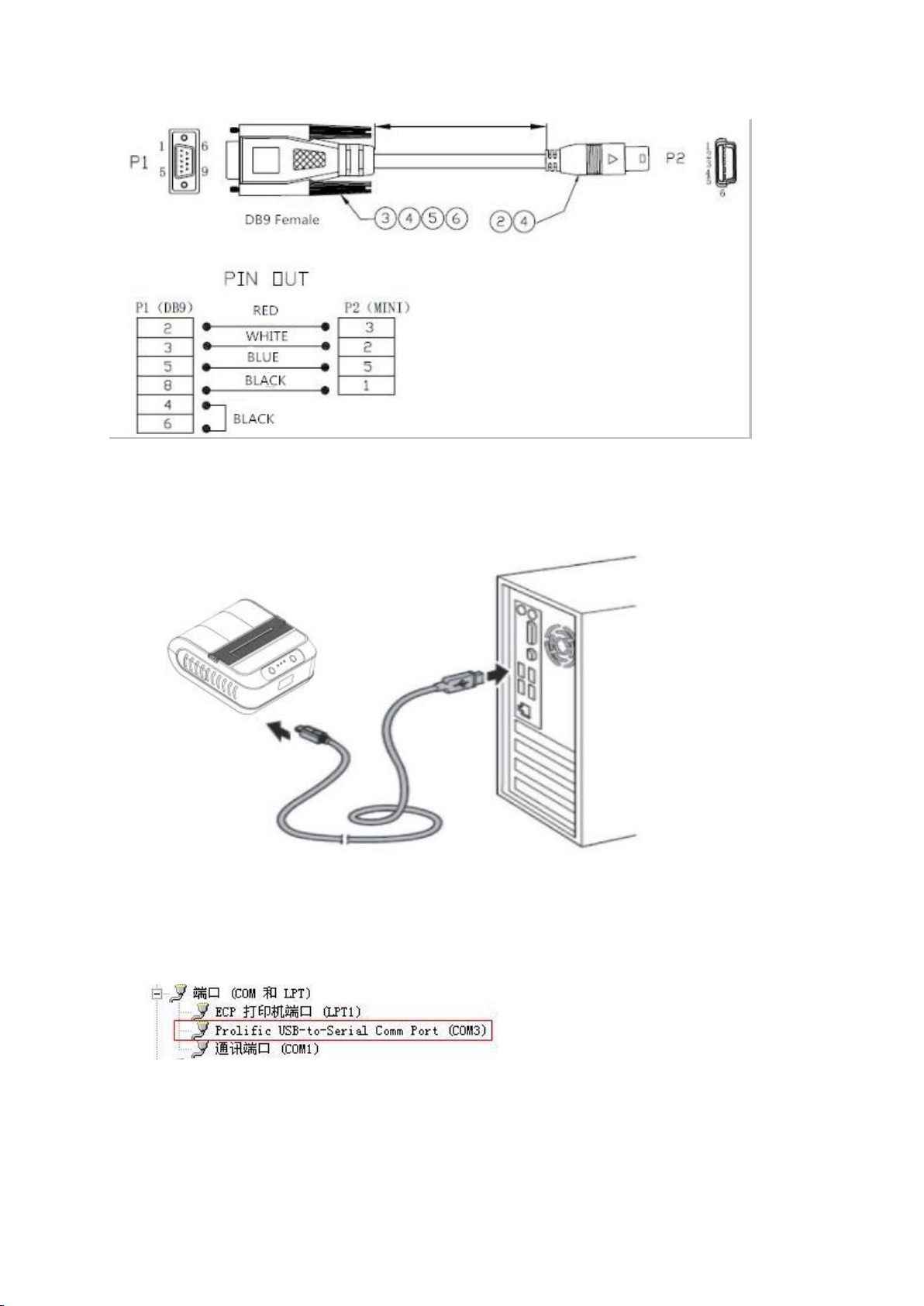

7.1Serial communication（RS232）.............................................................................. 12
7.2 USB communication.................................................................................................... 13
7.3 Bluetooth Communication.......................................................................................... 14
7.4 RAW-IR Communication.............................................................................................14
8. Maintenance and maintenance............................................................................................14
8.1 Daily maintenance........................................................................................................14
8.2 usage and preservation of print paper.....................................................................15
9.Fault diagnosis.......................................................................................................................... 15

PDM-02 user manual
3
Precautions
◆Safety Precautions
In using the present appliance, please keep the following safety regulations in order to
Prevent any hazard or material damage.

PDM-02 user manual
4

PDM-02 user manual
5
◆Operation Precautions
Be sure not to print continuously over 1meter, otherwise may cause damage to
the printer head.
Water or other liquid should not spill into the printer, also the printer should not be
appeared in the rain, or else may cause printer damage.
Please do not open the paper case cover when printing; otherwise the printer
may work improperly.
If print with serial interface, should not unplug the interface cable in the course of
printing, or else some printing data may be lost.
When print in Ir or IrDA mode, bus sure the Ir window of the host equipment face
rightly the Ir window of the printer, the distance should be within the range of 50cm,
and the angle should be within the range of 30°.
When print with Bluetooth interface, the communication distance should be
within10 meters, otherwise the printer doesn’t print or prints rubbish codes.
Too high(50℃) or too low(-10℃)temperature and too high(80%) or too low (20%)
relative humidity both effect the quality.
The print paper in poor quality or stored for too long time also may reduce the
print quality even damage the printer.
In the black mark detecting mode, the printer requires that the preprinted black
mark is accordant with the black mark specifications (details please refer to 4.2);
otherwise the black mark can not be detected correctly.
Be sure to use up the power of the battery before charge it, as it can ensure the
using life of the battery.
◆Storage Precautions
The printer should be placed in such an environment that the temperature is
between -20℃and 60℃, and the relative humidity is between 5% and 95%.
If the printer will be stored for a long time, please be sure to take out the battery,
otherwise may damage the battery and printer.
Normal thermal paper can’t be kept too long time. If you need to keep the receipt
for a long period, please choose long term effective thermal paper.
The paper should be keep away from high temperature environment and
point-blank sunshine.
◆Battery Safety Precautions.
Be sure to carefully read the user manual before using the produce.
Ignore the following instructions may cause battery overheating, fire, explosion,
damage and/or performance, and reduced product life.
1) Risk of explosion if battery is replaced by an incorrect type.
2) Dispose of used batteries according to the instructions.
3) Do not allow water, sea water from entering or leaking into the battery inside. If the
batteries internal safety device burn, when changing it, it may produce any abnormal
current and/or voltage, and cause any abnormal chemical reaction, then may cause
the battery overheating, fire and/or explosion.

PDM-02 user manual
6
4) Do not use or place the battery nearby the stove or other high temperature places.
Excessive heat maybe damage the resin shell and/or the insulation materials, and
then the battery may be caused overheating, burning and/or explosion.
5) When charging, use a specified charger. Other conditions (high temperature, high
pressure/high current, using the modified battery charger, etc) excludes here may
result in over-charging the battery and abnormal current and/or voltage, cause
abnormal chemical reaction, and may cause the battery overheat, light and/or
explosion.
6) Battery clearly marks with positive and negative. When connect the battery with
the charger and/or printer, be sure to verify the correct battery orientation. Reverse
insertion will cause the reverse charging and may cause abnormal chemical reaction,
and then may cause the battery overheat, ignite, and/or explosion.
7) Do not make the battery contact with the power outlet and/or car cigarette lighter
socket. This may cause high pressure and excessive current, and lead to the battery
overheat, burning and/or explosion.
8) Do not heat the battery or put the battery into fire. This may melt insulation material
and/or damage safety devices or safety equipment, then ignite electrolytic solution,
and cause the battery overheat, burning and/or explosion.
9) Do not use the battery with contrary (+) and (-) Location. In the charging process,
this will cause the reverse charging and may cause abnormal chemical reaction.
During use, may appear unpredictable current exception, and cause the battery
overheat, ignite, and/or explosion.
10)Do not make the battery (+) and (-) contact with any metal. Also, do not carry along
or store batteries with metal objects, such as necklaces, hair clips and so on. Battery
internal short circuit may cause excessive current, and lead to the battery overheats,
ignite, and/or explosion and the adjacent metal objects (necklaces, hairpins, etc.) may
be overheating.
11)Do not throw or heavy attack the battery. If internal safety device of the batteries
burn, the battery charging may cause any abnormal current and/or voltage, and
abnormal chemical reaction, and lead to the battery overheat, ignite, and/or explosion.
Statement:
This is A statement level product,in the living environment ,the product may cause
radio interference,In this case ,and may require the user to take practical measures to
the interference.

PDM-02 user manual
7
1. Overview
PDM-02 is a high efficient portable printer,with light weight,high endurance,long time
in continue printing,widely used in POS,retail,parking ticket,logistics,warehouse
stock,on board transportation,utility billing and so on.
1.1 Feature
※Compact design,battery powered,easy to carry out
※Voice announce mode,anytime to know if printer out of paper and power
※Anti-throw capacity reach 1.2m(in cement floor)
※Printing double non-carbon paper,can save longer.
※7.4V/2000mAh large capacity battery with power save design,auto power off and
wake-up function, longer in working hours
※RS232,USB,Bluetooth as optional
※Support Windows driver printing,developing in Android and IOS connection
2. Accessories
2.1 Standard accessories
Leather cover battery power adapter
Paper roll user manual USB cable
2.2 Optional accessories
CD Car charger serial cable

PDM-02 user manual
8
3. Printer spare parts details
4. Technical parameter
Physical data
Ext-Dimension
110×112.3×46(W×D×H)mm
Weight
345 grams (including Li-ion batteries,
excluding paper roll)
Paper roll diameter
≤ 40mm
Print
performance
Printing method
Shuttle lattice
Paper width
57.5±0.5 mm
Paper thickness
0.06-0.085 mm
Effective print width
48 mm
Resolution
203DPI 8dots/mm
printing speed
5.5 mm/LINE/SEC (12 bitmap fonts)
Ability to copy
1 originals+1 copy
Black mark
support
Lift span
1500000 lines
Print character
ANK: 6x12,9X17，8X16 GBK:12x12
Bar code type
1D:UPC-A,UPC-E,EAN-13,EAN-8,CODE39,
CODE93,CODE128,CODEBAR,ITF25
2D：QR CODE
1.Paper cover
2.Paper put mouth
3.POWER
4.FEED
5.Indicator
6.IR window
7.Power port
8.Mini USB

PDM-02 user manual
9
Print sequence
24columns:144dots/line; 40 columns:240
dots/line
Interface
Parameters
Wired
USB/RS232 serial port (2 choose 1)
Wireless
Bluetooth V2.0/V4.0 , infrared
Power supply
Battery
DC7.4 V / 2000 mAh rechargeable lithium
batteries
Adapter
DC12V/0.8A~1A
A charge can print
length
15 meters (25% print density) / 18 meters
(12.5% print density)
Environmental
parameter
Operating
Temp/Hum
0℃to 50 ℃/ 10% 80% (relative humidity)
Storage Temp/Hum
- 20 ℃to 70 ℃/ 90% - 10% (relative
humidity)
Please note: you are using a wireless printer interface types ( bluetooth or infrared
depending on the model)
5.Before using
5.1 Battery installation
Printer and battery are separated in box.Put battery into battery hole.
Note:Please charge fully when you use battery at the first time.And please also
charge fully if you haven’t used the battery for a long time.To keep battery in best
status.

PDM-02 user manual
10
5.2 Paper installation
6.Basic use
6.1Power on
Press Power button 2 seconds,printer power-on.
6.2Power off
Press Power button 3 seconds,printer power-on.
6.3Feed paper
Printer under normal working state, press the paper feed button, paper will feed
6.4LED Indicator and beep signal
There is a buzzer PDM02 and three LED light is used to indicate the printer status.
LED indicator light indicates the current state, buzzer indicating state changes.
charging indicator
(blue)
Status indicator
(red)
power indicator
(green)
print status
Buzzer
Slowly flash
light off
Light keep on
Charging
light off
light off
Flash quickly
Low power
Beep 3
times PM
Light keep on
light off
Light keep on
Charge end
Beep once
light off
light off
Light keep on
working
light off
Slowly flash
Light keep on
Paper Out
Keep beep
light off
light off
Slowly
Sleep/standby

PDM-02 user manual
11
6.5 Printer self-inspection
After obtaining printer users, can at any time to self-inspection of printer, to detect the
current printer Settings and status. Self-checking method is as follows: turn it off, if
printing machine was on, and then hold the paper feed button, then boot (press the
power button), and then walk paper release button, and a printer that prints out the
current status and printer setup.
6.6 tear-off
Each document after printing, need to tear documents from the paper roll off, printer
designed the teeth for tearing,Please do not force a degree to tear the
paper,excessive force may cause printing paper is pulled out from the paper space.
6.7 The use of the battery and charging
Printer in use after a period of time, the printer battery power of the light, when the
printer battery power has been nearly finished, if some of the printer to print data, a
printer is given by means of power light red power alarm, with will send three ring; If
the printer in a dormant state, the printer automatically shut off the power after send
three ring. Users need to printer recharged at this time. Charging method is as follows:
insert the plug in the printer power socket, then insert the plug of the ac input power
adapter into 220 v, 50 hz power supply plug, printers start charging. Charging process,
the printer rechargeable lights up, when the battery is full, rechargeable lights. The
time needed for charging in three hours. In the process of charging, such as using the
printer to print data will extend the charging time.
6.8Preprinted black mark specification
If user wants to locate receipt by detecting preprinted black mark, shall accord to the
following specification for the black mark. Otherwise it may cause printer can’t
recognize the black mark.
Printing position: black mark shall preprint at the left side of receipt.
Width rang：≥7mm
Height：4mm≤height≤6mm
Reflection rate to IR：<10% （reflection rate to the black mark on paper >65% ）
Hps：Hps indicates the distance from down edge of detecting mark from beginning
line.
0mm≤Hps≤1mm

PDM-02 user manual
12
7.Communication
PDM-02 has two communication ways:
①Wired：USB/RS232C
②Wireless：Bluetooth/Ir
7.1Serial communication（RS232）
The printer have RS232 Wired serial port,connect by 5 Pin Mini USB.
The cable connect definition as below:

PDM-02 user manual
13
7.2 USB communication
PDM-02 printer has a mini USB interface，to achieve it through the mini USB USB2.0
interface.
Note：Printer using USB communication, need to install PL2303 driver first. Printer
contact computer USB,than open”my printer”--”device manager”--”combo”,will see
this icon,illustrate that successfully install driver,and use normally.
eg：For instance: If you pull up USB cable, the icon disappear, and it appear
reconnection. That shows COM3 is the port connect printer with computer.

PDM-02 user manual
14
7.3 Bluetooth Communication
Matching method is as follows:
1．Power on,
2．The main equipment for external bluetooth devices,
3．If you have more external bluetooth devices, selected inhibits PDM-02 printer,
4．Enter the default password is “0000”or obtained bluetooth password by printer
self-test page
5．Complete the matching.
7.4 RAW-IR Communication
PDM-02 can use IR to communicate with the host for transmitting the data.
Printer can't work at the same time in a state, the original infrared VIR or IrCOMM
condition, if the printer is not working in the condition of what you need, must be to use
the printer to reset.
When PDM-02 communicates with the host devices by（RAW-IR）and IrDA(COMM)
interfaces ( from both PDM-02 and the host device ) right towards to each other
( angle shall not be more than 30° ), without any obstacles between them, the
distance shall be less than 0.5M.
8. Maintenance and maintenance
8.1 Daily maintenance
1.Please use cloth to clean inside and outside of the printer.
2.Please clean printer mechanism regularly.Especially the clean method when print
quality turns bad.Please use absorbent cotton with absolute alcohol to clean printer
mechanism.
3.Please take the battery out when the printer is bilging,and airing printer.
4.Please take the battery out and keep it separated with printer if won’t use it for a

PDM-02 user manual
15
long time.
8.2 usage and preservation of print paper
1.Please avoid to preserve printer paper in high temperature and direct sunlight
places.And please do not tear off the package when preserve.
2.Please preserve printed paper about 20 degrees Celsius places after printing,to
lengthen life-span of printed paper.
3.Please choose good quality thermal paper if you want to keep it for long time.
9.Fault diagnosis
Fault phenomenon
Fault cause
Solutions
It beeps two times
continuously .
Paper out
Please install paper roll
correctly.
It beeps two times
discontinuously,
Low battery
Please charge
It doesn’t print when
feeding.
Install paper roll in opposite
direction.
Please re-install.
It prints hazily.
Printer mechanism is dirty.
Please clean printer
mechanism.
bad quality of printer paper.
Please set print density and print
quality or use better quality
paper.
It beeps three times
continuously.
Printer cover is open when
printing.
Close printer cover
Receipt are blurry in a
short time.
Print paper quality is not good.
Please use good quality paper.
Preservation temperature is
too high.
Please preserve in about 20
degrees temperature.
Power off automatic
Out of power
Please charge.
Note:It can make words blurry in short time if use bad quality paper.
