CATSKILL 51533 User manual

Assembly Instructions
Model 51533
Mid-Sized Two Door Cart with Drop Leaf
GENERAL:
1. You have purchased model 51533.
2. Should you need assistance or need to replace a damaged or missing part simply give us a call M-F at
607-652-7321 from 7:30 am - 4:30 pm EST and we’ll send you the prepaid part via UPS usually that same day!
You may also email us [email protected].
3. Read the assembly instructions and the enclosed brochure before beginning assembly. Assembly is easy if
you read and follow the instructions step by step. See our website www.catskillcraftsmen.com for assembly tips
and videos.
4. The only tools needed are a hammer, a small and a medium Phillips head screwdriver and a medium at blade
screwdriver. A pencil is also needed. A power screwdriver will speed assembly but is not required. Tip: Place a
few drops of vegetable oil on the threads of wood screws before screwing them into the solid hardwood pieces.
5. Glides are sometimes pre-packed with screws - these are not used.

13 13/16”
13 3/8”
Plain Side Panel (1)
P/N:SP/PL-51533
Handle Side Panel (1)
P/N:SP/HDL-51533
TOPTO TP OP
Back Panel (1)
P/N:BP-51533
Drawer Bottom (1)
P/N:DBOT-51533
Left Door (1)
P/N:DOR-51533/L Right Door (1)
P/N:DOR-51533/R
Drop Leaf (1)
P/N:DL-51533
Table Top (1)
P/N:TT-51533
Middle Shelf (1)
P/N:MS-51533 Bottom Shelf (1)
P/N:BS-51533
EDGE BANDING
GOES OUT
Drawer Front (1)
P/N:DF-51533
Drawer Side Left (1)
P/N:DS-51533/L
Drawer Side Right (1)
P/N:DS-51533/R
Door Spacer (1)
P/N:DORS-51533
Drawer Back (1)
P/N:DBK-51533
Top Brace (1)
P/N:B-17 1/2-TF-51533
Bottom Brace (1)
P/N:B-51533 BF
CABINET PARTS 51533
Glide Support Sticks (2)
P/N: GLD SUP - 51533

HARDWARE 51533
1 3/4” Phillips Flat Head Bolt (8)
1 1/2” Phillips Flat Head #8 Screw (4)
Cam Posts (2)
1 1/4” Phillips Flat Head #8 Screw (8)
7/8” Truss Head Machine Screw (6)
5/8” Phillips Flat Head #8 Screw (23)
3/4” Long 3/16” DIA. Steel Pin (4)
1” Long 3/16” DIA. Steel Pin (8)
1 1/2” Long 3/16” DIA. Steel Pin (4)
Hinge (2)
Caster Socket (4) Cam (2) 5/8 Wooden Disk (8)
Nickel Handle (3)
Towel Bar Post (2)
Non-Locking Wheel Caster (2)
Locking Wheel Caster (2)
Polished
Nickel Towel
Bar (1)
3/16” Flat Washer (4)
10-24 Hex Nut (8)
MAGNET PACK
1/2” Phillips Flat Head #4 Screw (1)
Magnet (1) Magnet Plate (1)
5/8” #6 Pan Head Screw (2)
Drawer Glide (1 Set )
Drawer
Cabinet
L-Bracket (4)
5/8” Phillips Flat Head #7 Screw (12)
(Used to attach cabinet
glides & “L” brackets)
5/8” Phillips Flat Head #5 Screw (4)
(Used on Drawer Glides)
(Used to attach
drawer back)
(Used to attach
drawer front)
(Used on door spacer
& drop leaf hardware)
(Brace Pin)
(Shelf Pin)
(Door Pin)
1” Phillips Flat Head #8 Screw (2)
(Used to attach
towel bar)
(Used to attach
glide supports)
(Used to attach
door handles)
Drop Leaf Support (2)

TOP TOP
5/8” #7 Screw
1 1/4” #8 Screw
5/8” #7 Screw
STEP 1
A. Decide which side to put the towel bar on. Attach a Glide Support Stick to the top of each Side
Panel using 1 1/4” #8 screws. The countersunk holes (reamed out) in the stick are positioned as
in illustration 1 so that the glide holes are toward the lower edge. Sticks should be ush with top of
panel.
B. Attach the cabinet glide of the Drawer Glide to the Glide Support Stick using 5/8” #7 at head
screws. Left glide to left Side Panel, right glide to right Side Panel. The glides look almost alike
however, the right glide (as you face the cart) has a rolled lip at the top of the glide that keeps the
drawer glide wheel in place. Line up the holes in the glides so that the end with the wheel comes
ush with the front edge of the Table Top Stick.
C. Attach the “L” brackets to the top of the glide supports using 5/8” #7 screws. Use the slot, the
side with the hole is used to attach the table top. The top of the “L” bracket should be even with the
top edge of the glide support stick.
Note: Glides are marked right/left with imprint behind wheel.

Not used
if present
5/8” Phillips Flat Head #8 Screw
20 Used in this step
Side Panel Leg
Inside Brace
Countersunk Hole in Leg
( disk goes in this hole to
hide bolt head! )
Nut Access Hole
Hex Nut
STEP 2

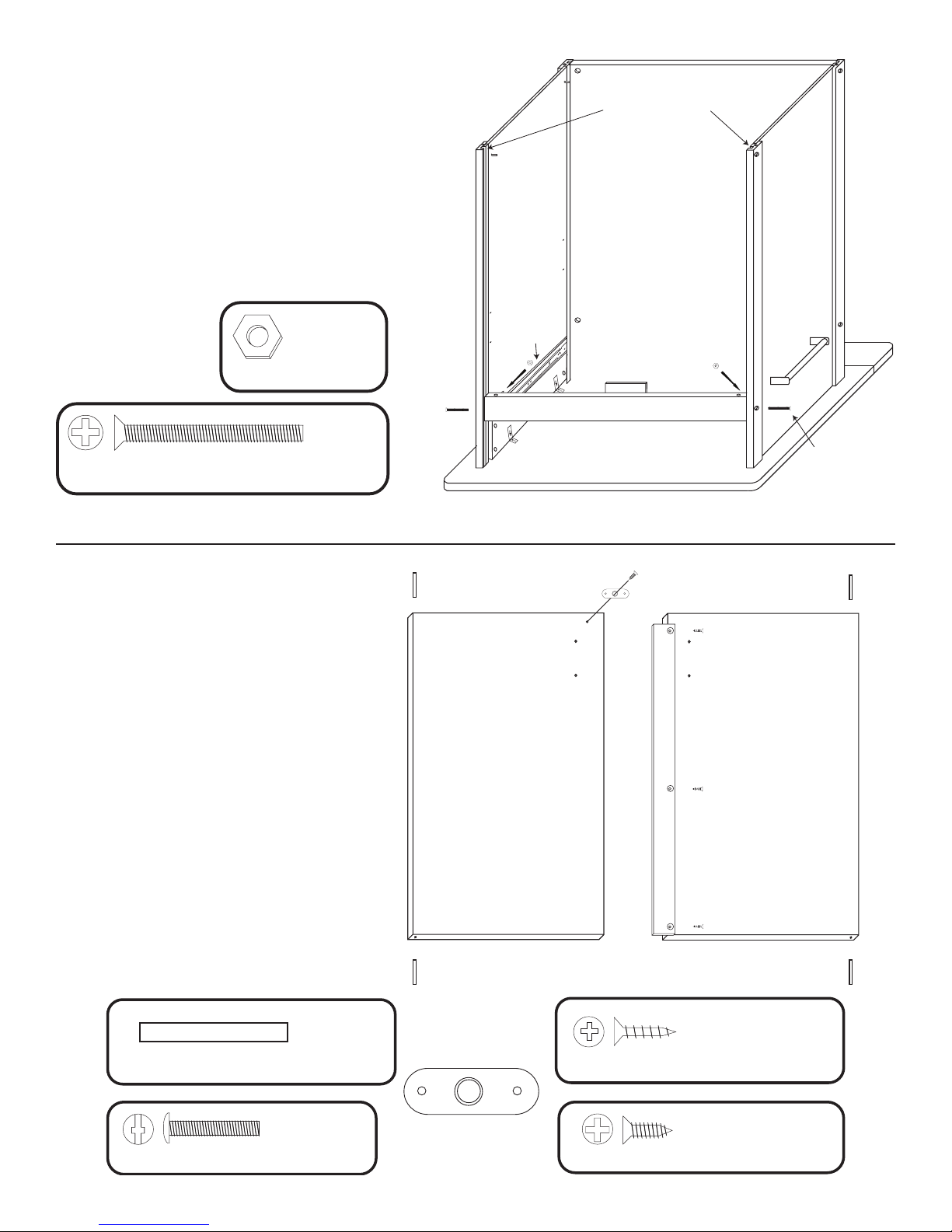

A. Lay back panel at on a smooth surface with holes up.
B. Attach both side panels (glide wheels go toward front
of cart) with 1 3/4” bolts and hex nuts. After inserting bolts
through the holes in the side panels, through the holes in
the long edges of the back panel, place a hex nut on the
tip of your nger, align nut with bolt and tighten.
C. Look ahead to step 5 which shows side panels
attached to back panel. Glide wheels toward the front.
Note: Make sure you position the side panels according
to drawer side left or right.
STEP 3
STEPS 3-13 WILL BE ACCOMPLISHED WITH THE UNIT TOP
UPSIDE DOWN (INVERTED), BUILDING UPWARD TOWARD
THE BOTTOM/CASTER END! BE CAREFUL AS PART
DESCRIPTIONS ARE BASED ON AN UPRIGHT,
COMPLETED UNIT!
Assemble top by placing the top and the drop leaf
upside down on a smooth at surface. Install
hinges using 5/8 #8 screws. The longer part
of the hinge goes on the drop leaf with the
short part on the cart top. Fasten the
drop leaf supports using 5/8 #8 screws.
STEP 4
Make a large X mark over each of the inside pilot holes in
the bottom. Make marks about 1 1/2” long. These marks
will help you align the cabinet with the inside pilot holes
in step 5.
This table top is used on two different models. The holes
on the outside, without markings in the illustration, are not
used.

4 Used in this step
1” Long 3/16” DIA. Steel Pin PIN
PIN
5/8” Phillips Head #7 Screw
4 Used in this step
3/16” Flat Washer
1” Phillips Flat Head #8 Screw
2 used
in this step
Bottom Front Brace
4 used in this step
3/4” Long 3/16” DIA. Steel Pin
3/4” Pin
Top Front Brace
Insert
STEP 5
A. Turn the side/back
assembly upside down
(invert) on top of the
inverted table top.
B. Using the X marks as a guide, insert the tips
of the 5/8 #7 screws into the pilot holes through
“L” bracket hole in the unit top and nger tighten.
When all 4 screws are properly aligned, tighten
down.
D. Tap two 1” pins into EACH side panel. These
pins will hold the bottom shelf as illustrated.

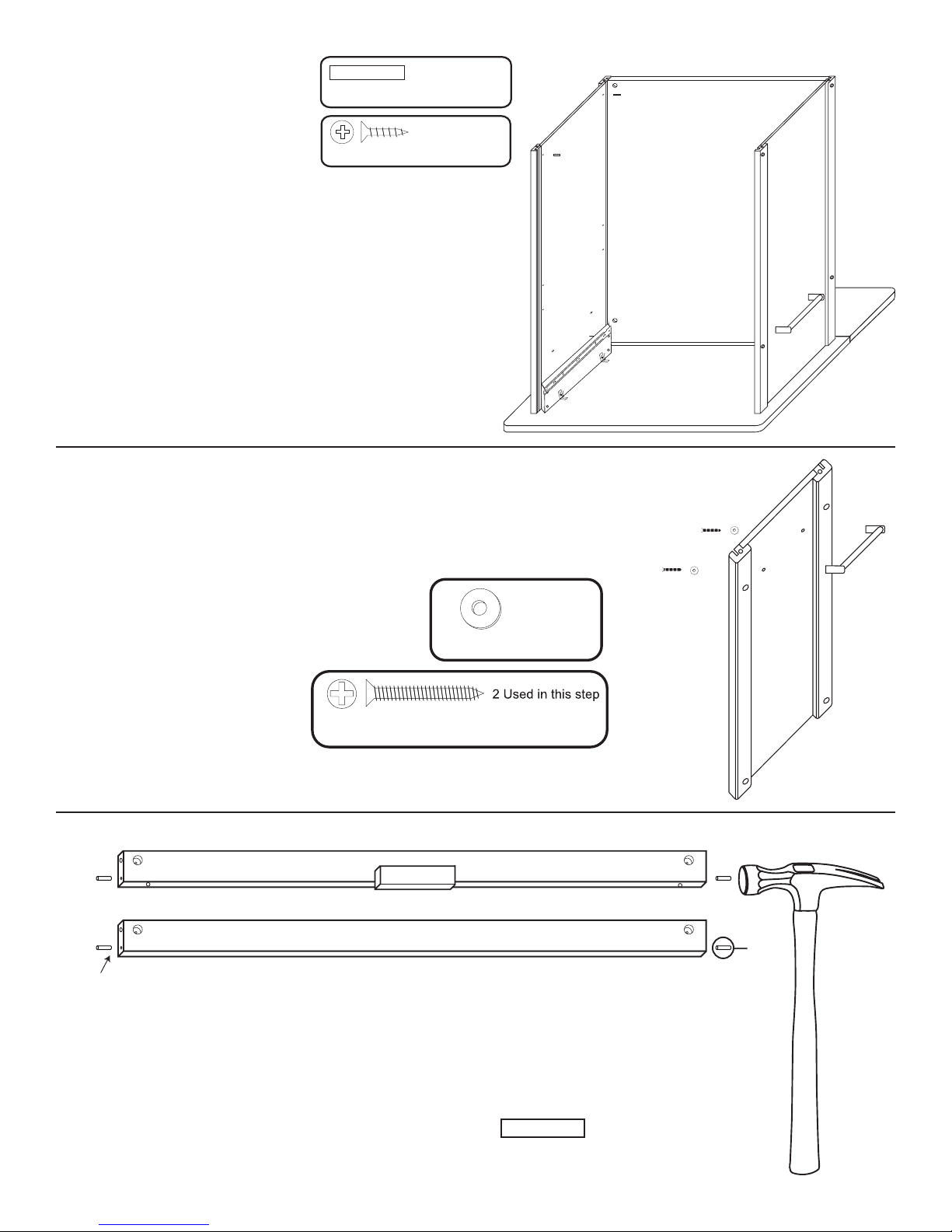

STEP 6
Attach Towel Bar to Side Panel
Attach the handle/towel bar to the side panel
with 1” #8 screws/washers from inside
the cabinet.
STEP 7
Tap Pins Into Brace Ends
Take the 2 front braces and tap/insert one 3/4” steel pin
into each end of both braces until seated. About 3/8”
will stick out when seated. Pins may be loose.

1 1/4” #8 Bolts
Insert Brace Pins Here
and slide down into
correct position.
Glide Suport
Assembly
ILLUSTRATION 8
2 used
in this step
Hex Nut
2 used in
this step
1 3/4” Phillips Flat Head Bolt
1 1/2” Long 3/16” DIA. Steel Pin
4 used in
this step
5/8” Phillips Flat Head #8 Screw
3 used in this step
Magnet Plate
4 used
in this step 1 used in this step
RIGHT DOOR LEFT DOOR
1 1/2” Long 3/16” DIA. Steel Pin
4 used in
this step
5/8” Phillips Flat Head #8 Screw
3 used in this step
Magnet Plate
7/8” Truss Head Machine Screw
4 used
in this step
1/2” Phillips Flat Head #4 Screw
1 used in this step
STEP 8
A. Take the top front brace (with magnet block) insert
pins into the brace ends. Slide the pins into the slits
on the inside of the front legs and slide down until
the brace aligns with the bolt holes.
B. Attach with 1 3/4” Phillips Flat Head Bolts
and Hex Nuts.
STEP 9
Door Prep
A. Insert/Tap ONE 1 1/2” pin into each
end of both doors. DON’T OVERDRIVE
PINS! Pins should stick up about 1/2”
when seated. Ok if pins are loose.
B. Attach the door spacer to the left door
with 5/8” #8 screws. The spacer has a
space at the top to allow magnet clear-
ance and is almost ush with the bottom
of the door.
C. Attach the magnet plate (may be stuck
to the magnet) with the small FLAT HEAD
screw to the top of the right door. Small
bumps on plate go against the wood.
D. Attach the door handles with 7/8” Truss
Head Machine Screw.

1 3/4” Phillips Flat Head Bolt
2 Used in this step
10-24 Hex Nut
2 Used
in this step
2 Used
in this step
3/16” Flat Washer
5/8” Pan Head Screw
2 Used
in this step
Magnet
5/8” Pan Head Screw
2 Used
in this step
STEP 10
Install Doors/Bottom Front Brace
A. Install doors by inserting pins in the door tops into the holes in the top front brace.
B. Place one washer on each of the door pins in the door bottoms.
C. Take the bottom front brace, align pins in
door bottoms with holes along top edge of
brace (Remember to put the washers
on the pins!!!) and secure with
1 3/4” bolts/hex nuts as before.
STEP 11
Attach Magnet to Magnet Block
A. Stick magnet to magnet plate on right door.
B. With left door open, close the right door. The magnet should be positioned over the
wooden block on the bottom of the top front brace. Hold the magnet in place with your thumb, and
open the right door. The magnet will be in the correct position on the block. Mark with a pencil.
C. Secure magnet with the two pan head screws in the
magnet packet. Center screws in the slot in the
magnet. This will allow adjustments later,
if needed.

ILLUSTRATION 12A
ILLUSTRATION 12B
ILLUSTRATION 12D
ILLUSTRATION 12E
ILLUSTRATION 12C
Below line in wood
Cam Posts (2)
4 used
in this step
1 1/2” Phillips Flat Head #8 Screw
2 used
in this step
7/8” Truss Head Machine Screw
2 used
in this step
Cam
4 used
in this step
5/8” Phillips Flat Head #5 Screw
STEP 12
A. Attach the drawer back to the drawer side with four
1 1/4” #8 screws. Make sure parts are aligned as in
Illustration 12A.
B. Insert drawer bottom into the slots in the drawer sides,
best side to inside of the drawer. Slide down until seated
in the slot in the drawer back. See illustration 12B.
C. Screw the cam posts into the two outside holes on the
inside face of the drawer front until seated. Only 3/8” of
this post goes into the wood, leaving the 4 larger guide
rings/head exposed. See illustration 12C. Visit our web-
site www.catskillcraftsmen.com for a video on cams.
D. Insert the posts into holes in the drawer side until
seated against the front ends of the drawer sides. Insert
cams so that slot in the cam ts over the posts and turn
with Phillips screwdriver until seated. Don’t over-torque!!
www.catskillcraftsmen.com
E. Attach drawer handle with the two 7/8” Truss Head
screws (no illustration)
F. Attach drawer glides to drawer sides using 5/8” #5
screws. See illustration 12E. Drawer glides are ush
with front of the drawer sides.

Edge
Banding
4 used in
this step
1” LONG 3/16” DIA. STEEL PIN
STEP 13
Install Casters
A. Insert and tap caster sockets with a
hammer until the teeth grab the wood.
DON’T POUND SOCKET FLAT OR
CASTER SHAFT WILL NOT ENTER.
B. Insert casters and seat by pushing
straight downward with the heel of your
hand, or tap into place with a hammer.
Don’t be afraid to give them a good
downward whack on the solid metal part
of the caster!
STEP 14
Install Shelves/Disks
A. Upright unit. Take bottom shelf (no
edge banding) and place it on the set
of back pins as shown. Close doors
and shelf will drop into place. DO NOT
FORCE!
B. Tap two 1” pins into each side panel
to hold middle shelf, making sure the
pins on both sides are in the same
relative position. To remove a pin, use
pliers or a claw hammer.
C. Place middle shelf, edge banding
out, on pins.
D. Insert drawer. If drawer hits the
bottom of the cart top or the top front
brace, tap the top front brace down,
then re-tighten screws and insert
wooden disks into sides.
E. Drop leaf supports should be
extended to initially insert drawer.
