CEECO MHW-341-D User manual

MHW-341-D-ATD-11-ISSUE4.0
SERVICE MANUAL
FOR
MODEL MHW-341-D
MAGNETIC HOOKSWITCH WALL
TELEPHONE
EQUIPPED WITH ATD-11 AUTOMATIC DIALER
Serving the Telephone Industry Since 1930
Communication Equipment 519 W South Park Street
& Engineering Company Okeechobee, FL 34972
Voice: 863-357-0798
Fax: 863-357-0006

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
2
IMPORTANT INFORMATION
FOR
CUSTOMER
Please fill in before you continue.
The following information is necessary when calling CEECO for assistance.
MODEL NUMBER MODEL MHW-341-D
SERIAL NUMBER
DATE MANUFACTURED
LOCATION INSTALLED
For us to better serve you, please have this information available when calling for
technical support.
CEECO
Communication Equipment & Engineering Company
519 W South Park Street
Okeechobee, FL 34972
863-357-0798- telephone
863-357-0006- facsimile
www.ceeco.net

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
3
TABLE OF CONTENTS
SECTION PAGE
1.0 INTRODUCTION................................................................................................. 4
2.0 GENERAL............................................................................................................. 4
3.0 PROGRAMMING ................................................................................................ 5
PROGRAMMING DIAGRAM:PROGRAMMING CONTINUED…............ 6
PROGRAMMING CONTINUED…................................................................... 7
4.0 RECOMMENDED TOOLS AND TEST EQUIPMENT .................................. 7
5.0 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS ................... 8
6.0 TESTING............................................................................................................... 9
7.0 SPECIFICATIONS............................................................................................. 10
8.0 PARTS LIST ....................................................................................................... 11
9.0 FCC NOTICE...................................................................................................... 12
10.0 REPAIR AND RETURN INFORMATION..................................................... 13
11.0 WARRANTY POLICY ...................................................................................... 14

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
4
1.0 INTRODUCTION
The practices in this manual provide installation and maintenance information for
the CEECO Model MHW-341-D Magnetic Hookswitch Wall Telephone.
The information in this manual is subject to change without notification.
For information not included in this manual, please call or write:
CEECO
Customer Service
519 W South Park Street
Okeechobee, FL 34972
863-357-0798- telephone
863-357-0006- facsimile
www.ceeco.net
2.0 GENERAL
The CEECO Model MHW-341-D Magnetic Hookswitch Wall Telephone is
equipped with a magnetically operated hookswitch. The MHW-341-D is
designed for special applications where a telephone must be sturdy and attractive,
and automatically dial a single number. It is equipped with an ATD-11 automatic
tone dialer that will dial a single number of up to eleven (11) digits. When the
handset is lifted, the telephone will automatically dial the pre-programmed
number. The automatic dialing feature is activated by hookswitch closure. The
telephone is not necessarily designed for incoming calls, but can receive them. If
a call is received, the telephone will still automatically dial the programmed
number when the handset is lifted. This will have no bearing on the phone cal,
however, other than to briefly hear the digits dial out.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
5
3.0 PROGRAMMING
NOTE: It is recommended that you ground yourself to prevent ESD
damage to the PCB(s). This can be done through the use of an
electrostatic bracelet or other such device. In the absence of any
such device, it might suffice to simply touch a conduit or other
grounded pipe or object to dissipate any built up static electricity.
3.1 Please refer to the diagram on the next page for mini-jumper location
and positioning. Programming is accomplished by position plastic
hardware mini-jumpers in the proper positions for the desired calling
pattern. The mini-jumpers are designed to bridge pairs of copper pins to
activate the desired dialing pattern.
3.2 Locate the ATD-11 Automatic Dialer.
3.3 If the number to be programmed is a (1+) call, position the J1 mini-jumper
on the "1+" position, bridging the left and center copper pins. This will
cause the digit "1" to be dialed in front of the other programmed digits. If
the number to be programmed is a local call, position the J1 mini-jumper
on the "B" position, bridging the center and right copper pins.
3.4 If a 3 digit area code is to be dialed, the J3 mini-jumper must be set to the
"11" position, bridging the center and left copper pins. If the number
being dialed does not require the area code, position the J3 mini-jumper on
the "8" position, bridging the center and right copper pins.
3.5 Set each mini-jumpers on the A-K matrix board to correspond to the digits
of the number to be dialed. Beginning with column “A” at the top,
position the plastic mini-jumper to bridge the pair of copper pins
correspond to the desired digit (1-0). Proceed in the same manner, from
left to right, until all desired digits are programmed. Do not skip any
columns, as the digits must be represented in an unbroken string. Any
unused mini-jumpers must be removed from the board to ensure proper
dialing. Do not discard the unused jumpers, as they may be needed for
future use. It is recommended that they be taped or otherwise secured
somewhere nearby, within the device.
3.6 Be sure each mini-jumper is properly positioned to make good contact and
dial the intended number.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
6
PROGRAMMING DIAGRAM:

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
7
PROGRAMMING CONTINUED…
3.7 In most installations, the J2 mini-jumper will remain in the “1” position,
bridging the center and left copper pins. If dial tone delivery is delayed by
more than one second; however, then J2 will have to be set in the “3”
position. A simple test would be as follows: with the telephone line cord
connected to the intended telephone line, temporarily remove the J2 mini-
jumper. As accurately as possible, measure the time delay between the
moment the handset is lifted and the moment the phone receives dial tone.
Try it several times. If this time is consistently 1 second or less, position
the J2 jumper on the "1" position. Otherwise position the J2 jumper on the
"3" position to set the delay before dialing to 3 to 4 seconds.
3.8 Programming is now complete and the telephone is ready for installation.
It is highly recommended to read section 6.0 at this point and pre-test the
phone, prior to actual installation.
4.0 RECOMMENDED TOOLS AND TEST EQUIPMENT
Volt/Ohm Meter
1/4" Nut Driver
Flat Blade Screw Driver
Security Tool, CEECO Part Number 301-037 (sold separately)

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
8
5.0 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS
5.1 Using a 301-037 security tool (sold separately), loosen (do not remove)
the locking screw on the rear of the phone. The security tool is for a
standard 5/32" button head screw, generally used on the framework of the
phone booths.
5.2 Separate the cover assembly from the backplate assembly by pulling the
bottom forward and lifting up. The backplate assembly is designed rest on
any flat vertical surface.
5.3 Run the inside station wire into the enclosure and terminate on the RJ11C
terminal block inside. As depicted on the following page. The CEECO
provided terminal block (jack) must be used, as it contains required over-
voltage protection circuitry.
5.4 The use of a gas tube station protector is recommended. The station
ground should not exceed 50 ohms.
5.5 Plug the modular line cord from the cover assembly into the RJ11C
terminal block.
5.6 Dress the line cable away from the locking screw and install the cover
assembly by placing the two tabs into the two corresponding slots and
pushing forward until the housing slips into place for the security screw.
5.7 Secure the cover assembly by tightening the security screw on the rear of
the case.
*****WARNING*****
A. Never install telephone wiring during a lightning storm.
B. Never install telephone jacks in wet locations unless the jack
is specifically designed for wet locations.
C. Never touch uninsulated telephone wires or terminals
unless the telephone line has been disconnected at the
network interface.
D. Use caution when installing or modifying telephone lines.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
9

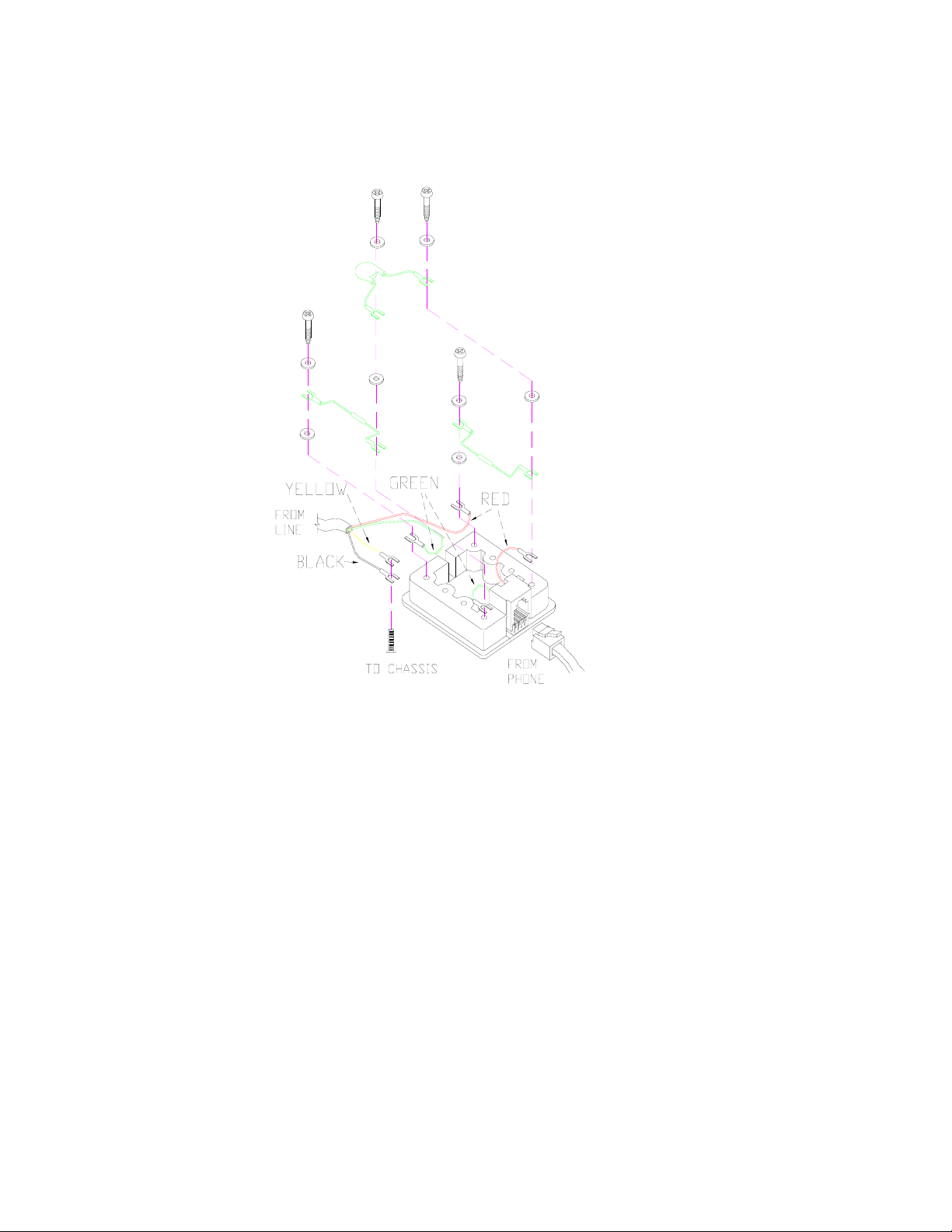

5.8 OVER-VOLTAGE PROTECTION DIAGRAM
6.0 TESTING
6.1 With the phone connected to a working telephone line, lift the handset.
Dial tone should be heard and the pre-programmed number should
automatically dial out.
6.2 The microphone is muted while the phone is dialing. Normal phone
operation should follow when the call is answered.
6.3 When the call is complete, hang up the phone.
6.4 Place a call to the phone.
6.5 The phone should ring indicating the incoming call. Answer the phone,
tones will be heard as the phone briefly dials out the pre-programmed
number, and normal phone operation should follow.
6.6 Hang up the phone. It is ready for use. If any problems were experienced,
please refer back to section 3.0 and otherwise to section 10.2.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
10
7.0 SPECIFICATIONS
INPUT POWER: C.O. Line Powered
LOOP CURRENT: 23mA min to 80mA max
IMPEDANCE: 600 ohms
SIGNALING: DTMF, 70ms tone, 50ms spacing
HEARING AID
COMPATIBLE: Meets EIA standards
ENVIRONMENTAL: Temperature 0°C to 50°C
Humidity 20%-90% non-condensating
PROGRAMMING: Via Hardware Matrix Switch
TELEPHONE COVER: Brushed 16 ga. Stainless Steel
MEMORY RETENTION: Hardware
WEIGHT: Approximately 5 lb.
RINGER EQUIVALENCY: 0.4A
FCC REGISTRATION: BW-88T7-13716-TE-T
UL LISTED NO.: 6OF5
TYPE JACK: RJ11C

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
11
8.0 PARTS LIST
PART NUMBER DESCRIPTION
11013 Stainless Steel Housing with backplate.
350-169 ATD-11 Automatic Tone Dial
12027 Network.
6017 Reed Switch.
14010 Modular Cord.
9023 1/4" –20-3/4" Security Screw.
9005 Grommet.
14014 Modular Jack.
9020 Security Tool.
8011 29" Armored Cord Handset
with Switch Plate.
14018 Magnetic Assembly.
12017 Ringer.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
12
9.0 FCC NOTICE
9.1 FCC REGISTRATION AND REPAIR INFORMATION
Your new telephone has been registered with the Federal Communication
Commission (FCC) in accordance with Part 68 of its rules. The FCC
requires that you be advised of certain requirements involving the use of
this telephone.
9.2 CONNECTION AND USE WITH THE NATIONWIDE
TELEPHONE NETWORK
The FCC requires that you connect this telephone to the Nationwide
Telephone Network through a registered jack provided by the Telephone
Company in your area. This jack is a modular outlet, which you can order
from your local telephone company.
9.3 NOTIFICATION TO THE TELEPHONE COMPANY
Before connecting this telephone, the FCC requires that you notify your
local telephone company business office. The number is in the front of
your phone book.
Tell them:
The "line" to which you will connect the telephone (that is, your phone
number), the telephone's FCC registration number and ringer equivalence
number. These numbers are listed in section 7.0
The FCC further requires that you notify your local telephone company
when permanently disconnecting this telephone.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
13
10.0 REPAIR AND RETURN INFORMATION
10.1 WARRANTY REPAIR
Any device returned requiring warranty service; repair or credit must be
accompanied with a "Return Material Authorization" (RMA) FORM. It
must include: return shipping instructions, original purchase order number
and special marking instruction. A description of the trouble observed
must be attached to the defective unit. This information must be inside the
shipping container.
10.2 DIRECT ALL INQUIRES TO:
CEECO
Repair Department
863-357-0798- telephone
863-357-0006- facsimile
www.ceeco.net
10.3 NON-WARRANTY REPAIR:
CEECO will repair equipment out of warranty for a set charge plus parts.
The customer must pay the shipping costs for both directions.
10.4 RETURN FOR CREDIT:
Material may be returned for credit only with prior approval. Material
authorized for return is subject to a 20% restocking charge based on the
manufacturer's list price. Return Material Authorization must be
requested no later than 30 days after original shipment.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
14
11.0 WARRANTY POLICY
11.1 GENERAL
CEECO products are guaranteed to be free of defects in material and
workmanship for a period of 365 days from the date of original purchase.
CEECO's obligation under this warranty is limited to repair or
replacement of any part found to be defective by CEECO. Under no
circumstances shall CEECO be liable for loss, damage, cost of repair or
consequential damages of any kind, which have been caused by neglect,
abuse, acts of GOD, or improper operation of equipment.
11.2 PRINTED CIRCUIT BOARDS
Printed circuit boards should not be field repaired. If a unit is found to be
faulty, replace it with another unit and return the faulty unit to CEECO for
repair. Modifications by anyone other than CEECO will void the
warranty.
Table of contents
Other CEECO Telephone manuals

CEECO
CEECO SSP-511-F User manual

CEECO
CEECO SSP-373-D User manual

CEECO
CEECO Charge-A-Call BLC-303-1 User manual

CEECO
CEECO 403-F User manual

CEECO
CEECO WPP-531-D2-ADA-VA-R-SB24VDC User manual

CEECO
CEECO SSP-350-X User manual

CEECO
CEECO SSP-571-D User manual

CEECO
CEECO SSP-571-D2 User manual

CEECO
CEECO WPP-331-F User manual

CEECO
CEECO SSW-321-Xr1 User manual

CEECO
CEECO SSW-321-F-IVC-C-M User manual

CEECO
CEECO SSP-350-X-145 User manual

CEECO
CEECO SSP-371-D User manual

CEECO
CEECO SSC-303-D User manual

CEECO
CEECO HOB-531-X User manual

CEECO
CEECO SSW-323-F User manual

CEECO
CEECO WPP-531-D2 User manual

CEECO
CEECO WPP-530-D User manual

CEECO
CEECO SSP-550-D User manual

CEECO
CEECO SSW-321-D User manual
