CEECO HOB-313-DD-48 User manual

HOB-313-DD[R,B]-650-520-CAC4.04-42&NVR1.0-ISSUE4.0
SERVICE MANUAL
FOR
MODEL HOB-313-DD-48
TWO-BUTTON AUTOMATIC DIALING
PANEL TELEPHONE
EQUIPPED WITH CAC4.04-42 FIRMWARE AND
NVR1.0 MEMORY CONVERSION PCB
Serving the Telephone Industry Since 1930
Communication Equipment 519 West South Park St.
& Engineering Company Okeechobee, FL. 34972
Voice: 863-357-0798
Fax: [phone]

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
2
IMPORTANT INFORMATION
FOR
CUSTOMER
Please fill in before you continue.
The following information is necessary when calling CEECO for assistance.
MODEL NUMBER
MODEL HOB-313-DD-48 EQUIPPED
WITH CAC4.04-42 FIRMWARE
SERIAL NUMBER
DATE MANUFACTURED
LOCATION INSTALLED
For us to better serve you, please have this information available when calling for
technical support.
CEECO
Communication Equipment & Engineering Company
519 West South Park Street
Okeechobee, FL 34972
[phone] Voice
[phone] Fax

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
3
TABLE OF CONTENTS
SECTION PAGE
1.0 INTRODUCTION................................................................................................. 4
2.0 GENERAL............................................................................................................. 4
3.0 PROGRAMMING................................................................................................ 5
PROGRAMMING CONTINUED…................................................................... 6
4.0 TESTING/OPERATION ..................................................................................... 6
5.0 RECOMMENDED TOOLS AND TEST EQUIPMENT.................................. 6
6.0 INSTALLATION INSTRUCTIONS .................................................................. 7
7.0 SPECIFICATIONS............................................................................................... 8
8.0 PARTS LIST ......................................................................................................... 9
9.0 FCC NOTICE...................................................................................................... 10
10.0 REPAIR AND RETURN INFORMATION..................................................... 11
11.0 WARRANTY POLICY...................................................................................... 12
12.0 MODULAR JACK DIAGRAM......................................................................... 13
13.0 DIAGRAM........................................................................................................... 14

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
4
1.0 INTRODUCTION
The practices in this manual provide installation and maintenance information for
the Model HOB-313-DD-48 Two-Button Automatic Dialer Panel Telephone,
equipped with CAC4.04-42 software.
For information not included in this manual, please call or write:
CEECO
Customer Service
519 West South Park Street
Okeechobee, FL 34972
[phone]
2.0 GENERAL
The CEECO Model HOB-313-DD-48 Telephone, equipped with CAC4.04-42
Firmware, is a stainless steel, microprocessor-based, coinless panel phone
designed to withstand abuse and fraudulent call attempts. The transmitter is
muted during periods of dial tone eliminating the use of hand held dialers.
Attempts to hookswitch dial a number will cause the microprocessor to go “on
hook” until the attempt has ended. Incoming calls may be allowed or blocked
depending upon the programming. If programmed to block incoming calls, the
phone will drop the line upon receipt of an incoming call. Programming is
accomplished via the DTMF keypad inside the telephone housing.
This model telephone is intended for use with the open-faced, weather-resistant
housing, P/N 331-HOB
The phone also comes with a custom handset, which is blue in color and has a
54” long armored cord.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
5
3.0 PROGRAMMING
3.1 Connect the telephone to a working telephone line or a DTMF test set.

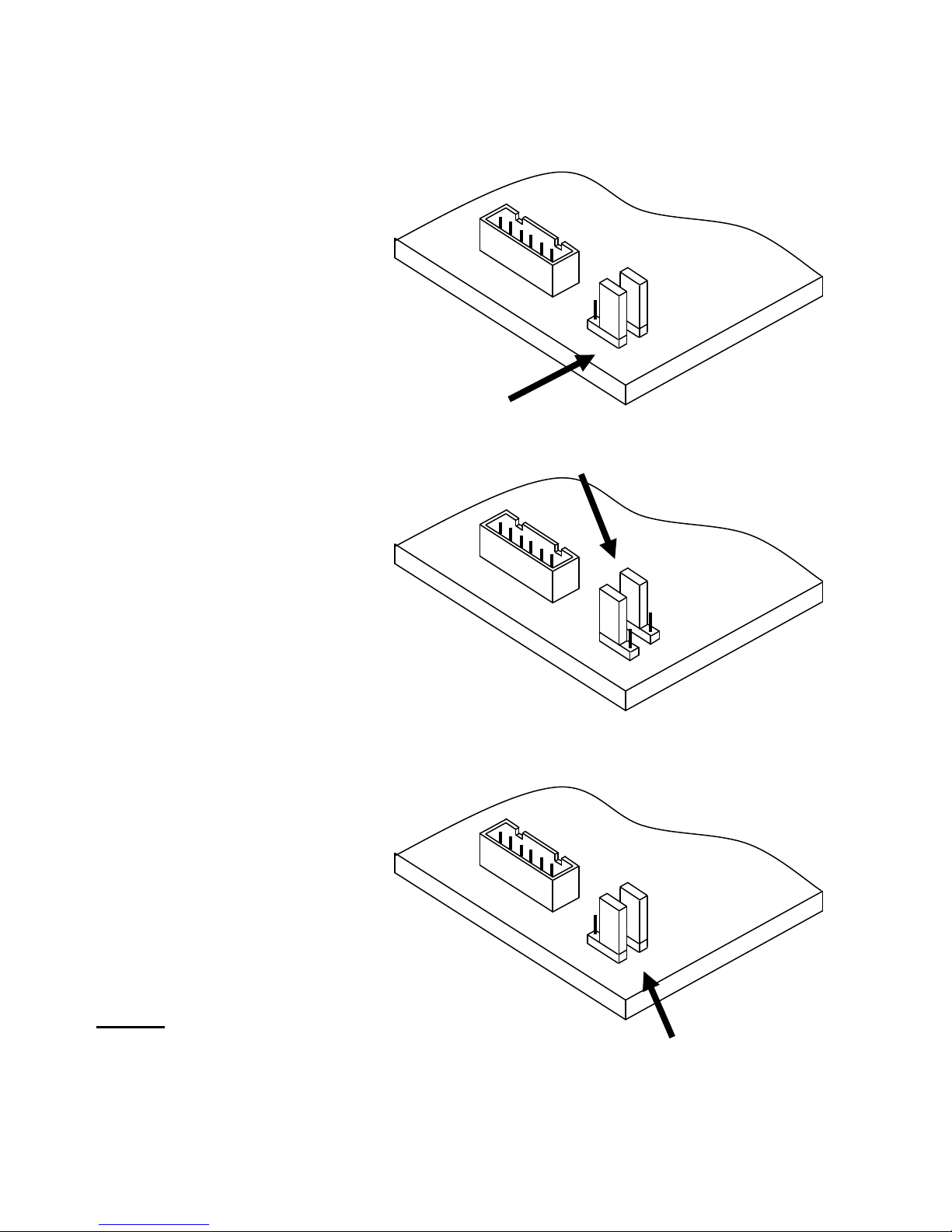

3.2 Remove the panel phone from the housing, and locate the two plastic
mini-jumpers on the edge of the printed circuit board and move them to
the “ON” position, as depicted on the last page of this manual.
3.3 Lift the handset and wait for dial tone before beginning programming.
Programming is accomplished by way of the DTMF keypad. The
programming can be accomplished in one continuous sequence without
having to stop or perform any measures between programming sections. It
is important to be slow and deliberate when pressing the keys during
programming. A missed or partial tone will result in improper
programming.
3.4 Utilizing the keypad, enter # 9 7. This will clear all memory locations.
You must wait for two beeps, indicating the memory has been cleared, in
order to proceed. This may take up to two seconds.
3.5 Enter # 0 0, followed by 0, followed by 1to allow incoming calls or 0to
block incoming calls, followed by 1.
Example: Entering #00 0 1 1 would program the phone to allow
incoming calls, whereas entering #00 0 0 1 would program the
phone to block incoming calls.
*If programmed to block incoming calls, the phone will still ring as usual.
When the incoming call is answered, the telephone will drop the line,
thus blocking the call, and no conversation will take place.
3.6 Enter #01 followed by the desired number to be automatically dialed by
the Red Button.
Example: Entering #015551212 will program the telephone to
automatically dial the number 555-1212, when the red button is pressed.
Enter #02 followed by the desired number to be automatically dialed by
the Black Button.
Example: Entering #025875430 will program the telephone to
automatically dial the number 587-5430, when the black button is pressed.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
6
PROGRAMMING CONTINUED…
Notes: -The # sign represents the # key of the keypad and must actually
be dialed.
-Each of the numbers programmed above may be up to eleven
(11) digits in length.
3.7 Programming is now completed. Hang up the phone and return the mini-
jumpers to the “OFF” position, as depicted on the last page of this
manual. The phone is now ready for Testing/Operation. Mount the HOB
housing in the intended location and return the panel phone to the housing.
4.0 TESTING/OPERATION
4.1 Connect the phone connected to the DTMF test set or working telephone
line and lift the handset. When dial tone is received, the transmitter is
muted and the telephone waits for one of the three buttons to be pressed.
4.2 Select the number to be dialed by pressing the desired button on the
telephone (Red or Black). The number programmed into the appropriate
button location will automatically dial and a normal telephone
conversation may take place. When the call is completed, hang up the
phone by returning the handset to the cradle. All three buttons should
operate as such.
4.3 If the telephone was programmed to block incoming calls in section 3.5,
the phone will still ring as usual. When the incoming call is answered, the
telephone will drop the line, thus blocking the call, and no conversation
will take place.
5.0 RECOMMENDED TOOLS AND TEST EQUIPMENT
DTMF Test Set
Volt/Ohm Meter
1/4" Nut Driver
Flat Blade Screw Driver
Security Tool, CEECO Part Number 301-037

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
7
6.0 INSTALLATION INSTRUCTIONS
6.1 Using a 301-037 security tool (sold separately) loosen and remove the
security screws.
6.2 The security tool is for a standard 5/32" button head screw generally used
on the framework of the phone booths.
6.3 Separate the telephone assembly from the mounting or housing.
Mountings or housings should be installed as is appropriate for each
particular item and installation. Be sure that installation is done in
accordance with all applicable laws and codes.
6.4 Run the inside station wire through the mounting or housing and terminate
on to the CEECO-provided RJ11C terminal block.
6.5 The use of a gas tube station protector is recommended. The station
ground should not exceed 50 ohms.
6.6 Plug the modular line cord from the telephone assembly into the RJ11C
terminal block.
6.7 Dress the line cable away from hardware, which might cause damage to
the cable. Secure the telephone assembly by installing and tightening the
security screws.
6.8 When servicing the phone, be sure the PC board does not contact metal
parts, otherwise permanent damage may occur to the board.
*****WARNING*****
A. Never install telephone wiring during a lightning
storm.
B. Never install telephone jacks in wet locations unless
the jack is specifically designed for wet locations.
C. Never touch uninsulated telephone wires or
terminals unless the telephone line has been
disconnected at the network interface.
D. Use caution when installing or modifying telephone
lines.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
8
7.0 SPECIFICATIONS
INPUT POWER: C.O. Line powered
LOOP CURRENT: 23ma. min. 80ma. max.(48 VOLT LOOP)
IMPEDANCE: 600 ohms
SIGNALING: DTMF, 70ms tone, 50ms spacing
OUTPUT: -8.0 to -10.0dbm
HEARING AID
COMPATIBLE: Meets EIA standards
ENVIRONMENTAL: Temperature 0C to 50C
Humidity 20%-90% non-condensating
PROGRAMMING: Via DTMF keypad.
TELEPHONE PANEL: 14 ga Stainless Steel
DIMENSIONS: 7 1/6Wide x 11 1/4High x 4 1/4Deep
(Handset on hook).
MOUNTING: . Vertical Surface Mount
WEIGHT: Approximately 4 lb.
HOB HOUSING: Painted/Silk-Screened CRS
MEMORY RETENTION: Lithium Battery - Long Life
WEIGHT: Approximately 17 Pounds
FCC REGISTRATION: BW88T7-13823-TE-T
UL LISTED NO.: 6OF5
RINGER EQUIVALENCY: 0.4A
TYPE JACK: RJ11C
FIRMWARE: CAC4.04-42

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
9
8.0 PARTS LIST
QUANTITY PART NUMBER DESCRIPTION
1 301-004-54-B Armored Cord Handset-Blue
1 301-006 Ringer
1 301-009 Network
1 301-581 Tongue & Bracket Assembly
1 301-589 Magnetic Hookswitch
1 301-018 Modular Line Cord
1 301-054 Modular Connector (RJ11C)
1 650-570 Network Cable
1 650-520 MCRK-2 Board
4 9024 Security Screws
1 331-HOB-B Weather-resistant Housing
ACCESSORIES:
1 301-064 Security Tool

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
10
9.0 FCC NOTICE
9.1 FCC REGISTRATION AND REPAIR INFORMATION
Your new telephone has been registered with the Federal Communication
Commission (FCC) in accordance with Part 68 of its rules. The FCC
requires that you be advised of certain requirements involving the use of
this telephone.
9.2 CONNECTION WITH THE NATIONWIDE TELEPHONE NETWORK
The FCC requires that you connect this telephone to the Nationwide
Telephone Network through a registered jack provided by the Telephone
Company in your area. This jack is a modular outlet, which you can order
from your local telephone company.
9.3 NOTIFICATION TO THE TELEPHONE COMPANY
Before connecting this telephone, the FCC requires that you notify your
local telephone company business office. The number is in the front of
your phone book.
Tell them:
The "line" to which you will connect the telephone (that is, your phone
number) and the telephone's FCC registration number and ringer
equivalence number. These numbers are listed in Section 7.0.
The FCC further requires that you notify your local telephone company
when permanently disconnecting this telephone.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
11
10.0 REPAIR AND RETURN INFORMATION
10.1 WARRANTY REPAIR
Any device returned requiring warranty service; repair or credit must be
accompanied with a "Return Material Authorization" (RMA) form. It must
include: return shipping instructions, original purchase order number and
special marking instruction. A description of the trouble observed must be
attached to the defective unit. This information must be inside the
shipping container.
10.2 DIRECT ALL INQUIRES TO:
CEECO
Repair Department
519 West South Park Street
Okeechobee, FL 34972
[phone]
10.3 NON-WARRANTY REPAIR
CEECO will repair equipment out of warranty for a set charge plus parts.
The customer must pay the shipping costs both directions.
10.4 RETURN FOR CREDIT
Material may be returned for credit only with prior approval. Material
authorized for return is subject to a 20% restocking charge based on the
manufacturer's list price. Return RMA must be requested no later than 60
days after original shipment.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
12
11.0 WARRANTY POLICY
11.1 GENERAL
CEECO products are guaranteed to be free of defects in material and
workmanship for a period of 365 days from the date of original purchase.
CEECO's obligation under this warranty is limited to repair or
replacement of any part found to be defective by CEECO. Under no
circumstances shall CEECO be liable for loss, damage, cost of repair or
consequential damages of any kind, which have been caused by neglect,
abuse, act of God or improper operation of equipment. This warranty is
limited to the value of material only.
11.2 PRINTED CIRCUIT BOARDS
Printed circuit boards should not be repaired in the field. If a unit is found
to be faulty, replace it with another unit and return the faulty unit to
CEECO for repair. Modifications by any one other than CEECO will void
the warranty.

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
13

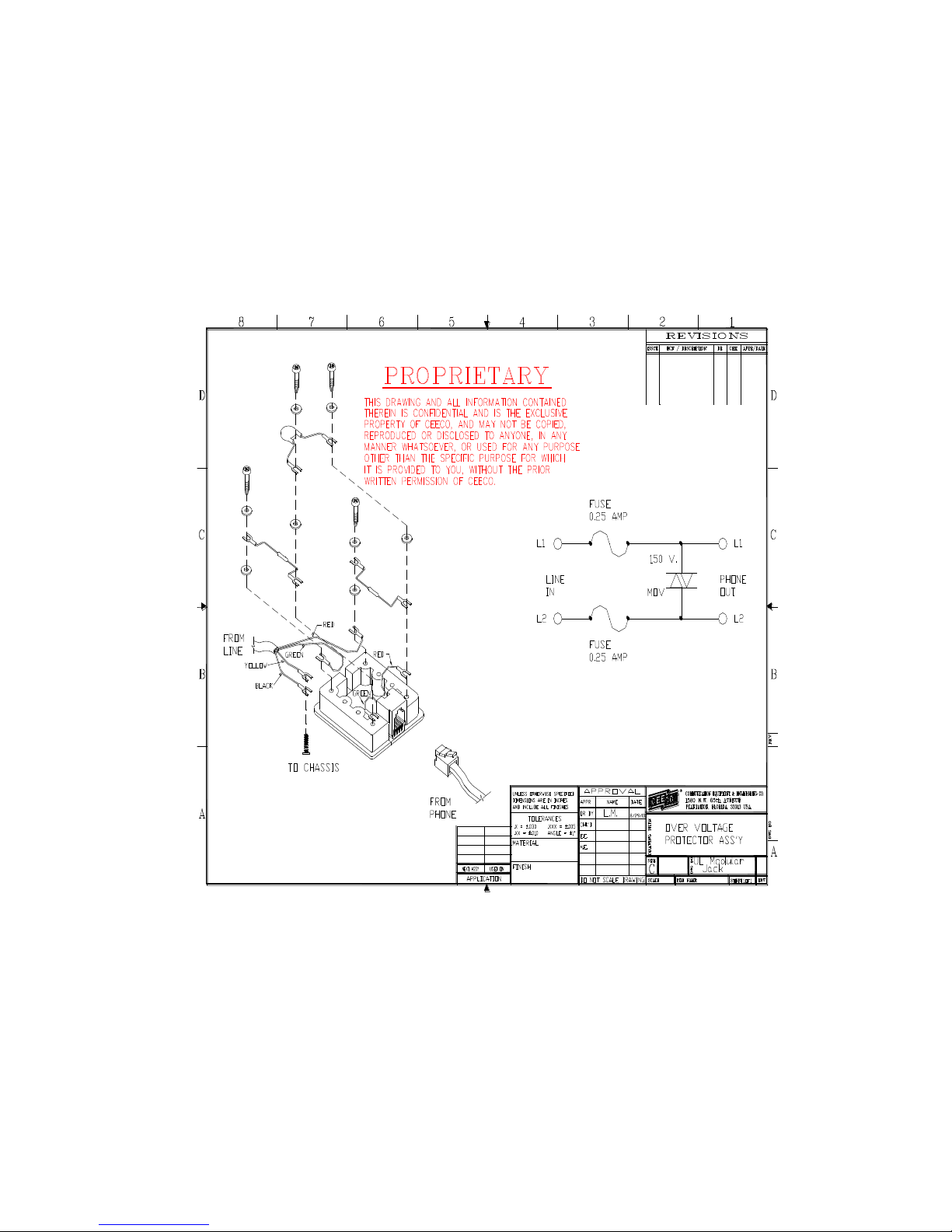

12.0 MODULAR JACK DIAGRAM

ISSUE 4.0
CEECO
Communication Equipment & Engineering Company
PROPRIETARY
14
13.0 DIAGRAM
When programming is
completed, move the mini
jumpers to the OFF
position.
NOTE:
Do not leave the mini jumpers in the ON position;
this will decrease battery life.
MOVE THE MINI JUMPERS
TO THE ON POSITION
BEFORE GOING OFF-
HOOK.
Locate the mini jumpers
on the corner of the PCB.
ON
OFF
ON
OFF
ON
OFF
