Chauvet Legend 330SR Spot User manual

Quick Reference Guide
English EN
Español ES
Français FR

Legend™ 330SR Spot QRG EN
2
About this
Guide
The Legend™ 330SR Spot Quick Reference Guide (QRG) has basic product
information such as connection, mounting, menu options, and DMX values.
Download the User Manual from www.chauvetpro.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change
without notice.
Safety Notes
•DO NOT open this product. It contains no user-serviceable parts.
•DO NOT look at the light source when the product is on.
•CAUTION: This product’s housing may be hot when lights are
operating.
•CAUTION: This product’s beam is hot when lights are operating. Be
careful not to aim at fire sprinklers or alarms when in use.
•Mount this product in a location with adequate ventilation, at least
40 ft (12.2 m) from objects to be lit.
•DO NOT leave any flammable material within 50 cm of this product
while operating or connected to power.
•USE a safety cable when mounting this product overhead.
•DO NOT operate this product outdoors or in any location where dust,
excessive heat, water, or humidity may affect it. (IP20)
•DO NOT operate this product if the housing, lenses, or cables appear
damaged.
•DO NOT connect this product to a dimmer or rheostat.
•ONLY connect this product to a grounded and protected circuit.
•ONLY use the hanging/mounting bracket or the handles to carry this
product. Do not carry by the moving head.
•In the event of a serious operating problem, stop using immediately.
•The maximum ambient temperature is 113 °F (45 °C). Do not operate
this product at higher temperatures.
Contact
Outside the U.S., United Kingdom, Ireland, or Mexico, contact your distributor
to request support or return a product. Visit www.chauvetpro.com
for contact
information.
What is
Included
•Legend™ 330SR Spot
•Neutrik® powerCON® power
cord
•2 Omega Brackets
•Warranty Card
•
Quick Reference Guide

EN Legend™ 330SR Spot QRG
3

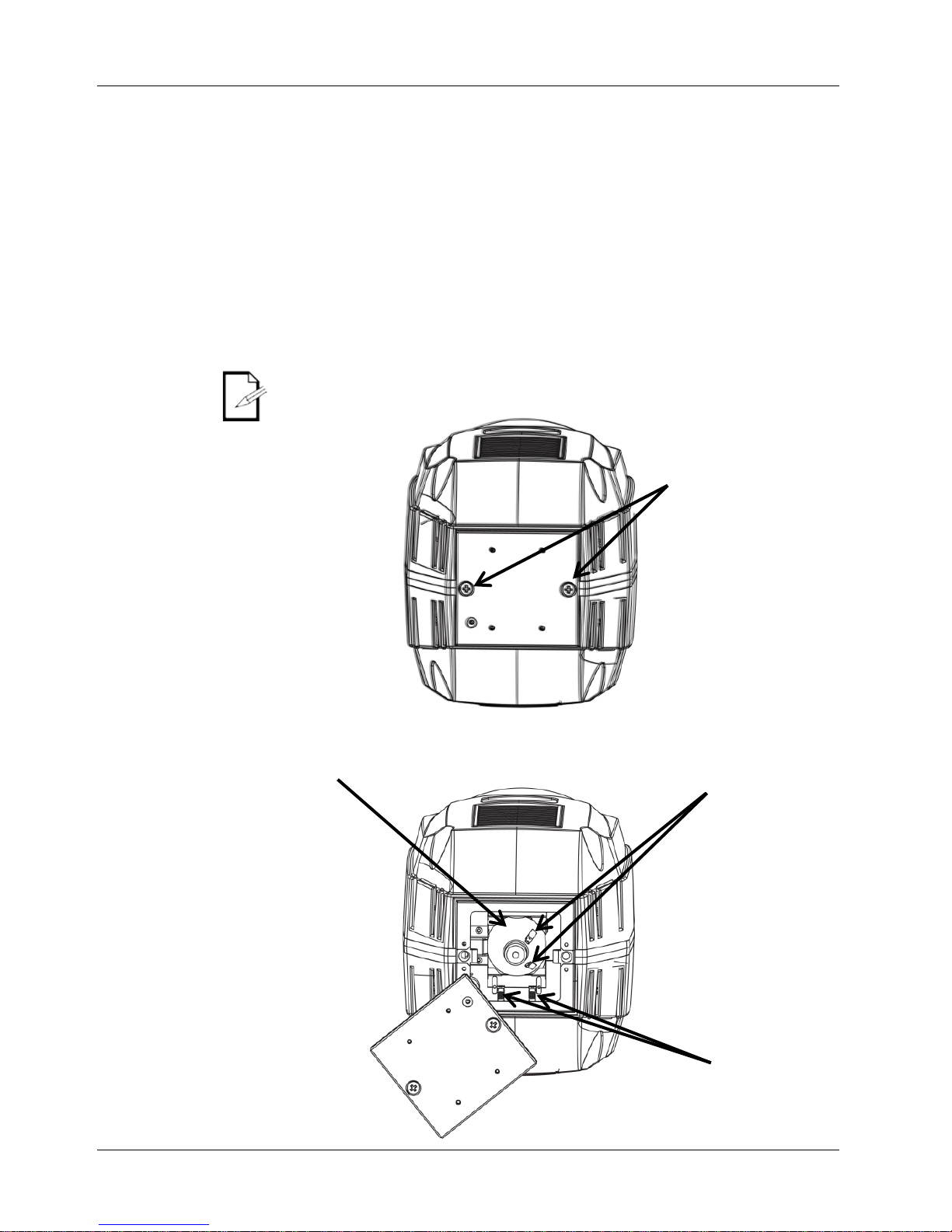

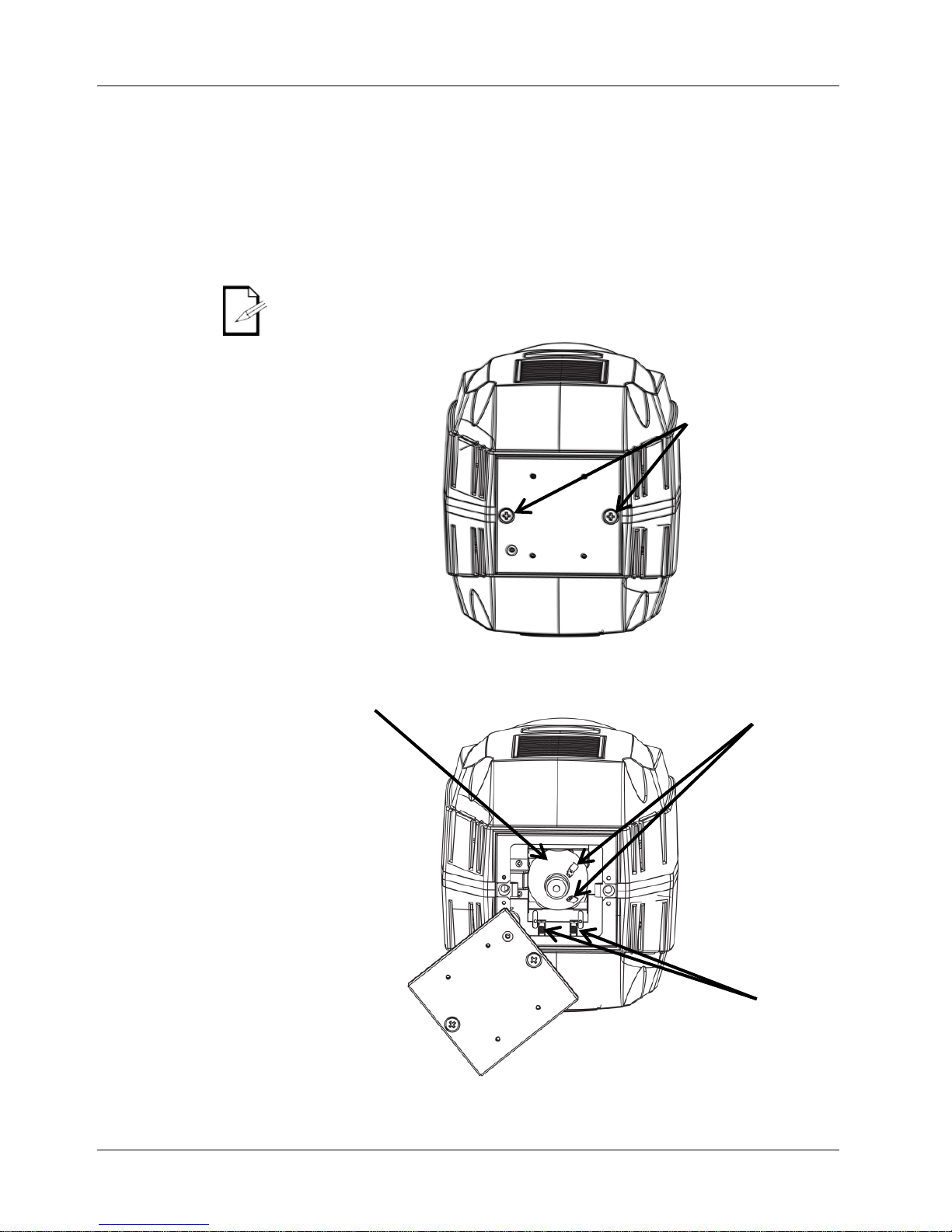

Lamp
Replacement
1. Turn the fixture off and disconnect it from power.
2. Wait at least 15 minutes for the lamp to cool down.
3. Remove back cover using the 2 Phillips-head ¼-turn screws.
4. Orient the rear of the product so that the fan is facing downward.
5. Using the lamp base, push the lamp down against the spring clips
located on the bottom, and then roll the lamp out the top.
6. Remove the 2 wires connected to the lamp by the spade connectors.
7. Reverse steps 3 thru 6 above to install the new lamp.
Please refer to the User Manual for more detailed instructions with images.
¼-turn
Phillips-head
Screws
Spade
Connectors
Lamp
Spring
Clips

Legend™ 330SR Spot QRG EN
4
AC Power
This product has an auto-ranging power supply that can work with an input
voltage range of 100~240 VAC, 50/60 Hz.
AC Plug
Connection
Wire (U.S.)
Wire (Europe)
Screw Color
AC Live
Black
Brown
Yellow/Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green
Replacing the
Fuse
1. Disconnect this product from power.
2. Using a Phillips #2 head screwdriver, unscrew the fuse holder cap
from the housing.
3. Remove blown fuse and replace with a good
fuse of the same type and
rating.
4. Screw the fuse holder cap back in place and reconnect power.
DMX Linking
The Legend™ 330SR Spot will work with a DMX controller using a regular
DMX serial connection. A DMX Primer is available from
www.chauvetpro.com.
DMX Connection
The Legend™ 330SR Spot uses a regular DMX data connection for its DMX
personalities: Mode1 (21) and Mode2 (27)
. See the User Manual to connect
and configure for DMX operation.

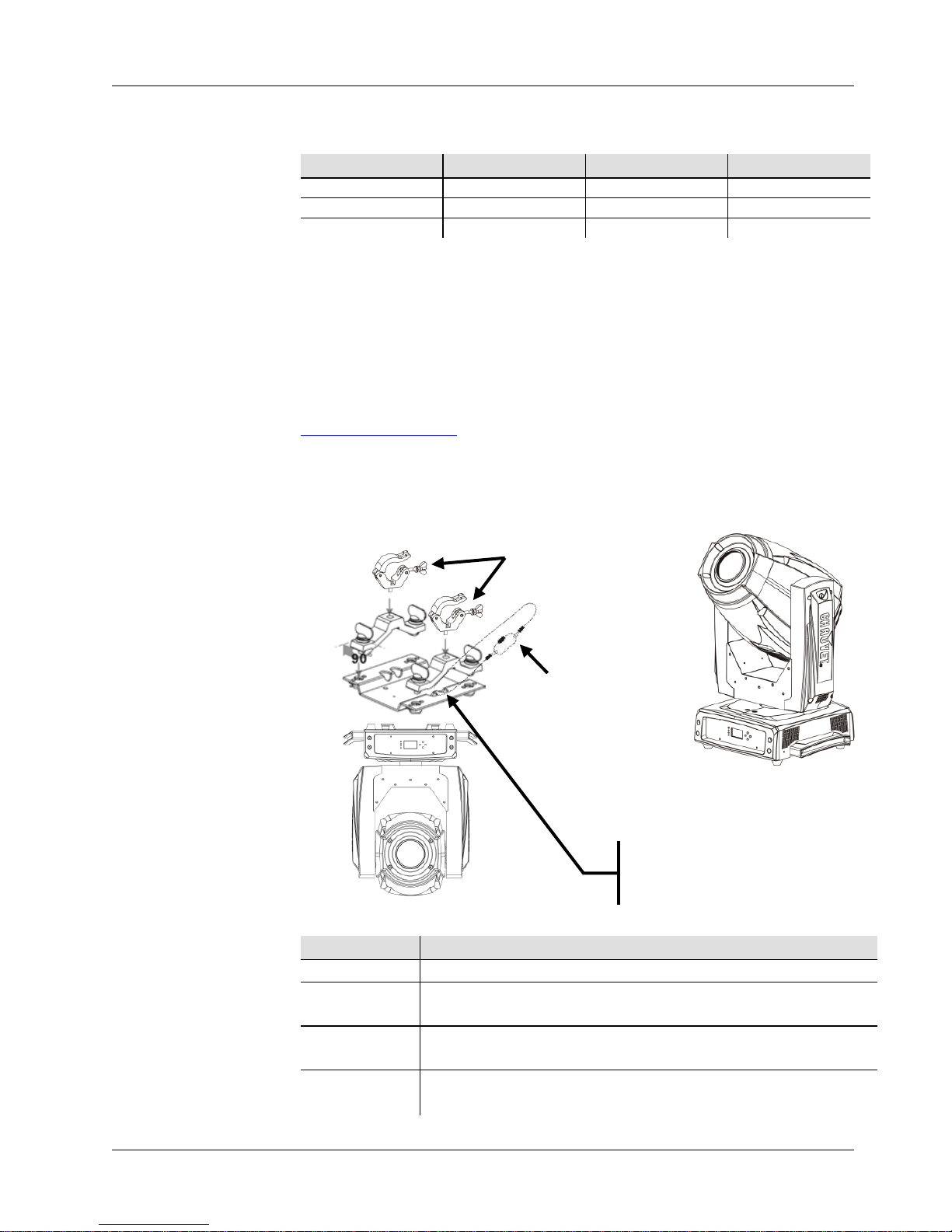

Mounting
Product
Mounting
Diagram
Control Panel
Description
Button
Function
<MENU>
Exits from the current menu or function
<ENTER>
Enables the currently displayed menu or sets the
currently selected value into the selected function
<UP>
Navigates upwards through the menu list and
increases the numeric value when in a function
<DOWN>
Navigates downwards through the menu list and
decreases the numeric value when in a function
Secure the safety cable using
the passageway on the back
of the product.
Overhead Mounting
Floor Mounting
Safety Cable
(works with CH-05 from
CHAUVET®)
Mounting Clamps
(
such as CLP-15 or CLP-15N
clamp from CHAUVET®)

EN Legend™ 330SR Spot QRG
5
Menu Options
Main Level
Programming Levels
Description
DMX Functions
DMX Address
001–512
Selects a starting DMX address
DMX Channel
Mode
Mode1 (21)
Selects the 21-channel DMX mode
Mode2 (27)
Selects the 27-channel DMX mode
View DMX Value
Shows current DMX values for each
channel
Fixture Setting
Pan Inverse
No
Defines the direction of the pan function
Yes
Tilt Inverse
No
Defines the direction of the tilt function
Yes
P/T Feedback
No
Defines auto correct function
Yes
Bl.o. P/T Moving
No
Defines the pan/tilt move-in black delay
Yes
Bl.o. Color Change
No
Defines the color change move-in black
delay
Yes
Bl.o. Gobo Change
No
Defines the gobo change move-in black
delay
Yes
Lamp Setting
On/Off
OFF
Turns lamp on/off
ON
State/Power On
OFF
Defines the status of the lamp when
powering up the product
ON
Off Via DMX
No
Turns off the unit via DMX controller
Yes
On if DMX On
No
Turns lamp on when DMX signal is
detected
Yes
Off if DMX Off
No
Turns lamp off when DMX signal is lost
Yes
Ignition Delay 0S–255S
Selects duration of delay between
product power on and lamp power on
Low Power Delay 0S–255S
Selects the duration of delay when
shutter is closed and lamp enters lower
power state
Display Setting
Display Inverse
No
Defines the direction of the display
Yes
Backlight Auto Off
No
Display backlight always on
Yes
Display backlight turns off after 1 minute
of control panel inactivity
Backlight Intensity
1–10
Selects backlight intensity from dim (1) to
bright (10)
Temperature Unit
°C
Defines how temperature is displayed
°F

Legend™ 330SR Spot QRG EN
6
Menu Options (cont.)
Main Level
Programming Levels
Description
Fixture Test Auto Test
Selects the product’s automatic test
sequence
Manual Test
Selects the product’s manual test function
Fixture Information
Fixture Use Time
Displays total hours of products use
Lamp On Time Exit
Displays the amount of time the lamp has
been on
Reset Time
Resets lamp timer to 0
Firmware Version
Displays the firmware version
Reset Functions
Pan/Tilt
No
Resets pan/tilt function to home position
Yes
Shutter
No
Resets shutter function to home position
Yes
Color/CMY
No
Resets color wheel/color flags to home
position
Yes
Gobo/Iris
No
Resets gobo wheel/iris functions to home
position
Yes
Zoom/Frost/Focus/
Prism
No
Resets zoom/frost/focus/prism functions
to home position
Yes
All
No
Resets all functions to home position
Yes
Special Functions
Fixture
Maintenance
Interval 10–300 h
Defines amount of hours between
maintenance
Remain
Time Exit
Shows amount of time remaining in
maintenance cycle
Reset Time
Resets maintenance timer
Factory Setting
No
Sets product back to default factory
settings
Yes

EN Legend™ 330SR Spot QRG
7
DMX Values
Mode1 (21)
Channel
Function
Value
Percent/Setting
1
Pan
000 ó255
0–100%
2
Fine Pan
000 ó255
0–100%
3
Tilt
000 ó255
0–100%
4
Fine Tilt
000 ó255
0–100%
5
Pan/Tilt Speed
000 ó255
Fast to slow
6
Dimmer
000 ó255
0–100%
7 Shutter
000 ó007
008 ó015
016 ó131
132 ó167
168 ó203
204 ó239
240 ó247
248
ó
255
No function
Open
Slow to fast (strobe)
Fast close/slow open
Slow close/fast open
Slow to fast (pulse effect)
Random strobe
Open
8 Color Wheel
000 ó007
008 ó015
016 ó023
024 ó031
032 ó039
040 ó047
048 ó055
056 ó063
064 ó127
128 ó189
190 ó193
194
ó
255
Open
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
Index/split color
Clockwise rotation, fast to slow
Stop
Counter-clockwise rotation, slow to fast
9
Cyan
000 ó255
0–100%
10
Magenta
000 ó255
0–100%
11
Yellow
000 ó255
0–100%
12 Gobo Wheel 1
000 ó007
008 ó014
015 ó021
022 ó028
029 ó035
036 ó042
043 ó049
050 ó056
057 ó063
064 ó127
128 ó189
190 ó193
194
ó
255
Open
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 1–8 bounce
Clockwise rotation, fast to slow
Stop
Counter-clockwise rotation, slow to fast

Legend™ 330SR Spot QRG EN
8
DMX Values (cont.)
Mode1 (21)
(cont.)
Channel
Function
Value
Percent/Setting
13 Gobo Wheel 1
Rotate
000 ó127
128 ó189
190 ó193
194 ó255
Index/split gobo
Clockwise rotation, fast to slow
Stop
Counter-clockwise rotation, slow to fast
14 Gobo Wheel 2
000 ó004
005 ó009
010 ó014
015 ó018
019 ó023
024 ó028
029 ó033
034 ó037
038 ó042
043 ó047
048 ó052
053 ó056
057 ó061
062 ó066
067 ó071
072 ó127
128 ó189
190 ó193
194 ó255
Open
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 9
Gobo 10
Gobo 11
Gobo 12
Gobo 13
Gobo 14
Gobo 1–14 bounce
Clockwise rotation, fast to slow
Stop
Counter-clockwise rotation, slow to fast
15
Focus
000 ó255
0–100%
16
Zoom
000 ó255
0–100%
17 Prism Wheel
000 ó007
008 ó127
128 ó191
192 ó255
No function
Prism insert
Effect 1
Effect 2
18 Prism Rotation
000 ó127
128 ó190
191 ó192
193
ó
255
Index
Clockwise rotation, fast to slow
Stop
Counter-clockwise rotation, slow to fast
19
Iris
000 ó255
0–100%
20
Frost
000 ó255
0–100%

EN Legend™ 330SR Spot QRG
9
DMX Values (cont.)
Mode1 (21)
(cont.)
Channel
Function
Value
Percent/Setting
21 Control
000
ó
069
070 ó079
080 ó089
090 ó099
100 ó109
110 ó119
120 ó129
130 ó139
140 ó149
150 ó159
160 ó169
170 ó179
180 ó189
190 ó199
200 ó209
210 ó219
220 ó229
230 ó239
240 ó255
No function
Pan/tilt blackout mode enabled
Pan/tilt blackout mode disabled
Color wheel change blackout mode enabled
Color wheel change blackout mode disabled
Gobo change blackout mode enabled
Gobo change blackout mode disabled
Lamp on
Pan/tilt reset
Color/CMY reset
Gobo/iris reset
Shutter/dimmer reset
No function
Frost/focus reset
Reset all
Color, gobo, pan/tilt change blackout mode
enabled
Color, gobo, pan/tilt change blackout mode
disabled
Lamp off
No function

Legend™ 330SR Spot QRG EN
10
DMX Values (cont.)
Mode2 (27)
Channel
Function
Value
Percent/Setting
1
Pan
000 ó255
0–100%
2
Fine Pan
000 ó255
0–100%
3
Tilt
000 ó255
0–100%
4
Fine Tilt
000 ó255
0–100%
5
Pan/Tilt Speed
000 ó255
Fast to slow
6
Dimmer
000 ó255
0–100%
7
Fine Dimmer
000 ó255
0–100%
8 Shutter
000 ó007
008 ó015
016 ó131
132 ó167
168 ó203
204 ó239
240 ó247
248
ó
255
No function
Open
Slow to fast (strobe)
Fast close/slow open
Slow close/fast open
Slow to fast (pulse effect)
Random strobe
Open
9 Color Wheel
000 ó007
008 ó015
016 ó023
024 ó031
032 ó039
040 ó047
048 ó055
056 ó063
064 ó127
128 ó189
190 ó193
194
ó
255
Open
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
Index/split color
Clockwise rotation, fast to slow
Stop
Counter-clockwise rotation, slow to fast
10
Cyan
000 ó255
0–100%
11
Magenta
000 ó255
0–100%
12
Yellow
000 ó255
0–100%
13 CMY Speed
000 ó254
255
Fast to slow
Fast
