Chauvin Arnoux C.A 8220 User manual

1
C.A 8220
SINGLE PHASE POWER ANALYSER
Operating instructions
ENGLISH

2
Meaning of symbol. Warning! Read these operating instructions carefully before using the appliance.
If the instructions preceded by this symbol are not followed in this operating manual, an accident to
persons or damage to the appliance and the installations may result.
Compliant with directive WEEE 2002/96/EC.
You have just purchased a C.A 8220 single phase power detector and we would like to thank you for your
confidence.
To get the best service from your appliance:
Read these operating instructions carefully,
Follow the precautions before use.
PRECAUTIONS FOR USE
Respect the climatic conditions for use (see paragraph 8.4.1, on page 32).
This appliance can be used on category III installations, for voltages not exceeding 600 V RMS to earth (in
accordance with CEI 664-1 Ed. 92).
CAT III: the measurement category III corresponds to the measurements taken in the building installation.
Example: measurements of electrical panels, cabling, etc.
This appliance can be used on category IV installations, for voltages not exceeding 300 V RMS to earth (in
accordance with CEI 664-1 Ed. 92).
CAT IV: the measurement category IV corresponds to measurements carried out at the source of the low
voltage installation. Example: metering and measurements on the overload protection devices.
Only use measurement and voltage category accessories that are earthed at least equally to the product itself.
When removing the battery, please ensure that the measurement and sensor cables are unplugged.
GUARANTEE
Our guarantee, except with express stipulation, is valid for twelve months after the date the material is provided
(extract from our General Terms and Conditions of Sale, sent on request).

3
CONTENTS
1. Introduction ........................................4
2. Colisage ..............................................4
3. Présentation........................................5
3.1 Vue générale .................................................... 5
3.2 Les bornes électriques ..................................... 5
3.3 L’écran de visualisation .................................... 5
3.4 Les touches ...................................................... 7
3.5 Le commutateur rotatif...................................... 7
3.6 Le témoin lumineux .......................................... 7
3.7 L'interface optique ............................................ 7
3.8 La béquille ........................................................ 7
3.9 L’alimentation ................................................... 7
3.10 Résumé des fonctions .................................... 8
4. Commutateur rotatif et modes ..........9
4.1 Vue générale du commutateur ......................... 9
4.2 Note sur le choix d’un mode ............................. 9
4.3 Position OFF..................................................... 9
4.4 Position ................................................ 10
4.5 Position .................................................. 12
4.6 Position ........................................... 13
4.7 Position .................................................. 14
4.8 Position (mode vitesse de rotation)....... 17
4.9 Position ................................................. 17
4.10 Position (mode configuration) ....Erreur !
Signet non défini.
5. Les touches (outils)Erreur ! Signet non
défini.
5.1 Touche .................................................... 21
5.2 Touche ................................................... 21
5.3 Touche .................................................. 22
5.4 Touche ................................................... 23
5.5 Touches ........................................ 24
5.6 Touche blanche ................................... 24
5.7 Touche jaune ....................................... 24
6. Utilisation ..........................................25
6.1 Mise en marche .............................................. 25
6.2 Mise en place des cordons ............................. 26
6.3 Extinction automatique ................................... 27
6.4 Mesure des tensions ...................................... 27
6.5 Mesure des courants ....................................... 27
6.6 Mesure des puissances.................................. 27
6.7 Mesure des harmoniques ............................... 27
6.8 Mesure Inrush................................................. 27
6.9 Détermination de la rotation des phases ........ 28
6.10 Mesure de la vitesse de rotation................... 28
6.11 Mesure de la température............................. 28
6.12 Mesure de résistance ................................... 28
6.13 Photographie de mesures............................. 28
6.14 Arrêt de l’appareil ......................................... 28
6.15 Affichage d’informations ............................... 28
6.16 Alimentation du C.A 8220 ............................. 28
7. Maintenance......................................29
7.1 Recommandation importante.......................... 29
7.2 Batterie ........................................................... 29
7.3 Nettoyage du boîtier ....................................... 29
7.4 Vérification métrologique ................................ 29
7.5 Réparation ...................................................... 29
7.6 Mise à jour du logiciel embarqué .................... 29
7.7 Capteurs ......................................................... 30
8. Caractéristiques générales .............31
8.1 Boîtier ............................................................. 31
8.2 Alimentations .................................................. 31
8.3 Conformité ...................................................... 32
8.4 Conditions d'environnement ........................... 32
9. Caractéristiques fonctionnelles......33
9.1 Conditions de référence ................................. 33
9.2 Caractéristiques électriques ........................... 33
10. Annexes ..........................................37
10.1 Formules mathématiques ............................. 37
10.2 Diagramme des 4 quadrants ........................ 38
10.3 Saturation des voies d’entrée ....................... 38
11. Pour commander............................39
11.1 Power Quality Analyser C.A 8220........................ 39
11.2 Accessoires .................................................. 39
11.3 Rechanges ................................................... 39

4
1. INTRODUCTION
The C.A 8220 is an AC+DC 600 V category III
single phase power analyser (IEC 1010) with a
digital LCD display screen. It is a measurement tool
for effective values, power and electricity distribution
network disturbances, enabling the user to obtain
instant images of the main characteristics of a single
phase network (voltage, current, powers,
voltage/current harmonics, etc.) and to monitor
machines in operation (temperature, current and
duration of launch, resistance of windings, rotation
speed). Compact and shock resistant, its ergonomic
design and easy interface make it user friendly and
intuitive.
The C.A 8220's accuracy is better than 1% (not
including error due to current sensors). It has a
greater flexibility due to its choice of different
sensors for measuring from a few hundred
milliamperes (MN93A) to several kiloamperes
(AmpFLEX).
The C.A 8220 is designed for technicians, company
control and maintenance team engineers, as well as
administrations subscribed to yellow rates (36,kVA
to 250,kVA) and green rates (> 250 kW).
The characteristics of the appliance are detailed on
page 34.
2. PACKAGE
Basic equipment
Description Qty
Set of 2 banana-banana security cables (red /
black) (IEC 1010).
1
Set of 2 crocodile clamps (red/ black). 1
Set of 2 test leads (red / black). 1
An MN93A clamp (‘black’) or an AmpFLEX A193
450 mm sensor (‘black’) or without current sensor.
-
AA format non-rechargeable battery (IEC LR6 or
NEDA 15A).
6
Optical RS232 cable with RS232-USB adapter. 1
Operating instructions on CD-ROM and various
documents.
1
Optional equipment
Description
Transportation pouch.
Power supply unit (600 VRMS cat. III)
MN93, MN93A, C193, PAC93 clamps
AmpFLEX A193 800 mm and 450 mm sensor.
Six rechargeable cells (on external charger available as
an option) in AA format (LR6 - NEDA 15A) with minimal
capacity of 1800 mAh.
Data processing software.
5 A adapter unit (three phase) (for simultaneous
connection of 3 C.A 8220's).
Thermic Seiko DPU 414 printer, delivered with optical
cable.

5
3. PRESENTATION
3.1 Overview
Figure 1: Overview of C.A 8220. 001
Rep. Function See §
1. Electrical terminals. 3.2
2. LCD screen with backlighting. 3.3
3. Blue keys. 3.4
4. White/yellow keys. 3.4
5. Rotary switch. 3.5
6. Infrared optical interface. 3.7
7. External power light indicator. 3.6
3.2 Electrical terminals
Located on the top of the appliance, these terminals
are used as follows:
002
Figure 2: The terminals on the top of the appliance.
Rep. Function
1. External power supply via dedicated power unit
(option).
2. 4 point entry for amperemetric sensor (MN clamp,
C clamp, AmpFLEX, etc.) (the type of current
sensor is automatically detected and updated
every second).
3. Security adaptor for voltage measurement cable
(negative terminal).
4. Security adaptor for voltage measurement cable
(positive terminal).
3.3 Visualisation screen
3.3.1 Presentation
This monochrome backlit liquid crystal display
(LCD), has 172 segments for visualising
measurements, saved data or settings menus. The
detailed information relating to the measures
visualised on this screen are the subject of chapter
4 on page 9. The following figure visualises all the
displayable segments.
Figure 3: The displayable segments. E00

6
3.3.2 Backlighting
Activate by simultaneously pressing the yellow
() and white ( ) keys.
Switch off :
- By simultaneously pressing the yellow ( )
and white ( ) keys again;
- Or by switching the rotary switch to the OFF
position.
3.3.3 Icons
The display uses the following icons:
Icon Meaning Page
Measurements relating to voltage. 10
Measurements relating to electrical
current.
11
Power measurement (active, reactive,
apparent).
12
Calculations associated with connection
to a balanced activated three phase
network.
12
Measurement of voltage or current
harmonics.
13
Measurement of motor starting (inrush). 14
Detection of order of phase rotation. 15
Measurement of rotation speed. 17
Measurement of temperature. 17
Measurement of resistance (up to 2000
Ω).
17
Battery low. 8
Configuration of C.A 8220. 18
Flashes during data transfer of
information to the thermic serial printer.
23
Number of active pages compared with
total number of pages in the multiple
pages modes.
Flashes while measurements are being
photographed.
21
Consultation of list of photographs,
visualisation of a photograph.
21
Deletion of one or all the photographs.
Re-initialisation of effective values
during half-period of voltage or current.
22
3.3.4 Abbreviations
The display uses the following abbreviations:
Unit Meaning
% Percentage.
ΩResistance in ohms.
°C Temperature in degrees Celsius.
°F Temperature in degrees Fahrenheit.
A Intensity in amperes.
AVG Real RMS value of the signal calculated over
one second.
CF Crest Factor (current or voltage).
DC Continuous current and voltage component.
DPF Displacement Factor (cosine of Φ).
Hz Network frequency in hertz.
k Kilo (103).
KF K Factor (for transformers).
MAX Maximum RMS half-cycle voltage or current
value.
MIN Minimum RMS half-cycle voltage or current
value.
PEAK Instantaneous maximum (+) or minimum (-)
crest value of signal measured.
PF Power Factor (ratio of active power on the
apparent power).
RMS Real effective value (voltage or current).
RPM Rotation speed in revolutions per minute
(rotation per minute).
s Duration in seconds.
THD-F Total Harmonic Distortion (or THD).
THD-R Distortion Factor (or DF).
V Voltage in volts.
VA Apparent Power (total if ).
VAR Reactive Power (total if ).
W Active Power (total if ).

7
3.4 Keys
Each key corresponds to one or more tools:
Rep. Tool Page
Photographs measurements, viewable by
pressing the key.
21
Prints all measurements currently
displayed on a thermic serial printer.
23
Selects the previous page, returns to
previous step or (if only one page)
selects the value.
24
Selects the following page, advances to
the next step or (if only one page) selects
the value.
24
Views screen photographs memorised by
the key.
21
Deletion of one or all the screen
photographs memorised or re-
initialisation of the effective maximum
and minimum half-cycle values.
22
(White key) Access to voltage, power,
voltage harmonic, motor start current,
rotation speed and temperature modes.
24
Reduction of the value in Configuration
mode.
24
Access to the Information mode. 24
(Yellow key) Access to the current,
balanced three-phase, current harmonic,
phase rotation and resistance modes.
24
Reduction of the value in Configuration
mode.
24
Inhibition of automatic extinction. 27
+ (White and yellow keys): activation
or de-activation of the display backlight.
3.5 The rotary switch
Its eight possible positions select the operating
mode of the C.A 8220 (voltage, current, power,
etc.). Details of available modes are given in
chapter 4 on page 9.
3.6 The light indicator
Located in the bottom right hand corner of the
appliance, this light indicator (Figure 1, rep. 7) (LED
orange) is:
Lit when the C.A 8220 is running on the optional
mains power.
Switched off when the C.A 8220 is running on
its internal battery.
3.7 The optical interface
This optical bidirectional connection (Figure 1, rep.
6) has three distinct functions:
Transmits all information and measurements
relating to the current mode from the C.A 8220
to a thermic serial printer.
Transmits all measurement data via specialised
software from the C.A 8220 to a PC,.
Transfers any embedded software updates
available on the Chauvin Arnoux website from a
PC to the C.A 8220.
In the last two cases, the transfer rate is
automatically determined by the C.A 8220, in
compliance with the software used; the maximum
speed reaching 115.2 kbps.
Communication between the CA 8220 and the
PC can be, in certain cases, much improved by
using the USB connection rather than the PC's
RS232 connection.
3.8 The support stand
A retractable support stand (Figure 4, rep. 4), fixed
at the back of the C.A 8220, and maintains the
appliance in a position 30° to horizontal.
3.9 Power
3.9.1 Battery
The electrical power supply for the C.A 8220 is
ensured via six elements (standard batteries or
rechargeable batteries) (Figure 4, rep. 1) in AA
format (LR6 - NEDA 15A). The battery life is
detailed in paragraph 3.9.2.
The elements are accessible, from the back of the
C.A 8220, by turning the lock a quarter turn (rep. 2)
anti-clockwise using a coin (rep. 3).
Figure 4: Accessing the battery elements. 00 3

8
3.9.2 Battery life
The table below details the battery life, in hours,
depending on the type of battery.
Back-lighting
Type of power supply Without With
AA batteries > 40 hours > 20 hours
NiMH 1800, mAh
accumulators > 30 hours > 16 hours
NiCd 900mAh accumulators > 15 hours > 8 hours
3.9.3 Operating on battery power
The battery life depends on the type of battery used
(see paragraph 3.9.2). As soon as the pre-set
battery voltage threshold is reached, one of the alert
levels is activated:
Level 1: the battery capacity is weak, but the
appliance can still be used. The icon,
located in the bottom left of the screen, flashes
once per second. At the same time, an audible
beep is emitted once.
Level 2: the battery power is low enough to
require the immediate replacement of the
batteries. The icon, located in the bottom left
of the screen, flashes once per second. In
addition, every 10 seconds (and repeated 7
times for a whole minute) a beeping sound is
emitted together with the message
displayed on the screen. After once minute, the
appliance switches itself off.
Figure 5: The low battery indicator signals the need for a
replacement. BATT
3.9.4 Mains operation
When the optional power unit is plugged in, the C.A
8220 uses mains power, without discharging on the
internal battery. The orange light (Figure 1, rep. 7) is
lit. Indeed, the battery does not need to be fitted
when operating on mains power.
3.10 Summary of functions
3.10.1 Measurement functions
•Effective voltage value up to 600 V.
•Effective current value up to 6500 A.
•DC value for voltage and current.
•Effective minimum and maximum half-cycle
voltage and current values.
•Crest values for voltage and current.
•50 Hz, 60 Hz network frequencies (scope of
measure: 40 Hz to 70 Hz).
•Crest factor for current and voltage.
•K factor (KF) of current (application of
transformers).
•Distortion factor (DF or THD-R) of current and
of voltage.
•Total harmonic distortion (THD or THD-F) for
current and voltage.
•Active, reactive and apparent power.
•Power factor (PF) and displacement factor
(DPF or cos Φ).
•Active, reactive and apparent powers (totals in
balanced three-phase mode ).
•Harmonics for current and voltage up to rank
50: RMS value, percentage compared with
fundamental.
•Rotation speed.
•Temperature - temperature probe with 2
platinum 100 type wires (PT100). Simultaneous
display in °C and °F.
•Resistance values with beep over 20 Ω(by
default).
3.10.2 Advanced functions
•Inrush mode: display of parameters used for
the study of a motor start.
- Maximum absolute instantaneous current
value (on whole start).
- Maximum RMS half-cycle current value (on
whole start).
- Duration of motor start.
•Determination of order of phase rotation (2 wire
method): display of phase order for a three-
phase network.
•Photographs of data from voltage, current,
power, three-phase balanced, harmonic voltage
and harmonic current modes.
•Display of appliance information (serial number,
embedded software version, material version).
•Automatic shut-off of appliance.
3.10.3 Configuration functions
•Choice of connection (standard single-phase or
balanced three-phase).
•Threshold and hysteresis of motor starting
current.
•Number of events per revolution and threshold
for detection of events for the rotation speed
mode.
•Selection of TI (or TC) ratio for the MN93A
clamp (5 A calibre) and the 5A adapter.
•Automatic recognition of type of current sensor.

9
4. ROTARY SWITCH AND MODES
4.1 Overall view of switch
The modes available by turning the rotary switch to
its 8 positions are listed below with links to the
relevant pages.
4 5 6
3
2
1
7
8
Figure 6: View of modes accessible from the rotary switch.
07
The paragraphs with a yellow background relate
to the modes accessible after rotating the switch
to the desired position and pressing the yellow
key ( ).
05
Rep. Position Mode Page
1 OFF The appliance switched off. 9
2 Voltage mode. 10
+ Current mode. 11
3 Power mode. 12
+ Balanced three-phase
mode (3Φ).
12
4 Harmonic voltage mode. 13
+ Harmonic current mode. 14
5 Inrush mode (motor start). 14
+ Phase rotation mode. 15
6 Rotation speed mode. 17
7 Temperature mode. 17
+ Resistance mode. 17
8
Configuration mode. 18
4.2 Note on selecting a mode
This note is valid for all the positions of the rotary
switch with the exception of OFF, and .
Any given position of the rotary switch corresponds
to two measurement modes.
Example: in the position, the user can select
either the voltage mode (V), or the current mode
(A).
The mode corresponding to the white symbol is
activated when the rotary switch is positioned on
a function.
Example: the voltage mode is activated when
the switch is turned to the position.
To access a mode corresponding to the yellow
symbol, press the yellow key without changing
the position of the rotary switch. This selection is
indicated in the table opposite by boxes with a
yellow background.
Example: the current mode is activated when the
switch is in the position and after pressing
the yellow key .
To return to a mode with a white symbol, press
the white key ( ).
4.3 OFF position
The C.A 8220 is switched off.
Figure 7: The rotary switch in the OFF position. 07b
This position switches off the appliance.

10
4.4 Position
This position allows measurements relating to
voltages or currents.
Figure 8: The rotary switch in position. 08
4.4.1 Voltage mode
The pages are displayed in rotation by using the
keys. There are 4 measurement
pages in this mode.

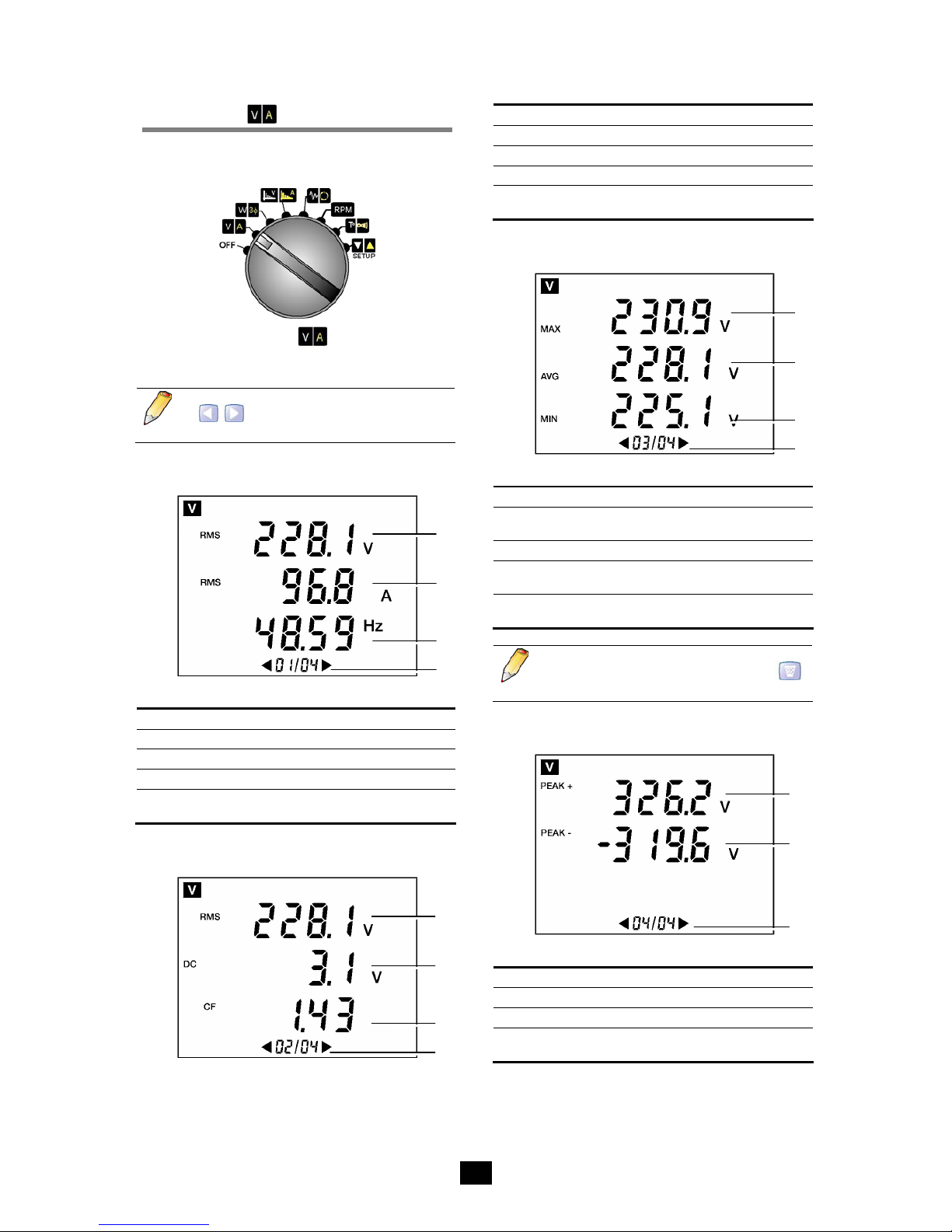

4.4.1.1 Page 1/4
Figure 9: Example of display of page 1/4. V1-4
Rep. Measurement
1. Voltage root mean square value (VRMS).
2. Current root mean square value (ARMS).
3. Network frequency (Hz).
4. Number of page displayed / total number of
pages.
4.4.1.2 Page 2/4
Figure 10: Example of display of page 2/4. V1-4
Rep. Measurement
1. Root mean square value (VRMS).
2. Continuous voltage value (VDC).
3. Voltage crest factor (VCF).
4. Number of page displayed / total number of
pages.
4.4.1.3 Page 3/4
Figure 11: Example of display of page 3/4. V3-4
Rep. Measurement
1. Effective maximum voltage half-cycle value
(VRMS1/2MAX) (see comment below).
2. Root mean square value (VRMS).
3. Effective maximum voltage half-cycle value
(VRMS1/2MAX) (see comment below).
4. Number of page displayed / total number of
pages.
The effective maximum and minimum half-cycle
values may be reinitialised by pressing the
key.
4.4.1.4 Page 4/4
Figure 12: Example of display of page 4/4. V1-4
Rep. Measurement
1. Maximum voltage crest value (VPEAK+).
2. Minimum voltage crest value (VPEAK+-).
3. Number of page displayed / total number of
pages.
1
2
3
1
2
3
4
1
2
3
4
1
2
3
4

11
4.4.2 Current mode
The pages are displayed in rotation by using the
keys. There are 4 measurement
pages in this mode.
4.4.2.1 Page 1/4
Figure 13: Example of display of page 1/4. A1-4
Rep. Measurement
1. Current root mean square value (ARMS).
2. Voltage root mean square value (VRMS).
3. Network frequency (Hz).
4. Number of page displayed / total number of
pages.
4.4.2.2 Page 2/4
Figure 14: Example of display of page 2/4. A2-4
Rep. Measurement
1. Current root mean square value (ARMS).
2. Continuous current value (ADC) for the PAC clamp
only.
3. Current crest factor (ACF).
4. Number of page displayed / total number of
pages.
4.4.2.3 Page 3/4
Figure 15: Example of display of page 3/4. A3-4
Rep. Measurement
1. Effective maximum current half-cycle value
(ARMS1/2MAX) (see note below).
2. Current root mean square value (ARMS).
3. Effective minimal current half-cycle value
(ARMS1/2MAX) (see note below).
4. Number of page displayed / total number of
pages.
The effective maximum and minimum half-cycle
values may be reinitialised by pressing the
key.
4.4.2.4 Page 4/4
Figure 16: Example of display of page 4/4. A4-4
Rep. Measurement
1. Maximum current crest value (APEAK+).
2. Minimum current crest value (APEAK -).
3. Current K factor (AKF).
4. Number of page displayed / total number of
pages.
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4

12
4.5 Position

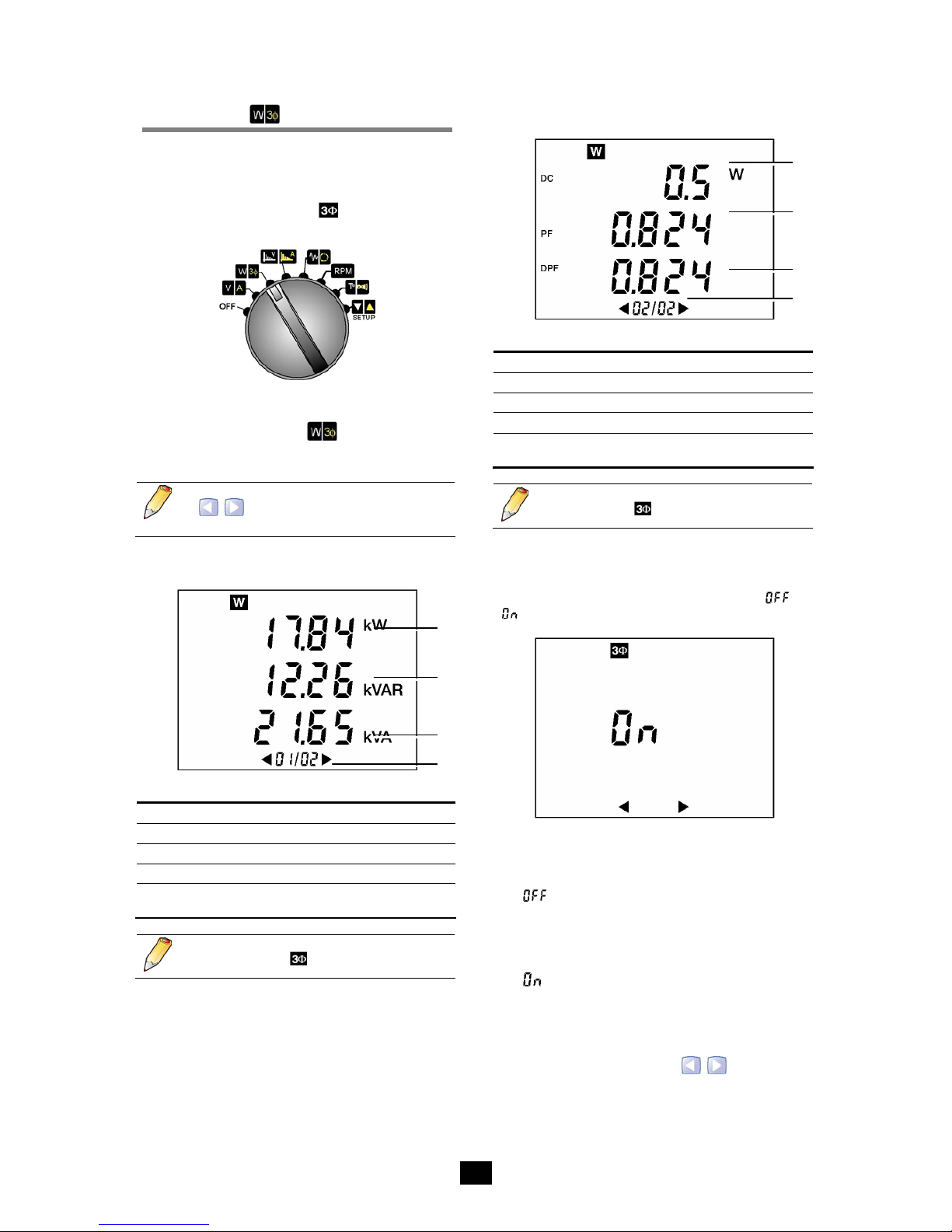

This measures the power (active, reactive,
apparent, continuous), of the power and
displacement factors (DPF or cosΦ). The user can
also define the activation or de-activation of the
balanced three-phase mode ( ) depending on the
type of connection.
Figure 17: The rotary switch in position. 16
4.5.1 Power mode
The pages are displayed in rotation by using the
keys. There are 2 measurement
pages in this mode.
4.5.1.1 Page 1/2
Figure 18: Example of display of page 1/2. W1-2
Rep. Measurement
1. Active power (W).
2. Reactive power (VAR).
3. Apparent power (VA).
4. Number of page displayed / total number of
pages.
The powers displayed are the total powers (sum
of 3 phases) if the symbol is displayed.
4.5.1.2 Page 2/2
Figure 19: Example of display of page 2/2. W2-2
Rep. Measurement
1. Continuous power (WDC).
2. Power factor (PF).
3. Displacement factor (DPF, also noted as cosΦ).
4. Number of page displayed / total number of
pages.
The total continuous power (WDC) is not
visualised if the symbol is displayed.
4.5.2 Selection of balanced three-phase
calculations
When in view mode, the display indicates or
.
Figure 20: In this example, the calculations concerning the
three-phase balanced network are activated. 3PHI
With the message:
: the calculations (see § 10.1.9) associated
with the connection of the appliance to a three-
phase balanced network are de-activated. This
choice is selected when measuring single-phase
networks.
: the calculations (see §) associated with the
connection of the appliance to a three-phase
balanced network are activated. This choice is
selected when measuring three-phase balanced
networks.
The choice is made using the keys.
1
2
3
4
1
2
3
4

13
4.6 position
This measures the total harmonic distortion rate on
voltage and current, as well as the effective value,
the harmonic distortion factor, any continuous
harmonic component and harmonics up to rank 50,
over 51 or 52 pages.
Figure 21: The rotary switch in position .10

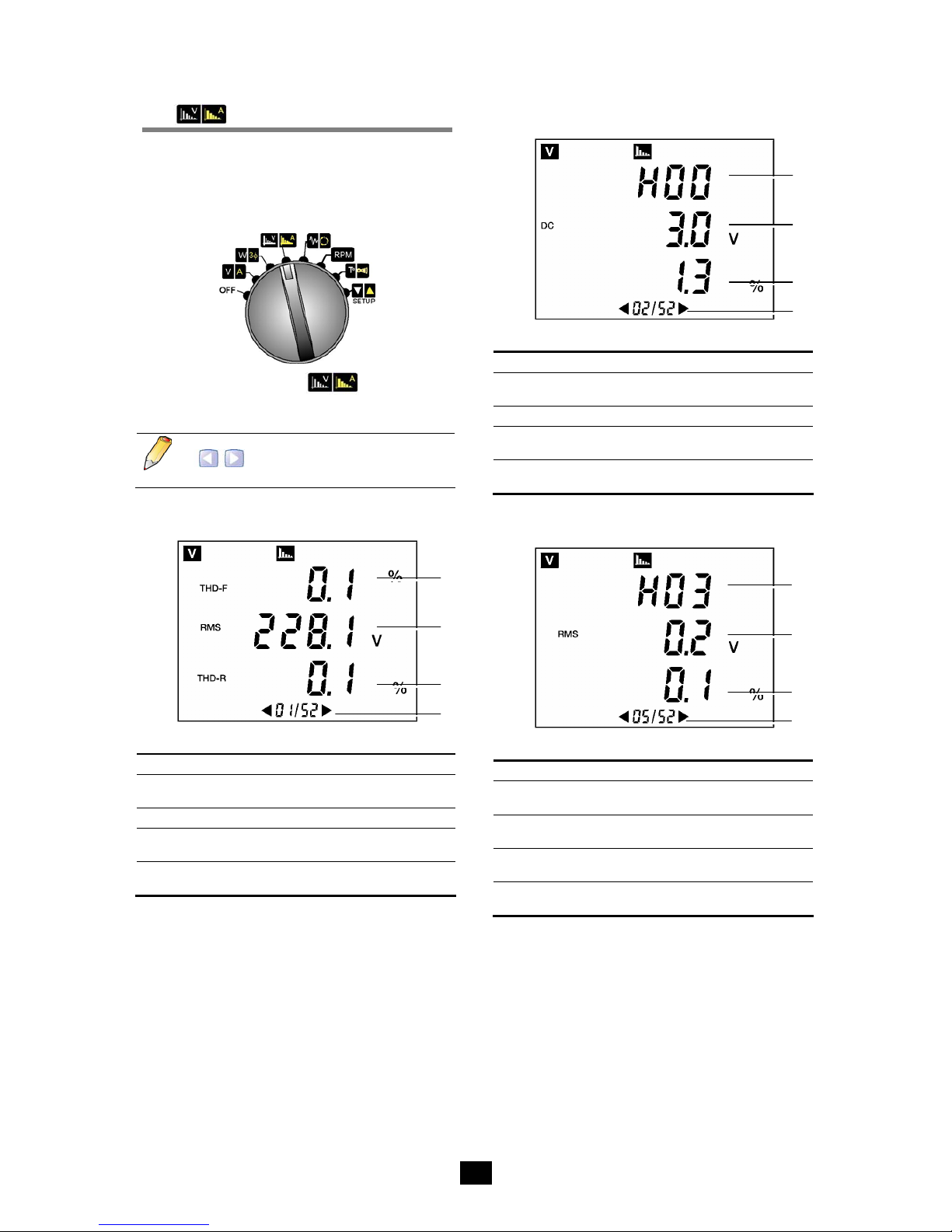

4.6.1 Harmonic voltage mode
The pages are displayed in rotation by using the
keys. There are 52 measurement
pages in this mode.
4.6.1.1 Page 1/52
Figure 22: Example of display of page 1/52. VH1-52
Rep. Measurement
1. Rate of total voltage harmonic distortion (VTHD-F -
also noted as VTHD).
2. Root mean square value (VRMS).
3. Voltage distortion factor (VTHD-R – also noted as
VDF).
4. Number of page displayed / total number of
pages.
4.6.1.2 Page 2/52
Figure 23: Example of display of page 2/52. VH2-52
Rep. Measurement
1. Number of voltage harmonic considered (here
ranked 00).
2. The continuous harmonic component value.
3. Percentage of the continuous value compared
with the effective fundamental value.
4. Number of page displayed / total number of
pages.
4.6.1.3 Page 5/52
Figure 24: Example of display of page 5/52. VH5-52
Rep. Measurement
1. Number of voltage harmonic considered (here
ranked 03).
2. Effective value of the harmonic component
considered.
3. Percentage of this effective value compared with
the effective fundamental value.
4. Number of page displayed / total number of
pages.
1
2
3
4
1
2
3
4
1
2
3
4

14

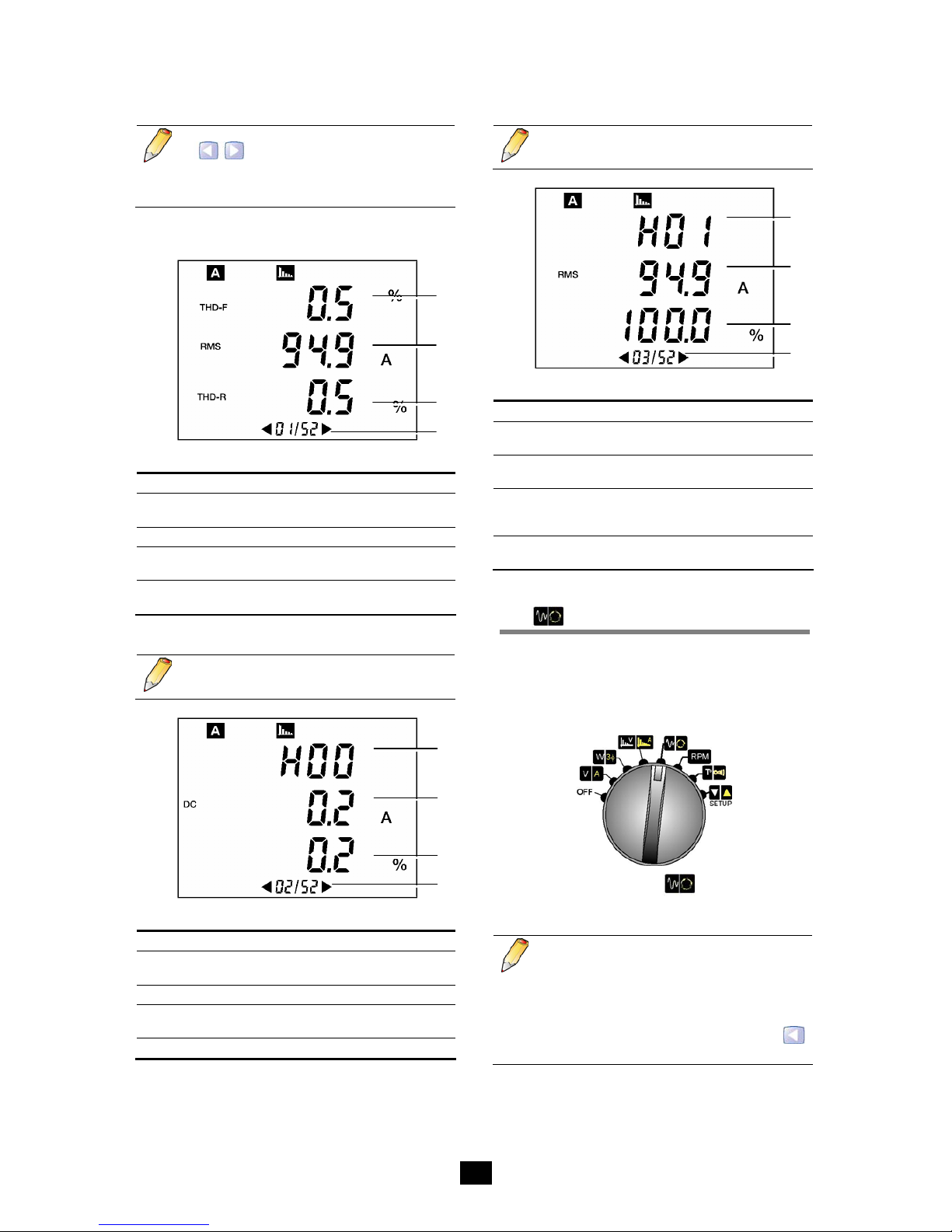

4.6.2 Current harmonic mode
The pages are displayed in rotation by using the
keys. There are 52 measurement
pages in this mode when a PAC clamp is
connected and 51 measurement pages for all
the other current sensors.
4.6.2.1 Page 1/52
Figure 25: Example of display of page 1/52. AH1-52
Rep. Measurement
1. Rate of total current harmonic distortion (ATHD-F –
also noted as ATHD).
2. Current root mean square value (ARMS).
3. Current distortion factor (ATHD-R - also noted as
ADF).
4. Number of page displayed / total number of
pages.
4.6.2.2 Page 2/52 (with PAC clamp)
When the current sensor is not a PAC clamp,
refer to the next paragraph.
Figure 26: Example of display of page 2/52. VH2-52
Rep. Measurement
1. Number of voltage harmonic considered (here
ranked 00).
2. Continuous harmonic component value.
3. Percentage of the continuous value compared
with the effective fundamental value.
4. Number of page displayed/ total number of pages.
4.6.2.3 Page 3/52 – with PAC clamp
This screen corresponds to screen 2/52 when
the current sensor is not a PAC clamp.
Figure 27: Example of display of page 3/52. VH3-52
Rep. Measurement
1. Number of voltage harmonic considered (here
ranked 01).
2. Effective value of the harmonic component
considered.
3. Percentage of this effective value compared with
the effective fundamental value. In this example,
the fundamental is 100% of itself.
4. Number of page displayed / total number of
pages.
4.7 position
This measures the values relative to a motor start
(maximum half-cycle current effective value,
maximum absolute instantaneous current value,
duration of start) and determines the order of phase
rotation.
Figure 28: The rotary switch in position. 11
4.7.1 Inrush mode (motor start)
This mode requires the C.A 8220 to be pre-
configured. Refer to paragraphs 4.10.1 and
4.10.2 and on page 18. The cables (voltage and
current) can be connected either in single-phase
or balanced three-phase mode.
During steps 2, 3 and 4, it is possible to go back
to the first step (step 1/4) by pressing the
key.
1
2
3
4
1
2
3.
4
1
2
3
4

15
4.7.1.1 Step 1/4
As soon as the appliance is switched to this mode,
the display indicates that the C.A. 8220 is ready.
Pressing the key accesses step 2/4.
Figure 29: The C.A. 8220 is ready. IR01
The symbol means ready.
4.7.1.2 Step 2/4
Figure 30: The C.A. 8220 waits until the starting current
trigger threshold is exceeded. IR02
The symbol means measuring
(measurement in progress).
The motor to be monitored is thus switched on. The
C.A 8220 waits until the effective half-cycle current
exceeds the current threshold for the parametered
motor start (adjustment of this threshold in § 4.10.1,
on page 18). The effective current calculated over a
second is continuously displayed (rep.1). The
appliance automatically moves to step 3/4.
4.7.1.3 Step 3/4
As soon as the motor starting threshold is reached,
the stopwatch is started (see Figure 31).
Once the motor to be monitored is running, the C.A
8220 waits until the effective half-cycle current goes
below the current set threshold (end of start
threshold) (see adjustment in § 4.10.2, on page 18).
The effective current calculated over a second is
continuously displayed (rep. 1). The appliance
automatically moves to step 4/4.
Figure 31: The stopwatch (bottom of the screen) is active
until the low current threshold has been reached. IR03
4.7.1.4 Step 4/4
As soon as the end of motor starting threshold has
been reached, the results are displayed.
Figure 32: Example of results display. IR04
The information is read as follows:
Rep. Measurement
1. Effective maximum half-cycle value of starting
current.
2. Absolute instantaneous value of starting current.
3. Duration in seconds of motor starting.
4.7.2 Phase rotation mode
The mode enables the user to determine the order
of the phases of a three-phase network using the
method known as "2 wire".
The activation of the balanced three-phase
mode has no effect on determining the order of
the phases ( can be or ). The most
important point is to respect the voltage
connections as directed in 1 and 3.
4.7.2.1 Step 1/4
As soon as the appliance is switched to this mode,
the display indicates that the C.A. 8220 is ready
(see following page).
1
2
3
1
1

16
Figure 33: The C.A. 8220 is ready for the first
measurement to determine the order of the phases. RO1
Once the test leads are connected to the supposed
L1 and L2 phases, pressing the key moves the
appliance to step 2/4.
4.7.2.2 Step 2/4
The message is displayed for a very short
interval (see image below).
Figure 34: The C.A. 8220 displays this screen for a very
short time. RO02
One of the screens described in the next paragraph
is then displayed.
4.7.2.3 Step 3/4
Two cases are possible:
The display indicates (Error): an error has
been detected during the determination of the
order of the phases. This error may be due to
one of the following causes:
- The three-phase network frequency is
unstable.
- The three-phase network frequency is
outside the 40 Hz to 70 Hz range.
- The voltage signal is too weak (below 10
VRMS).
- Operations were incorrectly carried out.
It is then possible to come back to the first step
(step1/4) by pressing the key.
The display screen shows the following screen.
Figure 35: The C.A. 8220 is ready for the second
measurement to determine the order of the phases. RO03
The user should then connect the L3 phase to the
input (+) of the appliance, within 10 seconds, after
which time the following error message
(time limit exceeded) is displayed inviting the user to
start the sequence again from the beginning (step
1/4).
As soon as the test leads are connected to the
circuit, the C.A 8220 automatically moves to step
4/4.
4.7.2.4 Step 4/4
Three cases are possible:
Case n° 1: a direct order of phases has been
determined. The following screen is displayed:
Figure 36: Direct order of phases. RO4
Case n° 2: an indirect order of phases has been
determined. The following screen is displayed:
Figure 37: Indirect order of phases. RO5

17
Case n° 3: indicates that an error has
occurred during the determination of the order of
phases. This error may be due to one of the
following causes:
- Unstable three-phase network frequency.
- Three-phase network frequency is outside
the 40 Hz to 70 Hz range.
- The voltage signal is too weak (below 10
VRMS).
- Operations were incorrectly carried out.
It is then possible to come back to the first step
(step1/4) by pressing the key.
4.8 position (rotation speed mode)
This mode requires the C.A 8220 to be pre-
configured. Refer to paragraphs 4.10.5 and
4.10.6 and on page 19.
In this position, the C.A 8220 measures the rotation
speed of a turning element.
The tachometer signal should be inputted into
the voltage (+) and (COM) terminals of the C.A
8220. The appliance thus measures the interval
of time between each signal pulse (event) and
subtracts the rotation speed in revolutions per
minute.
Figure 38: The rotary switch in position. 12
Figure 39: Example of a rotation speed measurement. RPM
4.9 position
In this position, the C.A 8220 measures the
temperature (using an external probe not provided)
or the resistance of an electrical circuit.
Figure 40: The rotary switch in position. 13
4.9.1 Temperature mode
The C.A 8220 displays the temperature measured
using a 100 platinum probe (not provided),
connected to the (+) and (COM) terminals of the C.A
8220. The measurement is displayed
simultaneously in degrees Celsius (°C) and degrees
Fahrenheit (°F).
Figure 41: Example of a temperature measurement. TEMP
4.9.2 Resistance mode
Two automatic calibrations are available:
0 Ωto 400 Ω: above 20 Ω(by default) a beeping
sound is emitted.
400 Ωto 2000 Ω.
Figure 42: Example of a resistance measurement. RES

18
4.10 position (configuration mode)
This position is designed for configuring the
parameters used by the C.A 8220. Once the
configuration has been saved in the non-volatile
memory, it can be accessed even after the
appliance is shut down including during a battery
change.
Figure 43: The rotary switch in . position 14
4.10.1 parameter
The symbol means start.
This parameter is used to configure the Inrush ( )
mode.
Figure 44: Display of parameter relating to the initial
current. Set1
The parameter sets the effective half-cycle
current value serving as the motor start threshold.
When the motor starting current reaches or exceeds
this threshold, the C.A 8220 will count the time
during which the effective half-cycle current value is
strictly in excess of the effective half-cycle end value
(see Figure 31, on page 15).
The value is set using the white and yellow
() keys. The minimum and maximum
terminals are 0 and 5,999 A.
4.10.2 parameter
The symbol means hysteresis.
This parameter is used to configure the Inrush ( )
mode.
Figure 45: Display of parameter relating to hysteresis. Set2
The parameter sets the effective half-cycle
current value serving as the end of motor start
threshold. As soon as the motor starting current is
over or equal to the effective half-cycle current end
(stop) value, the C.A 8220 will stop counting the
starting time (see Figure 32, on page 15 ).
The value is set using the white and yellow
() keys. The preset values are 0, 1, 2, 5
and 10 %.
The effective half-cycle stopping value is
calculated using the following formula.
[effective half-cycle stopping value] = [effective
half-cycle starting value] × (100 – [hysteresis]) ÷
100.
4.10.3 parameter
The symbol means primary. This screen is
only displayed if the C.A 8220 is connected to a
5 A adapter or to the MN93A 5 A clamp.
For all of the other sensors, listed below, which
do not require any adjustment, this screen is not
displayed:
- MN93 200 A clamp.
- MN93A 100 A clamp.
- C193 1000 A clamp.
- PAC93 1000 A clamp.
- AmpFLEX A193 3000 A.
This parameter configures the primary current of the
transformation ratio ( ).
Figure 46: Display of parameter relating to the effective
primary current of the intensity transformer. Set3

19
The parameter defines the value of the primary
effective current of the intensity transformer (IT) or
current transformer (CT) for the MN93A clamp (5 A
calibre) or the 5 A adapter.
The value is configured using the white and yellow
() keys. The minimum and maximum
terminals are 0 and 2,999 A.
4.10.4 parameter
The symbol means secondary.
See the comment in paragraph 4.10.3 -
parameter below.
This parameter configures the secondary current of
the transformation ratio ( ).
Figure 47: Display of parameter relating to the effective
secondary current of the intensity transformer. Set4
The parameter defines the value of the
secondary effective current of the intensity
transformer (IT) or current transformer (CT) for the
MN93A clamp (5 A calibre) or the 5 A adapter. The
value is configured using the white and yellow
() keys. The preset values are 1 and 5 A.
4.10.5 Parameter
The symbol means event per rotation.
This parameter is designed to configure the rotation
speed mode ( ).
Figure 48: Display of parameter relating to the number of
events per rotation of the tachometer signal. Set5
The parameter defines the number of events
per rotation for the measurement of rotation speed
for a machine in operation. If, for example, a
tachometer signal provides two pulses per
revolutions, this parameter will be set to 2.
The value is configured using the white and yellow
() keys. The minimum and maximum
terminals are 1 and 99.
The maximum rotation speed is defined by the
following formula: 120000 / .
4.10.6 parameter
The symbol means threshold.
This parameter is designed to configure the rotation
speed mode ( ).
Figure 49: Display of parameter relating to the threshold
voltage of the tachometer sensor. Se6
The parameter defines the threshold voltage
value used to detect an event (pulse on the
tachometer signal).
Since the signal received by the C.A 8220 can be
unipolar or bipolar, two types of threshold (0.3 and
1.1 V) can be selected. The recommended selection
is as follows:
bipolar signals: 0.3 V threshold.
unipolar signals: 1.1 V threshold.
In both cases, the hysteresis is 0.2 V. The value is
selected using the white and yellow ( )
keys. The figure on the following page gives the
graphs for this hysteresis.

20
Figure 50: Event determination functions. 015
