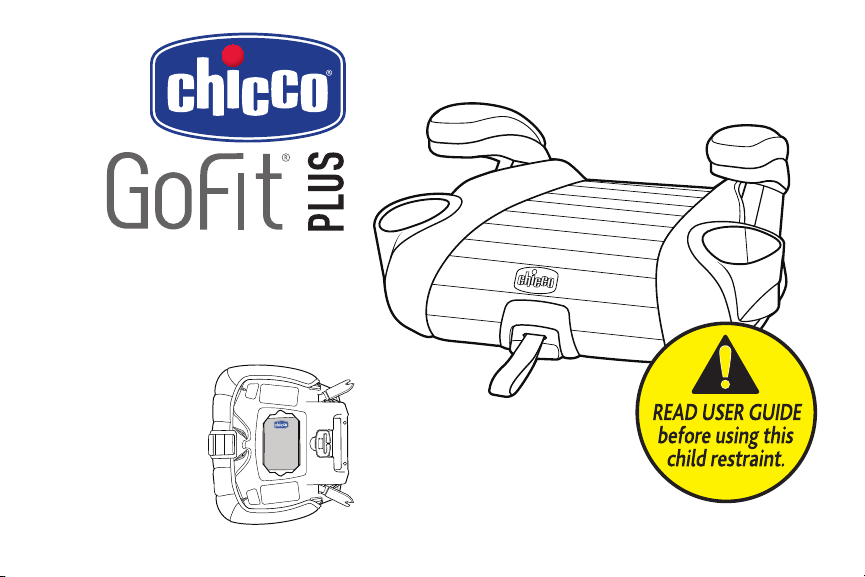

Chicco Gofit Plus User manual

User Guide
©2019 Artsana USA, Inc. 011/19
www.chiccousa.com
For future use, STORE USER GUIDE
in location on bottom of base.
Booster Car Seat
IS0174E_04

TABLE OF CONTENTS
Registration and Recall 2
Child Guidelines 4
Safe Use Checklist 6
Important Warnings 8
Best Practices 12
Need Help? 13
Booster Seat Components 14
Child Requirements 16
Vehicle Seating Positions 18
Vehicle Seat Belts 20
What is LATCH? 22
Cup Holder Assembly 24
Install Booster Seat 26
Securing Child in Booster Seat 30
Adjusting Shoulder Positioning Clip Height 32
Securing Child Checklist 36
Booster Seat Safe Use Checklist 38
Installation on an Aircraft 40
Cup Holder 42
Releasing LATCH Connectors 44
Removing Fabric Covers 46
Cleaning and Maintenance 56
VEHICLE INFORMATION
BOOSTER SEAT OVERVIEW
BOOSTER SEAT USE
SAFETY INFORMATION
ADDITIONAL INFORMATION
If you have any problems with your Chicco Booster Seat,
or any questions regarding installation or use, please call:
Chicco Customer Service
1-877-424-4226
Please have Model and Serial Number available when you call.
These are located on a label on the bottom of the Booster Seat.
For future reference, fill in the information below. The information can be found on the label
on the bottom of the Child Restraint.
Model Number:
Serial Number:
Manufactured In:
ASSEMBLY INFORMATION

23
REGISTRATION AND RECALL REGISTRATION AND RECALL
Please complete the Registration Card that came with
your Booster Seat and mail it promptly.
Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall.
Send your name, address, e-mail address if available, and the restraint’s model number and manufacturing
date to:
Artsana USA, Inc.
1826 William Penn Way
Lancaster, PA 17601
or call 1-877-424-4226
or register online at http://www.chiccousa.com/carseatregistration.aspx
For recall information, call the U.S. Government’s Vehicle Safety Hotline at
1-888-327-4236 (TTY: 1-800-424-9153), or go to http://www.NHTSA.gov.
PAGE INTENTIONALLY LEFT BLANK

45
This Booster Seat is designed for children who demonstrate an ability to sit
in a seat belt and meet the following requirements. ONLY use this Booster
Seat if the child meets the following requirements:
• Child can sit relatively still, in the same seated position
throughout the car ride.
• Child can leave the shoulder and lap belt properly positioned
on their body, and can do this every time in the car.
• Weight is between 40 and 110 pounds (18 and 50 kg).
• Height is between 38-57 inches (97-145 cm).
CHILD GUIDELINES CHILD GUIDELINES
40 lbs 110 lbs
(18 kg) (50 kg)
Booster Seat Use
on page 16.
YOUR CHILD’S SAFETY DEPENDS ON YOU! You MUST follow the
detailed instructions in this User Guide to ensure the steps in this User
Guide are performed correctly!

67
Make sure your child can sit in the seat properly and meets the
requirements listed in the “Child Guidelines” section on page 4:
Chicco recommends not using a Booster Seat to secure your child
prior to age 4.
Select a safe seating location in your car:
Refer to the “Vehicle Seating Positions” section on page 18 and 19.
Secure your child:
Refer to the “Safety Information” section on page 36.
SAFE USE CHECKLIST SAFE USE CHECKLIST
BOOSTER SEAT USE requirements on page 16.

89
IMPORTANT WARNINGS
FAILURE TO FOLLOW THESE INSTRUCTIONS AND THE PRODUCT
LABELS CAN RESULT IN SERIOUS INJURY OR DEATH TO YOUR CHILD.
Take Time to Read This User Guide
• Carefully read and understand all instructions and warnings in this User Guide. Your child’s safety depends
on you knowing how to setup, install and use this Booster Seat properly.
• Before installing this Booster Seat in a vehicle, be sure to also check the vehicle owner’s manual for
information on proper installation.
• NEVER allow others to use this Booster Seat until they have read and understood all instructions in this
User Guide.
• This Booster Seat is not intended for use outside of the vehicle.
WARNING
DEATH or SERIOUS INJURY CAN OCCUR
IMPORTANT WARNINGS
WARNING
DEATH or SERIOUS INJURY CAN OCCUR
Make Sure Child Fits This Booster Seat
• Use ONLY with children who weigh between 40 lbs (18 kg) and 110 lbs (50 kg) and whose height is 38-57 inches
(97 -145 cm). AND has the ability to sit properly at all times.
Install Child Restraint Correctly
• DO NOT PLACE THIS BOOSTER SEAT IN AVEHICLE SEATING LOCATION WITH A FRONTAL AIR
BAG, UNLESSTHE AIR BAG CAN BE TURNED OFF. If the airbag inflates, it can cause serious injury or
death to your child. For vehicles with side air bags, refer to you vehicle owners manual for information on
your booster seat installation.
• ALWAYS install this Booster Seat in a back seat if possible.
• NEVER install in rear facing, side facing or on the back of a folded down vehicle seat.
• NEVER use this Booster Seat with only a Vehicle Lap Belt.
• Use ONLY the vehicle’s lap and shoulder belt system when restraining the child in this Booster Seat.
• To avoid injury to others, ALWAYS secure this Child Restraint with either the LATCH connectors or the
vehicle’s Lap-Shoulder Belt when unoccupied.
• DO NOT use this Booster Seat beyond the “Do Not Use After” date. Check manufacturer’s label on
underside of Booster Seat.
According to accident statistics, children are safer when properly restrained in a rear seating
position rather than in the front seat.

10 11
IMPORTANT WARNINGS
WARNING
DEATH or SERIOUS INJURY CAN OCCUR
IMPORTANT WARNINGS
WARNING
DEATH or SERIOUS INJURY CAN OCCUR
Secure Child Properly
• Position Lap-Shoulder Belt on your child. A loose or improperly positioned Lap-Shoulder Belt could cause
the child to be ejected in a sudden stop or crash, resulting in serious injury or death.
• Make sure vehicle Lap-Shoulder Belt is not loose. The belt must be kept snug across child’s thighs and
resting on the shoulder and across the center of the chest.
• NEVER use clothing or blankets that interfere with fastening or tightening the Lap-Shoulder Belt. An
unsecured child could be ejected in a sudden stop or crash!
• ALWAYS check to make sure the vehicle seat buckle is securely latched.
• NEVER leave your child unattended in the vehicle.
• Do not allow children to play in or around the Booster Seat.
Check Condition of Restraint
• DO NOT use if the vehicle belts are cut, frayed or damaged.
• DO NOT use any accessories, pads or products not included with this Booster Seat, unless approved
by Chicco USA. Doing so will void the warranty of this Booster Seat.
• You MUST replace this Booster Seat if it has been involved in a crash, even if you cannot see visible damage.
A damaged Booster Seat may not protect your child in a future crash.
• Do not modify your Booster Seat.
• Do not use Booster Seat if any component is damaged, broken, or missing. Call 1-877-424-4226 to
find out if the damaged part or parts can be replaced.

12 13
BEST PRACTICES
• Ensure all vehicle occupants are properly restrained before traveling.
Unrestrained occupants can be thrown around and may be seriously injured or
seriously injure other occupants in a sharp turn, sudden stop or crash.
• Do not leave loose objects, such as books, bags, etc., in the back of the vehicle.
In the event of a sharp turn, sudden stop, or crash, loose objects can be thrown
around and possibly cause serious injury to vehicle occupants.
• Cover the Booster Seat when the vehicle is parked in sunlight. Parts of a Booster
Seat can become very hot if left in the sun. Contact with these parts can burn
a child’s skin. Always check the surface of any metal or plastic parts before
putting your child in the Booster Seat.
• To avoid strangulation, do not allow children to play with vehicle seat belts. If
possible, move unused belts out of reach.
• Do not use anything to raise the Booster Seat off the vehicle seat such as a
noodle or towel. In a sharp turn, sudden stop, or crash, the Booster Seat could
slide and potentially cause serious injury.
• Never use a second-hand Booster Seat with an unknown history.
• Never use any accessories that are not included with this child restraint, unless
specifically approved by Chicco. For more information, go to www.chiccousa.com.
NEED HELP?
Need Help Securing Your Booster Seat?
The following sources are available to help ensure your Booster Seat is
properly installed:
• Contact Chicco, USA by visiting our website at www.chiccousa.com or
calling our Customer Service 1-877-424-4226. Please have Model and
Serial Number available when you call. These are located on a label on
the bottom of the Booster Seat.
• Refer to your vehicle manual for Booster Seat installation tips.
• Contact a certified Child Passenger Safety Technician in your area by
visiting safercar.gov and select “Find Local Child Seat Help” or call
1-866-SEAT CHECK (1-866-732-8243).

14 15
BOOSTER SEAT OVERVIEW BOOSTER SEAT OVERVIEW
BOOSTER SEAT COMPONENTS BOOSTER SEAT COMPONENTS
Cup Holder
Armrest
Lap Belt Guide
Shoulder Positioning
Clip & Webbing
Shoulder Belt
Clip Storage
User Guide
Storage
Carry
Handle
LATCH
Adjustment Strap
LATCH
Release Handle
LATCH
Connector

16 17
BOOSTER SEAT OVERVIEW BOOSTER SEAT OVERVIEW
WARNING! Use of this Booster Seat is ONLY for children who meet ALL
of the requirements shown here. If the child is not within these requirements
because the child is too small, select a different child seat.
CHILD REQUIREMENTS CHILD REQUIREMENTS
Booster Seat:
40 – 110 lbs (18 – 50 kg)
Use Booster Seat with children:
•Who are at least four years old.
•Who weigh between 40 and 110 lbs
(18 – 50 kg).
•Who are 38”- 57”(97 -145 cm) tall and the child’s
ears are below the vehicle seat.
•Who demonstrate an ability to sit relatively
still and properly in a seat belt at all times.
See Adjusting Shoulder Positioning
Clip Height on page 32.
40 lbs 110 lbs
(18 kg) (50 kg)
To ensure a correct installation of the Booster Seat, you must follow the step
by step instructions in this user guide.

19
VEHICLE INFORMATION
18
VEHICLE INFORMATION
VEHICLE SEATING POSITIONS VEHICLE SEATING POSITIONS
Some vehicles have no seating positions which are compatible with this Booster
Seat. Only forward-facing vehicle seats can be used with this Booster Seat.
Never use side or rear facing seats. If in doubt, contact the vehicle manufacturer
for assistance.
The back seat is the safest place for children 12 and under. See your vehicle
owner’s manual for Booster Seat installation and instructions.
This Booster Seat must be
installed in a vehicle seat with
a 3-point seat belt (shoulder
belt and lap belt). NEVER use
lap belt only.
WARNING! WHEN USING THIS CHILD RESTRAINT, DO NOT PLACE
THIS CHILD RESTRAINT IN A VEHICLE SEATING LOCATION WITH A
FRONTAL AIR BAG, UNLESSTHE AIR BAG CAN BE TURNED OFF.

21
VEHICLE INFORMATION
20
VEHICLE INFORMATION
Vehicle seat belts differ from vehicle to vehicle. Refer to your vehicle owner’s
manual for specific information about seat belts and their use with booster
seats.
Shoulder belt with switchable retractor:
Refer to your vehicle owners manual for information regarding switchable
retractors and booster seat use.
Inflatable seat belts:
Follow the vehicle manufacturer’s instructions for use with this Booster Seat.
VEHICLE SEAT BELTS VEHICLE SEAT BELTS
The following types of vehicle belts MUST NOT be used to install this
Booster Seat.
If any of the belt types listed below are in the chosen seating position, you
must choose another vehicle seating position.
1 2
1. Never use a Lap belt with motorized
Shoulder belt.
2. Never use vehicle belts that are
attached to the door or that move along
a track.
3. Never use a Lap-only belt.
3

23
VEHICLE INFORMATION
22
VEHICLE INFORMATION
WHAT IS LATCH? WHAT IS LATCH?
LATCH = Lower Anchors and Tethers for CHildren
On this Booster Seat, Lower Anchors are only used to restrain the Booster Seat,
not to restrain your child. To secure your child, a vehicle Lap-Shoulder Belt
MUST be used.
Please refer to the vehicle owner’s manual for designated Lower Anchor locations
in vehicles. Some vehicles owner’s manual use the term “ISOFIX”. ISOFIX lower
anchors may also be used to secure the Booster Seat.
If thevehicle is equipped with LATCH, thevehicle lower anchor points may bevisible at the
seat crease. If not visible, the seating position may be marked with a symbol as shown or a
colored dot. The top tether anchor is not used withthis Booster Seat.
WARNING: This Booster Seat is designed to be used with
lower LATCH anchors at the standard spacing (11 inches) ONLY!
Refer to vehicle owner’s manual for information about LATCH and
Booster Seat installation positions. Vehicle
Lower Anchor
Points
Vehicle
Seat Crease

24 25
ASSEMBLY INFORMATION ASSEMBLY INFORMATION
Assemble the Cup Holder
Match up the letter (L or R) on the bottom of the Cup Holder with the
matching letter on the Booster Seat and insert the Cup Holder into the
correct side.
Make sure the Cup Holder lip fits behind the groove on the Booster Seat
bottom, as shown.
1
ASSEMBLYASSEMBLY
R
R
R
1
Lip
R
R

26 27
BOOSTER SEAT USE BOOSTER SEAT USE
The Shoulder Positioning Clip is stored under the Booster Seat.
Remove the Shoulder Positioning Clip and Strap stored underneath
seat.
Place the Booster Seat onto the vehicle seat.
2
12
1
INSTALL BOOSTER SEAT
INSTALL BOOSTER SEAT

28 29
BOOSTER SEAT USE BOOSTER SEAT USE
If using LATCH, pull the LATCH Release Handle (a) and pull out both
LATCH Connectors (b).
Locate the LATCH lower anchor bars in your vehicle. Attach both
LATCH Connectors to the vehicle lower anchor bars.
Pull on the LATCH Tightening Strap and push back on the seat
bottom to snug up the Booster Seat to the vehicle seat back.
4
3
INSTALL BOOSTER SEAT INSTALL BOOSTER SEAT
Use of LATCH with this Booster Seat is optional. If the LATCH Connectors are
not used, pull the LATCH Tightening Strap snug so that the LATCH Connectors do not
interfere with the seat belt.
5
“CLICK”
“CLICK”
4
5
3a
3b
This booster seat LATCH system is equipped with a unique release. Refer to page 44
for further instructions on releasing the seat.

30 31
BOOSTER SEAT USE BOOSTER SEAT USE
Place the child into the Booster Seat, making sure the child is sitting
with his/her back against the vehicle seat back.
1
SECURING CHILD IN BOOSTER SEAT
SECURING CHILD IN BOOSTER SEAT
1
2
Child’s ears must be below vehicle seat back or vehicle head restraint when sitting on
Booster Seat. Refer to page 17.
Route the lap belt UNDER the 1st Armrest, across the child’s thighs,
then route the shoulder belt and the lap belt UNDER the 2nd Armrest
closest to the vehicle buckle as shown. Lap-Shoulder belts MUST be
under ARMRESTS, as shown.
Buckle the seat belt.
2
3
3

32 33
BOOSTER SEAT USE BOOSTER SEAT USE
To adjust the Shoulder Positioning Clip, pull the clip up or down to
adjust the Shoulder Positioning Clip to be at child’s shoulder.
Slide the vehicle shoulder belt through the Shoulder Positioning Clip
(as shown). Shoulder Positioning Clip must be at child’s shoulder.
If necessary, re-adjust the location of the Clip to ensure that the seat belt
lays flat and snug across the child’s chest and the lap belt lays flat and
snug across the child’s thighs.
4
SECURING CHILD IN BOOSTER SEAT
SECURING CHILD IN BOOSTER SEAT
5
45

34 35
BOOSTER SEAT USE BOOSTER SEAT USE
Child is now secured correctly, as shown.
6
6
SECURING CHILD IN BOOSTER SEAT
SECURING CHILD IN BOOSTER SEAT
When using this Booster Seat, the Shoulder Positioning Clip must be used
until the seat belt naturally lays flat across the center of the child’s shoulder.

36 37
SAFETY INFORMATION SAFETY INFORMATION
Check that the seat belt is not twisted.
Check that the shoulder belt is snug on the child’s shoulder and
that it does not rub on the neck. It should lie flat across the
child’s chest and middle of shoulder. The Shoulder Positioning
Clip must be positioned at child’s shoulder

SECURING CHILD CHECKLIST SECURING CHILD CHECKLIST



ALWAYS check to make sure vehicle seat belt is
securely buckled. If buckle separates, child could be killed
or seriously injured.
Do not let your child slide forward
or downward while in the Booster
Seat.
Never use the vehicle belt in any
position other than those indicated
in this User Guide!
DO NOT use anything (pillows, blankets, etc.)
between the Booster Seat and the vehicle seat or
between the child and the Booster Seat. Avoid
bulky clothing that interferes with proper seat belt
placement. In the event of an accident, the Booster
Seat may not operate correctly.
