IMPRES 2 Adaptive
Unit Charger PMPN4350,
PMPN4444, PMPN4500
User Guide
*MN004263A01*
MN004263A01-AJ
MAY 2022
© 2022 Motorola Solutions, Inc. All rights reserved
en-US fr-CA es-LA pt-BR zh-CN
ja-JP ko-KR
zh-TW
ru-RU
nl-NL
uk-UA
de-DE fr-FR it-IT

Safety and Legal
This section provides the safety and legal information for this product.
Intellectual Property and Regulatory Notices
Copyrights
The Motorola Solutions products described in this document may include copyrighted Motorola
Solutions computer programs. Laws in the United States and other countries preserve for Motorola
Solutions certain exclusive rights for copyrighted computer programs. Accordingly, any copyrighted
Motorola Solutions computer programs contained in the Motorola Solutions products described in this
document may not be copied or reproduced in any manner without the express written permission of
Motorola Solutions.
No part of this document may be reproduced, transmitted, stored in a retrieval system, or translated
into any language or computer language, in any form or by any means, without the prior written
permission of Motorola Solutions, Inc.
Trademarks
MOTOROLA, MOTO, MOTOROLA SOLUTIONS, and the Stylized M Logo are trademarks or
registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other
trademarks are the property of their respective owners.
License Rights
The purchase of Motorola Solutions products shall not be deemed to grant either directly or by
implication, estoppel or otherwise, any license under the copyrights, patents or patent applications
of Motorola Solutions, except for the normal non-exclusive, royalty-free license to use that arises by
operation of law in the sale of a product.
Open Source Content
This product may contain Open Source software used under license. Refer to the product installation
media for full Open Source Legal Notices and Attribution content.
European Union (EU) and United Kingdom (UK) Waste of Electrical and
Electronic Equipment (WEEE) Directive
The European Union's WEEE directive and the UK's WEEE regulation require that products sold
into EU countries and the UK must have the crossed-out wheelie bin label on the product (or the
package in some cases). As defined by the WEEE directive, this crossed-out wheelie bin label means
that customers and end-users in EU and UK countries should not dispose of electronic and electrical
equipment or accessories in household waste.
Customers or end-users in EU and UK countries should contact their local equipment supplier
representative or service centre for information about the waste collection system in their country.
Disclaimer
Please note that certain features, facilities, and capabilities described in this document may not be
applicable to or licensed for use on a specific system, or may be dependent upon the characteristics of
MN004263A01-AJ
Safety and Legal
2

a specific mobile subscriber unit or configuration of certain parameters. Please refer to your Motorola
Solutions contact for further information.
© 2022 Motorola Solutions, Inc. All Rights Reserved
Certification Marks
Contact Address
European Union Contact
Motorola Solutions,
Czerwone Maki 82,
30-392 Krakow, Poland
Контактна інформація
Моторола Солюшинс Системз Польща
вул. Червоне Маки, 82,
30-392 Краків,
Польща
地址
摩托羅拉系統股份有限公司 ,
臺北市中山區民生東路 3 段 2 號 5 樓之 1
MN004263A01-AJ
Safety and Legal
3

Contact Us
The Centralized Managed Support Operations (CMSO) is the primary contact for technical support
included in your organization's service agreement with Motorola Solutions.
Service agreement customers should be sure to call the CMSO in all situations listed under Customer
Responsibilities in their agreement, such as:
•Before reloading software
• To confirm troubleshooting results and analysis before taking action
Your organization received support phone numbers and other contact information appropriate for your
geographic region and service agreement. Use that contact information for the most efficient response.
However, if needed, you can also find general support contact information on the Motorola Solutions
website, by following these steps:
1Enter motorolasolutions.com in your browser.
2Ensure that your organization's country or region is displayed on the page. Clicking or tapping the
name of the region provides a way to change it.
3Select "Support" on the motorolasolutions.com page.
Comments
Send questions and comments regarding user documentation to
[email protected].
Provide the following information when reporting a documentation error:
• The document title and part number
• The page number or title of the section with the error
• A description of the error
Motorola Solutions offers various courses designed to assist in learning about the system. For
information, go to https://learning.motorolasolutions.com to view the current course offerings and
technology paths.
MN004263A01-AJ
Contact Us
4

Icon Conventions
The documentation set is designed to give the reader more visual clues. The following graphic icons
are used throughout the documentation set.
DANGER: The signal word DANGER with the associated safety icon implies information that, if
disregarded, will result in death or serious injury.
WARNING: The signal word WARNING with the associated safety icon implies information that,
if disregarded, could result in death or serious injury, or serious product damage.
CAUTION: The signal word CAUTION with the associated safety icon implies information that,
if disregarded, may result in minor or moderate injury, or serious product damage.
CAUTION: The signal word CAUTION may be used without the safety icon to state potential
damage or injury that is not related to the product.
IMPORTANT: IMPORTANT statements contain information that is crucial to the discussion
at hand, but is not CAUTION or WARNING. There is no warning level associated with the
IMPORTANT statement.
NOTE: NOTICE contains information more important than the surrounding text, such as
exceptions or preconditions. They also refer the reader elsewhere for additional information,
remind the reader how to complete an action (when it is not part of the current procedure,
for instance), or tell the reader where something is on the screen. There is no warning level
associated with a notice.
MN004263A01-AJ
Icon Conventions
5

Style Conventions
The following style conventions are used:
Convention Description
Bold This typeface is used for names of, for instance, windows, buttons,
and labels when these names appear on the screen (example: the
Alarms Browser window). When it is clear that we are referring to, for
instance, a button, the name is used alone (example: Click OK).
Monospacing font
in bold
This typeface is used for words to be typed in exactly as they are
shown in the text (example: In the Address field, type http://
ucs01.ucs:9080/).
Monospacing font This typeface is used for messages, prompts, and other text displayed
on the computer screen (example: A new trap destination has
been added).
<Monospacing font
in bold Italic>
This typeface is used with angle brackets as placeholders for a specif-
ic member of the group that the words represent (example: <router
number>).
NOTE: In sequences to be typed in, the angle brackets
are omitted to avoid confusion whether to include the angle
brackets in the text to be typed.
CAPITAL LETTERS This typeface is used for keyboard keys (example: Press Y, and then
press ENTER).
Italic This typeface is used for citations. A citation usually is the name of a
document or a phrase from another document (example: Dimetra IP
System Overview).
→ An → (arrow pointing right) is used for indicating the menu or tab
structure in instructions on how to select a certain menu item (exam-
ple: File→Save) or a certain sub-tab.
MN004263A01-AJ
Style Conventions
6

Contents
Safety and Legal..........................................................................................................2
Intellectual Property and Regulatory Notices.................................................................................2
Certification Marks.........................................................................................................................3
Contact Address............................................................................................................................ 3
Contact Us................................................................................................................... 4
Icon Conventions........................................................................................................ 5
Style Conventions.......................................................................................................6
Important Safety Instructions.................................................................................... 8
Operational Safety Guidelines................................................................................... 9
Chapter 1: Features and Benefits..........................................................................10

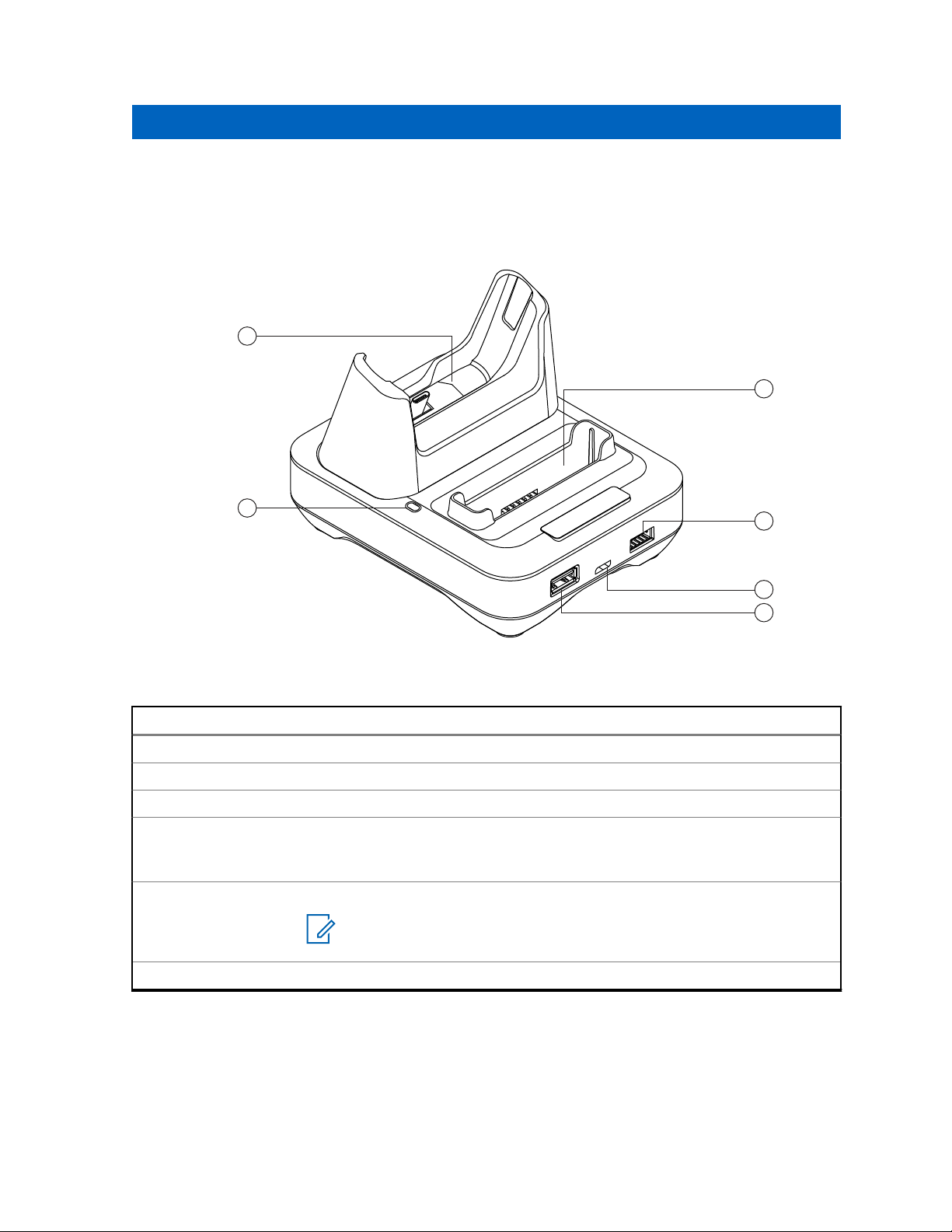

Chapter 2: Charger Overview.................................................................................11
2.1 Motorola Solutions Authorized Power Supplies.....................................................................12
2.2 Motorola Solutions Authorized Batteries................................................................................12
2.3 Charger Specifications...........................................................................................................12
Chapter 3: Charging Procedure.............................................................................13
3.1 Charging Indicators................................................................................................................14
3.2 Initialization............................................................................................................................15
3.3 Calibration Switch..................................................................................................................16
3.4 Automatic IMPRES Battery Calibration................................................................................. 16
3.5 Manually Terminating the Calibration Process...................................................................... 17
3.6 Manually Initiating the Calibration Process............................................................................17
3.7 IMPRES 2 or IMPRES End-of-Service-Life LED Indication...................................................17
Chapter 4: Troubleshooting................................................................................... 18
Chapter 5: Service...................................................................................................20
MN004263A01-AJ
Contents
7

Important Safety Instructions
This document contains important safety and operating instructions. Please read these instructions
carefully and save them for future reference.
Before using the battery charger, read all the instructions and cautionary markings on the charger, the
battery, and the radio using the battery.
WARNING:
• To reduce the risk of injury, charge only the rechargeable authorized batteries. Other batteries may
explode, causing personal injury and damage.
• To reduce the risk of fire, electric shock, or injury, only use the accessories recommended by
Motorola Solutions.
• To reduce the risk of damage to the power cord, pull the plug rather than the cord when
disconnecting power cord from the AC outlet or the charger.
• To reduce the risk of fire or electric shock, avoid using an extension cord. If an extension cord must
be used, ensure that the cord size is 18 AWG for lengths of up to 100 feet (30.48 m), and 16 AWG
for lengths up to 150 feet (45.72 m).
• To reduce the risk of fire, electric shock, or injury, do not operate the charger if it is broken or
damaged in any way. Take it to a qualified Motorola Solutions service representative.
• To reduce the risk of fire or electric shock, do not disassemble the charger. It is not repairable and
replacement parts are not available.
• To reduce the risk of electric shock, unplug the charger power adapter from the AC outlet before
attempting any maintenance or cleaning.
MN004263A01-AJ
Important Safety Instructions
8

Operational Safety Guidelines
• This equipment is not suitable for outdoor use. Use only in dry locations or conditions.
• Connect the equipment only to an appropriately fused and wired supply of the correct voltage, as
specified on the product.
• Disconnect from line voltage by removing the main plug from the outlet.
• The socket outlet to which this equipment is connected must be close by and easily accessible.
• Maximum ambient temperature around the charger must not exceed 40 °C (104 °F).
• Ensure that the cord is located in an area that is safe from being stepped on, tripped over, or
subjected to water, damage, or stress.
• Output power from power supply unit must not exceed the ratings specified on the product label
located on the bottom of the charger.
MN004263A01-AJ
Operational Safety Guidelines
9

Chapter 1
Features and Benefits
The IMPRES energy solution is an advanced Tri-Chemistry energy system developed by Motorola
Solutions.
The system consists of IMPRES batteries, IMPRES Adaptive Charger, radio hardware, and software
which provides the capability for IMPRES compatible radios to communicate with IMPRES batteries.
The IMPRES Adaptive Charger, when used in conjunction with Motorola Solutions IMPRES batteries
provides the following benefits:
• Maximize battery life by significantly reducing heat during the trickle and post-charge cycles.
• Provide higher-rate IMPRES Lithium-Ion battery charging.
• Eliminate the need to train personnel to manage battery maintenance tasks
Using this unique patented system, there is no requirement to track and record IMPRES battery use,
conduct manual calibration cycles, or remove batteries from chargers after charging completion
The IMPRES Adaptive Charger monitors the usage pattern of the IMPRES battery, stores the
information in the IMPRES battery, and performs a calibration cycle only when needed.
The IMPRES Adaptive Charger does not overheat the IMPRES battery regardless of how long it is left
in the pocket. The charger monitors the battery and automatically charge the battery as required.
MN004263A01-AJ
Chapter 1 : Features and Benefits
10

Chapter 2
Charger Overview
Charger Overview
2
4
1
5
6
3
Table 1: Charger Overview and Description
Item Description
1 Radio charging pockets
2 Battery charging pockets
3 Charger indicator - battery charge status indicator
4 Programming/fleet management port - requires a Communication Module
(Part Number: NNTN8870). Contact your local Motorola Solutions Sales
Representative to order this item.
5 USB Type A - accessories charging port.
NOTE: USB Type A is not applicable to PMPN4500.
6 USB Type C - power supply input and for radio communication.
The charger pockets accommodate either a radio with an IMPRES battery attached and/or an IMPRES
battery alone.
The charger is equipped with a USB Type A power output that facilitates the charging of accessories
up to a maximum 7.5 W of power (5 V at 1500 mA). This USB Type A power output only provides
charge as it becomes available from the charger. The charge priority is given to radio charging and
battery charging.
MN004263A01-AJ
Charger Overview
11

2.1
Motorola Solutions Authorized Power Supplies
Charger Kit Power Supply Power Supply De-
scription
Country Plug
PMPN4350A/
PMPN4444/
PMPN4500
PS000277A01 15 W, 100–240 V US/JP/TW
PS000277A02 EU
PS000277A03 UK/HK
PS000277A04 AU/NZ
PS000277A05 ARG
PS000277A06 CHN
PS000277A07 KOR
PS000277A08 BZL
2.2
Motorola Solutions Authorized Batteries
Charger Kit Part Number Battery Part Number IMPRES™/IMPRES 2™
PMPN4350 PMNN4545 Yes
PMNN4546
PMPN4444/PMPN4500 PMNN45101
PMNN4586
2.3
Charger Specifications
Table 2: Taiwan Kits only
Charger Input Output
PMPN4500 5 V , 3 A Device: 5 V , 1.5 A
Battery: 4.2 V , 1.5 A
1In Taiwan, only PMNN4510B is available.
MN004263A01-AJ
Chapter 2 : Charger Overview
12

Chapter 3
Charging Procedure
When and where to use: The IMPRES™ Adaptive Charger System is a fully automated battery care
system.
Procedure:
1Plug the charger end of the power supply cord into the power receptacle located at the back of
the charger.
2Plug the wall receptacle end of the power supply cord into the appropriate AC outlet.
A successful power-up sequence is indicated by a single Green blink on the charger indicator.
3Insert a radio with an IMPRES battery or a stand alone IMPRES battery into the charger pocket.
aAlign the radio or battery contacts with the contacts in the charger pocket.
bPress the radio or battery into the pocket to ensure complete contact between charger and
radio or battery contacts.

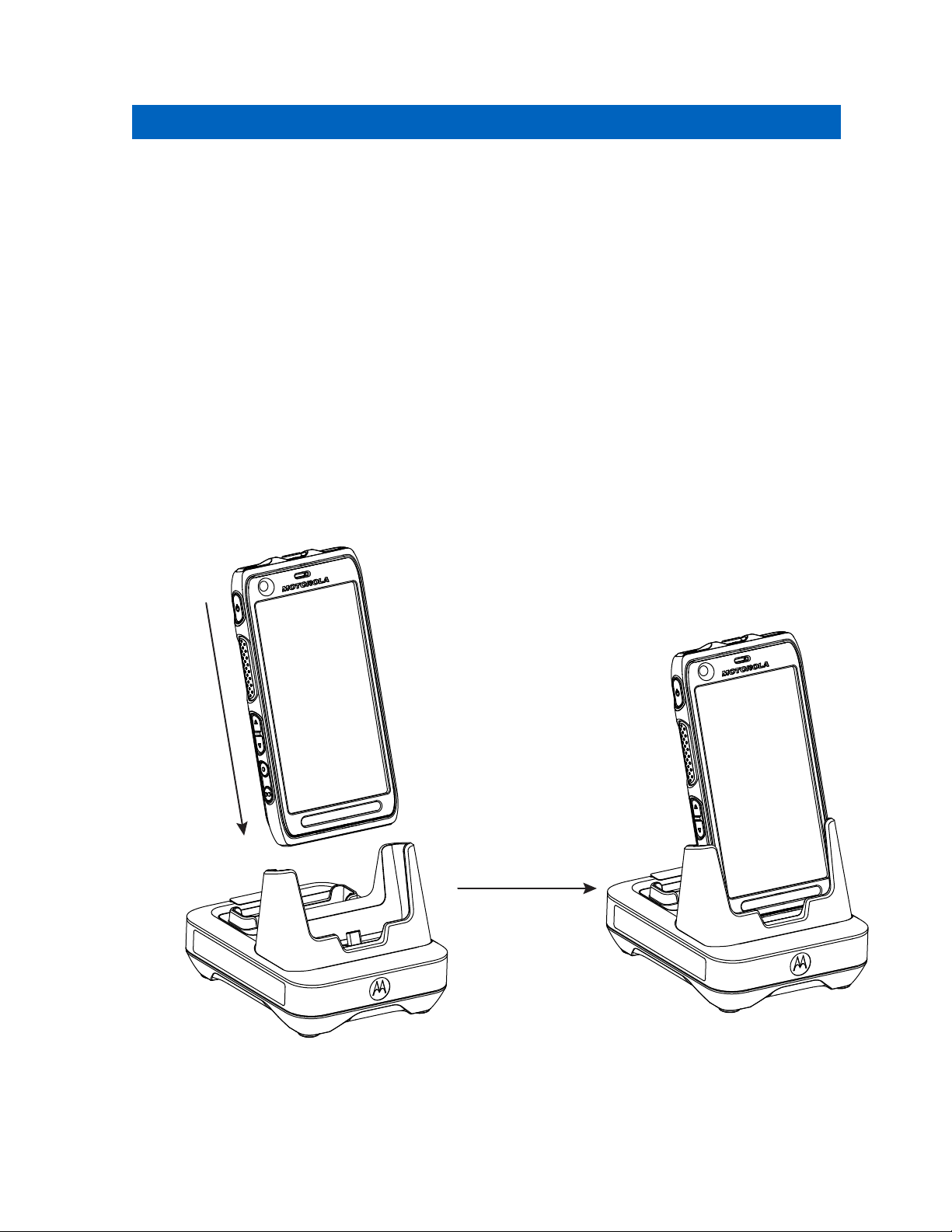

Figure 1: Charging Radio with Battery
MN004263A01-AJ
Charging Procedure
13

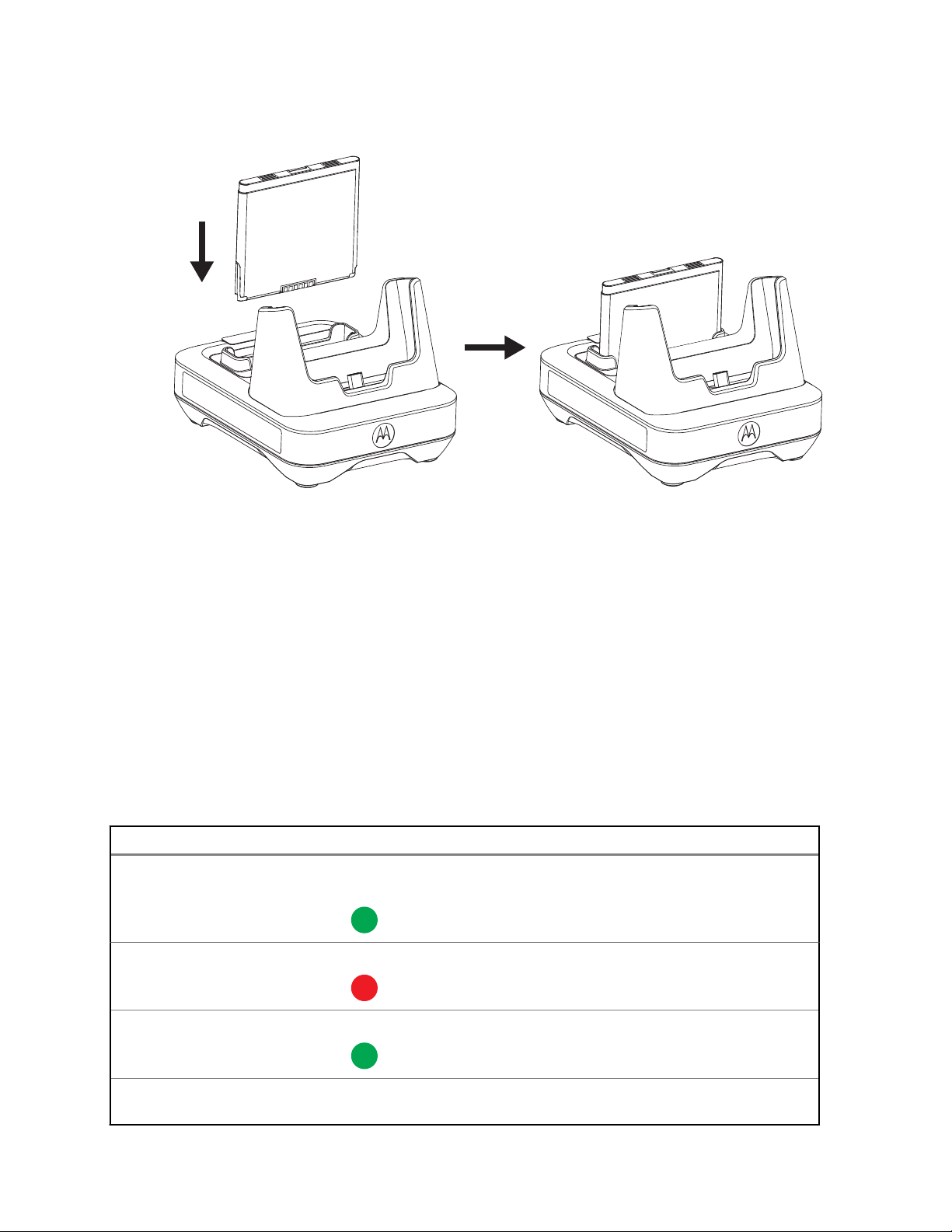

Figure 2: Charging Battery
cWhen the IMPRES battery is properly seated into the pocket, the charger indicator
illuminates, indicating the charger has recognized the presence of the battery. Refer to the
charging indicators in Table 3: IMPRES Battery Charging Indicators on page 14.
4To remove a radio or battery from the charger, pull straight up until the radio or battery
completely clears the charger housing.
3.1
Charging Indicators
The following table in only applicable when a battery is charged in the battery charging pocket. When a
radio is charged in the radio charging pocket, refer to the display and the LED charging indicator of the
radio respectively.
Table 3: IMPRES Battery Charging Indicators
Status LED Indicator Description
Power On Green for approximately one
second
Successful charger power-up
Charging Steady red Battery in rapid charge mode
90 % Charged Blinking Green Battery is charged to 90 % or
greater capacity
Fully Charged Steady Green Battery is nearly charged or
fully charged
MN004263A01-AJ
Chapter 3 : Charging Procedure
14

Status LED Indicator Description
Fault Blinking Red Refer to Troubleshooting on
page 18.
Standby Blinking Amber Battery is waiting to rapid
charge. Battery may be too
hot, too cold, or low voltage
End of Service Life Alternating Red/Green Battery continues to be usable
but may be nearing the end of
its rated service life
Calibration Steady Amber Battery is in calibration mode
Calibration Required Alternating Amber/Green-Ini-
tial Charge
Battery requires calibration
but calibration is disabled in
charger.
NOTE: The battery
continues to charge
normally (blinking
Green) if it is not re-
moved after 5 sec-
onds.
Alternating Amber/Green-End
of Charge
Battery requires calibration
but Calibration is disabled in
charger.
NOTE: Instead of
Steady Green, the
indicator alternates
Amber/Green to in-
dicate that the bat-
tery is fully charged.
3.2
Initialization
The data in Motorola Solutions IMPRES batteries must be initialized by the charger the first time it is
charged to ensure the features of Motorola Solutions IMPRES batteries and the Adaptive Charging
System to be fully available.
This battery initialization is indicated by a Steady Amber light on the charger indicator. The process
is automatic, includes an initial calibration of the battery, and begins charging upon completion of this
process. This process requires time to initialize the battery. The battery should be left in the charger for
approximately 12 hours or more to complete the process. Do not remove the battery from the charger
until the Steady Green light is on.
MN004263A01-AJ
Chapter 3 : Charging Procedure
15

3.3
Calibration Switch
The charger is equipped with a switch on the bottom of the unit that can be utilized to manually
terminate the calibration process (as a systemic, on going use case). The charger continues to provide
an indication that the battery needs to be calibrated.
To enable the calibration feature, push the switch located at the bottom of the charger to ON.
Figure 3: Calibration Switch
21
Item Description
1 Front
2 Back
3.4
Automatic IMPRES Battery Calibration
The Motorola Solutions IMPRES Adaptive Charger is able to determine when to calibrate the battery
when used with a Motorola Solutions IMPRES battery.
NOTE: The radio charging pocket does not perform the calibration process.
The IMPRES battery must be outside from the IMPRES charger pocket for more than 30 minutes for
an automatic calibration and recondition.
When an IMPRES battery is properly inserted into the charger, the charger determines if it is
appropriate to calibrate the battery. If the battery needs calibration, the charger automatically indicates
a Steady Amber. This process may take up to 12 hours or more to complete, depending on the state of
charge and capacity rating of the battery when it is inserted.
For this process to be effective, the IMPRES battery must be allowed to complete the calibration or
recharge process. Leave the battery in the charger until the charger indicates a Steady Green. At the
completion of the calibration cycle, the charger automatically recharges the IMPRES battery.
MN004263A01-AJ
Chapter 3 : Charging Procedure
16

3.5
Manually Terminating the Calibration Process
When and where to use: Calibration may be terminated at any time during the calibration process of a
Motorola Solutions IMPRES battery (Steady Amber).
Procedure:
1Remove the battery from the charger pocket.
2Within five seconds, reinsert the battery into the charger pocket.
The charger terminates the calibration process and begin the charging process. The charger
indicator changes to a Steady Red. The charger attempts to calibrate the battery at the next
battery insertion.
3.6
Manually Initiating the Calibration Process
Procedure:
1Insert the battery into the charger pocket.
2Within 2.5 minutes, remove the battery from the charger pocket.
3Within five seconds, reinsert the battery into the charger pocket.
The charger indicator changes from Steady Red to Steady Amber. This forces the charger to
calibrate and automatically recharge the battery. Two or three manual calibration cycles may be
required to rejuvenate the batteries, due to long term storage conditions.
3.7
IMPRES 2 or IMPRES End-of-Service-Life LED Indication
The charger may indicate IMPRES 2 or IMPRES battery End-of-Service by alternating Red and Green
LED upon successful completion of calibration or reconditioning.
When batteries are used, normal wear reduces available capacity. At the successful completion of
calibration or reconditioning, IMPRES chargers compare IMPRES 2 or IMPRES battery capacity to the
battery rated capacity. When the capacity is at a very low value, the IMPRES 2 or IMPRES battery may
be nearing its end of service. The IMPRES 2 or IMPRES battery remains usable. In some scenarios,
it may be preferable to deploy the battery to someone who does not require large battery capacity to
complete a work shift.
APX NEXT XN battery comes with high temperature detection feature that is detectable from IMPRES
2 charger with software version V2.02 or newer. When this feature is enabled, the status LED
flashes Red and Green alternately upon charge completion for battery that went through prolonged
exposure (exceeding 10 minutes cumulatively) under extreme high temperature environment. The
charger displays the following:
REPLACE BATTERY
EXPOSED OVERTEMP
It is recommended to remove this battery out from the service.
MN004263A01-AJ
Chapter 3 : Charging Procedure
17

Chapter 4
Troubleshooting
The IMPRES Adaptive Charger incorporates the following features:
• A universal input power supply
• A constant current rapid charger
• A negative pulse conditioning charger
• A calibration unit
• A USB Type A Power Output
• A user selectable on or off switch for turning ON/OFF calibration.
The combination of the features above are unique in a desktop charger. Therefore, operation of the
radio with a battery attached while in the charger is not recommended.
During the calibration process, the battery becomes fully discharged. As a result, the radio may shut
down during calibration mode. During the charging process, radio operation may result in minimally
reduced radio performance and extended battery charge time.
When troubleshooting, always observe the color of the LED.
Table 4: Troubleshooting
Problem What to do...
No charger indication
• Charger contact is not being made.
• No power to the charger.
Check that the battery is inserted correctly.
Make sure that the power supply plug is secure-
ly plugged into the charger and an appropriate
AC outlet, and there is power to the outlet.
Blinking Red Indication
• Charger contact is not being made.
• Battery is not chargeable.
Remove the battery from the charger and re-
place it back into the charger.
• Verify that the battery is a Motorola Solu-
tions-authorized battery listed in Motorola
Solutions Authorized Batteries on page 12.
Other batteries may not charge.
• Remove power from the battery charger and
using a clean dry cloth, clean the gold metal
charging contacts of both the battery and the
charger.
• Replace battery.
Blinking Red Indication
• High voltage drop detected when charging a
radio or a radio and battery at the same time
using the USB cable connected to a comput-
er Charging Downstream Port (CDP). The
USB cable is too long or rated current is
below 1.5 A.
Replace with a shorter 1.5 A rated USB cable
or allow sufficient time for the radio to charge
up to a level where the Battery Charging LED
indicator returns to normal.
MN004263A01-AJ
Chapter 4 : Troubleshooting
18

Problem What to do...
Blinking Amber Indication
• Battery is waiting to charge. The battery
temperature may be below 5 °C (41 °F),
above 40 °C (104 °F), or the battery volt-
age may be lower than the predetermined
threshold level for rapid charging.
When this condition is corrected, the battery be-
gins charging automatically.
MN004263A01-AJ
Chapter 4 : Troubleshooting
19

Chapter 5
Service
The IMPRES Adaptive Chargers are not repairable. Order replacement chargers as necessary from
your local Motorola Solutions Sales Representative.
MN004263A01-AJ
Chapter 5 : Service
20
