Clas Ohlson HK-TF2357 User manual

EnglishSvenskaNorskSuomiDeutsch
IR Controlled
Basket-Lifting Helicopter
IR helikopter med vinsch
IR helikopter med vinsj
IR-ohjattava helikopteri, jossa vinssi
Modellhubschrauber mit Winde
Art.no Model
31-5417 HK-TF2357 Ver. 20130325

2

3
English
1
2
3
4
5
6
78
9
10
11
IR Controlled Basket-Lifting Helicopter
Art.no 31-5417 Model HK-TF2357
Please read theentire instruction manual before using theproduct and then save
it for future reference. We reserve theright for any errors in text or images and any
necessary changes made to technical data. If you have any questions regarding
technical problems please contact our Customer Services.
Safety
• Do not operate thehelicopter in strong sunlight, thecontrols might be affected.
• Do not cover thelens of thetransmitter.
• Do not decorate thehelicopter with stickers, etc. Doing so might interfere with
theIR signals.
• Handle thehelicopter with care. Knocks and blows can damage fragile components.
• The helicopter is only intended for indoor use. Be careful when operating thehelicopter
close to air-conditioning units or fans.
• Only fly thehelicopter indoors in anarea where there is plenty of open space.
• The helicopter must only be flown by operators aged 14 or over.
• Never modify thehelicopter or thecontroller. Doing so can affect its safety.
• Keep hands, hair, necklaces and loose clothing away from therotors.
• Switch off thecontroller and thehelicopter when they are not in use.
• Remove thebatteries from thecontroller when not in use.
• Only fly thehelicopter in anarea where you have clear visual contact with it.
• Replace thebatteries as soon as they start to lose their charge.
• This product must not be used by anyone (including children) suffering from
physical or mental impairment. This product should not be used by anyone who
does not have theproper experience or knowledge of theproduct unless they
have been instructed in its use by someone who takes responsibility for their
safety.
Parts
1. Stabilizer bar
2. Main rotor
3. Tail rotor
4. Red and blue lights
5. Landing skid
6. Hook
7. [ON/OFF] On/off switch
8. CHA: Charging port
9. White light
10. Multicoloured light
11. Main rotor

4
English
12 13 14
15
16
17
181920
21
22
23
24
25
Controller
12. Power indicator
13. Charging indicator
14. Accelerate
15. Control stick
16. [ON/OFF] On/off switch
17. [R] Right trim
18. [L] Left trim
19. [A/B/C] Frequency selector
20. [Light] Helicopter lights
21. [DEMO] Short demo flight
22. Throttle
23. [RISE] Hoist thehook
24. [DESCEND] Lower thehook
25. Charger cable
Inserting batteries
1. Remove theretaining screw on theback of thecontroller.
2. Press in thecatch and remove thebattery cover.
3. Insert 6 x AA/LR6 batteries.
4. Replace thebattery cover and retaining screw.

5
English
Charging thehelicopter
The helicopter can be charged via thecontroller or theincluded USB lead.
Via thecontroller:
1. Open thepanel on theside of thecontroller and withdraw thecharger lead.
2. The helicopter’s on/off switch should be set to OFF.
3. Connect thecharger lead to theport marked, “CHA”.
4. Switch thecontroller to ON.
5. The green charging light on thecontroller should come on. Charging takes about
anhour. The helicopter is fully charged once thegreen charging light goes off.
Via theUSB lead:
1. The helicopter’s on/off switch should be set to OFF.
2. Connect one end of theUSB lead to thehelicopter and theother end to acomputer.
The indicator light on theUSB lead should be lit.
3. Charging takes about anhour. Charging is complete once thelight goes off.
General flying advice
• Use indoors and not in thevicinity of cooling fans or air conditioning units.
• Make sure that there is enough free space in thearea where you intend to operate
thehelicopter.
• Do not fly thehelicopter close to fragile objects.
• Avoid flying in strong sunlight/lighting as this could possibly affect thecontrols
adversely.
• Do not cover thelens of thetransmitter.
• Both thehelicopter and surrounding objects may be damaged if due care is not
exercised during operation.
Operating instructions
1. Turn thehelicopter and controller on by setting their on/off switches to ON.
2. The helicopter lights will come on and thered indicator light on thecontroller will
start to flash.
3. Place thehelicopter on theground with thetail towards you.
4. When thehelicopter is synchronised with thecontroller thered light on thehelicopter
will also flash.

6
English

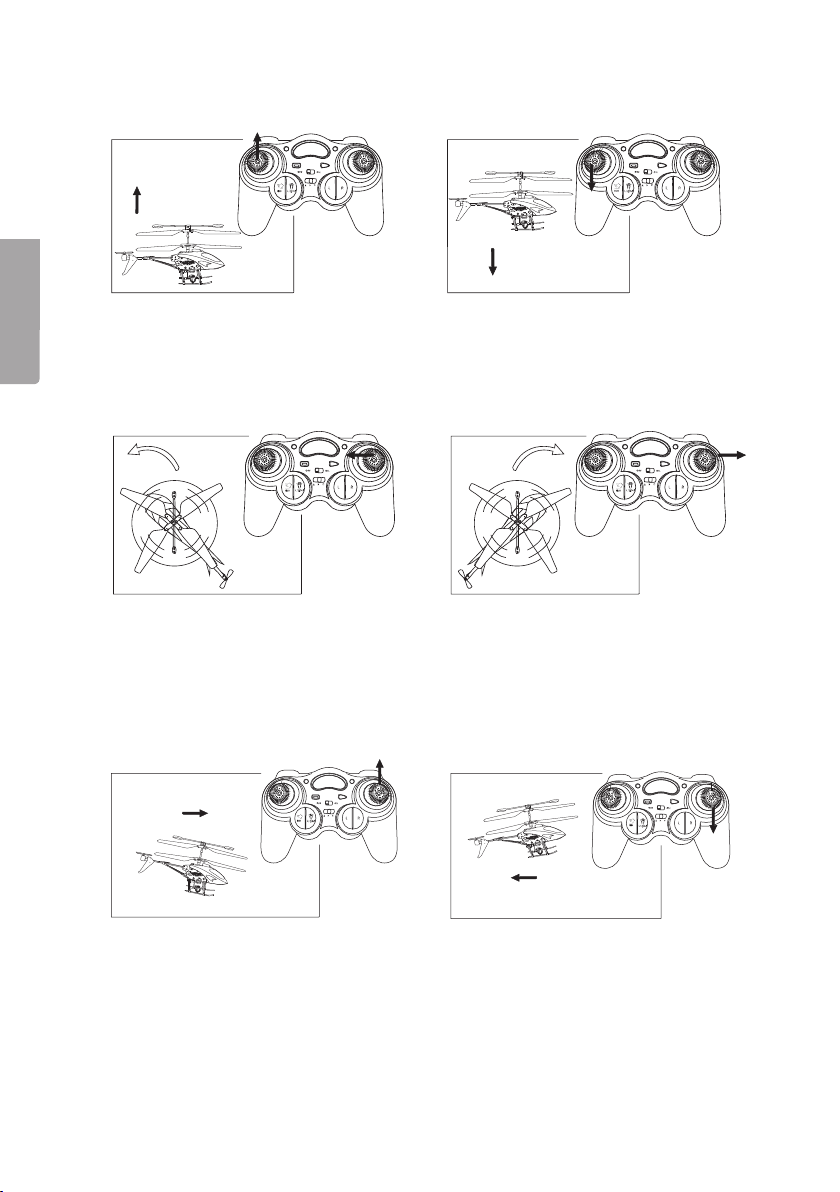

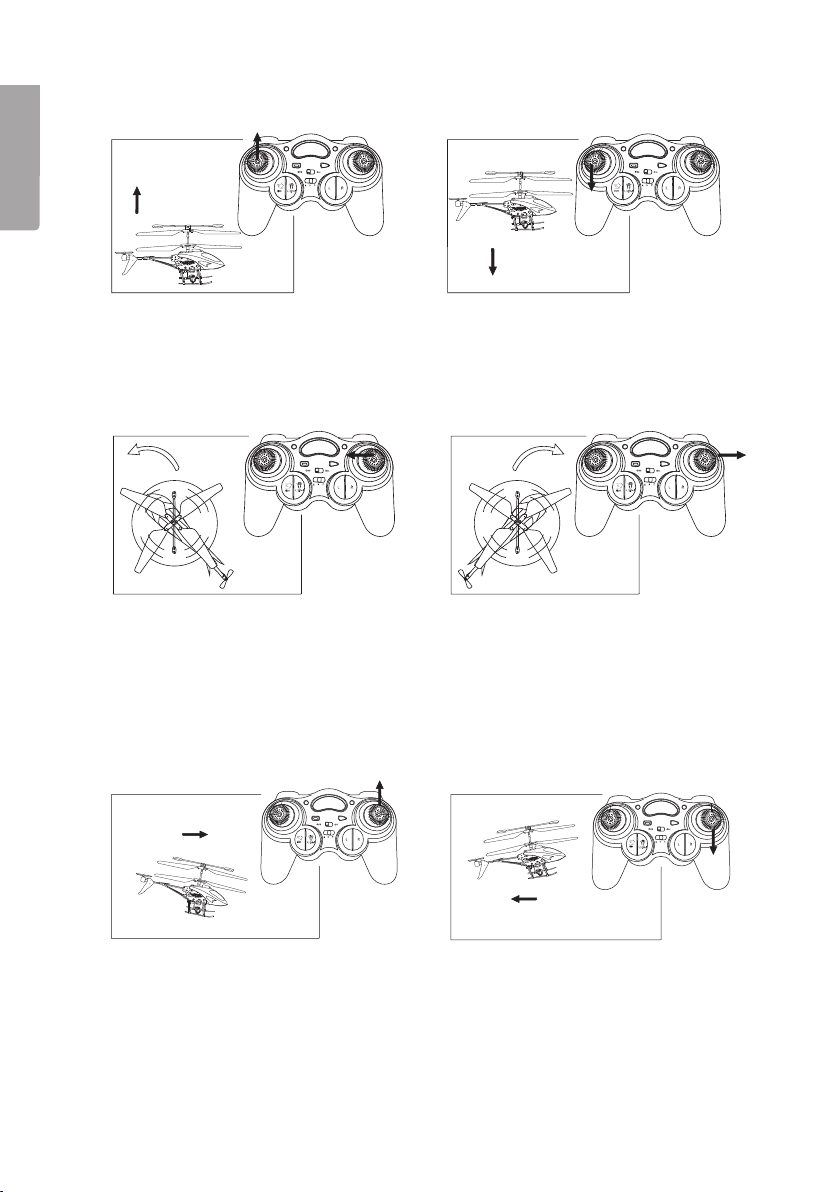

Hovering up and down
Use thethrottle lever to manoeuvre thehelicopter up and down. Small, smooth
adjustments are all that are required to make thehelicopter fly higher or lower.
Turning clockwise and anticlockwise
• Once thehelicopter is hovering
steadily, push thecontrol stick to
theleft to make thehelicopter turn
anticlockwise.
• Once thehelicopter is hovering steadily,
push thecontrol stick to theright to
make thehelicopter turn clockwise.
Flying backwards and forwards
• To fly forwards, push thecontrol
stick forwards (up).
• To fly backwards, push thecontrol
stick backwards (down).

7
English

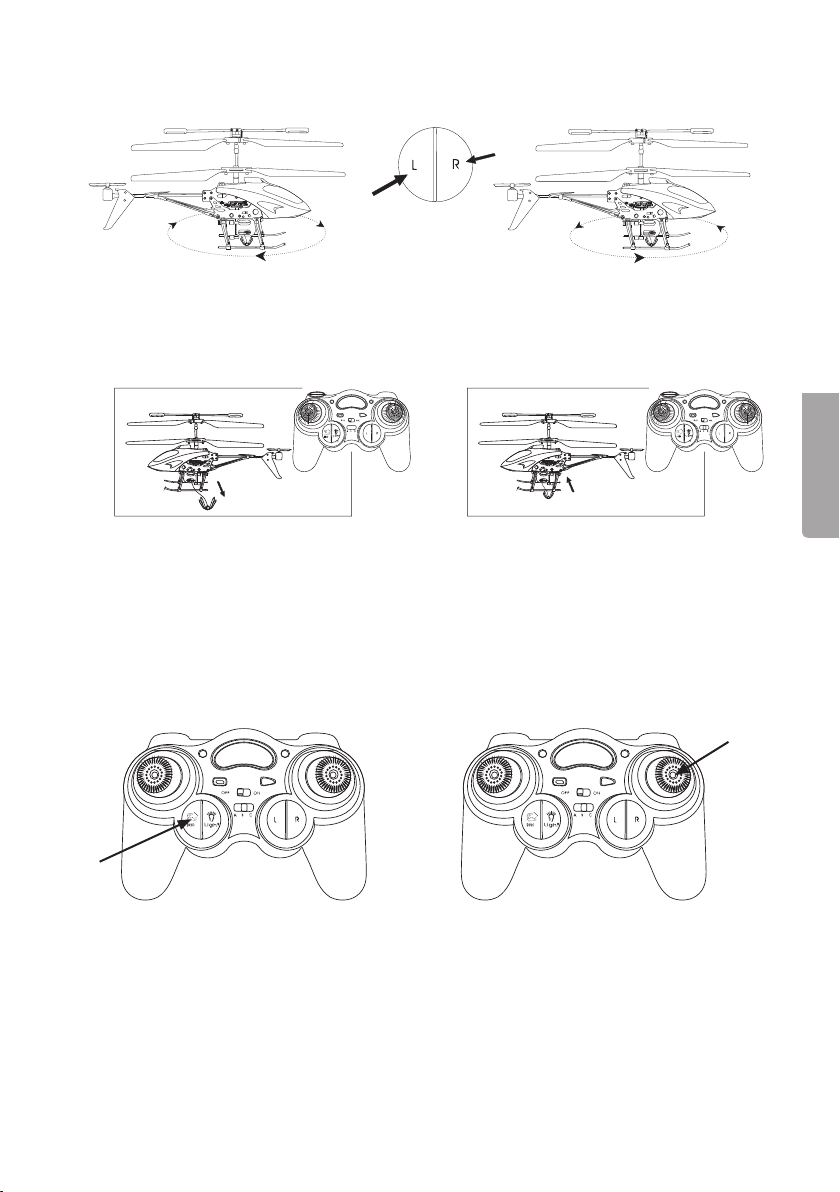

If thehelicopter rotates whilst in operation
• If thehelicopter rotates anticlock-
wise, push theright trim button [R]
to adjust.
• If thehelicopter rotates clockwise,
push theleft trim button [L] to adjust.
Hook
• Pressing [RISE] raises thehook.• Pressing [DESCEND] lowers
thehook.
Lights
Pressing [Light] turns thehelicopter lights on/off.
Demo flight
• Pressing [DEMO] will cause
thehelicopter to enter demo mode
and perform ashort demo sequence
by flying forwards, backwards,
to theleft and finally to theright.
• Moving thecontrol stick at any time
during thedemo mode will exit
thedemo mode.

8
English
Care and maintenance
Clean theproduct by wiping it with asoft, damp cloth.
Never use solvents or abrasive cleaning agents.
Troubleshooting guide
Problem Cause Solution
The rotor doesn’t spin. • The switch is in
theOFF position.
• Low battery.
• Set theswitch to
theON position.
Recharge thebattery.
The helicopter stops
suddenly and plummets
to theground.
Low battery. Recharge thebattery.
The helicopter does not
respond to thecontrols.
Wrong frequency. Change thefrequency
setting.
The helicopter responds
incorrectly to thecontrols.
Strong sunlight/lighting is
interfering with theIR signal.
Change to another room.
Disposal
This product should be disposed of in accordance with local regulations.
If you are unsure how to proceed, contact your local authority.
Specifications
Operating time Approximately 5–8 minutes
Charging time Approx. 60 min
Controller batteries 6 x AA/LR6
Helicopter battery 1 x 3.7 V lithium polymer (integrated, rechargeable)
Length 22 cm

9
Svenska
1
2
3
4
5
6
78
9
10
11
IR helikopter med vinsch
Art.nr 31-5417 Modell HK-TF2357
Läs igenom hela bruksanvisningen före användning och spara den sedan för framtida
bruk. Vi reserverar oss för ev. text- och bildfel samt ändringar av tekniska data.
Vid tekniska problem eller andra frågor, kontakta vår kundtjänst (se adressuppgifter
på baksidan).
Säkerhet
• Använd inte helikoptern i starkt solljus, det kan påverka styrsystemet.
• Täck inte över sändarens lins.
• Klistra aldrig på klisterdekal etc. på helikoptern, det påverkar IR-systemet.
• Var försiktig med helikoptern vid användning. Slag och stötar kan skada den.
• Använd endast helikoptern inomhus. Var varsam vid användning nära enheter som
AC-anläggning, fläkt etc.
• Använd helikoptern i ett område inomhus där det finns gott om utrymme.
• Helikoptern får endast användas av personer från 14 år.
• Modifiera aldrig helikoptern eller sändaren. Det kan påverka säkerheten.
• Håll händer, hår, halsband, kläder etc. borta från rotorbladen när helikoptern startas.
• Stäng av sändaren och helikoptern när de inte används.
• Ta ut batterierna ur sändaren när den inte används.
• Använd helikoptern där du lätt kan se den.
• Byt batterier omedelbart när de börjar bli svaga.
• Produkten får ej användas av personer (inklusive barn) med begränsad fysisk eller
mental förmåga. Den får ej heller användas av personer utan tillräcklig erfarenhet
och kunskap om de inte har fått instruktioner om användningen av någon som
ansvarar för deras säkerhet.
Delar
1. Balansstång
2. Huvudrotorblad
3. Bakre rotorblad
4. Röda och blåa ljus
5. Landningsstöd
6. Krok
7. [ON/OFF] På/av
8. CHA: Laddningsuttag
9. Vitt ljus
10. Flerfärgade ljus
11. Huvudrotorblad

10
Svenska
12 13 14
15
16
17
181920
21
22
23
24
25
Sändaren
12. Lyser när sändaren är påslagen
13. Laddningsindikator
14. Accelerera
15. Manövreringsspak
16. [ON/OFF] På/av
17. [R] Finjustering åt höger
18. [L] Finjustering åt vänster
19. [A/B/C] Frekvensväljare
20. [Light] Ljus
21. [DEMO] Kort autoflygning
22. Gasreglage
23. [RISE] Hissa upp kroken
24. [DESCEND] Sänka ned kroken
25. Laddkabel
Sätta i batterierna
1. Skruva bort skruven på baksidan av sändaren.
2. Tryck in spärren och ta bort batteriluckan.
3. Sätt i 6 x AA/LR6-batterier.
4. Sätt tillbaka batteriluckan och skruva sedan tillbaka skruven.
