Cleveland
™
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: [phone]
Fax: [phone]
Web Site: www.ClevelandRange.com
Email: [e-mail]
STEAMCRAFT®GENERATOR STYLE
HIGH SPEED CONVECTION STEAMERS
MODEL: c21-CET-16
Cleveland Standard Features
nCooking Capacity for up to five 12˝ x 20˝ x 21⁄2˝ deep
Cafeteria Pans.
nInnovative PowerPak Electric Steam Generator: Two
Special Stainless Steel Fire Bar Heating Element. Strong 14
Gauge Stainless Steel Construction. Large 5 gallon genera-
tor reservoir for faster steam cooking production. Fully insu-
lated rear mounted steam generator.
nEasy Access Cleaning Port: Generator Cleaning Port
located on the outside, top of the unit. Not necessary to
remove hot panels or pan rack guides.
nGenerator Cleaning Light: Indicator Light located on the
front of the unit warns operator it is time to delime genera-
tor.
nInstant Steam Stand By Mode: Hold generator at a
steaming temperature. Allows unit to start cooking instantly.
nDurable 14 Gauge, Stainless Steel Construction:
For compartment door, cavity and steam generator.
nOne 60 Minute Electro-Mechanical Timer and Switch for
manual operation: Audible signal for cooking time
completion.
nMain Power On/Off Switch: With Automatic Water Fill.
nExclusive Steam Cooking Distribution System:
Maintenance Free Exclusive Brass Steam Jets produce a
high velocity convection steam without fans. Coved Corner
design in cooking compartment distributes heat evenly, and
is easy to keep clean. Creased top & bottom enhance
drainage. Cold water condenser behind drain maintains a
dry steam. Fully Insulated cooking compartment for thermal
efficiency. Removable Stainless Steel Slide Racks for easy
cleaning.
nAutomatic Generator Drain: Contains a “Water Jet” Spray
Rinse Drain Cleaning Cycle to keep drain clear.
nExclusive Automatic Remote Probe Type Water Level
Control: Separate from the generator for easy access.
nExclusive “Cool to the Touch”Two-Piece Compartment
Door Design: Free floating inner door with reversible gas-
ket provides an air tight seal. Stainless Steel Slam/Latch
Door Latch mechanism for reliability.
nLeft Hand Door Hinging: Compartment Doors hinged on
the left, controls on the right.
nAvailable in most voltages, three phase only.
Options & Accessories
pRight hand Door Hinging, Controls on the Left (DHR)
Shall be CLEVELAND, SteamCraft

Ultra 5 , one compartment,
Counter-Type Steamer, Model 21-CET-16, ___volts, 16.5 KW,
___Hz, 3 phase, heavy duty all Stainless Steel construction; rear
mounted, insulated Steam Generator with Remote Probe Type
Water Level Controls and Automatic Steam Generator Blowdown
with “Water Jet” Drain Cleaning feature.
pElectronic Timer with Compensating Load Feature (ETC)
pON/OFF Steam Switch for compartment controls (MC)
p34" (864mm) High Stainless Steel Economy Stand, for one 21-
CET-16 (UniStand34)
pPOSK Pull-Out Shelf Kit for UniStand (P/N 111724)
pURK Pan Rack Kit UniStand (P/N 111726)
p4˝ Stainless Steel Legs (LF4)
pEquipment Stacking Stand Shelf Type (ES2446)
pDissolve®Descale Solution, 6 one gallon container w/quart
markings (106174)
pCompartment Door Steam Shut Off Switch (SCS)
pCafeteria Pans in depths of 1˝, 21⁄2˝ and 4˝
pWater Filters
Short Form Specifications

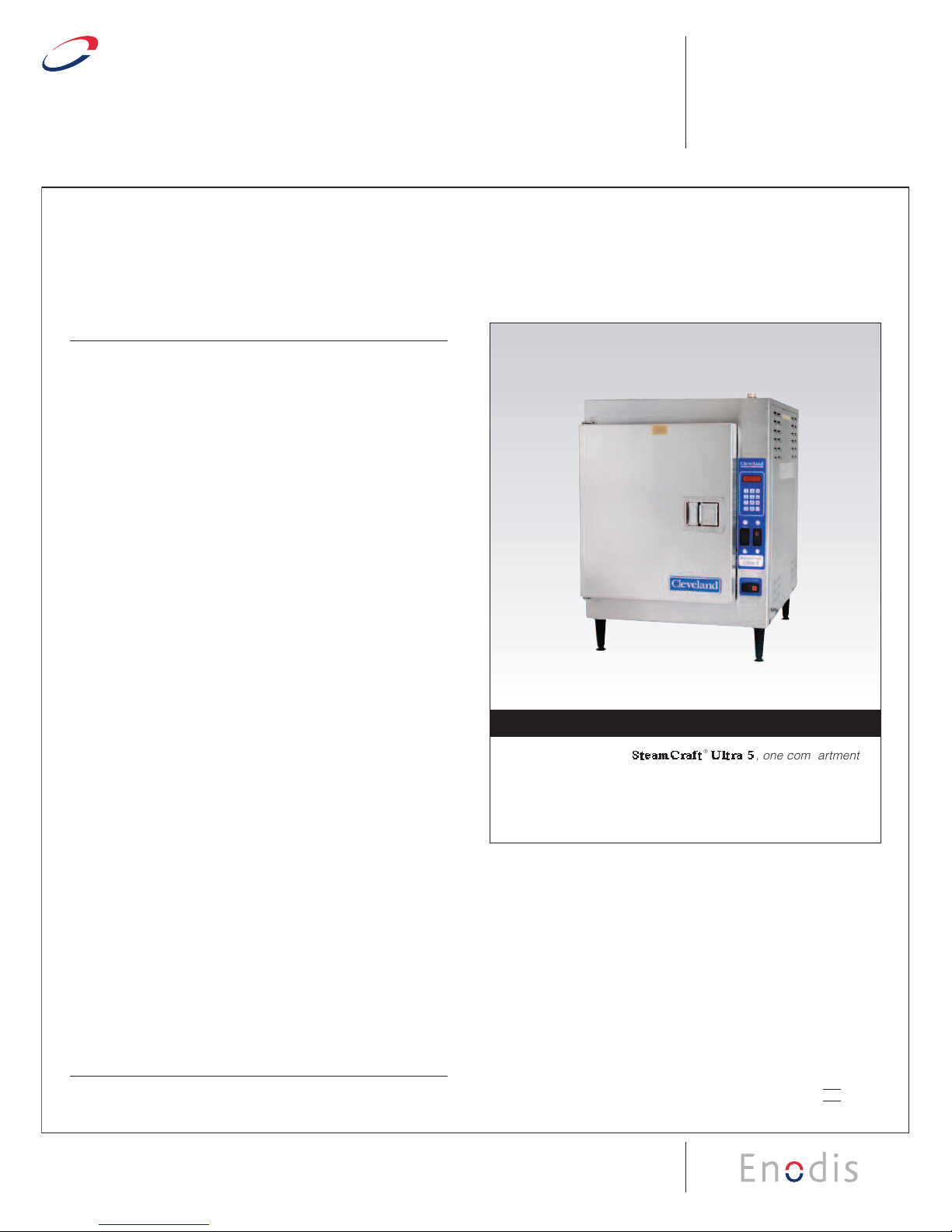

Shown with optional
Electronic Timer
SteamCraft ®Ultra 5
COUNTER TYPE DESIGN
PRESSURELESS CONVECTION STEAMER
ELECTRIC STEAM GENERATOR, 16 KW
SECT. IV PAGE 5
0707

•Compartment has capacity for:
Five, 12˝ x 20˝ x 21⁄2˝ deep Cafeteria Pans.
(NOT TO SCALE)
SECT. IV PAGE 6
0707
Litho in U.S.A.
WATER QUALITY REQUIREMENT
The recommended minimum water quality standards
whether untreated or pre-treated, based upon 10 hours
of use per day, and a Daily Blowdown, are as follows:
TOTAL DISSOLVED SOLIDS less than 60 parts per million
TOTAL ALKALINITY less than 20 parts per million
SILICA less than 13 parts per million
pH FACTOR greater than 7.5
CHLORINE less than 30 parts per million
Consult a local water treatment specialist for an on site
water analysis for recommendations concerning steam
generator feed water treatment (if required), in order to
remove or reduce harmful concentrations of minerals.
The use of highly mineralized water will mean that
more frequent servicing of the steam generator will be
necessary. The fact that a water supply is potable is
not proof that it will be suitable for the generator.
ELECTRIC WATER DRAINAGE CLEARANCE
C
D
Cold water:
35 psi minimum
60 psi maximum
Two 1⁄4˝ NPT Tubing:
C1 one for Condenser
C2 one for Steam Generator
Unit comes with a
40 Mesh Water Strainer
(installation required)
11⁄4˝ N.P.T. tube
Do not connect other units
to this drain.
Drain line must be vented.
No PVC pipe for drain.
Volts Watts Ph Amps Wire
208 16,300 3 45.9 3
220 13,694 3 36.5 3
240 16,300 339.8 3
440 13,694 3 18.2 3
480 16,300 3 19.9 3
360 14,621 323.8 4
380 16,300 3 25.1 4
415 16,300 3 23.0 4
Right - 3”, Left - 3”, Rear - 3”
(12” on control side if adjoining
wall or equipment is over 30”
high for service access)
Contact factory for
variances to clearances.
NOTES:
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are UL, ULC, UL/NSF#4, CE and CSA.
