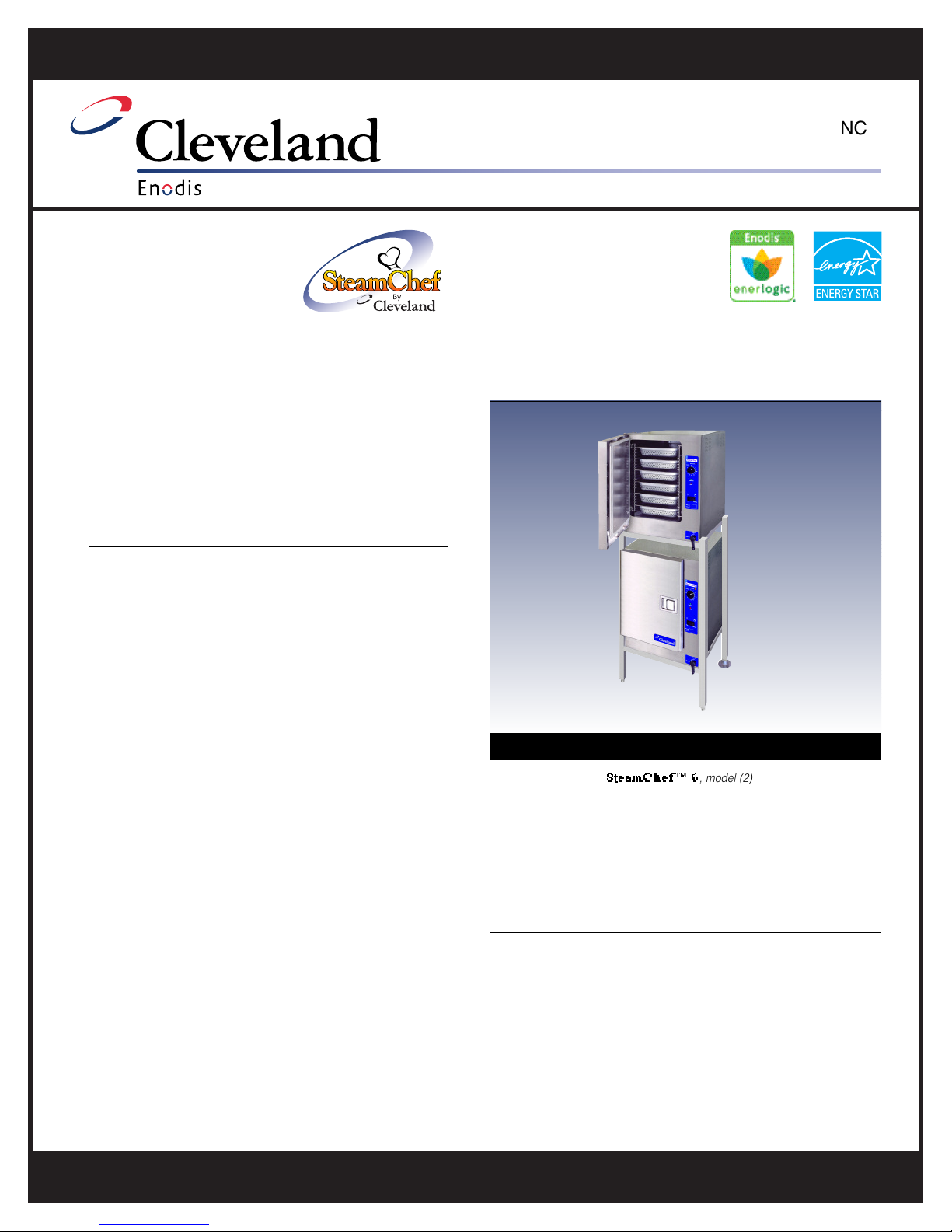

Cleveland SteamChef 22CET6.1 User manual

1333 East 179th St., Cleveland, Ohio, U.S.A. 44110
Ph: 1-216-481-4900 Fx: 1-216-481-3782 Web Site: www.clevelandrange.com
Cleveland Range, LLC
SINCE 1922
INNOVATIVE STEAM COOKING SOLUTIONS
SteamChef TM 6
Boilerless Convection Steamer,
Automatic Water Fill & Drain,
Two 13.5 kW Boiler-Free Floor Model Design
ITEM NUMBER __________________________________________
JOB NAME / NUMBER __________________________________
Cleveland Standard Features
n Cooking capacity for up to six 12" x 20" x 2.5" deep steam table
pans (1/1 G/N, 65 mm) per compartment.
n High-speed electric convection steamer with open style 1.5 gallon
water reservoir located at the bottom of the cooking compartment
for easy access and maintenance.
n Fan forced convection steam with patented KleanShield
TM
cooking
compartment design. KleanShield
TM
collects and removes
condensate waste from the cooking compartment. This keeps the
compartment clean, safe from impurities and easy to maintain.
Reduces foaming and avoids contamination of the reservoir water.
n Automatic water level controls, fills when main power switch is
turned ON, Low Water and High Water probes inside cooking
compartment maintains water levels during cooking, eliminating the
need to manually refill and monitor water level during cooking.
Additional Safety Overflow Standpipe. 193˚preheat and standby
temperature. High Temperature Safety Shut-off.
n Steam and Fan Shut Off Control when compartment door is opened.
n 13.5 kW electric heating elements are in aluminum blocks for fast
and ultra efficient heat transfer. Elements never need deliming
because they are not immersed in water.
n Exclusive SureCook Compartment Controls improves cooking
speed and accuracy. New energy saving design reduces water and
electric usage. On-demand power control for faster heat up and
recovery. Energy saving Standby Feature when not in use. The
SureCook timer automatically adjusts the cooking time with the
volume of product being cooked, eliminating guesswork on when
the product is finished. Includes a 60-Minute Electro-Mechanical
Timer, LED Indicator Lights for SureCook Cycle, Power On and
Reset. Timed and Manual Bypass Switch for constant steaming.
n Exclusive SteamChef
TM
Automatic Drain Control. Generator Drains
when main power is turned OFF via 1/2" ball valve with micro
switch circuitry. Simple 1.5" NPT drain connection required with
water saving cold water condenser and 3 minute rinse feature.
n Left Hand Door Hinging: Compartment Doors hinged on the left,
controls on the right.
n Exclusive, durable 14 gauge stainless steel compartment door and
latch withstands abuse and heavy wear. Two piece compartment
door with free floating inner door is self adjustable and prevents
leaks. Reversible door gasket doubles the life of the gasket.
n Meets agency codes: specifically UL and
C
UL listed, classified to
NSF#4 and Energy Star.
n Stacking combination requires field installation of the steamers and
stand. This combination includes the following items:
• 2-each 22CET6.1 SteamChef
TM
Counter Top Steamers.
• 44" high equipment stand
• common drain and water connection manifold
Shall be a Cleveland SteamChefTM 6 , model (2) 22CET6.1, two stacked
single compartment high-speed electric convection steamers ( ____ volt, ___
phase) on a ES222824S stainless steel equipment stand with ChefStackIt
Direct Stacking Kit and install hardware. Standard with SureCook
Compartment Controls, 60-minute electro-mechanical timer with load
compensating feature. Capacity per compartment for six 2.5" (1/1 G/N, 65
mm) full size steam table pans. 13.5kW electric heating elements in
aluminum blocks. Includes 1/2" ball valve style automatic drain. Automatic
water level controls. Heavy-duty 14 gauge stainless steel cooking
compartment door and latch. KleanShield
TM
clean cavity protection. 4"
Adjustable Legs
Short Form Specifications
MODEL: c(2) 22CET6.1
Options & Accessories
pRight Hand Door Hinging, Controls on Left (DHR)
pON/OFF Compartment control only, no timer (MC)
p5 Foot (1524mm) FDA Approved National Hose
Thread style water connection kit
(garden hose thread), 2 required (NHT60)
p Single Phase Operation (see back)
p Optional Voltages, 480 Volt (VOS2),
see back for alternative voltages.
SECT. BPAGE 11
0307
By
HIGH EFFICIENCY
STEAMCHEFTM CONVECTION STEAMERS

1.5" DRAIN
CONNECTION
CONDENSER FILL
RESERVOIR FILL
ELECTRICAL INLETS
25.50"
648mm
34.58"
879mm
70.50"
1791mm
ES263044
SteamChef 6 Stacking Stand
TM
Cleveland Range reserves right of design improvement or modification, as warranted.
(NOT TO SCALE)
SECT. BPAGE 12
0507
Litho in U.S.A.
•Each compartment has capacity for: Six, 12˝ x 20˝ x 21⁄2˝ deep Cafeteria Pans.
•Each compartment has capacity for: Twelve, 12˝ x 20˝ x 1˝ deep Cafeteria Pans.
•Each compartment has capacity for: Four, 12˝ x 20˝ x 4˝ deep Cafeteria Pans.
COLD WATER**
C-1: Feed water for reservoir, 35 Psi Minimum,
60 Psi Maximum.
C-2: Drain condenser water, 35 Psi Minimum,
60 Psi Maximum.
Two 3/4" NH-F (Garden Thread) connections.
Use NSF approved hose.
DRAIN CONNECTION**
1.5" NPT-M
Do not connect other units to this drain.
Drain line must be vented. Vented drain
connection included.
Do not connect drain to PVC pipe.
OPERATING CLEARANCES
3" Left, 3" Right and 4" Rear.
SERVICE CLEARANCES
12" on control side. Contact factory for
variances to clearances.
CONTROLS**
SureCook 60-minute electro mechanical timer
with load compensating feature.
Three function control switch for Timed Cooking,
Continuous Steaming and Holding.
APPROVALS
UL and CUL listed, classified to NSF#4 and
Energy Star
H
D
C C1 C2
H
D
C C1 C2
H
D
C C1 C2
ELECTRICAL**
WATTS VOLTS PHASE WIRES CYCLE AMPS SUPPLY CONNECTION
HERTZ WIRE SIZE (COPPER)*
Standard Wattage
Three Phase - 9 kW Standard
13500 208 3 3 60 37.5 6
11300 220 3 3 60 29.7 8
13500 240 3 3 60 32.5 8
11300 440 3 3 60 14.9 12
13500 480 3 3 60 16.2 10
Optional Low Wattage
Three Phase - 6 kW option
9400 208 3360 26.1 8
5440 220 3 3 60 20.9 10
9400 240 3 3 60 22.6 10
5440 440 3 3 60 10.4 14
9400 480 3 3 60 11.4 14
* For supply connection use only copper wire suitable for at least 75˚C. (167˚F).
** Per unit.).
WATTS VOLTS PHASE WIRES CYCLE AMPS SUPPLY CONNECTION
HERTZ WIRE SIZE (COPPER)*
Standard Wattage
Single Phase - 9 kW Standard
13500 208 1 2 60 64.9 4
11300 220 1 2 60 51.4 6
13500 240 1 2 60 56.3 4
11300 440 1 2 60 25.8 8
13500 480 1 2 60 28.1 8
Optional Low Wattage
Single Phase - 6 kW option
9400 208 1260 45.2 6
5440 220 1 2 60 36.1 8
9400 240 1 2 60 39.2 8
5440 440 1 2 60 18.0 10
9400 480 1 2 60 19.6 10
