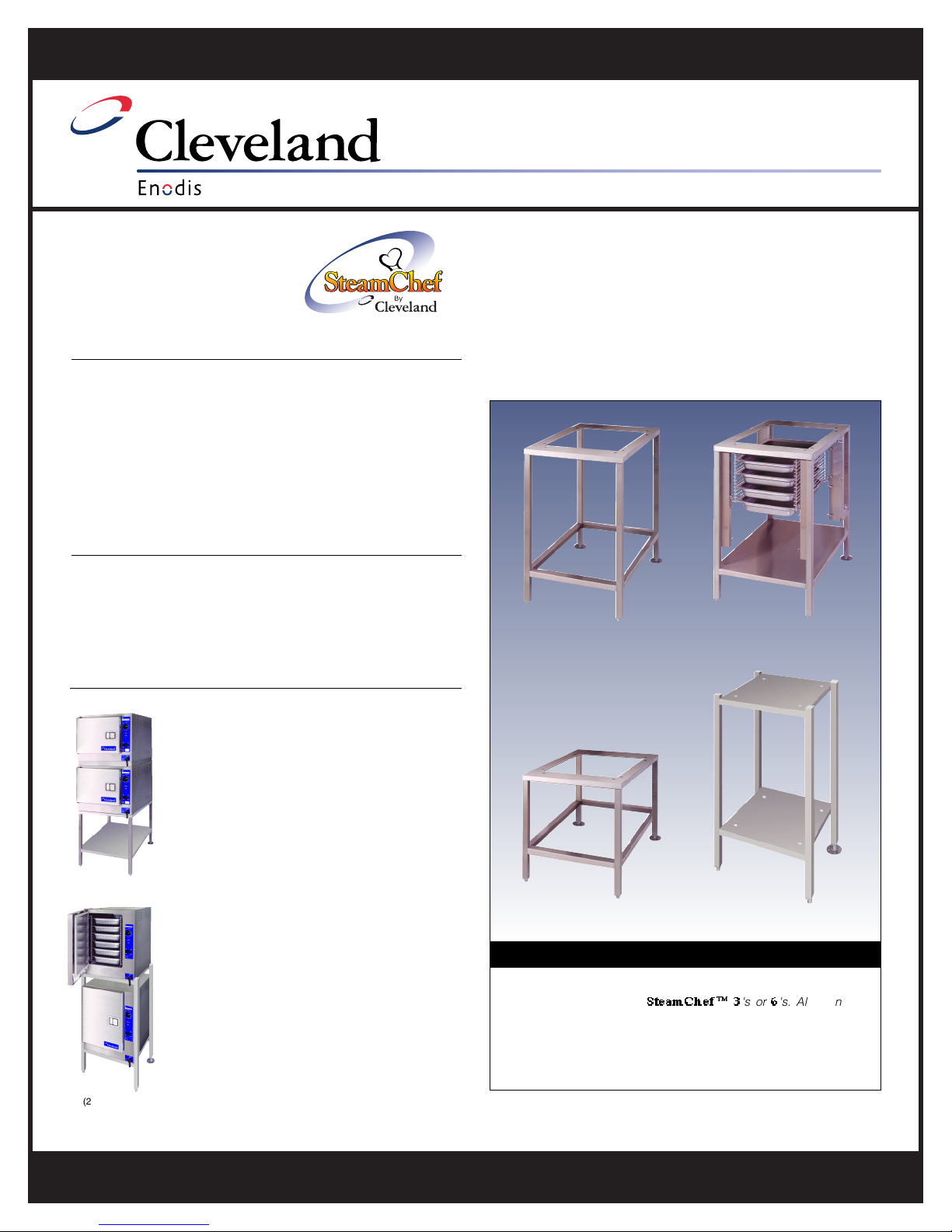

Cleveland SteamChef 3 User manual

1333 East 179th St., Cleveland, Ohio, U.S.A. 44110
Ph: 1-216-481-4900 Fx: 1-216-481-3782 Web Site: www.clevelandrange.com
Cleveland Range, LLC
SINCE 1922
INNOVATIVE STEAM COOKING SOLUTIONS
STEAMCHEFTM CONVECTION STEAMERS
SECT. BPAGE 13
0307
MODELS:
cES222834 - Economy Stand used for a single unit
cES222834PR - Deluxe Stand used for a single unit
cES222824S - Stacking Stand used for stacking two 22CET3.1
cES263044 - Stacking Stand used for stacking two 22CET6.1
ITEM NUMBER __________________________________________
JOB NAME / NUMBER __________________________________
Cleveland Standard Features
nPreset mounting holes for positioning unit into proper location
nAll stainless steel welded construction with:
1 1/4˝ square tubing for ES222834, ES222834PR and
ES222824S
1 1/2" square tubing ES263044
nLevel adjustable feet (rear feet are flanged for floor bolting)
Deluxe Stacking Stand
ES222824PR -
Comes with bottom shelf and can accommodate two sets of pan
racks (one set pan racks included)
(2) 22CET3.1
Requires field installation. This combination
includes the following items:
•2-each 22CET3.1 SteamChef
TM
Counter Top
Steamers
•1-each ChefStackIt Direct Stacking Kit and
install hardware
•Common drain and water connection manifold
•1-each ES222824S Equipment Stacking
Stand
(2) 22CET6.1
Requires field installation. This combination
includes the following items:
•2-each 22CET6.1 SteamChef
TM
Counter Top
Steamers
•Common drain and water connection manifold
•1-each ES263044 Equipment Stacking Stand
Combination Units
Shall be CLEVELAND, ES________ open type Equipment Stands
for mounting one or two
SteamChefTM 3 's or 6 's. All Stainless
Steel welded construction with; 1 1/4˝ square tubing for ES222834,
ES222834PR and ES222824S; 1 1/2" square tubing ES263044.
Furnished with Level Adjustable Feet (rear feet are flanged for floor
bolting). Preset mounting Holes for positioning unit into proper
location.
Short Form Specifications
ES222824S
(For stacking two 22CET3.1)
ES263044
(For stacking two 22CET6.1)
ES222834 Economy Style Stand
(For mounting one 22CET3.1 or
one 22CET6.1)
ES222834PR Deluxe Style Stand
(For mounting one 22CET3.1 or
one 22CET6.1)
SteamChef TM 3 & 6
Equipment Stands
OPEN TYPE STAND,
ALL STAINLESS STEEL,
By
(2) ES222844S
(2) ES263044

24"
610mm
22"
559mm
28"
712mm
34"
864mm
22"
559mm
28"
712mm
FRONT
VIEW
RIGHT SIDE
VIEW
FRONT
VIEW
RIGHT SIDE
VIEW
MODEL: ES222824S
STACKING STAND
USED FOR STACKING
TWO 22CET3.1
MODEL: ES222834
ECONOMY STYLE STAND
USED FOR MOUNTING
ONE SINGLE UNIT 22CET3.1
or
ONE SINGLE UNIT 22CET6.1
43.76"
1112mm
10.45"
266mm
25.50"
648mm
29.25"
743mm
34"
864mm
22"
559mm
28"
712mm
FRONT
VIEW
RIGHT SIDE
VIEW
FRONT
VIEW
RIGHT SIDE
VIEW
OPTIONAL
PULL-OUT
SHELF
MODEL: ES263044
STACKING STAND
USED FOR STACKING
TWO 22CET6.1
MODEL: ES222834PR
DELUXE STYLE STAND
USED FOR MOUNTING
ONE SINGLE UNIT 22CET3.1
or
ONE SINGLE UNIT 22CET6.1
Cleveland Range reserves right of design improvement or modification, as warranted.
(NOT TO SCALE)
