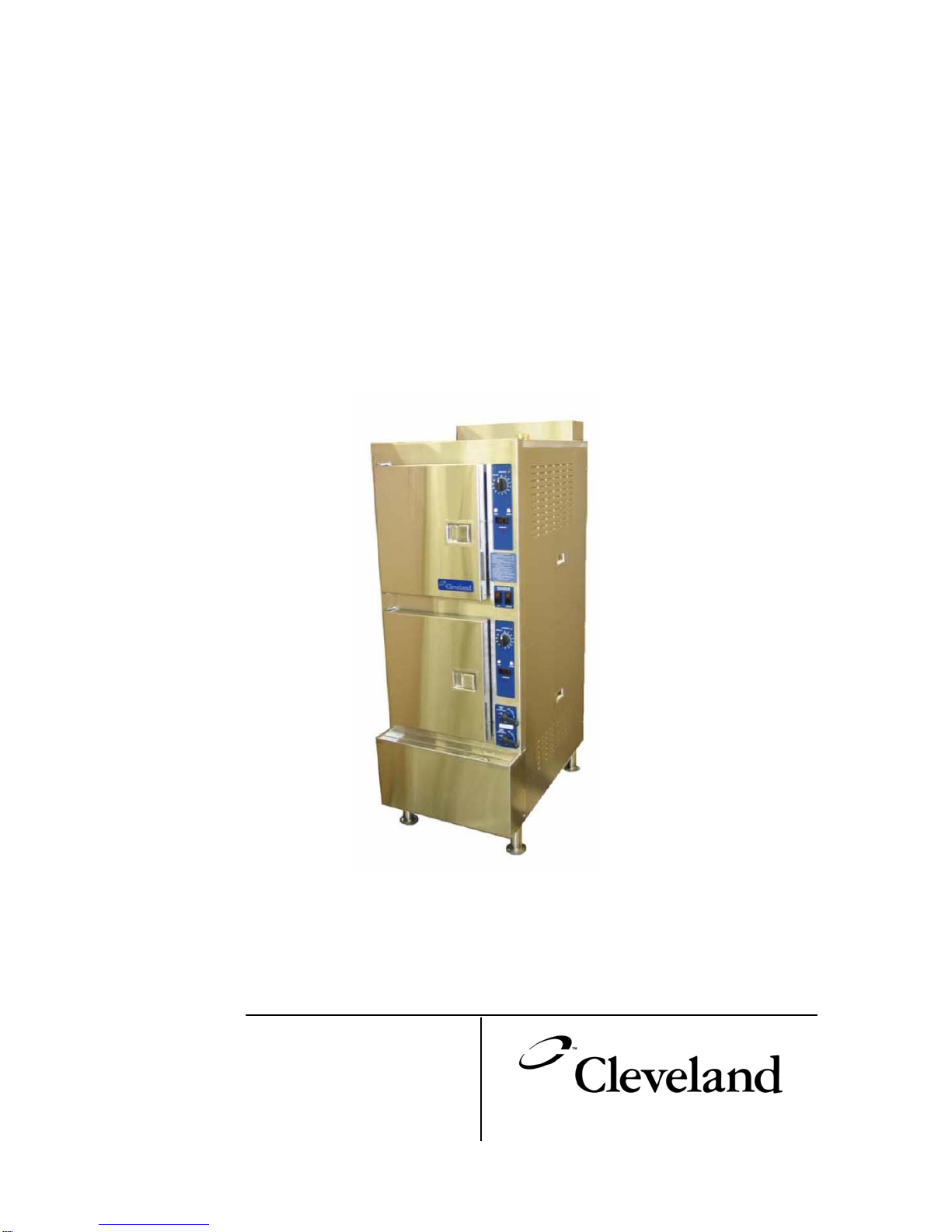

Cleveland 24-CGA-10.2 User manual

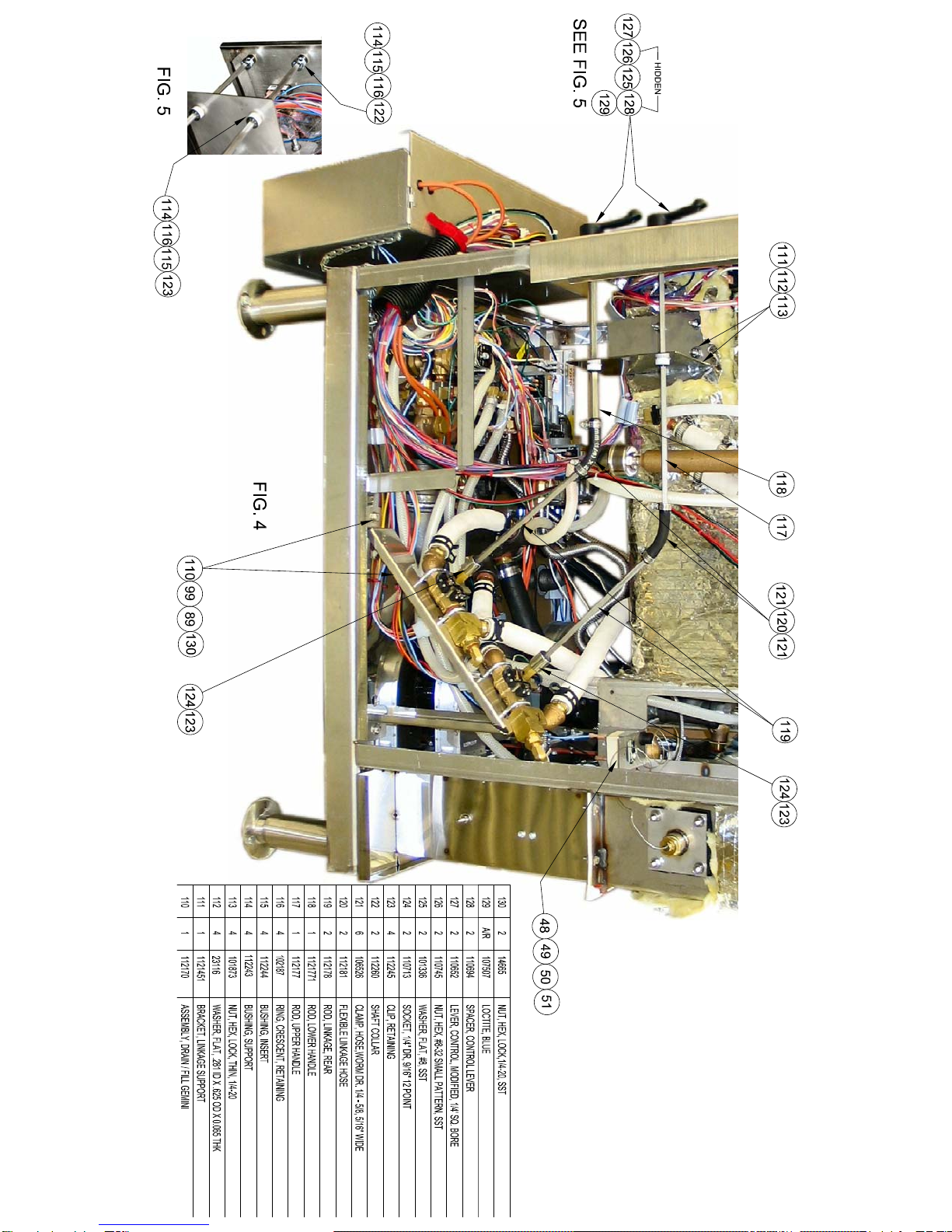

Parts Manual
Floor type Gas Convection Steamer
Series: SteamCraft Model 24CGA10.2
1333 East 179th Street
Cleveland, Ohio 44110
Phone: [phone]
1-800-338-2204
Fax: [phone]
www.clevelandrange.com

Statement of Responsibilities
This document is for use by experienced and trained Qualified Cleveland Range, LLC Authorized Service
Representatives who are familiar with both the safety procedures, and equipment they service.
Cleveland Range, LLC assumes no liability for any death, injury, equipment damage, or property damage
resulting from use of, improper use of, or failure to use the information contained in this document.
Cleveland Range, LLC has made every effort to provide accurate information in this document, but
cannot guarantee that this document does not contain unintentional errors and omissions.
The information in this document may be subject to technical and technological changes, revisions, or
updates.
Cleveland Range, LLC assumes no liability or responsibility regarding errata, changes, revisions, or
updates.
Qualified Cleveland Range, LLC Authorized Service Representatives are obligated to follow industry
standard safety procedures, including, but not limited to, OSHA regulations, and disconnect / lock out /
tag out procedures for all utilities including steam, and disconnect / lock out / tag out procedures for gas,
electric, and steam powered equipment and / or appliances
All utilities (gas, electric, water and steam) should be turned OFF to the equipment and locked out of
operation according to OSHA approved practices during any servicing of Cleveland Range equipment
Qualified Cleveland Range, LLC Authorized Service Representatives are obligated to maintain up-to-date
knowledge, skills, materials and equipment.

Cleveland Range Inc. 1333 East 179th St., Cleveland, Ohio, U.S.A. 44110
Ph:1-216-481-4900 Fx:1-216-481-3782
Visit our Web Site at www.clevelandrange.com
MODEL: 24-CGA-10.2
ITEM NUMBER __________________________________________
JOB NAME / NUMBER __________________________________
Cleveland Standard Features
■Cooking Capacity for up to ten 12˝ x 20˝ x 2 1/2˝ deep
Cafeteria Pans, five each compartment.
■Totally independent cooking compartments, each has its'
own generator, gas valve and water level controls - no
shared components
■Exclusive High Efficiency Gas Power Burner (forced air)
Generator: Produces more steam for faster cooking while
lowering operating costs (72M BTU's per compartment)
■Easy Access Cleaning Port: Each generator has a deliming
port located on the outside, top of the unit
■Generator Cleaning Light for each compartment warns the
operator to delime generator
■Instant Steam Standby Mode:Holds generator at a
steaming temperature, allows unit to start cooking instantly
■Each compartment has one, 60-Minute Electro-Mechanical
Timer with load compensating feature.Manual Bypass
Switch for constant steaming.
■Durable 14 Gauge, 304 Stainless Steel construction for
compartment door, cooking cavity and steam generator
■ExclusiveTwo-Piece Compartment door: Slammable,
self-adjusting door provides and airtight seal, reversable
door gasket for extended life
■Exclusive Gemini Drain/Power Control System: Simple,
reliable 1/2" ball valve style drain automatically turns power
ON/OFF
■Exclusive Brass Steam Jets distribute even-high velocity
steam throughout cooking compartment for faster cooking
times
■Easy, Front -Access Generator Controls comes with a
pullout drawer for simple servicing of unit
■6˝ Stainless Steel Adjustable Legs with Flanged Feet
■Approvals: CSA (AGA, CSA) and U.L/NSF#4
■Compartment Steam Shut-Off Switch (SCS)
Options & Accessories
❐Electronic Timer with Compensating Feature (ETC)
❐On/Off Steam Switch Controls, no timer (MC)
Shall be Two Compartments, Cleveland Convection Steamer series
SteamCraft

Gemini
TM
10 , Model 24-CGA-10.2, Twin Gas Atmospheric
Steam Generator, 72M BTU"s input per compartment.
Independent
steam generator, gas valve and water level control system.
Automatic Generator Blowdown. Steam Generator with Automatic Water
Fill on start up.
Exclusive remote probe-type water level controls.
Exclusive Brass “Steam Jet” distribution system. Two-piece free-
floating compartment door.
Type 430 Stainless Steel exterior and cook-
ing compartments.
Pullout service drawer for controls and Gemini
Drain/Power Control System.
Exclusive Cold Water Condenser design.
Choice of Compartment Controls. Manual
❐Propane Gas (PG)
❐Dissolve®Descale Solution, 6 one gallon container w/quart
markings (106174)
❐Water Filters
Short Form Specifications
SECT. IV PAGE 13
0402
SteamCraft ®Gemini TM 10
TWO COMPARTMENT FLOOR MODEL DESIGN
PRESSURELESS CONVECTION STEAMER
TWIN, INDEPENDENT GAS-FIRED GENERATORS

(NOT TO SCALE)
SECT. IV PAGE 14
0402
Litho in U.S.A.
GAS ELECTRIC COLDWATER CLEARANCE DRAINAGE
1
1
⁄ 4 ˝ IPS line size,
3
⁄ 4 ˝ (13mm) connection 120V-1Phase, 60 Hz. 35 psi minimum RIGHT = 3˝ operating, 1
1
⁄ 2 ˝ dia.
NATURAL PROPANE BTU 2 Blowers & Controls 60 psi maximum 12˝ if adjoining wall or Do not connect other
Piping
3
⁄
4 ˝ N.P.T. Piping
3
⁄
4 ˝ N.P.T. 72,000 each 150 watts each LEFT = 3˝ units to this drain
Supply pressure Supply pressure Generator, One (E) 1/4" dia. REAR = 3˝
4.50˝ W.C. Min. 11.00˝ W.C. Min. 144,000 total NPT for Generator Allow 6˝ space min. Drain must be vented
14.00˝ W.C. Max. 14.00˝ W.C. Max. from rear and sides
One (D) 1/4" dia when located near Do not use PVC pipe
Manufacturer must be notified if unit will NPT for Condenser combustible walls
be used above 2,000 feet
C
D
NOTES:
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are UL/NSF#4 and CSA (AGA, CGA).
Each Compartment has
capacity for:
•Five, 12˝ x 20˝ x 21⁄2˝ deep
Cafeteria Pans.
WATER QUALITY
REQUIREMENTS
The quality of water varies
greatly from region to region.
Steam equipment generators
must be drained daily and
chemically descaled periodically
to ensure proper operation. To
minimize service problems
caused by the accumulation of
minerals and chemicals in water
review the following quality
guidelines with a local water
treatment specialist. Inlet water
that is beyond these specified
guidelines should be treated to
achieve these acceptable limits.
Total Dissolved Solids less than
60 ppm, Alkalinity less than 20
ppm, Silica less than 13 ppm,
pH factor greater than 7.5,
Chlorine less than 30 ppm.
Right - 3”, Left - 3”,
Rear -3”
(12” on control side if adjoining
wall or equipment is over 30”
high for service access)
Contact factory
for variances to
clearances.
A B C
DE

CLEVELAND RANGE GEMINI 24CGA 6.2
AND 24CGA10.2
SEQUENCE OF OPERATIONS
Mechanical Timer
Starting with the timed manual switch in the timed position, and no time on the timer.
1. To turn the unit on, turn the ON/OFF lever clockwise to the ON position
•This mechanically closes the drain.
•The red “Power On” indicator is energized.
•115 VAC is sent through the timer to the three-second timer, which activates the
buzzer for three seconds.
•115 VAC is sent through the normally closed R1 contacts to the fan motor, turning it
ON
•115 VAC is sent to H and N of the water level board
2. With the water level board energized and no water in the generator
•115 VAC is sent from the FILL terminal to the fill solenoid.
•The fill solenoid opens and the generator fills.
3. The water fills to the low probe shorting it to ground
•115 VAC is sent from the HEAT terminal to the timed manual switch.
•115 VAC is sent through the high limit to the primary of the 24VAC transformer.
•The water continues to fill until the water level reaches the high probe then 115 VAC is
removed from the FILL terminal and the fill solenoid is turned off
4. 24VAC is sent to the ignition module.
•Spark is sent to the igniter.
•24VAC is sent to the pilot coil of the gas valve and the coil of the R1 relay.
•The normally closed R1 contacts open, turning off the fan
•The pilot lights, which acts as a standby heater. When the pilot is ignited and the
module detects 1.0 micro amps DC, the MV terminal on the module is energized it
remains in this standby heat mode until a cooking compartment is turned “ON” (see
step 5).
5. When the timed/manual switch is in the timed position and time is on the timer or the timed
manual switch is set to the manual position:
•115 VAC is sent to the clean light timer.
•When the clean light timer times down 115 VAC is sent to the clean light switch.
•When the clean light switch is depressed the timer is reset.
•115 VAC is sent from the compartment timer through the door switch to the normally
closed contacts of the compartment thermostat and R2 relay coil.
•The “Sure Cook” light is energized.
•115 VAC is also sent from the door switch through the now closed contacts of the R1
relay to the fan motor.
•The fan motor turns ON, and comes up to speed.

•The fan prover switch makes allowing 24 VAC to the normally open R2 contacts.
•The normally open R2 contacts close and 24 VAC is sent to the main coil of the gas
valve.
•The main burner is ignited and the water heated to steam.
•Steam enters the cabinet and the compartment thermostat closes at 193 degrees.
•The “Sure Cook” light is de-energized.
•If in the timed mode, 115 VAC is sent to the timer motor and the timer begins
counting down.
•The condensate solenoid is energized sending cold water down condensate spray
nozzle pulling the steam around the product and down the drain.
6. When the timer times out or the unit is switched to the timed mode (with no time on the
timer) from the manual mode, 115 VAC is sent to the 3 second timer and then to the buzzer
for 3 seconds.
7. Whenever the water level drops below the high probe for 5 seconds 115 VAC is sent to the
FILL terminal again.
8. When the on/off lever is turned off :
•The drain is mechanically opened, and the generator begins to drain.
•The red “Power On” indicator light is de-energized.
•115 VAC is sent to the 3-minute timer and the fill solenoid is energized for 3 minutes
flushing the drain.

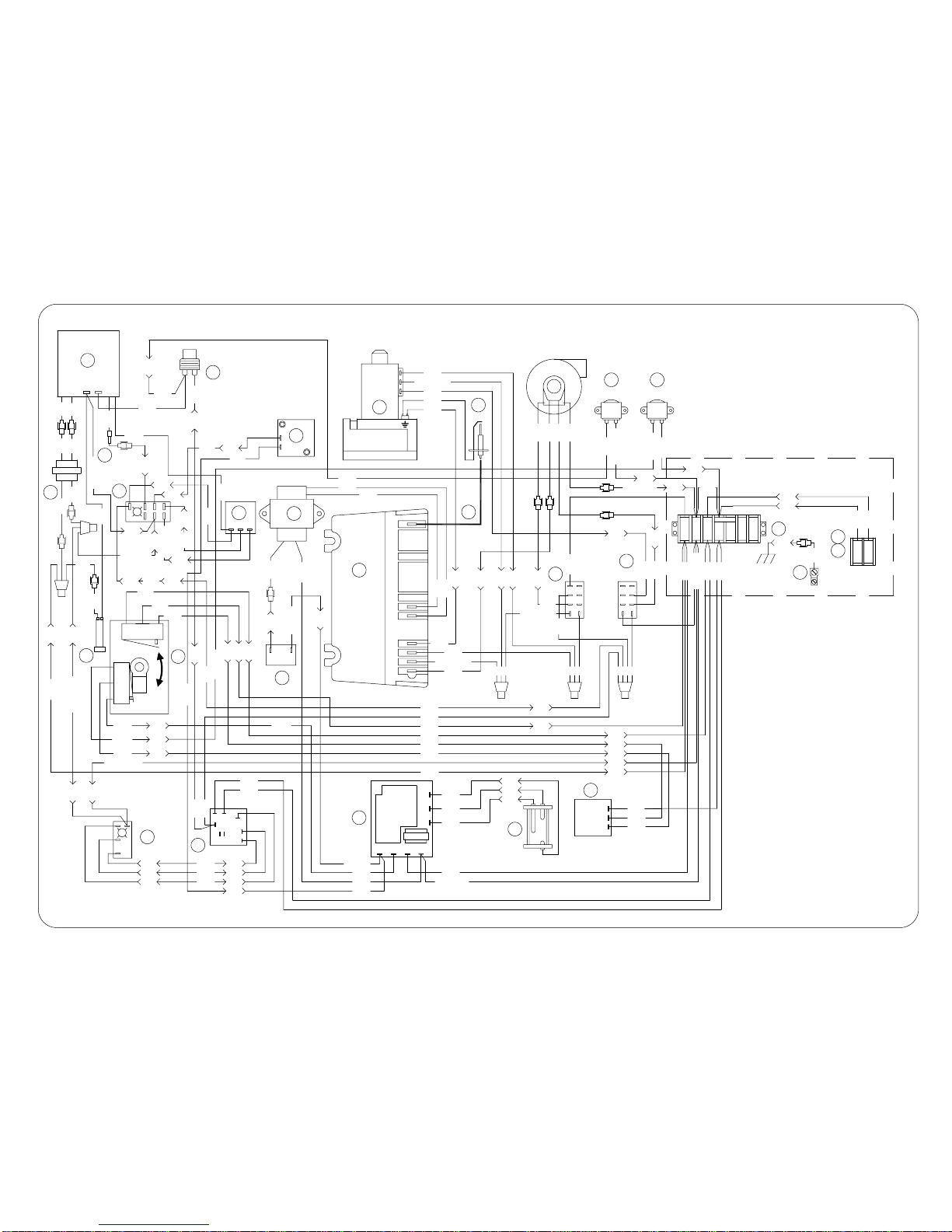

BUZZER
VALVE
BLOWER MOTOR
MV
GAS VALVE
DESCALE REQUIRED INDICATOR
GEMINI GAS - MECHANICAL TIMER
24V
IGNITOR PROVER
MV/PV
SPARK CONTROL MOD
SINGLE COMPARTMENT SHOWN
DUPLICATE FOR SECOND COMPARTMENT
GND
GND SPARK
24V24V GND
R1
PV
MV
CNO PV
TIMER
DOOR
MAGNETIC
120V
TRANSFORMER
ELECTRO-MECHANICAL
OVER TEMP
HI LIMIT
GENERATOR
MANUAL
TIMED
BLOWER
NC
R1
R2
C
NO
M
SWITCH
1
2
NO NO
R
ON
POWER ON
TIMER
3 MINUTE
SW1
OFF
1
2
3
78 5
3 SEC TIMER
3
ON
SW2OFF FILL
VALVE
120VAC
COMMON TO UPPER AND LOWER COMPARTMENTS
CUSTOMER CONNECTION
DESCALE
TIMER
BLK
3421
6
GND
TB
& RESET SWITCH
N
L1
A
L L
L300095 C
WHT
MANUAL
NC
CNO
C
NO
NC
C
NC
NO
TIMED
R2
CONDENSER
A
COMPARTMENT
PAUSE
XL
NHI C HEAT H FILL BOARD
WATER
PROBES
THERMOSTAT
(SCS)
1
3
2
R
TIMER
60 MINUTE
ON
MANUAL
MOTOR

WHT
WHT/RED
YEL YEL
SW1
BLU
WHT/RED GRA
RED
BLK
C
BLK
NCNO
NC SW2
NO
C
BLU
GRN
GRN
BLK
RED
RED
WHT/RED
BLK
TAN
TAN
PNK
87
PRP PRP
3 2
4
5
1
6
BLU
HEAT
LT BLU
ORN
WHT
9
FILL H N
XL
HI
C
RED
WHT
5
MV/PV
GND (BNR)
24V (GND)
4
MV
1
PV
32
24V
765
11
10
GRA
WHT
YEL
213
BLUWHT/ORNYEL
WHT/ORN
BLU
WHT/ORN
PRP
PNK
PRP
BLK
BLK
WHT/RED BLK
BLK
WHT/BLU
21 3
WHT/ORN
BLU
GRN
GRN
ORN
GEMINI GAS / MECHANICAL TIMER
4
BLU
SPARK
3
8 9
15
2
PV
PV/MV
MV
RED
1
BLK
ORN
WHT
ORN
7
8
YEL
ORN
RED
BLK
RED
BLK
W/R
WHT/RED
WHT/RED
GRA
WHT
LT BLU
6
16 17
CUSTOMER
DRAWER
P300095 C
STEAM CUTOFF SWITCH - SCS
TERMINAL BLOCK SECTION (QTY. 2)
TIMED / MANUAL SWITCH W / INDICATOR
IGNITOR CABLE ASSEMBLY
TERMINAL BLOCK ASSEMBLY
INDICATOR (RED)
30027824
26
25 41350 20477 3 SECOND TIMER
BUZZER
2030420
21A
22
23
21
108979
110198
20302
20301
17
19
18
15
16 222231
108981
12159
108880
22218
GROUND LUG
ELECTRO-MECHANICAL TIMER
TERMINAL BLOCK END
FILL VALVE
CONDENSER VALVE
GAS VALVE, PROPANE
GAS VALVE, NATURAL
COMPONENT PARTS LIST
IGNITOR, NATURAL GAS
IGNITOR, PROPANE GAS
SPARK IGNITION TRANSFORMER
BLOWER W/ SENSOR (GEMINI 10)
WATER LEVEL CONTROL BOARD
DESCALE INDICATOR / RESET SWITCH
MANUAL DRAIN VALVE WITH SWITCHES
LEVEL CONTROL PROBE
3 MINUTE INTERVAL TIMER
HI LIMIT CAPILLARY SWITCH
IGNITION CONTROL MODULE
CONNECTIONS
205284
9
12
14
13
10
11 106911
110613
19994
20478
107239
7
8
6
5
108285
107241
105966
300094
108995
DESCALE TIMER
24VAC RELAY
120VAC RELAY
3
1
21098771
105693
109877
1057842
1057841
ITEM P/N DESCRIPTION
120VAC
19
COMPONENT
WHT
CHASSIS
GROUND
WHT
W/R
WHT
RED
GND
20
21
21A
COMPARTMENTS
COMMON TO UPPER AND LOWER
L1N
WHT
BLK
BLK
LT BLU
WHT
YEL
YEL
GRA
RED
BLK
GRA
BLU
LT BLU
ORN
NC
PNK
CNO
28
BLK
BLK
GRA
PRP
BLK
BLK 27
GRA
23
28 109602 INDICATOR (AMBER)
27 19972 COMP. THERMOSTAT
R1 R2
26
25
24 22
18
14
13
12
RED
LT BLU
YEL
ORN 2-6
3-3
1-1
1-2
1-3
GRN
3-2 3-1
3-5
3-4
3-6 3-7 3-8
3-10
3-9
3-13
3-14
3-12
3-11 2-1
2-2
2-3
2-4
2-5
2-7
2-8
2-9
9-3
2-11
9-2
9-8 2-12
2-13
9-7
9-7
2-14
7-5
7-4
7-6
11-3
11-1
11-6 11-5
11-2
7-3 7-2 7-1
2-10
OFF
ON
NOTES:
1. UPPER COMPARTMENT CIRCUIT SHOWN
DUPLICATE FOR LOWER COMMPARTMENT.
2. UNIT SHOWN IN THE OFF MODEWITH DRAIN
VALVE OPEN AND SWITCH 2 ACTUATED.
110786 BLOWER W/ SENSOR (GEMINI 6)
30015029 60 MINUTE TIMER
WHT/BLU
PRP 11-4
BLU
PS-3
PS-6 BRN
WHT/BRN
PS-7 PRP
PS-7
PS-5
WHT/RED
PS-2
PS-1
PS-2
PS-1
PS-4
PRP
29
21 3
FK300279 SWITCH ASSEMBLY (REPLACEMENT KIT)

GND SPARK CONTROL MOD GAS VALVE
DUPLICATE FOR SECOND COMPARTMENT
SINGLE COMPARTMENT SHOWN
L300096 C
TRANSFORMER
ELECTRONIC
BLOWER
PROVER
IGNITOR
24V
SPARK
GND MV/PV
MV
PV
GND
24V
120V
24V
TRANSFORMER
FU
TIMER
24 VAC
R1
PV
R2
CNO
MV
R1
CNC M
BLOWER MOTOR
NO
NO
NC
COMMON TO UPPER AND LOWER COMPARTMENTS
GEMINI GAS - ELECTRONIC TIMER
DESCALE REQUIRED INDICATOR
POWER ON
R
OFF
ON
NC
NO
CSW1 ON
SW2OFF
2
1
3 MINUTE
TIMER 3
6 587
DESCALE
TIMER 1
2
4
3
BLK CONNECTION 120VAC L1 N
CUSTOMER TB
CXL HI
WATER
BOARD
FILL N H HEAT
FILL
VALVE
C
NO NO
LL
A
& RESET SWITCH
WHT
GND
THERMOSTAT
R2
CONDENSER
VALVE
PROBES
COMPARTMENT
OVER TEMP
HI LIMIT
GENERATOR
(SCS)
SWITCH
MAGNETIC
DOOR
2
60 MINUTE
MANUAL TIMER
1
TIMED
3
R
MANUAL
ON
TIMED
MANUAL

WHT/ORN
GEMINI GAS / ELECTRONIC TIMER
WHT/RED BLK
BLK
23
25
WHT YEL
YELBLK
RED
PRP
27
GRA
26
ORN
BLK
BLK
24
18
BLU
BLK
4
LT BLU
5
PV
PV/MV
MV
2
15
WHT/ORN
GRN
GRN
ORN
BLU
1
4132765 89
WHT
YEL
YEL
SPARK
3
GND (BNR)
24V (GND)
24V
MV/PV
MV
PV
22
GRN
WHT/ORN
YEL YEL
YEL
BLU
PRP
12
GRA
RED
BLK
WHT/RED
13
BLK
RED
WHT
7
4
PRP
3
6
21
5
8
FILL
ORN
LT BLU
9
HEAT
WHT
BLU
RED
C
H
HI
XL
N
GRN
RED
BLK
WHT/RED
CUSTOMER
CONNECTIONS
RED RED
WHT
ORN ORN
BLK
616 17
7
RED
WHT/ORN
PRP
PNK
BLU
YEL
ORN
WHT/RED
GRA
WHT/RED
8
LT BLU
WHT
PRP
19
COMPONENT
COMPARTMENTS
COMMON TO UPPER AND LOWER
CHASSIS
WHT
WHT/RED
BLK
WHT
WHT
BLK
W/R
WHT
RED
W/R
DRAWER
GROUND 20
21
21A
WHT
BLK
L1N
GND 120VAC
P300096 C
10
GRA
WHT
YEL
11
123
GRA
BLK
BLU
14
GRA
BLU
BLK
YEL
ORN
LT BLU
RED R2
R1
1-1
1-2
3-3
3-2 3-1
3-4
3-5
3-7 3-8
3-10
3-9 3-6
3-14
3-13
3-12
3-11 2-1
2-2
2-3
2-4
2-5
2-11
PNK 2-12
TAN
9-8
9-3
9-2 TAN 2-13
2-10
9-7 9-7
2-6
2-7
2-8
2-14
7-6
7-4
7-5
7-1 7-2 7-3
11-3 11-2
11-6
NC
NO
SW1
C
SW2
OFF
CNCNO
ON
VALVE OPEN AND SWITCH 2ACTUATED.
2. UNIT SHOWN IN THE OFF MODE WITH DRAIN
DUPLICATE FOR LOWER COMMPARTMENT.
1. UPPER COMPARTMENT CIRCUIT SHOWN
NOTES:
CONDENSER VALVE2221816
110613
110786
P/N
1057841
1057842
109877
105693
1098771
108995
300094
105966
107241
108285
107239
20478
19994
106911
20528
COMPONENT PARTS LIST
108880
6
2
ITEM
1
3
5
4
8
7
10
9
13
11
12
14
15
BLOWER W/ SENSOR (GEMINI 10)
IGNITION CONTROL MODULE
HI LIMIT CAPILLARY SWITCH
SPARK IGNITION TRANSFORMER
GAS VALVE, NATURAL
DESCRIPTION
IGNITOR, PROPANE GAS
IGNITOR, NATURAL GAS
GAS VALVE, PROPANE
BLOWER W/ SENSOR (GEMINI 6)
MANUAL DRAIN VALVE WITH SWITCHES
DESCALE INDICATOR / RESET SWITCH
WATER LEVEL CONTROL BOARD
STEAM CUTOFF SWITCH -SCS
120VAC RELAY
24VAC RELAY
LEVEL CONTROL PROBE
DESCALE TIMER
3 MINUTE INTERVAL TIMER
300278
106909
300150
12159
108981
222231
20301
20302
104389
108979
20304
104390
19972
25
21
18
17
19
20
22
21A
23
24
28
27
26 TRANSFORMER
ELECTRONIC TIMER
TERMINAL BLOCK ASSEMBLY
TIMED / MANUAL SWITCH W / INDICATOR
TERMINAL BLOCK SECTION (QTY. 2)
FILL VALVE
GROUND LUG
INDICATOR (RED)
TERMINAL BLOCK END
IGNITOR CABLE ASSEMBLY
2AMP, 250V FUSE
60 MINUTE TIMER
COMP. THERMOSTAT
PRP
PRP
11-5
GRA
GRA
PRP
BLU
WHT/RED
11-6
BRN
WHT/BRN
ORN
11-1
BLU
PS-2
PS-2
WHT/RED
PS-7 11-4
PS-4
PS-7
ORN
PS-3
PS-5
PRP
PRP
28
21 3
PAUSE
FK300279 SWITCH ASSEMBLY (REPLACEMENT KIT)
GRN
1-3

Adjust or
replace the
on/off micro
switch
Yes
Connect power
to steamer.
No
Is the red light on? Is there power to
the steamer?
Is there water in
the sight glass?
Yes
See
Steamer won't
fill. No
Has the pilot
ignited?
Yes
No
Does the steamer
steam in manual
mode?
Yes
Replace
the timer
Yes
Is there power to
the Timed/Manual
switch? No
Replace the
wiring to the
switch
Is there power
fromthe Timed/
Manual switch?
Yes
Replace the
switch No
Does the steamer
steam with the
door switch
bypassed?
Yes
Replace the
door switch
Yes
Is there 120 VAC
to the R2 relay?
No

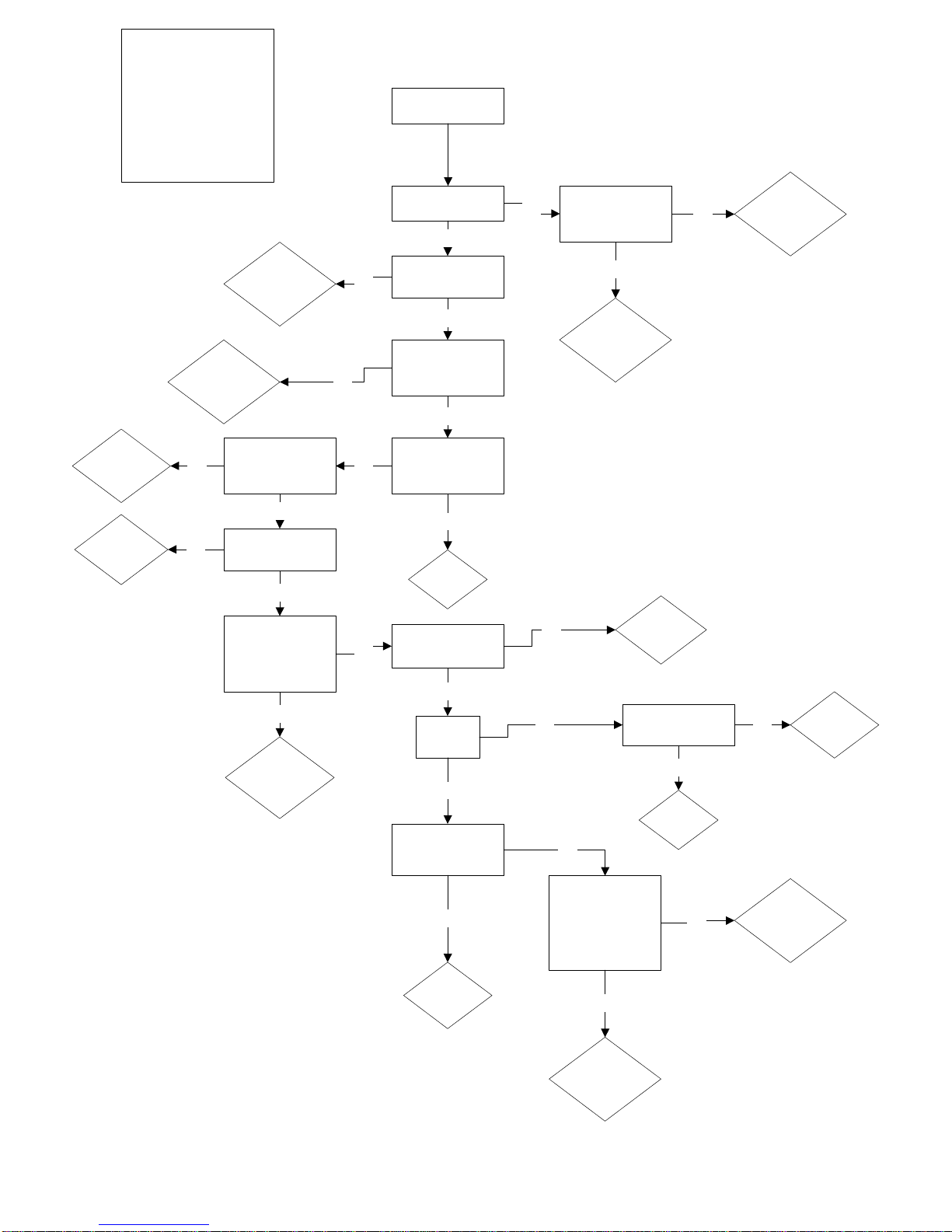

PROBLEM:
24CGA6
24CGA10.2
Steamer won't
steam with handle
in on position
Replace
the wiring
to relay
No
Is the fan
turning?
Yes
Is there 120 VAC
to the fan?
Replace
the fan
Check the
R1 relay
Yes
No
Is there 24 VAC to
the main coil of the
gas valve?
Yes
Replace the
gas valve?
Yes
Does the coil to
the main gas valve
get 24 VAC when
the fan prover
switch is
bypassed?
No
Replace the
the fan prover
switch.
Replace the R2
relay.
Yes
No
No
See
Steamer won't
ignite
No
No
Steamer won't
steam

PROBLEM:
24CGA6
24CGA10.2
Steamer won't fill
with the handle in
the on position
Is there power
to the steamer? Connect
power to the
steamer
No
Is there water to
the steamer?
Yes
Supply
water to the
steamer.
No
Is there 120 VAC
between the
terminals H and N
on the watr level
board?
Yes
Adjust or
replace on/off
micro switch
No
Is there 120 VAC
between terminals
Fill and N on the
water board?
Yes
With the wire
removed from the HI
terminal on the water
level board, is there
120 VAC between
terminals Fill and N?
No Replace the
water level
board.
No
Is there debris on
the HI probe in the
probe assy?
Yes
Replace the
wire to the HI
probe.
No
Clean or
replace the
probe assy.
Yes
Is there 120 VAC
across the coil of
the fill solenoid?
Yes
Adjust or
replace the on/
off micro switch No
Is water leaving
the fill solenoid?
Yes
Replace the fill
solenoid. No
Does the manual
drain valve close
completely?
Yes
Clean or
replace the
drain valve. No
Yes
Steamer won't
fill
