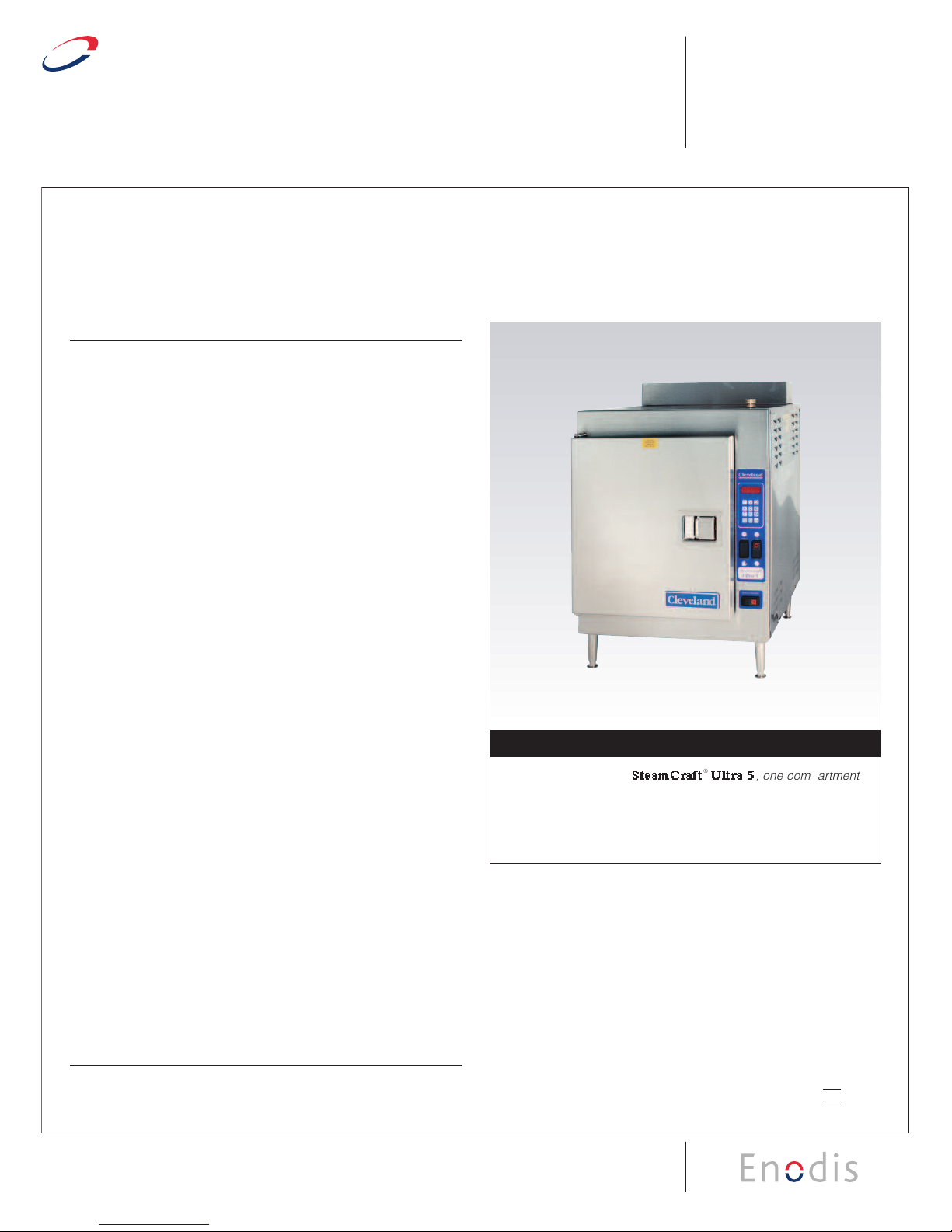

STEAMCRAFT®GENERATOR STYLE
HIGH SPEED CONVECTION STEAMERS
MODEL: c21-CGA-5
Cleveland Standard Features
nCooking Capacity for up to five 12˝ x 20˝ x 21⁄2˝ deep Cafeteria
Pans (OR) 10 - 1” Cafeteria Pans.
nInnovative PowerPak Gas Steam Generator:
nNaturally Fired 70 MBTU Generator is 72% Efficient
nStrong 14 Gauge Stainless Steel Construction
nFully Automatic Electronic Spark Ignition (pilotless)
nSimple ON/OFF Start Switch: Ignites Burners and Water Fills
into Pressureless Generator with ease.
nEasy Access Cleaning Port: Generator Cleaning Port
located on the outside, top of the unit. Not necessary to
remove hot panels or pan rack guides.
nGenerator Cleaning Light: Indicator Light located on the
front of the unit warns operator it is time to delime generator.
nSteam Generator Stand By Mode: Holds generator at a
steaming temperature. Allows unit to start cooking instantly.
nOne 60 Minute Electro-Mechanical Timer and Switch for
manual operation: Audible signal for cooking time
completion. (MCS)
n4˝ Adjustable Legs.
nDurable 14 Gauge Stainless Steel Construction:
For compartment door, cavity, and steam generator.
nAutomatic Generator Drain with a “Water Jet” drain clean-
ing feature.
nExclusive Automatic Remote Float Type Water Level
Control: Separate from the generator for easy access.
nExclusive Steam Cooking Distribution System:
Maintenance Free Exclusive Brass Steam Jets produce a high
velocity convection steam without fans. Coved Corner design
in cooking compartment distributes heat evenly, and is easy to
keep clean. Creased top & bottom enhance drainage. Cold
water condenser behind drain maintains a dry steam. Fully
Insulated cooking compartment for thermal efficiency.
Removable Stainless Steel Slide Racks for easy cleaning.
nExclusive “Cool to the Touch”Two-Piece Compartment
Door Design: Free floating inner door with reversible gasket
provides an air tight seal. Stainless Steel Slam/Latch Door
Latch mechanism for reliability.
nStandard with Cord & Plug for 115 volt controls.
nLeft Hand Door Hinging: Compartment door hinged on left,
controls on the right.
Options & Accessories
pElectronic Timer with Compensating Load Feature (ETC)
pSimple ON/OFF Switch for Compartment Controls (MC)
Shall be CLEVELAND, SteamCraft

Ultra 5 , one compartment,
Counter-Type Steamer, Model 21-CGA-5, 70 M BTU, heavy duty all
Stainless Steel construction; rear mounted, insulated Steam
Generator with Remote Probe Type Water Level Controls and
Automatic Steam Generator Blowdown with “Water Jet” Drain
Cleaning feature.
p34" (864mm) High Stainless Steel Economy Stand, for one 21-
CGA-5 (UniStand34)
pPOSK Pull-Out Shelf Kit for UniStand (P/N 111724)
pURK Pan Rack Kit UniStand (P/N 111726)
pCompartment Door Steam Shut Off (SCS)
pCafeteria Pans in depths of 1˝, 21⁄2˝, 4” and 6”
pDissolve ®Descale Solution, 6 one gallon container w/quart
markings (106174)
pPropane Gas option (PG)
pWater Filters
Short Form Specifications
Shown with optional
Electronic Timer
SteamCraft ®Ultra 5
COUNTER TYPE DESIGN
PRESSURELESS CONVECTION STEAMER
GAS STEAM GENERATOR, 70,000 BTU
SECT. IV PAGE 7
0707

(NOT TO SCALE)
SECT. IV PAGE 8
0707
Litho in U.S.A.
UTILITY CONNECTIONS
ELECTRIC
115V - 1 Phase
35 Watts
4 Amps
GAS COLD WATER DRAINAGE
C
D
35 psi minimum
60 psi maximum
1⁄4˝ Dia. NPT for
Generator (for water
treatment connection)
1⁄4˝ Dia. NPT for
Condenser
11⁄4˝ Dia. IPS
Do not connect any other
units to this drain.
Drain line must be vented.
No PVC pipe for drain.
1/2˝ Dia. IPS
C
C
SUPPLY PRESSURE
NATURAL PROPANE
4.00˝ W.C. minimum 12.00˝ W.C. minimum
14.00˝ W.C. maximum 14.00˝ W.C. maximum
Manufacturer must be notified if unit will be used above 2,000
ft. altitude.
15 — 12˝ x 20˝ x 21⁄2˝ Cafeteria Pans or
10 — 12˝ x 20˝ x 1˝ Cafeteria Pans or
23 — 12˝ x 20˝ x 4˝ Cafeteria Pans
TOTAL CAPACITY
WATER QUALITY
REQUIREMENTS
The quality of water varies
greatly from region to
region. Steam equipment
generators must be
drained daily and chemi-
cally descaled periodically
to ensure proper operation.
To minimize service prob-
lems caused by the accu-
mulation of minerals and
chemicals in water review
the following quality guide-
lines with a local water
treatment specialist. Inlet
water that is beyond these
specified guidelines should
be treated to achieve these
acceptable limits. Total
Dissolved Solids less than
60 ppm, Alkalinity less than
20 ppm, Silica less than 13
ppm, pH factor greater
than 7.5, Chlorine less
than 30 ppm.
NOTES:
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are UL/NSF#4 and CSA (AGA, CGA).
CLEARANCE
Right - 3”, Left - 3”, Rear - 3”
(12” on control side if adjoin-
ing wall or equipment is over
30” high for service access)
Contact factory
for variances to clearances.
Electrical Supply Drain: 1-1/4˝ Dia. IPS Flue Gas Exhaust
Cold Water Supply for Condenser 1/4˝ Dia. NPT Inlet for Generator Deliming Solution from Generator
Cold Water Supply for Generator. Gas Supply 1/2˝ Dia. IPS
1/4˝ Dia. NPT (for water treatment conn.)
Unit comes with a 40 Mesh Water Strainer
A
B
C
G
F
E
D
