Cleveland 18-DM-K6 User manual

Cleveland
™
Project ________________________________
Item __________________________________
Quantity_______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
1333 East 179 St.,
Cleveland, Ohio,U.S.A. 44110
Tel: [phone]
Fax: [phone]
Web Site:www.ClevelandRange.com
Email: [e-mail]

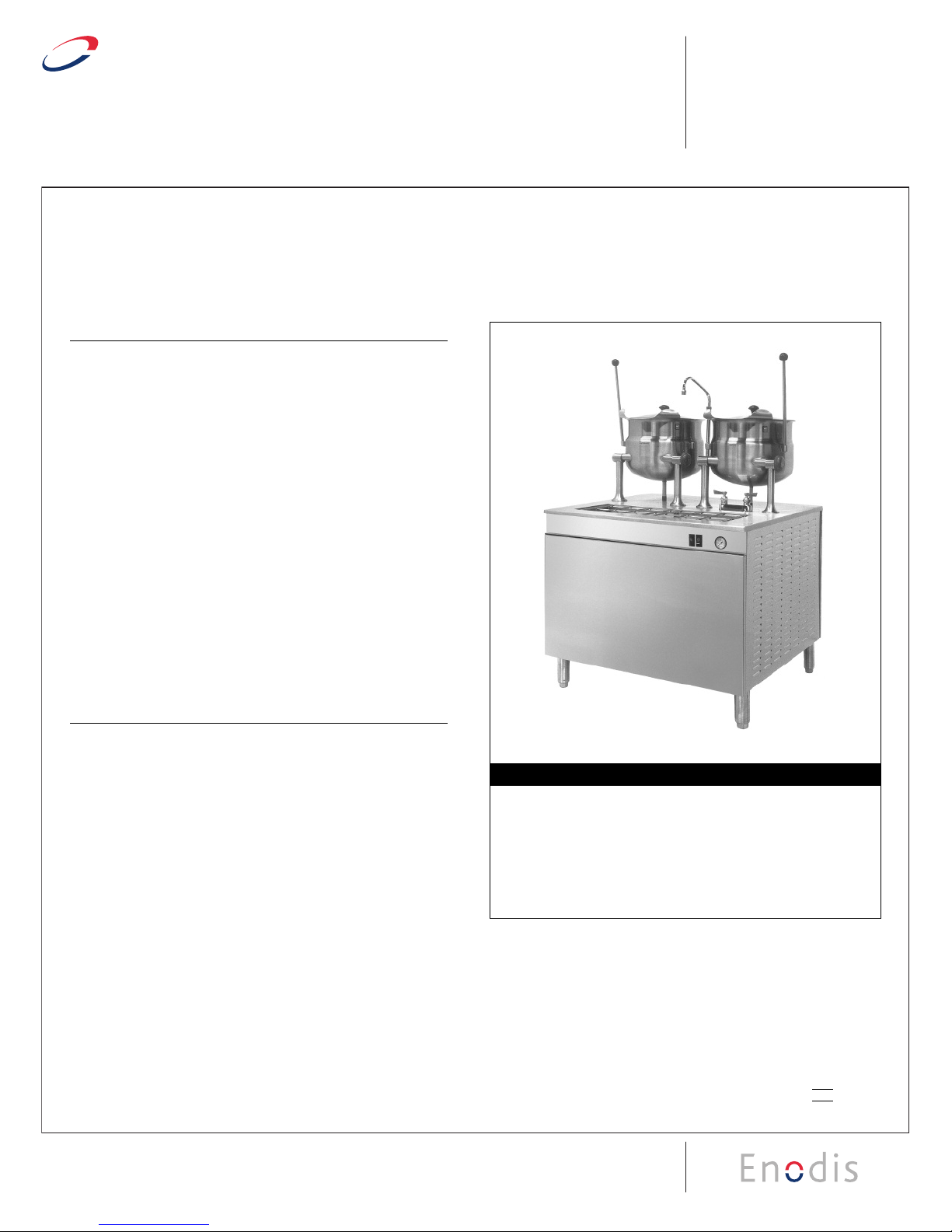

MODULAR BASES
MODELS:c18-DM-K6
c24-DM-K6
c36-DM-K66
Cleveland Standard Features
nFactory assembled Kettle/Modular Base combination with
one or two, 6 gallon kettle(s) for direct connection to steam
from another source
nSteam Control Kit: includes needle type Steam Control
Valve(s), Steam Trap, Condensate Strainer, Check Valve,
nipples and fittings, factory assembled and mounted on
kettle(s)
nType 430 Stainless Steel exterior enclosure, kettle(s) and
table top (with drain Trough which has 1.50" diameter male
drain); #4 exterior finish
n6gallon kettle(s) are 2/3 Steam Jacketed and include
Lift-Off Cover(s)
nHot and Cold Water Faucet with Swing Spout
nKettle(s) have 50 psi Steam Jacket Rating, 50 psi chrome
plated Safety Valve(s) and Manual Tilting, balanced design
nTilt Handles can be mounted on either side of kettle(s)
nAdjustable Flanged Feet (FF-A)
Options & Accessories
pType 316 Stainless Steel Kettle interior(s) for high acid food
products (316)
pFood Strainers (FS)
pPressure Reducing Valvefor incoming supply over 50 psi
(PRV)
pStainless Steel Base Frame (FSS)
Shall be CLEVELAND, Direct Steam, Modular Cabinet Base with one or two,
6gallon kettle(s), Model _____ DM-K _____ Type 430 Stainless Steel exterior
enclosure, Table Top and 4 Level adjustable Feet. 2/3 Steam Jacketed,
type 304 Stainless Steel kettle(s) with 50 psi Steam Jacket Rating. Needle
type Steam Control Valve on each kettle. To operate connect directly to a
steam source supplying from 5 to 10 psi steam. Steam Condensate Trap and
Strainer, factory assembled and installed. Includes Hot and Cold Water
Faucet with Spring Spout and Lift-Off Kettle Cover(s).
Short Form Specifications
SECT. VII PAGE 35
0707
MODULAR BASE WITH KETTLE(S)
DIRECT STEAM
ONE or TWO, 6 GALLON KETTLE(S)
CABINET BASE: 18" (450MM), 24" (600MM) or 36" (900MM) WIDE

11/2” IPS common drain.
Do not connect other units
to this drain.
Do not use PVC pipe for
drain.
NOTES:
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are UL, ULC, UL/NSF#4 and CSA.
(NOT TO SCALE)
SECT
.VII P AGE 36
0707
Litho in U.S.A.
CAPACITIES
(in 4 oz. servings)
(Other sizes may be calculated.)
6gallon / 23 liters ..... 160 per kettle
WATER QUALITY REQUIREMENT
The recommended minimum water quality standards whether untreated or pre-treated,
based upon 10 hours of use per day, and a Daily Blowdown, are as follows:
TOTAL DISSOLVED SOLIDS less than 60 parts per million
TOTAL ALKALINITY less than 20 parts per million
SILICA less than 13 parts per million
pH FACTOR greater than 7.5
CHLORINE less than 30 parts per million
Consult a local water treatment specialist for an on site water analysis for recommendations
concerning steam generator feed water treatment (if required), in order to remove or
reduce harmful concentrations of minerals. The use of highly mineralized water will mean
that more frequent servicing of the steam generator will be necessary. The fact that a water
supply is potable is not proof that it will be suitable for the generator.
Right - 3”, Left - 3”, Rear - 3”
(12” on control side if
adjoining wall or equipment is
over 30” high for service
access)
Contact factory for
variances to clearances.
