Cleveland HA-MKGL-100 User manual

Cleveland
™
Project ________________________________
Item __________________________________
Quantity_______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
1333 East 179 St.,
Cleveland, Ohio,U.S.A. 44110
Tel: [phone]
Fax: [phone]
Web Site:www.ClevelandRange.com
Email: [e-mail]

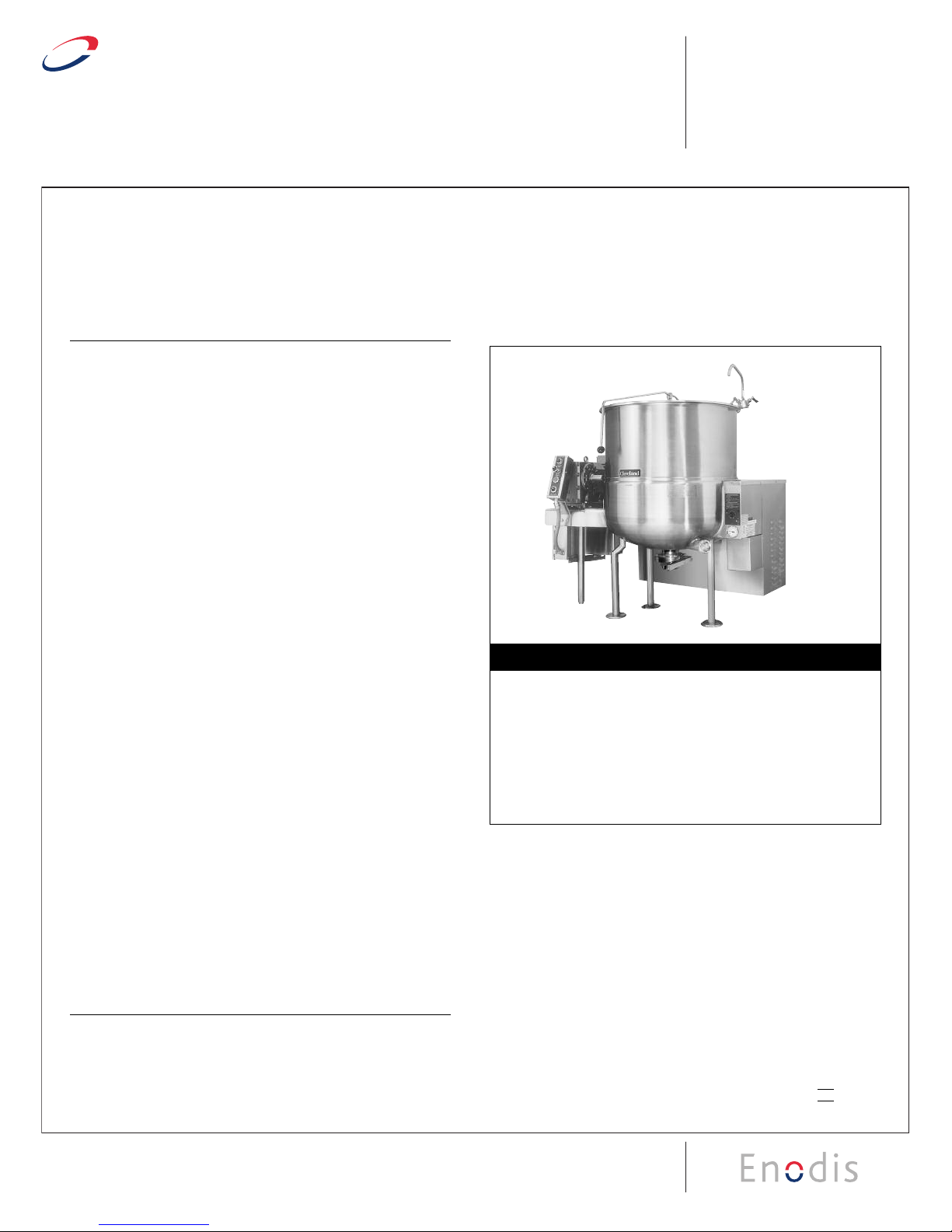

MIXER KETTLES
Cleveland Standard Features
n60, 80 or 100 gallon working capacity
nType 304 stainless steel with #4 finish on kettle and
supports
nPrecise solid state temperature control
nSolid state low water safety controls in a plug-in module
nL.E.D. indicators for heat cycle and low water warning
n3˝ dia. butterfly valve
nThree (3) horse power horizontal agitator drive
nVariable mixer speed control from 5 to 20 r.p.m. with
agitator start/stop controls
nSpring loaded teflon blades scrape the entire heated
surface area
nInternal mixing fins for most efficient, uniform mixing
of products
nEasily removable agitator without the use of tools
n190 M-BTU high efficiency power burner heating
system for fast heat-up and recovery times
n"Glow type" automatic safety ignition system
nKettle steam jacket permanently filled with treated
distilled water
n50 psi steam jacket rating and safety valve
nFront mounted combination pressure-vacuum gauge
nHeavy duty welded rim bar
nWater fill faucet with swing spout for hot and cold water
nFaucet mounting bracket.
nSpring assisted, hinged stainless steel cover
nStandard for Natural Gas operation
nStandard Electrical for agitator drive is 208V/3Ph/60Hz
nAccepted for use in USDA inspected facilities
nTypical approvals include AGA, CSA, CE, NSF and
ASME
Options & Accessories
p Type 316 stainless steel kettle liner for high acid products (316)
pDolly for horizontal agitator
pAutomatic water meter (GMF or LMF) Wall or stand
mounted
Shall be CLEVELAND Model HA-MKGL- ____ , gas fired, 2/3 steam
jacketed, ____ gallon operating capacity, stationary
horizontal agitator mixer kettle. 190M BTU High Efficiency Power
Burner heating system with automatic Glow Type Ignition,
type 304 stainless steel with #4 finish on kettle and supports,
insulated Heat Exchanger, 50 psi jacket rating, 3HP Motor Drive
for mixer arm with variable speed control, variable temperatures
control, L.E.D. indicators for heat cycle and low water warning,
3" dia. Butterfly Valve.
p3" diameter air operated flush mounted piston draw-off
valve with variable control (FPVA3, for use with a food
pump, replaces 3˝ butterfly valve, requires air
compressor)
pStainless steel bi-fold hinged cover
p Kettle Accessory Kit (KAK) includes:
pClean-up Brush (CB) p36 " Kettle Paddle (KP)
p36 " Kettle Whip (KW) p36 " Kettle Brush (KB)
pDraw-offBrush (DB) p24 oz. Ladle (KL)
pOption for propane gas operation (PG)
pVoltage option for agitator drive other
than standard 208V/3Ph/60Hz
Short Form Specifications
MIXER KETTLES, GAS-FIRED
HORIZONTAL AGITATOR
2/3 STEAM JACKETED, STATIONARY
MODELS:cHA-MKGL-60 cHA-MKGL-100
cHA-MKGL-80
SECT. XI PAGE 23
0707

RIM BAR
AI.D.
3 HP
ELECTRIC
MOTOR
C
C
L
B
H
CH C
A
RECOMMENDED FLOOR
SLOPE 1 INCH PER 4 FEET
PIPE DRAIN RECOMMENDED
MINIMUM VALVE SIZE PLUS 1"
13"
6" RECOMMENDED
FLOOR DRAIN
3" DIA. BUTTERFLY VALVE
12" X 24"
RECOMMENDED
FLOOR DRAIN
3" MIN
CLEARANCE
8 3/4"
E
(COVER
FULLY
OPEN)
SPRING ASSIST
COVER (FULLY
OPEN AT 90°)
D
WALL
WALL
M M
F
L
P
N
P
3" REF.
10 3/8
G
18 3/8 Q
K
MODEL
HA-MKGL-60
HA-MKGL-80
HA-MKGL-100
A
29 1/2"
33"
35 1/2"
DIMENSIONS
B
48 1/4"
51 3/4"
54 1/4"
C
50"
58"
60 1/2"
D
36 1/2"
39"
40 3/4"
E
83"
90"
96"
F
13 1/8"
14 7/8"
16 1/8"
G
34 5/8"
35 15/16"
37 1/8"
K
23 7/8"
24 5/8"
25 1/4"
L
19 1/8"
20 7/8"
22 1/8"
M
10 3/32"
11 17/32"
12 3/4"
N
24"
26"
27 1/4"
P
9 3/4"
9 3/4"
11"
Q
17 7/8"
18 5/8"
19 1/4"
NOTES: Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are: UL, A.G.A., NSF, ASME/N.BD., CSA, CGA, ETL, and others.
 Installations of back flow preventers, vacuum breakers and other specific code requirements are the responsibility of the owner and installer.
 All vertical dimensions shown are minimum.Feet are adjustable to +1" maximum.
 Manufacturer must be notified if unit will be operating above 2000' altitude.
 Consult factory for manufactured gas.

Cleveland Range reserves right of design improvement or modification, as warranted.
A
VOLTS: 208/240
PHASE: 3
AMPS: 15
FREQ: 60 HZ
ELECTRICAL
SUPPLY
TYPE: NAT or LP
BTU PER CU. FT.:
1000 (NAT), 2500 (LP)
SUPPLY PRESSURE:
4" to 14" W.C.
BTU RATINGS:
190,000 per hour
RIGHT: 3", LEFT: 3"
REAR: 3"
(ALLOW 12" SPACE
MINIMUM ON LEFT 
SIDE FOR SERVICE)
60 GAL -
940 LBS.
428 KG.
80 GAL -
1030 LBS.
469 KG.
100 GAL -
1110 LBS.
505 KG.
APPROX.
SHIPPING
WEIGHTS
GAS SUPPLY
(PIPING 3/4" NPT)
CLEARANCE
APPROVALS
PRESSURE:
90 - 100 PSI
(only required for optional 3" dia.
piston draw-off valve)

AIR SUPPLY (PIPING 1/2" NPT)
HOT & COLD
WATER
AGA CGA NSF
H C
1/2" NPT CONNECTION 
40-60 PSI PRESSURE
5/8"Ø, 
2 HOLES
ON 
4" B.C.D.
SOLID
FOOT DETAIL
5 1/2"
3/8"
1"
(MAX. ADJUSTMENT)
2"
H C
SECT.XI PAGE 24
0707
