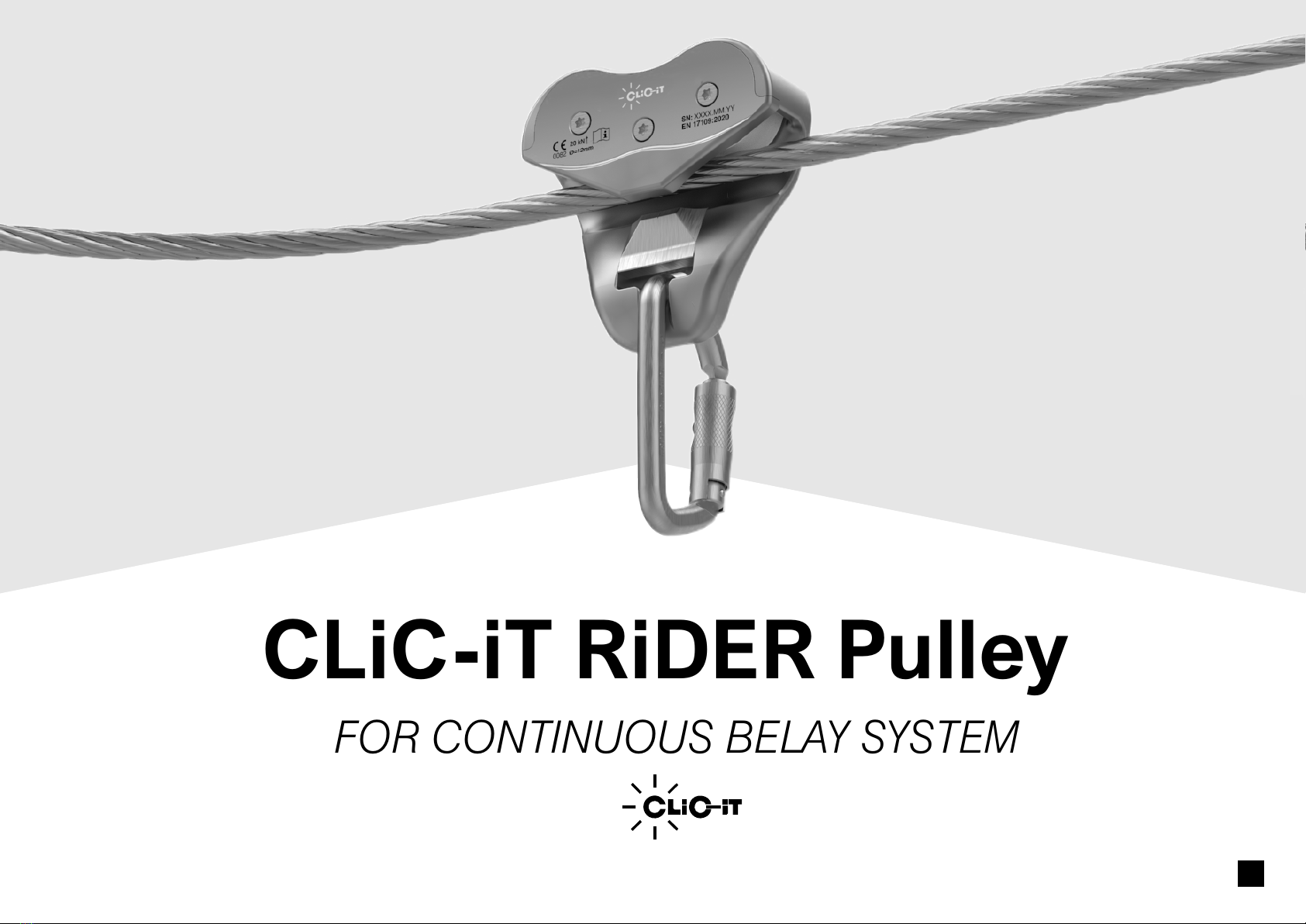

CLiC-iT RiDER Pulley User manual

1
CLiC-iT RiDER Pulley
FOR CONTINUOUS BELAY SYSTEM
for:
Ed1 201021
USER MANUAL ENEN

2
D
Ref: DAS436
Patented
1 2
Description Components
Material
Aluminum
Max. Vertical Load
20 kN
Dimensions
120x123x40(mm)
Weight
600g
Aperture in unlocking position
18mm
Aperture in locking position
7,5-8mm
CARABINER
C
0082
Ø12mm
(1)
SARL DEHONDT CLiC-iT
5 Rue des Terres (Cellule 7)
51420 Cernay-les Reims (France)
Other languages UE conformity check
PPE checking
www.clic-it.eu
EN 17109:2020
Mobile connection device
for adventure park.
Technical Specications
WARNING
ŸThe activities involving the use of this product are dangerous by nature.
ŸBefore using this product, these instructions should be read and cleary understood.
ŸThese user´s instructions contain important information, and an inspection card.
ŸYou are responsible for your own actions and decisions.
ŸThe instructions should be kept with the product during its whole lifetime.
100%
7
(1) (2) (3) (4)
Safety Class E
EU declaration of conformity are available at www.clic-it.eu
A
D
BC
3
Compatibility
CLiC-iT Rider Pulley + Carabiner CLiC-iT Rider Pulley + Lanyard
Pin-Lock
Carabiner
+
Refer to your lanyard manual
to properly connect to the
carabiner and the harness
Ø12mm
D

3
4
Installation
Procedure for opening a Pin-Lock carabiner
Procedure for opening a Pin-Lock carabiner
122
2 2 2
23
4 5 6
Installing the pulley on the safety line
Carabiner orientation
5
Inspection
(1) Wheels inspection
8mm
Wear
indicator
C
B
(2) Wear inspection
D
1 2 3 4
D
5

4
7
8
Traceability and marking
Further information
1
9
8
2
3
7
4
5
6
20 kN SN: XXXX.MM.YY
EN 17109:2020
DAS436
0082
6
Precautions
General usage precautions
1
A E
F
G
H
B
C
D
2 2
2 2
2 3
4 5
Lifetime Saline Enviroments
Storage - Transport
Maintenance
Modications - Repairs
Acceptable Temperature
Precautions for use
Cleaning
unlimited
etc...
avoid long exposure
+80ºC
-40ºC
+30ºC
+10ºC
dry cleaning
PPE checking
www.clic-it.eu
CLiC-iT support
Precautions in ziplines
150m
120 Kg
MAX
150m
MAX
Ø12mm º

5
EN
These instructions explain how to correctly use this product.
You are responsible for heeding each warning and using your equipement correctly.
Any misuse of this product will create additional dangers. Contact CLiC-iT if you have any doubt or difculty understanding these
instructions.
The selection of your system’s components (lanyards, connectors, harnesses), as well as their assembly and installation, must be done
by competent persons to be suitable for the adventure park where they will be used.
1. Description
This product is a Personal Protection Equipment designed for leisure activities at heights (high rope adventure parks) as per standard
EN17109:2020.
CLiC-iT Rider Pulley is an MCD (mobile connection device) designed to prevent risk of fall from heigh, and operate along an CLiC-iT
Rider safetyline regarding the recommendation of the PPE 2016/425. Its main functions are to assure the user to the lifeline and to
provide a continuous movement through it.
This product must not be pushed beyond its limits, nor be used for any purpose other than that for which it is designed.
This PPE is controled by APAVE SUD EUROPE CS 60193 - 13322, MARSEILLE CEDEX 16, France. CE number 0082.
Unique model.
Equipement identication: CLiC-iT reference: DAS436
Symbols used. Inform you of:
❶ product specic manual consultation.
❷ some potential dangers related to the use the product.
❸ visual checks.
control points.
(1) Safety line cable: This product is designed to be used exclusively on Ø12mm lifelines, made of galvanized steel cable, type 7x19,
steel core, compacted. Do not use any other type of cable. This product must not be used on other type of safety line.
Related documents. (1) PPE Checking, (2) Manuals in other languages, (3) UE conformity check.
WARNING
Activities involving the use of this equipment are inherently dangerous. You are responsible for your own actions, decisions
and safety. Failure to heed any of these warnings may result in severe injury or death.
This product must only be used by competent and responsible persons, or those placed under the direct and visual control of a
competent and responsible person. You are responsible for your actions, your decisions and your safety and you assume the
consequences of same. If you are not able, or not in a position to assume this responsibility, or if you do not fully understand the
Instructions for Use, do not use this equipement.
2. Components
Movement system - Locking system - Carabiner housing
3. Compatibility
3.1 Carabiner. Use this product in conjunction with a type carabiner to guarantee a category E equipmentPin Lock (device that is
permanently attached during operation and can only be opened with a tool).
Read carefully the user manual of the carabiner.
3.2 Lanyard. EN12277+A1 harness are recommended. EN17109 lanyards are recommended for connection to the harness. The
connection of the lanyard to the carabiner and the harness must not be removable (a lark´s foot connection is considered as non-
openable). Consult your lanyard manual to connect to the carabiner and harness.
Dene the lengh of the lanyard in accordance to the height of the safety line and the size of the person.
4. Installation
4.1 Procedure for opening a Pin-Lock carabiner.
❶ Initially the carabiner is locked, ❷ Use a pin tool to press the carabiner button. Your carabiner can operate with a special pin, refer to
the instructions of your carabiner, ❸ Make a clockwise turn on the lock cylinder of the carabiner, ❹ keeping the previous operation,
proceed with the opening of the carabiner, ❺ Once the effort is withdrawn, the carabiner automatically returns to its locking position.
4.2 Installing the product on the safety line.
❶Make sure you are in a safe position on the floor and disconnect the carabiner from CLiC-iT Rider Pulley in case it is connected -
❷Before connecting the MCD to the safetyline you must have your lanyard properly connected to the harness and your carabiner
properly connected to the lanyard too (see respectives manuals) - ❸Unlock the MCD by pressing with both thumbs on the bottom of the
Locking Cam (part C) - ❹Insert the MCD on a straight portion of compatible cable. Be sure to hang the MCD with the opening side
facing the anchors of the rope course. Close the Locking Cam until it magnetically locks - ❺ Insert the carabiner according to the
orientation shown on picture - ❻Adjust the length of the lanyard and move the MCD along the cable to check the correct operation.
5. Inspection
To ensure the correct condition of the product, please refer to the control points described in the PPE Checking le. Only B, C and D
parts can be replaced, and only by the manufacturer.
5.1 Movement system inspection.
Correct state of the rollers is checked by moving the product through the safety line cable.
Sheaves have a high service life, just need a visual inspection.
In case the movement is not correct, sheaves must be replaced.
Please contact the Technical Service to request a replacement of part D.
5.2 Locking system inspection.
Parts B and C, must be inspected after a user falls or after approximate use by 1000 users. The open area of the channel where the cable is
hosted is 7,5-8mm between parallel faces of parts. B and C parts incorporate a 0.5mm depth slot to control the wear produced with use.
Both parts should be replaced when you cannot clearly see any wear indicator.
Please contact the Technical Service to request a replacement of parts B and/or C.
6. Precautions
The list of recommendations stated here is only to be used as a general guideline to limit the risks involved with the use of the product. This
guideline is by no means exhaustive. It should be taken into consideration and validated by park builders and users.
It is the responsibility of all involved parties to minimize the inherent risks involved in the use of the product.
This list is not exhaustive with the practice of the ropes course. Take into consideration that among other risks, a neck entrapment, or a
trauma to the larynx are part of the risks inherent in this activity.
6.1 General usage precautions.
❶Caution with possible tangling of MCD rollers with the participant’s hair. It is recommended to wear helmet and properly tie the hair -
❷Possible trapping of the ngers or possible burns with the wire. We recommend the use of gloves - ❸The lanyard must not be too loose
or too short, so that it allows the correct passage of the product through the anchoring and allows easily movement throw games, but does
not allow fall. Properly adjust lanyard height before starting the game. Maximun height of fall must not exceed 0.3 to 0.4m - ❹Attention.
Check the cable elongation and the distance to the ground. Please check throughout the course, according to the lengths of lanyards
dened, that in the event of a fall, there is no risk of collision with the ground or other elements of the course, in accordance with the
recommendations of standard EN15567-1. - ❺ Attention. Check the cable slope and arrival speed.
6.2 Precautions on sloping safetylines, or ziplines.
❶The maximum weight allowed for zip lines is 120kg - ❷The maximum length of zip line allowed to use the product is 150m. - ❸This
device is designed and limited to use on ziplines as scope of rope courses activities.
7. Traceability and marking
❶Manufacturers.
❷Compilance with EU Regulation 2016/425 .
❸Number of the body in charge of equipment manufacturing control: APAVE SUDEUROPE SAS. CS60193- 13322 Marseille Cedex 16
France. Notified body involved in the EU type examination and in charge of equipment certification: APAVE SUDEUROPE SAS (0082).
❹ 20kN: Minimum static resistance of the product in vertical direction, guaranteed at the time of production and validated during UE
check.
❺ Safety line compatibility. Diameter of the cable.
❻ Carefully read the notice before using the product.
❼Individual product identification number. SN: XXXX.MM.YY (XXXX: unique identier number - MM: manufacturing month - YY:
manufacturing year).
❽ Reference of the product. CLiC-iT reference: DAS-436.
❾ Standard EN 17109:2020.
8. Further information
When to retire your equipment.
WARNING. an exceptional event can lead you to retire a product after only one use, depending on the type and intensity of usage and the
environment of usage.A product shall be discarded in a park when:
Has suffered a fall or considerable effort and its functionality is compromised.
The result of the product inspections was not satisfactory.
You doubt its reliability.
You do not know the complete history of use.
When its use is obsolete (legislative evolution, normative, technical or incompatibility with other equipment, etc.).
unlimited . Use temperature between -30ºC and +50ºC ⒶLifetime. - ⒷAcceptable Temperature - ⒸPrecautions for use. Any contact
with chemical product could alter the resistance and integrity of the product. Damp equipment, or which has frozen up, may not operate
properly. Don´t clean the product with soap or water. To remove dirt from the MCD use air or a damp cloth- ⒹCleaning. - ⒺSaline
Enviroments - ⒻStorage - Transport . Avoid exposure of the product in saline environments After use in wet weather, dry the product
with a soft cloth, and store it in a dry and ventilated place. ce. The product does not need to be lubricated. Consult - ⒼMaintenan PPE
Checking - ⒽModications - Repairs. le for maintenance These products must be thorouglhly checked annually by a qualied
professional with a prior written certication from SARL DEHONDT. It is forbidden to modify or repair these products yourself without prior
training and written authorisation from SARL DEHONDT.
GUARANTEE
Manufacturer offer warranty for 2 year against any material or manufacturing defect. Normal wear, early oxidation by saline environment,
modications, incorrect storage, negligence and uses for which this product is not intended are excluded.
RESPONSABILITY
DEHONDT SARL are not liable for direct, indirect, accidental or any other consequences occurring or due to the use of its products.
DEHONDT SARL waive any responsibility if the storage, transport, use, maintenance and cleaning instructions are not met.
