Coleman MONTANA 4 2000001592 User manual

STITCH LINE
MONTANATM 4 TENT MODEL 2000001592
To Set Up Tent
1. Unfold tent and spread out on a clean, level surface with
the door facing the desired direction. (Fig. 1)
2. Assemble all poles by interlocking the shock-corded,
sections together.
3. Insert grey Side Body Poles through the grey trimmed
sleeves on both sides of tent; then insert black Main
Poles through black trimmed sleeves, in center of tent,
forming a “X”. Make sure black Main Body Poles overlap
the grey Side Body Poles. (Fig. 1)
4. Insert end of each black Main Body Poles & grey Side
Body Poles into pins. (Fig. 2 & 2A)
5. Go to opposite end of each pole and gradually apply
pressure to each forming arches. Insert the pin into each
pole end at the sides and corners of tent. (Fig. 2 & 2A)
6. Attach frame clips along edges of tent to the black Main
Body Poles & grey Side Body Poles. (Fig. 2B)
7. Stretch tent until taut, then secure metal loops located
on both sides and web loops located at four corners
of tent with stakes. (Fig. 2C)
To Attach Rainfly
1. Insert black Rainfly Pole with through sleeve in
underside of Rainfly. (Fig. 3)
2. Drape Rainfly over tent with Rainfly Pole centered
above front door & the green vestibule flaps located
in the front. (Fig 4).
3. Insert end of each black Rainfly Pole into pin on either
side of front door. (Fig. 4 & 4A)
4. Go to opposite end of Rainfly Pole and gradually apply
pressure to form an arch. Insert the pin into pole end at
other side of the door. (Fig. 4 & 4A)
5. Locate all hook & loop fasteners on underside of
rainfly and wrap around black and grey poles to secure.
(Fig. 4B)
6. Stretch elastic straps and hook clip on each to the
metal loops at the front and back of the tent. (Fig. 4C)
(continued on other side)
Fig. 2
Fig. 4
2B
4A
Door
2C
Fig. 1
Door
Front of Tent
Black, Shock-
corded Main
Body Poles
Grey, Shock-corded Side Body Poles
Sleeve with
Grey Trim
Sleeves with Black Trim
Sleeve with
Grey Trim
2A
Fig. 3
Black Rainfly
Pole
Door
Rainfly Sleeve
4B
4C
Black Rainfly
Pole
Rainfly
Pole Descriptions
Pole Pole Pole
Description Qty. Dia. Repair Kit Replacement Kit
Main Body Pole, black 2 8.5mm 501000541 501000547
Side Body Pole, grey 2 8.5mm 501000541 501000547
Rainfly Pole, black 1 9.5mm 501000540 501000548
Before you begin
Read all instructions before set up.
• Select a level site clear of rocks, branches, and other hard or
sharp objects, to install your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees because of potential
lightning strikes or falling tree limbs in inclement weather.
• Secure with all stakes and guylines provided to prevent
property damage or personal injury.
• For best results in windy conditions, position narrow end of
tent into the wind.
• Enlist the help of at least one other person to assist you when
it is time to assemble the tent.

STITCH LINE
To Store
1. All poles and stakes must be placed in the storage bag to
prevent damage to the fabric items placed in the carry case.
2. Make sure tent is clean and dry before placing in carry case.
3. Remove rainfly, spread out on floor of tent, then unzip
door & vents before taking tent down for storage.
4. Neatly fold tent to width of pole storage bag, place on tent,
roll tightly, and place in carry case.
5. Store in a clean, dry area.
Electrical Cord Access
1. Unzip access panel in the lower
left front corner of tent and
bring in electrical cord. Use only
UL approved cords that are
rated for outdoor usage. (Fig. 7)
Fig. 7

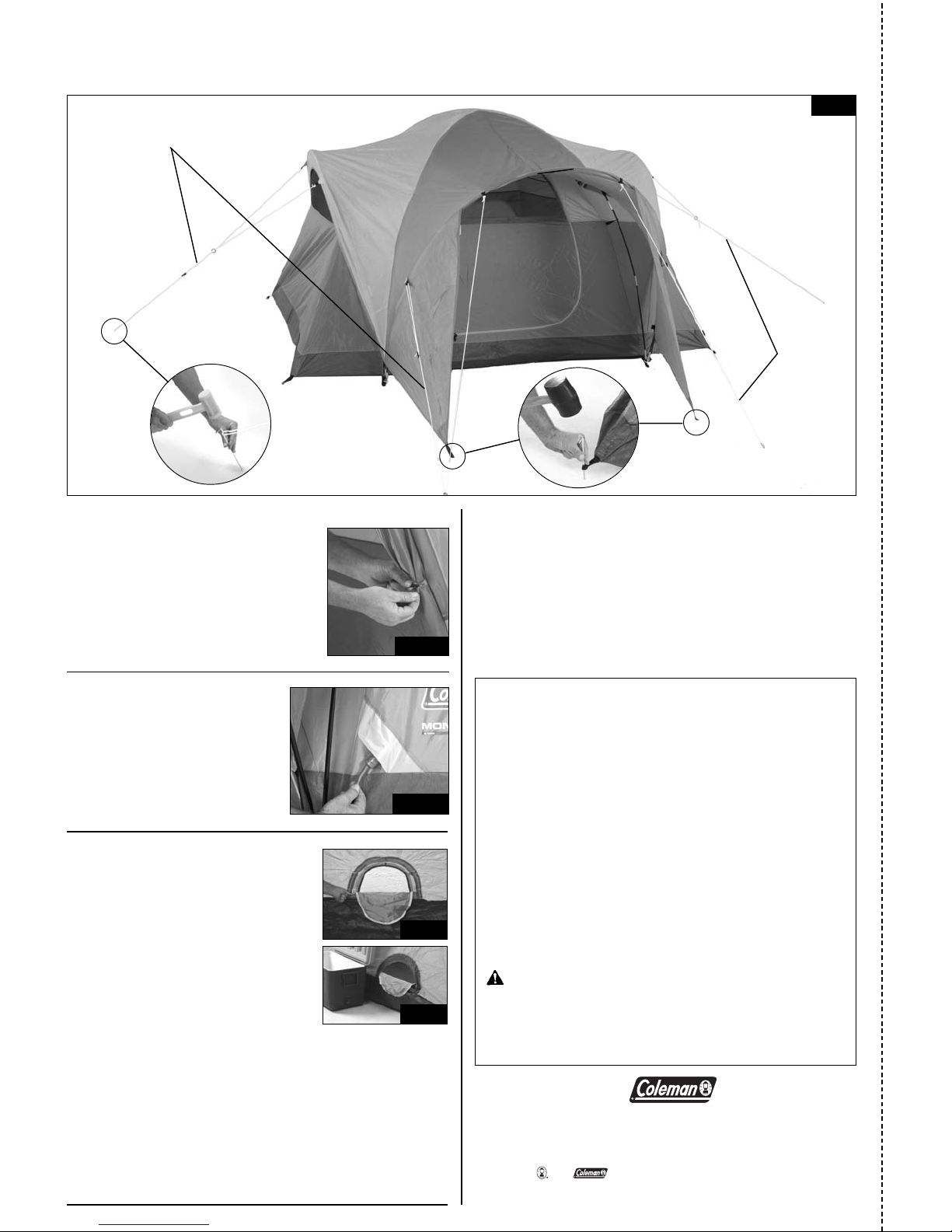

To Attach Rainfly continued
7. Extend out vestibule flaps and secure with metal stakes through the loops in the web straps (Fig. 5 & 5A)
8. Stretch guylines until taut, then secure with stakes. (Fig. 5 & 5B)
Fig. 5
5A
Guylines
Guylines
5B
Door & Window Flaps/Vents
1. For better ventilation, unzip door flap,
roll, and insert toggle into fabric loop
to secure. (Fig. 6)
2. To open back and side window
vents for more ventilation, unzip,
then roll up and insert toggles through
fabric loops.
The Coleman Company, Inc. • 3600 N. Hydraulic • Wichita, Kansas 67219
1-800-835-3278 • www.coleman.com
MADE IN CHINA • PRINTED IN CHINA
© 2008 The Coleman Company, Inc.
Coleman®, , and are registered trademarks and MontanaTM is a trademark of
The Coleman Company, Inc.
4010004000 (20081114)
Fig. 6
Cooler Access
The smaller zippered opening at the side
of tent is designed for added ventilation
and easy access to your beverage cooler.
1. To use as a vent, unzip flap to expose
screen. (Fig. 8)
2. To use as a cooler access, unzip
other flap to make an avenue to bring
beverages into tent. (Fig. 9)
Fig. 9
Fig. 8
Things You Should Know:
• Under certain conditions (cold weather, high humidity, etc.) condensa-
tion will form on the inside of your tent. Condensation is caused by water
vapor from your breath, perspiration, or any wet clothing inside the tent.
It is NOT LEAKAGE through the tent fabric. It can be minimized by
removing wet clothing from your tent and by providing good ventila-
tion through the tent.
• Tree limbs, tree sap, bird droppings, or moisture steadily dripping off
tree limbs can cause damage to the tent fabric and its coating resulting
in leaks or loss of flame-resistant properties.
• Never store tent, even for a short period of time, without drying it
thoroughly and brushing off caked dirt. Do not pack stakes or poles
inside your tent. Use a separate storage bag.
• Stakes should be removed by pulling on the stake itself. NEVER PULL ON
THE TENT TO REMOVE STAKES AS THIS COULD RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
• Tent poles should not be left telescoped together during storage.
• Do not leave your tent set-up for weeks at a time. Be aware that exposure
to ultraviolet rays from the sun can seriously damage material and/or
cause it to become discolored.
WARNING: Keep all flame and heat sources away
from this tent fabric.
This tent meets the flammability requirements of CPAI-84. The
fabric may burn if left in continuous contact with any flame source.
The application of any foreign substance to the tent fabric may
render the flame-resistant properties ineffective.
