Comeup Seal Gen2 9.5i User manual

1
Automotive Winch
Thank you for purchasing a Winch.This manual covers operation and maintenance
of the winch. All information in this publication is based on the latest production information available
at the time of printing. We reserve the right to make changes without notice because of continued
product improvement.
The winch has been designed to give safe and dependable service if operated according to the
instructions. Please read and understand this manual before installation and operation of the winch.
Careless winch operation can result in serious injury or property damage.
When requesting information or ordering replacement parts, always give the following information:
1. Winch model and voltage
2. Serial Number
3. Item. No. and Part Number
4. Part Description
1. The winch is a very powerful machine. Treat with extreme care and observe all caution and
warnings.
2. The winch is rated at the first layer of wire/synthetic rope on the drum for intermittent-periodic
duty.
3. The winch is not to be used to lift, support or otherwise transport personnel.
4. A minimum of five (5) wraps of steel wire rope and of ten (10) wraps of synthetic rope around the
drum is necessary to support the rated load.
5. Keep clear of winch, rope, hook, and fairlead while operating.
6. Wire/synthetic rope can break without warning. Always keep a safe distance from the winch and
rope while under a load
7. Failure to adequately align, support, or attach the winch to a suitable mounting base could result
in a loss of efficiency of performance or damage to the winch, wire/synthetic rope and mounting
channel.
WARNING

Control Indicator Guide
2
To prevent any serious injury, do not install or operate this winch before reading this manual. Keep
this manual with the winch at all times. Winch operators must read and understand contents fully.
Know the specific function of your winch.

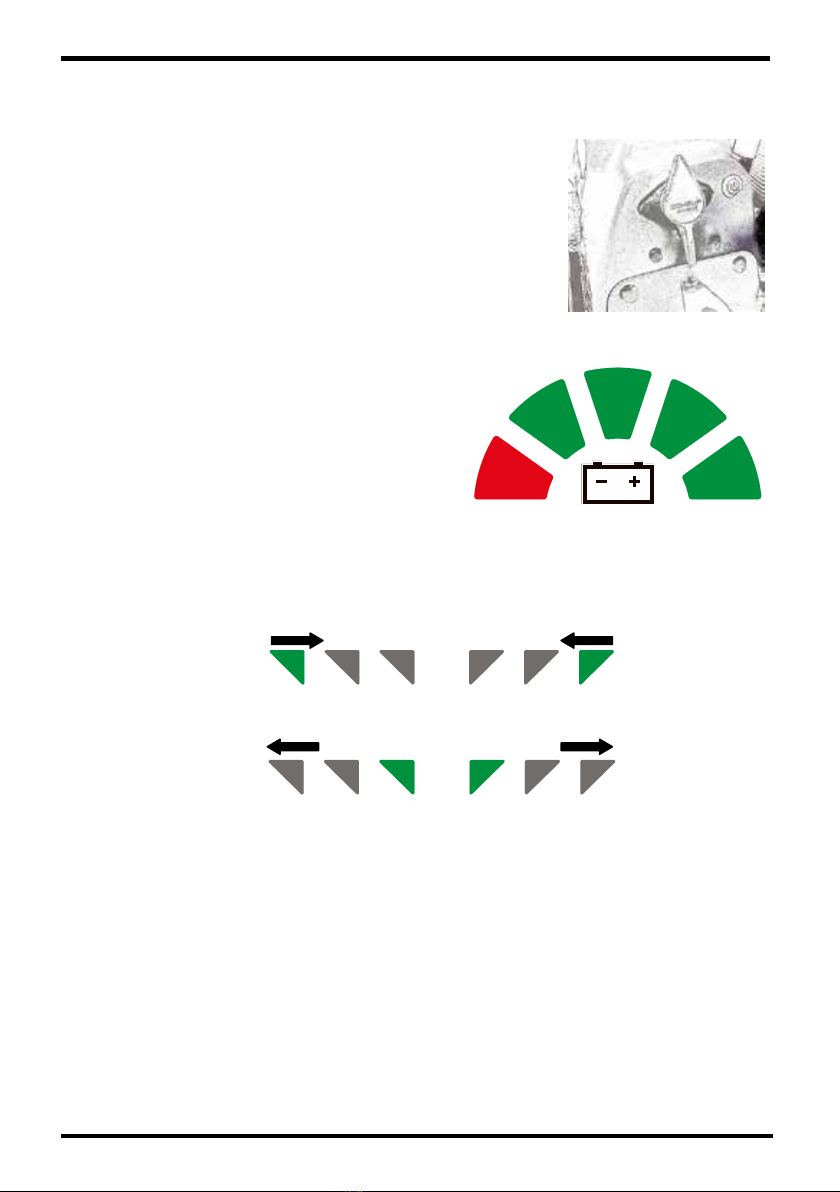

1. Cutout Switch：
Your Seal Gen2 9.5i/9.5si /9.5rsi winches have a cutout switch
It is to activate or deactivate the winch.
The cutout switch could also cut out the battery draw of
wireless control models when the engine is not running.
2. Vehicle Battery Level：
The dash board of your Seal Gen2 9.5i/9.5si/9.5rsi winch is with
battery indicator to show the status of vehicle battery level.
1
st
Icon (Green):Fully charged around 12V level
2
nd
Icon (Green):Fair charged around11V
3
rd
Icon (Green):Fair charged around 10 V
4
th
Icon (Green):Low charged around 9V
5
th
Icon (Red): Extreme low below 8V
3. Cable in /out direction indicators：
The green triangle icons on the IDBfor your Seal Gen2 9.5i / 9.5si / 9.5rsi will indicate the rope
winding direction.
a. Cable in: The green triangle icons moved from the outside toward the center indicate the
rope winding-in direction.
b. Cable out: The green triangles icons moved from the center toward the outside indicate
the rope winding-out direction.
c. Over-heat: The green triangles icons will turn red if the motor is over-heating, but the
direction remains unchanged.
4. Over heat Protection：
There are three kinds of overheat protection warnings to protect the motor and control from
being damaged or personal injury：
a. IDB warning: The flashing red temperature icon on (IDB) of your Seal Gen2 9.5rsi winch
indicates the motor is over-heating.
b. Handheld remote warning: The two green LED indicators on the wired remote control
will turn red if the motor is over-heating.
c. Buzzer warning: When motor is over-heating, the Seal Gen2 9.5rs /9.5rsi /12.5rs will
induce an buzzer alarm

Control Indicator Guide
3
Temperature Warning Handheld Remote Warning Buzzer warning
5. Wireless Remote Control Icon：
a. While using wireless control, the wireless signal icon of IDB of your Seal Gen2 9.5rsi will turn
on.
b. The LED indicators on the wireless transmitter indicate the signal condition. If green, the
signal is good; red is weak.
Wireless Signal Icon Wireless Transmitter
6. Wireless transmitter’s battery life：
If green LED indicator on the wireless transmitter is flashing, the battery of the transmitter need
to be replaced.
uWireless Receiver & Transmitter Operation
This wireless remote control device complies with CE mark, FCC and Industry Canada (IC) rules.
CE Mark Warning
•This is a Class B product, in a domestic environment, this product may cause radio
interference, In which case the user may be required totake adequate measures.
FCC and Industry Canada (IC) Warning:
•This device complies with Part 15 of the FCC Rules. Operation is subject tothe following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.

Control Indicator Guide
4
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio / TV technician for help.
►There are four control modules of Sean Gen2 series winches. All are similar in setup, but
with differing responses in regards to their control type.
1). Seal Gen2 9.5rsi：
a. With both wireless and wire remote control.
b. IDB with wireless remote control function +cut out switch +temperature warning and
overheat buzzer warning.
c. After activating the winch, the logo LED will light on and battery indicator shows the status
of battery level.At the same time, the wireless remote control icon will be blinking with
buzzer warning until the remote control is tuned.
d. Cable in / out direction indicators.
2). Seal Gen2 9.5i / 9.5si：
a. With wired remote control.
b. IDB with wireless remote control function +cut out switch + temperature warning and
overheat buzzer warning.
c. Cable in / out direction indicators.
3). Seal Gen2 9.5rs：
a. With both wireless and wire remote control.
b. Overheating buzzer warning.
4). Seal Gen2 9.5 / 9.5s：
a. With wire remote control.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void the
user's authority to operate the equipment.

Control Indicator Guide
5

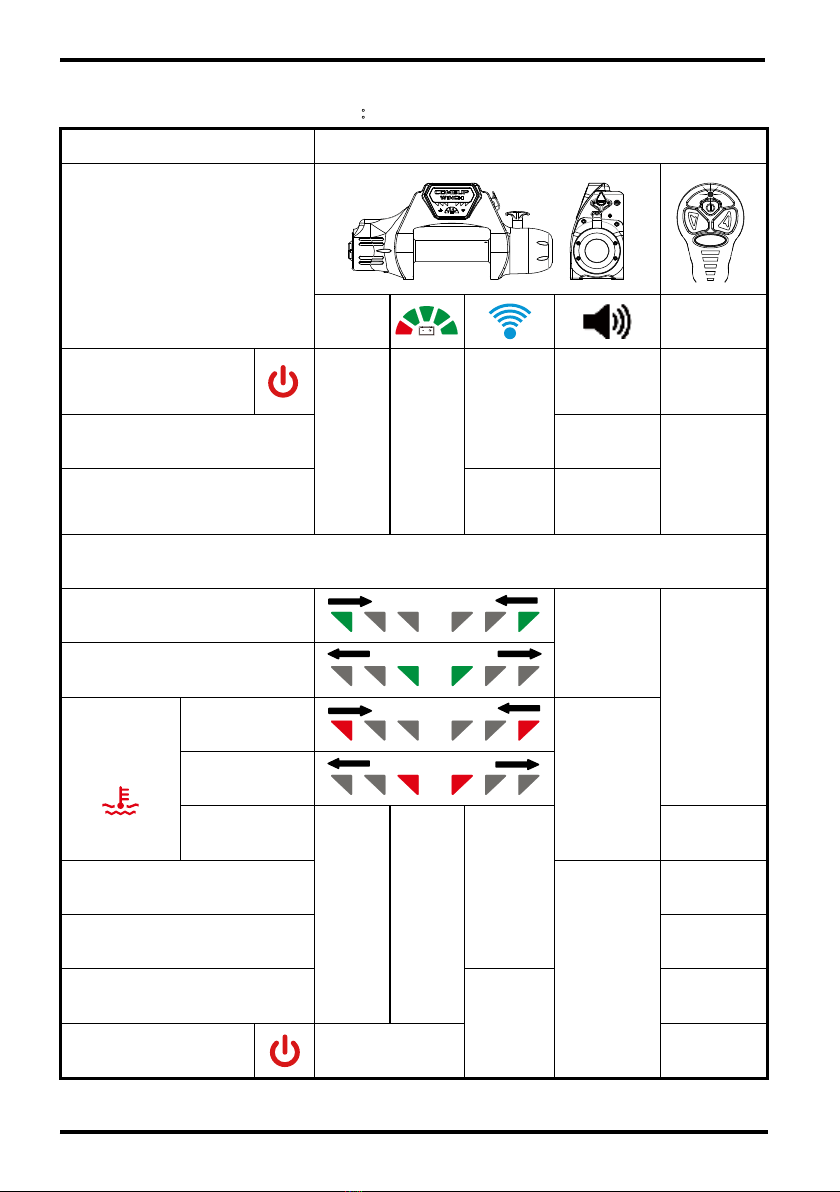

►Seal Gen2 9.5rsi with IDB, cut out switch and buzzer warning.
1).Wireless remote control module：
Applicable models Seal Gen2 9.5rsi
LED & Buzzer
LOGO Transmitter
LED
Turn on
on on
Blinking
2 short
beeps for
1 minutes
X
Press Transmitter for 5 seconds X
Turn on
Green
Programming Blue
Long beeps
for
5 seconds
If programming failed , Winch will automatically use the previous programming after 1 minute.
Cable in / IDB LED (Green)
X
Red
Cable out / IDB LED (Green)
Motor
overheating
warning
(Blinking)
Cable in / IDB
LED (Red) 2 short
beeps
every
5 seconds
Cable out / IDB
LED (Red)
No operation
Light
on
Light
on
Light on
Green
Low voltage on transmitter
X
Green
Poor signal warning Red
Press the power button for 5
seconds to turn transmitter off. X
X
Press the power button
to turn winch off. X X

Control Indicator Guide
6
2).Wired remote control module：
Applicable models Seal Gen2 9.5i / 9.5si / 9.5rsi
LED & Buzzer
LOGO
Remote
Control
LED
Press the power button
to turn winch on. Light
on
Light
on
Blinking
(remark 1.)
2 short
beeps for
1 minutes
(remark 2)
X
Plug in connector Green
Cable in / IDB LED (Green)
X Green
Cable out / IDB LED (Green)
Motor
overheating
warning
(Blinking)
Cable in / IDB
LED (Red) 2 short
beeps
every
5 seconds
Red
Cable out / IDB
LED (Red)
No operation Light
on
Light
on
Light on
(remark 3)
Press the power button
to turn winch off. X
Remarks:
1. Seal Gen2 9.5i / 9.5si: No wireless signal icon.
2. Seal Gen2 9.5i / 9.5si: Buzzer won’t be activated accordingly.
3. Seal Gen2 9.5rsi: Turn winch on, winch will automatically use the previous
programming.

Control Indicator Guide
7

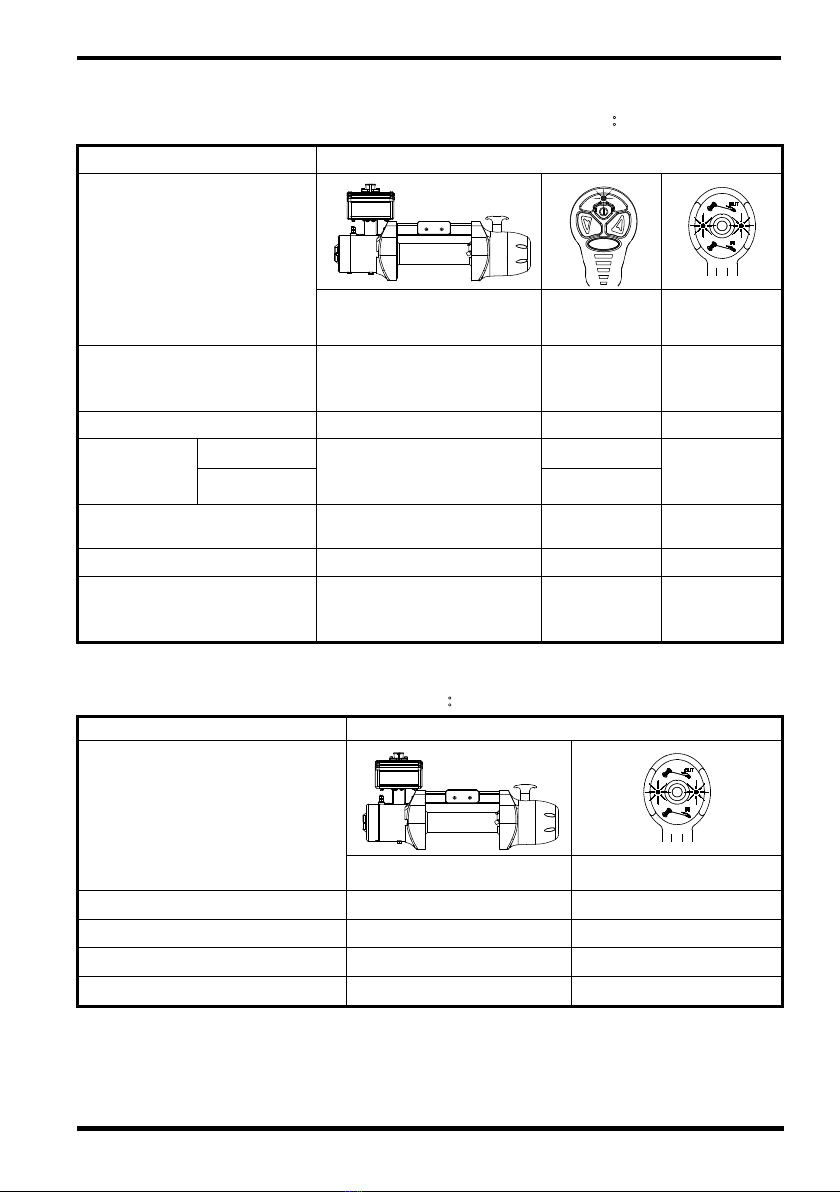

3).Wireless remote control with wired remote control (2 LEDs on wired remote control
and buzzer in the control box), For Seal Gen2 9.5rs / 12.5rs only：
Applicable models
Seal Gen2 9.5rs / 12.5rs
LED & Buzzer
Buzzer Transmitter
LED
Remote
Control LED
Press the power button on
transmitter for 5 seconds to
turn transmitter on.
X Green X
Cable in / out operation
X
Red
Green
Motor
overheating
warning
Cable in / out
2 short beeps every
5 seconds
Red
Red
No operation Green
Low voltage on transmitter X
Blinking
green
X
Poor signal warning
X
Blinking red
X
Press the power button of
transmitter for 5 seconds to
turn transmitter off.
X X X
4).Wired remote control (2 LEDs on remote control),
For Seal Gen2 9.5 / 9.5s / 12.5 / 12.5s only：
Applicable models
Seal Gen2 9.5 / 9.5s / 12.5 / 12.5s
LED & Buzzer
Buzzer LEDs on remote control
Plug in connector
X
Green
Cable in / out opperation
X
Green
Motor overheating warning X Red
Plug out connector
X
X

Control Indicator Guide
8

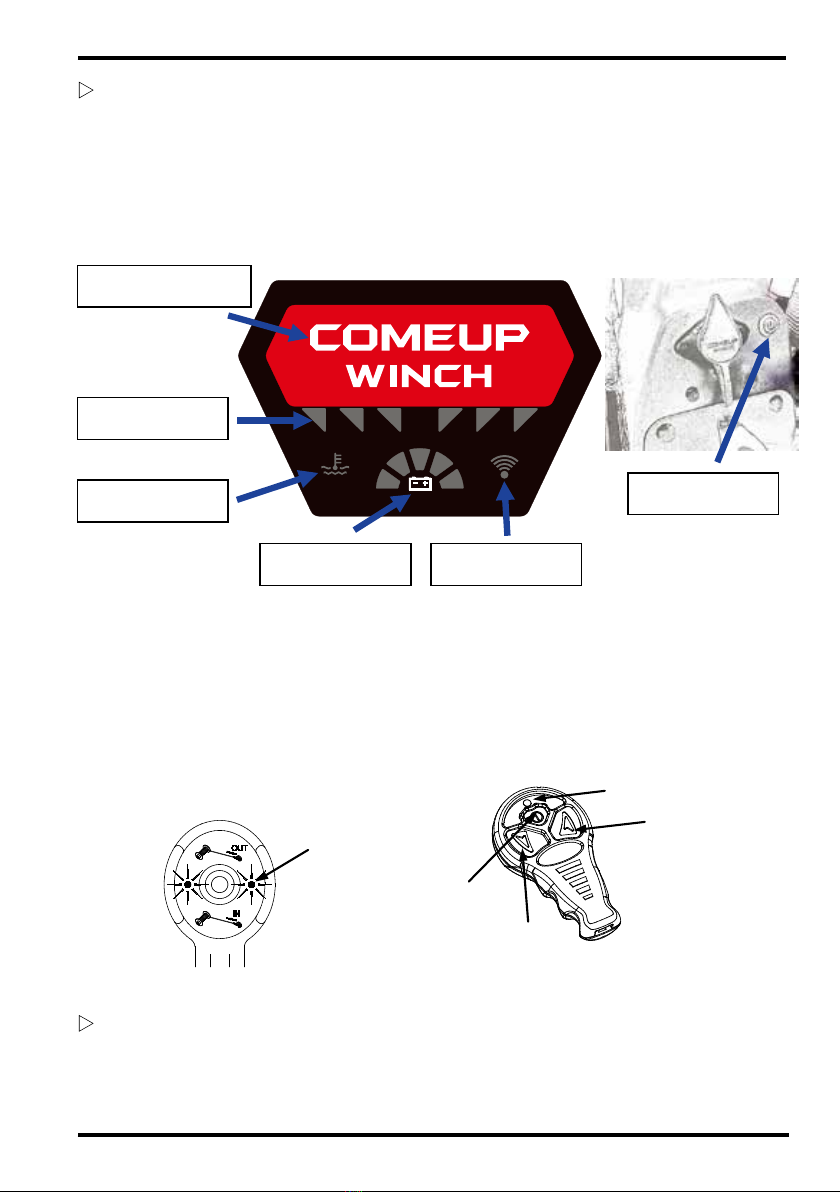

uPower in the winch (Getting started)
1. Cut out Switch：
Your Seal Gen2 9.5i / 9.5si / 9.5rsi winches can be activated by the cut out switch.
1.1 Press the cutout switch button to activate the winch operation. Verify a red light appears
around the button.
1.2 The white COMEUP winch logo icon will bright up for Seal Gen2 9.5i / 9.5si / 9.5rsi,
battery indicator icons will lighton in green.
1.3 The wireless control device is in tuning.
2. Hand-held switch：
All automotive winches are supplied with a wired remote control to activate and operate the
winch. Two green LEDs indicator the winch is under operation.
3. Wireless Transmitter：
Your Seal Gen2 9.5rs / 9.5rsi /12.5rs and optional wireless transmitter for other automotive
winches can be operated by wireless remote control.
Press and hold the power button for 5 seconds to activate winch operation. The green LED
Indicator lights up.
Hand-held Switch Wireless Transmitter

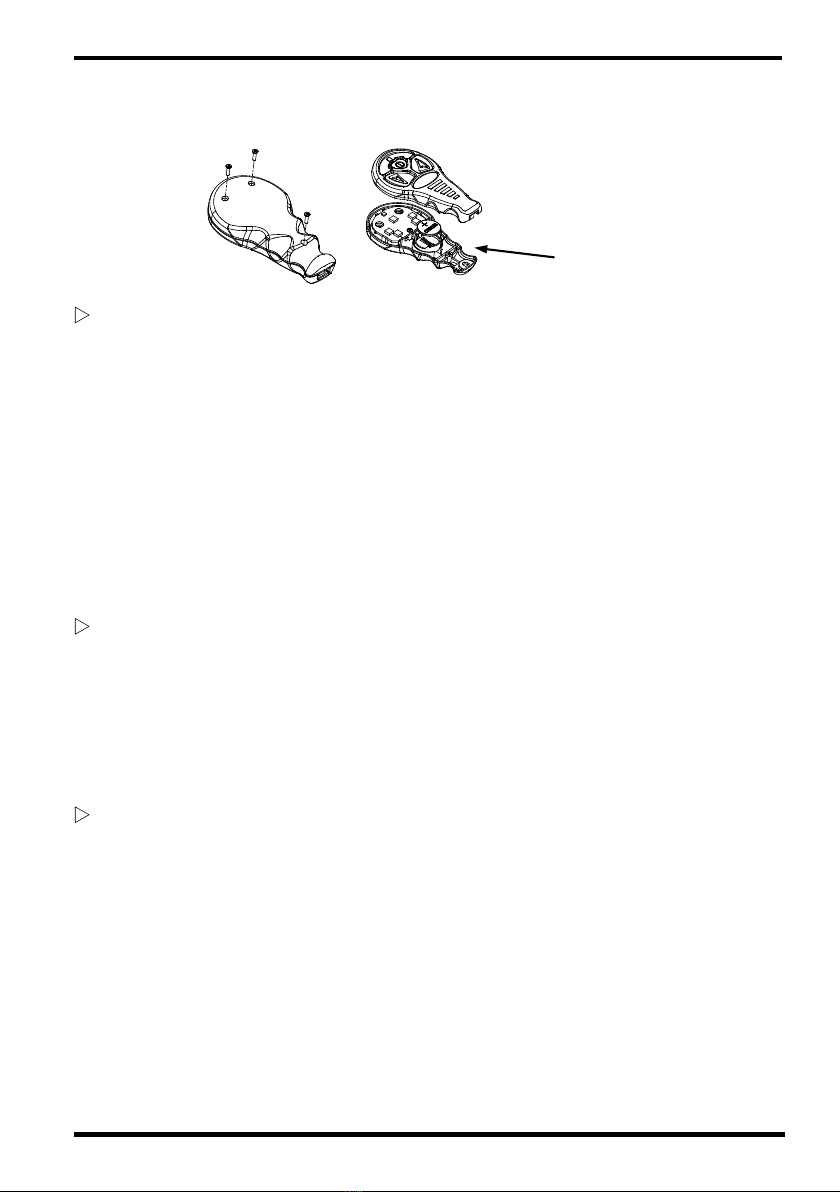

uBattery replacement
When the green LED Indicator is flashing indicates an extreme low battery level of wireless
transmitter’s.The battery should be replaced.
1. Loose the three screws from the back cover of the wireless transmitter.
2. Separate the top section and remove the old battery and dispose it.
Cutout Switch
LED Indicator
LED Indicator
Power Button
Cable In
COMEUP Winch Logo
Winding Direction
Thermal Protection
Wireless SignalVehicle Battery Life
Cable Out

Control Indicator Guide
9
3. Insert new 3V lithium battery and join the top section with the bottom section.
4. Make sure tofasten the three screws.
uPairing the wireless remote control
Your wireless remote control is already paired to your winch, however a replacement will need
to be paired.
1. Attach the winch power red lead to the positive (+) battery terminal and attach black ground
led tothe negative (-) battery lead, the buzzer beepsfor 5 minutes
2. Press and hold the power button for about 5 seconds, the LED Indicator illuminates green
permanently.
3. Press either cable in button or cable out button for pairing. The blinking LED indicator will light
up while pairing
4. If pairing was successful, The LED indicator lights up and the buzzer sounds a long beep
lasting for 5 seconds
5. If pairing was unsuccessful after 5 minutes, the power LED indicator will turn off and it need to
restart the pairing.
uPower Off the winch (Shut down)
1. Cutout Switch：
Press the cutout switch button to terminate your Seal Gen2 9.5i/9.5si/9.5rsi winches operation.
2. Wireless Transmitter：
2.1 Press and hold the power button for 5 seconds for wireless controlled winches.
2.2 The green LED indicator at the wireless transmitter will turn off after winch shutting down.
2.3 The winch will be shut down automatically if at idle for 5 minutes.
uBattery Recommendations and lead size
Afully charged battery and good connections are essential for the proper operation of your
winch. The minimum requirement for battery is 650 cold cranking amps. The voltage drop for the
winch motor must not exceed 10% of the nominal voltage of 12/24V DC.
The battery lead shall be 2 gauge with 1.83 m in length at most, otherwise a considerable
voltage drop will be happened.

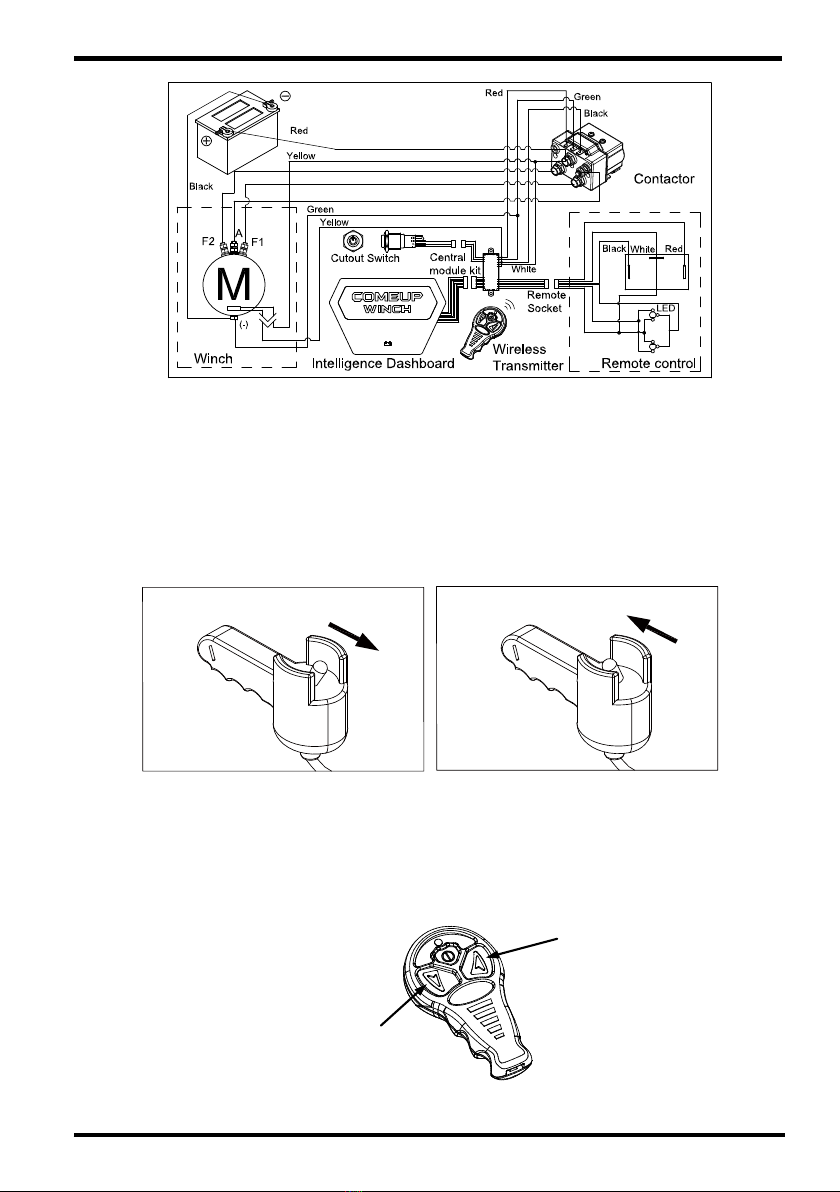

uWiring Diagram
Attach the black lead firmly tothe negative (–) battery terminal and red lead tothe positive(+)
battery terminal. The voltage drop for the winch motor must not exceed 10% of the nominal
voltage of 12 / 24VDC.
Lithium Battery: CR2032 (3V)

Control Indicator Guide
10
uCable-in / Cable-out Operation
1. Wired Remote Control：
1.1 To “ winch or cable - out”, trigger →out.
1.2 To “ winch or cable - in”, trigger ←in.
1.3 To stop winching, release the trigger.
2. Wireless Control Module：
2.1. Press and hold the cable in button of the transmitter for rope winding in operation.
2.2. Press and hold the cable out button of the transmitter for rope winding out operation.
2.3. Stop winching, release the cable in or cable out buttons.
Cable Out
Cable In
Cable-Out Cable-In

Control Indicator Guide
11
uShut Down the Winch Permanently
1. Cutout Switch：
Press the cutout switch button to activate the wired controlled winch operation. Verify a
redlight turns off.
2. Wired Remote Control：
Remove the hand-held switch from the winch when not in use.

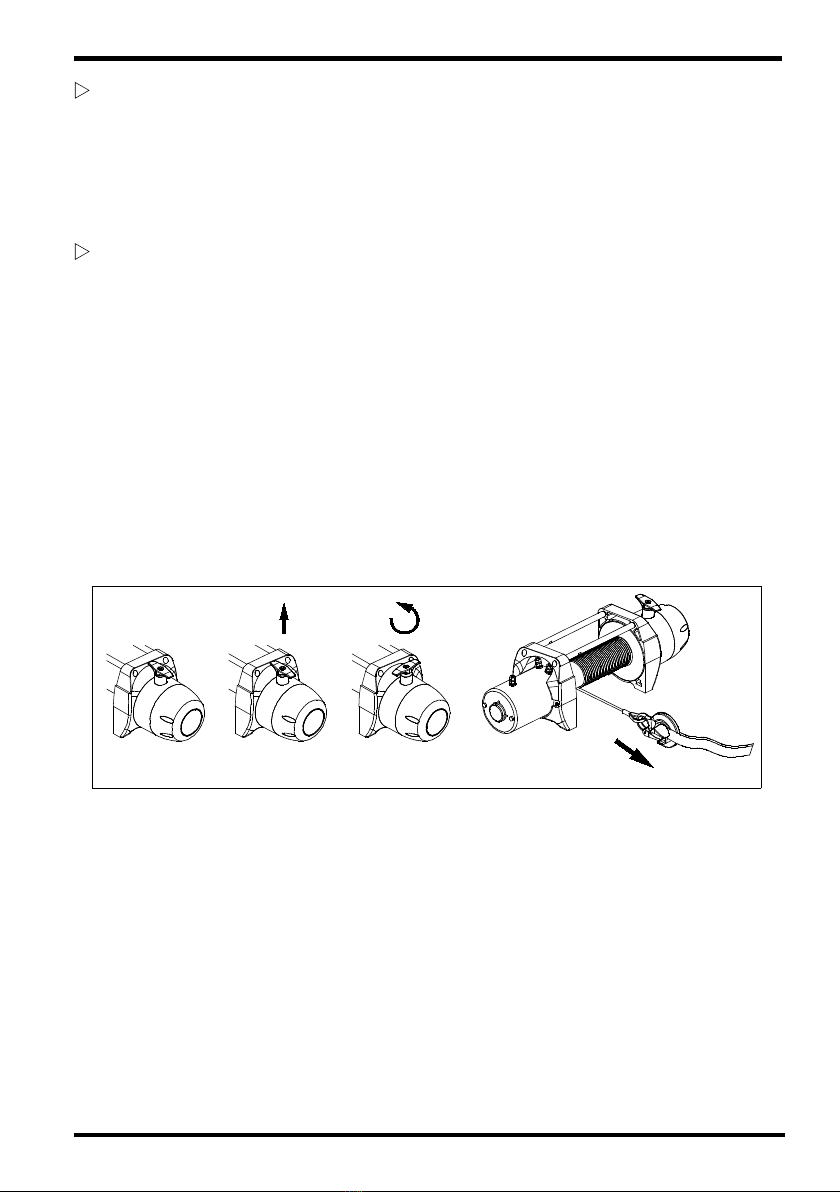

uClutch Function
1. The clutch allows rapid pay-out of the wire/synthetic rope for hooking onto a load or anchor
points and is operated by a clutch T-handle.
2. The clutch T-handle must be in the “Engaged” position before winching.
3. To disengage, Lift the clutch T-handle up and turn it at the proper angle mentioned in the
4. mounting configurations chart below in a counter-clockwise direction to the “Disengaged”
position. Wire / synthetic rope can now free spool off the drum.
5. To engage, Lift the clutch T-handle up and turn it at the proper angle mentioned in the
mounting configurations chart below in a clockwise direction to the “Engaged” position.
6. If a clutch T-handle can’t be properly locked in the “Engaged” position, Rotate the drum to
7. help the clutch device engage the gear train.
8. Wear gloves and use a hand saver strap when guiding the wire / synthetic rope off the drum.
9. Never disengagethe clutch while wire / synthetic rope is under load.
(Disengage)(Engage)

Mounting Guide
12

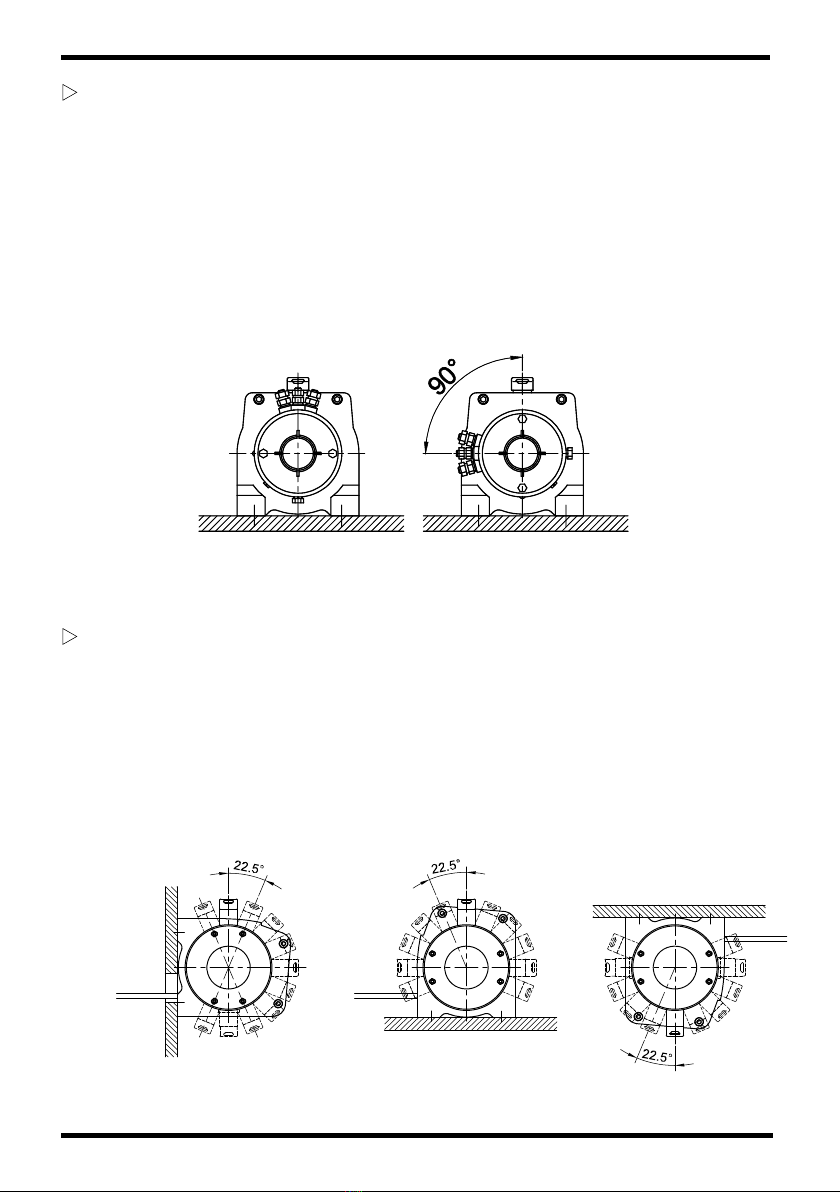

uMotor Repositioning
Change the motor mounting direction according to the following steps.
1. Use a piece of 11 mm wrench and loose 2 pieces of screw.
2. Hold the motor to avoid any escape. Loose and take away 2 pieces of screw located at motor
edge place.
3. Pull the motor backward by 5mm for escaping the positioning pin and rotate the motor by 90
degree increments to the required position.
4. Re-assembly 2 pieces of screw to the motor edge place and tighten them after the motor and
position pin reaching their positioning places.
uClutch Repositioning
Change the position of the Free-Spool T-handle according to the following steps.
1. Loosen and release the bolts on the brake rear cover for separating the brake rear cover away.
2. Loosen and release the bolts on the gearbox away for separating the gear box away (Only for
Seal Gen2 series winches).
3. Rotate the gearbox by a proper angle increments mentioned on the below chart to the required
position.
4. Re-assembly the gearbox and rear brake cover.

Mounting Guide
13
uMounting Configurations
The payout direction for wire rope/synthetic rope or the correct methods for mounting the winch
vary according to different winch model. Do wind the rope from the bottom of the drum. At any
condition, do not position the load direction away from the mounting base plate.
Foot Down Mounting Position Foot Forward Mounting Position
Winch Model
Mounting Position
Repositioning
Foot Down
Foot Forward
Clutch Angle
Motor Angle
Seal Gen2 9.5/9.5s/9.5rs
V
V
22.5
∘
90
∘
Seal Gen2 9.5i/9.5si/9.5rsi
V
V
22.5
∘
90
∘
Seal Gen2 12.5/12.5s/12.5rs
-
V
22.5
∘
90
∘
DV-18
-
V
36
∘
90
∘
DV-12/15
V
V
36
∘
90
∘
DV-12 light/12s light
-
V
40
∘
90
∘
DV-9/9s/9i/9si/Cap 9.0s
V
V
40
∘
90
∘
DV-6/6s/6s carry on
V
V
-
90
∘
Walrus 16.5/20.0
-
V
90
∘
-

Safety Requirements
14
In some cases, the operator of a winch may be required to have qualifications according to
applicable laws and ordinances.
Check safety and environmental conditions prior to and during use.
Only use correctly rated wire/synthetic rope in construction,
strength. Inspect for damage and/or defects before use.
Don’t use an unsuitable hook and snatch block for rope.
The operator must remain with the winch during operation.
The winch duty rating is S3 (intermittent-periodic).
Do not use the winch as a lifting device or a hoist for vertical lifting and moving people.
Ensure that the winch is connected tothe correct voltage. 12/24 VDC only.
Do not exceed maximum line pull ratings. Shock load must not
exceed these ratings.
Keep hands clear of rope and fairlead opening.
Pull from an angle below 15° in the horizontal plane to straighten
up the vehicle or load.
Always use leather gloves when handling the wire/synthetic rope.
When winching, always use a recovery damper. Place over the
wire/synthetic rope in the middle third of its length.
A rope should be replaced if it shows signs of excessive wear, broken strands, corrosion for wire
rope and excessive abrasion, broken strands, fused and melted fiber for synthetic rope.
If the winch fails to pull a load under normal conditions, stop the operation, otherwise motor
damage may occur. The thermal indicator LEDs in the control box or remote switch will indicate
RED as a warning.
Check that the clutch T-handle is in the “Engaged” position during and after use.
Remove the switch from the winch when not in use.
Do not wrap the wire/synthetic rope around the load and back onto itself. Always use a tree truck
strap.
Keep hands and clothes away from the winch,
rope, and roller/hawse fairlead.
Never unplug the remote control when winching
a load.
To avoid insufficient power when winching a
load, the vehicle should be running and in
neutral.
If noise or vibration occurs when running, stop the winch immediately and return it for repair.
The rope shall be wound in according to drum rotation sticker or refer to owners manual.

Winching Principles
15
uCalculating Fleet Angle
To obtain the best wire/synthetic rope service, the direction of pull will be on a horizontal within
±15 degrees and perpendicular to be centerline of the winch drum within ±5 degrees. If the fleet
angle is biggerthan the recommended angles, a good spooling cannot be obtained as the rope will
spoon onto one side of the rope drum and possible damage to the rope or winch.
uLoad Rating
Load and speed varies according to how much
wire/synthetic rope is on the drum. The first layer of rope
on the drum delivers the slowest speed and the maximum
load. A full drum delivers the maximum speed and the
minimum load.
For this reason, all automotive winches are rated at their
first layer capacities.
uRequired Pulling Force
You need a winch powerful enough to overcome the weight of your vehicle with the added
resistance caused by the obstacle, moving water, mud, snow, sand or on a steep hill.
As a general guide, you need a winch with a maximum line pull of at least 1.5 times greater than
the gross vehicle weight.
There are three factors listed that influence the line pull effect required to recover the vehicle.
The values and calculations in this section are approximate and are for reference only.
a). Gross vehicle weight
b). Type of the surface to be traversed
c). Gradient to overcome
In recovery and loading the winch is used to pull something, the required pulling force (RPF)
can be calculated according tothe formula:
RPF = (Wt X S) + (Wt X G)
Where: Wt = The gross vehicle weight
S = The type of the surface to be traversed
G = The gradient to overcome
Surface Type
Surface Drag (S)
Gradient
Angle (θ)
Gradient (G)
Metal
0.15
5%
3°
0.06
Sand
0.18
10%
6°
0.11
Gravel
0.20
20%
11°
0.2
Soft Sand
0.22
30%
17°
0.3
Mud
0.32
50%
26°
0.44
Marsh
0.52
70%
35°
0.58
Clay
0.52
100%
45°
0.71
T
op layer (Max. speed Min. load)
H
alf layer (Med. speed Med. load)
F
irst layer (Min. speed Max. load)
F
lange of drum

Winching Principles
16
For example, if a vehicle weighing 3,000 kg is winched up an incline by 100% on the marsh
road, the above formula would be used as follows:
Where Wt: 3,000 kg, S: 0.52 G: 0.71
RPF = (Wt X S) + (Wt X G)
= (3,000 kg X 0.52) + (3,000 kg X 0.71)
= 1,560 kg + 2,130 kg
= 3,690 kg of effect required to recover the vehicle.
uSecuring Anchor Point
When choosing an anchor point, select a safe and firm point such as a tree, stump or rocks. If
using a winch to retrieve another vehicle, the rescue vehicle is considered the anchor point and
should be made secure.
The anchor point must be strong enough to hold the gross weight of the vehicle and be
positioned to keep the fleet angle between the centre of the anchor point and the wire/synthetic
rope maintained less than 15°. Always use a tree trunk protector strap to prevent ring barking the
tree and damaged to the wire/synthetic rope.
uWinching V.S. Hoisting. A pulling winch should not be used for lifting.
Please refer to our website to view our full range of lifting winches.
A gradient of 10% is a rise of one
meter in ten meters (High / Distance)
Slope
High
Distance

Accessories
17
uRoller Fairlead
The use of 4 ways roller fairlead can eliminate the contacting
friction because the fairlead rollers contact with the wire rope. But the
fairlead does not insure the wire rope will wind onto the drum in an
orderly manner. The proper fleet angle within 15° must be
maintained for the wire rope to wind onto the drum in an orderly
manner. If the proper fleet angle is not maintained, it can result in
damage to the winch and wire rope.
uHawse Fairlead
The basic hawse fairlead is designed to guide the synthetic rope to
and from the winch drum. Do not use cast steel hawse fairleads as
they have sharp edges and they do not have enough radius for the
rope to bend over.
uRecovery Damper
A recovery damper is a safety device designed to help
eliminated the possibility of injury or property damage in the
event of a wire/synthetic rope failure. Place in the middle third
of a live rope. The damper can help absorb the energy in the
rope and reduce the likelihood of injury or damage.
uSnatch Block
An important aid to successful winching is the use of
snatch block, which can be used to increase the pulling
power of a winch or change the direction of a pull.
A winch double lined with a snatch block creates a
mechanical leverage cutting the effort required by nearly half.
The double line pull shows self recovery using a snatch
block attached to an anchor point; the pull applied to the
vehicle is almost twice as much as the line pull of the winch.
The use of one snatch block shows an indirect pull where
the vehicle is limited due to unsuitable ground or obstruction.
The pull on the load is the actual line pull of the winch. If
more than one snatch block is used, they must be located at
least 100 cm (40″) apart.
Fleet angle
Fleet angle

Winching Procedures
18
uPreparation before Winching
1. Connect the remote control
Always disconnect the remote control when not in use.
Always have the remote control kept free from winch,
wire/synthetic rope and roller/hawse fairlead.
2. Disengage clutch function
ift the clutch T-handle up and turn it at 90°
counter-clockwise rotation to the “Disengaged”
position, rope can now clutch off the drum.
3. Pull the wire/synthetic rope to the anchor point
Wear leather gloves when handling wire/synthetic rope.
Pull out enough rope to reach the anchor point. Be
careful to keep the rope under tension.
4. Engage clutch function
To engage, lift the clutch T-handle up and turn it at 90°
clockwise rotation tothe “Engaged” position. Never
engage the clutch whilethe drum is rotating.
uWinching Operation
1. Check the wire/synthetic rope
Before winching, make sure the rope is wound on the
drum evenly. If there is a mixed winding, it is essential to
rewind it evenly.
2. Lay a recovery damper over the rope near the hook
end.
If a wire/synthetic rope failure occurs, the damper can
prevent the rope from whipping.
