Comeup CP-300 User manual

Electric Winch
Model: CP-300
PN: 150004 220V50Hz 152355 230V50Hz
153310 100V50Hz 150003 110V60Hz
Introduction
 Feature
Lifting capacity: 300 kg wire rope top layer
Lifting height: 29 m
Lifting speed: 10-15 m/min at 50Hz ; 12-18 m/min at 60Hz
Brake: Electromagnetic spring-applied failsafe brake
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly 1pc
．Wire rope 6 mm x 30 m 1pc
．Weight hook CHW-0031 1pc
．Power lead 1.5 mm2
x 3C x 3 m and plug 1pc
．Power lead 3.5mm2
x 3C x 0.6m w/o plug for PN:153310 1pc
．Pendant switch w/cord 1.25 mm2
x 5C x 3 m 1pc
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Part description
．Replacement part number
．Serial number
．Quantity for each part
Installation
Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Performance

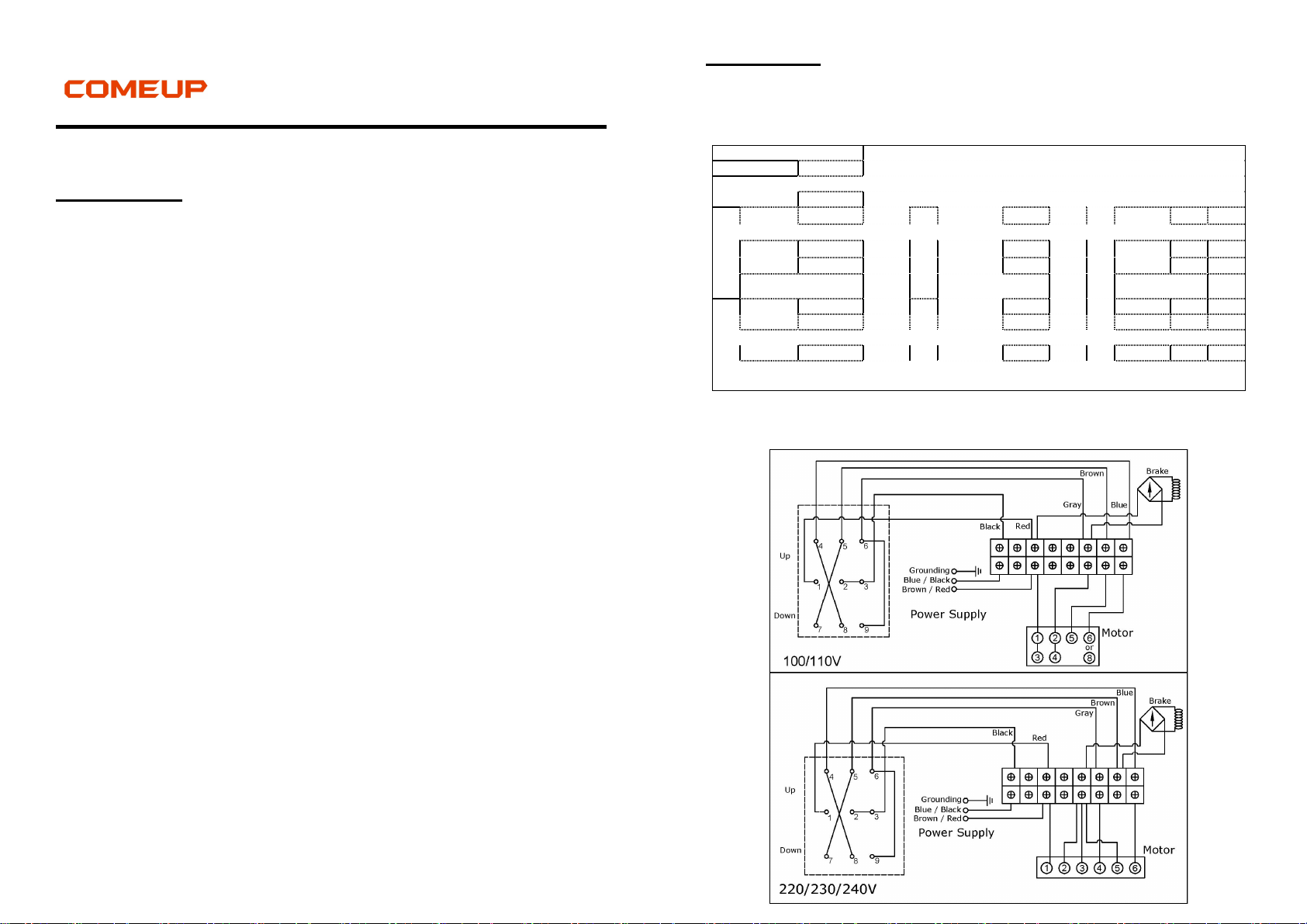

 Wiring Diagram
Winch Model CP-300
Motor kw x p 1.1 x 4
Recommend
Wire Rope
Size(mm) 6
Breaking (kg) 2,010
1st
Layer
Rated Load
(kg)
50Hz 444
2nd
Layer
Rated Load
(kg)
50Hz 396
3rd
Layer
Rated Load
(kg)
50Hz 358
60Hz 444 60Hz 396 60Hz 358
Speed
(m/min)
50Hz 10 Speed
(m/min)
50Hz 11.3
Speed
(M/min)
50Hz 12.5
60Hz 12 60Hz 13.6 60Hz 15.1
Rope-Winding Cumulating
Sum (m)
5.4 Rope-Winding
Cumulating Sum (m)
11.5
Rope-Winding
Cumulating Sum (m)
18.3
4th
Layer
Rated Load
(kg)
50Hz 327
5th
Layer
Rated Load
(kg)
50Hz 300
60Hz 327 60Hz 300
Speed
(m/min)
50Hz 13.8 Speed
(m/min)
50Hz 15
60Hz 16.5 60Hz 18
Rope-Winding Cumulating
Sum (m) 25.7 Rope-Winding Cumulating Sum (m) 30

Warning
．The winch is not intended to be used in any manner for the movement or
lifting of personnel.
．The lifting capacity shown is based on the top layer of rope on the drum.
．The rope winding on the drum shall remain 5 wraps from the drum.
Parts List
Item No. Description Part No. Qty
1
Induction motor kit , 100/220/50Hz 880413
1 Induction motor kit , 110V/60Hz 881556
Induction motor kit , 230V/50Hz 882542
2 Control kit, 3 round pins 880398 1
Control kit for PN:150003 881329 1
3 Bridge rectifier 880368 1
4 Support bracket 880369 2
5 Drum kit 880370 1
6-1 Tie bar 881862 1
6-2 Tie bar kit 880371 3
7 2
nd
shaft kit 880372 1
8 Gear box kit 880373 1
9 1
st
stage carrier 880374 1
10 1
st
shaft kit 880375 1
11 Conductor kit 880376 1
12 Brake coil 110V 880377 1
13 Conductor plate A 880403 2
14 Brake disc 880379 2
15 Hex socket 880380 1
16 Conductor plate B kit 880381 1
17 Brake cover 880382 1
18 Wire rope 880383 1
19 Weight hook CHW-0031 880384 1
Winch Assembly
