CONVECTAIR JAZZ 7618 User manual

JAZZ
421AA2620 ind. B
7618
Installation &
Operating Instruction
( IMPORTANT : To be read and kept by the user )

2.

3.
 TABLE OF CONTENTS 
 INTRODUCTION 
Dear owner,
Congratulations on the purchase of this premium electric heater. CONVECTAIR
develops and produces the highest quality heating product in the electrical
industry.
To obtain the best results and the ultimate in performance and comfort, please
take a moment to read the installation, operation and maintenance instructions
detailed in this manual.
WARNING :
Your heater is already equiped with a precise electronic thermostat.
It must not be connected to a wall thermostat
QUICK START GUIDE...................................................................PAGE 4
1- SPECIFICATIONS....................................................................PAGE 5
2- RECOMMENDED SET-UP.......................................................PAGE 5.6
3- INSTALLATION AND MOUNTING............................................PAGE 6.7
4- ELECTRICAL CONNECTION...................................................PAGE 7
5- OPERATING INSTRUCTIONS.................................................PAGE 8.9.10
6- OVERHEAT CONTROL............................................................PAGE 11
7- MAINTENANCE........................................................................PAGE 11
8- TROUBLESHOOTING..............................................................PAGE 12
9- IDENTIFICATION OF YOUR HEATER......................................PAGE 12
10-WARRANTY INFORMATION.....................................................PAGE 12

4.
A- On / Standby key
B- Temperature setting keys
C- Auto programming function 24H
D- Timer function
E- Backlit LCD screen
F- Temperature display
G- Locked controls indicator
H- Heating indicator symbol
BB
D
G
H
C
E
F
A
Fig. 1
 QUICK START GUIDE 
Electrical requirements : 240 V - 60 Hz
See pages 7.
Installating and connecting the heater :
See pages 5 ,6 and 7.
To shut off heater operation:
Press the key brieÀy
To set the desired temperature :
Using the + and – keys, you can raise or lower the desired temperature (see
page 8)
Fast heat :
Turn the heater on.
Press on the key, the heater will run full power (2000 W) for the duration set on
the timer.
Troubleshooting :
See page 12.
To contact Convectair :
See page 12.

5.
1 SPECIFICATIONS
- Your new JAZZ is a convector and a fan-forced heater.
- This heater is equipped with 2 heat levels : 1000W regulated with the electronic
thermostat and 2000W fast heat on demand.
- Minimum obstruction and designed to heat your room quietly, consistant heat, it is a
perfect heater for your bathroom or other intermittently-used rooms.
- Your JAZZ can be used with the optional CONVECTAIR Programmer Module (pilot wire)
allowing scheduled temperature set-backs in periods of prolonged absence providing
the same comfort and more savings.
READ CAREFULLY :These instructions are essential to install and use your new
JAZZ safely.
2 RECOMMENDED SETUP
- Your heater must be installed in accordance with national and local codes and
CONVECTAIR recommends an installation by a quali¿ed electrician.
- Your heater must be installed so that the control panel is out of reach from anyone in
the bath-tub or in the shower. Do not install over a bath-tub or spa.
- Do not install the heater behind a door, furniture or others obstacles, or in front of an
air exhaust vent. Keep combustible materials such as curtains, away from the heater.
- Your heater is equipped with a heating element that may reach high temperatures.
Do not install or operate in the presence of gasoline, paint solvents or other Àammable
products.
- Maintain the minimum required clearances (height from Àoor, distances from side walls
or furniture, drapes, etc...)(Fig. 3).
Model Total
power
Regulated
power
Forced
power
Width
(in)
Height
(in)
Depth
(in)
Weight
(lb)
7618-C20 2000 W 1000 W 1000 W
20
(510 mm)
24 1/4
(615 mm)
8 5/8
(220 mm)
18,7
(8,5 kg)

6.
«CAUTION : DO NOT INSTALL BOTTOM AT LESS
THAN 29 1/2’’ (750 MM) FROM THE FLOOR, SIDES
AT LESS THAN 6’’ (150 MM) AND TOP LESS
THAN 12’’ (300 MM)FROM ANY SURFACES».
HOWEVER, WE SUGGEST AN INSTALLATION
HEIGHT OF 39 3/8 po (1000 MM) FOR BETTER
ACCESS TO TOWEL BARS.

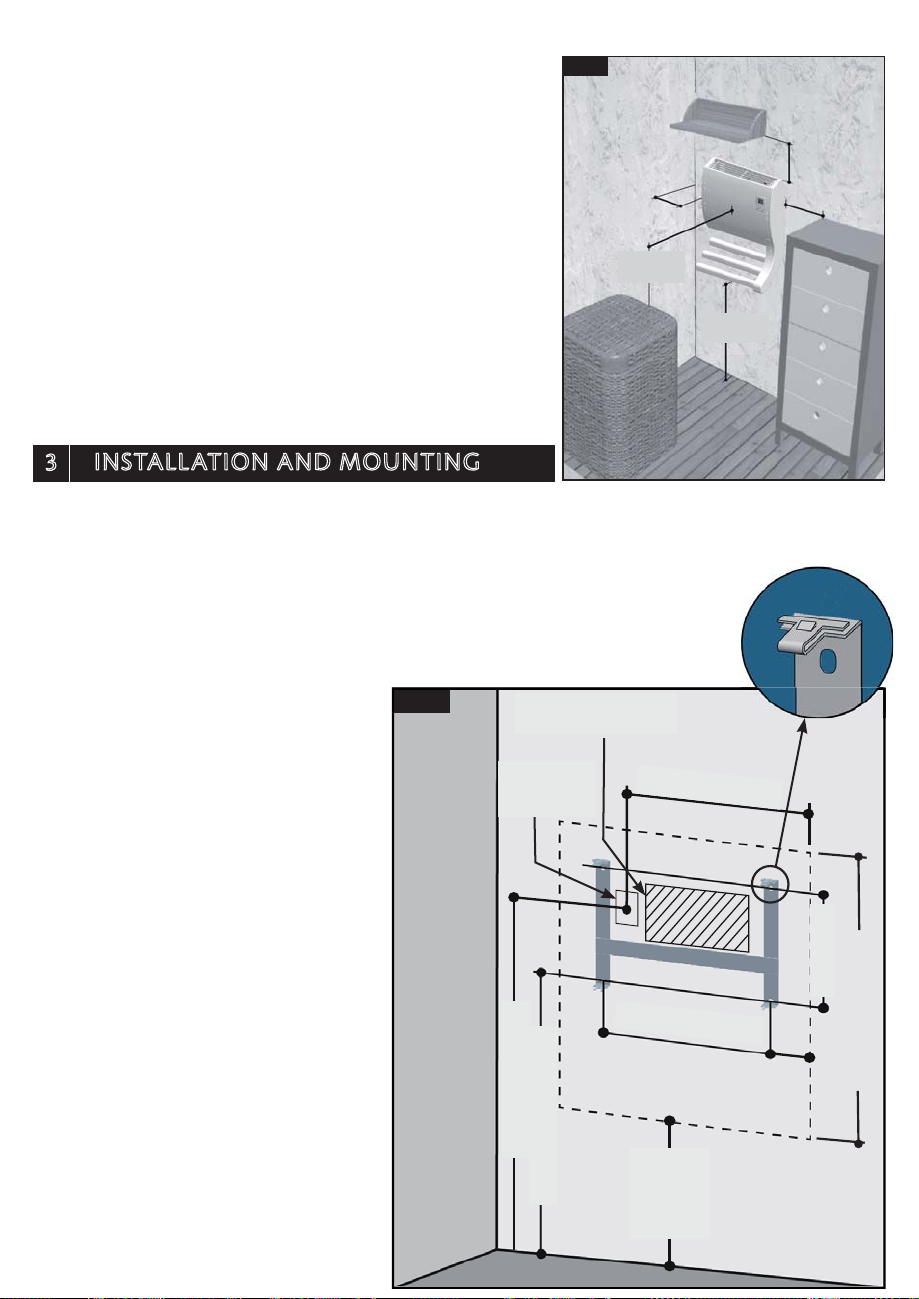

3 INSTALLATION AND MOUNTING
Wall bracket installation:
- Remove the wall bracket from the heater by pushing the 2 clipping
tabs (Rep. A).
- Place the wall bracket on the wall and mark the 4 mounting holes
in accordance with the dimensions shown in ¿gure 4. Suggested
installation height is shown.
- Fix the wall bracket with at least
4 screws (Ø 5.5 max) ensuring
the bracket is in the right orienta-
tion and at the correct installation
height.
NOTA 1 : Be sure to respect the
distances reported in Figure 4.
NOTA 2 : The device must be
¿xed to its support, the use of
adhesif to ¿x the support orthe
device is forbidden.
Heater installation:
- To mount the unit on the wall
bracket, engage the lower legs
into the slots at the bottom and
back of the heater. This operation
is facilitated by presenting the unit
slightly tilted forward.
- Clip the top of the wall bracket.
13
3/8
’’ (34 cm)
9
7/16
’’ (24 cm )
51’’ 3/16’’ (130 cm)
Fig 4
39 3/8’’
(100 cm )
Width of the device: 20
1/16
’’
(51 cm
)
581/4’’ (148 cm)
Height of the device : 24
3/16’’
(61,5 cm
)
Do not obstruct
this zone
14’’(35,5 cm)
Cable
entrance
6’’
(150 mm)
29 1/2’’
(750 mm)
12’’ (300 mm)
Fig 3
20’’
(500 mm)
Minimum clearances
6’’ (150 mm)

7.

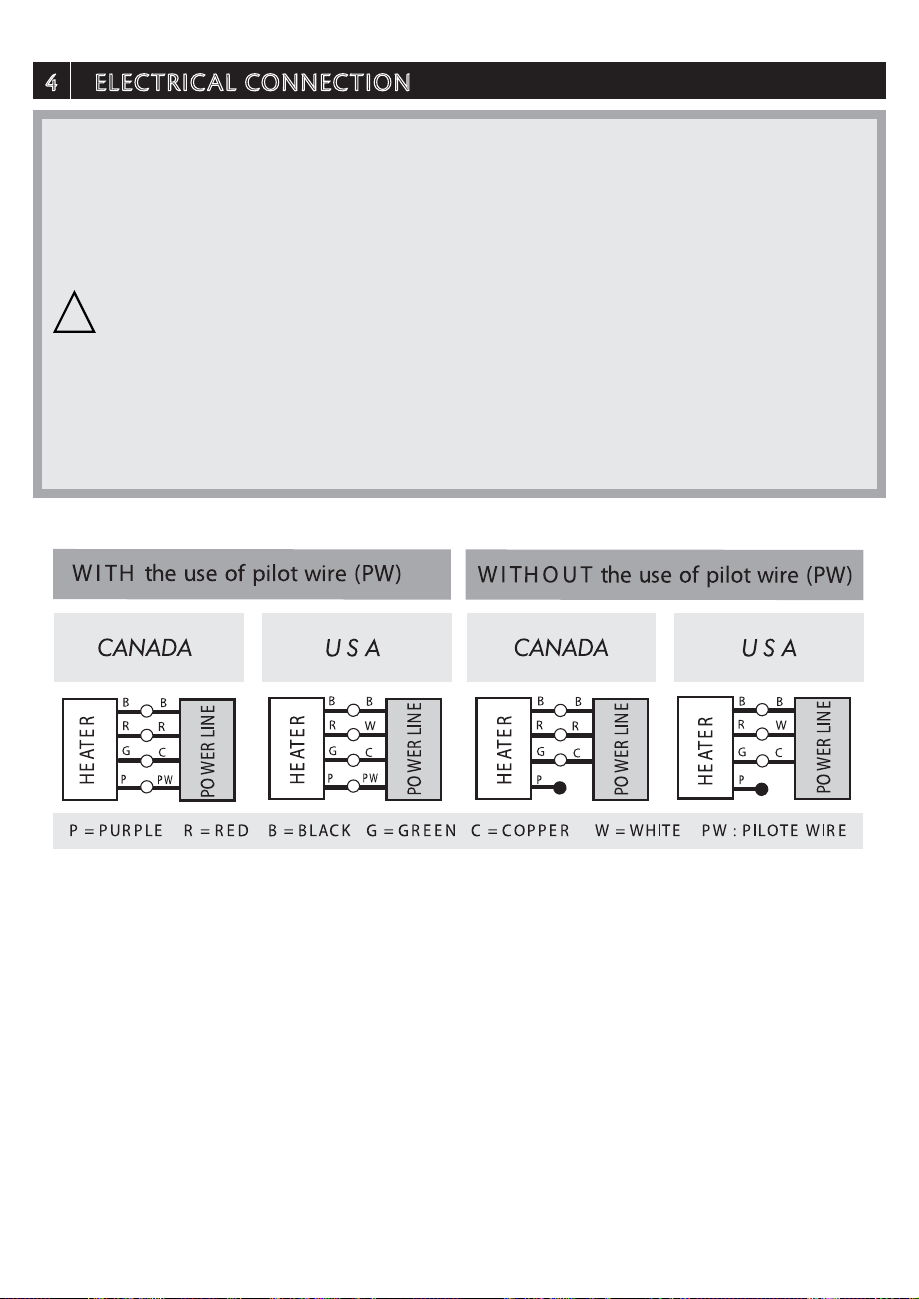

4 ELECTRICAL CONNECTION
- Disconnect power to this unit and to all units connected to the pilot wire before opening.
- Grounding the pilot wire ( purple wire ) will cause severe damage to internal circuits.
- Never connect pilot wire ( purple wire ) to electrical supply.
- You must connect the ground wire of the heater (green wire) with the copper wire.
- The purple wire with the seal at the extremity should not be used for the electrical
connection.
- The purple wire is used only if the heater is connected with the CONVECTAIR central
programming system.
- Fix the unit on the wall bracket before turning the power back on.
- CONVECTAIR recommends that your heater be installed by a quali¿ed
electrician and in accordance with national and local codes.
- This heater must be connected to a 240 Volt (60 cycles) circuit.
Disconnect the power supply before making wiring connections
to prevent electrical shock and equipement damage. If you are using
a programmer system, make sur to cut the power off ALL electrical
heating circuits in the home
- To prevent short circuits and electrical shocks turn the power off
at the main panel before attempting the installation or making
any repairs.
- If the power cable is damaged it must be replaced by the manufacturer,
an approved service depot or a technician with similar quali¿cations to
avoid any danger.
!
-RESPECT WIRE COLOR WIRING

8.
-To turn the heater ON
Press on the key on the control panel.
The screen turns on, the button turns green, your device is running.
- To shut off heater operation
Press on the key on the control panel.
The green light turns orange, the screen turns off, the heater is in standby
- To set the desired temperature
Using the « + »and « – » keys, you can raise or lower the desired temperature as you wish
by 1°F (0.5°C) each time the key is pressed, between 45°F and 82°F (7°C and 28°C).
- To change display in °C or °F
Shut off the heater operation. Simultaneously press keys « » and « + » and hold for 3
seconds to switch display in °C (Celsius) or °F (Fahrenheit).
-Fan only, no heat
Toggle up the switch located on the back
side of the unit for use in cold ventilation
or switch down for use in heating +
ventilation. (See Figure 5).
- The «Timer » function
This function allows an immediate and
additional 1000 W of heat during a
time determined period (from 5 to 90
minutes). So you are using your device
in its full power unregulated, ie: 2000 W.
BB
D
G
H
C
E
F
A
5 OPERATING INSTRUCTIONS
Fig 5

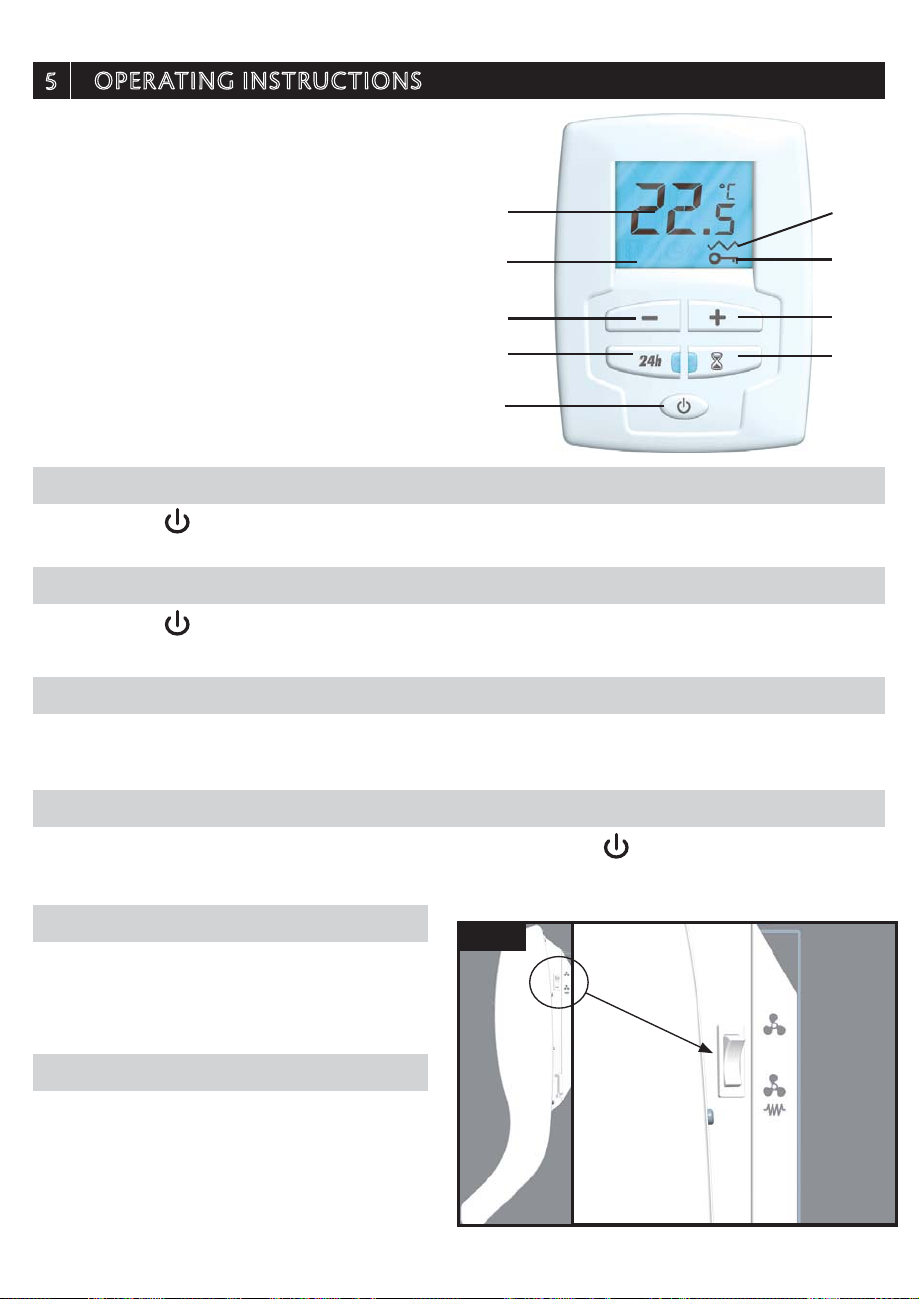

A- ON / Standby key
B- Temperature setting keys
C- Auto programming function 24H
D- Timer function
E- Backlit LCD screen
F- Temperature display
G- Locked controls indicator
H- Heating indicator symbol

9.
- To use the «Timer » function
Pressing the « » button triggers the «Timer » function for a period of 15 min (default).
The red indicator lights. Successive presses on «-» and «+» allow to modify the duration
between 5 and 90 min in steps of 5 min. Hold the « » key for 3 seconds to select the
new default duration.
- To stop the « Timer » function
The «Timer » function stops automatically once the time has elapsed, or by
pressing on the « » to stop the function (the red indicator turns off, the display
shows the desired temperature).
- To lock the controls
This function locks any manipulation of the thermostat to prevent tampering, particularly
by children. Only the «Timer » function can be activated.
Press simultaneously for 3 seconds the « » and « + » keys to activate this function. The
display shows « » indicating the control panel is locked.
- To unlock the controls
To unlock the control panel, press again simultaneously for 3 seconds the « » and «+»
keys.The lock symbol « » is no longer displayed.
- To activate and set the « Auto Cycle 24H »
You enter every day at the same time in your bathroom and you like to have this feeling
of warmth. The « Auto Cycle 24H » is handled automatically by setting the «Chrono»
time.
-To set the « Chrono » time
The « Chrono » time is the time at which you want the bathroom to be warm every day.
Press on the « 24H » key. The light indicator stays on and the function is activated.
To disable it, use the same procedure (pressing the « 24H » key).
If no « Chrono » time is set when the command is activated, the indicator Àashes, indicating
that the « Auto Cycle 24H » cannot be activated.
To set the « Chrono » time, press 3 seconds on the « 24H » key. This causes a slow
blink of the « 24H » light indicator for 3 seconds, thus validating the actual time as the «
Chrono » time.
If the « Auto Cycle 24H » is activated, the device will do a preheat of 15 minutes on
regulated power, then another 15 minutes on full power before the « Chrono » time. At
this time, it activates the timer for the duration saved by default.
IN CASE OF POWER FAILURE, ALL SETTINGS WILL BE LOST.

10.
Recommendations and advices
CAUTION:
This device is intended for drying towels. Do not introduce anything in the unit.
The ¿rst time your CONVECTAIR heater is used, a light smoke could be released.
This is normal and should disappear after about 2 to 3 minutes.
CAUTION: DO NOT COVER
If the heater is covered, there is a risk of overheating. It is forbidden to cover or
obstruct the air inlet or air outlet at the risk of incidents or damage to the unit.
In order to not interfere with the proper operation of the heater, use the included
bars to dry your towels.

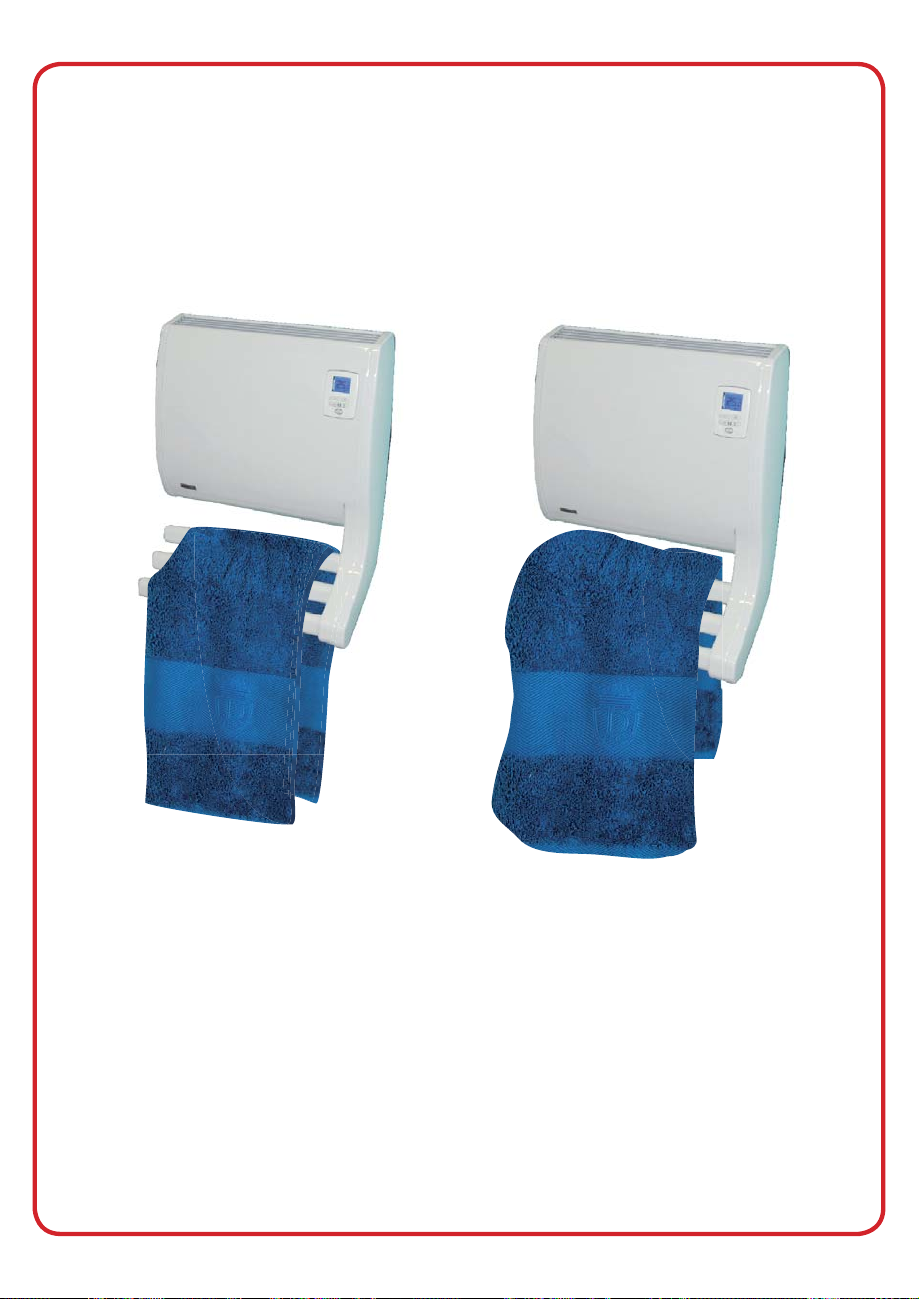

GOOD WRONG

11.
6 OVERHEAT CONTROL
This heater is equipped with separate overheat controls for the convection element
and for the fan-forced heat. In case of a malfunction of the unit (blocked air output
or intake, for example) the heater will stop heating automatically. After correcting
the malfunction the heater can be reset.
To reset the heater :
- For the convection element: Check that the front panel, top and bottom of the
heater are free of obstruction. Once the obstruction is removed and the heater
cools down, the overheat control will reset automatically.
- For the fan-forced heat: Turn the heater Off. Check that the lower back inlet and
the lower front outlet are free of obstruction. Wait 5 minutes and turn the heater
back on.
7 MAINTENANCE
To keep your CONVECTAIR unit clean, regular maintenance is suggested. To remove
dust, use a soft cloth. To remove a stain, use a damp cloth.
For a better performance and maximum ef¿ciency, it is suggested that dust and lint be
regularly removed from the protective grill situated in front of your JAZZ.
NEVER USE ABRASIVE OR ACETONE-BASED PRODUCTS TO CLEAN YOUR HEA-
TER AS THIS MAY DETERIORATE THE EPOXY FINISH.
ANY REPAIR ON YOUR CONVECTAIR HEATER SHOULD ONLY BE DONE BY A
QUALIFIED TECHNICIAN, AND ONLY AFTER HEATER HAS BEEN DISCONNECTED.
Recommendations and advice
Your CONVECTAIR heater will become hot when in use. Caution is advised when young children are
present.
Do not insert small obMects in the heater : this could cause an electrical short circuit, ¿re or damage to the
inner components.
Any use or modi¿cations not approved by CONVECTAIR may cause electrical short circuits, ¿re or inMuries
to the users.
In certain cases, it is possible for yellowing of the surface to occur over time.
This is not due to a manufacturing defect.This is caused by surrounding air, which may contain smoke or
dust, being heated and circulated through the heater.
Prevention : it is suggested that surfaces be frequently cleaned especially with units installed
in locations where cigarette smoke is present or in the kitchen. Never use this heater during
construction work or other activities that generate a lot of dust.
The ¿rst time your CONVECTAIR heats, a light smoke could be released. This is normal and should
disappear after about 2 to 3 minutes.

12.
8 TROUBLESHOOTING
Before calling your electrician, please go through these simple checks :
1- Make sure the breaker in the distribution panel is in the «ON» position.
2- Check that the ON /Standby key is green.
3- Activate the timer function.
4- If no heat is emitted, check the overheat protection (see section 6).
5- If the light is still off, and no heat is generated, call CONVECTAIR or the nearest
CONVECTAIR service center.
9 IDENTIFICATION OF YOUR HEATER
IMPORTANT : PRODUCT INFORMATION APPEARS ON THE HEATER’S IDENTIFICATION
LABEL.
The identi¿cation label is located on the inside of the heater.
It includes :
- The complete model number and its
production reference number (A) that
must be included in any warranty claim.
- Capacity (B).
- Standard certi¿cation (C).
10 WARRANTY INFORMATION
2 years against all defects / 5 years on heating element.
All CONVECTAIR heaters are subjects to a double warranty : 2 years on all parts and
manufacturing defects and 5 years on the heating element itself.
Warranty is applicable from date of purchase by the customer and under certain speci¿c
conditions. All details furnished with each heater. Please keep your invoices (purchase
and / or installation).
7618-C20
412
2000W
SERVICE CENTERS :
Contact CONVECTAIR to ¿nd closest service center:
• Toll-free : 1 800 463-6478
• Website : www.convectair.com
30, carré Sicard, Sainte-Thérèse, Qc, CANADA J7E 3X6
Phone : [phone] Fax : [phone]
Email : [e-mail]
www.convectair.com
WEEK / YEAR
