COP-USA DVR H.264 E4 User manual

H.264 NETWORK Embeded
DVR
USER MANUAL

42
CONTENT
1 INTRODUCTION ................................................................................................................... 3
1.1 MAIN FEATURE .............................................................................................................. 3
1.2 PRODUCT FEATURES................................................................................................... 3
1.2.1 PARAMETER.......................................................................................................3
1.2.2 BASIC WORKING PARAMETER ........................................................................5
1.2.3 ENTIRONMENT ADAPTABILITY ........................................................................5
2 OPERATION MANUAL ......................................................................................................... 6
2.1 REMOTE KEY INSTRUCTION˄OPTIONAL˅............................................................... 6
2.1.1 REMOTE CONTROL ...........................................................................................6
2.2 MOUSE OPERATION ..................................................................................................... 7
2.3 MENU TREE ................................................................................................................... 9
2.4 SYSTEM OPERATION.................................................................................................. 10
2.4.1 START-UP.........................................................................................................10
2.4.2 SYSTEM LOGIN................................................................................................10
2.4.3 RECORD SEARCH ...........................................................................................11
2.4.4 RECORD SETUP ..............................................................................................13
2.4.5 HDD MANAGE...................................................................................................15
2.4.6 BASIC SETUP ...................................................................................................15
2.4.7 ADVANCE SETUP.............................................................................................19
3 IE OPERATION................................................................................................................... 30
3.1 FEATURE...................................................................................................................... 30
3.2 USER LOGIN ................................................................................................................ 30
3.3 OPERATION INTERFACE ............................................................................................ 31
3.3.1 LIVE ...................................................................................................................31
3.3.2 PTZ CONTROL..................................................................................................31
3.3.3 ZOOM ................................................................................................................31
3.3.4 PTZ PRESET.....................................................................................................32
3.3.5 PLAY..................................................................................................................32
3.3.6 OTHER OPERATION ........................................................................................32
3.3.7 REPALY.............................................................................................................33
3.3.8 SETUP...............................................................................................................35
3.3.9 RECORD ...........................................................................................................35
3.3.10 ALARM .....................................................................................................36
3.3.11 PTZ...........................................................................................................37
3.3.12 NETWORK ...............................................................................................37
3.3.13 SETTING .................................................................................................. 38
3.3.14 HOST INFO ..............................................................................................39

43
1 INTRODUCTION
1.1 MAIN FEATURE
Local recording, playback, support trible code remote network surveillance, data backup,
parameter setting, motion detection, I/O alarm setting,PTZ and USB mouse.
1.2 PRODUCT FEATURES
H.264 compression
Two USB interface, USB2.0 for data backup, USB1.1 for mouse operation.
3.5” SATA HDD.
Special file system for secureity.
16 nature translucence GUI, note for menu selected
optimized four channel simultaneously playback, (8ch just support one channel
playback)
double level user management
Support the live view, parameter setting and copy playback video via network.
1.2.1 PARAMETER
Item Device performance index
System
Language Chinese/English
GUI Graphic menu
password user password, administrator password
Video
Video in 4CH complex video input 1.0Vp-pˈimpedance75ȍˈ
BNC
Video out 2CH complex video output 1.0Vp-pˈ
impedance75ȍˈBNC
Video display 1/4channel switch/8ch 1/4/9 switch
Video standard PALˈ25f/sˈCCIR 625lineˈ50scene
NTSCˈ30f/sˈCCIR 525lineˈ60scene
Audio
Audio input 4CH audio inputˈimpedance600ȍˈRCA
Audio output 1CH audio outputˈimpedance600ȍˈRCA
Basic electricity
output Linearity electricity
Record style Audio video recorded simultanously
Audio
compression ADPCM

44
proceeding
and store
compression H.264
Picture resolution CIF/HD1/D1(8CH Device only CIF)
Streaming style ISO14496-10
Audio style ADPCM
Video code rate
&,)a.ESV
+'a.ESV
'˖a.ESV
Audio code rate 32KB/s
Data storage
Alarm
Alarm input 4 alarm input
Alarm output 1 alarm output
Connector
Servial interface Support 1 RS232
Servial interface Support 1 RS485
Network interface RJ45ˈ10M/100M
USB
Mouse USB1.1ˈ
Udisk USB2.0
VGA VGA 1 VGA ˄select˅
Software PC playback Playback video file
Software
upgrade Support USB,network firmware upgrade
ohters
Voltage input
from AC:110~240V
Voltage output
for DVR DC˖19V@3A
Voltage output +12V@1A(8CH Device w/o output)
Power 6W without HDD
Working
tempreture -10----60

45
1.2.2 BASIC WORKING PARAMETER
item parameter remark
Voltage input 19V DC 19V@3A.
Voltage outputfor
camera 12V˄+/-0.2V˅12V@1A.
Video input
impedance 75ȍ75ȍeach channel.
Video output 1Vp-p 1Vp-p CVBS signal
I/O
0—2V Low voltage alarm
5V-30v Hight voltage alarm
RS232 serial port, for extend use
RS485 Connect to PTZ, (Pelco-DˈPelco-P)
SATA HDD One SATA with all capability
1.2.3 ENTIRONMENT ADAPTABILITY
For the saftly using DVR and prolong device life, please pay attention on following detail˖
1) When installing device, please comply all the electric product safty criterion˗
2) Power and ground˖
Do not touch the power and DVR with a wet hand
Do not drop liquid on DVR
Do not put others on DVR
Please using soft dry cloth when clean DVR, do not using chymistimpregnant
When the power line connects with jack, even don’t startup device. There is still have voltage
If you do not use device for long time, please take the power line away from jack.

46
2 OPERATION MANUAL
In device operation, the enter key on remote control has the same function with mouse left click.
2.1 REMOTE KEY INSTRUCTION˄OPTIONAL˅
2.1.1 REMOTE CONTROL
Handheld IR Controller Key Functions:
Ǐ
0
ˉ
9
ǐ
keys
˖
During setup, number keys are used to input values.
For viewing channels 1,2,3 and 4, use 1,2,3 and 4 on numeric keypad
respectively.

47
Ÿˈ
˖
Up, Down directional keys: Move selection up and down in setup menu.
ˈ
˖
Left, Right directional keys: Move cusor left or right in setup menu.
Ǐ
Enter
ǐ
key: During setup, select and save entry
During Playback and preview, displays the channel name, text number, driver
name, event sensor item and time, year/month/date, time, GPRS/GPS info. on
the screen.
Ǐ
PLAY
ǐ˖
Starts/Resumes playback from any other mode (FF, RR, Frame by Frame etc)
Ǐ
SLOW
ǐ˖
Reduces playback speed to 1/2Xǃ1/4Xǃ1/8Xǃ1/16X mode. Press PLAY to return
to normal playback speed.
Ǐ
PAUSE/STEP
ǐ˖
Freezes playback to single frame and can advance one frame at a time. To
advance the frame press Pause/Step to move frame by frame. Press EXIT
to return to normal playback speed.
Ǐ
FWD
ǐ
:Fast forward the video while playback.X1, X2, X3, X4 modes available. PressFWD
to switch, press ǏPLAYǐto return to normal speed˗
Ǐ
REV
ǐ
:Reverse the video while playback, 1X,2X,3X,4X four modes are available. Press
REW to switch, pressǏPLAYǐto return to normal speed˗
Ǐ
POWER ON
ǐ
:Reset the MDVR to Power on and Power off mode. (standby and start up)˗
Ǐ
LOGIN/LOCK
ǐ
:If the security is enabled in the setup, use LOGIN/LOCK key to enter the
user setup. It is important to remember the password due to without restoration
function. Log in˄to enter into “User ID select” and “Password” input interface˅
and lock functions˄To exit setup and operation˅
Ǐ
EXIT
ǐ
:Exit to the preview or return to the last menu˗
Ǐ
RECORD
ǐ˖
Start manual recordüümust in manual mode
Ǐ
STOP
ǐ˖
Stop manual record
Ǐ
SETUP
ǐ˖
Enter into setup interface and setup the system parameters
Ǐ
PTZ
ǐ˖
PTZ controlˈpress this key to enter into PTZ control interface when at single live view˗
ǏEXTRAǐFor future use .
2.2 MOUSE OPERATION
You can use mouse to make operation of the menu except IR remote controller. (The operation
usage is the same as PC Windows).Please inserts the mouse into USB1.1.
Click
right key
Enter into main menu: Click the right key on the live view.
Exit the present menu: It won’t save the settings if you click the right key to exit.
Exit the playback interface: Click the right key to exit when you are playback.
Click left
key Click the left key to enter into the setting interface.

48
Click the left key to zoom in the window on the live view and playback video. Double
click the left key can exit to the live view and playback multi-window interface.
1. Volume adjustment, color adjustment, PTZ setting and VGA border operation.It is
for setting the single channel for volume adjustment, PTZ control and color
adjustment.If it is multi-window, please use the left key to select the single window.
2. The remark when click the left key for volume adjustment,color adjustment,VGA
border is as follow:
a. There is and on the PTZ setting to adjust parameter, click it can make
the setting for PTZ.
b. There is a sticker to show the volume on the volume adjustment interface.Move
the mouse to the corresponding position and click the left key,The right side of sticker
will show the volume ,click “x”to exit;
c. Color adjustment and VGA border operation can refer to the volume adjustment
interface operation.
When there are many options in the option frame,click left key to ball out down-pull
menu.
To click the left key on the playback interface can make >> means forward, << means
rew, >>I means Slow play, I> means frame play,> means Play, X means exit.
Click left
1. In the input frame, click the left key can activate the keyboard. The number,
symbol, english can be input by clicking the mouse left.
2. Pingyin also can be input by the softkeyboard when enter Chinese, the method is
the same as IR remote controller.You can use the left key to turn over the page when
check on Pingyin/Chinese word.
3. When input number, use the left key to select the corresponding value.Also click
the left key to exit the number keyboard.
Mouse
move
1. Press the left key to move the mouse can adjust the parameter on the volume,
color.And the corresponding parameter will be display at the same time.
2. In the Motion Detection setting interface, you can use the left key to drag the frame
to set the motion detection area.

49
2.3 MENU TREE
You can control the DVR by a lot of menu operation.This tree will show you the menu
structure and it will be in details in after chapter.

410
2.4 SYSTEM OPERATION
2.4.1 START-UP
Connect the DC19V/3A adapter to DVR. When start up the DVR, ǏPOWǐLED will be on and 4
images will be display on the screen. If it has setup ignition recording or time recording, the system
will record automatically and the corresponding LED will be on, the system work normally.
Remark: If there is no HDD in device, or device didn’t read the HDD, it will display an ǏHǐin
live view.
2.4.2 SYSTEM LOGIN
When you login, you will find the window as follow if the password is enabled, Input device ID
and user password via numeric key-board, and you access to main menu via press ǏApplyǐ
Remark: default device ID is: 00000, and the password is :user password is oooooo and Admin
password is 020818, in order to manage the device more convenience, please setup the user
password and change the device ID in the base setup. You can setup user and admin password,
Administrator has all authorities, operator has limited authorities who they can only watch, playback,
please change the unit ID and default password in time for system security.
Unit ID: You just need to enter the unit ID as the right frame.
Password: enter the admin password or user password.

411
GUI OPERATION
The main menu include “SEARCH”,”RECORD”,”HDD”,”BASIC”ˈ“ADVANCE”,and“Exit”.
Remark: You must after pressing “APPLY”to make the setting for submenu valid.It will no use when
exit directly.This DVR have a special feature is: when you move the mouse to everwhere, there will
have the explanation information showed autoly.
2.4.3 RECORD SEARCH
Move the cursor to ǏRECORD SEARCHǐ˄Icon highlighted when selected˅,pressǏEnterǐ
to enter into the setting interface.
RECORD FILE:You can adjust the checking date and time,pressǏEnterǐinput the number directly
to adjust the year,month,date.After finishing the time setting,move the cursor to “SEARCH” and
press”APPLY”,can see the recording status of this date.As follow:
Intruction:
1. MONTH: It will show all the recording status in this month. Green means normal recording,
Red means alarm recording, Grounding means no recording. Click any date in this frame can search
the recording status of that day,the searching result will be showed in the below date frame.

412
2. DATE: It will show all the recording status in this day, you can playback the record file in this
period via click the corresponding period.
PLYBACK:You can press ǏEnterǐinput number directly to setup playback time.After setting,move
the cursor to “PLAYBACK”, and then press”APLLY”to enter into video playback of that time.Also you
can select any period of time in the video status frame after searching,press”APLLY”to enter into the
video playback of this period.
FILE LIST: Enter into the video file list interface of the selected date.
LOG SEARCH: Enter into the log seaching interface.
EXIT: Exit”video search” to back to the previous menu.
1. FILE LIST
Setup the searching date, after pressing “SERACH”,move the cursor to “FILE LIST” and
press”APPLY”to enter into the video file list of this date.
CHANNEL: There is 1,2,3,4 and all channel, totally 5 options. Press ǏEnterǐto select.
TYPE: There are all,normal and alarm,totally 3 options.PressǏEnterǐto select.
Instruction
˖
1. ǏFILE LISTǐˈ“CHANNEL”is the recording file which belong to which channel, “SIZE” is
display the size of this file˄Unit˖MB˅ˈ“TYPE” is display the type of recording fileˈthere are two
types: normal and alarmˈpress“BACKUP”button can export the selected files to USB storage˗
2. After moving the cursor up and down and select the files, and pressǏAPPLYǐto enter into
playback interfaceDŽIf the all channels have recording files, it will playback all windows at the same
time˗
3. If setup as “on” in theǏRECORD TIMEǐin ǏBASIC SETUPǐˈit will show the date/time when
playback record file˗If setup as “off”it will not display time˗
4. When playbackˈcan pressǏSLOWǐto play slowly˗pressǏFORWARDǐǃǏREVERSEǐto
speedǃreverse play˗also can pressǏPAUSE/STEPǐto pause and frame by frame play˗PressǏExitǐ
to exit from playback and return to the former menu˗
5. When finished playback files, it will return to the file list interface.

413
2. BACKUP
You can use USB for backupˈshould insert USB device into the USB2.0 port before backup files.
And it is support USB OTG.
You can select the recording file by direction keys , and pressǏEnterǐmeans selected OK
˄There is a “¥” at the end of the selected recording files˅and press ǏEnterǐagain the “¥” will
disappear that means cancel the select, we can start export the recording files after selecting, and
pressǏBACKUPǐto start to backup, as follow:
Instruction˖
1
ˊ
When the space in backup device less than recording file, the system will prompt “Space no
enough”.
2
ˊ
You can move USB device directly when backup finishedDŽ
2.4.4 RECORD SETUP
Move the cursor to ǏRECORDǐ˄Icon highlighted when selected˅,pressǏEnterǐto enter into
the setting interface. PressǏConfirmǐand enter into the setup interface, and you can use direction
keys and cursor to change the options.

414
CHANNEL
˖
ON: Means the channel enable for recording.
RESOLUTION
˖
Setup resolution and code rate for recording, there are HIGEST, HIGH, NORMAL
three options, corresponding to D1ǃHD1ǃCIF resolution.
QUALITY
˖
There are BEST, FINE ANDNORMAL three option, corresponding HIGHEST, HINGAND
NORMAL data stream standard
AUDIO
˖
ON: Means enable the audio recording for all channels, OFF: Means disable audio
recording
REC.MODE
˖
POWER UP: Means the device will start recording when it startup.
TIME: Recording as the schedule, you can setup the schedule as you want as follow.
CHANNEL˖You can select all channel or just one channel˄blue means has selected˅
WEEKLY˖You can select all everyday, weekend, workday or each day(blue means has
selected)
DAILY˖There are ALARM, NORMAL, NO REC three modes, if you select this, that means all the
day will record as this mode, and if you don’t want some period to record, you can cancel it via

415
ǏEnterǐbutton, grounding means don’t record, different color means different record mode: Red
means alarm record, green means normal record, grounding means no record.
RECORD SIZE˖There are 15min, 30min, 45min, 60min four options, that means it will pack as
the mode you selected
Scroll to APPLY and press ENTER to save the new settings.
2.4.5 HDD MANAGE
Move the cursor to ǏHDDǐ˄Icon highlighted when selected˅,pressǏEnterǐto enter into the
setting interface, and you can use direction keys and cursor to change the options.
HDD STATUS
˖
There are three status available, normal, un-format, No HDD. If HDD can not run
normally˄including unformat and no HDD˅, there is a ǏHǐdisplay on video live view.
OVERWRITE
˖
ENABLE: means when HDD space less than 4G, it will delete HDD earliest recording
file, and it will stop deleting when the space is 10G; DISABLE˖means when HDD space less than
500M it will stop recording, and an prompt will display in live view “please shutdown and replace
HDD”
FORMAT
˖
Move cursor there to select device and pressǏAPLLYǐto start format
2.4.6 BASIC SETUP
Move cursor to select “BASIC SETUP” (The big icon means select ok)and pressǏENTERǐto
enter into the system language setup interface.

416
Basic setup includes system language, time/date, security, display, video/audio and exit six
options.
1. SYSTEM LANGUAGE SETUP
Move cursor to select “system language” (The big icon means select ok)and pressǏENTERǐto
enter into the system language setup interface.
System language have Chinese and English two options, you can setup the language you want
in here.
Remark: The device will restart when you setup system language success.

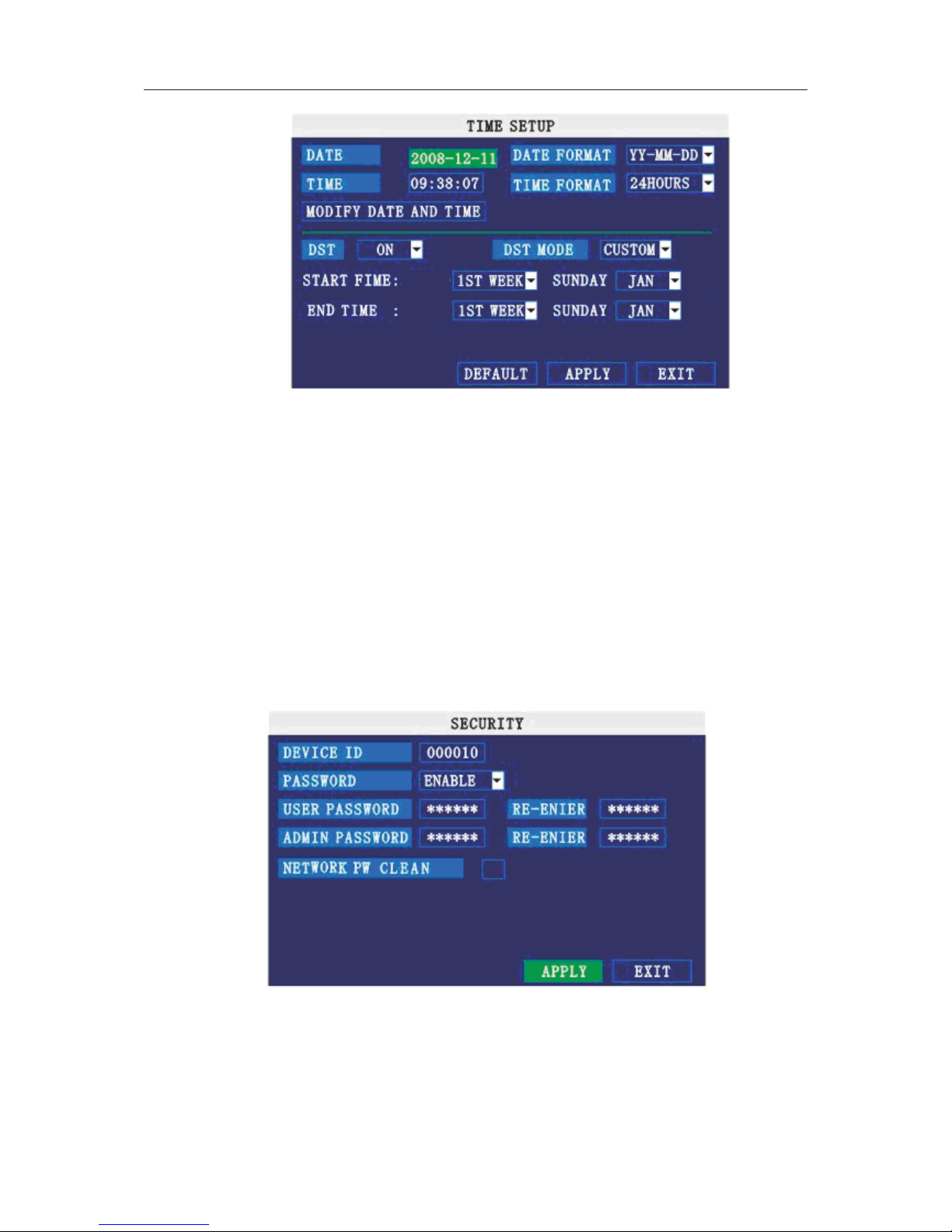

2. DATA/TIME SETUP
Move cursor to select “date/time” (The big icon means select ok)and pressǏENTERǐto enter into
the date/time setup interface.

417
DATE: Setup system date via numeric key.
DATE FORMAT: Press ENTER to switch between the date patterns, there are YY-MM-DD and
MM/DD/YY two options.
TIME: Setup system time via numeric key.
TIME FORMAT: Press ENTER to switch between the date patterns, there are 12 HOURS and
24 HOURS two options.
Remark: You must move the cursor to the ǏMODIFY TIME AND DATEǐand press ǏAPPLYǐ
to save it, otherwise it won’t save the modify if you exit this interface.
DST: haven’t finished yet.
3. SECURITY
Move the cursor toǏSECURITYǐ˄Icon highlighted when selected˅, pressǏEnterǐto enter into the
setting interface.
DEVICE ID
˖
Press number key to setup the unite ID
PASSWORD
˖
PressǏAPPLYǐto start or close user password. If it is “ENABLE”, you must input
password when log in, otherwise, you can enter into main manu directly.
USER PASSWORD
˖
Press numbe keys to setup user password.
ADMIN PASSWORD
˖
Press number keys to setup admin password.

418
NETWORK PW CLEAN˖select and apply will initialize the IE browser password .
4. DISPLAY SETUP
Move the cursor toǏDISPLAY SETUPǐ˄Icon highlighted when selected˅, pressǏEnterǐto enter
into the setting interface.
NAME: pressǏEnterǐto enter into the setting interface.
POSITION:pressǏEnterǐto switch name location,there are 5 options:bottom left, top left,
bottom right, top right and OFF.
COLOR
˖
pressǏEnterǐto enter into setting interface, as following:
PressǏEnterǐor directly drag the cursor to set colors,including chroma,brightness, contrast and
saturation, pressǏAPPLYǐto save the parameters.
PREVIEW
˖
ON: Means the channel is allowed to view the live mode, OFF means not.
PREVIEW TIME: ON: Means insert clock in live view, OFF means not.
RECORD TIME ˖ON: Means insert clock in record file, OFF means not.

419
5. VIDOE/AUDIO SETUP
Move the cursor toǏVIDEO/AUDIO SETUPǐ˄Icon highlighted when selected˅ˈpressǏEnterǐ
to enter into setting interface.
VGA RESOLUTION
˖
pressǏEnterǐkey to setup the VGA resolution, there are
1024*768ǃ800*600 and 600*480 three options.
CAMERA SYSTEM: pressǏEnterǐto switch camera system, has PAL and NTSC two options
VOLUME SETUP
˖
move cursor toǏVOLUME SETUPǐˈpressǏEnterǐto enter into volume setup
interface, press number keys or directly drag the cursor to adjust volume.
6. EXIT
Move the cursor toǏEXITǐ˄Icon highlighted when selected˅ˈpressǏEnterǐto back to main
menu.
2.4.7 ADVANCE SETUP
Move the cursor toǏADVANCE SETUPǐ˄Icon highlighted when selected˅ˈpressǏEnterǐto
enter into setting interface.
Advanced Features include Alarm settings, system information, Motion detection, mobile phone

420
monitoring, system maintenance, PTZ and network setting.
1. ALARM SETUP
Move the cursor toǏALARM SETUPǐ˄Icon highlighted when selected˅ˈpressǏEnterǐto enter
into setting interface.
I/O CHANNEL
˖
Each channel corresponds an I/O status, that is, when an alarm triggered, it will
activate the corresponding channel to start alarm recording.
N.O˖indicate I / O input level from high to low effective
N.C˖indicate I / O input level from low to high effective
HDD LOSS
˖
ON means it will trigger a alarm if there is no HDD, and it will display an ǏHǐ
On the bottom left of channel 1 in the live view
HDD SPACE
˖
ON˖If the space less than 500M, there is a remark in live view˖No enough space,
please change HDD after shutdown.
VIDEO LOSS
˖
ON˖when one channel has no video input, it will display “video loss”in live view.
ALARM MANAGE
˖
There are alarm output, buzzer and post REC three items.
OUTPUT˖when an alarm triggered, the alarm output time will be:
0 secondǃ10 seconds,20 seconds,40 seconds and 60 seconds
ƽBUZZER˖buzzer calling time setup when alarm triggered: 0 second,10 seconds,20
seconds,40 seconds and 60 seconds
ƽPOST REC.˖post recording time setup: 30 seconds,1 minute,2 minutes and 5
minutes
ƽPRE REC˖Pre-recording time is fixed as10 seconds.
2. SYSTEM INFO
Move the cursor toǏSYSTEM INFOǐ˄ Icon highlighted when selected˅ˈpressǏEnterǐto enter
into setting interface, at this interface mainly display system hardware features and firmware version,
include : device type, firmware version, MAC addressǃserial number.
