Copernicus Tech Tub Premium User manual

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.
Please Recycle
Assembly Guide
TEC1000_2017_A
Check out our other products online at
www.copernicused.com
?
?
?
This product is meant to be assembled by an adult.
In its unassembled state, small parts present a hazard.
To be used under direct supervision of an adult.
WARNING
For assistance, please contact us:
1-800-267-8494
Email [email protected]
Have your packing slip ready for reference
®
Tech Tub Premium: Holds Up to 10 Tablets
Don’t throw
these instructions
away!
Positioning template
printed inside!
Lid (1)
23226
Tub (1)
23227
Locking Pin (1)
31079
Padlock (2)
Locking Block (1)
31078
Cable Hook (2)
Spacer (2)
232292
Divider (9)
23229
Rail (2)
232291L/R
Items not shown:
Bottom Foam Pad (1)
Padlock Keys (6)
USB Hub
Enclosure (1)
10 Port USB Hub (1)
255144
Power Adapter (1)
255145
USB “B” Cable (1)
Cable Management Pocket (1)
23228
TEC1000

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.
To validate your warranty, submit the ON-LINE form at www.copernicused.com.
Enter a drawing to win a Copernicus Product for your classroom at the same time!
Validate Your Warranty
Tech Tub™
& Lid Warranty
Life
Time
Frame
For assistance, please contact us:
1-800-267-8494
Email [email protected]
Have your packing slip ready for reference
Dear Educator,
®
Thank you for purchasing one of our products. I hope that the Tech Tub is useful in your classroom.
If you have any questions, concerns, or ideas please contact us by telephone at 1-800-267-8494 or email at
[email protected].
Enjoy using your new product and happy teaching.
Jim Phillips
Chief Cook and Bottle Washer
Assembly Guide
TEC1000_2017_A
Check out our other products online at
www.copernicused.com
Power Supply
Warranty
1
Year
DO NOT LEAVE THIS PRODUCT PLUGGED IN AND RUNNING FOR MORE THAN 72 HOURS AT ONE TIME.
ONLY USE THE USB HUB WITH THE SUPPLIED POWER ADAPTER.
REMEMBER TO TURN OFF POWER TO USB HUB BEFORE UNPLUGGING FROM OUTLET.
IMPORTANT PRODUCT ADVISORY
We do not inherit the
earth from our ancestors,
we borrow it from our
children.
NORTH AMERICAN
PROVERB
Change is the end result
of all true learning.
LEO BUSCAGLIA
What you leave behind is
not what is engraved in
stone monuments, but
what is woven into the
lives of others.
PERICLES
Education is the most
powerful weapon which
you can use to change the
world.
NELSON MANDELA
TEC1000
2
®
Tech Tub Premium: Holds Up to 10 Tablets

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.

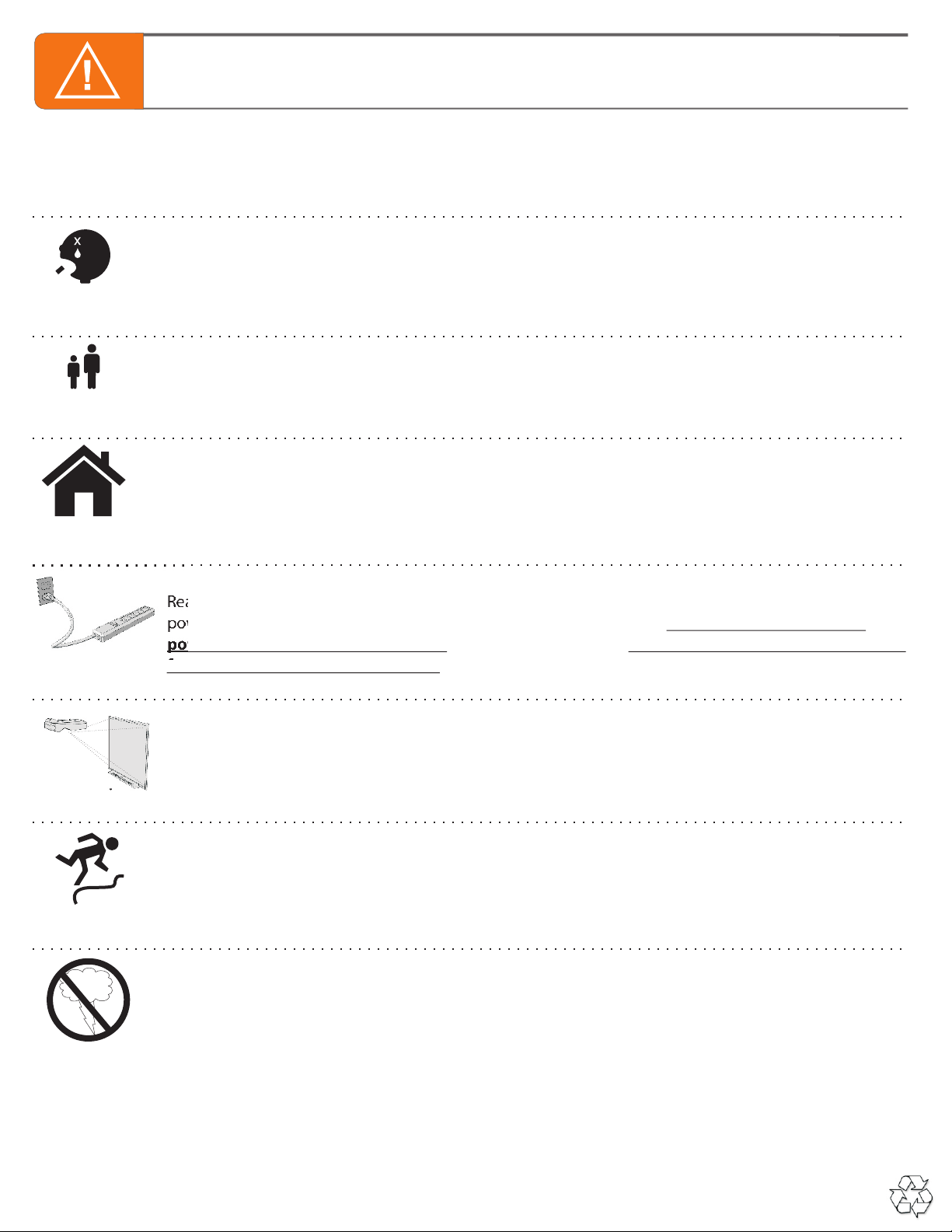

Warning! Hazard Risks!
This product is to be used under the supervision of an adult.
Indoor Use
Only
This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not expose
this product to rain or moisture. The internal components are not sealed from the environment.
Read your power strip electrical specifications. Only plug in devices that are approved for use with this
power strip. Connect the supplied power strip directly to a wall outlet. Do not connect to another
power strip or use an extension cord. Unplug when not in use. Do not leave this product plugged in
for more than 72 consecutive hours. Turn off power strip before unplugging.
Power Strip
Specifications
Do not install or use the electrical components of this unit during a lightning storm.
Electrical Shock
In its unassembled state, this product contains parts that can be hazardous to small children. This
product should be assembled by an adult.
Small
Parts
Ensure that any cables extending across the floor to your product are properly bundled and marked to
avoid tripping or falling which may lead to personal injury.
Cable Trip
Hazard
Read the electrical specifications of any electronic equipment you are using with your Copernicus
products. Failure to read these specifications and follow their instructions could result in damage to
your equipment or personal injury.
Electronic
Equipment
Adult
Supervision
Please read the warnings below for important safety information regarding your product. Failure to
read these warnings or to follow the instructions below could result in personal injury or damage to
your product that could void your warranty.
3

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.

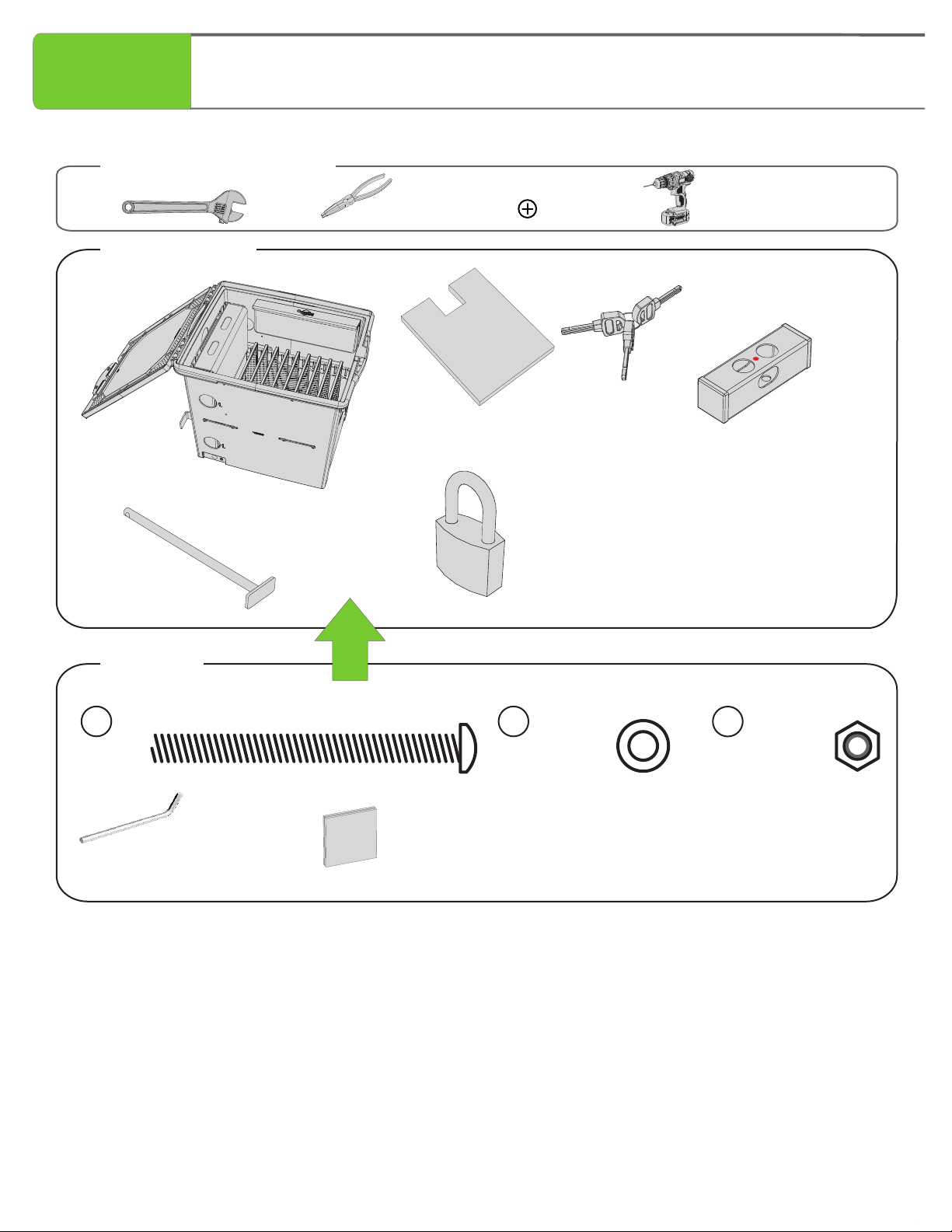

Contents - Box 1
Before beginning, you should have:
Additional tools required:
Adjustable wrench
®
Tech Tub
1x
Locking Block
1x
(31078)
Locking Pin
1x
(31079)
Padlock
2x
Hardware
Actual Size
In Box 1
Key
6x
M6 x 70mm
2x
AM6 Lock Nut
2x
C
M6 Washer
6x
B
Allen Key 4mm
1x
Foam Pad
1x
®
(Found inside Tech Tub )
Screwdriver
Pliers
AND AND
®
Tech Tub Premium: Holds Up to 10 Tablets
Hook and Loop Square
with Adhesive
2x
AND Drill with 1/4”/6mm drill bit
TEC1000
4

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.
Tips for Assembly
Watch for this symbol throughout the Assembly Guide. Wherever you see it, pay close
attention. The symbol denotes a step needing extra attention to ensure it is done
correctly.
The star symbol highlights an advisory note.
!
Watch for These Helpful Symbols
Before You Begin
As You Assemble the Unit
Lay out and identify all of the included parts.
The hardware has been packed according to step.
Read the assembly guide over once to familiarize yourself with them.
Please note that in its unassembled state, this product contains parts that can be
hazardous to small children. This product should be assembled by an adult.
!
Follow the steps in sequence.
Before beginning each step, find the part(s) that you need for that step.
Pay attention to the labels on the parts; they are there to help direct you at certain stages.
The title of each step states what you will be doing. Review the text and the pictures as you build
the unit.
For parts and other issues regarding your Tech Tub:missing
Please call Copernicus Customer Service,
1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST.
OR
Email our Tech Support Service at [email protected]
where we will be happy to help.
?
?
?
Need Tech Support?
Have a Question?
Email our Tech Support Service
Customer Service - FAQ’s
Watch this video on how to
set up and manage your cables
www.copernicused.com/help/default.aspx
TEC1000
5

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.
1
®
Remove USB Hub Cover from Tech Tub
1 2
2
Unwrap USB Syncing Cable and Power Adapter Cable
Do not throw
the Hub cover
away.
If your device or device case measures more than 0.6” (1.5cm) in thickness, you will
®
need to assemble your USB Enclosure to the outside of your Tech Tub .
Steps 1-12 will guide you to assemble your USB Hub on the outside of your Tech Tub .
Proceed to Step 14 if you are leaving your USB Hub assembled inside of your Tech Tub .
®
®
!
21
Unwrap USB Cable
Leave USB Cable loose
3
Repeat for Power Adapter Cable.
6

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.
3

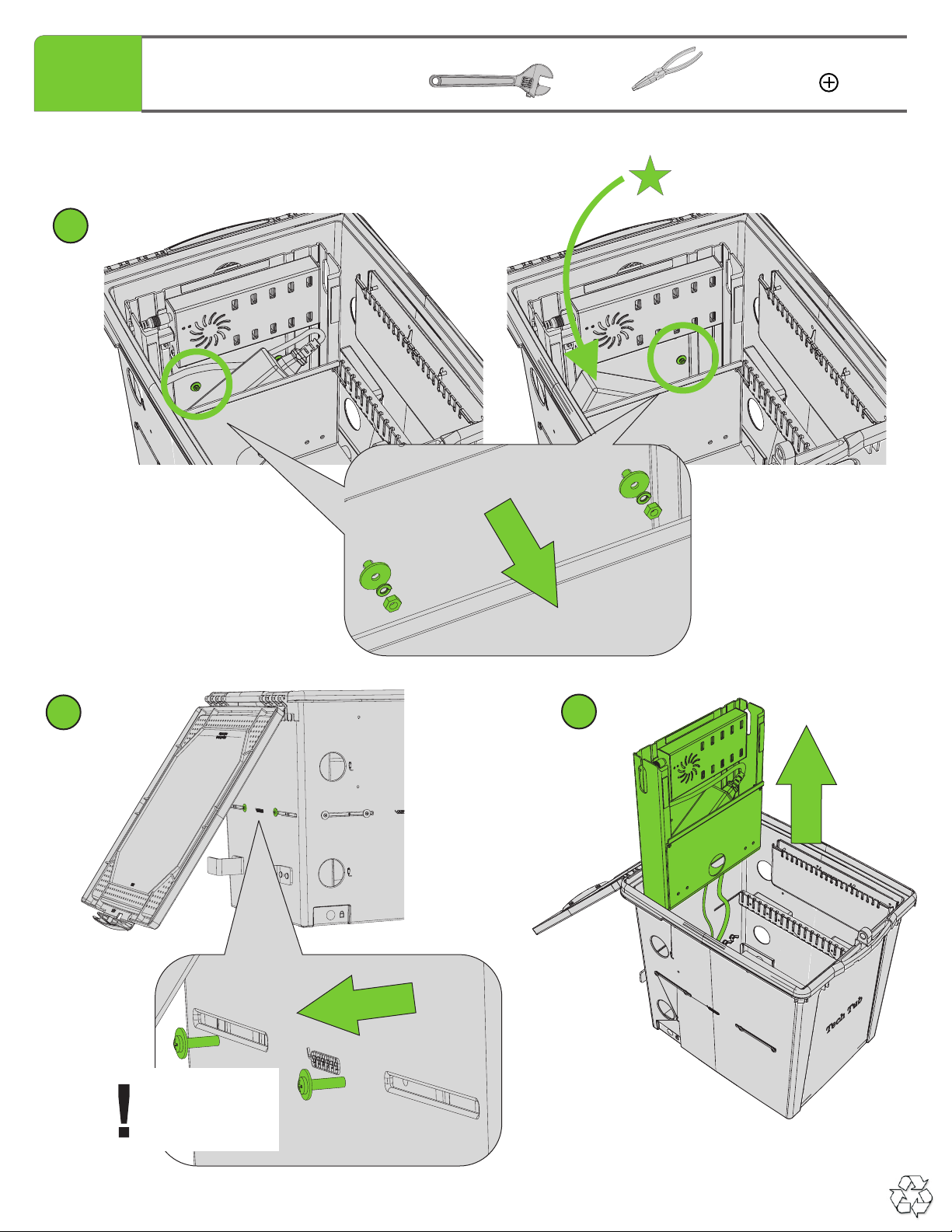

Unfasten and Remove USB Hub Enclosure
1
23
You will need: (Not to Scale) Adjustable wrench Screwdriver
AND
Pliers
AND
Move the power adapter around
to access this hardware.
Do not throw this
hardware away.
Keep it for Step 9.
7

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.
4
Unfasten and Remove cable hooks
Keep this hardware close!
You will need it for Step 6.
Unplug Power Adapter and USB Cables, Remove USB Hub, Remove Power Adapter
1
5ScrewdriverYou will need: (Not to Scale)
2
Do not throw this
hardware away.
Keep it for Step 8.
3 4
8

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.
6

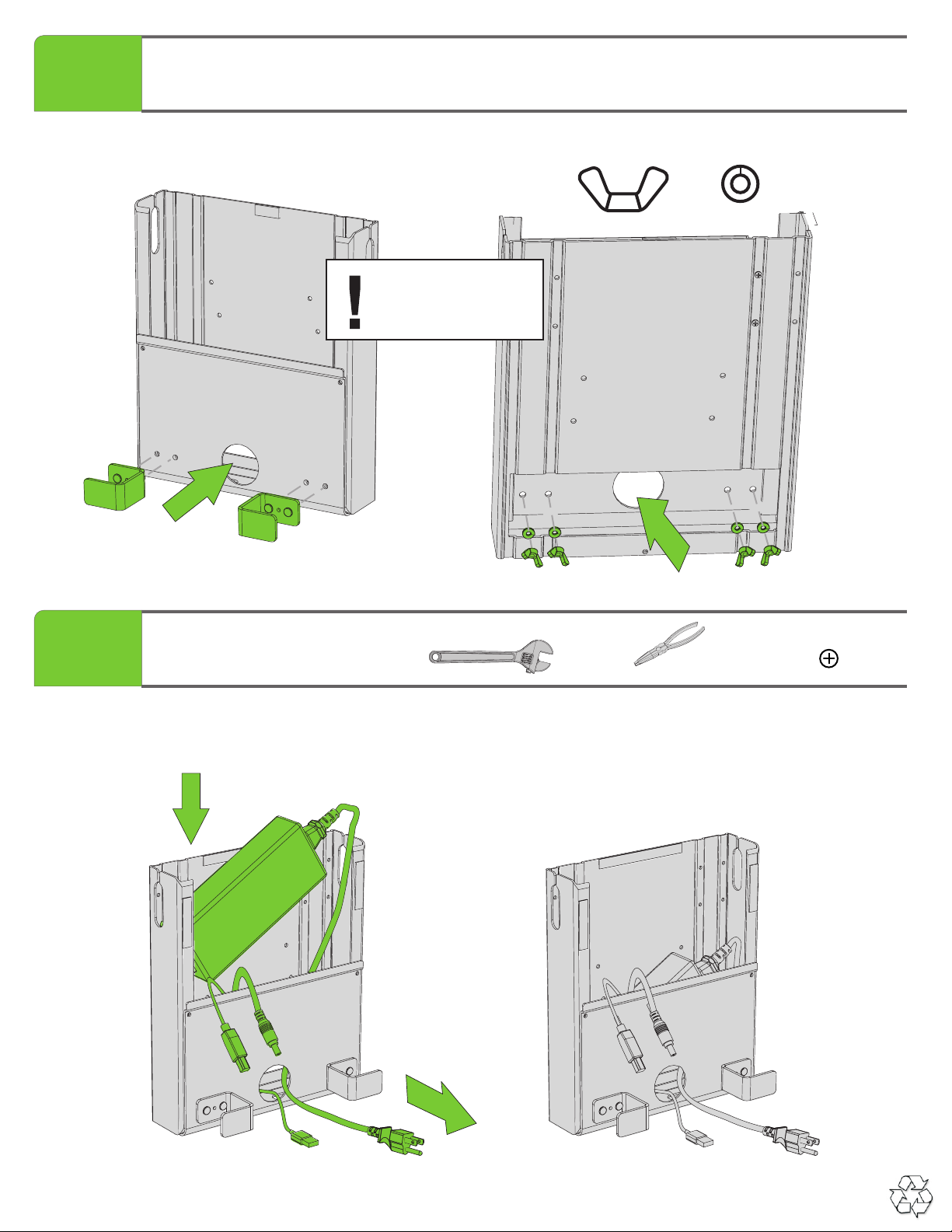

Assemble Cable Hooks to USB Hub
You will need: (Not to Scale) Adjustable wrench Screwdriver
AND
M4 Wing Nut
2x
M4 Lock Washer
2x
Pliers
AND
7
Add Power Adapter and Cables into Enclosure
Use the hardware
from Step 4
Pull out cables
through hole
9

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.
8
M3 Flat Washer
2x
M3 Lock Washer
2x
M3 Lock Nut
2x
M3 x 12 Screw
with Washer
2x
Use the hardware
from Step 3
2
Install and tighten
hardware.
Assemble USB Hub to Enclosure
1
Screwdriver
You will need: (Not to Scale)
You will need: (Not to Scale) Adjustable wrench Screwdriver
AND
9
®
Assemble USB Hub Enclosure to Tech Tub
Pliers
AND
Use the hardware
from Step 5
10

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.
Apply Hook and Loop Squares
12
Insert USB Cable into USB Hub and Wrap Around Cable Hooks
10 11
Plug Power Adapter and Wrap Cable
Around Cable Hooks
You will need: (Not to Scale)
Hook and Loop Square with Adhesive
2x
11

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.
Make sure
divider tabs
are pushed
down fully.
Make sure there is one groove between dividers. If you
need more space for your device you will need to proceed
back to Step 1 to move your USB Hub Enclosure to the
®
outside of your Tech Tub if you want to fit 10 devices.
If you have assembled your USB Hub on the outside of your Tech Tub , please
follow the remaining steps to setup the inside with your devices and cable management.
Images may show the USB Hub on the inside.
®
!

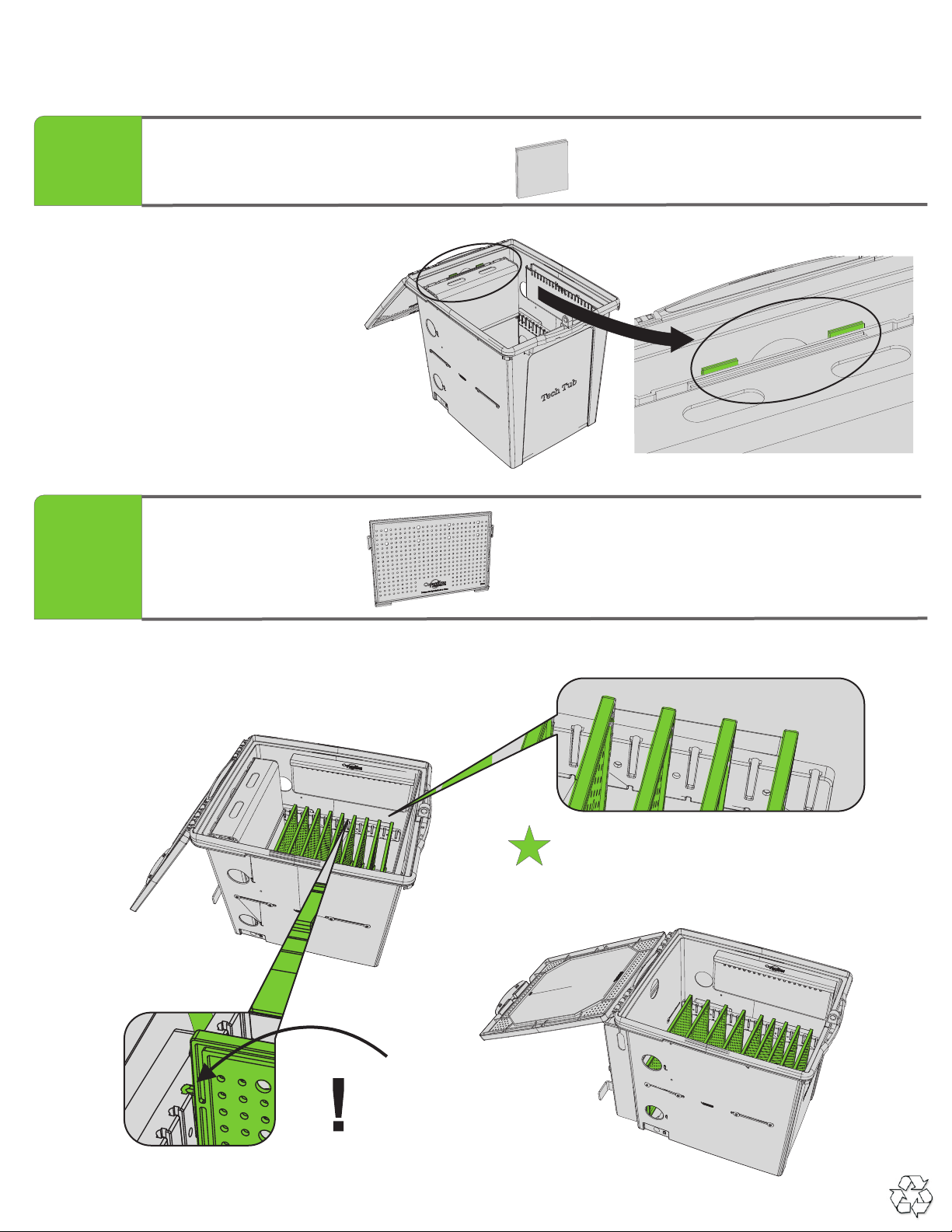

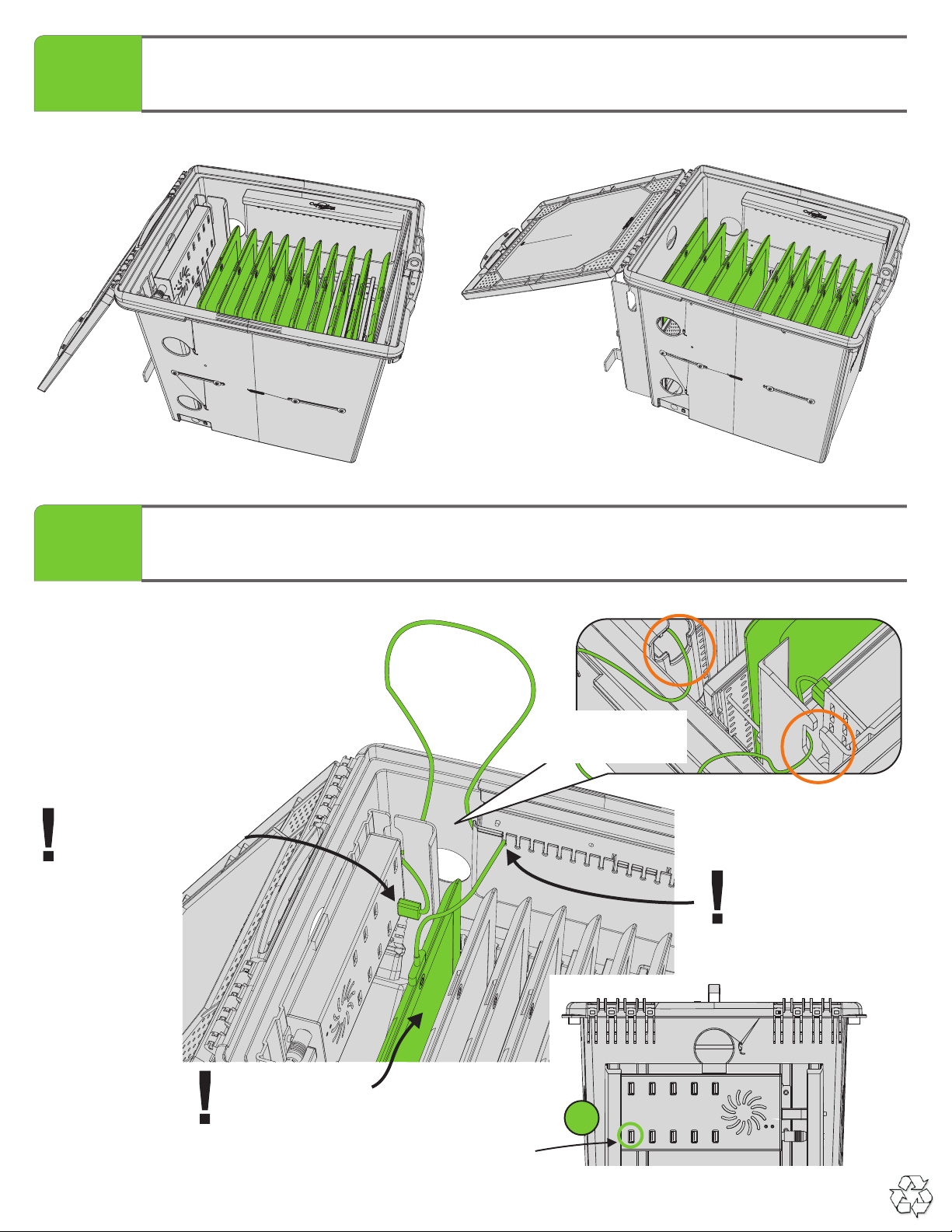

Install Dividers
14 You will need: (Not to Scale)
Divider
9x
Apply Hook and Loop Squares
13 You will need: (Not to Scale) Hook and Loop Square
with Adhesive
2x
12

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.
15
Actual Size:
®
Add Devices into Tech Tub
16
Actual Size:

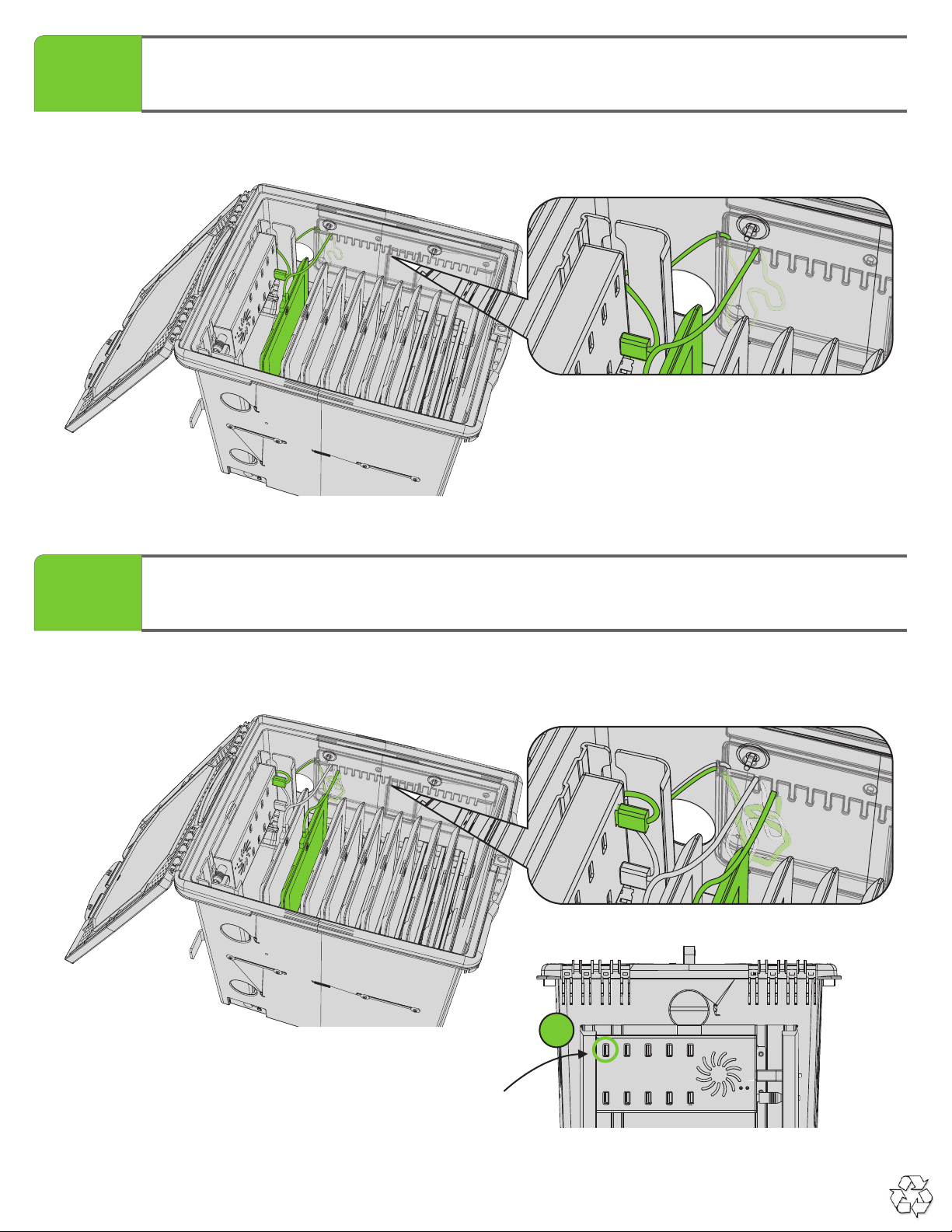

Setup Cable for First Device
Apple iPad® 2 shown
Start with the device
at the back.
Plug USB end of device
cable into first port.
Insert cable into aligned
slot. Make sure it snaps into
place.
Run cable through
side recesses.
1
Rear-mounted USB Enclosure:
Use this USB port for setting up the
cable of your first device.
13

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.
Wrap Power Strip Cable
6
Note
Padlock will
not lock
without key
:
1 2

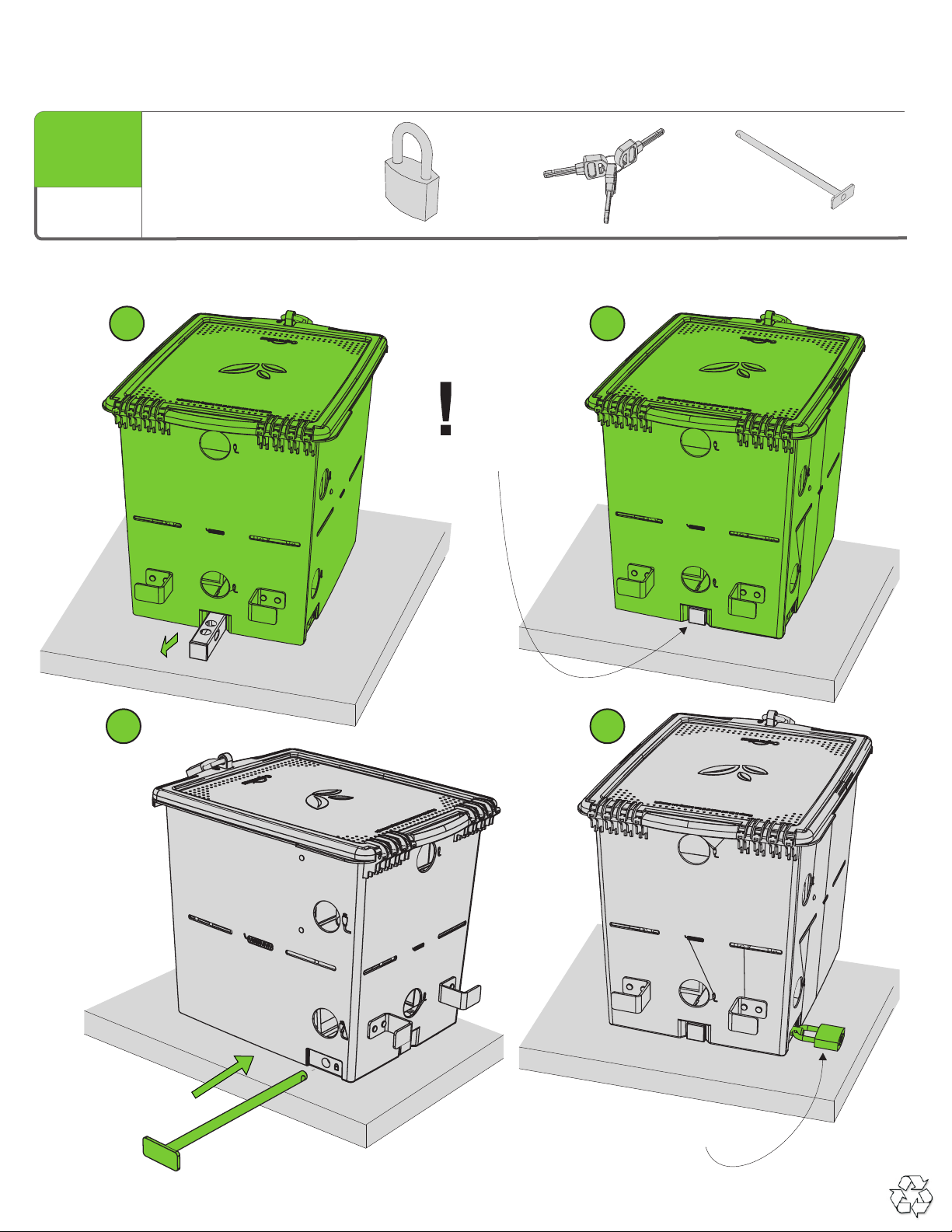

Lock Lid with Padlock
7You will need: (Not to Scale)
Padlock
1x
Plug cable directly into wall outlet.
DO NOT PLUG THIS POWER STRIP
INTO ANOTHER POWER STRIP.
17
Store Excess Cable in Cable Management Pocket
18
Setup Cable for Second Device
2
Rear-mounted USB Enclosure:
Use this USB port for setting up the
cable of your second device.
14

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.
19
Repeat Steps 12 and 13 to Setup Remaining Devices
20

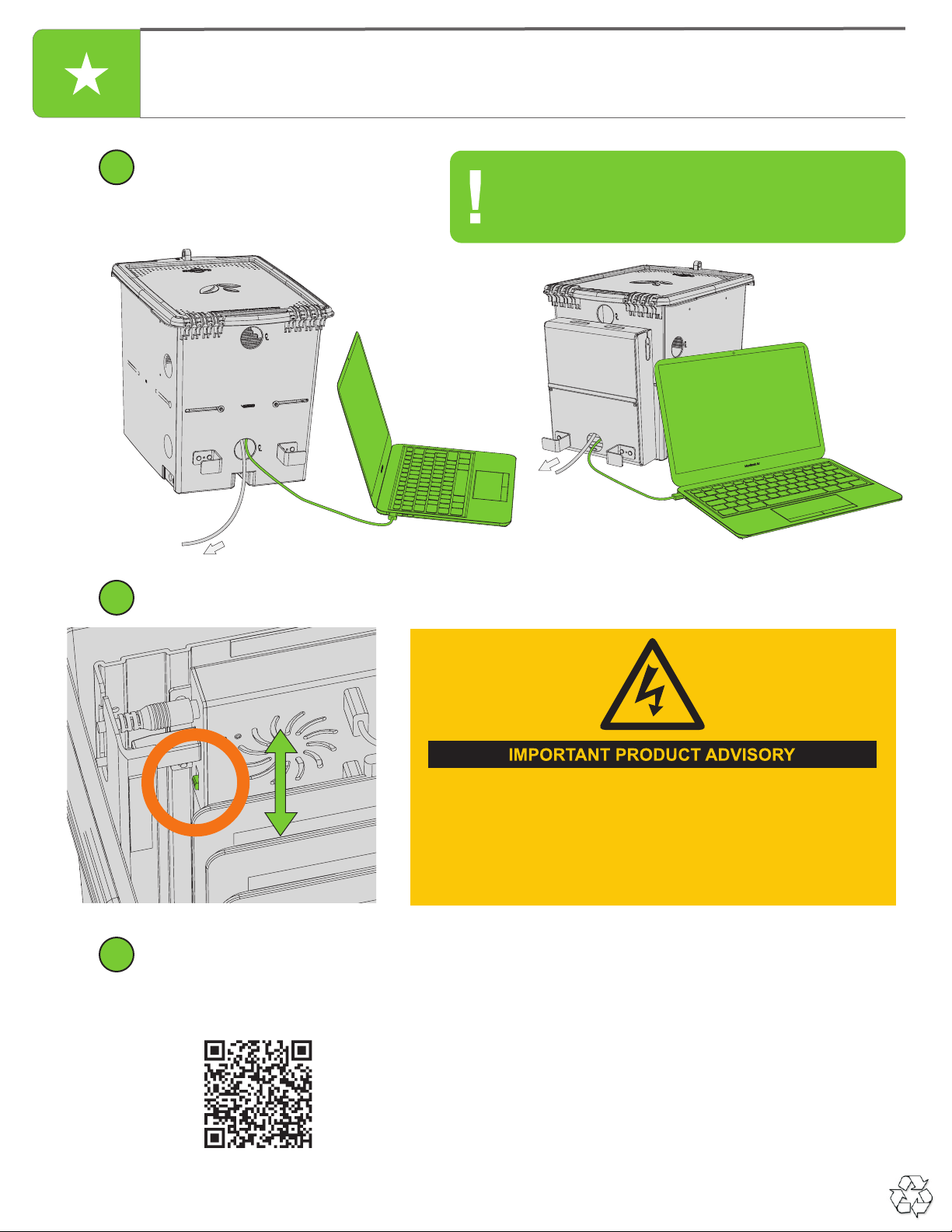

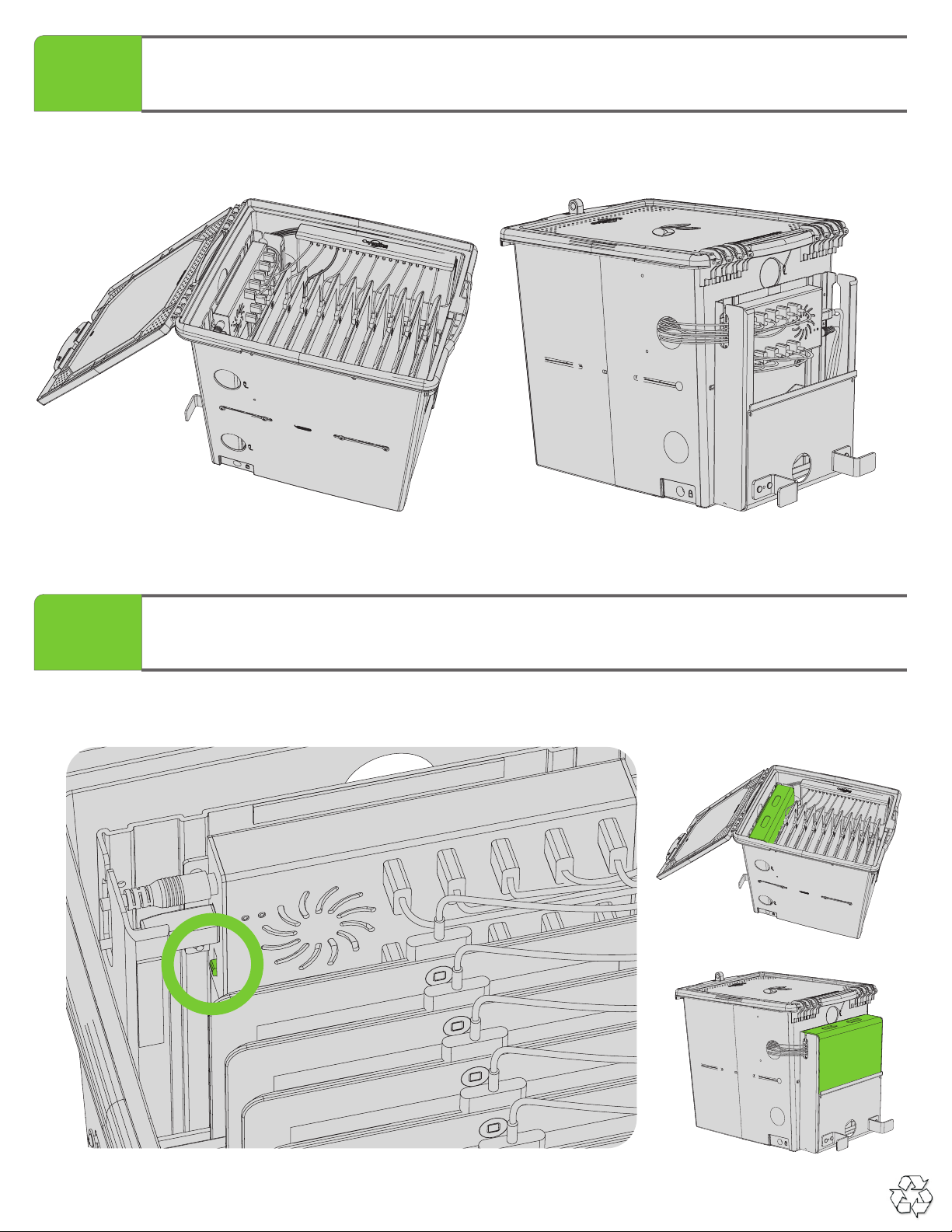

Turn on USB Hub and Replace Cover
15

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.
M6 Washer
6x
B

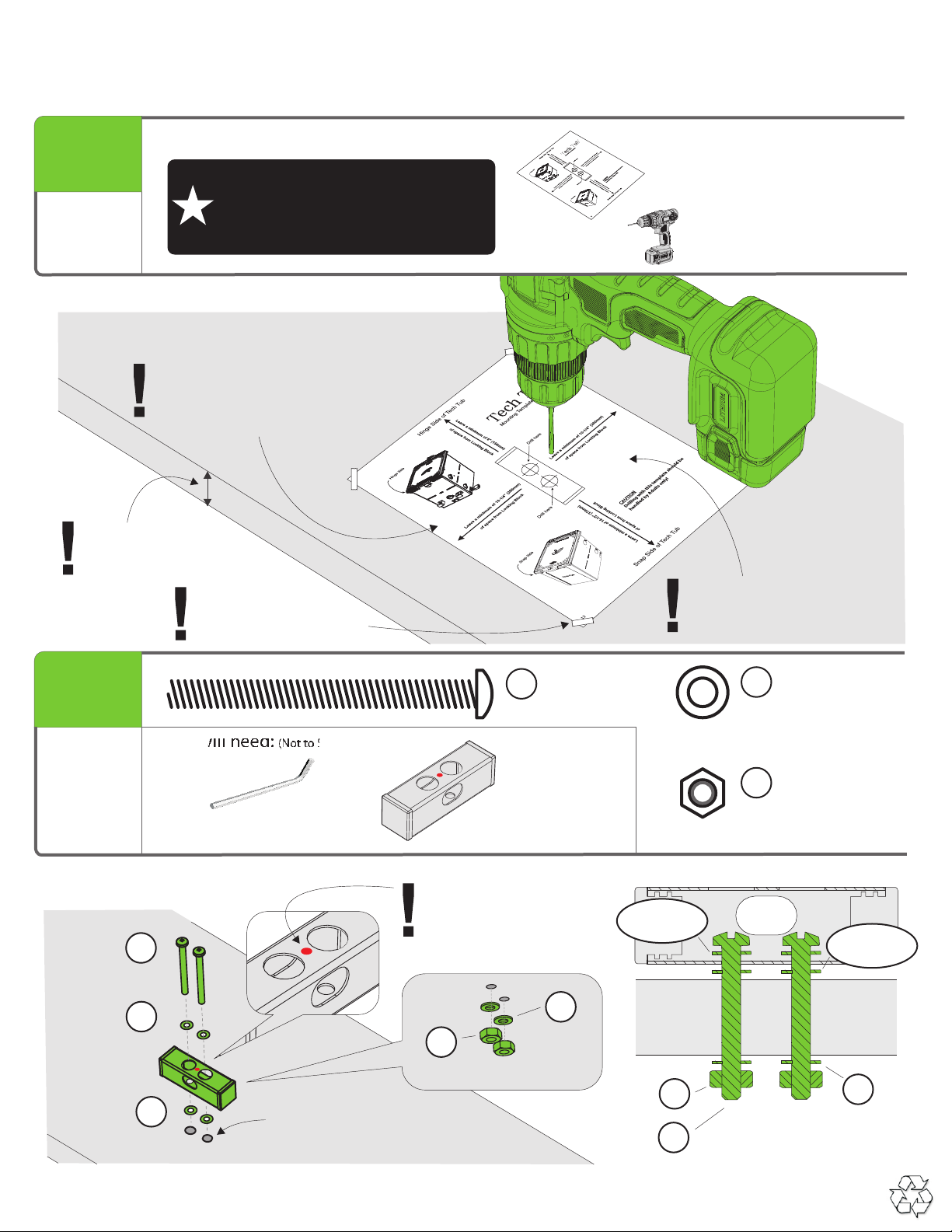

Use Template and Drill Holes into Surface
21 You will need: (Not to Scale)
22
You will need: (Not to Scale)
Actual Size:
Locking Block
1x
M6 x 70mm
2x
A
M6 Lock Nut
2x
C
OPTIONAL:

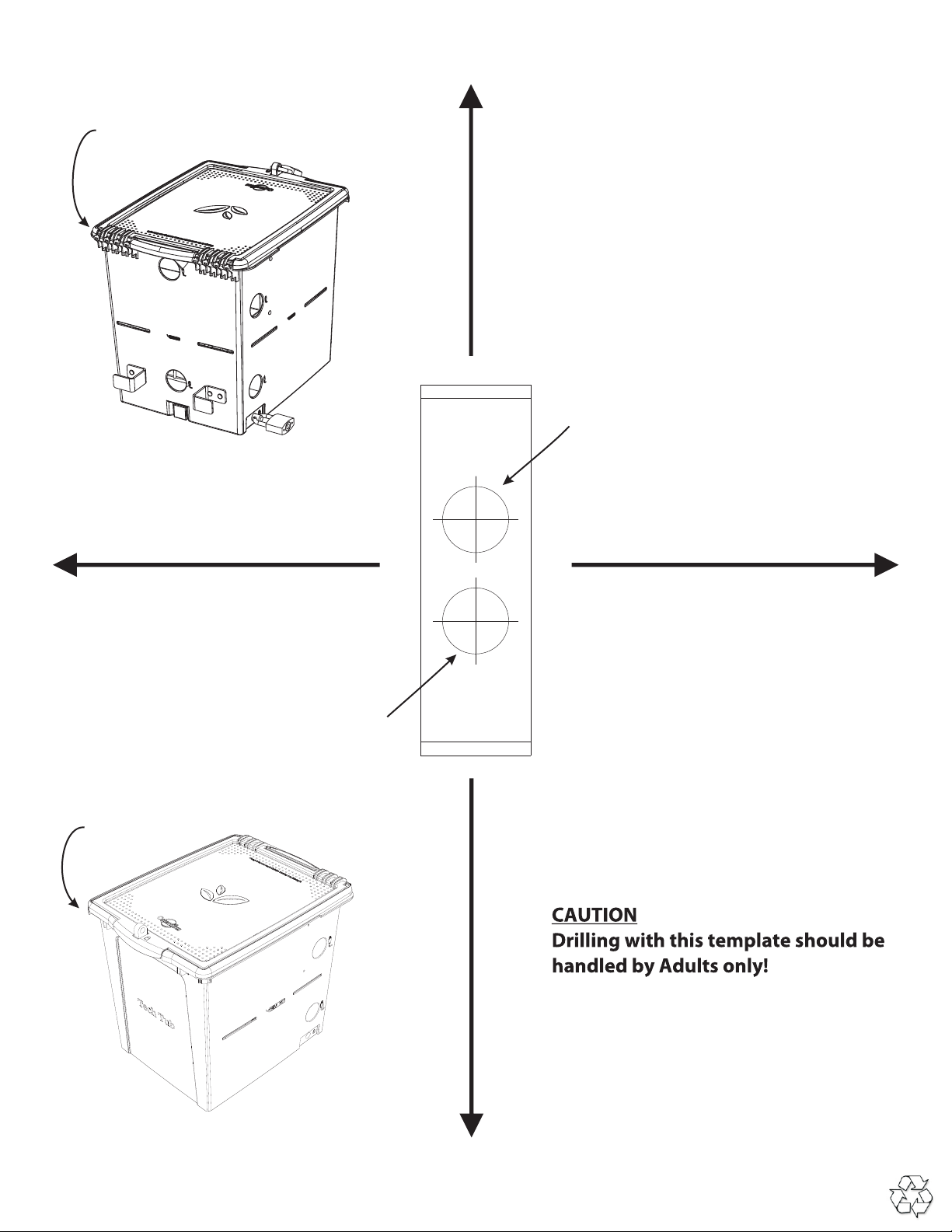

Positioning Template
(found at back of this guide)
1x
Allen Key 4mm
1x
®
Follow Steps 21 to 23 to install the Tech Tub Locking
Block and Locking System
Mount Locking Block
Drilled holes from Step 6
A
B
C
Underside
Label facing
upwards
B
Table or Countertop
Section
View
C
A
BWasher goes
INSIDE tube
BWasher goes
UNDER tube
B
B
Use positioning template
found at back of these
Assembly Instructions
Use 1/4” or 6mm drill bit
Maximum thickness of
surface is 2-1/2” (63mm)
Table or Countertop
Use tape to secure
the positioning template
®
This system allows you to lock your Tech Tub to a
table or countertop. This is a really good idea if you
leave your devices out in the open or your room
doesn’t lock. You can then lock the Tech Tub in place
and lock the Tech Tub itself. Drill with 1/4”/6mm drill bit
16

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.
®
Lock the Tech Tub with Locking Pin
23
You will need: (Not to Scale)
Padlock
1x
Locking Pin
1x
1 2
3 4
®
Push Tech Tub
until Locking
Block is
completely
in channel.
Slide Locking Pin
through hole on
Tech Tub®Secure Locking Pin with Padlock
on other side.
Key
3x
OPTIONAL:
17
®
Follow Steps 21 to 23 to install the Tech Tub Locking
Block and Locking System

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.
Power Cable
Power Cable
1Plug USB Cable into Apple MacBook®
2Turn on USB Hub. Make sure all devices are plugged in and USB Hub is plugged into outlet.
3Use Apple Configurator or Apple Configurator 2 for synchronizing your devices on a MacBook®.
Apple Configurator works with Macbooks running OS X 10.10 or later and Apple Configurator 2 works with
Macbooks running OS X 10.11 or later.
®
®
These steps apply to Apple® products only!
(e.g. iPad®, iPad Mini™, iPod Touch®)
Scan this QR Code for resources on how to setup your devices with
Apple Configurator.
https://itunes.apple.com/us/itunes-u/ipad-management-using-apple/id567514148?mt=10
Sync Devices using the USB Hub
DO NOT LEAVE THIS PRODUCT PLUGGED IN AND RUNNING FOR
MORE THAN 72 HOURS AT ONE TIME.
ONLY USE THE USB HUB WITH THE SUPPLIED POWER ADAPTER.
REMEMBER TO TURN OFF POWER TO USB HUB BEFORE
UNPLUGGING FROM OUTLET.
USB “B” Cable
USB “B” Cable
18

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.

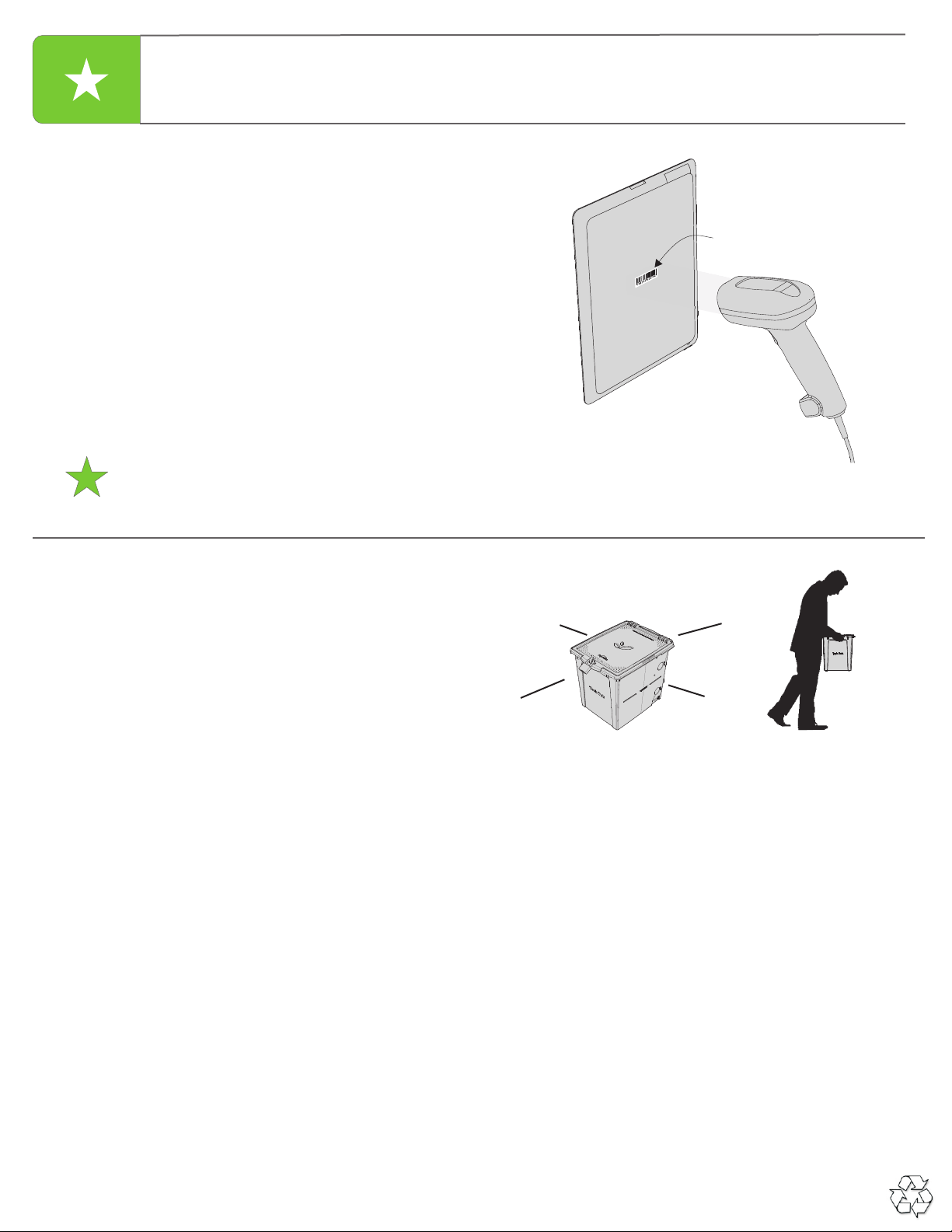

Tips for Use
Device Management
Keeping track of your devices can be made even easier by creating
a sign-out program.
There are many automated software solutions available that make
setting up and running a device check-out program very easy.
Here is a list of some companies and their products:
®
ResourceMate - www.resourcemate.com
Neuton Data Systems - www.neuton.net
IntelliScanner - www.intelliscanner.com
Does your school already use an automated system to keep track of books?
You could use this system to also keep track of your devices!
Use a barcode and
scanner for identifying
your devices.
®
Carrying your Tech Tub
®
Use the Handles along the sides of the Tech Tub for easy lifting and carrying.
Handle
Handle
Handle
Handle
19

TEC1000 - Version A - Released January 6, 2017 - Copernicus Educational Products Inc.
Hinge Side
Snap Side
Drill here
Drill here
Snap Side of Tech Tub
Hinge Side of Tech Tub
Mounting Template
Leave a minimum of 15-1/2” (395mm)
of space from Locking Block
Leave a minimum of 15-1/2” (395mm)
of space from Locking Block
Leave a minimum of 11” (280mm)
of space from Locking Block
Leave a minimum of 7 5/8” (192mm)
if the USB
Enclosure is outside the Tech Tub™
of
space from Locking Block
Leave a minimum of 5” (127mm) of
space from Locking Block if the USB
Enclosure is inside the Tech Tub™
20
®
Tech Tub
