Copernicus FTT1112 User manual

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
Assembly Guide
FTT1100, FTT1100-USB,
FTT1121_2021_A
Check out our other products online at
www.copernicused.com
WARNING
For assistance, please contact us:
1-800-267-8494
Email [email protected]om
Have your packing slip ready for reference
®
2
Tech Tub - 10 Device Setup
FTT1100
FTT1100-USB
FTT1112
Please Recycle

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
2
®
2
Tech Tub - 10 Device Setup
For assistance, please contact us:
1-800-267-8494
Email [email protected]om
Have your packing slip ready for reference
Assembly Guide
FTT1100, FTT1100-USB,
FTT1121_2021_A
Check out our other products online at
www.copernicused.com
FTT1100
FTT1100-USB
FTT1112
We do not inherit the
earth from our ancestors,
we borrow it from our
children.
NORTH AMERICAN
PROVERB
Change is the end result
of all true learning.
LEO BUSCAGLIA
What you leave behind is
not what is engraved in
stone monuments, but
what is woven into the
lives of others.
PERICLES
Education is the most
powerful weapon which
you can use to change the
world.
NELSON MANDELA
Dear Educator,
Thank you for purchasing the . We hope it meets all your expectations and you and your students
®
2
Tech Tub
enjoy using it in your school.
If you have any questions, concerns or ideas on how we can improve please let us know by contacting our
Customer Solutions Ninjas at 1-800-267-8494 or [e-mail].
Happy teaching,
Kaylyn Belcourt
President
Register your Product
Registering your warranty ensures we have all the information we need to make any future warranty claims quick and
easy. Please visit www.copernicused.com/warranty and complete the form within 10 business days from product
assembly. By registering your product, you will be entered into a draw to win Copernicus product.
Make a Warranty Claim
We offer a Lifetime Warranty on almost everything we make. Please call 1-800-267-8494 or email
[email protected]om to start your warranty claim. Proof of purchase will be required upon warranty claim (i.e. copy
of invoice).
Lifetime
All Components
Warranty

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
3
Warning! Hazard Risks!
This product is to be used under the supervision of an adult.
Indoor Use
Only
This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not expose
this product to rain or moisture. The internal components are not sealed from the environment.
Read your power strip electrical specifications. Only plug in devices that are approved for use with this
power strip. Connect the supplied power strip directly to a wall outlet. Do not connect to another
power strip or use an extension cord. Unplug when not in use. Do not leave this product plugged in
for more than 72 consecutive hours. Turn off power strip before unplugging.
Power Strip
Specifications
Do not install or use the electrical components of this unit during a lightning storm.
Electrical Shock
In its unassembled state, this product contains parts that can be hazardous to small children. This
product should be assembled by an adult.
Small
Parts
Ensure that any cables extending across the floor to your product are properly bundled and marked to
avoid tripping or falling which may lead to personal injury.
Cable Trip
Hazard
Climb Hazard
Do not climb on, hang from or suspend objects from any components of your product unless otherwise
specified.
Read the electrical specifications of any electronic equipment you are using with your Copernicus
products. Failure to read these specifications and follow their instructions could result in damage to your
equipment or personal injury.
Electronic
Equipment
Adult
Supervision
Please read the warnings below for important safety information regarding your product. Failure to
read these warnings or to follow the instructions below could result in personal injury or damage to
your product that could void your warranty.

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
4
Tips for Assembly
Customer Service - FAQ’s
?
?
?
For missing parts and other issues regarding this product:
Please call Copernicus Customer Service, where we will be happy to help.
1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST.
OR
Email our Tech Support Service at inf[email protected]
This symbol denotes a 2 Person Task. For safety, please ensure that there are the
suggested number of people working on steps displaying this symbol.
Watch for this symbol throughout the Assembly Guide. Wherever you see it, pay close
attention. The symbol denotes a step needing extra attention to ensure it is done
correctly.
The star symbol highlights an advisory note.
!
Watch for These Helpful Symbols
Before You Begin
As You Assemble the Unit
Lay out and identify all of the included parts.
The hardware has been packed according to step.
Read the assembly guide over once to familiarize yourself with them.
Please note that in its unassembled state, this product contains parts that can be
hazardous to small children. This product should be assembled by an adult.
Follow the steps in sequence.
Before beginning each step, find the part(s) that you need for that step.
Pay attention to the labels on the parts; they are there to help direct you at certain stages.
The title of each step states what you will be doing. Review the text and the pictures as you build the unit.
2-Person Task
!
Need Tech Support?
Have a Question?
www.copernicused.com
Check out some of our
other great products!
Email our Tech Support Service

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
5
+

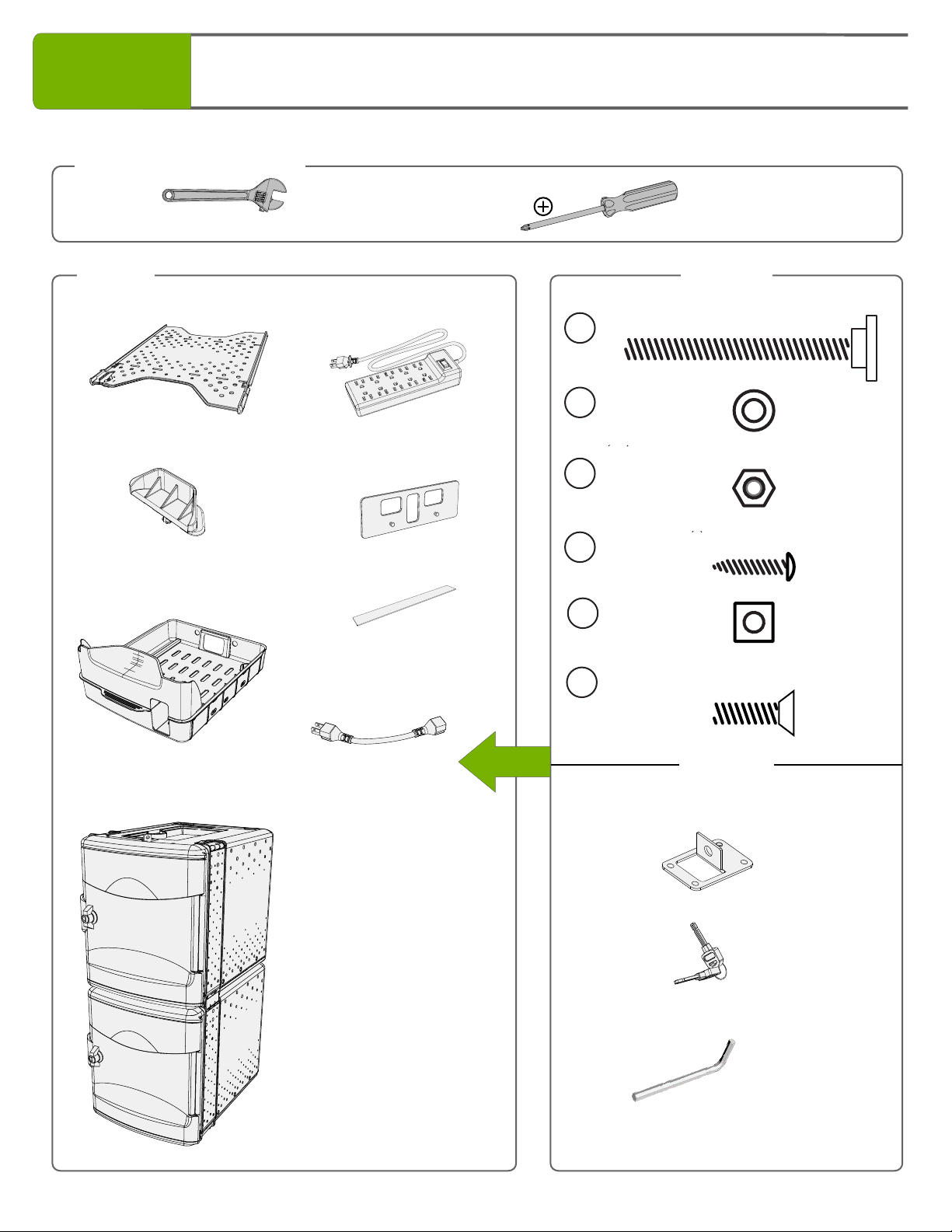

Additional tools required:
Before beginning, you should have:
®
2
Tech Tub - 10 Device Setup
FTT1100
Adjustable wrench x1
Screwdriver
FTT1100
Not to Scale
Hardware
Actual Size
Back Foot Anchor Pin
x2
A
M4 x 15mm Screw
x4
D
C
E
F
M5 Lock Nut
x2
M5 Square Nut
x4
BM5 Washer
x2
5mm Driver
Allen Key
x1
Front Pin Bracket
(23275)
x1
Keys
x2
10-Outlet Power Strip
x1
(255154)
In FTT1100
Power Strip Mounting Plate
x1
(23275)
Shelf
x9
(23261)
Device Positioning Rail
x9
(23271)
M5 x 15mm Screw
x4
Hook & Loop
Straps
x10
(43321)
Power Tray and Shield
x1
(23262)-Tray
(23263)-Shield
®
2
10 Device Tech Tub
Main Body
x1

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
6
®
2
Tech Tub - 10 Device Setup
FTT1100-USB
FTT1100 - USB Hardware
Actual Size
In FTT1100-USB
Not to Scale
+
Additional tools required:
Screwdriver
Adjustable wrench x1
Before beginning, you should have:
®
2
10 Device Tech Tub
Main Body
x1
Hook & Loop
Straps
x10
(43321)
Power Tray and Shield
x1
(23262)-Tray
(23263)-Shield
Shelf
x9
(23261)
Device Positioning Rail
x9
(23271)
Power Adapter and Cable
(255146)
x1
10 Port USB
Hub
(255144)
x1
Back Foot Anchor Pin
x2
A
M4 x 15mm Screw
x4
D
C
E
F
M5 Lock Nut
x2
M5 Square Nut
x4
M5 x 15mm Screw
x4
BM5 Washer
x2
5mm Driver
Allen Key
x1
Front Pin Bracket
(23275)
x1
Keys
x2

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
7
+
Additional tools required:
Before beginning, you should have:
®
2
Tech Tub - 10 Devices with Larger Adapters
FTT1112
Adjustable wrench x1
Screwdriver
FTT1112
Not to Scale
Hardware
Actual Size
Back Foot Anchor Pin
x2
A
M4 x 15mm Screw
x4
D
C
E
F
M5 Lock Nut
x2
M5 Square Nut
x4
BM5 Washer
x2
5mm Driver
Allen Key
x1
Front Pin Bracket
(23275)
x1
Keys
x2
10-Outlet Power Strip
x1
(255154)
In FTT1112
Power Strip Mounting Plate
x1
(23275)
Shelf
x9
(23261)
Device Positioning Rail
x9
(23271)
M5 x 15mm Screw
x4
Hook & Loop
Straps
x10
(43321)
Power Tray and Shield
x1
(23262)-Tray
(23263)-Shield
®
2
10 Device Tech Tub
Main Body
x1

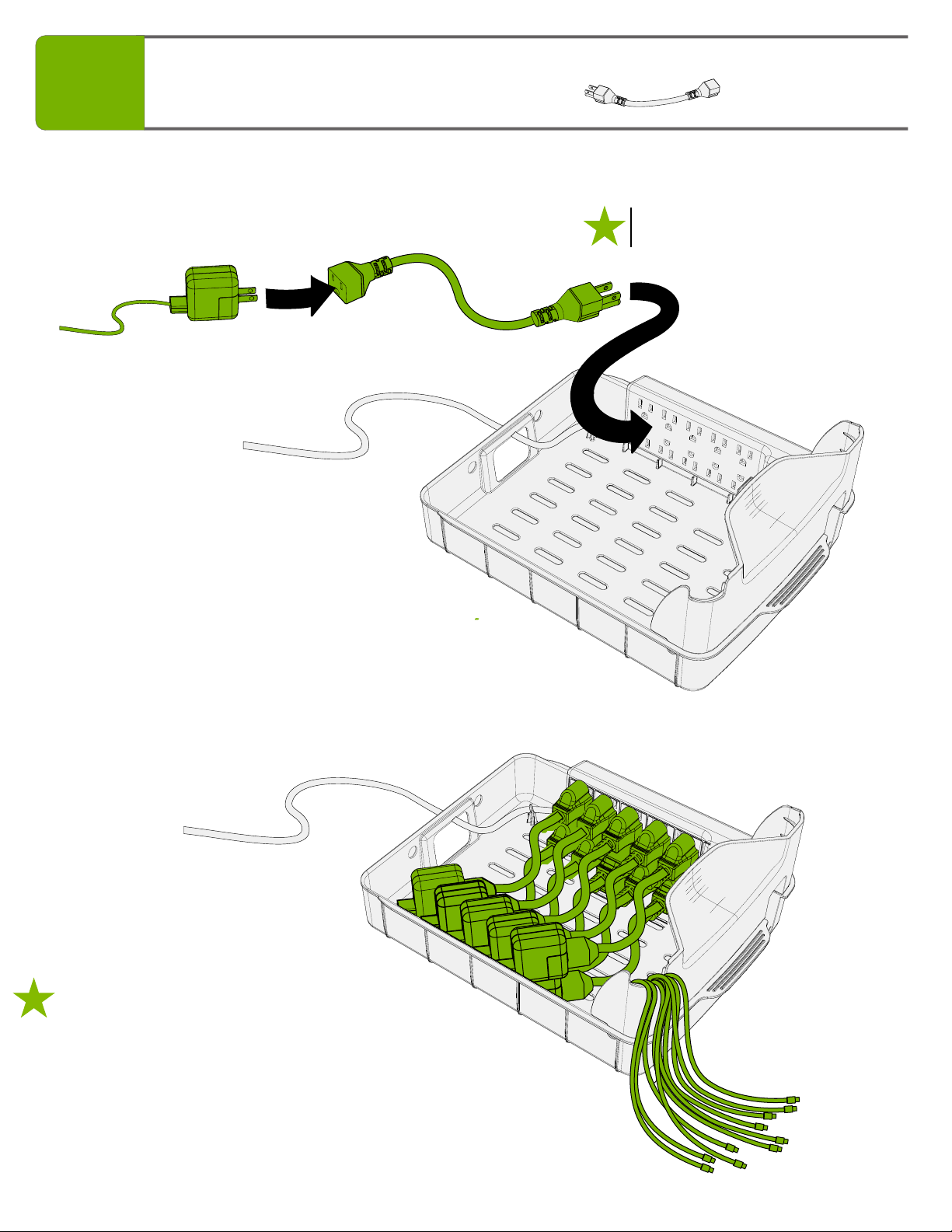

Adapter extension
cables
x10

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
8
®
2
Tech Tub - Trolley Setup
FTT2010
FTT2010-USB

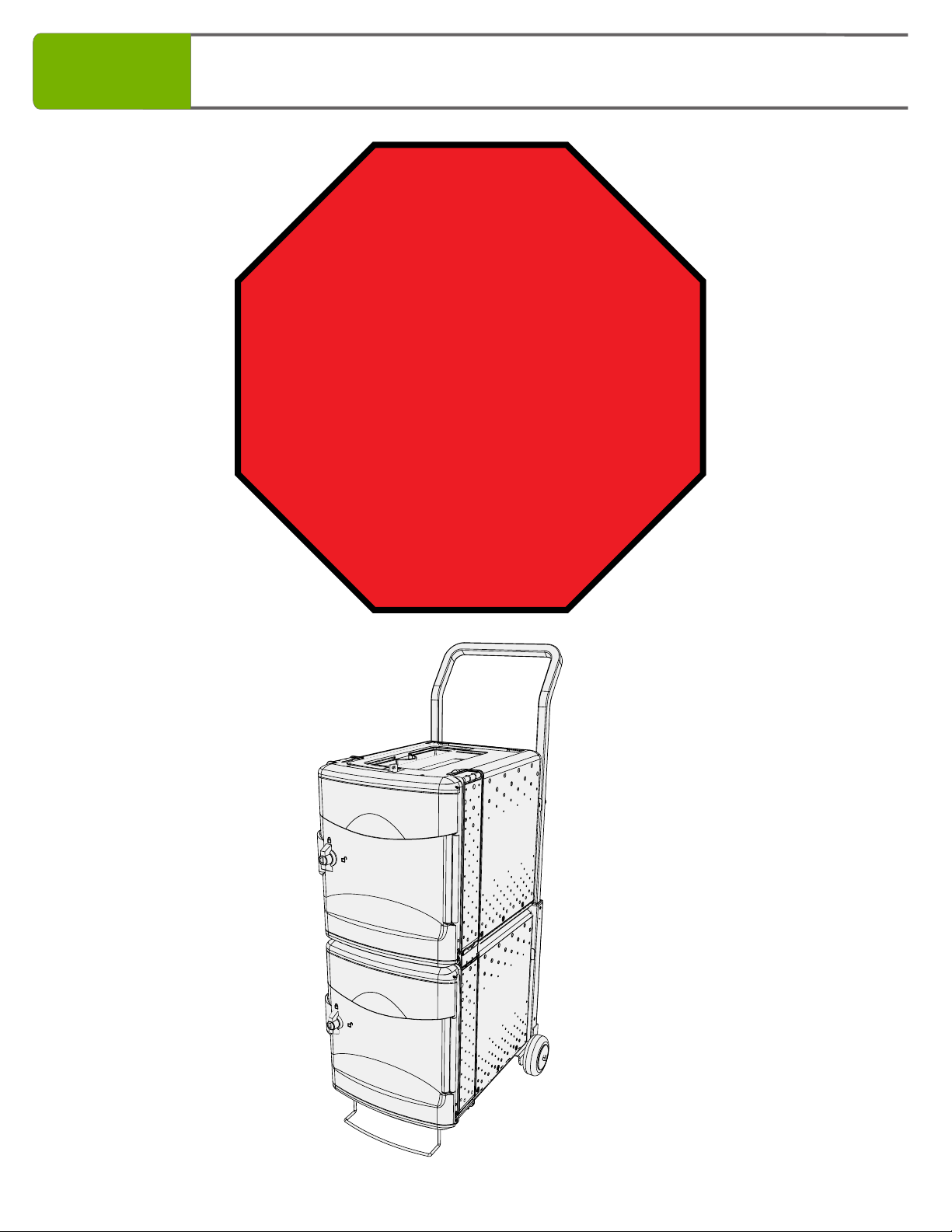

STOP!
®
2
If you purchased the Tech Tub Trolley
®
2
you will need to mount your Tech Tub onto
the Trolley Frame first, before proceeding with this
assembly guide. Please look inside the Trolley
Frame box for the assembly guide that explains
how to do this.
®
2
If you have not purchased the Tech Tub Trolley,
please proceed to the next page to continue
®
2
setting up your Tech Tub .

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
9
Install Device Positioning Rail into all shelves
1
2
Install nuts into two shelves
FTT700
ONLY
1Shelf
x9
Device Positioning Rail
x9
You will need: (Not to Scale)
Shelf
x2
You will need: (Not to Scale)
Actual Size:
Press snaps into these holes in shelf
EM5 Square Nut
x4
This part helps keep smaller devices away from the cable management area.
If your devices are wider than 8.66in (220mm), please skip this step.
Device positioning rail can be installed or uninstalled at any time.
Ensure nut is inserted fully into slot in shelf

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
10
Install shelves with nuts installed into tubs
1
FTT700
ONLY
3Shelf
(with M5 square nuts installed from previous step )
x2
You will need: (Not to Scale)Actual Size:
Install shelves in middle position in both tubs (aligned with holes for screws)
1
2Insert screws (both sides) but do not fully tighten until all shelves are installed
FM5 Screw
x4
1
2
2
2
2
1

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
11
2
1
3
3
Now fully tighten all 4 screws holding middle shelves in place
!
4
Install remaining shelves
Shelf
x7
You will need: (Not to Scale)
Install 4 shelves in top tub, leaving three empty slots between each shelf
Install three shelves in bottom tub, leaving two empty slots between each shelf

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
12
1
FTT700
ONLY
5
Install Power Strip Mounting Bracket onto Power Tray
Insert side with four pegs into keyholes
1Slide back until you hear a CLICK! 2
You will need: (Not to Scale) Power Tray with Shield
x1
Power Strip Mounting Plate
x1
FTT1100
ONLY
Please Note:
Steps 5-9 are for Power Strip setup (FTT1100 or FTT1112)
Steps 10 & 11 are for USB Hub setup (FTT1100-USB)
1
FTT700
ONLY Model Specific Instructions

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
13
6

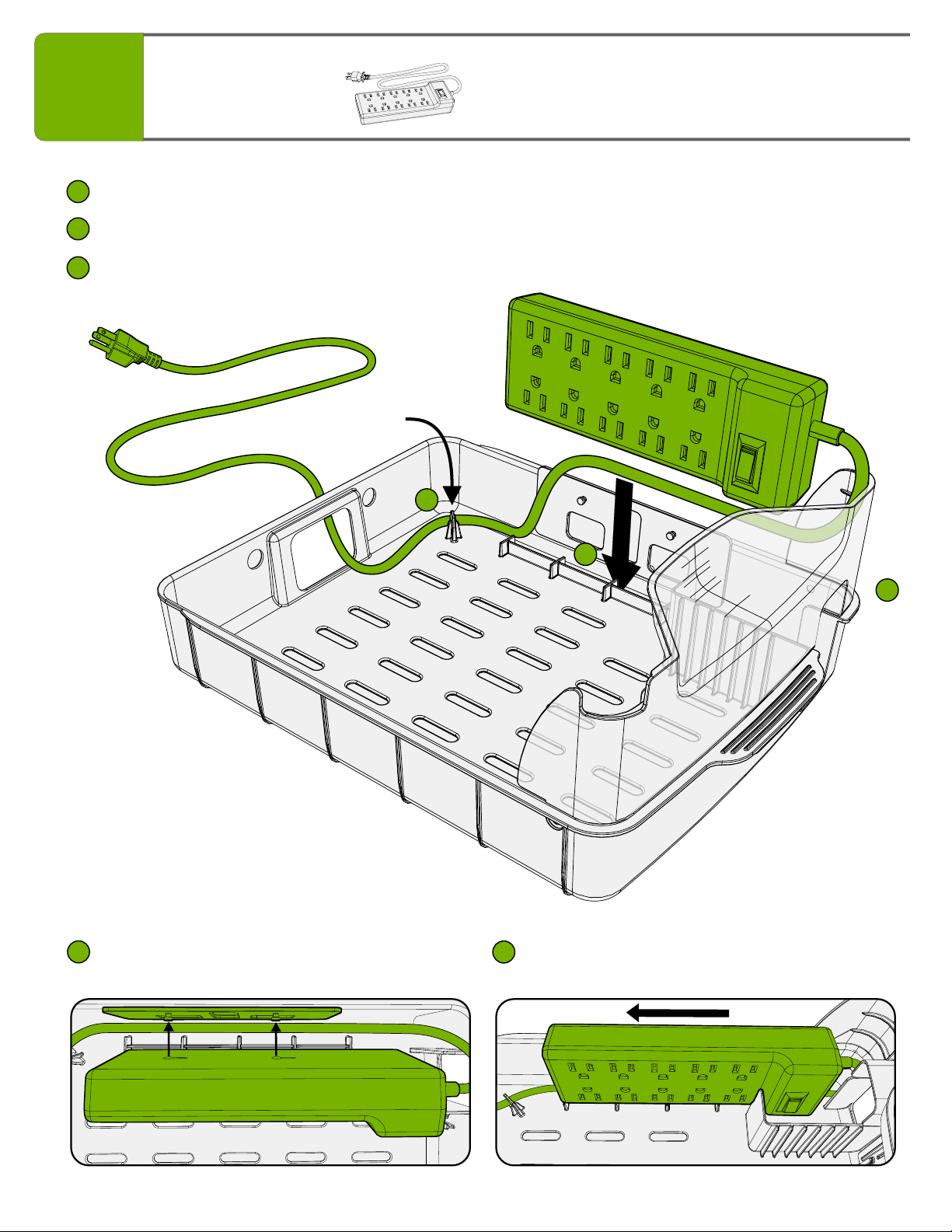

Install Power Strip in Power Tray
Loop power cable under power strip as shown
1
Fit power cable between ribs and Power Strip Mounting Plate
2
Fit 2 keyholes on Power Strip over 2
pegs on Power Strip Mounting Plate
4Slide Power Strip back to secure it
5
You will need: (Not to Scale)
Route power cable around hook and out through back of Power Tray
3
FTT1100
ONLY
10-Outlet Power Strip
x1
1
2
3
HOOK

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
14
For power adapters
like this proceed
to the next step
7

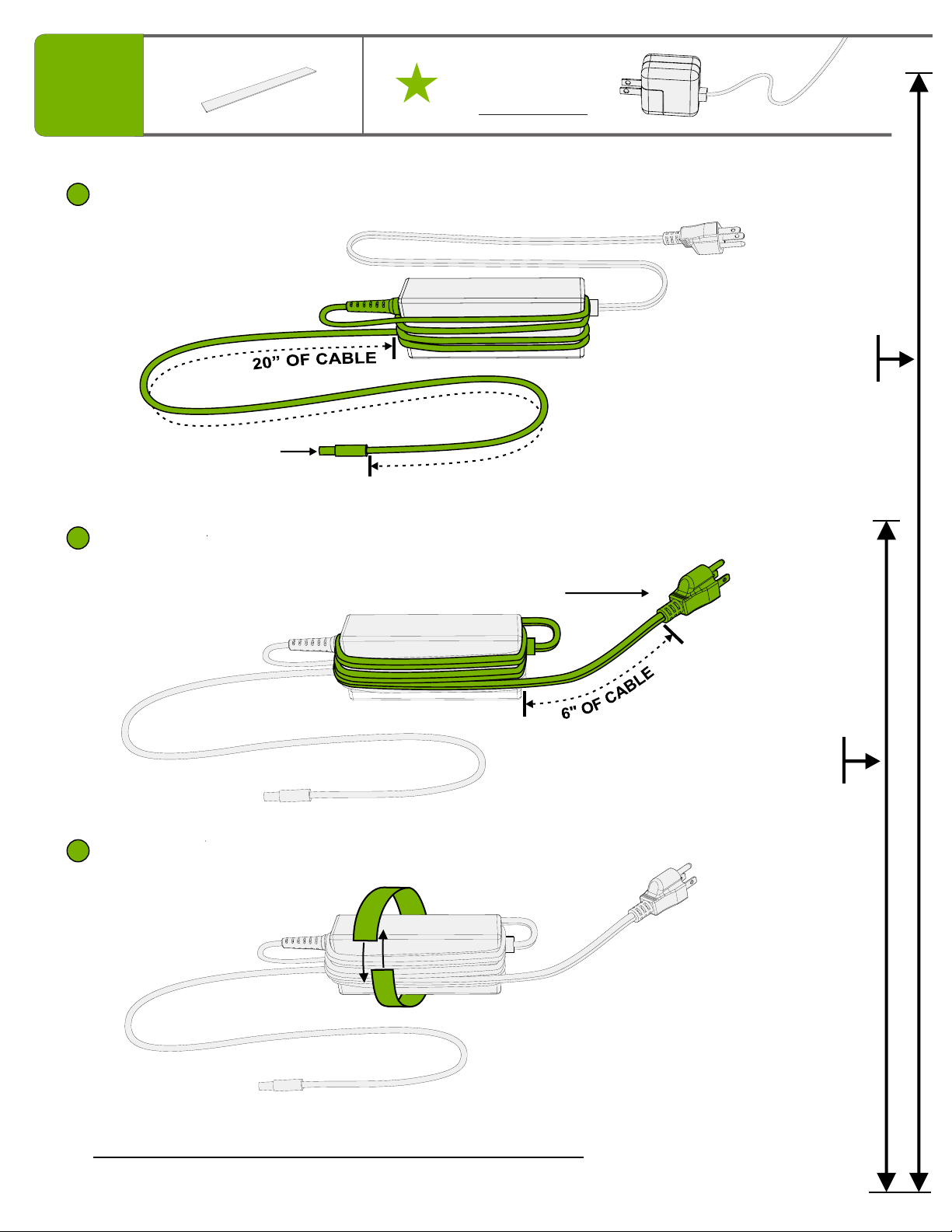

Wrap device power cable around power adapter leaving 20” of cable free
FTT1100
ONLY
WALL OUTLET POWER CABLE
Wrap wall outlet power cable around power adapter leaving 6” of cable free
THIS LINE IS 10” LONG
USE IT TO MEASURE
OUT 20” OF CABLE
THIS LINE IS 6” LONG
USE IT TO MEASURE
OUT YOUR CABLES
1
2
3
Power adapter cable management
Secure cables around adapter using provided hook and loop straps
Hook & Loop
Straps
x10
You will need: (Not to Scale)
DEVICE POWER CABLE
Repeat above steps for all remaining power adapters
!

15
Power Brick Adapter
Wall Plug Power Adapter
(including USB Power Adapters)
Plug in first power adapter
Plug first power adapter into power strip
1
2Run cable to front of tray, leaving excess cable hanging out
8A
FTT1100
ONLY
Start at back of Power Tray
on bottom row of outlets
Start at back of Power Tray
on bottom row of outlets
OR
If your power adapter is too wide to fit on the power strip
please proceed to STEP 9.
FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
16
Plug in remaining power adapters
Power Brick Adapters
Plug 4 power adapters into remaining outlets on bottom row of power strip
1
2Plug 5 power adapters into top row of outlets on power strip
Run cables to front of tray, leaving excess cable hanging out
12
2
1
3
OR
8B
FTT1100
ONLY
3 3
33
Wall Plug Power Adapter
(including USB Power Adapters)

17
9
FTT1112
ONLY
Start at back of Power Tray
on bottom row of outlets
Adapter extension
cables
x10
Follow this step
for larger power adapters
that wont fit on the
10 outlet power strip
!
Plug in power adapter to extension cords, and plug in extension cords to power strip
x10 x10
Route device charging cables to front of Power Tray as shown
If your power adapter is too
wide to fit on the power strip
but you did not order a FTT699
please contact customer service
to order these extension cords.
Copernicus Customer Service:
1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST.
Email our Tech Support Service at [email protected]
FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
18
3
Wind excess USB Hub power cable around Power Adapter
1
HOOK
Setup USB Hub
2
Place USB Hub and Power Adapter into Power Tray
Do not pull cable
too tight
!
USB Hub Power Cable
Route power cable around hook and out through back of Power Tray
10
FTT1100-USB
ONLY
You will need: (Not to Scale) Power Adapter
x1
10 Port USB Hub
x1
4
Connect USB Hub to power adapter

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
19
Plug in USB cables
2Run USB cables to front of tray, leaving excess cable hanging out
11
Plug USB cables into USB Hub
1
FTT1100-USB
ONLY

FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
20
Position Power Tray for Cable Management
1
The rest of this assembly guide applies to FTT1100, 1100-USB & FTT1112
12
Feed Power Strip power cable through hole in back of tub
2Partially slide Power Tray into tub (leave a gap as shown below)
