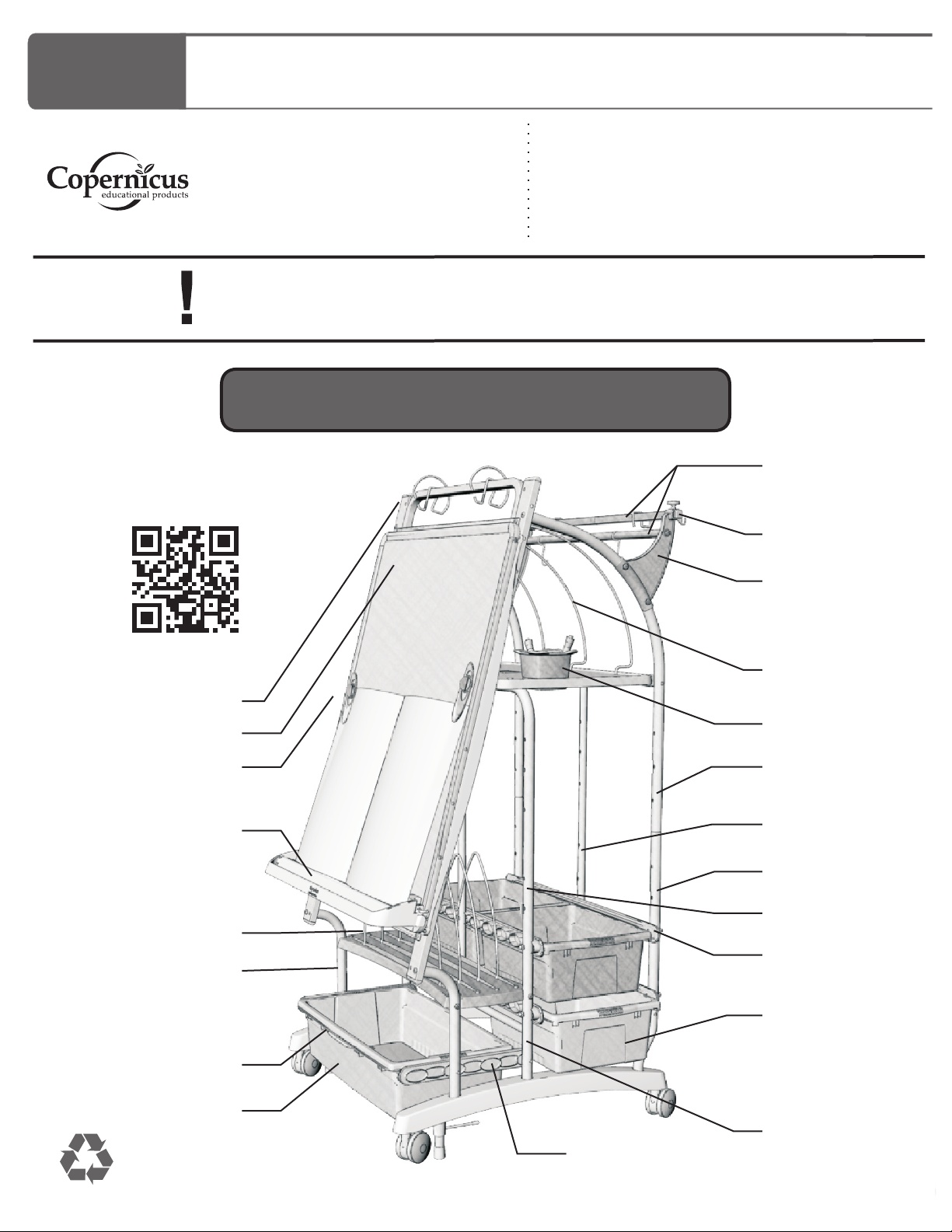

Copernicus Royal Inspiration Station User manual

IS2 - Version C - Released July 20, 2016 - Copernicus Educational Products Inc.
Accessory Rods (2)
Tub Channel (4)
Open Tub (4)
Really Big Tub (1)
Page Paw (2)
Front Channel (2)
Accessory Rod
Brackets (2)
Standard Royal Inspiration Station
®
Ultra Safe Premium
Bookledge (1)
Big Book Rack (4)
Front Frame (2)
Tub Rack (1)
Rear Frame Upper (2)
Rear Frame Lower (2)
Tiny Tub (2)
Frame Upright (1)
Middle Frame (1)
Telescopic Extension (2)
Chart Paper Guides (3)
Whiteboard (1)
?
?
?
This product is meant to be assembled by an adult.
In its unassembled state, small parts present a hazard.
To be used under direct supervision of an adult.
WARNING
Whiteboard Support (2)
Check out some of our
other great products!
www.copernicused.com
IS2
Assembly Guide
IS2_2016_C
Check out our other products online at
www.copernicused.com
For assistance, please contact us:
1-800-267-8494
Email [email protected]
Have your packing slip ready for reference
Don’t forget to check out our tips for your whiteboard at:
www.copernicused.com
Big Book Rack (1)
Please Recycle

IS2 - Version C - Released July 20, 2016 - Copernicus Educational Products Inc.
Quality schools are the
result of quality teachers
going above and beyond
the call of duty.
VICKI CARUANA
In everyone’s life at some
time our inner fire goes
out. It is then burst into
flame by an encounter
with another human
being. We should all be
thankful for those people
who rekindle the inner
spirit.
ALBERT SCHWEITZER
My idea of education is
to unsettle the minds of
the young and inflame
their intellects.
ROBERT MAYNARD
HUTCHINS
Nothing has a better
effect upon children than
praise.
SIR PHILLIP SIDNEY
Life
Frame
Warranty
Time
Tub
Warranty
Life
Time
Jim Phillips
Chief Cook and Bottle Washer
Standard Royal Inspiration Station
®
Assembly Guide
IS2_2016_C
Check out our other products online at
www.copernicused.com
For assistance, please contact us:
1-800-267-8494
Email [email protected]
Have your packing slip ready for reference
Dear Educator,
Thank you for purchasing one of our products. I hope that the s useful in
your classroom.
If you have any questions, concerns, or ideas please contact us by telephone at 1-800-267-8494 or email at
[email protected].
Enjoy using your new product and happy teaching.
®
Standard Royal Inspiration Station i
To validate your warranty, submit the ON-LINE form at www.copernicused.com
Enter a draw to win a Copernicus Product for your classroom at the same time!
Validate Your Warranty
IS2
2

IS2 - Version C - Released July 20, 2016 - Copernicus Educational Products Inc.
Before beginning, you should have:
Big Book Rack
1x
(23205)
Chart Paper
Guide
3x
(31059)
Big Book
Divider
4x
(31060)
S-Hook
2x
(31018)
Individual
Telescoping
Extension
1Left, 1 Right
2x
(330141 - Set)
Accessory Rod
Brackets & Knob
1 Left, 1 Right
2x
(23207 - Set)
(23207L)
(23207R)
Square
Accessory Rod
1x
(33027)
Round
Accessory Rod
1x
(33028)
Page Paw
2x
(AC450-0)
Individual
Tub Rack
1x
(31058)
Front Channel
1 Left, 1
Right
2x
(23209 - Set)
(23209R)
(23209L)
Tub Channel
4x
(23208)
Rear Hanging
Hook
2x
(31061)
Front Frame
2x
(33029)
Rear Frame
Lower
2x
(33030)
Base
2x
(23210)
Frame Upright - 32”
1x
(33033)
Stretcher - 26-15/16”
2x
(33035)
Middle Frame
1x
(33032)
Rear Frame Upper
2x
(33031)
Ultra Safe Premium
Bookledge
1x
(PABL30)
Chart Paper
Hooks
2x
(310171)
Top Shelf
1x
(23206)
Chart Paper
Support
1x
(33034)
Contents - IS2-0
Whiteboard
1x
(32104)
Whiteboard
Support
2x
(23211)
Additional tools required:
Adjustable wrench Rubber Mallet
OR 10mm (3/8”)
Wrench +
®
Standard Royal Inspiration Station - Parts
IS2
3

IS2 - Version C - Released July 20, 2016 - Copernicus Educational Products Inc.
Continued:
Allen Key
2x
(43281)
M6 x 40mm Bolt
20x
(43240)
M6 x 20mm Bolt
20x
(43220)
M6 Lock Washer
26x
(43273)
M8 Lock Washer
28x
(43274)
M6 Barrel Nut
28x
(43272)
M6 Nut
4x
(43270)
M6 x 25mm Bolt
6x
(43225)
M6 x 65mm Bolt
4x
(43265)
Caster
4x
(41003C)
Individual
Driver for Cordless Drill
(Not to Scale)
1x
(43280)
Optional use for faster assembly
Hardware
Open Tub
4x
(CC4068)
Really Big Tub
1x
(CC4073)
Tiny Tub
2x
(CC4072)
Contents - IS2-CB
M6 x 30mm Bolt
4x
(43230)
M6 Acorn Nut
4x
(43271)
10 lbs Weight Limit
15 lbs Weight Limit
A
B
C
D
E
F
G
H
I
J
®
Standard Royal Inspiration Station - Parts
In IS2-0
IS2
4

IS2 - Version C - Released July 20, 2016 - Copernicus Educational Products Inc.
This symbol denotes a 2- or 3- Person Task. For safety, please ensure that there are the
suggested number of people working on steps displaying this symbol.
Watch for this symbol throughout the Assembly Guide. Wherever you see it, pay close
attention. The symbol denotes a step needing extra attention to ensure it is done
correctly.
The star symbol highlights an advisory note.
!
Watch for These Helpful Symbols
Before You Begin
As You Assemble the Unit
Lay out and identify all of the included parts.
The hardware has been packed according to step.
Read the assembly guide over once to familiarize yourself with them.
Please note that in its unassembled state, this product contains parts that can be
hazardous to small children. This product should be assembled by an adult.
!
Follow the steps in sequence.
Before beginning each step, find the part(s) that you need for that step.
Pay attention to the labels on the parts; they are there to help direct you at certain stages.
The title of each step states what you will be doing. Review the text and the pictures as you build
the unit.
?
?
?
Need Tech Support?
Have a Question?
Email our Tech Support Service
2-Person Task
Tips for Assembly
Customer Service - FAQ’s
For parts and other issues regarding the frame:missing
Please call Copernicus Customer Service,
1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST.
OR
Email our Tech Support Service at [email protected]
where we will be happy to help.
After Assembly; Before Use
Remove the plastic film from the Whiteboard before writing on it.
5

IS2 - Version C - Released July 20, 2016 - Copernicus Educational Products Inc.
Note: Do not tighten any fasteners unless prompted

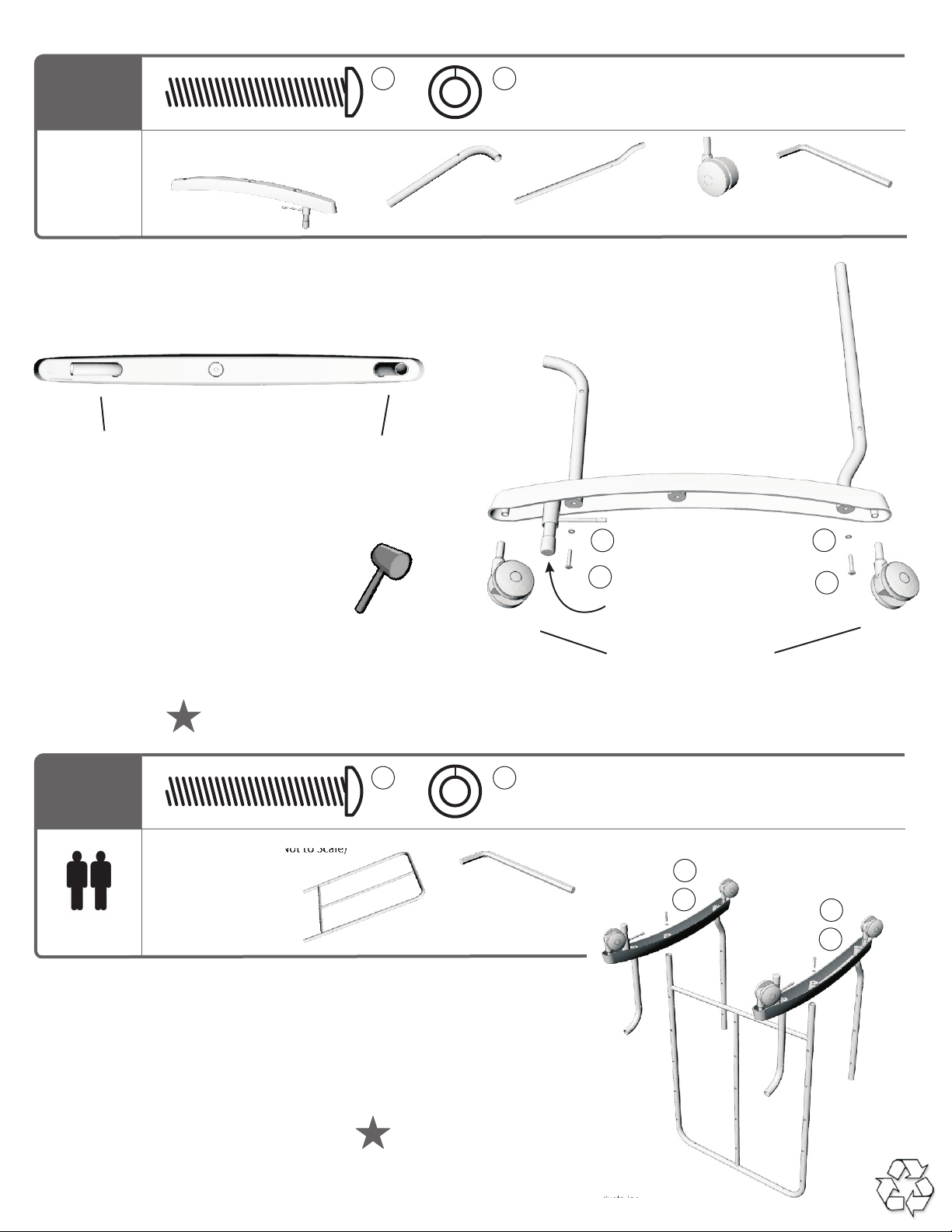

1
Install Front Frame, Rear Frame Lower & Casters
Brake
Note orientation
!
Base x 2 Front Frame x 2 Rear Frame Lower x 2 Caster x 4
You will need: (Not to Scale)
x 4 x 4
Actual Size:
Ensure frame pieces are square with the base.
Top View
!You should begin the installation with
the brakes in the up position.
Front
of unit
Press Casters firmly into the Side Frame:
- Casters will click into place
- If necessary, place a wrench between the
wheels & tap in with a rubber mallet
!
G
B
2
Install Middle Frame
2 Person Task
Stand unit right side up
Middle Frame x 1
You will need: (Not to Scale)
x 2 x 2
Actual Size:
!
G
GB
B
G
B
G
B
G
B
6
Allen Key x 1
Allen Key x 1
DO NOT tighten the boltsDO NOT tighten the bolts

IS2 - Version C - Released July 20, 2016 - Copernicus Educational Products Inc.
Build Rear Frame
Rear Frame Upper
x 2
You will need: (Not to Scale)
x 6 x 6
Frame Upright - 32”
x 1
Stretcher - 27.5”
x 2
Actual Size:
3
!Note the label
on the Frame
Upright, and
ensure the part is
installed correctly
G
G
G
B
B
B
!Indents on stretcher
facing top of unit
4
Whiteboard Support
x 2
You will need: (Not to Scale)
x 4 x 4
Actual Size:
2 Person Task
!Fasten bottom
bolts first
G
B
G
B
G
B
G
B
Right Side
Left Side
Left Side Right Side
G
B
G
B
7
Allen Key x 1
Allen Key x 1
Install
Whiteboard
Supports
DO NOT tighten the bolts
DO NOT tighten the bolts

IS2 - Version C - Released July 20, 2016 - Copernicus Educational Products Inc.
Right
Top Mounting holes
Left
Mounts at outer
hole on bottom
!Fasten bottom
bolts first
5
Whiteboard
x 1
You will need: (Not to Scale)
Actual Size:
High position
Middle position
Low position
Whiteboard Height
& Orientation
x 4 x 4 x 4
Select Your Whiteboard Height
& Orientation
G
C
J
G
CJ
Adjustable wrench
OR 10mm (3/8”)
Wrench
2 Person Task
8
Allen Key x 1
DO NOT tighten the bolts

IS2 - Version C - Released July 20, 2016 - Copernicus Educational Products Inc.

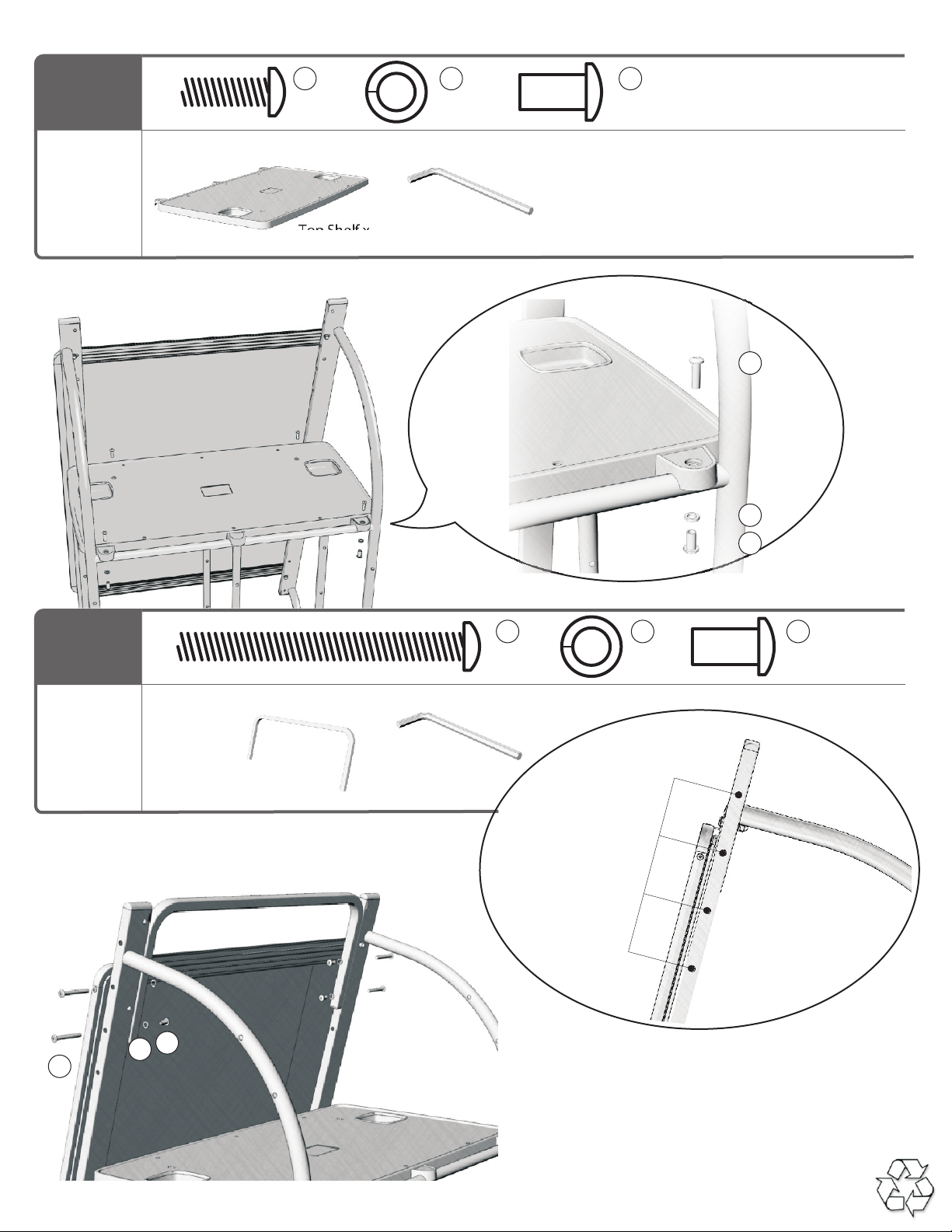

6
Install Top Shelf
Top Shelf x 1
You will need: (Not to Scale)
x 4 x 4 x 4
Actual Size:
7
Install Chart Paper Support
Note: You should align your chart paper support
so that it corresponds with the whiteboard height.
?Bottom two holes for Lowest Board Height
?Middle two holes for Middle Board Height
?Top two holes for Highest Board Height
Chart Paper
Support
x 1
You will need: (Not to Scale)
x 4 x 4x 4
Actual Size:
!
Top 2 - High
Middle 2 - Medium
Bottom 2 - Low
H
H
F
F
E
A
H
EF
H
AF
9
Allen Key x 2
Allen Key x 1
Tighten all
bolts
!

IS2 - Version C - Released July 20, 2016 - Copernicus Educational Products Inc.
?Place an empty hardware bag over the
frame to prevent the unit from being
scratched
?Hooks snap onto the frame easily
?Slide bag free once the hook has been
snapped onto the frame.
Snap
Place bag
here for
protection
8
Attach Chart Paper Hooks
Chart Paper Hooks x 2
You will need: (Not to Scale)
9
Install Book Ledge
?Note: There are multiple locations on the side
of the Whiteboard to install the Book Ledge.
Choose the location that works for your
classroom.
?Insert one hook into the appropriate hole on
one side of the Whiteboard Frame.
?Pull out the opposite hook & snap into
corresponding hole.
Ultra Safe Premium Bookledge x 1
You will need: (Not to Scale)
Note: The spring tension is
designed to discourage
children from unhooking
the Book Ledge.
!
10

IS2 - Version C - Released July 20, 2016 - Copernicus Educational Products Inc.
10
Install Big Book Rack & Dividers
Big Book Rack x 1 Big Book Rack Divider x 4
You will need: (Not to Scale)
x 4 x 4 x 4
Actual Size:
11
Install Chart Paper Guides
?Install the Chart Paper Guides into the
holes in the Top Shelf
?Press Chart Paper Guides firmly into
place
Chart Paper Guide x 3
You will need: (Not to Scale)
G
B
I
Ensure guides
are secure
!
I
G
BI
2 Person Task
11
Allen Key x 1

IS2 - Version C - Released July 20, 2016 - Copernicus Educational Products Inc.
1. Unfasten the Knob from the bracket and put aside. Align one
Accessory Rod Bracket with the holes in the Upper Rear
Frame. Fasten.
2. Slide the Rear Whiteboard Hooks onto the Round Accessory
Rod (Detail ‘A’)
3. Slide the Square Accessory Rod and the Round Accessory Rod
into their locations, ensuring hole on square rod is turned
upwards and Rear Whiteboard Hooks are facing away from
the unit. Cap the other end with the second Accessory Rod
Bracket. Fasten.
4. Fasten the ends of the Round Accessory Rod to the Accessory
Brackets Fasten.
Detail ‘A’
!
12
Install Accessory Rods
2 Person Task
Accessory
Rod Brackets
& Knobs x 2
Round Accessory
Rod x 1
Square Accessory
Rod x 1
Rear Whiteboard
Hook x 2
You will need: (Not to Scale)
x 6 x 4 x 4
Actual Size:
!
!
Ensure hole is
turned upwards
Note hook
orientation
!Remove
knob first
1
2
34
H
H
F
F
D
D
D G
x 2
!Repeat on other side.
F
DG H
12
Allen Key x 2

IS2 - Version C - Released July 20, 2016 - Copernicus Educational Products Inc.
13
Install Telescoping Rods
?Slide Telescoping Rods into the left and
right side of the Square Accessory Rod.
?Insert Knobs into place on the
Accessory Rod. Loosening these will
allow for the rods to slide in or out,
while tightening them will hold the
rods at the desired location.
!
Telescoping Rod x 2
You will need: (Not to Scale)
14
Install Front Channels
Front Channel x 2
1 Left, 1 Right
You will need: (Not to Scale)
x 4 x 4 x 4
Actual Size:
?Align the Front Channels with the
bottom holes on the Middle and
Front Frame
?It may help to loosely install first, and
tighten once both bolts are through
the part.
!
!
Right Side
Top
Bottom
H
E
F
F
EH
Identify the right and left Front
Channels
Ensure that the correct hook is on
the left and right side. Hooks should
face towards the back of the unit.
13
Allen Key x 2

IS2 - Version C - Released July 20, 2016 - Copernicus Educational Products Inc.
Angle the rack
into position
Snap
15
Install Front Tub Rack
?Identify Tub Rack orientation
?Angle the Front Tub Rack into the Front Channel.
?Press down firmly to snap into place.
?Once installed, rack should slide smoothly in
channel.
Tub Rack x 1
You will need: (Not to Scale)
16
Install Tub Channels
Tub Channel x 4
You will need: (Not to Scale)
x 12 x 12 x 12
Actual Size:
There are 7 different channel
placement options. Choose
positions for the channels that
will organize the tubs best for
you.
You may always upgrade the
Standard Inspiration Station to
the Premium model if you need
more tubs. See our website for
more information.
Fasten middle bolt first,
this will make the other
two bolts easier to install.
!
Top
Bottom
!
H
E
F
Back bar rests on top
UP
!
Before installing tubs, tighten all fasteners firmly
F
EH
14
Allen Key x 2

IS2 - Version C - Released July 20, 2016 - Copernicus Educational Products Inc.
Snap
17
Install ‘S’ Hooks
?Place an empty hardware bag over the frame
to prevent the unit from being scratched
?Pull bag free once the hook has been
snapped over the frame
S-Hook x 2
You will need: (Not to Scale)
Place bag
here to prevent
scratching
!
18
Open Tub x 4 Tiny Tub x 2
You will need: (Not to Scale)
Insert Tubs
Angle tub into the channel
Slide
10 lbs Weight Limit 15 lbs Weight Limit Really Big Tub x 1
15
