THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Portable Propane Grill
Gril Portable au Propane
USA office: Fontana AUS office: Truganina GBR office: Ipswich FRA office: Saint Vigor d'Ymonville
USA:[email protected]
AUS:[e-mail]
GBR:[e-mail]
FRA:[e-mail]

NOTE TO INSTALLER/ASSEMBLER:
SAVE THIS MANUAL FOR FUTURE REFERENCE
FOR OUTDOOR USE ONLY
LP GAS CYLINDER SOLD SEPERATELY
Give this operator’s manual to the consumer so the
consumer may retain it for future reference.
You might be seriously hurt if you do not follow the
instruction in this operator’s manual.
EN

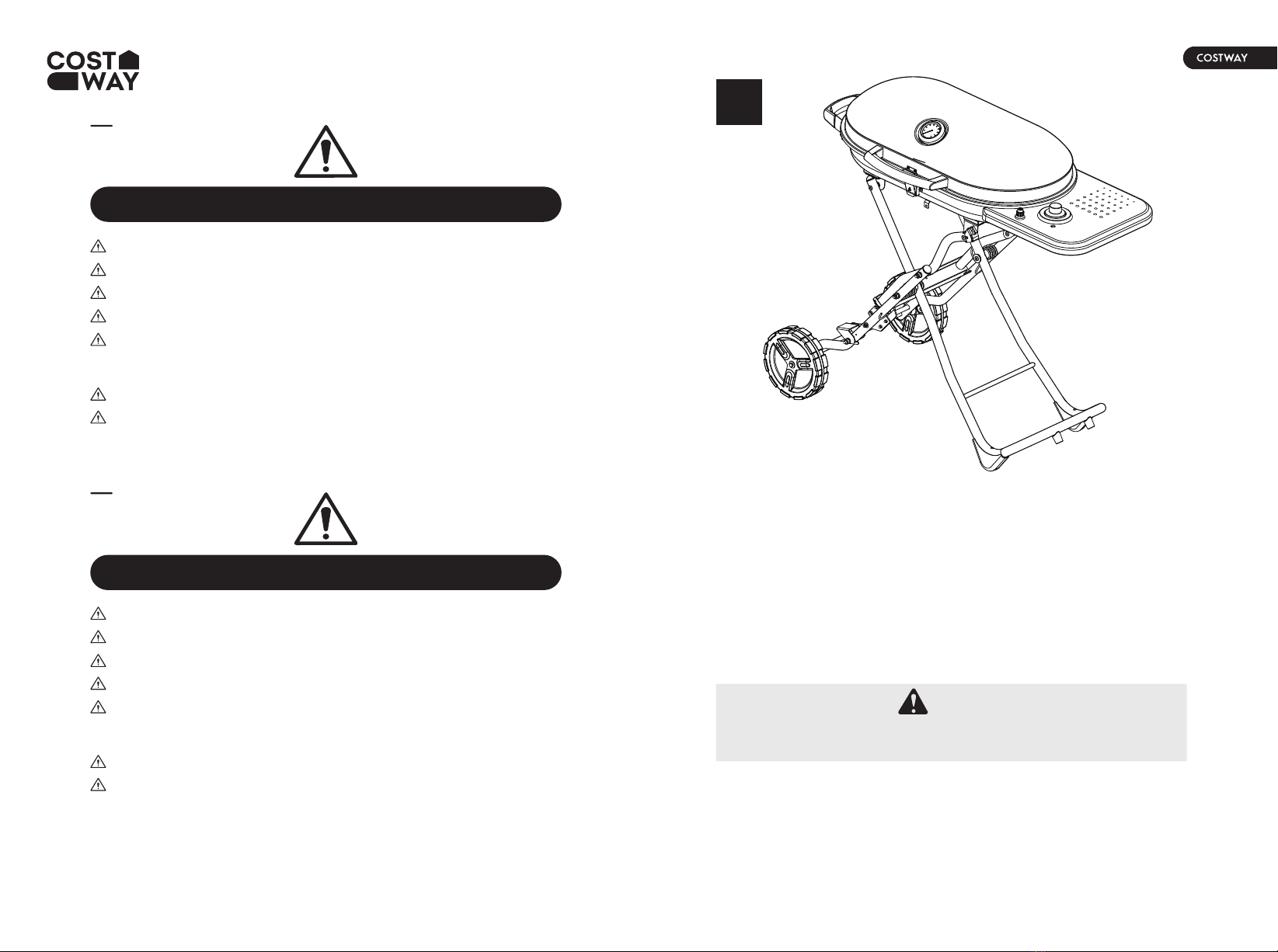

Before You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the area in
which they will be placed in use, to avoid moving the product unnecessarily once
assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from babies
and children as they potentially pose a serious choking hazard.
FR
Veuillez lire attentivement toutes les instructions.
Conservez les instructions pour vous y référer ultérieurement.
Vérifiez toutes les pièces et les accessoires.
Lisez attentivement chaque étape et suivez l'ordre correct.
Nous recommandons que, dans la mesure du possible, tous les produits
soient assemblés à proximité de la zone où ils seront utilisés, afin d'éviter tout
déplacement inutile du produit une fois assemblé.
Placez toujours le produit sur une surface plane et stable.
Conservez toutes les petites pièces de ce produit et les matériaux d'emballage
hors de portée des bébés et des enfants, car ils pourraient présenter un risque
d'étouffement.
Avant de Commencer
EN
DANGER:
02 03

INTRODUCTION
GENERAL SAFETY RULES
This grill has many features for marking its use more pleasant and
enjoyable. Safety, performance, and dependability have been given
top priority in the design of this product, making it easy to maintain
and operate.
This instruction manual contains important information necessary for
the proper assembly and safe use of the appliance. Read and follow
all warnings and instructions before assembling and using the
appliance. Keep this manual for future reference.
If you smell gas:
• Shut off gas to the appliance
• Extinguish any open flame
• Open firebox hood
• If odor continues, keep away from the appliance and immediately
call gas supplier or your fire department.
Failure to follow these instructions could result in fire or explosion
which could cause property damage, personal injury or death.
DANGER:
Always use outdoors. Using the grill indoors or within an enclosed
area can lead to carbon monoxide poisoning, resulting in serious
injury or death.
DANGER:
▪Do not store or use gasoline or other flammable liquids or
vapors in the vicinity of this or any other appliance.
▪An LP cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
WARNING:
Improper assembly, adjustment, alteration, service, or maintenance
can cause property damage, injury or death. Read the Assembly,
Operation, and Maintenance instructions thoroughly before using,
assembling or servicing this product.
WARNING:
Read and understand all instruction. Failure to follow all instructions
listed below may result in electric shock, fire and/or serious personal
injury.
WARNING:
▪This appliance must be installed in accordance with the latest
local codes. In the absence of local codes, use the :
• United States:
-Nation Fuel Gas Code, ANSI Z223.1/NFPA 54
-LP gas Code,NFPA 58
• Canada:
-Natural Gas and Propane Installation Code, CSA B149.1
-Propane Storage and Handling Code, CSA B149.2
READ ALL INSTRUCTIONS
• Never operate this appliance unattended.
• Never operate this appliance within 25 ft.(7.5 m) of any flammable
liquid.
• If a fire should occur, keep away from the appliance and
immediately call your fire department. Do not attempt to extinguish
an oil or a grease fire with water.
Failure to follow these instructions could result in fire, explosion or
burn hazard which could cause property damage, personal injury or
death.
DANGER:
04 05

▪The grill shall not be used under overhead combustible
construction.
▪The grill is not intended for and should never be used as a
heater.
▪Keep area around this appliance free of combustible materials,
gasoline, and all other flammable vapors and liquids.
▪Do not restrict the flow of combustion and ventilation air.
▪If an accessory is used on the grill that requires an external
electrical powder source, the accessory when installed must be
electrically grounded in accordance with local codes. In the
absence of local codes, use the:
• United States:
-National Electrical Code, ANSI/NIPA 70
• Canada:
-Canadian Electrical Code, CSA C22.1
▪This appliance is for outdoor use only, and shall not be used in a
building, garage, shed, balcony, or any other enclosed area.
▪Do not use or install this appliance in or on boats or recreational
vehicles.

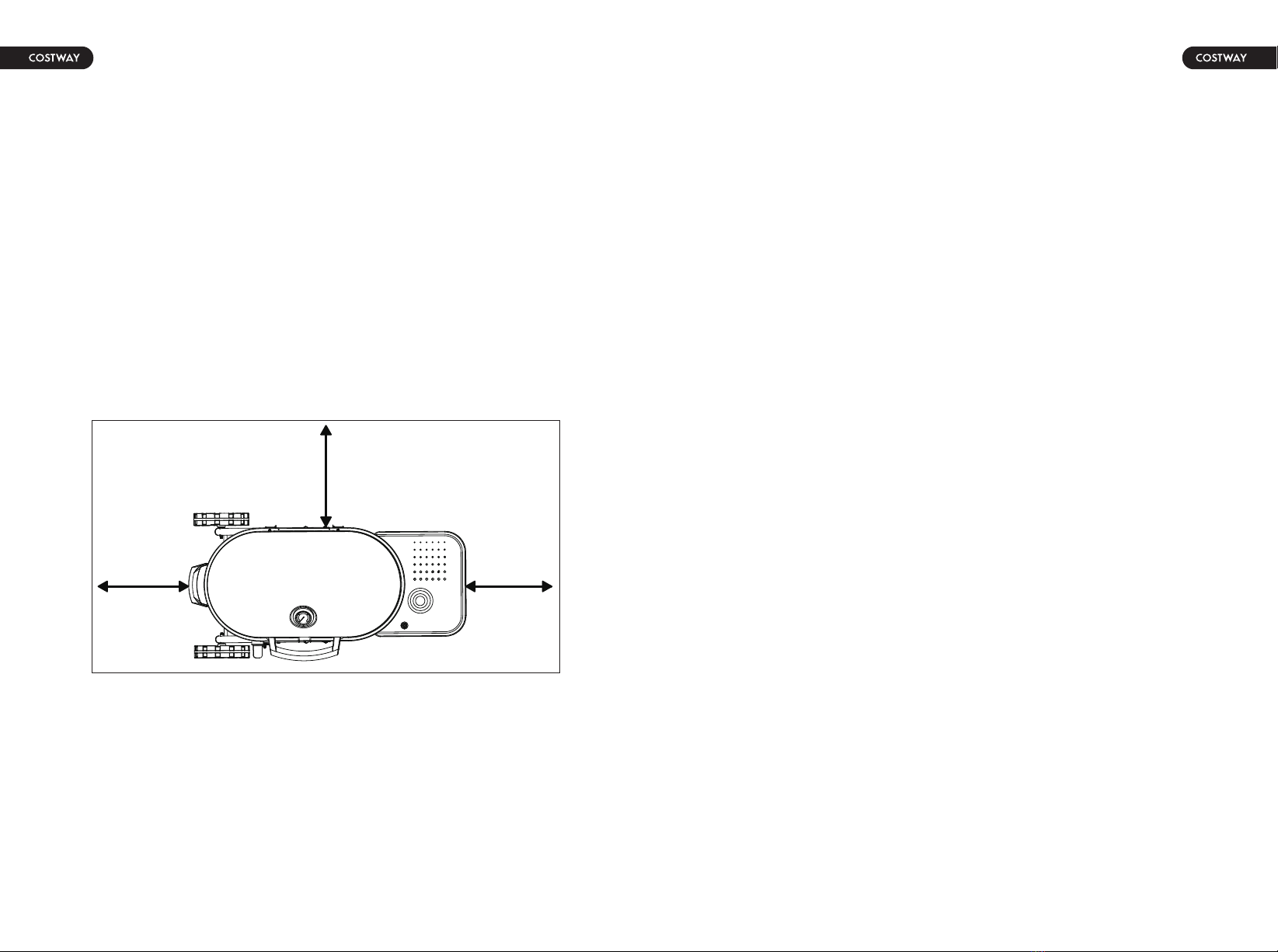

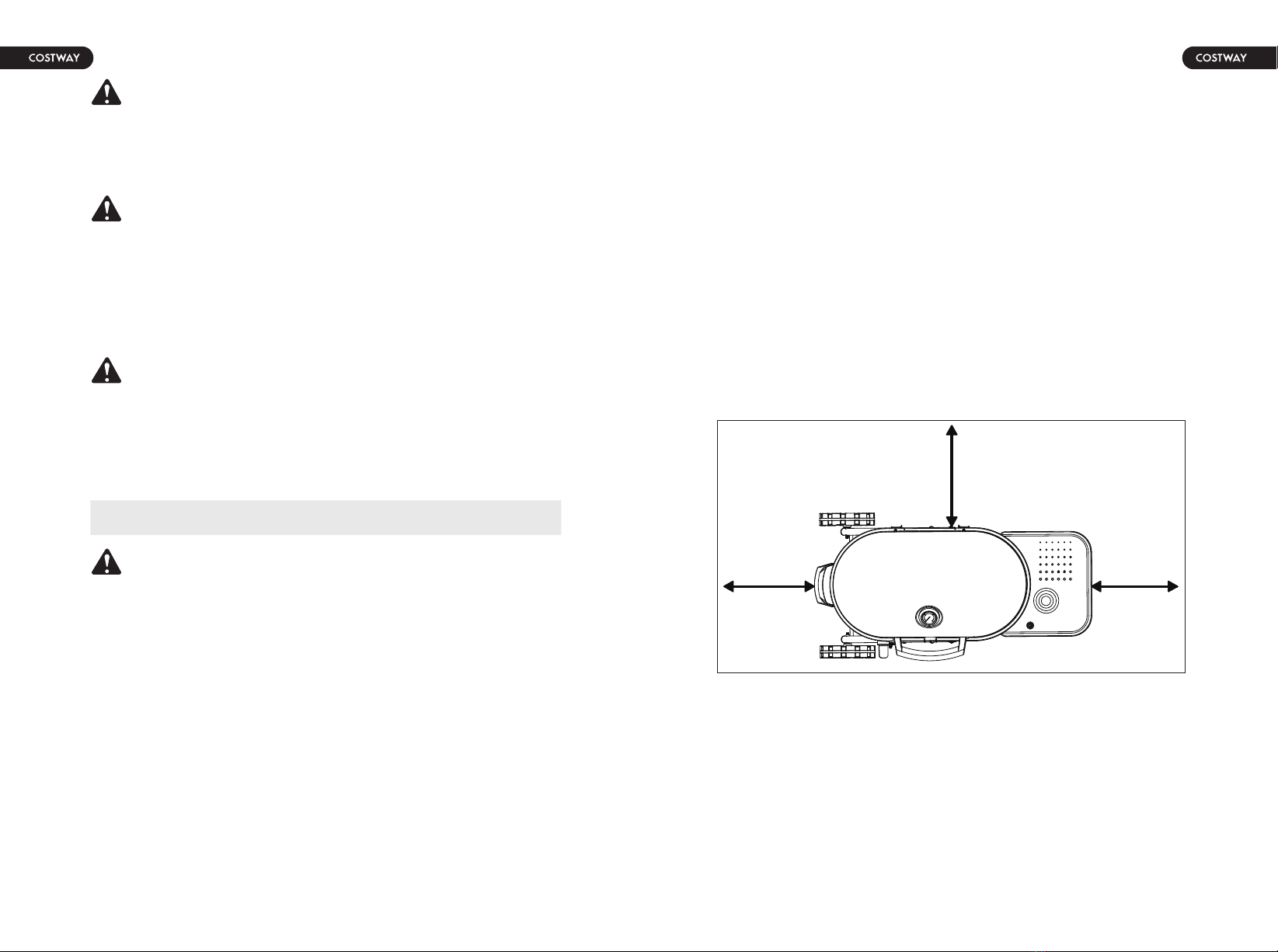

▪This grill must be located away from combustible surfaces by no
less than 36 inches(91.5 cm) from back of grill and 36
inches(91.5 cm) from sides of this grill.
36 inches
(91.5 cm)
Figure 1
36 inches
(91.5 cm)
36 inches
(91.5 cm)
▪Keep ventilation openings of the cylinder enclosure free and
clear from debris.
▪This grill is not intended for commercial use.
▪Never move grill when using or still hot.
▪Never use the grill indoors. Toxic fumes can accumulate.
▪Always remove the LP gas cylinder(liquid propane also called
liquid petroleum gas) when the appliance is not in use or before
storing or lowering the unit.
▪Do not alter the grill in any manner.
▪Do not use the appliance unless it is fully and properly
assembled and all parts are securely fastened.
▪Never attempt to light burner with the firebox hood closed. A
build up of non-ignited gas inside a closed grill is hazardous.
▪When in use, keep children and pets away at all times.
▪Do not leave the grill unattended.
▪Do not use charcoal, ceramic briquettes, or lava rock in a gas
grill.
▪In the event of a grease fire, turn off the burner. Do not attempt
to extinguish with water. Use type BC dry chemical fire
extinguisher or smother with dirt, or baking soda.
▪When cooking with oil or grease, have a type BC or ABC fire
extinguisher readily available.
▪Keep any electrical cord and fuel supply hose away from any
heated surfaces.
▪Do not store a spare LP gas cylinder under or near the grill If not
followed exactly, a fire causing death or serious injury may
occur.
06 07

GENERAL SAFETY RULES
▪If a leak is detected at any time, get away from the LP gas
cylinder and call the fire department.
▪This grill is not intended to be used on a boat, in an RV, camper
trailer, or motor home.
▪Do not use the grill until leak-tested.
▪Periodically check and/or clean the burner/ venturi tubes for
insects and insect nests. A clogged tube can lead to a fire
beneath the grill.
▪LP gas cylinders must be stored outdoors out of reach of
children and must not be stored in a building, garage, or any
other closed in area.
▪Do not operate the grill while under the influence of drugs,
alcohol, or any medication.
▪Stay alert and exercise control. Watch what you are doing and
use common sense. Do not operate a grill when you are tired.
▪Propane cylinder use(1lb disposable):
▪Use only cylinder marked “Propane Fuel”.
▪Cylinder must be constructed and marked in accordance with
the specifications for LP gas cylinders of the U.S. Department of
Transportation (DOT) or the National Standard of Canada,
CAN/CSA-B339, Cylinders, Spheres and Tubes for the
Transportation of Dangerous Goods.
▪Size should be 4 inches (10.1 cm) diameter, 8 inches(20.3 cm)
height, or 3 inches(7.6 cm) diameter, 10 inches(25.4 cm) height.
▪Save cylinder cap and reinstall when not in use.
▪Cylinder supply system must be arranged for vapor withdrawal.
Gas cylinder must be upright in use.
SPECIFIC SAFETY RULES
1.Use grill only with LP gas and the regulator/valve assembly
supplied.
2.Check for leaks prior to grilling operations. Do this even if this grill
was assembled at the store.
3.Do not operate the grill if there is a gas leak present.
4.Never use a flame to check for gas leaks.
5.Should the burner go out while grilling, turn off the gas valve.
Open the firebox hood and wait 5 minutes before attempting to
relight.
6.Never lean over an open grill or place hands or fingers on hot
surfaces.
7.Thoroughly clean the grill regularly.
8.Do not block the ventilation holes in the sides or back of the grill.
9.Never attempt to use the appliance or any components that have
been damaged or exposed to an accidental fire.
10.Propane gas is not natural gas. Do not try to convert this grill to
natural gas as it is extremely dangerous.
11.Place dust cap on cylinder valve outlet whenever the cylinder is
not in use. Only install the type of the dust cap on the cylinder valve
outlet that is provided with the cylinder valve. Other types of caps or
plugs may result in leakage of propane.
12.Do not store or use gasoline or other flammable liquids or vapors
in the vicinity of the grill.
13.Use heat-resistant mitts or gloves, and long-handled utensils
when operating this grill.
14.When cooking, the grill must be on a level, stable
noncombustible surface in an area that is free of combustible
material. An asphalt surface(blacktop) may not be acceptable for
this purpose.
15.Apartment Dwellers: Check with management to learn
requirements and fire codes of using a LP gas grill in your apartment
complex.
16.Save these instructions. Refer to them frequently and use them
to instruct others who may use this grill. If you loan someone this
grill, loan them these instructions also.
08 09

FEATURES
The following signal words and meanings are intended to explain
the levels of risk associated with this product.
Some of the following symbols may be used on this product.
Please study them and learn their meanings. Proper
interpretation of these symbols will allow you to operate the
product better and safer.
Indicates an imminently hazardous
situation, which, if not avoided, will
result in death or serious injury.
BTU rating: 15,000
Total grill surface: 348 sq.in.
Grilling surface height: 31 inches
Fuel source: Propane(not included)
Natural gas convertible: No
Figure 2
ASSEMBLY
SYMBOL SIGNAL
DANGER:
Indicates a potentially hazards
situation, which, if not avoided, could
result in death or serious injury
WARNING:
Indicates a potentially hazardous,
which, if not avoided, may result in
minor or moderate injury
CAUTION:
(Without Safety Alert Symbol)
Indicated important information not
related to an injury hazard, such as a
situation that may result in property
damage.
NOTICE:
MEANING
Indicates a potential personal injury
hazard.
SYMBOL NAME
PRODUCT SPECIFICATIONS

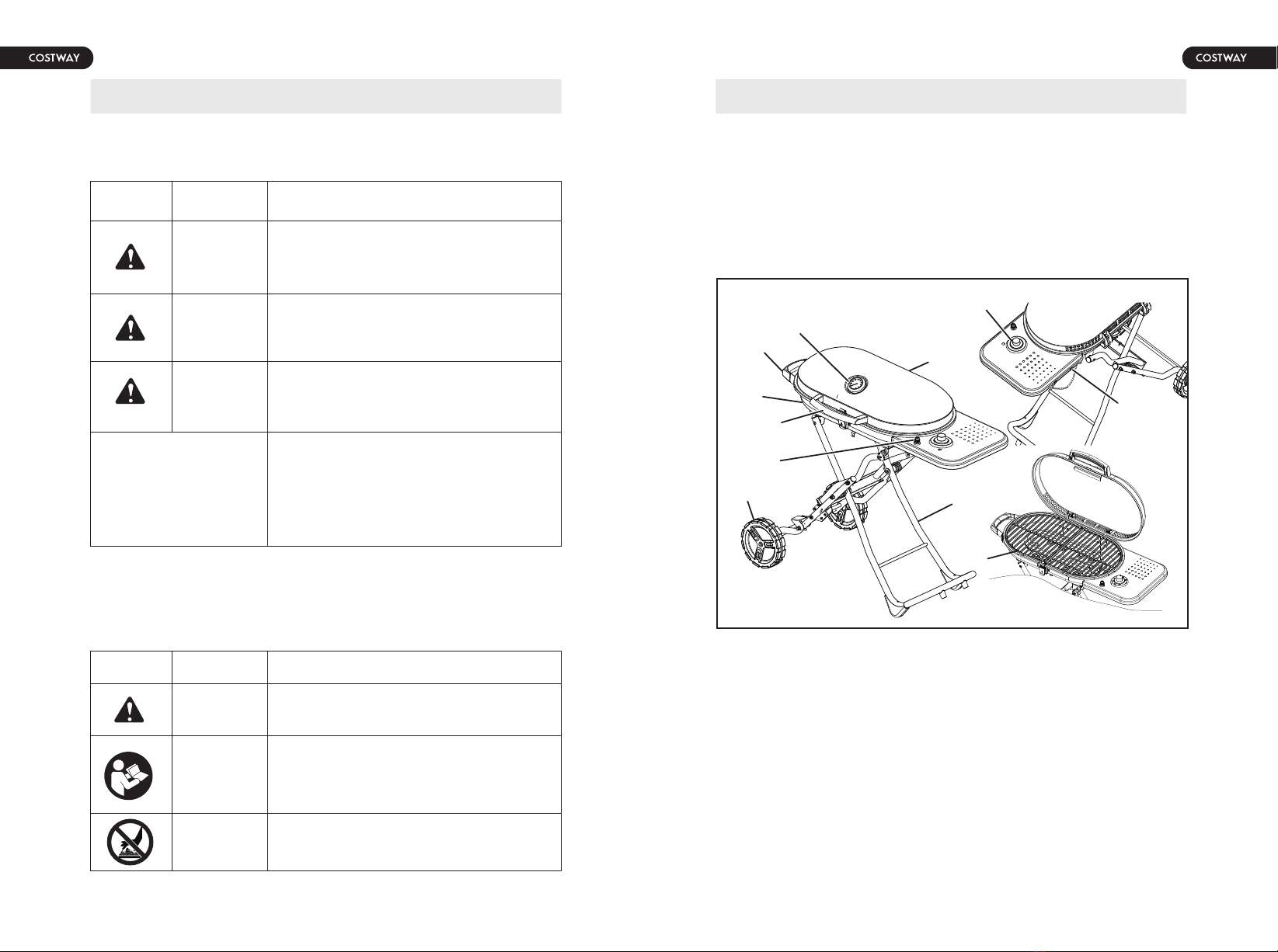

See Figure 2.
The safe use of this grill requires an understanding of the
information on the grill and in this operator's manual. Before use of
this grill, familiarize yourself with all operating features and safety
rules.
Collapsible Stand - The stand can be collapsed for storing or
transporting the grill.
Electric Ignitor -The electric igniter uses a AAA battery(not included)
that lights the gas burner when pushed.
KNOW YOUR GRILL
Safety Alert
To reduce the risk of injury, user must
read and understand operator’s
manual before using this product.
Read
Operator’s
Manual
To reduce the risk of injury or damage,
avoid contact with any hot surface.
Hot Surface
DESIGNATION/EXPLANATION
Temperature Gauge
Firebox Hood
Collapsible Stand
Grate
Match
Holder
Storage
Control Knob
Stand
Front
Handle
Firebox
Firebox
Handle
Electric
Ignitor
Rugged Wheels
10 11

A-Fire box handle x 1
B-Grease cup x 1
C-Grate x 1
D-Wheel x 2
E-Stand front handle x 1
F-Axle x 1

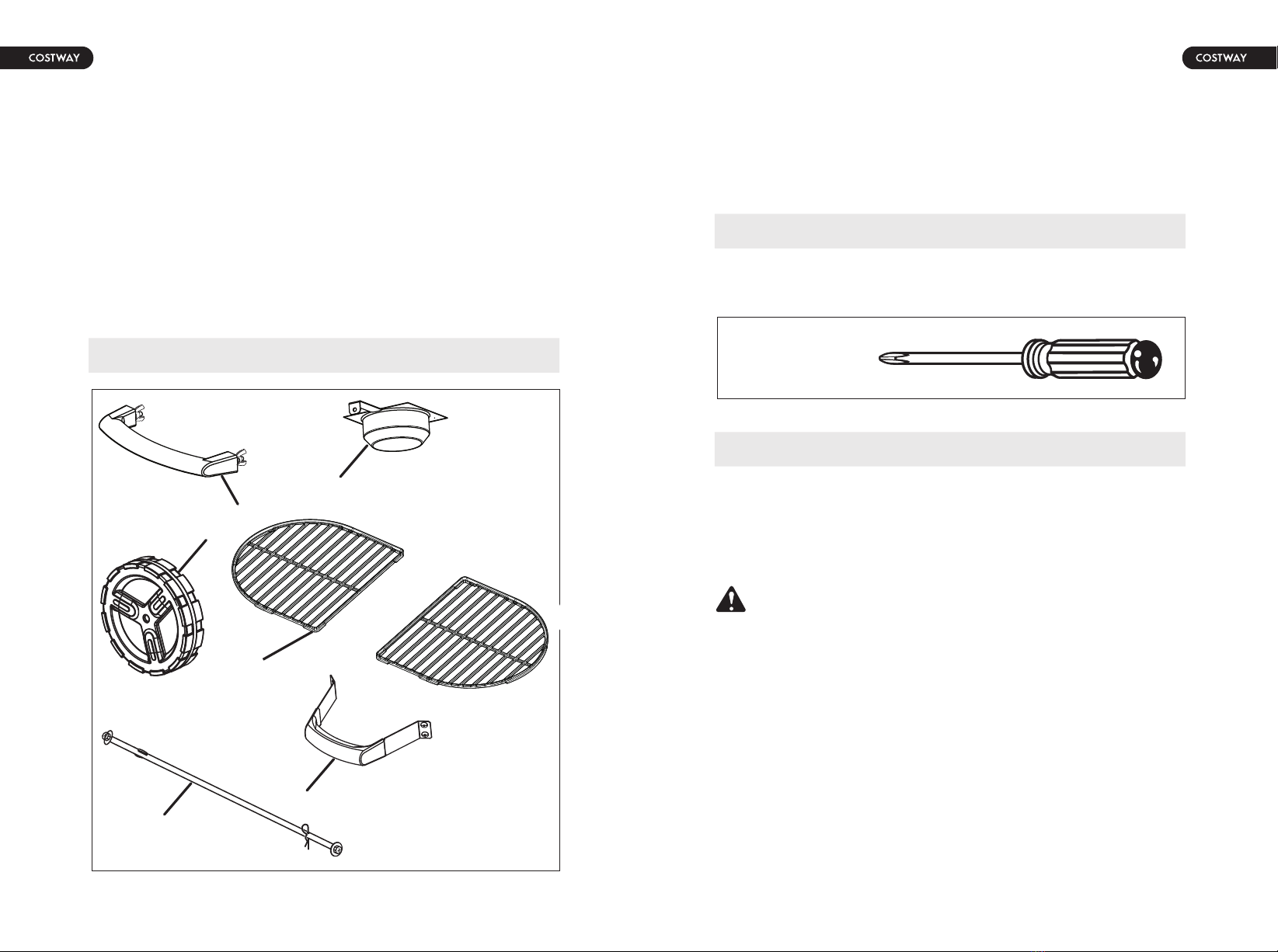

The following tools (not included or drawn to scale) are needed for
assembly and making adjustments:
This product requires assembly.
▪Carefully lift the grill from the carton and place it on a level work
surface.
▪Inspect the grill carefully to make sure no breakage or damage
occurred during shipping.
▪Do not discard the packing material until you have carefully
inspected the grill, identified all loose parts, and satisfactorily
operated the grill.
NOTE: Some loose parts are located inside the grill assembly
beneath the firebox hood.
LOOSE PART
TOOLS NEEDED
ASSEMBLY
Do not use this product if any parts on the Loose Parts List are
already assembled to your product when you unpack it. Parts on this
list are not assembled to the product by the manufacturer and
require customer installation. Use of a product that may have been
improperly assembled could result in serious personal injury.
WARNING:
Figure 3
Figure 4
UNPACKING
Phillips Screwdriver
Firebox Hood - The firebox hood can be locked for easy transport.
Match Holder Storage - Slots in the back of the grill provide
convenient storage for the match holder.
Rugged Wheels - The durable plastic wheels allow you to move the
grill across smooth and rough surfaces.
Temperature Gauge - The temperature gauge measures
temperatures up to 700 ℉(371 ℃).
C
D
E
F
A
B
12 13

If any parts are damaged or missing do not operate this grill until the
parts are replaced. Use of this product with damaged or missing
parts could result in serious personal injury.
WARNING:
Some parts may contain sharp edges that may cause personal
injury. Wear protective gloves if necessary.
See Figure 5-6.
1.With the grill out of the box and packaging removed, place the grill
right side up on flat surface.
2.Remove the hitch pin, screws, and washers from the axle.
3.Locate the holes in the stand legs.
4.Slide the axle through the square hole in the left stand leg and
then through the round hole in the right stand leg.
5.Install the hitch pin into the hole in the axle to secure it in place.
6.Lift the grill, slide one washer and wheel onto the axle.
7.Using a second washer and screw, secure the wheel to the stand.
Securely tighten screw.
8.Repeat this process to secure the other wheel.
CAUTION:
Step 1: Attaching the Wheels
See Figure 7.
1.Locate the handle mounts on the firebox.
2.Remove the screws, lock washers, and washers from the handle
mounts.
3.Align holes in stand front handle with holes in mounts.
4.Install front handle using Phillips screws. Securely tighten screws.
Step 2: Attaching the Stand Front Handle
Figure 5
Figure 6
Figure 7
Axle
Hole
Square Hole
Round Hole
Axle
Washer
Washer
Screw
Screw Washer
Lock Washer
Mount
Stand Front
Handle
Hitch Pin
14 15

Use the stand front handle to raise the stand. Do not raise by any
part of the grill that is attached to the stand. Failure to heed this
warning can result in possible injury and damage the grill.
WARNING:
Failure to remove the LP gas cylinder or attempting to move the grill
while it is hot could result in serious personal injury.
WARNING:
See Figure 8-10.
1.Grasp the stand front handle and raise the stand until it rests on
the wheels and frame support.
2.Step on the release lever and pull the stand front handle toward
you at the same time.
3.Apply slight downward pressure on the stand until the release
lever closes over the center brace, locking the unit in place.
Step 3: Opening the Stand
Figure 8
Figure 9
Figure 10
Stand Front
Handle
Release
Lever
Center
Brace
Release
Lever
Stand Front
Handle
Release
Lever
Foot Brace
Frame Support
16 17

Figure 11
Figure 12
Figure 13
Hood Latch
Firebox
Firebox Hood
Firebox Handle
Wing Nut
Grease Cup
Firebox Hood

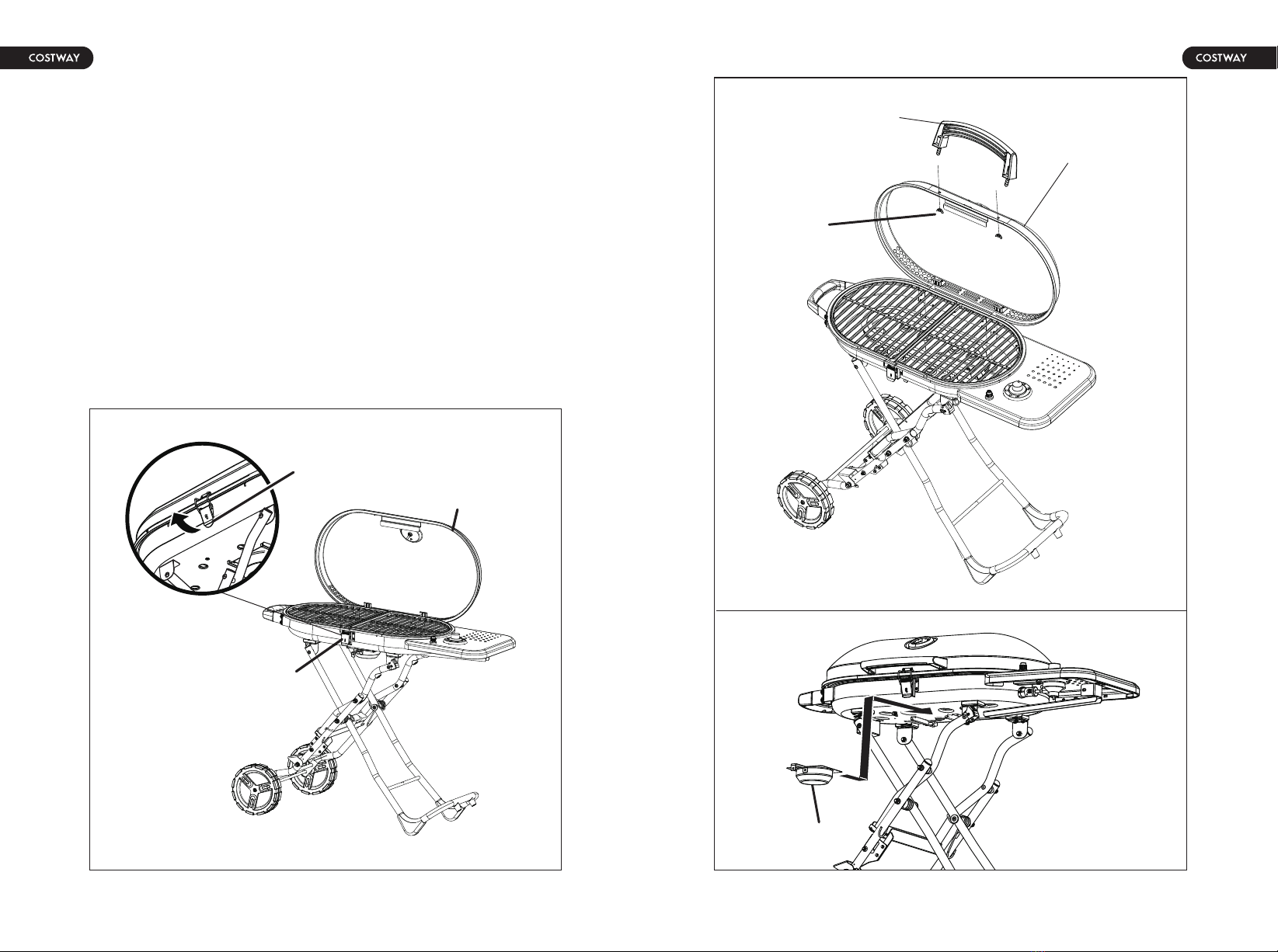

See Figures 11-12.
1.Raise and open the stand.
2.Lift the hood latch, then raise the firebox hood.
3.Remove the wing nuts from the studs in the firebox handle.
4.Insert studs in firebox handle through holes in the firebox hood.
5.Install the wing nuts and tighten securely.
Step 4: Attaching Firebox Handle
See Figure 13.
1.Slide the grease cup into the cup holders on the bottom of the grill.
NOTE: Clean the grease cup after each use. Do not remove the
grease cup until after the grill has cooled completely. Do not
transport the grill with a dirty grease cup.
Step 5: Installing the Grease Cup
18 19

Figure 14
Figure 15
Ignitor Cap
AAA Battery
Regulator
LP Gas
Cylinder

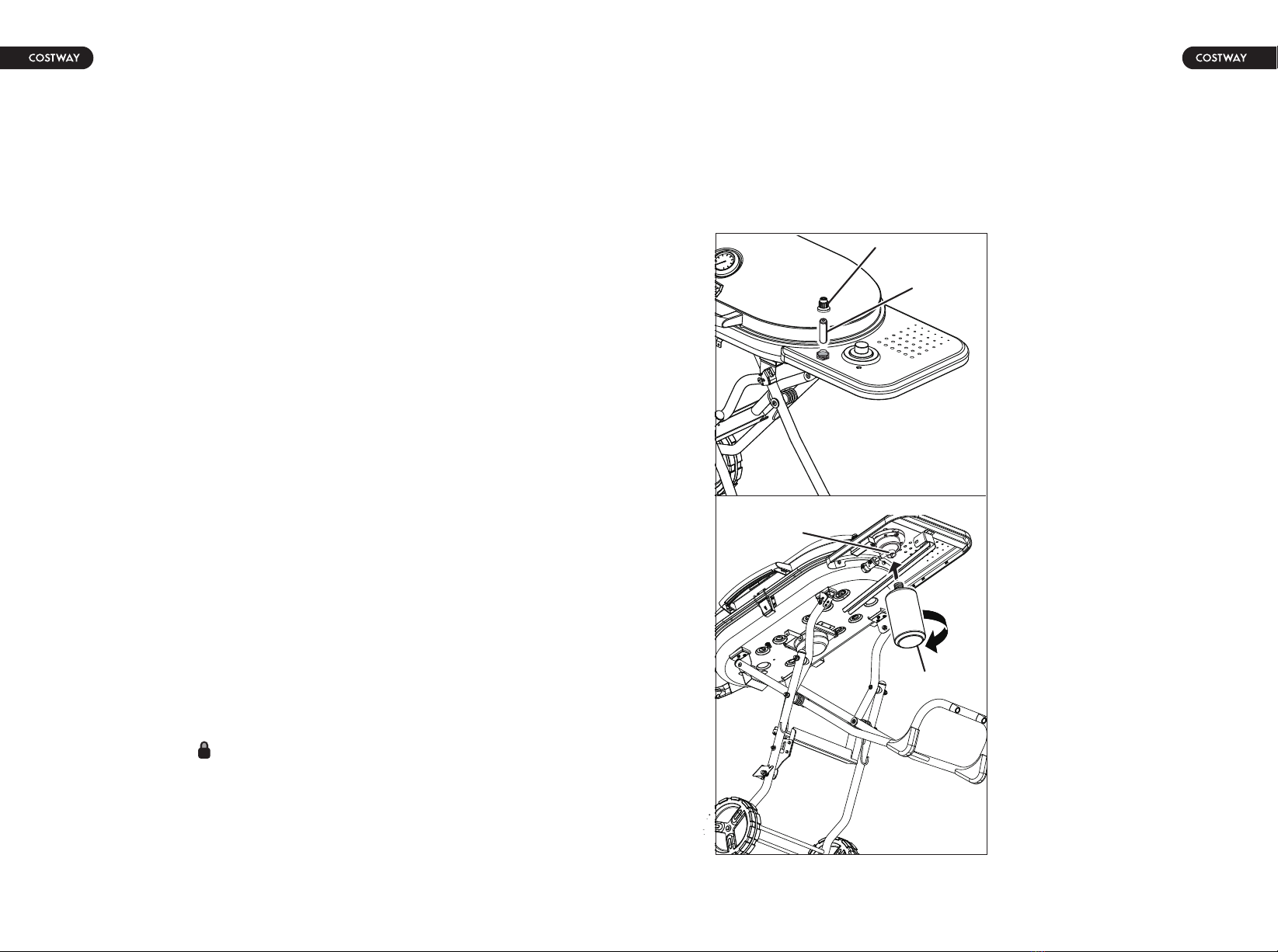

See Figure 14. (The AAA battery is not included)
1. Turn the ignitor cap counterclockwise and lift the cap from the
control panel.
2. Slide a AAA battery, negative (-) end first, into the ignitor. Be sure
spring is still in place inside the ignitor cap
3. Replace the ignitor cap.
Step 6: Installing Battery in Ignitor
See Figure 16.
Connections on the valve were tested at the factory to ensure no
gas leaks were present. However, shipping and handling could
loosen connections. As a safety precaution:
1.Turn the control knob off.
NOTE: To lock the control knob in the off position, turn the control
knob to LOCK( ).
2.Make sure the LP cylinder is properly connected to the LP gas
cylinder valve.
If you hear a rushing sound, immediately remove the LP gas
cylinder. This sound means there is a major leak at the connection.
Correct the problem before proceeding.
Step 8: Testing Valves and Regulator for Leaks
See Figure 15.
1.Remove the cap from LP gas cylinder.
2.Hold the LP gas cylinder firmly and insert into the regulator.
3.Turn the cylinder clockwise, taking care not to cross thread the
connection. Do not use tools.
NOTE: The regulator will seal in the cylinder valve resulting in some
resistance. An additional one-half to three quarters turn is required
to complete the connection. If you cannot complete the connection,
disconnect and repeat the above two steps. If you still cannot
complete the connection, DO NOT use this regulator!
4.Inspect valve connections. Look for any damage or debris.
Remove any debris. Never attempt to use damaged or plugged
equipment. See your local LP Gas Dealer for repairs.
Step 7: Connecting the LP Gas Cylinder to the
Regulator
3.Using a clean paint brush and a 50/50 mixture of mild soap and
water, brush soapy solution over all the connections and fittings on
the grill.
4.“Growing” bubbles indicate a leak. Remove the LP gas cylinder
and recap the bottle.
NOTE: If leaks cannot be stopped, do not try to repair by yourself.
Please consult qualified technician.
20 21

Figure 16
Figure 17
Figure 18
Regulator
Stand Front
Handle
Release Lever
See Figures 17-18.
Never close the stand or attempt to move the grill unless the grill is
completely cool, the grease cup is empty, and the LP gas cylinder is
removed.
NOTE: Make sure the grate and removable insert are in place and
hood latch secured prior to closing the stand on transporting the
grill. This will help to keep all grates in place.
To close the stand:
1.Grasp the stand front handle and step on the release lever.
2.Lift the stand front handle up and away from you.
3.Apply slight forward pressure until the release lever clicks into
place and the unit rests on the wheels and frame support.
4.From this position, the grill can be moved easily from place to
place.
Step 9: Closing Stand and Transporting the Grill
To lower a closed stand :
1.Stand at the wheel side of the collapsible stand and grasp the
stand front handle.
2.Tilt the unit toward you and then slowly lower it to the ground.
22 23

1.Before turning the control knob on, check the LP gas cylinder for
tightness and perform a leak test.
2.Trim excess fat from meat to reduce flare ups from drip- pings.
3.When grill is not in use, turn the control knob to LOCK( ), and
remove the LP gas cylinder.
4.Do not move the grill while cooking.
5.To avoid burns and splatters, use long-handled utensils and oven
mitts.
6.Do not use the grill if the grease cup is not clean and properly
installed.
7.Once the grill has cooled, clean it promptly.
8.Do not let grease or hot material drip from the grill onto the valve,
hose, or regulator. Correct the problem before use.
9.If the regulator frosts, immediately turn off the grill and cylinder
valve. This indicates a problem with the LP gas cylinder and it
should not be used.
10.Do not leave the grill unattended while preheating or burning off
food residue. If the grill has not been regularly cleaned as instructed,
a grease fire can occur.
11.Never use water on a grease fire.
12.Perform a burner flame check before each use (see the Mainte-
nance section).
SAFETY TIPS FOR USING THE GRILL
High - for preheating the grill, searing steaks and other cuts of meat,
burning off food residue from grate.
Medium - for most grilling, baking, and roasting.
Low - for cooking fish and other lean foods.
GRILLING GUIDE
1.The best oils to use when grilling meats are high-temperature
oils(i.e., peanut, canola, safflower, and cottonseed oils).
2.Dry off meat prior to grilling. Dry meat browns; wet meat steams.
3.Grill with the firebox hood down.
4.Keep grates clean. A clean grate is less likely to be sticky and will
last longer.
5.Clean the firebox hood and inside the firebox often. A grease
build-up is a fire hazard and adds unwanted flavors to your fresh
food.
6.Before lighting the burner, spray grates with non-stick spray to
prevent food from sticking.
7.Always preheat the grill for 10-15 minutes prior to use.
8.Before you start grilling, organize the food by cooking technique,
required cooking time, and grilling area required.
9.Sauces containing sugars and fats can cause flare-ups and burn
your food. Apply these sauces only in the last10 minutes of cooking.
10.Marinades and rubs enhance the flavor of food. A dry rub or
liquid marinade can be used prior to cooking.
COOKING/GRILLING TIPS
1.Wash hands, utensils, and surfaces with hot soapy water before
and after handling raw meat.
2.Keep raw meat separate from ready-to-eat foods.
3.Use a clean platter and utensils when removing cooked food from
the grill.
4.Cook meat and poultry thoroughly to kill bacteria.
5.Use a meat thermometer to ensure proper internal temperature of
meat.
6.USDA Recommended Safe Minimum Internal Temperatures of
Food;
FOOD SAFETY
OPERATION
Do not allow familiarity with grill to make you careless. Remember
that a careless fraction of a second is sufficient to inflict severe
injury.
WARNING:
Do not use any attachments or accessories not recommended by
the manufacturer of this grill. The use of attachments or accessories
not recommended can result in serious personal injury.
WARNING:
24 25

NOTE: To lock the control knob in the off position, turn the control
knob to LOCK( ).
3.Make sure the LP gas cylinder is tightly connected to the regulator
and a leak test has been performed.
4.Using the match holder included with this grill, place a match
between the circular wires.
5.Light the match and place into lighting hole on the bottom of the
firebox.
6.Push in the control knob and turn to .
7.When the burner is lit, turn the control knob to the desired setting.
If the burner fails to light, extinguish the match, turn the control knob
off, and wait five(5) minutes then repeat the step.
NOTE: Place the burner on high and observe flame height which
should be approximately 1/2 in. If the flame is too high or too low,
burner adjustment is required. See the Maintenance section in this
manual.
NOTE: If a burner is accidentally extinguished, turn the control knob
off, wait five(5)minutes then start the ignition process again.
NOTE: To lock the control knob in the off position, turn the control
knob to LOCK( ).
3.Make sure the LP gas cylinder is tightly connected to the regulator
and a leak test has been performed.
4.To light the burner, push in the control knob and turn to .
5.Press and hold the electric ignitor until the burner lights. When the
burner is lit, turn the control knob to the desired setting.
If the burner fails to light within five(5) seconds, release the electric
ignitor. Turn the control knob off and wait five(5) minutes, then
repeat the step.
NOTE: Place the burner on high and observe flame height which
should be approximately 1/2 in. If the flame is too high or too low,
burner adjustment is required. See Maintenance section in this
manual.
Figure 19
Control
Knob
Electric
Ignitor
Igniting the Burner
See Figures 19-20.
If ignition does NOT occur within 5 seconds, turn the control knob to
OFF(O) and wait 5 minutes. Repeat lighting procedures. If the
burner does NOT ignite with the cylinder valve open, the gas will
continue to flow out of the burner and could accidentally ignite and
result in serious personal injury.
NOTE: Never lean over the grill while lighting burner.
The first time you use your newly purchased grill, it is recommended
the grill run on the highest setting for 15-20 minutes.
Ignite the burner with an electric ignitor:
1.Open the firebox hood.
2.Turn the control knob on the side shelf to OFF (O).
Ignite the burner with a match:
1.Open the firebox hood.
2.Turn control knob to OFF(O)
WARNING:
--145 ℉for beef, veal, lamb, steaks, and roast --145°F for fish
--160 ℉for ground pork, beef, veal, and lamb# --160°F for pork
--160 ℉for egg dishes
--165 ℉for turkey, chicken, and duck (whole, pieces and ground)
7.Refrigerate prepared and leftover foods promptly.
NOTE: If a burner is accidentally extinguished, turn the control knob
off, wait five(5) minutes then start the ignition process again.
26 27

Figure 20
MAINTENANCE
To use the grate:
1.Turn on the grill and close the firebox hood. Preheat the grill for 10
- 15 minutes.
2.Open the firebox hood and place the food on clean grates, then
close the firebox hood. Cooking time will vary depending on
personal preference.
NOTE: When grilling fish, the meat is typically done when it flakes
easily with a fork. If any part of the meat is glossy in appearance, it
is not done.
When finished cooking, turn the control knob off.
NOTE: To lock the control knob in the off position, turn the control
knob to LOCK( ).
4.After the grill has cooled, clean grates and grease cup.
General Maintenance
When cleaning the inside of the firebox hood and grill bottom, use a
strong solution of detergent and water with a scrub brush to clean.
Rinse thoroughly and allow to air dry. NEVER use a caustic grill
cleaner on painted or cooking surfaces.
All plastic parts, stainless-steel and painted surfaces, should be
cleaned with warm soapy water and wiped dry. Cooking surfaces
should be cleaned with a bristle brush only. Check that no loose
bristles remain on the cooking grates prior to using.
Using the Grill and Accessories
Never use an accessory if the porcelain coating is damaged or
chipped. Use with a damaged coating could result in serious
personal injury if ingested.
WARNING:
Remove grate insert from cold grill or use heat-resistant mitts if
removing a hot insert. Place the insert on a heat resistant surface
and keep away from children. Removing a hot insert may result in
possible serious injury.
When servicing, use only identical replacement parts. Use of any
other parts could create a hazard or cause product damage.
WARNING:
WARNING:
Lighting Hole
Match Holder
28 29

Failure to clean the burner assembly and check the venturi as
described can result in a fire or explosion resulting in serious injury
or death.
Burner should be cleaned when the grill has been idle for some
time. In some parts of the country, spiders and other insects can
spin webs, build nests, and lay eggs in the venturi blocking gas flow
and causing fire in the tubes known as "flashback". Flashback can
damage the grill and even cause injury.
▪Turn control knob to OFF(O). Allow the grill to cool completely.
NOTE: To lock the control knob in the off position, turn the control
knob to LOCK( ).
▪Remove the LP gas cylinder.
▪Pull electrode wire from the electric ignitor.
▪Remove the wing nuts securing the burner to the firebox.
▪Using work gloves, lift the burner up and away from the gas
valve openings.
Figure 21
Burner
Firebox
Electrode
Wing Nut
Gas Valve
Orifice
Port Shield
▪Clean before and after each use with a stiff wire brush.
Cooking grates:
1.Bend a stiff wire into a small hook. Run the hook through the
burner tube several times.
2. Use a narrow bottle brush with flexible handle and run through
burner tubes several times. Do Not use a wire brush.
3. Wear eye protection, then use an air hose to force air into the
burner tube and out through the burner port. Clean any clogged port
with an opened paper clip.
Clean burner tubes using one of the following three
ways:
▪Scrape any build-up off the port shields using a wire brush.
Port shields:
▪After use, allow the grease in the cup to cool, then empty into
the garbage.
▪Empty after each use to avoid spillage and flare ups.
Grease:
Cleaning Burner Assembly and Checking Venturi for Insects
See Figures 21-22.
DANGER:
30 31

▪Open the firebox hood and allow the grill to cool completely.
▪Turn control knob to OFF (O).
NOTE: To lock the control knob in the off position, turn the control
knob to LOCK ( ).
▪Remove grates.
Figure 22
Figure 23
Burner Tube
High
Low
▪Turn the control knob to OFF (O).
NOTE: To lock the control knob in the off position, turn the control
knob to LOCK ( ).
▪Remove LP gas cylinder.
▪Place the dust cap on cylinder valve outlet whenever the
cylinder is not in use. Only install the type of dust cap on the
cylinder valve outlet that is provided with the cylinder valve.
Other types of caps or plugs may result in leakage of propane.
▪Once cooled, clean the grill thoroughly, including grease cup.
Storing the Grill
See Figure 24.
See Figure 23.
MAINTENANCE
Burner Flame Check
▪Once the burner tube is clear of debris, use a wire brush to
remove food and dirt from the outer surface of the tubes.
▪Check the burner for damage. Normal wear and corrosion may
cause some holes to enlarge. Replace the burner if this
happens.
NOTE: Burner tube must reengage valve opening.
▪Verify that the gas valve orifice is correctly positioned inside
burner inlet.
▪Attach the electrode to the burner and carefully replace the
burner.
▪Slide the burner into the grill and secure the burner using wing
nuts.
▪Reattach electrode wires to the electric ignitor.
▪Light the burner and turn the control knob from high to low. A
smaller flame should been seen on low while the high positions
flame should be approximately 1/2 in. in height.
▪If only a low flame is seen, you may need to replace the LP gas
cylinder.
▪
Ignitor Check
▪Remove the LP gas cylinder completely. Press and hold the
ignitor. "Click" should be heard and a spark seen between the
burner and electrode. If no spark, see the Troubleshooting
section in this manual.
▪
Valve Check
▪Remove the LP gas cylinder completely. Control knob locks in
place when turned off. To check valves: push in knobs and
release. If knobs don't spring back, replace the valve assembly
before using grill.
32 33

TROUBLESHOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Smell of
gas
Regulator or valve
leaking
Remove the LP cylinder
immediately and check for
damaged regulator or valve.
Perform leak test, see
Testing Valves and
Regulator for Leaks in the
Assembly section.
Flame
flashback
beneath
control
panel
Fire in burner tube
due to blockage.
See Cleaning Burner
Assembly and Checking
Venturi for Insects in the
Maintenance section.
Manufactured by: JIANGMEN MINSHENG KITCHEN EQUIPMENT
CO,LTD
BUILDING I, NO. 49, LIDONG 2ND ROAD, LILE, JIANGHAI
DISTRICT, JIANGMEN,GUANGDONG, CHINA
MADE IN CHINA
Gas leak
detected
from
cylinder,
regulator,
or other
connection
Improper
installation and
loose connections.
Mechanical failure
due to rusting or
mishandling.
Tighten fittings and see
Testing Valves and
Regulator for Leaks in the
Assembly section.
Replace the LP gas cylinder.
Decreasing
heat or
popping
sound
LP gas cylinder is
empty.
Venturi blocked.
Replace the LP gas
cylinder.
See Cleaning Burner
Assembly and Checking
Venturi for Insects in the
Maintenance section
Grease fire
or
continuous
excessive
flames
above
cooking
surface
Grease build up in
burner area.
Turn off control knob. Leave
firebox hood open allowing
flames to extinguish. Once
cool, clean the grill
thoroughly.
Burner will
not light
The LP gas
cylinder is empty.
Burner not
connected to
control knob.
Venturi blocked.
Ignitor wire is
loose, dirty, or not
connected.
Dead battery in
ignitor.
Replace the LP gas
cylinder.
Make sure valves are inside
the burner tubes.
See Testing Valves and
Regulator for Leaks in the
Assembly section.
Reconnect burner electrode
wires or replace the ignitor
wire assembly.
Clean wires and/or
electrode with rubbing
alcohol and a clean swab.
Tighten all connections.
Replace the battery in the
ignitor.
Hot spots
on cooking
surface
Venturi blocked. See Cleaning Burner
Assembly and Checking
Venturi for Insects in the
Maintenance section
Yellow
flame
Venturi or burner
may be blocked.
See Cleaning Burner
Assembly and Checking
Venturi for Insects in the
Maintenance section
Inside of
firebox
hood
appears to
be peeling
This is a build up
of grease.
Clean with a soft bristle
brush or scraper.
34 35

NOTE À L’INSTALLATEUR/ASSEMBLEUR :
CONSERVEZ CE MANUEL POUR TOUTE
RÉFÉRENCE ULTÉRIEURE
POUR UNE UTILISATION EN EXTÉRIEUR SEULEMENT
BOUTEILLE DE GPL VENDUE SÉPARÉMENT
Remettez ce manuel d'utilisation au consommateur afin
qu'il puisse le conserver pour référence ultérieure.
Vous risquez de vous blesser gravement si vous ne
suivez pas les instructions de ce manuel d'utilisation.
FR
DANGER :
INTRODUCTION
Ce gril présente de nombreuses caractéristiques qui rendent son
utilisation plus agréable et plus plaisante. La sécurité, les
performances et la fiabilité ont été privilégiées lors de la conception
de ce produit, qui est donc facile à entretenir et à utiliser.
Ce manuel d'instructions contient des informations importantes
nécessaires à l'assemblage correct et à l'utilisation en toute sécurité
de l'appareil. Lisez et suivez tous les avertissements et toutes les
instructions avant d'assembler et d'utiliser l'appareil. Conservez ce
manuel pour référence future.
Si vous sentez une odeur de gaz :
• Coupez le gaz de l'appareil
• Éteindre toute flamme nue
• Ouvrir le capot de la chambre de combustion
• Si l'odeur persiste, éloignez-vous de l'appareil et appelez immédi-
atement votre fournisseur de gaz ou les pompiers.
Le non-respect de ces instructions peut entraîner un incendie ou
une explosion susceptible de provoquer des dommages matériels,
des blessures ou la mort.
DANGER :
• N'utilisez jamais cet appareil sans surveillance.
• N'utilisez jamais cet appareil à moins de 25 pieds (7,5 m) d'un
liquide inflammable.
• En cas d'incendie, éloignez-vous de l'appareil et appelez
immédiatement les pompiers. N'essayez pas d'éteindre un feu
d'huile ou de graisse avec de l'eau.
Le non-respect de ces instructions peut entraîner un incendie, une
explosion ou un risque de brûlure pouvant causer des dommages
matériels, des blessures ou la mort.
DANGER :
36 37

RÈGLES GÉNÉRALES DE SÉCURITÉ
Toujours utiliser à l’extérieur. L’utilisation du gril à l’intérieur ou dans
un espace clos peut entraîner une intoxication au monoxyde de
carbone, entraînant des blessures graves ou la mort.
DANGER :
Ne stockez pas ou n’utilisez pas d’essence ou d’autres liquides ou
vapeurs inflammables à proximité de cet appareil ou de tout autre
appareil.
Une bouteille LP non connectée pour utilisation ne doit pas être
stockée à proximité de cet appareil ou de tout autre appareil.
AVERTISSEMENT :
AVERTISSEMENT :
Un montage, un ajustement, une modification, un service ou un
entretien inadéquats peuvent causer des dommages matériels, des
blessures ou la mort. Lisez attentivement les instructions
d’assemblage, d’utilisation et d’entretien avant d’utiliser, d’assembler
ou de réparer ce produit.
Lire et comprendre toutes les instructions. Le non-respect de toutes
les instructions énumérées ci-dessous peut entraîner un choc
électrique, un incendie et/ou des blessures graves.
AVERTISSEMENT :
LIRE TOUTES LES INSTRUCTIONS
▪Le gril ne doit pas être utilisé sous une construction combustible
aérienne.
▪Le gril n’est pas destiné et ne doit jamais être utilisé comme
appareil de chauffage.
▪Gardez la zone autour de cet appareil exempte de matériaux
combustibles, d'essence et de tous les autres liquides et
vapeurs inflammables.
36 inches
(91.5 cm)
Figure 1
36 inches
(91.5 cm)
36 inches
(91.5 cm)
▪Cet appareil doit être installé conformément aux normes locales
les plus récentes. En l'absence de codes locaux, utilisez le :
• États-Unis :
- Code national du gaz combustible, ANSI Z223.1/NFPA 54
- Code du GPL, NFPA 58
• Canada :
- Code d'installation du gaz naturel et du propane, CSA B149.1
- Code d'entreposage et de manutention du propane, CSA B149.2
▪Si un accessoire est utilisé sur le gril qui nécessite une source
de poudre électrique externe, l’accessoire une fois installé doit
être mis à la terre électriquement conformément aux codes
locaux. En l’absence de codes locaux, utilisez :
• États-Unis :
- Code national de l'électricité, ANSI/NIPA 70
• Canada :
- Code canadien de l'électricité, CSA C22.1
▪Cet appareil est destiné à un usage extérieur uniquement et ne
doit pas être utilisé dans un bâtiment, un garage, une remise,
un balcon ou tout autre endroit fermé.
▪N'utilisez pas et n'installez pas cet appareil dans ou sur des
bateaux ou des véhicules de loisirs.
▪Ce gril doit être éloigné des surfaces combustibles d'au moins
36 pouces (91,5 cm) à partir de l'arrière du gril et de 36 pouces
(91,5 cm) à partir des côtés du gril.
38 39
