Costway OP70907 User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
EN
DE
FR
ES
IT
PL
With your inspiring rating, COSTWAY will be more consistent to offer you EASY
SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!
Mit Ihrer inspirierenden Bewertung wird COSTWAY konsistenter sein, um Ihnen EIN
SCHÖNES EINKAUFSERLEBNIS, GUTE PRODUKTE und EFFIZIENTEN SERVICE zu
bieten!
Avec votre évaluation inspirante, COSTWAY continuera à fournir une EXPÉRIENCE
D’ACHAT PRATIQUE, des PRODUITS DE QUALITÉ et un SERVICE EFFICACE !
Con su calificación inspiradora, COSTWAY será más consistente para ofrecerle
EXPERIENCIA DE COMPRA FÁCIL, BUENOS PRODUCTOS y SERVICIO EFICIENTE.
Con la tua valutazione incoraggiante, COSTWAY sarà più coerente per offrirti ESPE-
RIENZA DI ACQUISTO FACILE, BUONI PRODOTTI e SERVIZIO EFFICIENTE!
OP70907
USER’S MANUAL
US office: Fontana UK office: Ipswich
DE office: Hamburg FR office: Saint Vigor d'Ymonville PL
BBQ Propane Gas Grill

02 03
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
Open lid.
If odor continues, keep away from the appliance and
immediately call your gas supplier or your fire department.
DANGER:
Do not store or use gasoline or other flammable liquids or
vapors in the vicinity of this or any other appliance.
An LP cylinder not connected for use shall not be stored in
the vicinity of this or any other appliance.
WARNING:
FOR YOUR SAFETY!
CONTACT US FIRST!
Read the instructions before assembling and using the appliance.
DO NOT use the grill unless it is completely assembled and all the parts are securely fastened.
This grill will become very hot, do not move it during operation. Keep children and pets away.
This grill has been made to high quality standards. If you have any questions that are not
addressed in this manual, or you need parts, please call our customer service hotline or
send an email to us.
1. DO NOT store or use gasoline, or any flammable vapors and liquids within 25ft(8m) of the
grill.
2. When cooking with oil/grease, do not allow the oil/grease to exceed 350°F(177°C), DO
NOT store extra cooking oil in the vicinity of the grill.
3. A liquid propane (LP) tank (cylinder) not connected for use should be stored at a minimum
distance of 10ft(3m) away from grill or any appliance. Never fill the gas cylinder beyond 80
percent full. If the above information is not followed exactly, a fire causing death or serious
injury may occur.
4. The minimum distances around the grill that must be kept free of combustible materials is
90 cm (36 inches), which includes the walls of buildings or building features.
5. Keep either back or side of the grill at least 36 inch from any wall or surface. Maintain
10 ft clearance to objects that can catch fire or sources of ignition such as pilot lights on water
heaters, live electrical appliances, etc.
The assembly and use of this grill must conform with local codes or, in the absence of local
codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and
Propane Installation Code, CSA B149.1, or the Propane Storage and Handling Code, CSA
B149.2.
CATALOGUE
For Your Safety
Parts & Hardware List
Assembly Instructions
............................................................................03
.....................................................................06
....................................................................11
For your safety
36"
36"
NOTE:

04 05
1. This grill is for use with propane gas only (propane gas cylinder not included)
2. Never attempt to attach this grill to the self-contained propane system of a camper
trailer, motor home or house.
3. Never use charcoal or lighter fluid with gas grills.
4. DO NOT use gasoline, kerosene, or alcohol for lighting. The LP gas cylinder must be
constructed and marked in accordance with the specifications for propane gas cylin ders of
National Standard of America CAN/CSA-B339, Cylinder Spheres, and Tubes for Transporta-
tion of Dangerous Goods. This grill is not intended to be used in or on recreational vehicles
or boats.
5. DO NOT attempt to move the grill while it is lit or hot.
6. DO NOT use grill unless it is completely assembled and all parts are securely fastened
and tightened.
7.DO NOT use grill or any gas products near unprotected combustible buildings and
materials.
8. DO NOT use in the presence of gases or vapors. Keep grill area clear and free from
combustible materials, gasoline, and other flammable vapors and liquids.
9. DO NOT touch metal parts of the grill until it has completely cooled (about 45 minutes)
to avoid burns, unless you are wearing protective gear (oven mitts, pot holders, and etc.).
10. DO NOT alter grill in any manner.
11. Keep all combustible items and surfaces at least 36 inches (90cm) away from the grill
at all times, which includes the walls of buildings or building features. The grill shall not be
placed under overhead combustible construction.
12. Clean and inspect the hose before each use. If there is evidence of abrasion, wear,
cuts, or leaks, the hose must be replaced before operating the grill. The replacement hose
assembly must be as specified by the manufacturer.The replacement must be that
specified in the manual.
13. Move gas hose as far away as possible from hot surfaces and dripping hot grease.
14. Never keep a filled gas cylinder in a hot car or truck. Heat will cause the gas pressure
to increase, which may open the relief valve and allow the gas to escape.
15. Keep the grill's valve compartment, burners and circulating air passages clean.
PLACE the LP gas cylinder up-straight on the holder base and fix with screw to make sure
the cylinder is placed in right position to avoid unexpected danger.
LEAK TEST: Apply the solution to the LP gas delivery system at points. Grill valve
coupling; gas hose regulator & cylinder coupling.
CAUTION:
WARNING:
This grill is for outdoor use only, and should not be used in a building, garage,
or any other enclosed areas.
The use of alcohol, prescription, or non-prescription drugs may impair the
operator’s ability to properly assemble or safely operate the grill.
Always place your grill on a hard, and leveled surface far away from
combustibles.
Do not leave a lit grill unattended. Keep children and pets away from the grill AT
ALL TIMES.
Do not place grill on any type of tabletop surface.
Do not use grill in strong winds.
NOTE:
DANGER:
Propane characteristics: Flammable, explosive under pressure, heavier than
air, settles in pools, and low areas.
In its natural state, propane has no odor. For your safety an odorant has
been added.
Contact with propane can cause freeze burns to skin.
This grill is shipped from the factory for propane gas use only.
Never use a propane cylinder with a damaged body, valve, collar, or footing.
Dented or rusted propane cylinders may be hazardous and should be
checked by your propane gas supplier.
Liquid propane gas is flammable and hazardous if handled improperly. Know its
characteristics before using any propane product.
Straight
Coupling nut
Nipple has to be
centered into the LP
cylinder valve.

06 07
Parts & Hardware List Parts & Hardware List
I.
J.
1PC
1PC
Holder base
Bottom plate
Grip pan
Handle
Oil cup hook
Waste oil cup
Heat deflector
K.
L.
M.
N.
O.
1PC
1PC
1PC
1PC
4PCS
A.
B.
C.
D.
E.
F.
H.
1PC
2PCS
2PCS
3PCS
1PC
1PC
1PC
Grill body
(Included burner)
Caster
(With brake)
Caster
(No brake)
Side table(L)
Side table(R)
Cylinder holder
Barbecue grill
Fixing knob
G. 1PC

08 09
1PC
1PC 1PC
1PC 1PC
U.
X.
M6X12 16PCS
V.
M6X65 1PC
W.
M6 1PC M6X20 M6X203PCS
Y.
8PCS
Oil guide pipe
Griddle ’s handle
Additional choice for griddle
GriddleP.
R.
Q.

10 11
Before beginning assembly, make sure all parts are present. Compare parts with
packaged contents list and diagram above. If any parts are missing or damaged, do
not attempt to assemble the products. Contact customer service for replacement
parts via e-mail
1. Estimated assembly time: 40 minutes.
2. Tools required for assembly: Phillips Screwdriver & Wrench.
3.Note: The right and left sides of the grill are designed as if you are facing the
front of the grill.
Turn over the Grill body(#A) and assemble the 4 Casters(#B&#C) to the leg of grill, the 2
Casters with brake(#B) should be in RH legs (longer ones).
PreparationAssembly Instructions
STEP1
A
1
3
2
C
B
Wrench
Phillips Screwdriver
Phillips Screwdriver

12 13
STEP2 STEP3
Assemble the base plate (#J) to the leg with screws (#U).
J
U
Screw 4 "Y" on the grill legs, and place the side table "E" on screws "Y".
E
Y
1.
2.
3.
E
Y

14 15
STEP4 STEP5
Connect Cylinder holder(#H) and Holder base(#I) with Screw & nut (#V&#W), then hang
it on the grill and use a Screw(#X) to fix it.
Note: Please don’t forget to place the Fixing knob(#G).
Y
F
chopping block
Attach the Right side table(#F) on another side of grill with 4 Screws(#Y),
X
H
I
W
V
G

16 17
STEP6 STEP7

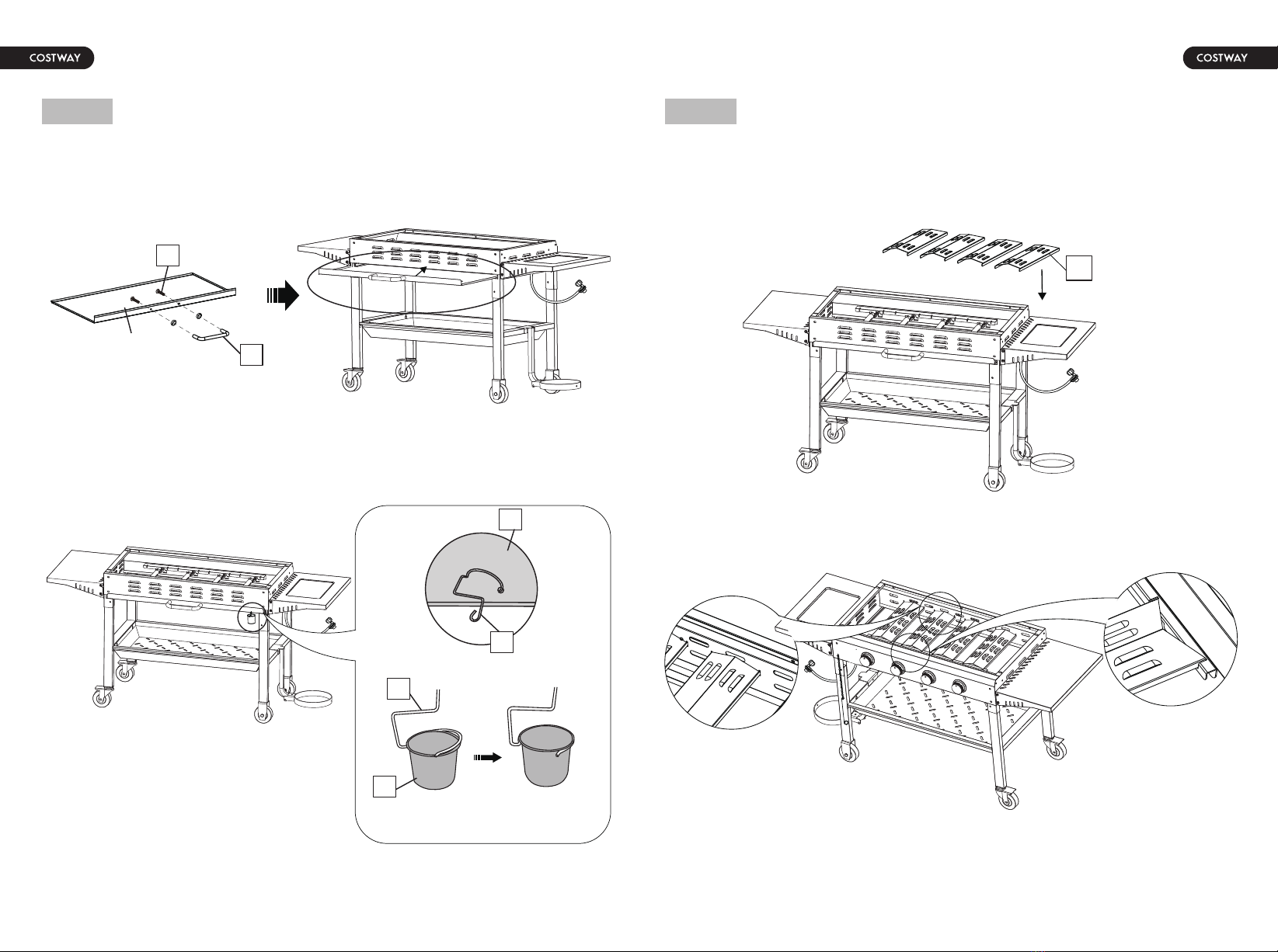

Place the 4 Heat deflector(#O) on burners, please insert male side into grill first and then
push another side into grooves.
Install Handle(#L) to Grip pan(#K) and then insert to the back side of grill as the diagram
shows.
Then hang the Oil cup hook(#M) through the hole on Grip pan(#K) first and fix Waste oil
cup(#N) as shown in diagram.
M
N
K
K
1
2 3
KL
XO
12

18 19
STEP8 STEP9
If you want use the Griddle(#P), please remember to remove all 3 Barbecue grills(#D)
and 4 heat deflectors (#O) first. Then you can place the Griddle(#P) and put the Oil guide
pipe(#Q) as shown in diagram.
WARNING:
You are only allowed to use the
2 Griddle handles(#R) to move
Griddle(#P) after heating,
griddle handles(#R) should not
stay with Griddle(#P) during
heating.
P
R
Q
D
Put the 3 grills (#D) on the grill one by one.
