Costway Honey Joy User manual

Kids Ride-On Car
TY327692

Please read all instructions carefully and keep it for future reference.
Warnings:
Attention! Use it with protective equipment.
Attention! Not use it in the traffic.
Attention! The product is not suitable for the children under 3 years.
General Warnings:
The product must be installed and used under the supervision of an adult.
Read through each step carefully and follow the proper order.
Remove all packaging, separate and count all parts and hardware.
Please ensure that all parts are correctly installed, incorrect installation can lead to a danger.
We recommend that, where possible, all items are assembled near to the area in which they
will be placed in use, to avoid moving the product unnecessarily once assembled.
Ensure a secure surface during construction, und place the product always on a flat, steady
and stable surface.
Please use the product carefully, as the product requires great skill, avoid accidents by the
user or others, by fall or collision.
Please wear suitable protective equipment during use, e.g. protective helmet, gloves, knee
pads, elbow pads etc.
02

Warning!
◆Please read the manual carefully before assembling;
◆Preserve the manual properly for future reference;
◆The manual is for assembling and using reference only. Details will be possibly
improved and updated, including structure, appearance, packing, functions, and etc.
Please refer to the real object as standard if there is something different from the
manual.
Choking Hazard: Small parts, Not for kids under 3 years. Dispose plastic
bags carefully.
It’s dangerous to kids. Adult assembly required.Use care when unpacking
as the small parts / sharp edges of the parts to be assembled may pose a
hazard.
Check if the charger is in good state, including the wire, socket, and all
details. Stop use it if it looks broken in some way, till it’s fixed.
2. Specifications:
Driving Motor: 2*RS390SP-12V RPM16000
Steering Motor: RS380SP-12V RPM5500
Battery: 12V4.5ah * 1
Charger: 12V500mA
Max Speed：5-7 km/h
Suitable Age：3 years+
Maximum Loading Capacity：66lbs
Item size：42.5” x 26” x 20”
Charging time: 8-12 hours
Battery life：300 times charge&discharge
03
1.Before Assembling
1
2
3
4
4
5
6
7
8
8
9
10 1114
14
16
15

3. Exploded View and Parts List
No.
1
2
3
4
5
6
7
8
9
Parts Name
Body
Steer Wheel
Car window(L/R)
Rear view mirror
windshield
Front wheel
Rear wheel(driving)
Wheel cover
Motor(L/R)
Qty
1
1
2
2
1
2
2
4
2
No.
10
11
12
13
14
15
16
17
18
Part Name
Seat pad
Seat back
Screw kit
manual
Rear side windows(L/R)
Rear trunk
Rear bumper
Remote
charger
Qty
1
1
1
1
2
1
1
1
1
Note: some parts need to be fixed from 2 sides.
Screw Kit
A
B
C
D
parts
tapping screw 4x12
tapping screw 4x12
tapping screw 4x12
big head screw 4x12
qty
8
2
5
2
Where to use
Car window
Seat pad
Rear trunk
Windshield
04

4. Wheels Assembling
A.Rear driving wheel: Put the axle through the body, and assemble the motor, wheel by shim
and M10 nut, then fix the wheel cover on to right buckle position and press it to lock.
(Note: motors need to be distinguished as Left & Right.）
B.Front wheel: assemble the wheels onto the axle, and put shim and M10 nut to fix it. Put the
wheel cover on to right buckle position and press it to lock.
05

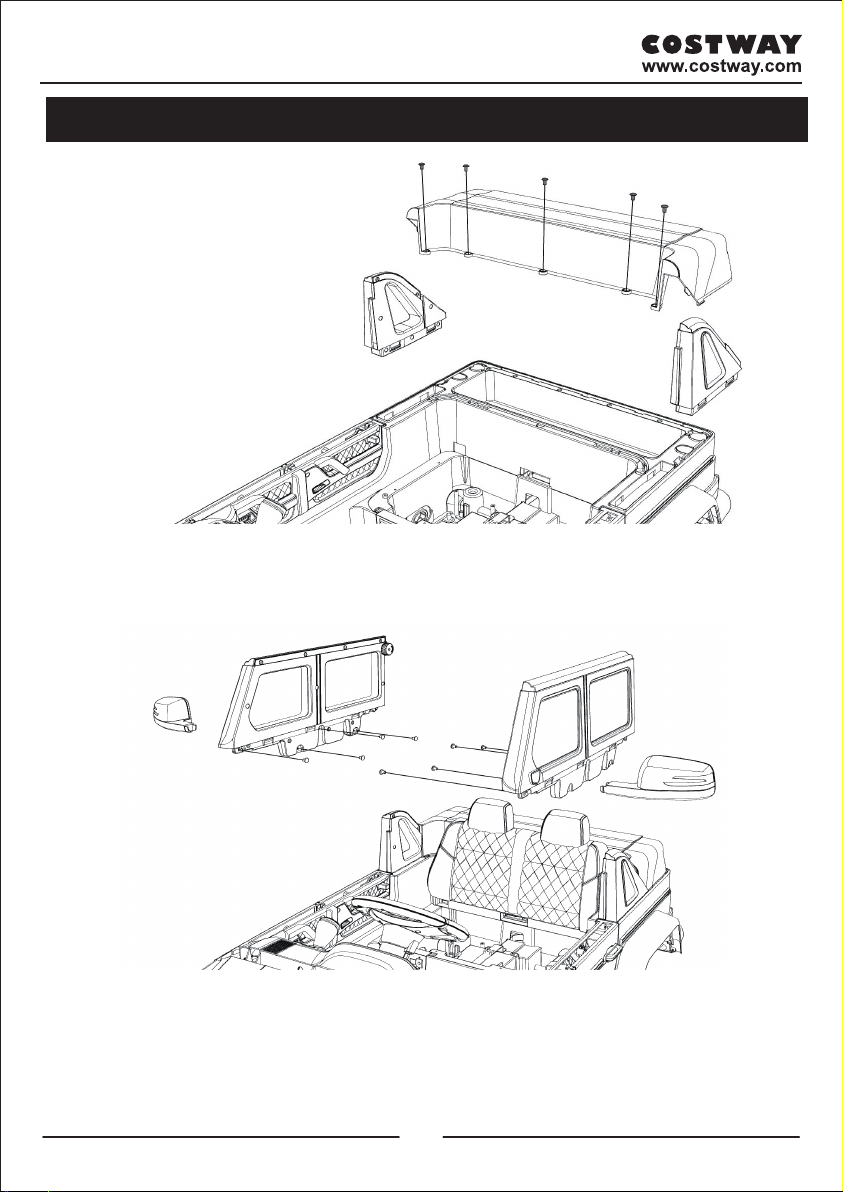

5. Rear Trunk，Window & rear view mirror Assembling
B.As the picture shows, insert the car window into the car door accordingly, and fix them by 4 *
12 tapping screws(L & R different). Then put the rear view mirrors(L & R different) onto right
position of the door and lock it by buckling themselves.
A.Put 2 rear side windows to related positions as picture shows, and lock it by buckle(L and R
different), and then assemble the rear trunk onto related positions, then fix it by 4X12 tapping
screw;
06

www.costway.com
B.Put the seat back onto the car body accordingly, and insert the seat pad into right positions
of 3 holes from down side of the seat back. Then fix the seat pad by 4 * 12 tapping screws.

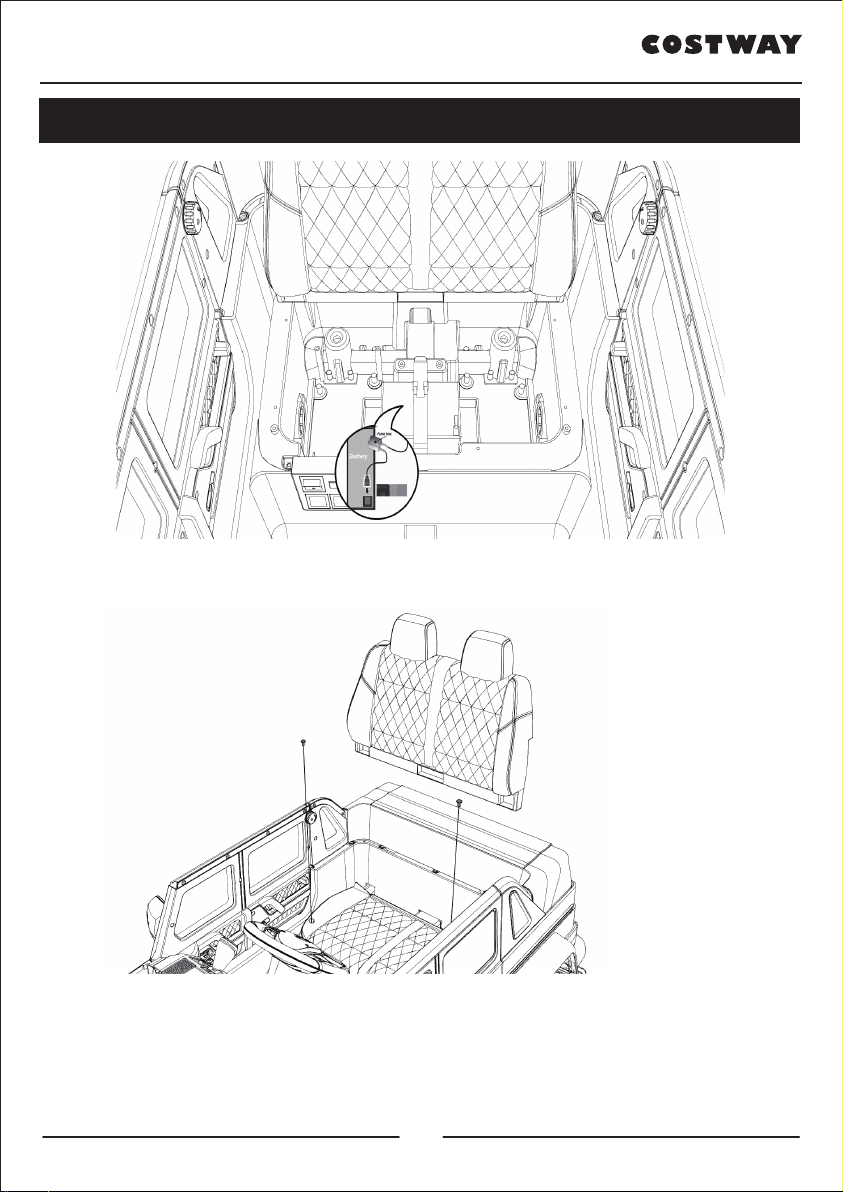

6. Battery wire connecting & seat assembling
A.Battery is located under the seat pad. Connect the red terminal to the red buckle of the
battery.
07

B.Put the windshield onto the right position and press it into the slot, and then fix it by 4 * 12
tapping screws.
7. Steer Wheel and Windshield assembling
A.Connect the wire terminals and put the steer wheel onto right position and lock it itself.
08

www.costway.com
1.USB port: play music files in USB device.
2.TF card port: play music files in TF card device.
3.AUX port: to connect MP3 device or mobile to play related files.
4.Education files play button & Pre. file shift(short press)/volume turning down(long press)
5.Stories play button / play or pause button in USB/TF card mode
6.Music play button & Next. file shift(short press)/volume turning up(long press)
7.Mode button: shift mode from blue-tooth to USB mode.
8.Voltage meter display & mode display
Put a USB device or TF card to play, other playing files will be stopped.
8. Functions Sketch
1、Multifunctional control board;
2、Power switch;
3、Music button;
4、Forward/reverse switch;
5、Charging socket;
6、Pedal accelerator switch: pedal to move, release it to stop the car gradually;
09

9. Functions of Remote:
Note：Use screwdriver to get screws off and open battery box，install 2 pc AAA 1.5V batteries
（not provided in the package) in, and fix it with screws.
The car is with remote priority function: while it is controlled by remote, the step switch does
not work; Disconnect the remote , the step switch works then.

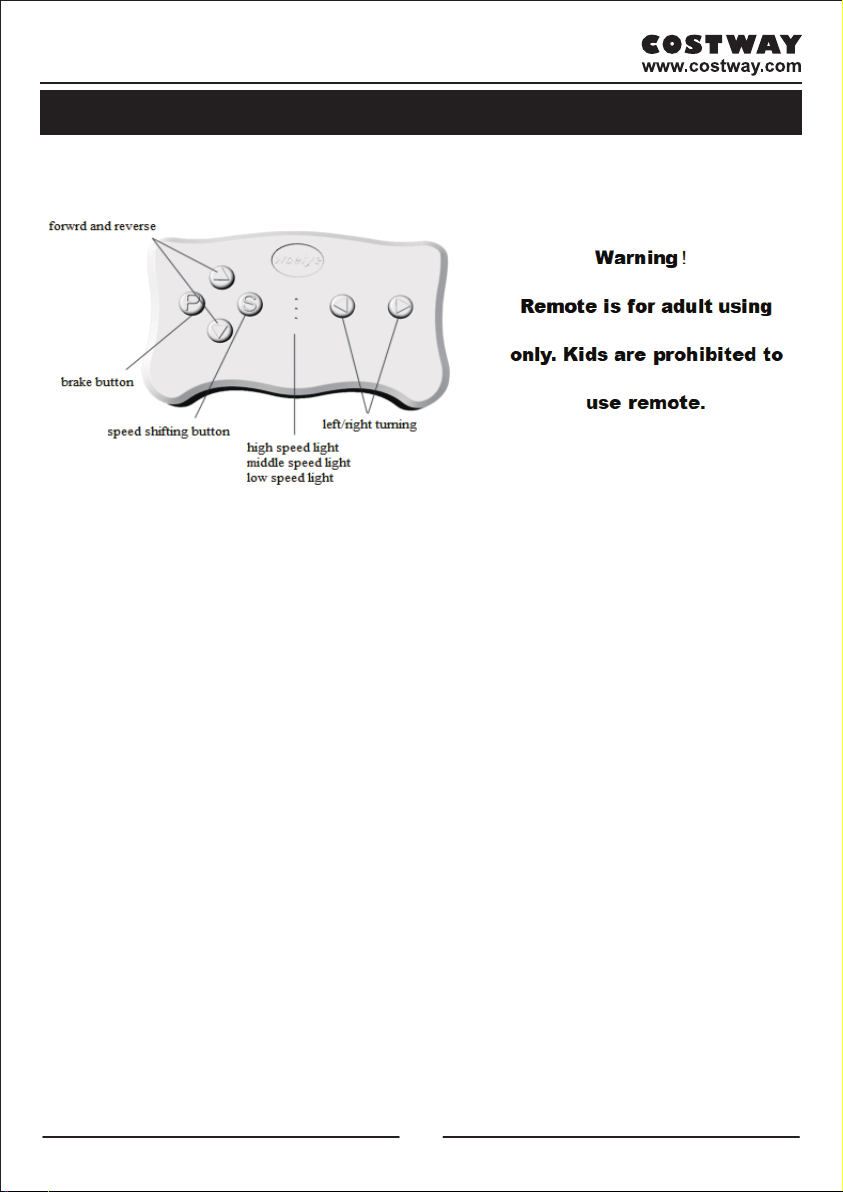

Remote: Open the battery holder and put in 2 pcs AAA LRO3 batteries. If the batteries are
well fixed, there are frequency light and speed light will be on. Pls be noted that we supply no
battery for the remote.
1). Frequency connection: Press frequency button 2-4 seconds. Power on the car while low
speed light flickers. It connects automatically when you see the low speed light keep on. If the
light still flickers, take out the battery and restart it again as above steps.
2). Braking Button: press the braking button, the car stops. Press it again, braking function is
relieved.
3). Speed button: Press S button to change speed. Press 1 time means speed changing 1
time. 3 lights on the remote means 3 speeds, upper light means high speed, middle light
means middle, and the down button is for low speed Notes: Speed shift for forward only.
4)Forward/reverse button: It’s to control the car to move forward and reverse. Press 1 button,
the car will move as ordered, and the speed will get higher gradually to set speed to avoid
sudden shock from speed-up.
5)Turning right/left button: It’s for remote the car to turn to right or left.
Special note:
The remote has energy-saving function. 10 seconds set-aside will make it power off itself, and
all lights will be off. Press any button then will make it wake up back to work.
