ASSEMBLY INSTRUCTIONS
KUS795E-WM
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
INTENDED FOR RESIDENTIAL USE ONLY.
Attention:
Make sure that each bolt needed for all steps matches the
corresponding figure to ensure proper assembly.
Step 1:
Place the back assembly (#1) onto a non-abrasive surface, such as a
carpet. Insert the seat assembly (#2) into the back assembly (#1).
See Figure 1.
FIGURE 1
KUS795E-CS01
KUS795E-CS02
KUS795E-CS03
KUS795E-CS04
17C33A0755001Y4
17C33A0706001Y4
17C02A0755131Y4
17FA05040301-Y4
18000337004
18000337006
17KAA0101----Y4
17KAA0201----Y4
61K795EJ00001BA
61K795EY00001BA
BACK ASSEMBLY
LEFT LEG
RIGHT LEG
BOLT M6*65
BOLT M6*16
BOLT M6*14
WASHER d6.5*D13*1.0
BOLT CAP
BOLT CAP M6
HEX.KEY WRENCH 4MM
SEAT CUSHION
PARTS LIST
PART
NO. MATERIAL CODE PART Q’TY PART
NO. MATERIAL CODE PART Q’TY
11
1
1
1
2
2
6
1
1
22
2
3
4
5
6
7
8
9
10
11
12
13
14
6
1
1
1
1
4
4
SEAT ASSEMBLY
HEX.KEY WRENCH 6MM
SERVICE CENTER TOLL FREE NO.
TEL: [phone]
FAX: [phone]
STOP DON’T RETURN TO STORE!
PAGE 1 OF 2 COURTYARD CREATIONS INC.
PILLOW
Use the correct bolts as indicated. Do not tighten any of the bolts until is completely assembled.
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings
required.
Keep children away during assembly. This item contains small parts that can be swallowed by children.
Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
Quote the following FQC NO. when contacting the service center.
!
!
!
!
!

Step 2:
At the rear of the seat, fasten the back assembly (#1) to the seat
assembly (#2) by using bolts (#5) and washers (#8). Keep the bolts
loose. See Figure 2.
Step 3:
Fasten the legs (#3 and #4) to the seat assembly (#2) by using bolts (#6)
and washers (#8). Keep the bolts
loose. See Figure 3.
Step 4:
Fasten the legs (#3 and #4) to the seat assembly (#2) by using bolts
(#7). Keep the bolts loose. See Figure 4.
Cleaning and Maintenance
•Wash frame and fabric parts with mild soap and water, rinse
thoroughly, and dry completely. Do not use bleach, acid, or other
solvents on the frame or fabric parts.
•Cushions may be washed on the surface only by using mild soap
and water or a commercial foaming upholstery cleaner if necessary.
If washed, rinse well and hang to dry. Do not machine wash or dry.
•We recommend the use of furniture covers when not in use.
•Inspect and tighten all bolts and fasteners on a regular basis to
ensure the proper performance and safety of your chair.
•In order to prolong the life and beauty of your chair, we recommend
that it be stored in a dry and protected area during off season periods.

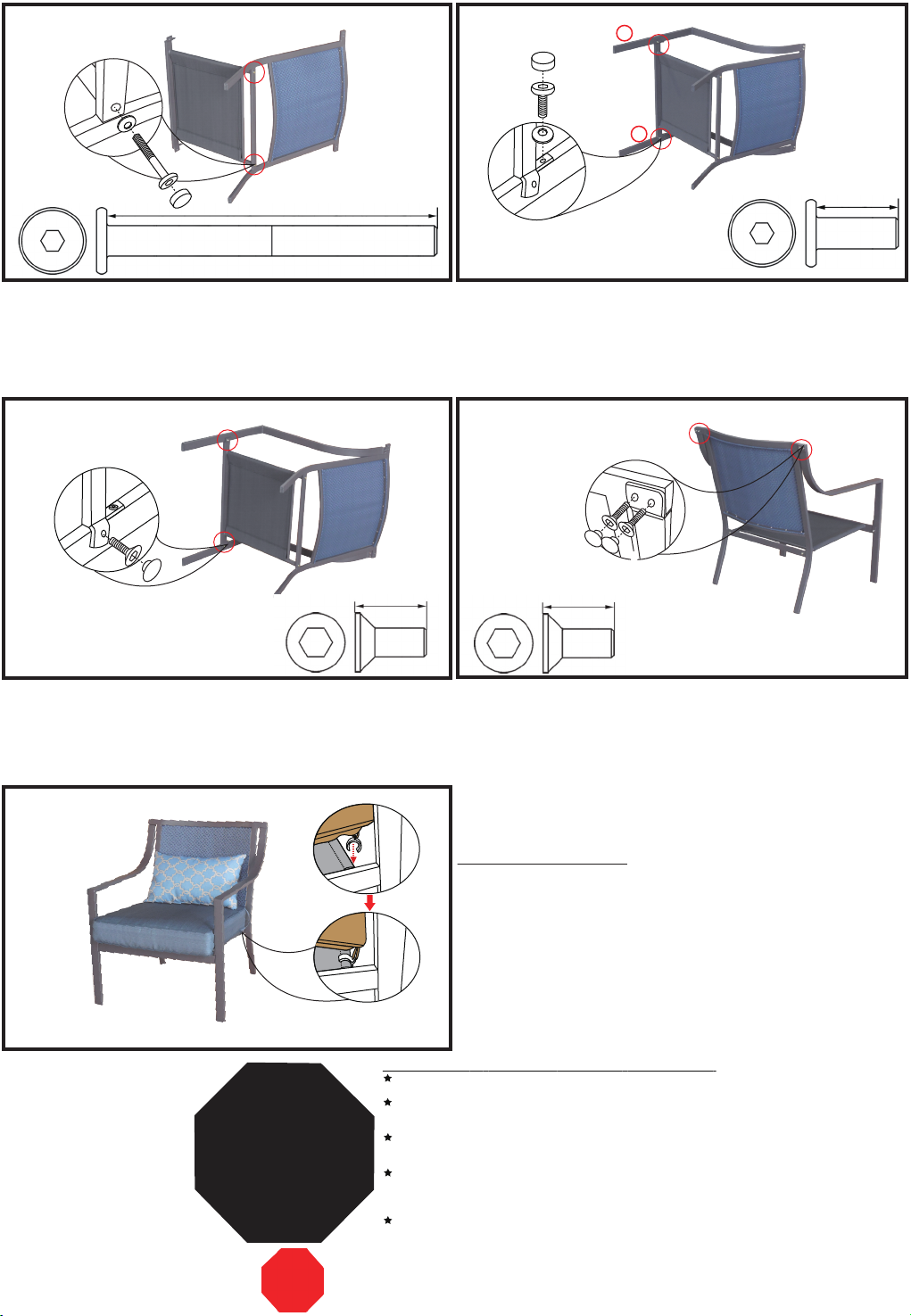

FIGURE 2
FIGURE 4
FULL ASSEMBLY
#5 BOLT M6*65
#6 BOLT M6*16
#7 BOLT M6*14 #7 BOLT M6*14
14 14
16
65
FIGURE 3
FIGURE 5
STOP DON’T RETURN TO STORE!
PAGE 2 OF 2
5
8
6
8
9
9
7
10
7
7
10
10
2
1
4
3
2
3
4
1
Note: The labels marked “L” and “R” on the legs (#3 and #4) should
coincide with Figure 3 to ensure proper assembly.
R
L
3
4
2
14
13
Step 6:
Place the seat cushion (#14) and the pillow (#13) onto the chair. Secure
the cushion to the chair by using the plastic clamps. See Full Assembly.
Step 5:
Fasten both the left Leg (#3) and the right Leg (#4) to the back assembly
(#1) by using bolts (#7). Make sure that all of the bolts have been
tightened completely and cover them with bolt caps (#9 and #10).
See Figure 5.
The store where you made your purchase
does not stock parts for this item.
If you need parts,
whether they are missing or damaged,
STOP!
Missing A Part?
No Need To Go Back To
The Store
Call us between 9:00 AM and 4:30 PM
Eastern Time Monday through Friday
Call Toll Free:
TEL: [phone]
FAX: [phone]
READ THESE INSTRUCTIONS COMPLETELY BEFORE STARTING ASSEMBLY
SEPARATE AND IDENTIFY ALL PARTS, MAKING SURE THAT YOU
HAVE ALL OF THEPARTSLISTED.
IF YOU DO NOTLOCATE ALL OF THE PARTS LISTED, INSPECT THE
PACKING MATERIAL FOR SMALL PARTSTHAT MAYHAVEBECOME
SEPARATED DURING SHIPMENT.
IF YOU EXPERIENCEANY DIFFICULTY DURING ASSEMBLYOR IF ANY
PARTS ARE MISSING OR DAMAGED,CALL THE HELP LINE AT
1-877-539-7436 BEFORERETURNING THIS ITEM TO THE STORE.
PROVIDE THEFOLLOWING INFORMATION WHEN CALLING:
1-MODEL NUMBER OF THEPRODUCT.
2-PARTNUMBER AND MATERIAL CODE OF THE PARTFROM THE PARTS
LIST.
MOST PROBLEMS CAN BERESOLVED WITHOUT RETURNING THIS
PRODUCT TO THERETAILER.
