Coway CHP-04AR User manual

01
02
01
02
First of all, we would like to thank you very much for purchasing this
water filtration system. This product is superior to the ones in function
in the past, and we believe that it will provide you with clean and
healthy water. We would like to recommend you to read carefully this
user’s manual for proper operation and maintenance and keep it well
together with the warranty. This user’s manual could solve your
problem so that you can easily fix by yourself in just a few minutes.
DEAR CUSTOMERS
Read this Manual
Inside this manual you will find
many helpful hints on maintaining
your filtration system properly. Just a
little preventive care on your part
can save you a great deal of time
and money over the life of your
system.
Review the Section on
Troubleshooting Tips
You'll find many answers to common
problems here. If you review this
chart of Troubleshooting Tips first,
you may not need to call for service
at all.
If You Need Service
If you do need service, make a phone
call to customer center.
Safety Information
Electricity Safety
Installation & Use Safety
21
20
02
08
10
13
15
17
19
Operating Instructions
Features
Names of Each Part
How to Operate
Cleaning Method
Filtration System
Water Flow Diagram
Troubleshooting Tips
Before Asking A/S
Customer Service
Safety Information
Operating Instructions
Troubleshooting Tips
Customer Service
Warranty Information
04

Safety Information Operating Instructions Troubleshooting Tips Customer Service
IMPORTANT SAFETY INFORMATION
Read all the installation precautions and instructions carefully and
completely prior to beginning use. Periodic maintenance is
required in order for this product to perform as advertised. Read
and save these instructions before using.
For your safety, the information in this manual must be followed
to minimize the risk of property damage or personal injury.
WARNING
Electricity Safety
Only connect the power cord to the voltage
rating that matches it on the rating plate to
avoid danger such as electric shock or fire.
And be sure the electric outlet is in an
inside location to protect from moisture.
Be sure the power cord does not to be
bend by force and do not put a heavy
object on it to avoid any electric leakage
or damage.
●
●
Do not pull the power plug from the outlet
with a wet hand or get the plug wet to
avoid electric shock.
●

03
04
Never splash the water filtration system
with water to avoid the risk of electric
shock.
●
Keep the cord out of heavy traffic areas.
To avoid fire hazard, NEVER put the
power cord under rugs, near heat
resisters, radiator, stoves, or heaters.
●
Do not use a damaged power cord or plug
, and loose consent where the plug cannot
be inserted securely to avoid fire or shock
hazard. If the power cord is damaged, it
must be replaced by the manufacturer, its
service agent or a similarly qualified person
in order to avoid a hazard.
●
Unplug the power cord when not using
for an extended period of time. Insulation
may deteriorate, causing short circuit, fire
and/or electric shock as a result.
●
Periodically remove dust from the power
plug with a dry cloth. Dust built-up can
cause bad insulation and a fire may
occur as a result.
●

Safety Information Operating Instructions Troubleshooting Tips Customer Service
Do not use with water that is microbiologically unsafe or
unknown quality without adequate disinfection
before or after the system.
Do not connect any pressure-relief device to the vent pipe of this
water heater.
WARNING
Installation & Use Safety
Keep the water filtration system away from
the place being humid and direct sunlight.
●
Keep 10cm away from the wall and install
firm and flat place.
●
Only connect the power cord to the voltage
that matches it on the rating plate to avoid
danger such as electric shock or fire.
●
After installed, moved, and severely shaken,
about 30minutes are needed for stabilization
of the compressor before using the product.
●

05
06
Keep the water filtration system
away from the place being humid
and dust rising place to avoid
electric shock and fire.
●

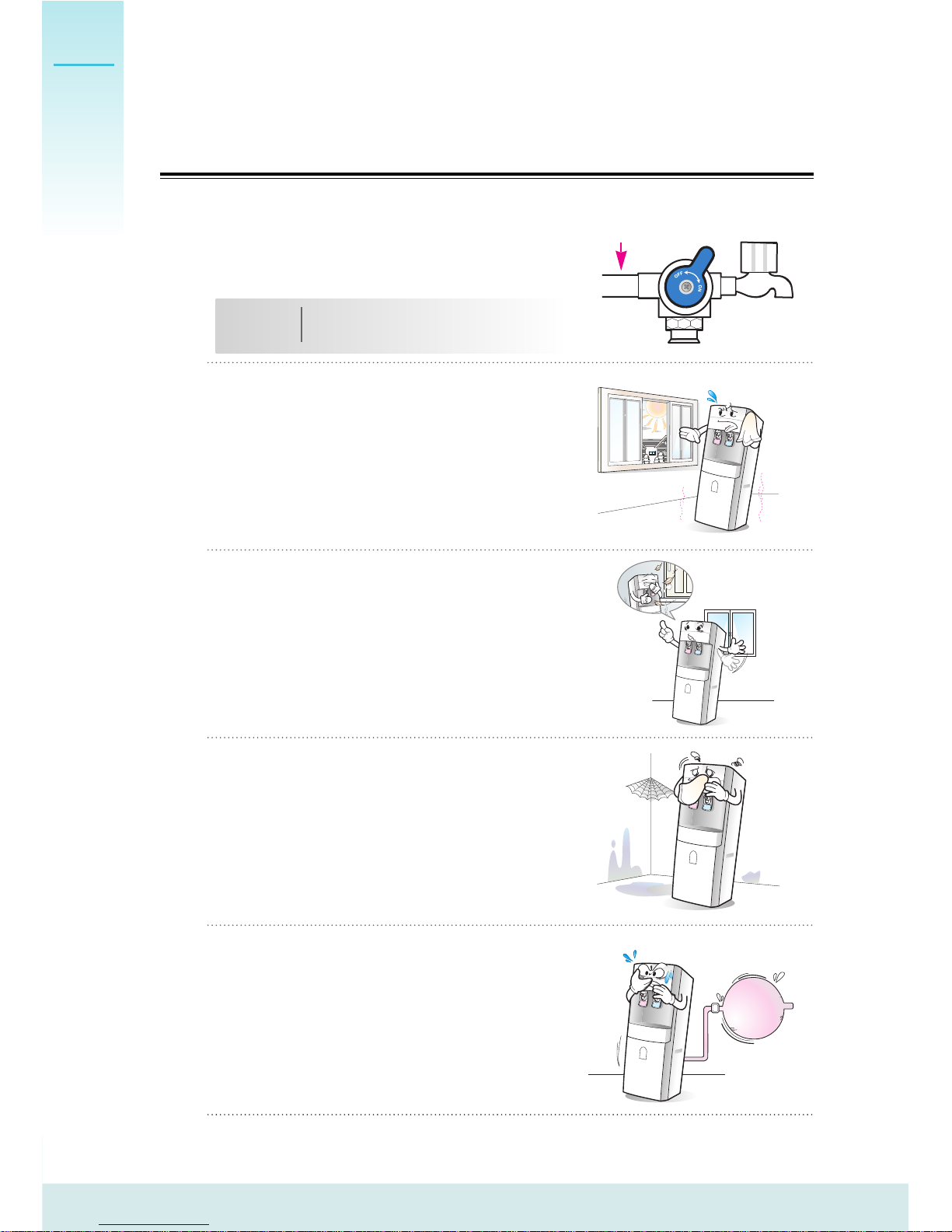

If the water pressure at house is over
the maximum working pressure of the
water filtration system (maximum
working pressure:120psi), install a
pressure reducing valve in the water
line.
●
Connect the water filtration system to
cold water pipe only.
●
Cold Water Pipe
The feed water over 40℃
could cause damage of filters.
Note
Keep the water filtration system out of
direct sunlight and humid place. And the
sun’s heat may distort non-metallic parts
and may damage the electronics.
●
Do not install the water filtration system
where it could freeze. Freezing damage
is not covered by the warranty.
●

Safety Information Operating Instructions Troubleshooting Tips Customer Service

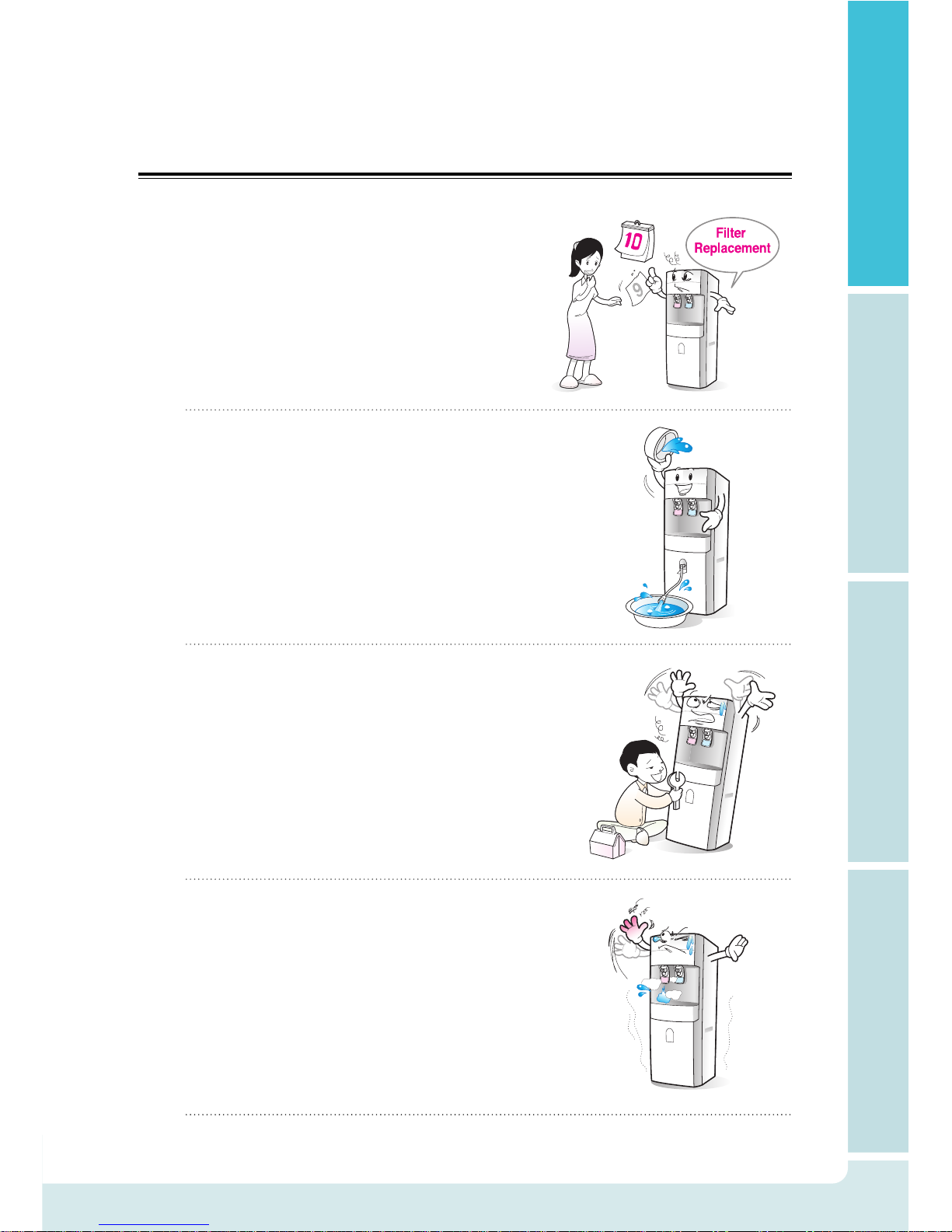

Be careful not to get burned by the
hot water while extracting or
draining.
●
Periodical filter replacement is
prerequisite for getting clean water.
In case filters are overused, the
performance of filters is deteriorated.
Therefore, do not miss the time of filter
replacement.
●

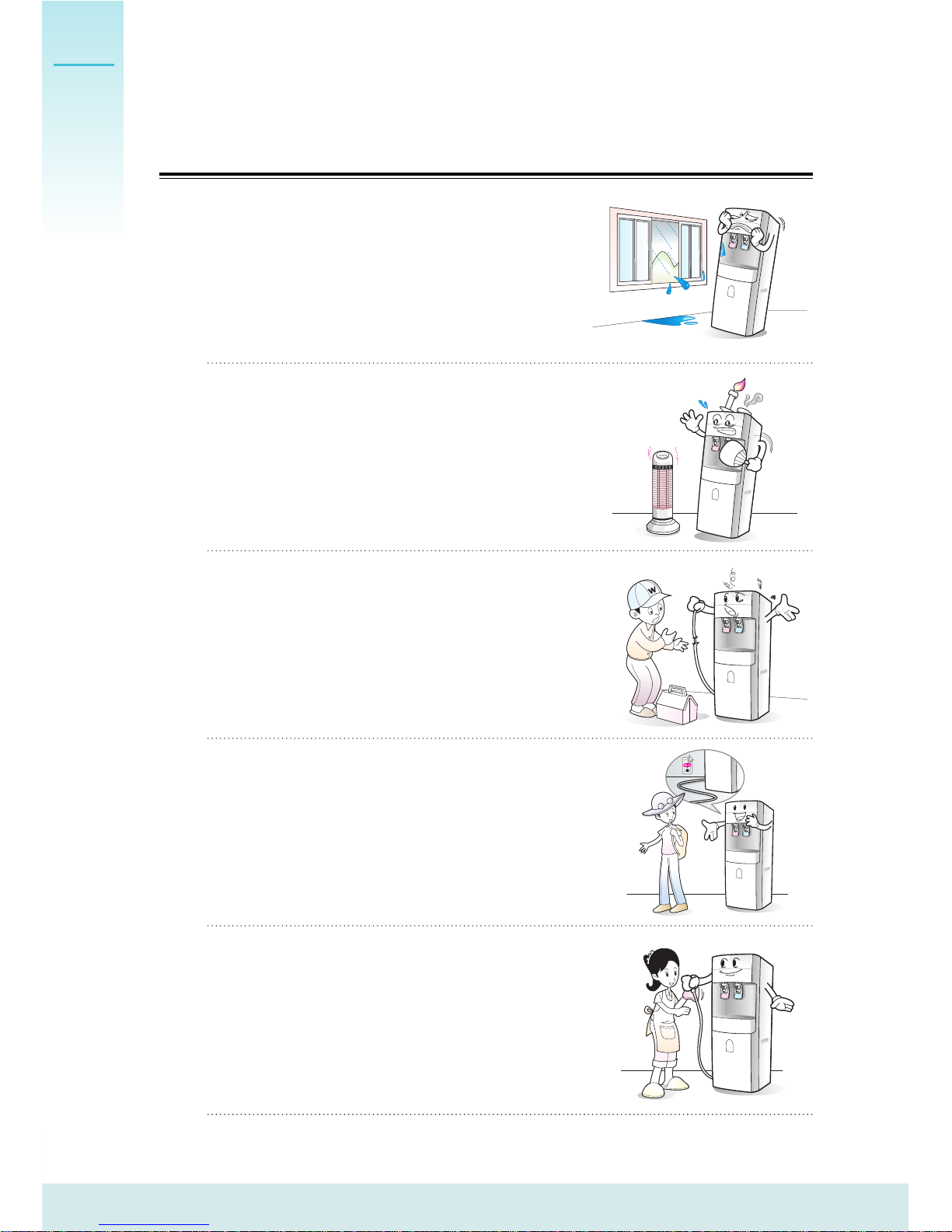

When water is stored or the product
is not in use for a long time, drain all
the water in the storage tank before
use.
●
Do not repair, disassemble, or
modify. Fire and/or electric shock
may occur as a result. For repair,
contact your dealer of purchase or
A/S center.
●

07
08
Do not allow the foreign or unexpected
material into the storage tank. The
treated water in the storage tank may
be deteriorate as a result.
●
Immediately plug out in the case of a
smoke or smell of fire, and call to
A/S center. Electric shock or fire
may occur as a result.
●
Cut off the feed water valve and plug
out, then call to A/S center in the
case of any water leakage from the
product.
●
The appliance is not intended for use
by young children or infirm persons
without supervision; Young children
should be supervised to ensure that
they do not play with the appliance.
●

Safety Information Operating Instructions Troubleshooting Tips Customer Service
FEATURES OF CHP-04AR/L/U
Is easy to use as it is automatically controlled
by Micom.
Shows various signal such as water level,
water temperature, UV cycle and so on.
Prevents microorganism caused by second
contamination, by circulating the treated
water inside the storage tank periodically.
Increases capacity of treated water by
pressuring feed water.
It is able to control on the level of High(H),
Middle(M) and Low(L) according to the
user’s taste.
1. Cold & Hot Water Level Control
2. Micom Control System
3. Convenient Display
4. UV Cycle System
5. Boost Pump for Pressurizing Feed Water (CHP-04AR)

09
10
Prevents overflow by double-controlling water
level of the storage tank.
In case of draining, it adds convenience by
opening the drain cover and then draining water
through the hose on front without additional
movement.
By using “Fine Post-Carbon filter”, it diminished the fine
dust which can be flowed into the water tank.
By applying for large capacity of gutter, user doesn’t
need separate subsidiary draining tank.
And if user removes the gutter, it is enable to extract
the filtered water directly with large vessel.
Prevents a burn caused by hot water with
equipped safety device.
6. Hot Water Safety Faucet Device
7. Double Safety Water Level Controller
8. Draining System in Front
9. Prevention of Fine Dust
10. Large Capacity of Gutter

Safety Information Operating Instructions Troubleshooting Tips Customer Service

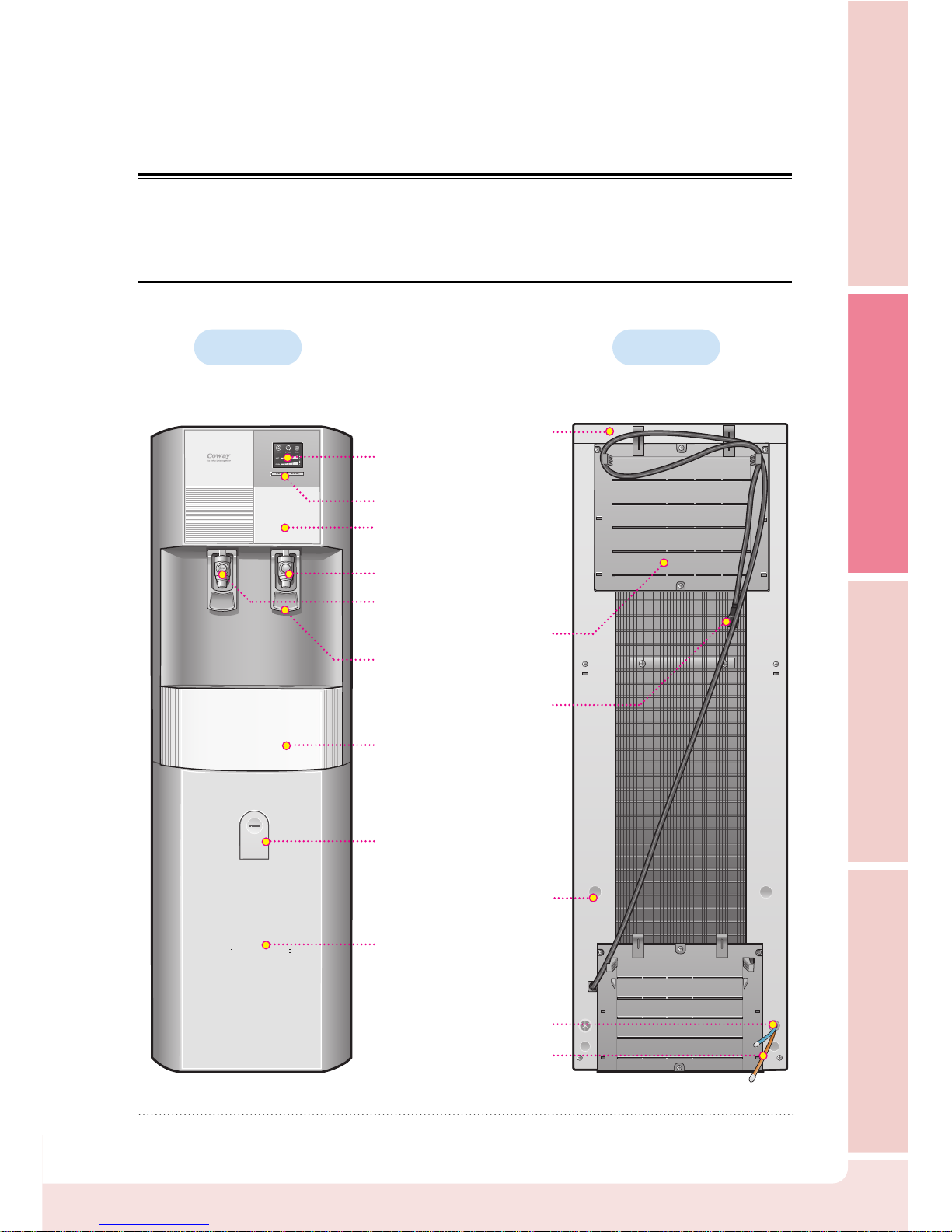

NAMES OF EACH PART
Front / Rear
Inlet (Orange)
Outlet (Blue, CHP-04AR/L)
Power Cord
Rear Cover
Top Cover
Hot Water Safety Faucet
Cold Water Faucet
Cup-touch Lever
Indication Part
Front Cover (Upper)
Operation Switch
Gutter
Drain Cover
Drain Water Hole
Front Cover (Lower)
Front Rear

01
02
11
12

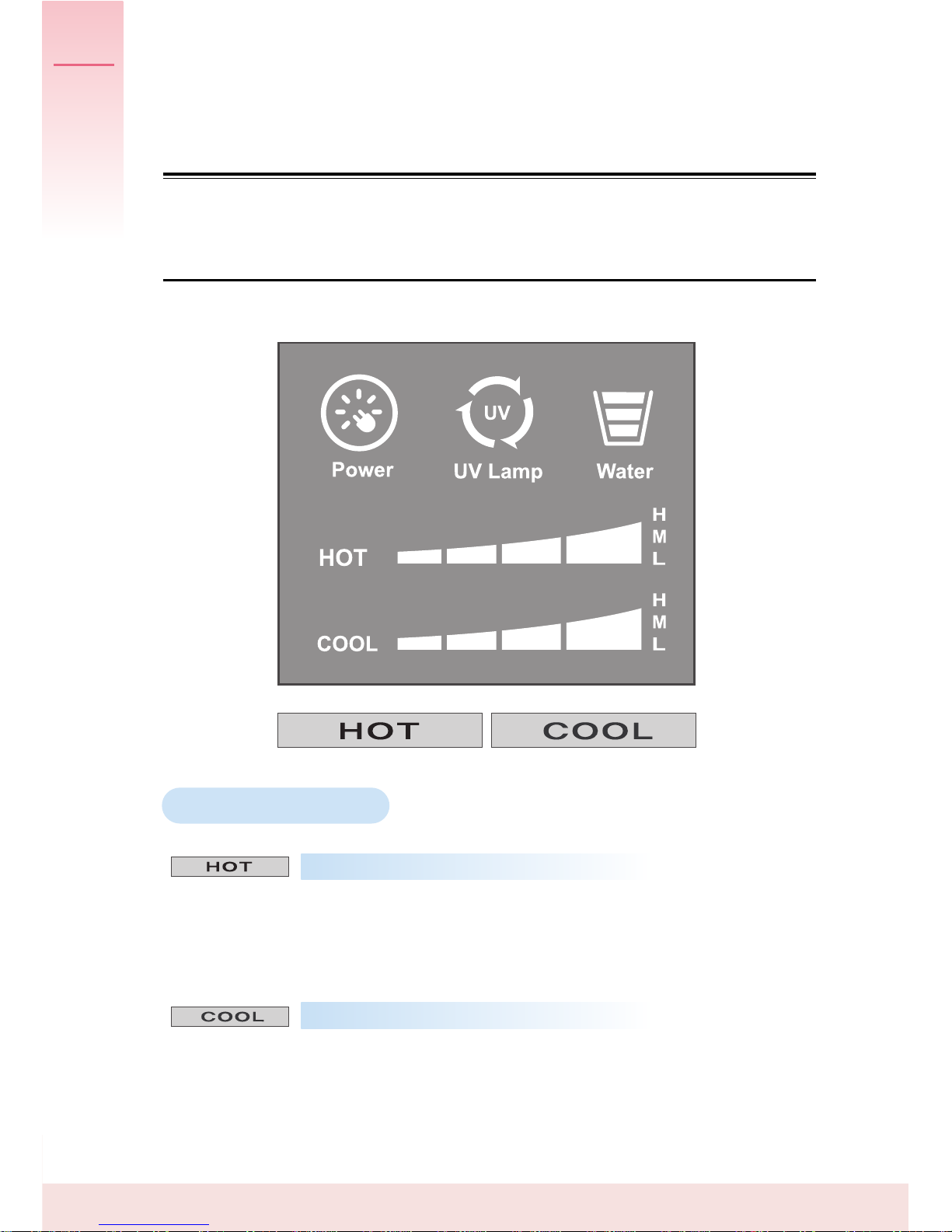

Operation Parts / Indication Parts
If you press the switch shortly for about 1 second, hot water is selected.
And if you press for about more than 3 second, the selection of hot
water is canceled. In statement of hot water selection, water level is
changed in order of H→L→M→H whenever you press the button
shortly.
Hot Water Selection Switch
If you press the switch shortly for about 1 second, cold water is selected.
And if you press for about more than 3 second, the selection of cold
water is canceled. In statement of cold water selection, water level is
changed in order of H→L→M→H whenever you press the button
shortly.
Cold Water Selection Switch
Operating Parts








Safety Information Operating Instructions Troubleshooting Tips Customer Service
It indicates the water level of storage tank by stages.
3. Indication Lamp of Water Level
It indicates the state of hot water by turning on or off
the “Hot Water Selection Switch”.
4. Indication Lamp of Hot Water
It indicates the statement of cold water by turning on
or off the “Cold Water Selection Switch”.
5. Indication Lamp of Cold Water
It indicates the temperature of hot water according to
the hot water selection or the degree.
6. Indication Lamp of Hot Water Temperature
It indicates on/off state of power.
1. Indication Lamp of On/Off
In case that storage tank is full for a hour, “UV” lamp
lights on and lamp lights off in serial. In case that
“UV” lamp blinks, change the UV Lamp.
2. Indication Lamp of UV Cycle
Indication Parts
It indicates the temperature of cold water according to
the cold of water selection or the degree.
It is controlled by Hot Water Selection switch
It is controlled by Water Selection switch
7. Indication Lamp of Cold Water Temperature
H : High
M : Middle
L : Low
8. Indication Lamp of Hot Water Temperature Level
H : High
M : Middle
L : Low
9. Indication Lamp of Cold Water Temperature Level

13
14
HOW TO OPERATE
Check out water comes out from the hot and cold faucet before
turning on the hot and cold water switch to prevent malfunction
of heater and compressor.
WARNING
How to Drink Cold Water
After installed, moved, and severely shaken, about 30minutes are needed for
stabilization of cooling device and heating device before using the product.
Note
Step1 Step2 Push the cold water cup-touch
lever to extract the cold water.
Turn on the cold water switch on
the front and make sure that the
indicator of cold water is turned
on.
Preparation before Use
Step1 Step2 Turn on the cold and hot water
switch after 30 minutes from initial
installation.
Connect it to voltage rating that
matches it on the rating plate.
Then, open main water feed valve
to supply water to the filtration
system.

Safety Information Operating Instructions Troubleshooting Tips Customer Service
Be careful not to get burned by the hot water.
WARNING

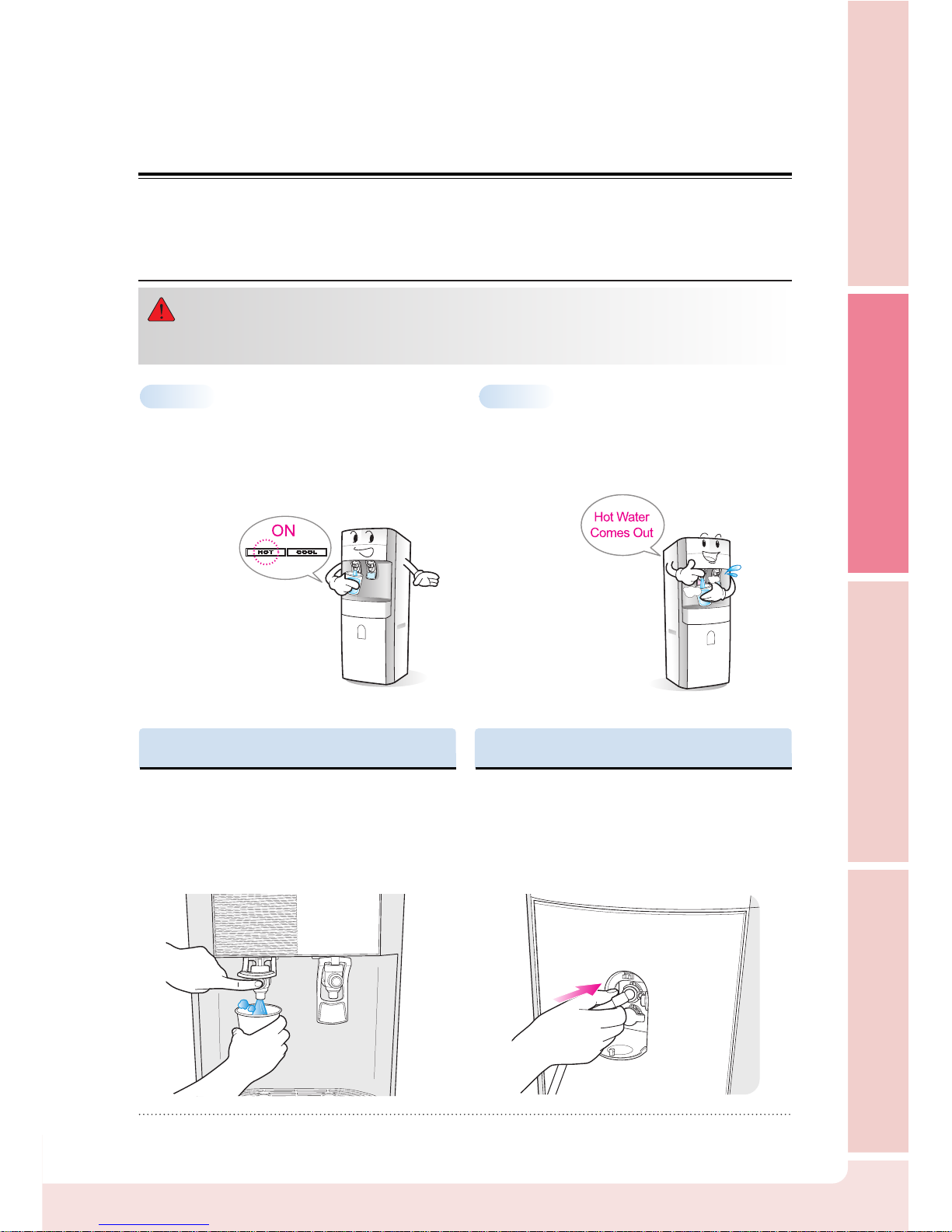

How to Drink Hot Water
Double check out the water
comes out from the hot water
faucet and then turn on the hot
water switch on the front. Make
sure that the indicator of hot
water is turned on.
Press ‘PUSH’ button of hot
water faucet and lightly push
the cup-touch lever at the same
time to extract hot water.
Step1 Step2
Continuous Extraction Draining Water
Turn off the cold and hot water switch
before unplugging power cord. And close
the main water feed valve. Then, connect
the hose to the drainage valve to drain
water.
Pull forward the cup-touch lever of hot or
cold water faucet to extract continuously
water.

15
16
CLEANING METHOD
Keep the surrounding environment clean all the time and clean the inside
of the tank once a month to get clean water.
Note
Step1 Step2
Step3 Step4
Step5 Step6
Turn off the cold and hot water
switch. And close the main
water feed valve before
unplugging power cord.
Drain all the water in the
storage tank by using the
drain hose. Then, keep it on a
water reservoir.
Open the top cover of the
product and open the cap of
the storage tank.
Wipe the inside of the storage
tank with a soft cloth.
Wash out the storage tank with
the reserved water and drain it
through the drain hose.
Close the cap and the top
cover. And plug the power
cord and open the main water
feed valve. Then, turn on the
cold and hot water switch.
Cleaning of Storage Tank

Safety Information Operating Instructions Troubleshooting Tips Customer Service
Cleaning of Gutter
Step1 Slightly lift gutter and the
cover upward, and separate
them.
Step2 After cleaning gutter and
the cover, combine them.
Step3 And then, slightly push and
press the combined gutter
and cover downward.

17
18
How does Our Product Filter Out Wastes?
The reverse osmosis membrane system has been applied to our water filtration
system, where a TFC membrane with pores of 0.0001
㎛ (1/1,000,000 of hair) is used.
The components of our water filtration system are as follows;
FILTRATION SYSTEM
This reverse osmosis system contains a replaceable treatment component,
critical for the effective reduction of total dissolved solids and that product
water shall be tested periodically to verify that they system is performing
properly. Replacement of the reverse osmosis component should be with
one of identical specifications, as defined by the manufacturer, to assure the
same efficiency and contaminant reduction performance.
Note
Using a step-by-step filtration method per pore, this filter effectively
reduces various foreign bodies that come from the supplying water
pipe such as bits of rust and also protects the membrane. The
Plus-Sediment filter vastly reduces dirt, sand, rust particles, and
other sediments.
Plus-Sediment Filter
The activated carbon filter reduces chlorine, odor, tri-halo methane,
gas additive MTBE, and organic pollutants such as pesticides,
EDB, benzene, and TCE.
Pre-Carbon Filter
The RO(Reverse Osmosis) Membrane filter reduces cryptosporidium,
viruses, coliform, bacteria, radioactive radon, arsenic, copper, iron,
lead, manganese, as well as dissolved chemical solids such as
bicarbonate, cyanide, ferrocyanide, nitrates, and nitrites. (CHP-
04AR/L)
The Post-Carbon filter reduces unpleasant smell from water and
enhances water flavor. (CHP-04AU)
RO Membrane Filter / Post-Carbon Filter
The Fine Post-Carbon filter reduces unpleasant smell from water
and enhances water flavor, and prevents carbon particles to flow
into storage. (CHP-04AR/L)
Neo filter reduces the foreign materials and waterborne
microorgarnisms. (CHP-04AU)
Fine Post-Carbon Filter / Neo Filter
UV lamp circulates the treated water inside the reservoir tank so
that it prevents secondary contamination inside it.
UV Lamp
STEP1
STEP2
STEP3
STEP4
STEP5

Safety Information Operating Instructions Troubleshooting Tips Customer Service
Estimated Time of Filter Replacement
Water Filtration Process
The estimated replacement time of
filter which is a consumable part is
not an indication of quality guarantee
period, but it means the ideal time of
filter replacement. Accordingly, the
estimated time of filter replacement
may be shortened in case it is used in
the area of poor water quality or a lot.
12-18 months
When the UV lamp blinks.
12-24 months
8~12 months
4~6 months
Usable Period
Fine Post-Carbon Filter
/ Post-Carbon Filter
12 months Neo Filter
UV Lamp
Membrane Filter
Pre-Carbon Filter
Plus-Sediment Filter
Names of Filter
The disposed water shall be used for cleaning a toilet, a house, dishes,
and as water for sundry uses. However, please do not use it for potable
water or cooking water.
WARNING
Plus-Sediment Filter Pre-Carbon
Membrane Filter
(CHP-04AR/L)
Post-Carbon Filter
(CHP-04AU)
Fine Post-Carbon
Filter(CHP-04AR/L)
Neo-Filter
(CHP-04AU) UV Lamp
Disposed
Water
(CHP-04AR/L)

19
20
▶ CHP-04AR
▶ CHP-04AL
▶ CHP-04AU
WATER FLOW DIAGRAM
