Coway CHP-18AR User manual

Water Filtration Device
CHP-18AR
• This product can not be used if the voltage is dierent from that mentioned in the rating plate.
• For your safety and proper use of the product, please read this User’s Manual before use.

FEATURES
Hot water temperature control function
You can control the water temperature using the Hot-Warm Water Temperature
Control Dial.
Mood lamp function
If you activate the mood lamp function, the mood lamp is lit when the light
sensor senses insucient light.
Power saving function using the ECO mode
If you activate the power saving function, the number of comp and heater
operations is automatically control and the power consumption is reduced.
Polished design and easy installation
The tidy appearance that suits all locations such as a normal kitchen or living
room, dees the limitations with conventional installation locations.
1
2
3
4

Thank you for using Coway water ltration device.
Please read this User Manual to learn about proper usage and maintenance of the product.
When a problem occurs while using the product, it can be solved by referring to the instructions in this manual.
DEAR CUSTOMERS
- Please keep the user manual in easily accessible areas. -
CONTENTS
FEATURES / CONTENTS
2
1
COWAY
Product Information How to use
Maintenance Others
| 03 | Safety Information
| 06 | Parts Name
| 08 | Water Filtration Process
| 09 | Buttons and Indicators
| 12 | Installation
| 13 | How to Get the Desired Water
How to Get Cold Water
How to Get Ambient Water
How to Get Hot Water
How to Get Warm Water
| 15 | How to Install
| 16 | How to Clean
How to Clean Inside Water Tank
How to Clean the Tray
How to Clean Faucet Deco
| 20 | Filter Replacement
| 21 | How to Replace the Filter
| 24 | Troubleshooting
|26 | Specication
| 27 | Water Flow Diagram

Danger : Indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury.
• Do not use a damaged power cord or plug, and loose outlet.
• Do not unplug by pulling the cord or handle the plug with wet
hands.
• Do not run the power cord under a heavy object to prevent it
from being damaged.
• If the cord or plug is wet, unplug the unit and let it completely
dry before subsequent use.
• Unplug the unit before repair, inspection, or replacement.
• Do not plug into an outlet or power socket that is being used by
several other appliances.
Use a separate outlet for the unit.
• Close the main water supply valve and unplug the power cord
when not using for a long time.
• Do not attempt to repair the power cord.
• Do not repeatedly plug and unplug the unit from the electrical
outlet.
• Do not use if the cord appears to be damaged. Please ask
customer service to replace the cord.
• Remove any dust or water if it’s on the plug.
Never use Benzene or gasoline to clean the plug.
• Do not install the unit near heaters.
• Close the main water supply valve and plug out, then call to A/S
center in the case of any water leakage from the product.
Be careful to keep this safety information.
Please read this information to prevent property loss and
ensure your safety. for 220 V - 240 V , 50 Hz use only
SAFETY INFORMATION

• Do not place dishes or containers of water, drugs, food, or small
metal objects on top of the product.
• Immediately unplug and call the customer service center if the
unit makes a strange noise or odd smell.
• Do not put a candle, cigarette or any other ammable object on
it.
• Do not carry the unit by its power cord.
• Do not spray water or wipe them with benzene when cleaning.
• Do not repair, disassemble, or modify.
Warning : Indicates a potentially hazardous situation which,
if not avoided, could result in death or serious
injury.
• Do not turn or raise the product by holding the puried water
extraction faucet.
• Since both the hot and warm water are hot, avoid contact with
the water. Failing to do so may result in burns.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the appliance.
• This appliance can be used by children aged from 8 years and
above.
• The new hose-sets supplied with the appliance are to be used
and that old hose-sets should not be reused.
SAFETY INFORMATION
Product Information
4
3
for 220 V - 240 V , 50 Hz use only

SAFETY INFORMATION
Caution : Indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate
injury or damage to the product or other
properties.
• Use or place the unit on a level area and do not apply force to
the unit.
• Please use after completely closing the cover of the water tank in
the product.
• Periodical lter replacement is prerequisite for getting clean
water.
• When water if stored or the product is not in use for a long time,
drain all the water in the storage tank before use.
• When moving the product or replacing the ne post-carbon
lter there may be black residue particles in the stored water at
the bottom of the tank.
• Do not use ltered water for changing water of an aquarium or a
shbowl.

PARTS NAME
SAFETY INFORMATION / PARTS NAME
6
5
Product Information
Front
Back
Rear Cover
Condenser
Outlet(Blue)
Inlet(Orange)
Power Cord
Front Cover
Indication Part
Light Sensor
Hot/Warm Water
Temperature Control Dial
Cold/Ambient Water
Changeover Dial
Hot Water Safety Button
Cup-Touch Lever
Deco Faucet

PARTS NAME
Side
ECO(Power Saving) Mode
Selection Button
Mood Light
Selection Button
Low Water Level Indicator

PARTS NAME / WATER FILTRATION PROCESS
8
7
Product Information
WATER FILTRATION PROCESS
1, 2 Step : Neo-sense Filter
This neo-sense lter has the functions to remove particulates, dissolved organic and inorganic impurities.
It also has the function to remove chlorine, volatile organic compounds(VOC’s).
Step 3 : Membrane Filter (RO)
RO membrane lter has the function to remove water contaminants such as heavy metals, waterborne
microorganisms and harmful organic chemicals etc.
This water which contains harmful material is eliminated through the reject water hose as disposed water.
Step 4 : Plus Inno-sense Filter
This Plus Inno-sense lter has the functions to remove smell inducing material and to improve taste of water.
Step 5 : Antibacterial FIlter
This Antibacterial FIlter has the function to control microorganism propagation in water.
CHP-18AR
► Uses of the disposed water
- The disposed water should be used only for cleaning the house, cloths,
or purposes other than drinking.
- Never use the disposed water for drinking or for cooking.
Tips
Neo-Sense
Filter
Membrane lter
(RO)
Plus Inno-Sense lter Antibacterial
Filter
Reject water
Outlet

BUTTONS AND INDICATORS
Indication part
1
Hot water
temperature indicator
2
Hot water
mode lamp
4
Cold water mode lamp
3
Cold water
temperature indicator
5
Warm water
temperatute indicator
6
Hot water indicator
3 Cold water temperature
indicator
According to the water temperature of
the cold water, the indicator is turned on.
The more lamp on the indicators,
the colder the water.
4Cold water mode lamp
When selecting cold water mode,
the indicator lights up.
5 Warm water temperatute
indicator
Warm water can be extracted when
warm water feature is selected.
6Hot water indicator
Hot water can be extracted when
hot water feature is selected.
1 Hot water temperature
indicator
According to the water temperature of
the hot water, the indicator is turned on.
The more lamp on the indicators,
the hotter the water.
2Hot water mode lamp
When selecting hot water mode,
the indicator lights up.

BUTTONS AND INDICATORS
10
9
How to use
Indication part
11
Low water level
Indicator
7
Light sensor
9
Cold water
indicator
8
Lock indicator
10
Ambient water
indicator
7Light sensor
This sensor detects the surrounding
illumination of the product.
8 Lock indicator
The indicator is on when the lock
feature is selected.
11 Low water level indicator
When the water level of the
inner water tank becomes low,
this indicator is turned on.
9Cold water indicator
Cold water can be extracted when
cold water feature is selected.
10 Ambient water indicator
Ambient water can be extracted when
ambient water feature is selected.

Control part
1
Hot water mode selection button
Press this button to select/deselect hot
water mode.
(Press the hot water mode selection
button for 2 seconds to deactivate it.)
2
Cold water mode selection button
Press this button to select/deselect cold
water mode.
(Press the cold on/o button for
2 seconds to deactivate it.)
7 Mood light selection button
Press this button to turn the mood
Light on or o.
6 ECO(Power saving)mode
selection button
Press this button to select/deselect
power saving mode.
5 Hot water safety button
Press this button once before extracting
hot water. If you do not press the hot
water safety button, hot water will not
be extracted even if you push the
cup-touch lever.
3Hot/Warm water
temperature control dial
Use this dial to control the hot
and warm water temperature.
4Cold/Ambient water
changeover dial
Use the dial to select either cold or
room temperature water.
BUTTONS AND INDICATORS
1
Hot water mode
selection button
2
Cold water mode selection button
4
Cold/Ambient water changeover dial
3
Hot/Warm water
temperature
control dial
6
ECO(Power saving)
mode selection
button
7
Mood light
selection button
5
Hot water
safety button

INSTALLATION
1. Close main water supply valve to separate the faucet.
2. Wind the teon tape on the adaptor and t it to the pipe.
3. Connect the faucet with the adaptor.
4. Connect ¼ inch orange tubing with the connector
on the adaptor.
5. Connect it to a socket with voltage rating that matches the
one stated on the rating plate. Then, open the feed valve to
supply water to the ltration system.
Do not turn the water pipe.
Flush water through each lter at least 5 minutes
before connecting.
Please install the adaptor with connector on the
cold water pipe.
How to use
12
11
BUTTONS AND INDICATORS / INSTALLATION

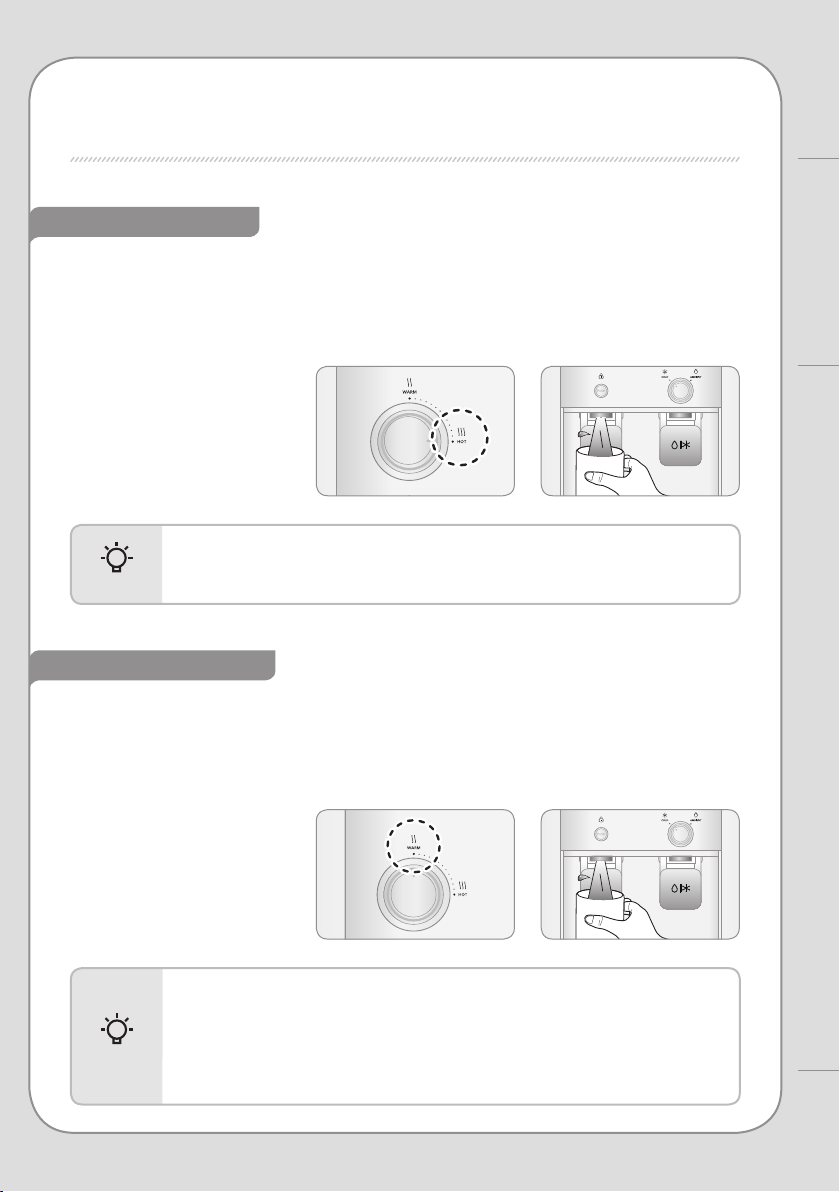

HOW TO GET THE DESIRED WATER
Turn the Cold/Ambient water changeover dial counter clockwise and push the cup-touch lever.
Press the cold water mode selection button and check if the cold water mode indicator is turned on.
How to Get Cold Water
- When the cold water does not extract from the ltration system, please check if the cold water
mode indicator is on.
Tips
▶
Turn the Cold/Ambient water changeover dial to the right and push the cup-touch lever to drink
room temperature water.
How to Get Ambient Water
▶

HOW TO GET THE DESIRED WATER
14
13
Maintenance
How to Get Warm Water
Turn the Hot/Warm water temperature control dial to the warm water position, press the safety button and
then push the cup-touch lever.
Press the warm water mode selection button and check if the warm water mode indicator is turned on.
- Warm water mode mixes hot and cold water. The temperature of the warm water of this product is
determined assuming that the hot and cold water of this product are at their maximum temperatures.
Therefore, if both the hot and the cold water temperature levels are not at their maximum, the warm
water may be hotter or colder than the usual warm water temperature.
In addition, when the low water level indicator is turned on, the warm water may be hotter than usual.
- Since warm water may be hot, be careful not to burn yourself.
Tips
How to Get Hot Water
Turn the Hot/Warm water temperature control dial to the hot water position, press the safety button and
then push the cup-touch lever.
Press the hot water mode selection button and check if the hot water mode indicator is turned on.
Pressing the safety button just once is enough.
- When the hot water does not extract from the ltration system, please check if the hot water
mode indicator is on.
- When using hot water, be careful not to burn yourself.
Tips
▶
▶

For own dedicated
220 V - 240 V~, 50 Hz
AC only electric outlet
Installation Guide
Tap water valve
Connect the orange tap water input hose to 1 the water pipe.
Connect the 2 residential water output hose.
Tap water input hose (Orange) connection
Residential water output hose(Blue) connection
2
HOW TO INSTALL
1

HOW TO INSTALL / HOW TO CLEAN
Maintenance
HOW TO CLEAN
16
15
How to Clean Inside Water Tank
► To drain hot water
- Open the draining cover at the right side of the product and connect the draining hose
(continuous extraction hose) to drain the hot water from the hot water tank.
(Be careful not to burn yourself when draining hot water.)
Tips
2. Please drain and store the water inside the water ltration device completely using the
draining hose and the cold/ambient water extraction faucet.
* Turn the Cold/Ambient dial to the cold water direction and lift the faucet lever upwards completely to
extract the entire cold water.
4. Open the top cover of the product by sliding the cover backwards, open the xing clips
(6 points) of the inner water tank, and open the inner water tank cover by lifting it up.
3. Unplug the power plug. Close the main water supply valve.
1. Press and hold down each of the Cold and Hot water buttons
on the front panel of the product for 2~3 seconds.
▶ ▶
▶ ▶
2~3 Seconds

6. Wipe the inside of storage tank with a soft cloth.
5. Separate the Antibacterial lter from the inner water tank cover and clean
the Antibacterial lter by washing it in the drained water.
▶
7. Wash the storage tank with the drained water.
* Turn the Cold/Ambient dial to the cold water direction and lift the faucet lever upwards completely to
extract the entire cold water.
▶
▶ ▶
HOW TO CLEAN

18
17
HOW TO CLEAN
Maintenance
10. After closing the top cover and connecting the power plug, open the main water supply valve.
Please operate the water ltration device again by pressing the cold water/hot water mode
selection button at the front of the product after checking if the water is coming from the
cold water/ambient water extraction faucet and the hot water extraction faucet.
9. Plug the power plug. Open the main water supply valve.
8. Install the Antibacterial lter into the inner water tank cover by turning the lter,
closing the inner water tank cover and closing the xing clips (6 points) of the inner water tank.
▶

How to Clean the Tray
How to Clean Faucet Deco
When cleaning storage tank do not use chemicals or detergents.
- When the chemicals and detergents are not washed out
completely it may be harmful to health.
- Please always keep the device environment clean and clean its storage tank once every two months.
Chemicalsor Detergents
Tips
1. The tray separation method
You can easily separate the tray by pulling the front
part of the the tray forward.
2. The tray assembling method
Simply push the tray hook slightly after sticking it onto the product.
1. Turn the two deco faucets counterclockwise to
separate them.
2. Wash the separated deco faucets with tap water and
wipe them with soft, dry cloth.
3. Mount the two deco faucets back by turning them
clockwise.
HOW TO CLEAN
