CHP-5720R / CHP-5721L
Water Purifier



DEAR CUSTOMERS

9
3
10
11
Ⅰ Please check before use!
1. Safety information
2. Part names and accessories
3. Use of accessories and precautions
4. How to install
14
15
1. Buttons and indicators
20
2. How to use
Ⅱ Understand the correct usage and functions
21
1. Filter replacement
Ⅲ Learn how to clean and manage the product
1. Correct usage guide 23
25
2. Troubleshooting
29
3. Specification
Ⅳ Familiarize yourself with information in advance for safe use
5. Checks before use


Safety information
1
These instructions are to keep you safe and to prevent property damage.
Please carefully read the precautions and use the product correctly.
Danger

Electric shock/fire 























Preparation for use
Ⅰ
Ⅲ
Ⅱ
Ⅳ


Fire
Electric shock/fire
Damage/injury













Electric shock/fire
Electric shock/
damage



Electric shock/fire
Electric shock
Fire/performance
decline
Electric shock/
damage
 





 




Safety information
1
These instructions are to keep you safe and to prevent property damage.
Please carefully read the precautions and use the product correctly.
Danger


Preparation for use
Ⅰ
Ⅲ
Ⅱ
Ⅳ

Warning

Damage/breakage
Electric shock/fire

 









Injury  




The mark on this product is a caution mark for
fire hazard/flammable substances.



Caution

Fire
Breakdown/injury
 









 


Safety information
1
These instructions are to keep you safe and to prevent property damage.
Please carefully read the precautions and use the product correctly.


Preparation for use
Ⅰ
Ⅲ
Ⅱ
Ⅳ


Malfunction
Malfunction/fire
Pollution









Others 







Front/Rear
Part names and accessories
2
















CHP-5720R Water Purier
User's Manual
CHP-5720R

CHP-5720RWater Purier
 








Preparation for use
Ⅰ
Ⅲ
Ⅱ
Ⅳ
Use of accessories and precautions
3

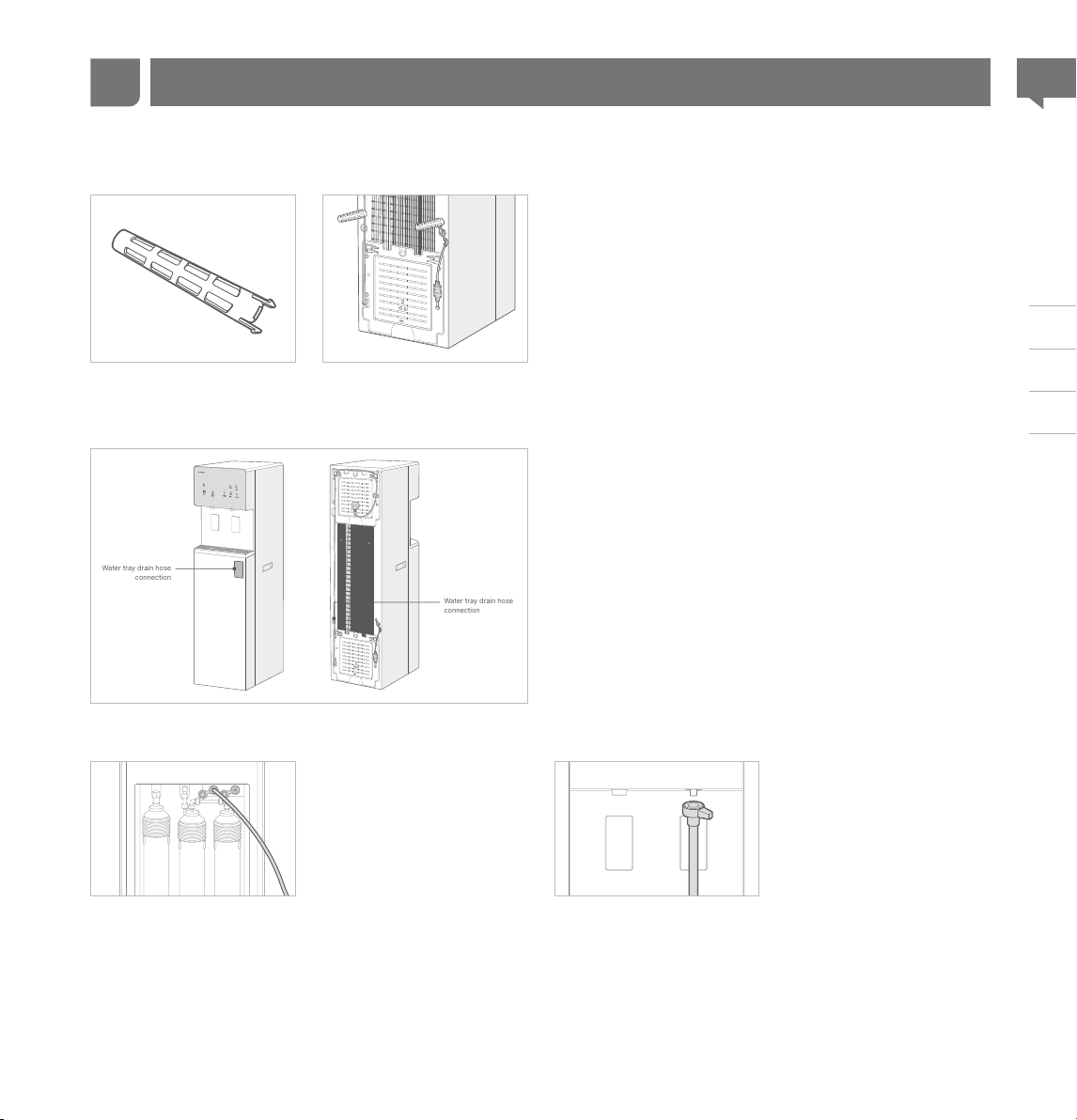

Distance Maintenance Rod
Water Tray Drain Hose
Drain Hose
Use it when watering out of the
faucet.


Use when draining hot, cold, and
ambient water.



Water tray drain hose
connection
Water tray drain hose
connection
Connect the water tray drain hose to
automatically drain the water thrown
into the water tray.
Mount the distance maintenance rod
on the back of the product to secure
a space between the product and the
wall.











Check before installation







How to install
4






Preparation for use
Ⅰ
Ⅲ
Ⅱ
Ⅳ


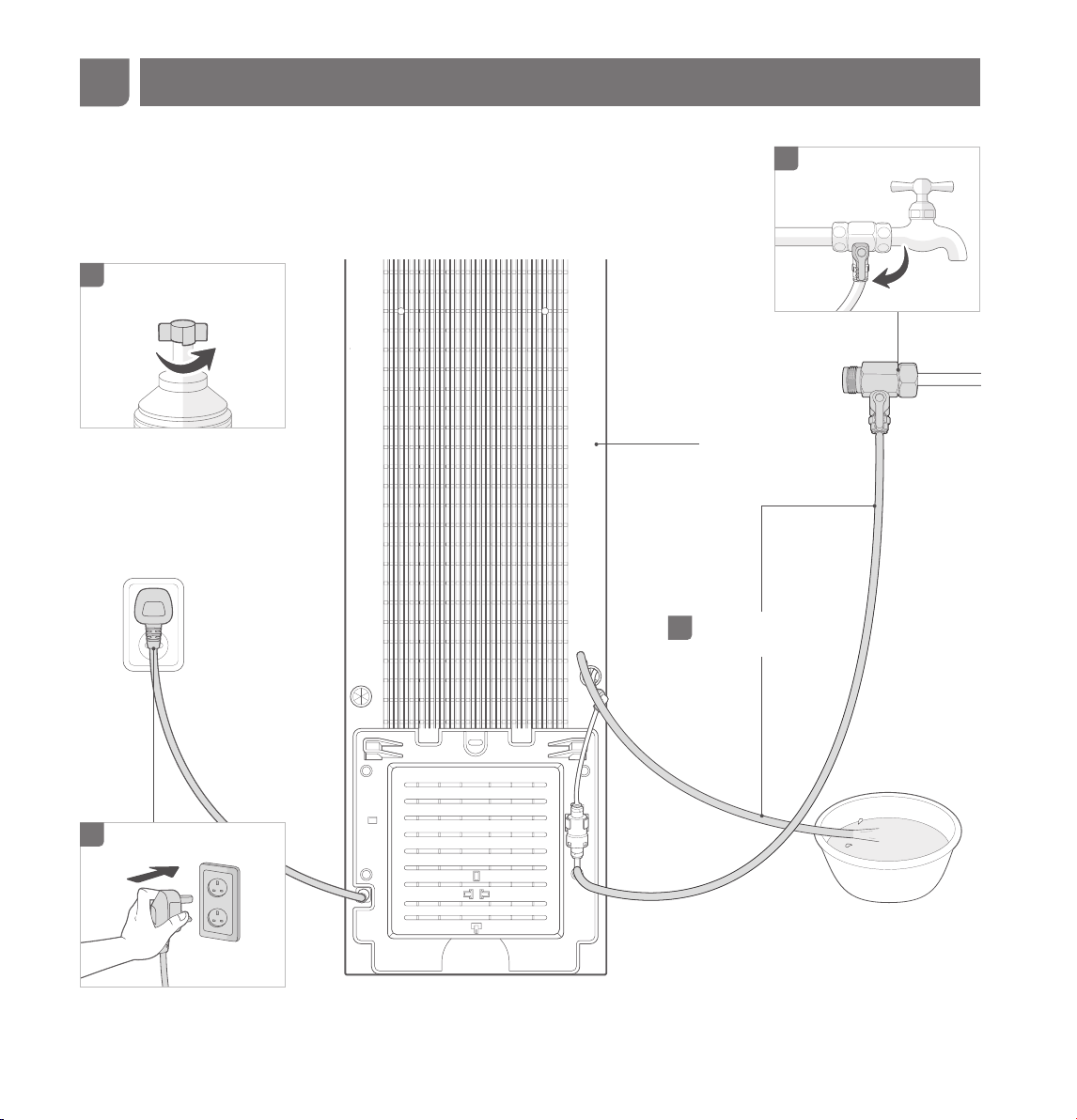

Install as per the following:
1
Connect the tap water supply adapter to the water valve.

2
Install inlet and drain lines on the body.

6
Connect the power plug of the main body.
7
If the water tray needs automatic drainage, you can install a drain hose of
the water tray.

3
Open the top cover and open the water tank cover to put the internal tank
cover over the cold water tank.

4
Connect the distance rod of the water tank cover to the bottom of the water
tank cover.
5
Close the water tank cover, insert the clip, and then close the top cover of
the main body.






How to install
4
Tap water supply Tap water supply
adaptoradaptor
1
Install inlet and
drain lines
2
Open the internal tap Open the internal tap
water supply valvewater supply valve
Main body power
3
4



Preparation for use
Ⅰ
Ⅲ
Ⅱ
Ⅳ
This product is for 240 V - 50 Hz.


Open the tap water supply valve (internal, external)

When the indicator on the display is off, check the power supply.

Replace the filter regularly.



When not in use for a long time, drain the water inside before use.


If you do not want to use it for a long time, please disconnect the power.

Checks before use
5
When installing for the first time, make sure to flush the filter.




Indicators
Buttons and indicators

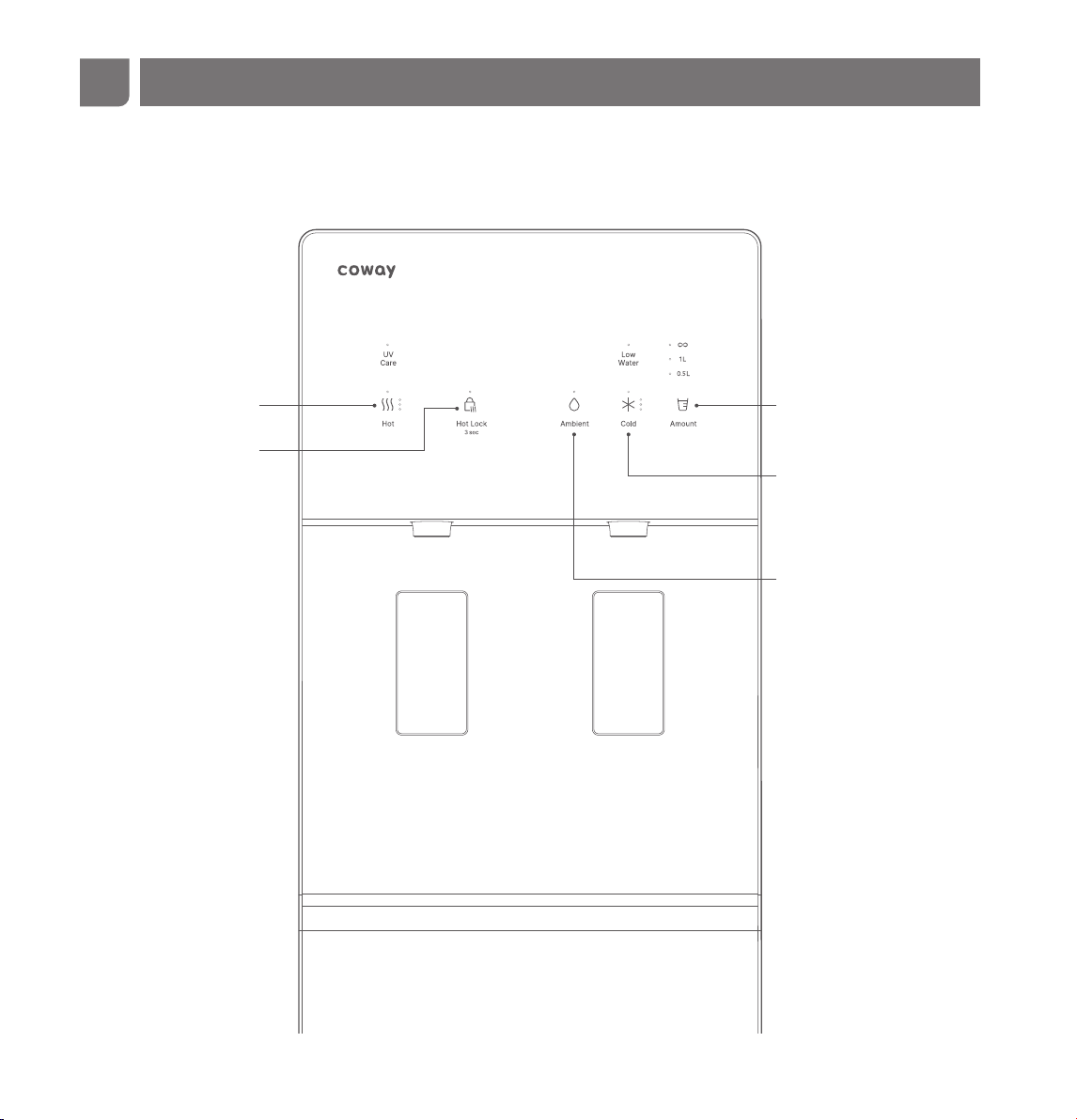

1
Hot water indicator
UV care indicator
Hot water lock
indicator
Amount indicator
Low water level
indicator
Cold water indicator
Ambient water
indicator

Ⅰ
Ⅲ
Ⅳ
How to use
Ⅱ

Status notification icon


Extraction amount
indicator


Hot water temperature
indicator


UV care indicator


Cold water indicator


Ambient water indicator


Hot water lock indicator


Low water level indicator


Cold water temperature
indicator


Hot water indicator




Buttons
Buttons and indicators
1
Hot water button
Hot water lock
button
Amount button
Cold water button
Ambient water
button

Ⅰ
Ⅲ
Ⅳ
How to use
Ⅱ


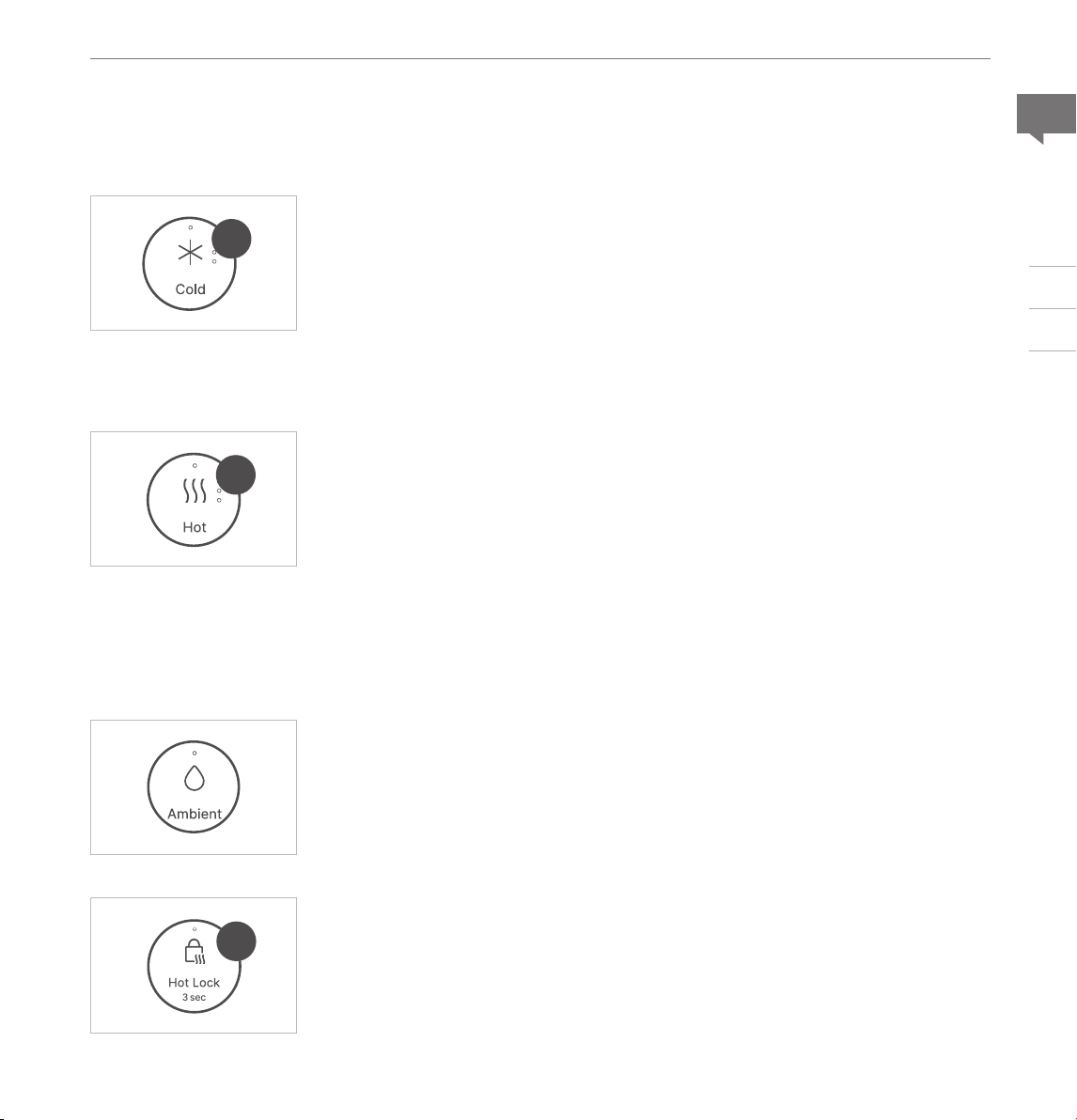

Main function
Cold water function







3 SEC
3 SEC
Hot water function









3 SEC
Hot water lock function




Ambient water function

















Buttons and indicators
1
Main function

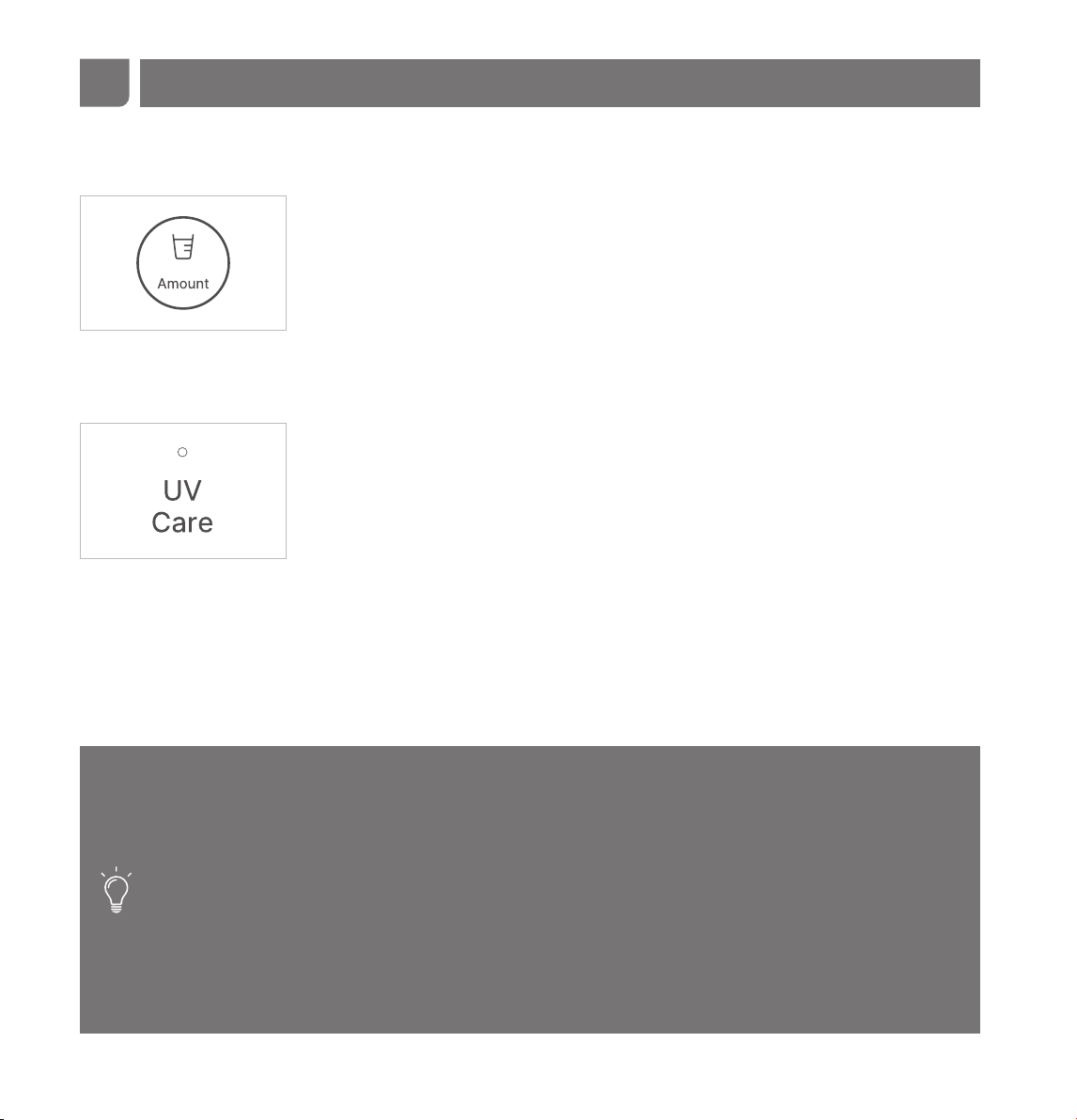

Extraction amount function
UV care function


