Coway CHP/CP-6310L User manual

Water Purier CHP/CP-6310L
• This product cannot be used if the voltage is dierent from that mentioned in the rating plate.
• For your safety and proper use of the product, please read this User’s Manual before use.

FEATURES
1
2
3
4
Convenient quantitative dispensing for hot(CHP-6310L),
cold and ambient water.
This convenient feature automatically extracts the exact amount of water
(ambient, cold or hot(CHP-6310L)) you wish through a single faucet.
Cold Water Plus feature
With this feature, a more abundant supply of cold water can be provided as
this model uses separate cold and ambient water tanks.
Energy saving light sensor
When in ECO mode, the device automatically reduces the frequency of motor
and heater operation to reduce power consumption.
Slim size and a rened design
This device can be conveniently installed and used in any kitchen, no matter
how small, with its slim size and elegant design.

2
1
Thank you for using Coway Water Purier
Please read this User Manual to learn about proper usage and maintenance of the product.
When a problem occurs while using the product, it can be solved by referring to the instructions in this manual.
DEAR CUSTOMERS
- Please keep the user manual in easily accessible areas. -
CONTENTS
FEATURES / CONTENTS
COWAY
Product Information How to use
Maintenance Others
| 03 | Safety Information
| 07 | Parts Name
| 08 | Water Purication Process
| 09 | Please Check Before Use
| 10 | How to Use Hygienically
| 11 | Buttons and Indicators
| 19 | How to Get the Desired Water
How to Get Cold Water
How to Get Ambient Water
How to Get Hot Water
(CHP-6310L)
| 21 | How to Install
| 23 | How to Clean
How to Clean Internal Water Tank
How to Clean the Tray
How to Clean Water Purier
How to Clean Transparent Faucet Cover
| 27 | Filter Replacement
| 28 | How to Replace the Filter
| 30 | Regular Maintenance
| 31 | Troubleshooting
|32 | Specication
| 33 | Water Flow Diagram
| 34 | Performance Data Sheet

SAFETY INFORMATION
DANGER : Indicates an imminently hazardous situation
which if not avoided, will result in death or
serious injury.
• Do not use damaged power plugs or loose sockets.
• Do not pull on the power cord.
• Do not pull on the power cord to move the product.
• Do not touch the power plug with wet hands.
• Do not bend the power cord excessively or put it under a heavy
object to avoid damage or deformation.
• Do not plug and unplug the power cord repeatedly.
• When the power area comes into contact with water, unplug the
power plug and completely dry it prior to use.
• Make sure to unplug the power cord when repairing, inspecting
the product or changing its parts.
• Completely wipe o dust, water etc. on the power plug's pins
and areas of contact with the pins.
• Do not connect multiple products to one power outlet. Use a
separate socket for the product.
• Lock the tap water supply valve and disconnect power when not
using the product for an extended period of time.
• Do not modify the power cord on your own.
• If the power cord is damaged, do not attempt to replace the cord.
Instead, contact the service center to replace it.
• Do not install near sources of heat.
• Connect the tap water to the cold water tubing.

4
3
• Please lock the tap water valve and disconnect the power plug and
contact the service center if there is water leakage from inside the
product or if water is puddling around the product.
• Immediately disconnect the power plug and contact the service
center if there is any burning smell or smoke or strange noises from
the product.
• Do not put candles, lighters, etc. on top of this product.
• Do not put bowls of water, chemicals, food, small metal objects,
or ammable materials on top of this product.
• Disconnect the power plug prior to cleaning.
• Do not arbitrarily open, repair or remodel the product.
SAFETY INFORMATION
Product Information
THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8
YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL,
SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE
AND KNOWLEDGE IF THEY HAVE VEEN GIVEN SUPERVISION
OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A
SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED.
CHILDREN SHALL NOT PLAY WITH THE APPLIANCE.
CLEANING AND USER MAINTENANCE SHALL NOT BE MADE
BY CHILDREN WITHOUT SUPERVISION.

SAFETY INFORMATION
WARNING : Indicates a potentially hazardous situation
which, if not avoided, could result in death
or serious injury.
• Do not apply excessive force or impact to the product.
• Do not install the product on a tilted surface. Do not apply
excessive force or impact to the product.
• Do not install in a location with too much humidity or dust or in
a location exposed to water or rain.
• Do not directly spray water on the product for cleaning or use
benzene or thinner to wipe the product.
• As the refrigerant used in this product is isobutane (R-600a),
which is a combustible natural gas, ensure that the product is
not damaged while moving it.
• If the refrigerant leaks from the internal piping, a re or injury
may occur.
• Move away all ammable objects or object that ignite sparks,
and then ventilate the area.
• The refrigerant used in this product is isobutane (R-600a),
a combustible natural gas. For your safety, contact your local
community center before throwing away to safely dispose of this
product.
• Do not damage pipes, etc. while disposing of this product.

6
5
SAFETY INFORMATION
Product Information
CAUTION : Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury or damage to the product or
other properties.
• Use tap water as source water.
①Use tap water that is suitable for drinking as source water.
②Do not use in wet places such as bathroom.
③Do not use in places of high humidity or temperature.
• Drain the stored water as well as newly ltered water one more
time completely prior to use when not using the product for an
extended period of time.
• Do not come into close contact with hot water as it is very hot
and scalding may occur.
• Please replace the lter according to the lter replacement cycle
for clean water.
• People with physical, sensory, or mental impairment as well as
children must be supervised or guided while using the water purier.
• You must use the new hose set provided with this product. Do
not reuse old hose sets.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
veen given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• Children are not to play with the product.
• Cleaning and user maintenance shall not be made by children
without supervision.
READ AND SAVE THESE INSTRUCTIONS

Accessories
[CHP-6310L] [CP-6310L]
1
2
4
3
1Controls/Display 2Dispenser buttons 3Faucet 4Tray
Power cord
Radiator
Top cover
User's
manual
•
WaterFiltrationDevice
CHP/CP-6310L
Beforeoperatingtheunit, please read this manual thoroughly, and retain it for future reference.
•Warrantycardisincluded in this user’s manual.
Drain hose Fitting clip
PARTS NAME
Front

8
7
Plus Inno-sense filterMembrane filter (RO)Neo-sense filter
Reject
water
Outlet
WATER PURIFICATION PROCESSES
The essence of the water purication system lies in the lters.
Using an uncertied lter; or even using a certied yet expired lter may reduce lter performance.
4-Step Water Purication System (CHP/CP-6310L)
Step 1, 2 : Neo-Sense lter
This Neo-Sense lter has the function of removing particulates, dissolved organic and inorganic impurities.
It also has another function to remove chlorine, volatile organic compounds (VOC's).
Step 3 : Membrane lter (RO)
RO Membrane lter has a function to remove water contaminants such as heavy metals, waterborne microorganisms
and harmful organic chemicals etc.
The water which contains harmful materials is eliminated through the reject water hose as disposed water.
Step 4 : Plus Inno-Sense lter
This Plus Inno-Sense lter has functions to remove smell inducing material and to improve the taste of water.
Uses of the disposed water
- The disposed water should be used only for cleaning the house, clothes, or
purposes other than drinking.
- Never use the disposed water for drinking or for cooking.
Tips
PARTS NAME / WATER PURIFICATION PROCESSES
Product Information

PLEASE CHECK BEFORE USE
This product is for 220 V - 240 V~, 50 Hz.
Make sure to connect the power plug to a grounded 220 V - 240 V~, 50 Hz outlet.
It requires a power supply to operate.
■
Open the tap water supply valve
The water purier can work properly only when the
tap water is supplied.
■
When indicator light on the display is
turned o
When the indicator light is o, check if there is a
blackout or if the power supply is cut o for other
reasons.
■
When the product has not been used
for a long time
Completely drain the stored water as well as newly
ltered water one more time prior to use when
using the product after an extended period of time.
■
After installation
After installation, lter and drain water for at least
130 minutes(Use after draining puried water at
least twice).
■
Regular lter replacement
Regular lter replacement is crucial for clean
drinking water. Using expired lters decreases
water purier performance, so please replace the
lters on time.
■
How to drain hot water
Press the drain cover on the side of the device, then
insert the drain hose (continuous dispensing hose) to
drain hot water from inside the hot water tank
(Be careful not to be burned while draining hot water).
Please check before use
Turn o the tap water valve and unplug the power cord when not using the water
purier for a long time.
Tips

10
9
HOW TO USE HYGIENICALLY
Category Type Details
Period of use When not used
for a long time
• Refer to "Cleaning" in the instruction manual for instructions on interior
cleaning and storage. When using after long-term storage, clean before reuse.
How to Use
Faucet
Contamination
• Do not touch the faucet area with your hands, mouth, or cups you have used.
• Self-care - Wipe the faucet with a clean, dry rag/non-woven fabric, etc.
(wipe once per week).
When getting water
• Be careful that drinks (coee, tea, carbonated beverages) and food don't splash
into the faucet or onto the front cover.
• If there are drinks or other foreign matter on the device, wipe immediately to
prevent further contamination.
Tray and
ltered water tank
• Do not throw in coee, drinks, food, or anything other than leftover water.
• Do not leave water in the tray for more than one day.
Clean these parts yourself once per week.
Product disassembly • Do not disassemble or open the device at your discretion.
Product use • Do not put anything on top of the device (there may be contamination).
Hardware Filter • Do not install or use lters other than genuine Coway lters.
Maintenance
Checkups • Have your device serviced once every 2 months.
∗Maintenance period may dier by product.
Filter replacement
cycle
• Have lters replaced and checked according to the replacement cycle set for
each lter.
Maintenance
personnel
• Have your Coway device serviced by a Coway Cody or Coway Technician.
• If part replacement or interior cleaning are done by someone without
expertise, there is a risk of leakage, etc. Request a Coway Cody or Coway Technician.
Maintenance card
record
• If checkup/cleaning/part replacement was done during servicing,
check that this information has been recorded on the maintenance card.
Surroundings • Keep the device surroundings clean (trash can, etc.) so it stays in a hygienic
environment.
Installation
Product disassembly
and installation
• Do not install or disassemble the device at your own discretion;
have a Coway Technician do it.
Installation
environment
• Do not install the device where it may easily be contaminated.
- Unhygienic places such as inside bathrooms, places with a lot of mice or
insects (ants, cockroaches, etc.), and ships; near severely contaminated places
like easily contaminated rivers, livestock or waste water, etc.
- Seawater areas with a lot of humidity or salinity
- Places that receive direct sunlight
- Other unhygienic places considered unsuitable for device installation
PLEASE CHECK BEFORE USE / HOW TO USE HYGIENICALLY
How to Use

1
Hot water indicator
3
Hot water lock indicator
2
Hot water temperature
indicator
4
Ambient water indicator
5
Cold water indicator
6
Cold water
temperature indicator
7
Quantity indicator
8
Dispensing indicator

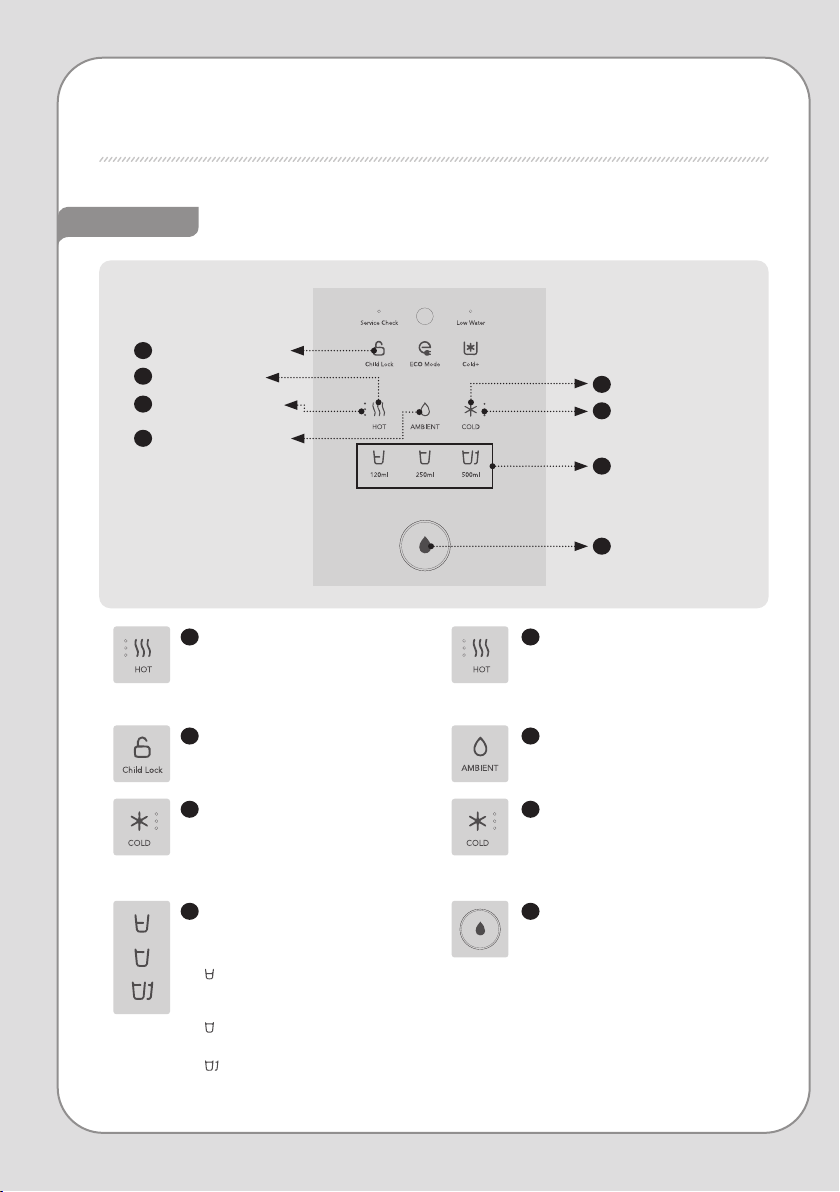

BUTTONS AND INDICATORS CHP6310L
Indicators
1 Hot water indicator
The indicator lights up when hot water
is selected.
2
Hot water temperature indicator
The indicator lights up according to the
temperature of the hot water.
The temperature of hot water is at its highest
when all 3 LED lights are illuminated.
3 Hot water lock indicator
The indicator lights up when hot water
lock is selected.
4 Ambient water indicator
The indicator lights up when ambient
water is selected.
5 Cold water indicator
The indicator lights up when cold water
is selected.
6
Cold water temperature indicator
The indicator lights up according to
the temperature of the cold water.The
temperature of cold water is at its lowest
when all 3 LED lights are illuminated.
8 Dispensing indicator
This indicator lights up when water is
being extracted.
7 Quantity indicator
Shows how much water is selected
to dispense.
(Half cup-about 120 ml) :
A good amount of water to use for
coee or tea
(One cup-about 250 ml) :
A perfect amount of water to drink
(Two cups-about 500 ml) :
A good amount of water to use to cook
ramen, etc.

12
11
9
Maintenance
indicator
10
Light sensor
12
ECO mode
indicator
13
Cold water
plus indicator
11
Low water
level indicator
Indicators
9 Maintenance indicator
This indicator lights up when
maintenance service is required.
10 Light sensor
This sensor detects light around
the device to discern whether it is
day or night.
12 ECO mode indicator
The indicator lights up when the
ECO mode feature is on.
11 Low water level indicator
The indicator will light up when the
water level in the tank is low.
13 Cold water plus indicator
The indicator lights up when the cold
water plus feature is selected.

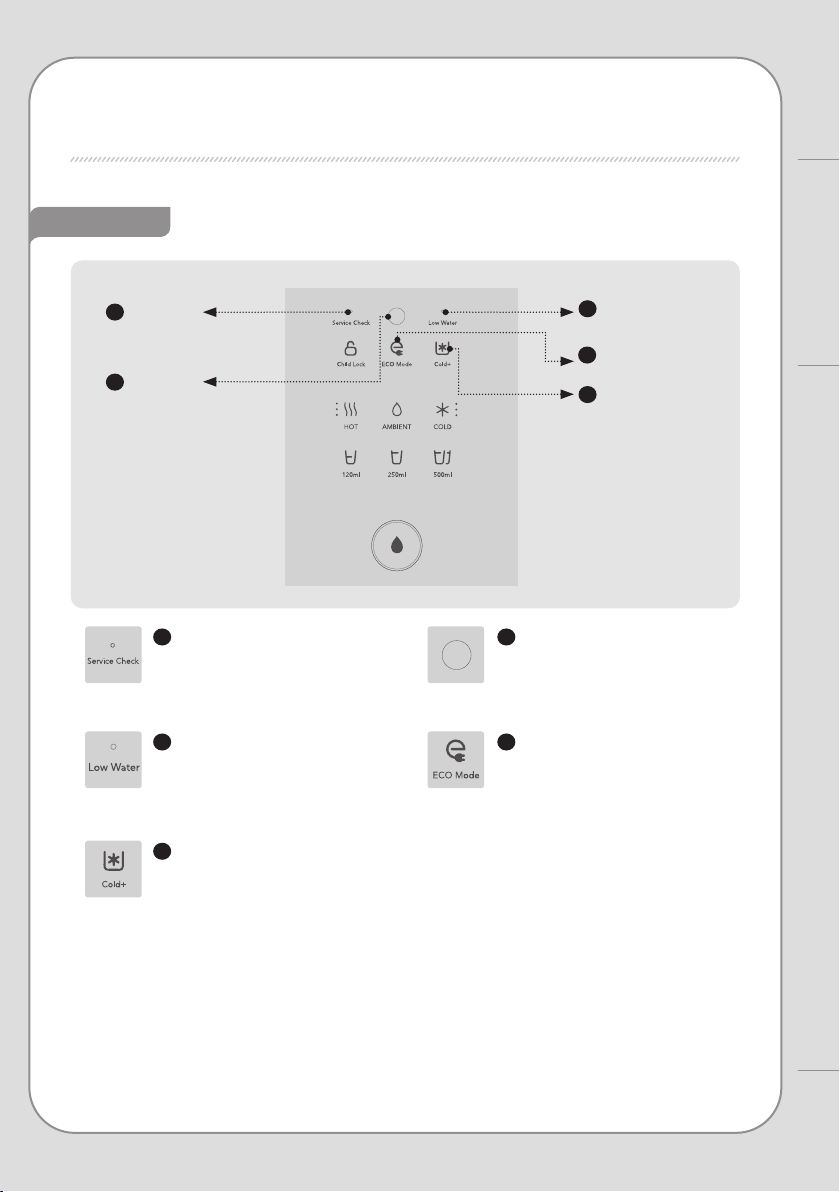

BUTTONS AND INDICATORS
How to Use

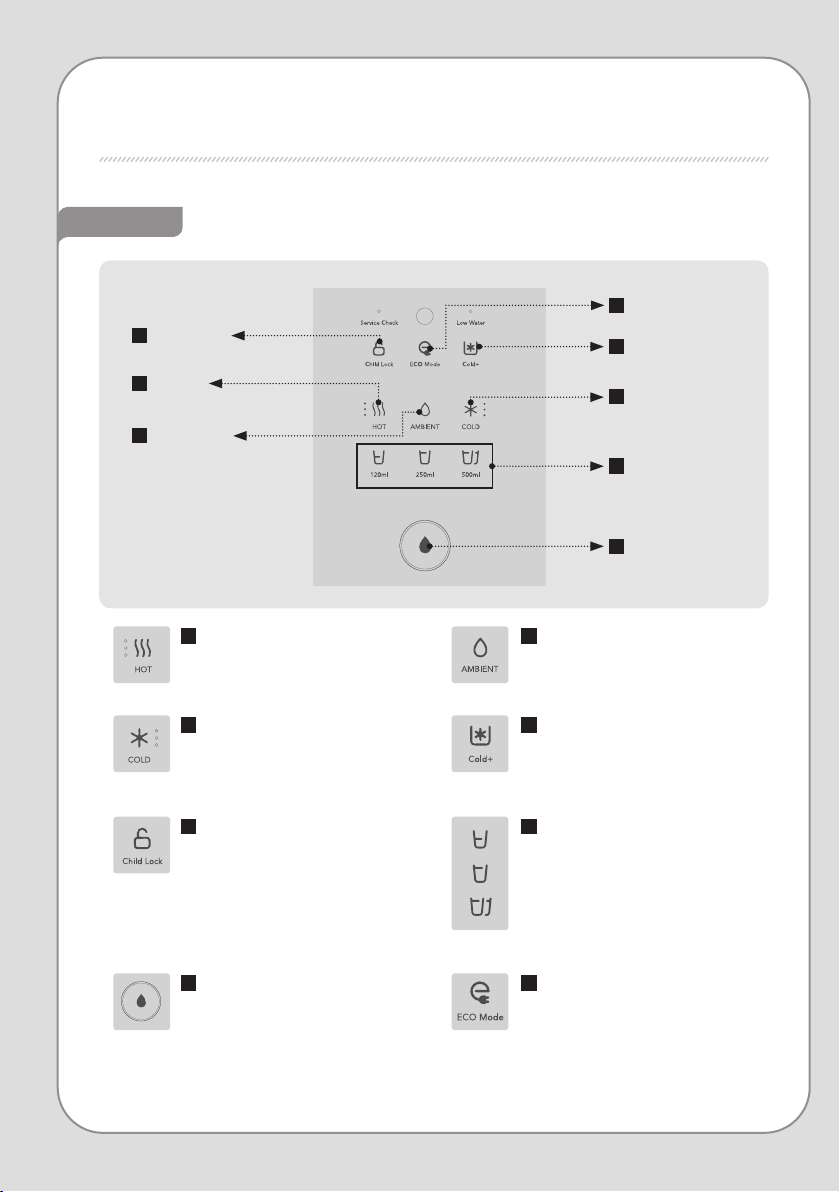

BUTTONS AND INDICATORS CHP6310L
5
Hot water lock
button
8
ECO mode button
4
Cold water plus
button
3
Cold water button
6
Quantity button
7
Dispense button
1
Hot water
button
2
Ambient water
button
Buttons
1Hot water button
Use when you wish to extract hot water.
2Ambient water button
Use when you wish to extract ambient
water.
3Cold water button
Use when you wish to extract cold water.
4Cold water plus button
Use when you want to turn on the cold
water plus feature.
7Dispense button
Use when you wish to extract water.
8ECO mode button
Use when you want to turn
ECO mode on.
5Hot water lock button
Use when turning on hot water lock.
hold for about 2 seconds to turn hot
water lock on/o.
(You cannot select/dispense hot water
while hot water lock is active.)
6Quantity button
Use when selecting the amount of water
you wish to extract.

14
13
1
Ambient water
indicator
5
Lock all indicator
4
Cold water plus indicator
2
Cold water indicator
3
Cold water temperature
indicator
7
Dispensing indicator
6
Quantity indicator
BUTTONS AND INDICATORS CP6310L
Indicators
1 Ambient water indicator
The indicator lights up when ambient
water is selected.
2 Cold water indicator
The indicator lights up when cold water
is selected.
3
Cold water temperature indicator
The indicator lights up according to
the temperature of the cold water.The
temperature of cold water is at its lowest
when all 3 LED lights are illuminated.
4 Cold water plus indicator
The indicator lights up when the cold
water plus feature is selected.
5 Lock all indicator
The indicator lights up when lock all
is selected.
7 Dispensing indicator
This indicator lights up when water is
being extracted.
6 Quantity indicator
Shows how much water is selected
to dispense.
(Half cup-about 120 ml) :
A good amount of water to use for
coee or tea
(One cup-about 250 ml) :
A perfect amount of water to drink
(Two cups-about 500 ml) :
A good amount of water to use to cook
ramen, etc.
BUTTONS AND INDICATORS
How to Use

8
Maintenance
indicator
9
Light sensor
11
ECO mode
indicator
10
Low water
level indicator
Indicators
8 Maintenance indicator
This indicator lights up when
maintenance service is required.
9 Light sensor
This sensor detects light around
the device to discern whether it is
day or night.
11 ECO mode indicator
The indicator lights up when the
ECO mode feature is on.
10 Low water level indicator
The indicator will light up when the
water level in the tank is low.
BUTTONS AND INDICATORS CP6310L

16
15
4
Lock all button
7
ECO mode button
3
Cold water plus
button
2
Cold water button
5
Quantity button
6
Dispense button
1
Ambient water
button
Buttons
1Ambient water button
Use when you wish to extract ambient
water.
2Cold water button
Use when you wish to extract cold water.
3Cold water plus button
Use when you want to turn on the cold
water plus feature.
5Quantity button
Use when selecting the amount of water
you wish to extract.
7ECO mode button
Use when you want to turn
ECO mode on.
4Lock all button
Use this to turn the lock all feature on/o
(press and hold).
6Dispense button
Use when you wish to extract water.
BUTTONS AND INDICATORS
How to Use

BUTTONS AND INDICATORS
■ To use the hot water feature(CHP-6310L)
Press the hot water button for at least 2 seconds and check to see
whether the display shows the hot water feature on and whether the
hot water temperature indicator is lit. To turn o hot water, press and
hold the hot water button again for at least 5 seconds.
∗ You can get hot water about 30 minutes after you turn on the
hot water feature.
■ To use the cold water feature
Press the cold water button for at least 2 seconds and check to see
whether the display shows the cold water feature on and whether the
cold water temperature indicator is lit. To turn o cold water, press and
hold the cold water button again for at least 5 seconds.
∗ You can get cold water starting about two hours after you turn on the
cold water feature.
■ To use the cold water plus feature
Press the Cold water plus button for at least 2 seconds and check to
see whether the display shows the Cold Water Plus feature on and
whether the cold water plus indicator is lit. To turn o cold water plus,
press and hold the cold water plus button again for at least 2 seconds.
- Cold water plus is useful if you want to get a lot of cold water at once.
(Using Cold Water Plus feature frequently does not aect on you relectricity fees.)
Tips

18
17
BUTTONS AND INDICATORS
How to Use
■ To use the ECO mode feature
Press and hold the ECO mode button for at least 2 seconds to turn
ECO mode on. The ECO mode indicator blinks when the product
recognizes night.
∗ If the ECO mode indicator is on, the cold water temperature is kept
relatively high when the area around is dark.
- If the water purier does not dispense cold water, check to see whether the cold
water indicator is lit (see page 11).
- When the level of room-temperature water inside the water tank is low, you may
not be able to get as much water as usual.
- When the power cord is reconnected or there is a blackout, the last settings used are kept.
- This product has a ECO mode feature when not in use. If not used for a long time
(approximately 9 hours), the hot water (CHP-6310L) temperature is automatically
decreased and the cold water temperature kept higher to help save on electricity
costs. When ECO mode is on due to non-use, the hot water (CHP-6310L) may be
less hot and the cold water may be somewhat less cold.
Tips

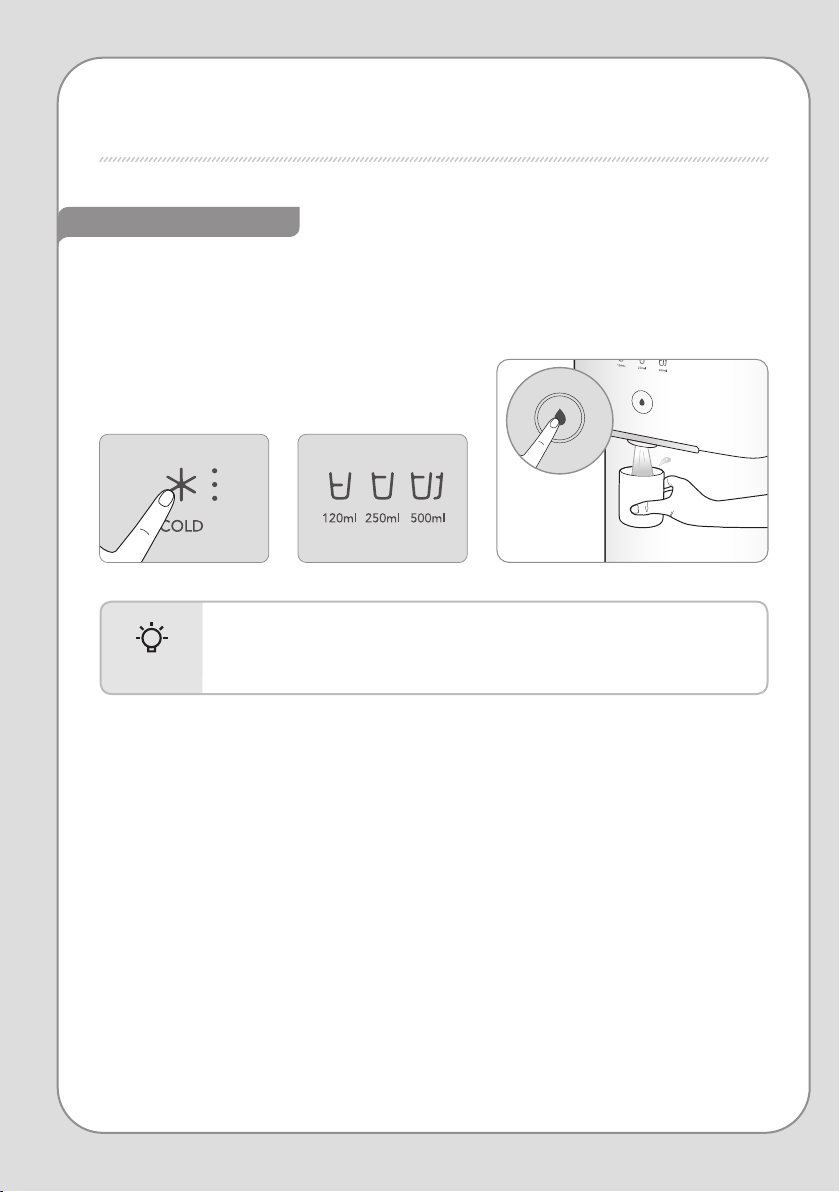

HOW TO GET THE DESIRED WATER
▶ ▶
Check the cold water temperature indicator and touch the cold water button, and then touch the quantity
button to set the amount of water you want. Press the dispense button to get your selected amount of cold
water. Press the dispense button again while dispensing to stop the water. To continuously get cold water,
press and hold for at least 3 seconds. You will get a stream of cold water for about 3 minutes. Press the
dispense button again while dispensing to stop the water.
How to Get Cold Water
- If cold water is not dispensed from the water purier, check that the cold water
indicator is lit up on the display(see p. 11).
- If water is not dispensed from the water purier, check whether the low water
level indicator is lit up on the display(see p. 12)
Tips
