Multimedia Presentation System
200: MPS-200
Introduction
Features and Functions
• System switcher, audio processor, and control system
• Out-of-the-box switching and audio control
• Four video/HDTV and four RGB/computer inputs
• Built-in input signal sensing | auto-switching capable
• Separate display and touchpanel preview outputs
• QuickMedia™ and Crestron Home®CAT5 AV connectivity
• Eight balanced stereo audio inputs | Two gated mic inputs
• Discrete program, speech, and record outputs
• 12-band parametric/graphic equalization and delay
• Built-in 40 watt amplifier — stereo, 70V, or 100V models available
• 2-Series control engine | e-Control®2 Web server
• 10/100 Ethernet | RoomView®and SNMP support
• Two RS-232, four IR, four digital in, & four relay control ports
• Front panel setup and control | Backlit LCD display
• Keypad, touchpanel, and wireless control options
• Internal power supply | two-space rack-mountable
The MPS-200 is a complete presentation control and signal routing solution for
boardrooms and classrooms. Integrating the control system, multimedia switcher,
audio processor, and amplifier into a single two-space rack mount package, the
MPS-200 eliminates the need for separate components without forfeiting
performance or flexibility.
System Switcher
The MPS-200 provides switching of four video and four RGB computer sources to a
single projector or plasma display. Composite, S-video, component and RGBHV
signals can be routed to the appropriate inputs on the display device, with control of
the display provided via Ethernet, RS-232 or IR. Input signal sensing on every video
and RGB input enables auto-switching functionality and provides device power
Operations Guide – DOC. 6528B Multimedia Presentation System 200: MPS-200 •1

Multimedia Presentation System 200 Crestron MPS-200
status information to the control system. Selectable sync impedance on the RGB
inputs helps accommodate cable runs of varying lengths.
Touchpanel Output
A second discrete output is provided on the MPS-200 to feed a preview signal to the
system touchpanel or other monitor. This output is controlled separately from the
main display output, allowing a different source to be viewed. The touchpanel output
provides a choice of QuickMedia™ (QM) or Crestron Home (CH) CAT5 balanced
video connections, simplifying wiring to a wide range of Crestron®touchpanels. The
QM output supports high-resolution RGB and HDTV plus audio, while the CH
output is limited to standard video and HDTV only (dependent upon the capabilities
of the touchpanel). RGBHV inputs are only displayed on the QM output.
QuickMedia
The QM touchpanel output can also be used to feed signals straight to the primary
display device, providing a very streamlined, low-cost, long-distance wiring solution.
Crestron's QuickMedia transport transmits high-resolution RGB, HD video, stereo
program and microphone audio signals up to 450 feet over a single inexpensive
CAT5e type cable. Just one CresCAT-QM cable and a QM receiver are all that is
required for complete signal routing and device control, eliminating all the bulky,
expensive cabling that would otherwise be needed.
Audio Features
Eight stereo audio inputs accept balanced or unbalanced line-level signals from
computers and other program audio sources. To accommodate a wide range of
signals, adjustable input compensation is used to maintain consistent volume levels
when switching between sources. In addition to the eight program inputs, two gated
microphone/line inputs are included with software-switchable 48V phantom power
and independent four-band speech-optimized equalization. Matrix mixing allows the
selected program signal and the microphone signals to be separated or mixed in any
combination to feed three “local” outputs, each with its own unique mix.
Three discrete balanced line level outputs are provided, each with independent
adjustments for volume, bass, treble, and mute. The stereo program (PROG OUT)
and mono speech (SPEECH) outputs are normally intended for driving external
amplification, with relay muting on each output to prevent "thumping" on power up.
The record (REC OUT) output allows for a completely separate stereo mix to feed a
codec, recording device, or assistive listening system. Ten-band graphic equalization
plus 2-band parametric equalization on each output eliminates the need for expensive
outboard audio processors, and up to 40 ms delay adjustment is available on the
SPEECH output for proper loudspeaker alignment.
The QM touchpanel output is controlled separately from the other audio outputs,
allowing a different program source and microphone mix to be monitored on the
touchpanel, or output to other audio equipment by way of an appropriate QM
receiver or other QuickMedia device.
Built-in Amplifier
A 40-watt amplifier (20 watts x2) is built into the MPS-200, with three models
available offering the choice of 8-ohm stereo (MPS-200), 70V mono
(MPS-200-70V), or 100V mono (MPS-200-100V) outputs. The term “MPS-200” is
used throughout this guide to denote all models. For larger rooms requiring more
power, the MPS-200 supports plug-and-play compatibility with Crestron's
QM-Series 3-channel amplifiers, providing a complete solution for driving a
professional loudspeaker system with discrete program and speech channels.
2 •Multimedia Presentation System 200: MPS-200 Operations Guide – DOC. 6528B

Crestron MPS-200 Multimedia Presentation System 200
Front Panel Control
Out of the box, the MPS-200 front panel supports easy pushbutton routing of input
sources to each of the outputs, and audio volume adjustment using the volume
control knob. Dedicated buttons and indicators are also provided for separate control
of system power and projector power. In addition, five preset buttons are included
for custom functions such as lowering a projection screen, closing blinds, or
selecting a lighting preset.
The front panel label strips can be customized using Crestron Engraver software or
standard 3/8" tape labels, allowing for the clear designation of each input, output,
and preset button. When selected, these functions will also appear on the LCD
display as generic names (Input 1, 2, etc.), or as custom names (DVD, Podium PC,
Screen Up, etc.) which are easily entered using MediaManager Wizard software.
Setup can be accomplished using the LCD front panel; a computer is not needed.
Together with four softkey buttons, four menu navigation buttons and the volume
knob, the LCD enables configuration of IP network, audio, and other system settings.
For security, the front panel controls can be password protected or locked out.
2-Series Control System
Integrated into the MPS-200 is a Crestron 2-Series Ethernet control system with
e-Control®2 Web server and a host of RS-232, IR, digital input and relay control
ports for integration with third-party equipment. A basic AV presentation room with
projector, screen, keypad or small touchpanel, and wireless remote control can be set
up with MediaManager Wizard software. Or, a custom system can be programmed
using SystemBuilder™ or SIMPL™ Windows®software. Either way, the MPS-200
works with Crestron's RoomView help desk software, the industry's most
comprehensive facility-wide asset management solution.
Room Control Options
Without requiring any programming, the MPS-200 can be controlled using
Crestron's APAD LCD Controller or a selection of keypads such as the C2N-DB12,
CNX-B12, and C2N-FTB. With custom programming, Crestron's complete line of
Isys®touchpanels and MediaManager FlipTops are supported. Equipped with an
optional CNXRMIRD IR receiver, the MPS-200 allows any Crestron IR wireless
touchpanel or third-party universal remote to be used for a low-cost wireless control
solution. Or, adding an RF wireless gateway, infiNET™, or WiFi wireless LAN
connection enables use of a wide range of one-way and two-way RF wireless
handheld remotes and touchpanels.
Operations Guide – DOC. 6528B Multimedia Presentation System 200: MPS-200 •3

Multimedia Presentation System 200 Crestron MPS-200
Applications
The following diagram shows an MPS-200 in a lecture hall application.
MPS-200 in a Lecture Hall Application
For more information on this and other QM applications, refer to the latest revision
of the Crestron MediaManager Applications Guide (Doc. 6244), which is available
from the Crestron website (http://www.crestron.com/manuals).
4 •Multimedia Presentation System 200: MPS-200 Operations Guide – DOC. 6528B

Crestron MPS-200 Multimedia Presentation System 200
Internal Block Diagram
The following diagrams represent the video and audio switching abilities of the
MPS-200. For more information refer to “Configuration ” on page 35.
Video Block Diagram of the MPS-200
Composite
S-Video
Component
RGBHV
VIDEO OUTPUTS
CH
BALANCED
VIDEO OUT
RJ-45
RGBHV*/Vid
/S-Vid/
Component
QM OUT
OUT 2
TOUCH
PANEL
PORT
Analog
Video to
QM
Analog
Video to
CH
OUT 1
Select
1 of 4
8x2
Matrix
Switch
Select
1 of 4
* RGBHV on QM OUT only.
RGBHV
5
Vid/S-Vid/Component
1
Vid/S-Vid/Component
2
Vid/S-Vid/Component
3
Vid/S-Vid/Component
4
6
RGBHV
RGBHV
7
RGBHV
8
The signal type routed to OUT 1 is the same as the input signal type. For example,
an S-video input signal will appear on the S-video output terminals when the signal
is routed to OUT 1. The MPS-200 does not convert input signal formats.
Operations Guide – DOC. 6528B Multimedia Presentation System 200: MPS-200 •5

Multimedia Presentation System 200 Crestron MPS-200

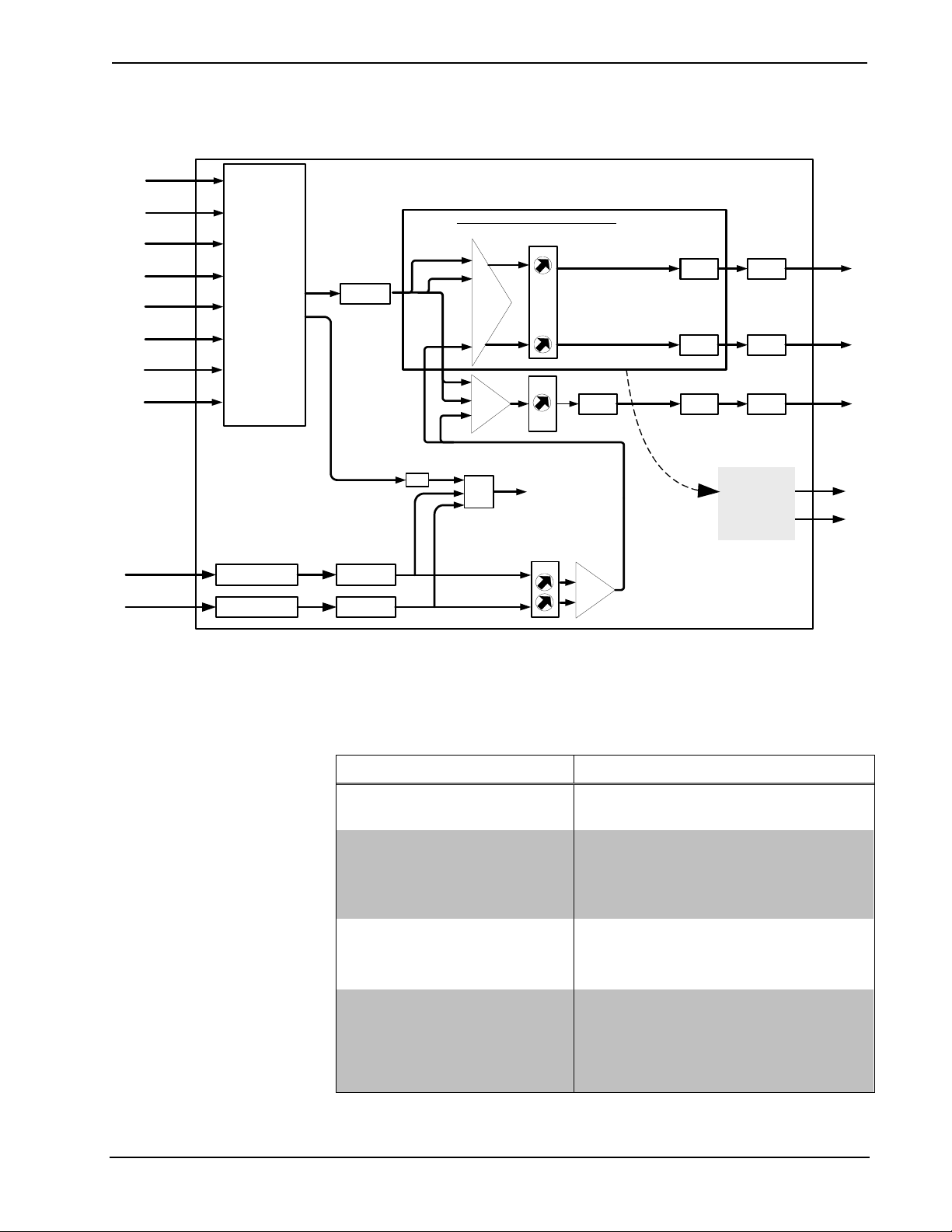

Audio Block Diagram of the MPS-200
A/D
A/D
A/D
Local Mic
Local Mic
1
2
Vol/EQ
L
R
3
Channel
Mixer
D/A Mute
Speech
With Phantom Power
With Phantom Power
Gating
Gating
Record Out
Replicate This Section for Record Out
Replicate of
Program Output
Section with Line
Level Out
L
R
Vol/EQ
2
Channel
Mixer
QM
A/D
QM
ENCODER
Stereo
8x2
Matrix
Switch
Vol/EQ
3
Channel
Mixer
Delay
D/A Mute
D/A
Program L
Program R
D/A Mute
Stereo Audio
1
2
3
4
Stereo Audio
Stereo Audio
Stereo Audio
Stereo Audio
5
6
7
8
Stereo Audio
Stereo Audio
Stereo Audio
INPUTS OUTPUTS
Specifications
Specifications for the MPS-200 are listed in the following table.
MPS-200 Specifications
SPECIFICATION DETAILS
Processor
CPU 32-bit Freescale ColdFire®Microprocessor
Memory
SDRAM
NVRAM
Flash
32 MB
256 KB
16 MB
Operating System Real-time, preemptive, multitasking kernel,
multi-threaded, FAT32 file system with long
names; supports SIMPL Windows and
SIMPL+®
Ethernet 10/100BaseT, static IP or DHCP/DNS, SSL,
auto-negotiating, full duplex TCP/IP,
UDP/IP, CIP, SMTP, SNMP, built-in Web
server and e-mail client; supports Crestron
e-Control®2 XPanel and RoomView®
applications
(Continued on following page)
6 •Multimedia Presentation System 200: MPS-200 Operations Guide – DOC. 6528B

Crestron MPS-200 Multimedia Presentation System 200
MPS-200 Specifications (Continued)
SPECIFICATION DETAILS
Video/RGB
Switcher
Signal Types
Video/HDTV Formats
RGB Formats
Maximum Resolution
Blanking Time
Sync Rise/Fall Time
Sync Latency
Gain
8x2(x5) crosspoint matrix, 1x4 video/RGB
output selector
RGB and composite, S-video, or
component video (does not transcode)
NTSC or PAL, HDTV up to 1080i/1080p
RGBHV or RGBS
QXGA 2048 X 1536 @ 60Hz
(WUXGA 1920 X 1200 @ 60Hz via QM)
< 0.1 second
3.5 ns maximum
< 30 ns
0dB (75 ohms terminated)
Audio
Switcher/Preamp
A-D/D-A Conversion
Output Volume Range
Mixer Volume Range
Mute
Input Compensation
Mic Input Gain
Gate Level (Threshold)
Attack
Decay (Release)
Microphone EQ Filter Gain
Mic EQ Filter Center
Frequencies
Bass Gain Range
Treble Gain Range
Output Equalization
PEQ Filter Gain
PEQ Filter Bandwidth
PEQ Filter Center Frequency
PEQ Filter Types
8x2 stereo crosspoint matrix, 2-channel
gated mic preamp w/EQ, 4x5 mic/program
matrix mixer, stereo volume/tone control
and EQ per each of PROGRAM and
RECORD outputs, mono volume/tone
control and EQ/delay on SPEECH output,
integrated power amplifier
24-bit, 48 kHz
-80dB to +20dB, 0.1dB steps
-80dB to 0dB, 0.1dB steps
-100dB (electronic), -120dB (relay)
±10dB, 0.1dB steps
0 to 100% (40dB range) plus mute
0 to 100%
0 to 100 ms
0 to 5000 ms
±12dB, 0.1dB steps
160, 500, 1.2k, 3k Hz
±12dB @ 100Hz, 0.5dB steps
±12dB @ 10kHz, 0.5dB steps
10-band graphic + 2-band parametric
±12dB, 0.1 dB steps
0.1 to 3.0 octaves, 0.1 octave steps
25Hz to 20kHz, 0.5Hz steps
Low Pass, High Pass, Peaking Eq, Notch,
Treble Shelf, Bass Shelf
(Continued on following page)
Operations Guide – DOC. 6528B Multimedia Presentation System 200: MPS-200 •7

Multimedia Presentation System 200 Crestron MPS-200
MPS-200 Specifications (Continued)
SPECIFICATION DETAILS
Audio (continued)
GEQ Filter Gain
GEQ Filter Center
Frequencies
Speech Output Delay
Frequency Response
PROG/REC OUT
SPEECH OUT
SPEAKER (8 ohms)
SPEAKER (70V or 100V)
S/N Ratio
PROG/REC OUT
SPEECH OUT
SPEAKER (8 ohms)
SPEAKER (70V or 100V)
THD+N
PROG/REC OUT
SPEECH OUT
SPEAKER (8 ohms)
SPEAKER (70V or 100V)
Stereo Separation
PROG/REC OUT
SPEAKER (8 ohms)
Channel Crosstalk
±12dB, 0.1dB steps
31.5, 63, 125, 250, 500, 1k, 2k, 4k, 8k,
16k Hz
0 to 40 ms, 1 ms steps
20Hz to 20kHz ±0.5dB
50Hz to 20kHz ±0.5dB
20Hz to 20kHz ±0.5dB
100Hz to 20kHz ±1.5dB
90dB
(@ 10dBV, 20Hz to 20kHz A-weighted)
90dB
(@ 10dBV, 50Hz to 20kHz A-weighted)
90dB
(full output, 20Hz to 20kHz A-weighted)
90dB
(full output, 20Hz to 20kHz A-weighted)
0.05% (@ 10dBV, 20Hz to 20kHz)
0.05% (@ 10dBV, 50Hz to 20kHz)
0.7% (full output, 20Hz to 20kHz)
0.7%
(full output, 100Hz to 20kHz A-weighted)
-75dB (@ 10dBV, 20Hz to 20kHz)
-60dB (full output, 20Hz to 20kHz
-70dB (AUD IN @ 10dBV, 20Hz to 20kHz)
LCD Display Green LCD alphanumeric, adjustable
backlight. Two lines x 20 characters per
line. Displays input/outputs by name,
volume level bargraph, setup menus,
time/date, and other system information
Power Requirements
Main Power
Available Cresnet Power
2.5 Amps @ 100-240 Volts AC, 50/60 Hz
30 Watts
Environmental
Temperature
Humidity
41° to 104°F (5° to 40°C)
10% to 90% RH (non-condensing)
(Continued on following page)
8 •Multimedia Presentation System 200: MPS-200 Operations Guide – DOC. 6528B

Crestron MPS-200 Multimedia Presentation System 200
MPS-200 Specifications (Continued)
SPECIFICATION DETAILS
Enclosure
Chassis
Faceplate
Mounting
Steel, black matte powder coat finish,
convection-cooled, vented top and sides
Extruded aluminum, black matte powder
coat finish with polycarbonate label overlay
Freestanding or 2U 19-inch rack-mountable
(adhesive feet and rack ears included)
Dimensions
Height
Width
Depth
3.47 in (8.81 cm)
17.03 in (43.24 cm);
19.00 in (48.26 cm) with ears
12.54 in (31.86 cm)
Weight:
MPS-200
MPS-200-70V
MPS-200-100V
9.5 lbs (4.3 kg)
11.3 lbs (5.1 kg)
11.3 lbs (5.1 kg)
Available Models:
MPS-200
MPS-200-70V
MPS-200-100V
Multimedia Presentation System 200
w/Stereo Amplifier
Multimedia Presentation System 200 with
70 Volt Amplifier
Multimedia Presentation System 200 with
100 Volt Amplifier
Available Accessories:
APAD
C2N-DB12
C2N-FTB
C2N-MNETGW
CLS-C6(M)
CLW-DIM1RF and
CLW-SW1RF
CNSP-XX
CNX-B12
CNXRMIRD
IRP2
QM-AMP3X80MM
QM-AMP3X80SR
Wall Mount LCD Controller
12-Button Decorator Keypad
FlipTop Control Center
InfiNET Gateway
iLux Integrated Lighting System
InfiNET Dimmer and Switch
Custom Serial Interface Cable
12-Button Designer Keypad
IR Receiver
IR Probe
3-Channel Multimedia Amplifier
3-Channel Sound Reinforcement Amplifier
Operations Guide – DOC. 6528B Multimedia Presentation System 200: MPS-200 •9

Multimedia Presentation System 200 Crestron MPS-200
Physical Description
This section provides information on the connections, controls and indicators
available on your MPS-200.

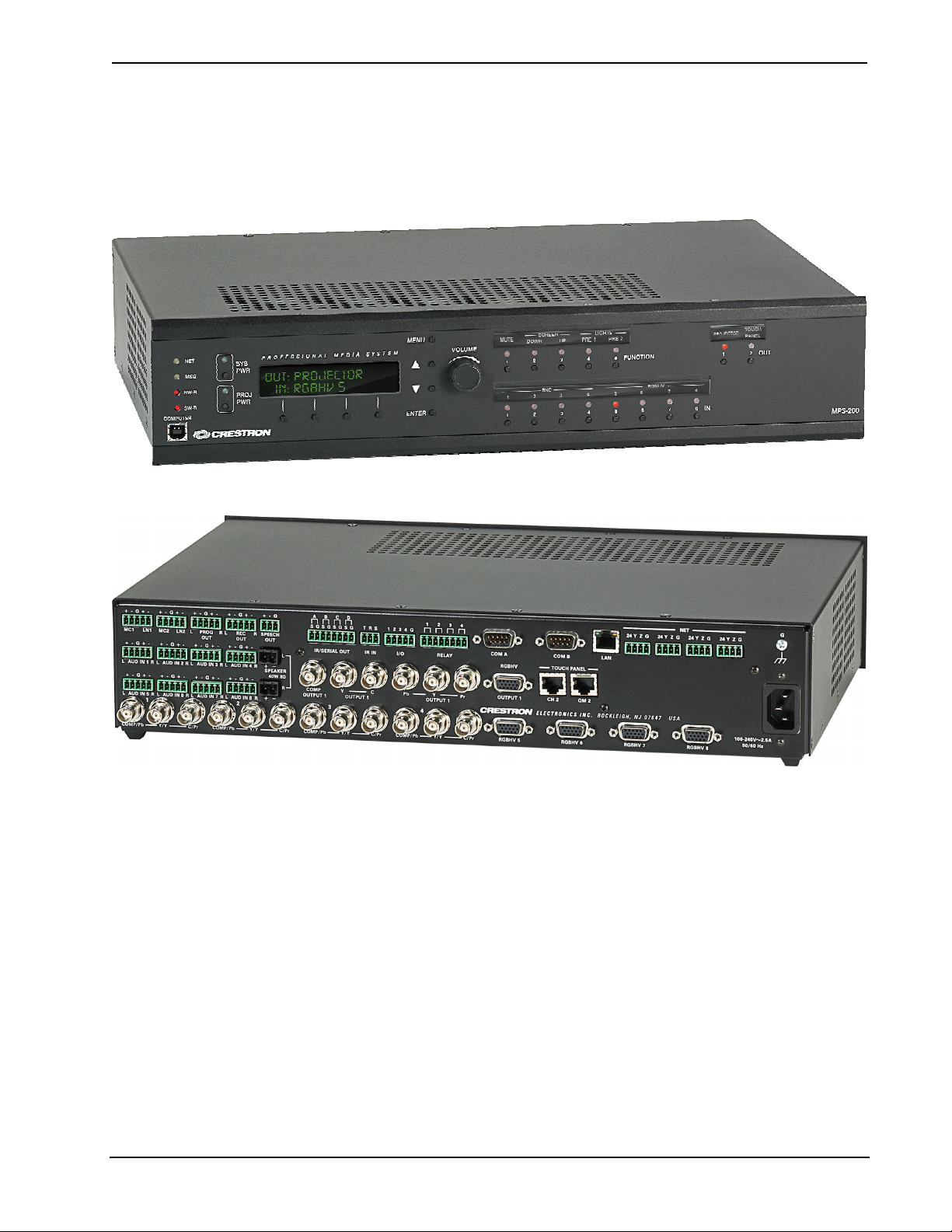

MPS-200 Physical View (Front)
MPS-200 Physical View (Rear)
10 •Multimedia Presentation System 200: MPS-200 Operations Guide – DOC. 6528B

Crestron MPS-200 Multimedia Presentation System 200

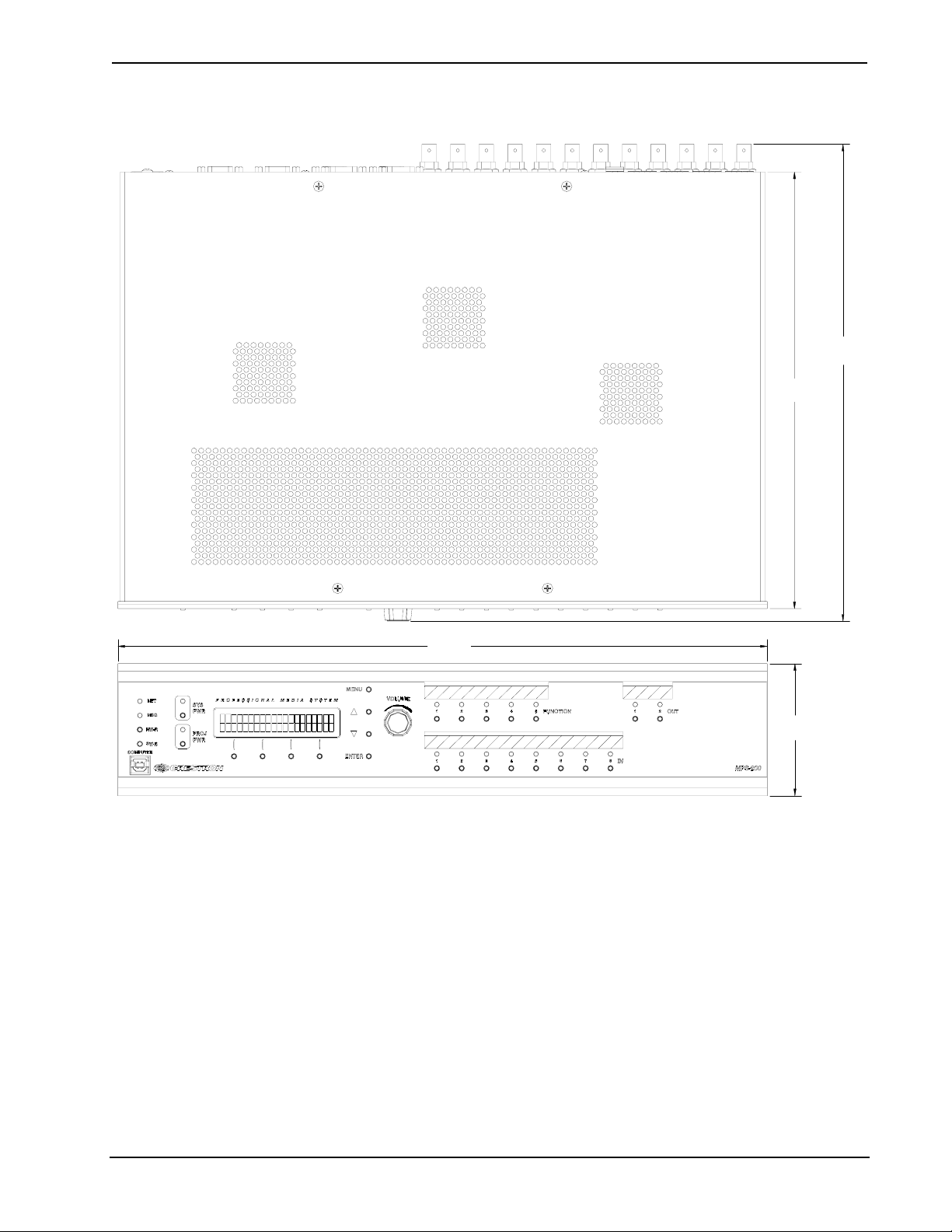

MPS-200 Overall Dimensions
11.47 in
(29.13 cm)
12.54 in
(31.86 cm)
17.03 in
(43.24 cm)
3.47 in
(8.81 cm)
Operations Guide – DOC. 6528B Multimedia Presentation System 200: MPS-200 •11

Multimedia Presentation System 200 Crestron MPS-200
MPS-200 Buttons and Ports
1
2
3
4
5
6
7
15
8
9
10
11
12 16
17
20
25
28
19 21
23
24
22 2618 29
30
31 3213 14 27
12 •Multimedia Presentation System 200: MPS-200 Operations Guide – DOC. 6528B

Crestron MPS-200 Multimedia Presentation System 200
Connectors, Controls & Indicators
# CONNECTORS1,
CONTROLS &
INDICATORS
DESCRIPTION
1 NET LED Indicates communication with Cresnet devices.
2 MSG LED Illuminates when a message is present in the
message log. To view the contents of the
message log, use the front panel buttons or
Crestron Toolbox.
3 & 4 RESET BUTTONS HW-R – Initiates system hardware reset.
SW-R – Pressing this in combination with
HW-R button performs a system restart without
loading the program. Pressing it alone
momentarily while the system is running
restarts the program.
5 COMPUTER
Pin 1 Pin 2
Pin 4 Pin 3
(1) USB Type B female USB 1.1 computer
console port (cable included)
PIN DESCRIPTION
1 +5 VDC
2 Data -
3 Data +
4 Ground
6 MC/LN 1 – 2
(2) 5-pin 3.5mm detachable terminal blocks;
Comprises (2) Balanced microphone/line
inputs;
Balanced Mic Input Level: -52 to -12 dBV,
240 mVrms maximum;
Balanced Line Input Level: -28 to +11 dBV;
3.7 Vrms maximum;
Unbalanced Line Input Level: -34 to +5 dBV;
1.85 Vrms maximum;
Mic Input Impedance: 3.9k ohms, accepts 60
to 600 ohm source;
Line Input Impedance: 19k ohms (balanced),
9.5k ohms (unbalanced);
Phantom Power: 10 mA (total) @ 48 Volts DC,
software enabled to both mic inputs
7 AUDIO INPUTS 1-8
(8) 5-pin 3.5mm detachable terminal blocks;
Balanced/unbalanced stereo line-level inputs;
Input Impedance: 24k ohms
balanced/unbalanced;
Balanced Input Level: -20 to +12 dBV;
4 Vrms maximum;
Unbalanced Input Level: -20 to +6 dBV;
2 Vrms maximum
(Continued on following page)
Operations Guide – DOC. 6528B Multimedia Presentation System 200: MPS-200 •13

Multimedia Presentation System 200 Crestron MPS-200
Connectors, Controls & Indicators (Continued)
# CONNECTORS1,
CONTROLS &
INDICATORS
DESCRIPTION

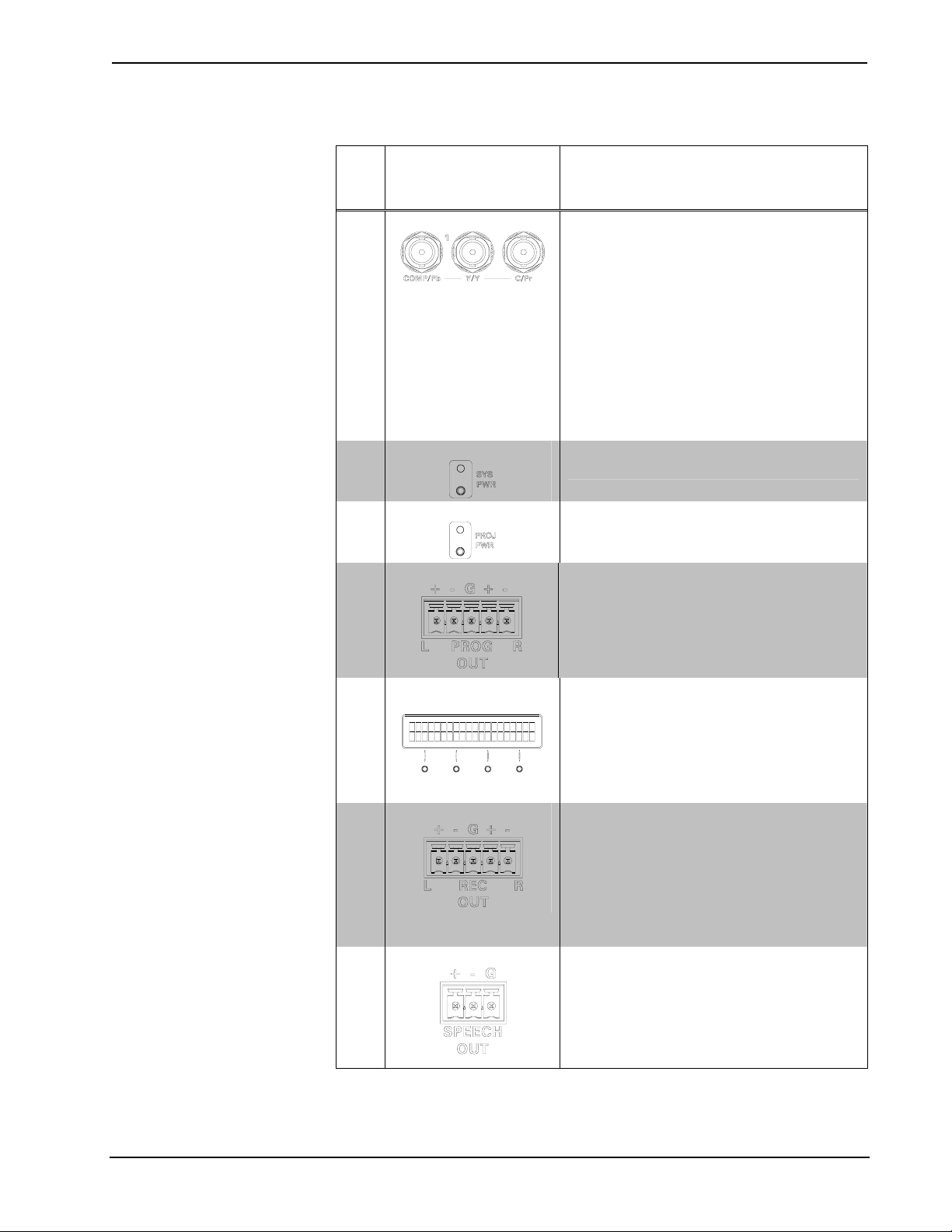

8 VIDEO INPUTS 1 - 4
(4) sets of (3) BNC female video inputs, each
set configurable as:
• (1) Component/HDTV (YPbPr) video
input, or
• (1) S-video (Y/C) input, or
• (1) Composite input
Input Level: 1 Vp-p nominal;
Input Impedance: 75 ohms nominal;
DC Offset: Insensitive to DC offset (AC
coupled);
Video signal sensing on COMP/Pband Y/Y
9 SYSTEM POWER
(1) pushbutton and green LED, controls
system power
10 PROJECTOR POWER
(1) pushbutton and green LED, controls
display device power
11 PROGRAM OUT (L/R)
(1) 5-pin 3.5 mm detachable terminal block;
Balanced/unbalanced stereo line-level output;
Output Impedance: 200 ohms balanced,
100 ohms unbalanced;
Maximum Output Level: 4 Vrms balanced,
2 Vrms unbalanced
12 LCD DISPLAY AND
SOFT BUTTONS
Green LCD alphanumeric, adjustable
backlight; 2 lines x 20 characters per line;
Displays input/outputs by name, volume level
bargraph, setup menus, time/date, and other
system information
(4) pushbuttons for activation of LCD driven
functions and passcode entry
13 REC OUT (1) 5-pin 3.5mm detachable terminal block;
Balanced/unbalanced, stereo line-level output;
Output Impedance: 200 ohms balanced,
100 ohms unbalanced;
Maximum Output Level: 4 Vrms balanced,
2 Vrms unbalanced
Note: Does not include relay mute
14 SPEECH OUT (1) 3-pin 3.5mm detachable terminal block;
Balanced/unbalanced mono line-level output;
Output Impedance: 200 ohms balanced,
100 ohms unbalanced;
Maximum Output Level: 4 Vrms balanced,
2 Vrms unbalanced
(Continued on following page)
14 •Multimedia Presentation System 200: MPS-200 Operations Guide – DOC. 6528B

Crestron MPS-200 Multimedia Presentation System 200
Connectors, Controls & Indicators (Continued)
# CONNECTORS1,
CONTROLS &
INDICATORS
DESCRIPTION
15 SPEAKER OUTPUTS
(1 or 2) 2-pin 7.62mm detachable terminal
blocks; Speaker-level audio outputs
(MPS-200);
(1) 2-pin 7.62mm detachable terminal blocks;
Speaker-level audio outputs (MPS-200-70V
and MPS-200-100V)
Wire Size: Connector accepts 12 AWG
maximum
Output Power (MPS-200): 20W RMS per
channel stereo into 8 ohms, 4 ohms tolerant;
Output Power (MPS-200-70V): 40W RMS
mono at 70 Volts;
Output Power (MPS-200-100V): 40W RMS
mono at 100 Volts
16 NAVIGATION
BUTTONS
(4) Pushbuttons for navigating the
configuration menus of the MPS-200
17 IR/SERIAL OUT
(4) 2-pin 3.5mm detachable terminal blocks,
IR/Serial output ports; IR output up to 1.2 MHz;
One-way serial TTL/RS-232 (0-5 Volts)2up to
9600 baud
(Continued on following page)
Operations Guide – DOC. 6528B Multimedia Presentation System 200: MPS-200 •15

Multimedia Presentation System 200 Crestron MPS-200
Connectors, Controls & Indicators (Continued)
# CONNECTORS1,
CONTROLS &
INDICATORS
DESCRIPTION

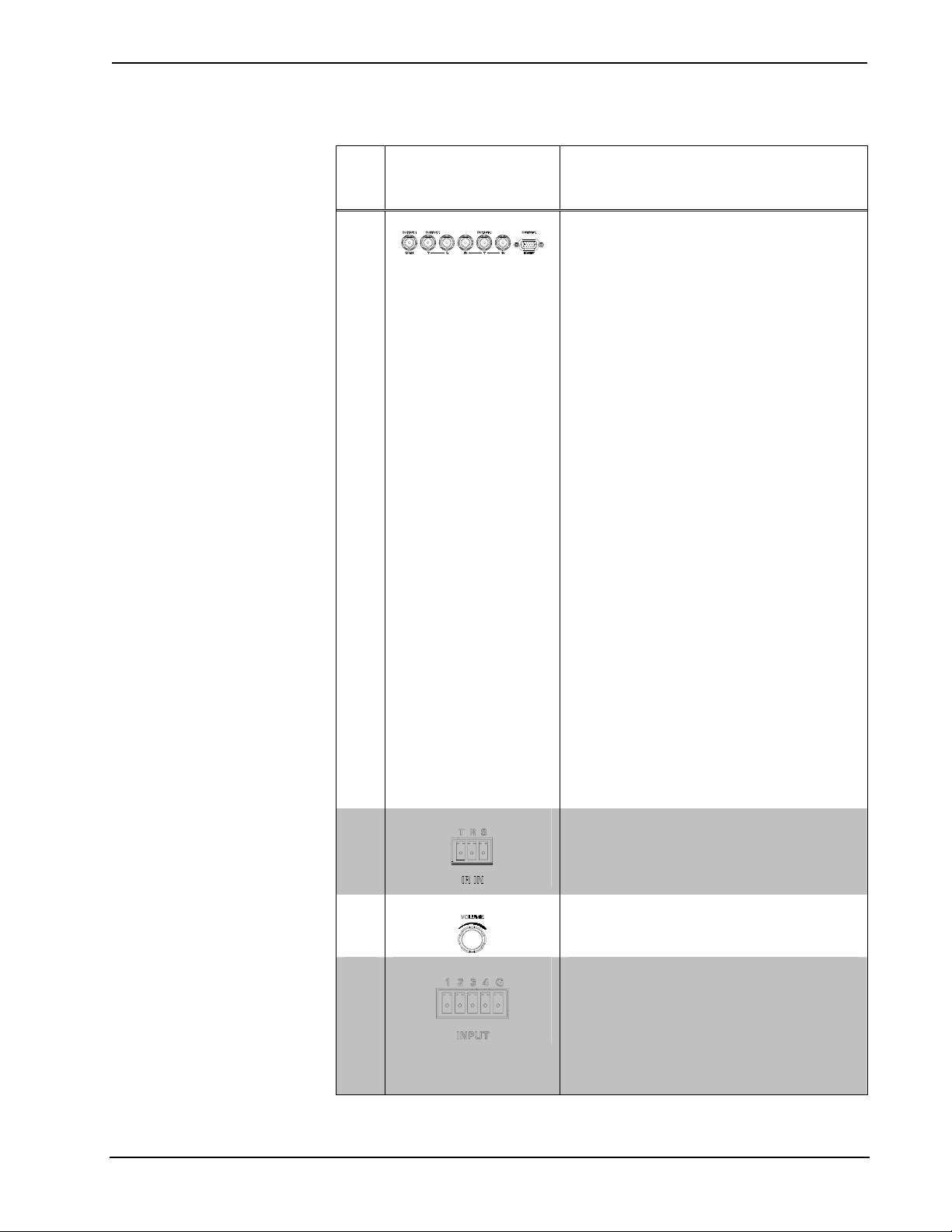

18 OUTPUT 1
Contains composite, S-video (Y/C),
component (Y, Pb, Pr) and RGBHV outputs on
six BNC connectors and one DB15HD
connector.
Composite Output:
(1) BNC female composite video output
Output Level: 1.0 to 1.1 Vp-p (terminated, with
1 Vp-p input)
Output Impedance: 75 ohms nominal
Y/C (S-video):
(2) BNC female; S-video (Y/C) video output
Output Level: 1.0 to 1.1 Vp-p (terminated, with
1 Vp-p input);
Output Impedance: 75 ohms nominal
Y/Pb/Pr(component) Output:
(3) BNC female; Component/HDTV (YPbPr)
video output
Output Level: 1.0 to 1.1 Vp-p (terminated, with
1 Vp-p input);
Output Impedance: 75 ohms nominal
RGBHV Output:
(1) DB15HD female, RGBHV (VGA) output;
Format: RGBHV or RGBS;
RGB Output Level: 0.7 to 0.75 Vp-p
(terminated, with 0.7 Vp-p input, unity gain);
RGB Output Impedance: 75 ohms nominal;
Sync Output Level: 4 to 5 Vp-p;
Sync Output Impedance: 55 ohms;
Sync Polarity: Follows input
19 IR IN
(1) 3-pin 3.5 mm detachable terminal block;
For connection of the CNXRMIRD IR Receiver
(sold separately);
Allows IR wireless control from Crestron or
third-party remotes using RC-5 IR commands.
20 VOLUME CONTROL
(1) Continuous turn rotary encoder, adjusts
menu parameters, defaults to program audio
volume
21 INPUT
(1) 5-pin 3.5mm detachable terminal block;
Comprises (4) digital/contact closure inputs;
Rated for 0-24 Volts DC, referenced to GND;
Input Impedance: 2.2k ohms pulled up to 5
Volts DC;
Logic Threshold: 2.5 Volts DC nominal with
1 Volt hysteresis band
(Continued on following page)
16 •Multimedia Presentation System 200: MPS-200 Operations Guide – DOC. 6528B
