Crestron HR-150 Dimensional drawing

DO GUIDE
DO Check the Box
QTY PRODUCT PART NUM.
4520730
4520731
2041725
4521158
4520696
4520697
4520761
1 Removable HR-100 Button Cover (2-Button)1
1 Removable HR-100 Button Cover (No Button)1
2 AAA Batteries (Set of Two)
1 Keycap Array (Four Sets of 25 Buttons)
1 Removable Button Cover (6-Button)2
1 Removable Button Cover (4-Button)2
1 Removable Button Cover (2-Button)2
1 Removable Button Cover (No Button)24520695
1. These items ship with the HR-100 only.
2. These items ship with the HR-150 only.
2. Remove the buttons, as desired.
HR-100/HR-150
Handheld Remote 34/50 Button
DO Change the Buttons and the Cover
The HR-100 and HR-150 ship with all of the buttons installed (four on the HR-100 and eight on
the HR-150). Both remotes can be used with none of the buttons installed or two of the buttons
installed. The HR-150 can also be used with four or six buttons installed. Both remotes ship with
alternate button covers.
To change the buttons and the cover, use the following procedure:
1. Gently separate the button cover from the remote.
Separate the button cover here.

DO GUIDE DOC. 7656A (2040909) 09.14
Specications subject to change without notice.

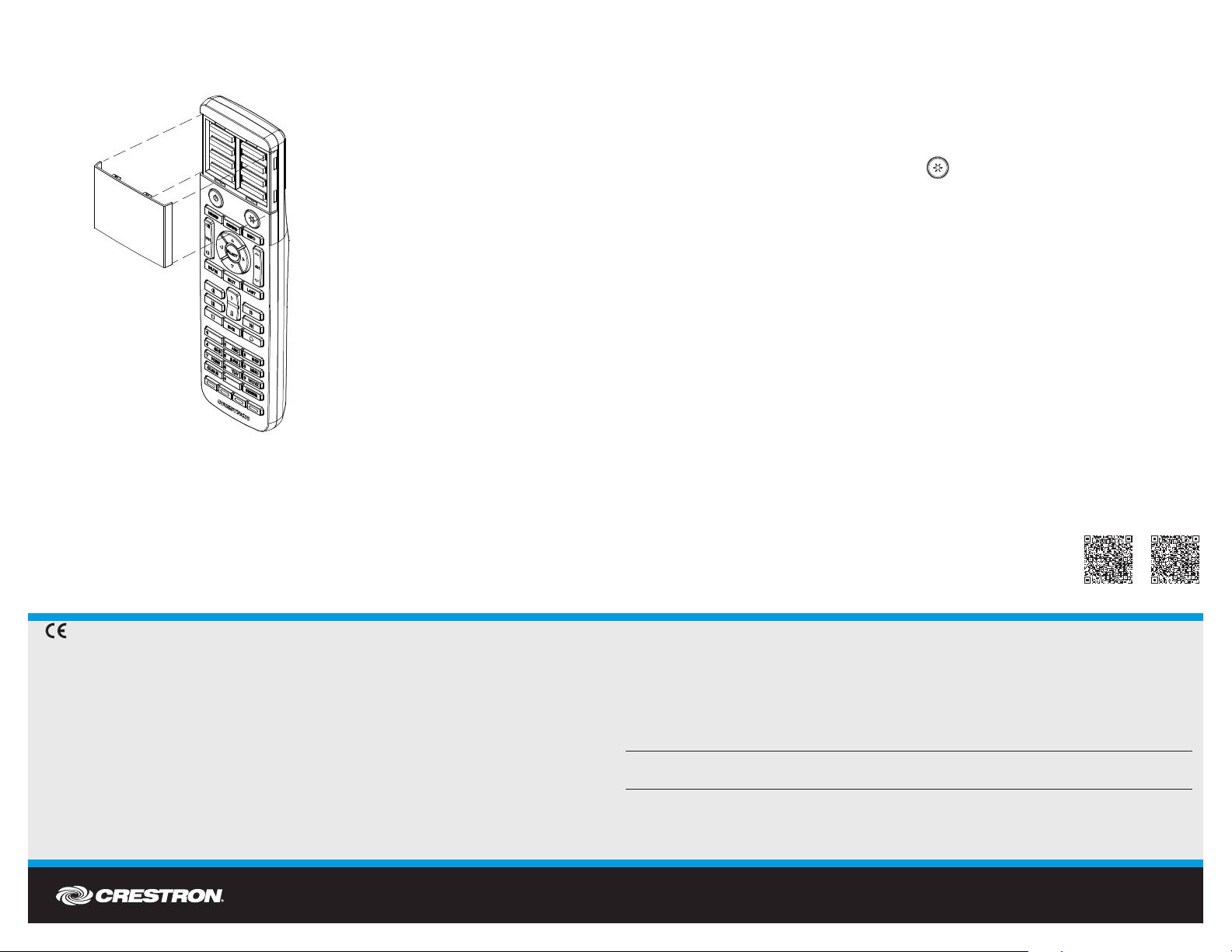

3. Gently snap the appropriate new button cover into place. DO Acquire the Remote
Before an HR-100 or HR-150 can be used with a Crestron®control system, it must rst be
acquired by a CEN-RFGW-EX inNET EX®Wireless Gateway or a control system with a built-in
inNET EX gateway (all sold separately).
1. Press the ACQUIRE button on the gateway to enter Acquire mode.
2. On the HR-100 or HR-150, press the Backlight button four times, holding it down
on the fourth press (press, press, press, press+hold). After a few seconds, the backlight
ashes, indicating the remote is now in Acquire mode. The remote is automatically
acquired by the gateway within two minutes. When the remote has joined the network, the
backlight turns on for ve seconds.
3. When the process is complete, press the ACQUIRE button on the gateway to exit Acquire
mode.
DO Learn More
Check the website for the latest rmware updates.
Crestron Electronics 15 Volvo Drive, Rockleigh, NJ 07647
888.CRESTRON | www.crestron.com
As of the date of manufacture, the product has been tested and found to comply with specications for CE marking.
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions:
(1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired
operation.
Caution: Changes or modications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the
equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the se paration between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Industry Canada (IC) Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not
cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the
transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Industrie Canada (IC) Déclaration de conformité
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d’en compromettre le fonctionnement.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou
inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs,
il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à
l’établissement d’une communication satisfaisante.
Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a limited non-exclusive, non-transferable Software Development Tools
License Agreement. Crestron product operating system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements
can be found on the Crestron website at www.crestron.com/legal/software_license_agreement.
The specic patents that cover Crestron products are listed at www.patents.crestron.com. Product warranty can be found at www.crestron.com/warranty.
Crestron, the Crestron logo, and inNET EX are either trademarks or registered trademarks of Crestron Electronics, Inc., in the United States and/or other countries. Other trademarks, registered
trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the
marks and names of others. Crestron is not responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2014 Crestron Electronics, Inc.
